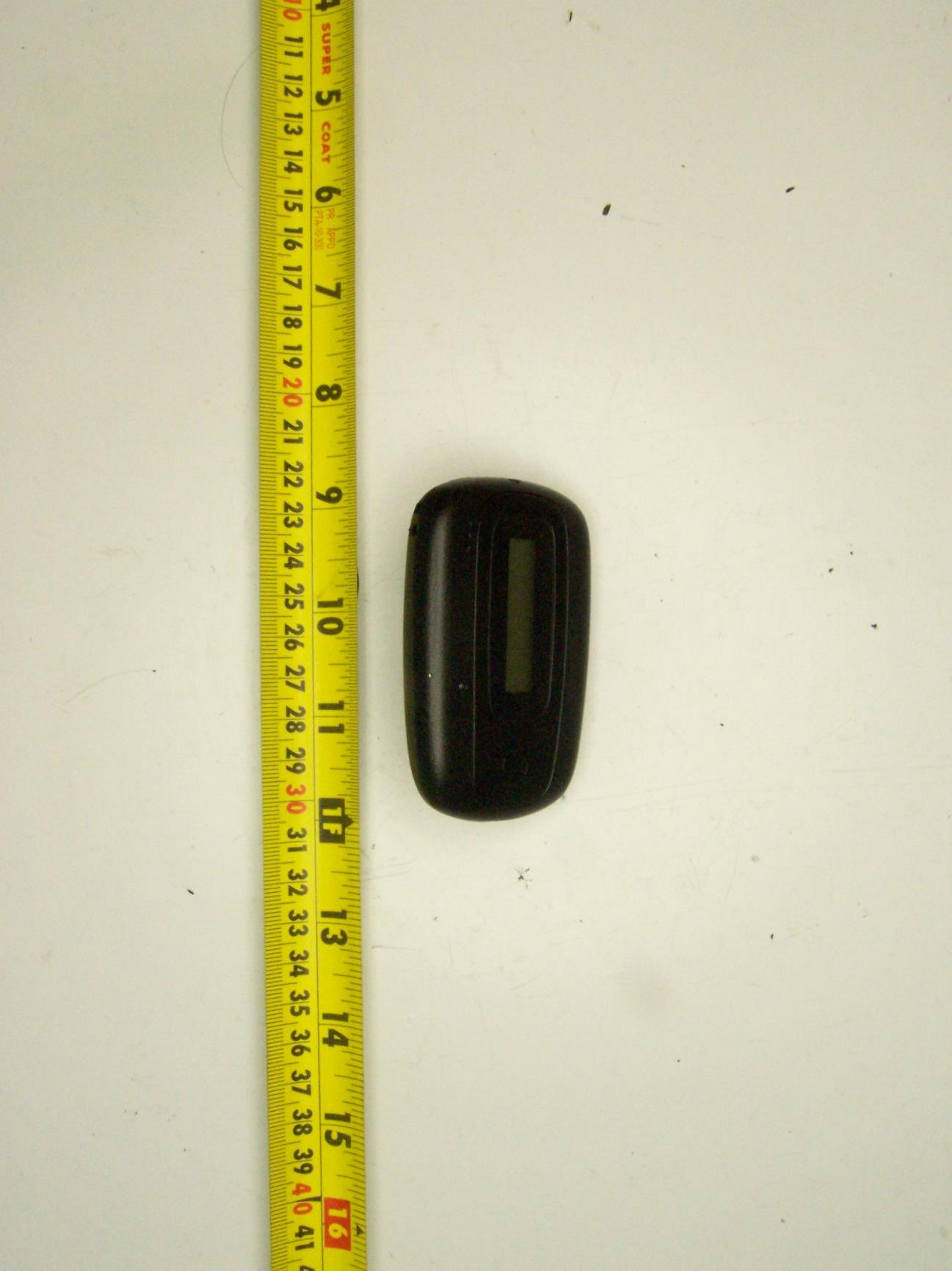

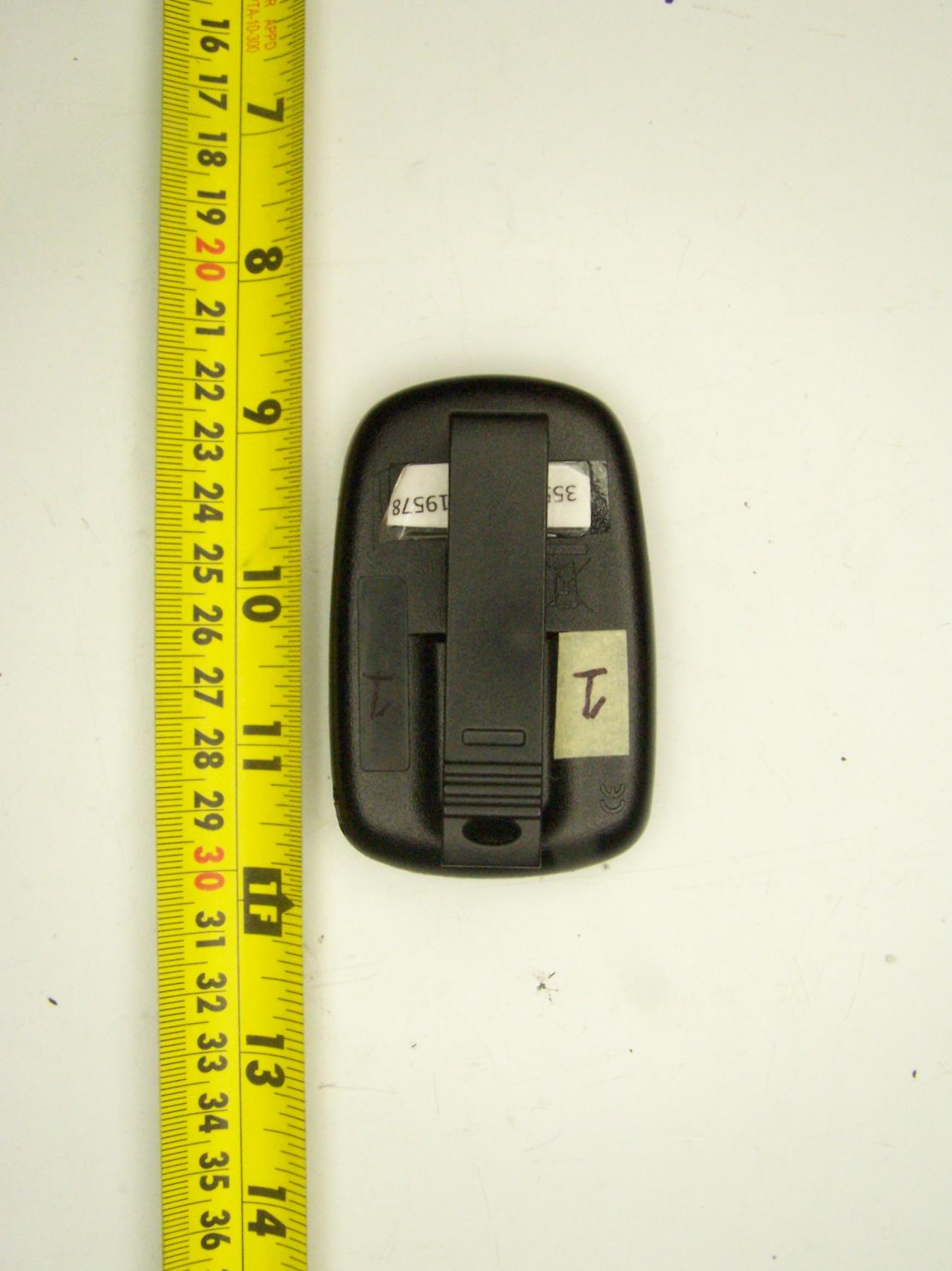

IGKDA118PPM 360 Meter

Page 1 of 1 Confidentiality Request Date: July 21, 2014 United States Federal Communications Commission Industry Canada MET Laboratories, Inc. Re: Confidentiality Request regarding application for certification of FCC ID: IGKDA118 IC: 4213A-DA118 To Whom It May Concern: We hereby request confidential treatment of information accompanying this application as outlined below:  Detailed Circuit Schematics of EUT--- (Long term)  Assembly Drawings of EUT---(Long term)  BOM--- (Long term)  Block Diagram--- (Long term)  Circuit Description--- (Long term)  Operational Technical Description--- (Long term)  Antenna Specifications/Drawings--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely Yours, Allen J. Zimmerman Product Documentation Management Nielsen Audio Inc.

Page 1 of 1 Declaration for the 15.247(g) and 15.247(h) statements Date: August 7, 2014 United States Federal Communications Commission Industry Canada MET Laboratories, Inc. Re: 15.247(g) and 15.247(h) To Whom It May Concern: Nielsen Audio Models DA118 and DA120 comply with 15.247, including 15.247(g) and 15.247(h). These units use Qualcomm BTS4025 System-on-Chip (SoC), with full support for the Bluetooth 2.1 + Enhanced Data Rate (EDR) specification. Confirmation of the support of the aforementioned Bluetooth 2.1 + Enhanced Data Rate (EDR) specification can be found at the following link: http://www.qualcomm.com/media/releases/2008/05/28/qualcomm-introduces-next-generation-solu tion-better-bluetooth-experience As you are no doubt aware, Bluetooth 2.1 + Enhanced Data Rate (EDR) specification has the following approval standards and authorities: North America: Approval Standards: Federal Communications Commission, FCC, USA Documents: CFR47, Part 15, Sections 15.205, 15.209, 15.247 and 15.249 Approval Standards: Industry Canada, IC, Canada Documents: GL36 Approval Authority: FCC (USA), Industry Canada (Canada) Sincerely Yours, Allen J. Zimmerman Product Documentation Management Nielsen Audio Inc.

G2V2 5413208T200 20140126 20140623Up date FCC IDIC Add logo 2.0

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 MET Report: EMC40578-SAR Rev. 1 © 2014, MET Laboratories, Inc. Page 1 of 27 Dosimetric Assessment Test Report for the Nielsen Audio Tested and Evaluated In Accordance With FCC OET 65 Supplement C: 01-01 Prepared for Nielsen Audio 9705 Patuxent Woods Drive Columbia, MD 21046 Engineering Statement: The measurements shown in this report were made in accordance with the procedures specified in Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] and Industry Canada RSS-102 for uncontrolled exposure. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment evaluated is capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1999. Nielsen Audio SAR Report MET Report: EMC40578-SAR Rev. 1 © 2014, MET Laboratories, Inc. Page 2 of 27 SAR Evaluation Certificate of Compliance APPLICANT: Nielsen Audio Applicant Name and Address: Nielsen Audio 9705 Patuxent Woods Drive Columbia, MD 21046 Test Location: MET Laboratories, Inc. 3162 Belick Street Santa Clara, CA 95054 USA EUT: PPM 360 Meter Test Dates: June26th- July9th RF exposure environment: Uncontrolled Exposure/General Population RF exposure category: Portable Power supply: Internal battery Antenna: Internal Production/prototype: Production Modulations Tested: GMSK Duty Cycle: 100% TX Range: 824-848 MHz GSM 850 1850-1909MHz GSM 1900 2402-2480MHz BT (Exempt from SAR Evaluation) Max SAR Measured: 0.796 mW/g Asad Bajwa, Director, Electromagnetic Compatibility Lab Nielsen Audio SAR Report MET Report: EMC40578-SAR Rev. 1 © 2014, MET Laboratories, Inc. Page 3 of 27 INTRODUCTION ......................................................................................................................................................... 4 SAR DEFINITION ........................................................................................................................................................ 4 DESCRIPTION OF DEVICE UNDER TEST (EUT) ................................................................................................... 5 SAR MEASUREMENT SYSTEM ............................................................................................................................... 6 MEASUREMENT SUMMARY.................................................................................................................................... 7 FLOW CHART OF THE RECOMMENDED PRACTICES AND PROCEDURES .................................................... 9 DATA EVALUATION PROCEDURES ...................................................................................................................... 14 SYSTEM PERFORMANCE CHECK ......................................................................................................................... 16 SIMULATED EQUIVALENT TISSUES .................................................................................................................... 17 SAR SAFETY LIMITS ............................................................................................................................................... 18 ROBOT SYSTEM SPECIFICATIONS ....................................................................................................................... 19 1.1. Specifications ............................................................................................................................................. 19 1.2. Data Acquisition Electronic (DAE) System: .............................................................................................. 19 1.3. Phantom(s): ................................................................................................................................................ 19 1.4. RX90BL Robot .......................................................................................................................................... 20 1.5. Robot Controller ........................................................................................................................................ 20 1.6. Light Beam Switch ..................................................................................................................................... 20 1.7. Data Acquisition Electronics ...................................................................................................................... 20 1.8. Electo-Optical Converter (EOC) ................................................................................................................ 21 1.9. Measurement Server................................................................................................................................... 21 1.10. Dosimetric Probe ................................................................................................................................... 21 1.11. SAM Phantom ....................................................................................................................................... 21 1.12. Planar Phantom ...................................................................................................................................... 21 1.13. Validation Planar Phantom .................................................................................................................... 21 1.14. Device Holder ................................................…

Text truncated - open the document above for the full version.

Nielsen Audio SAR Report MET Report: EMC40578-SAR © 2014, MET Laboratories, Inc. APPENDIX A - SAR MEASUREMENT DATA back side mid ch,836Mhz DUT: Nielsen Audio; Communication System: 850MHz GSM; ; Frequency: 836 MHz;Duty Cycle: 1:1 Medium: M900-B Medium parameters used: f = 836.41 MHz; σ = 0.94 mho/m; ε r = 53.07; ρ = 1000 kg/m 3 Phantom section: Flat Section - Probe: EX3DV4 - SN3722; ConvF(8.72, 8.72, 8.72); Calibrated: 7/29/2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn584; Calibrated: 7/18/2013 - Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 - Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan (71x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.775 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.7 V/m; Power Drift = -0.404 dB Peak SAR (extrapolated) = 1.12 W/kg SAR(1 g) = 0.709 mW/g; SAR(10 g) = 0.475 mW/g Maximum value of SAR (measured) = 0.764 mW/g back side mid ch,1880Mhz DUT: Nielsen Audio; Communication System: 1800MHz GSM; ; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: M1800 Medium parameters used: f = 1800 MHz; σ = 1.49 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section - Probe: EX3DV4 - SN3722; ConvF(7.1, 7.1, 7.1); Calibrated: 7/29/2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn584; Calibrated: 7/18/2013 - Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 - Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan (71x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.936 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.1 V/m; Power Drift = -0.198 dB Peak SAR (extrapolated) = 1.37 W/kg SAR(1 g) = 0.796 mW/g; SAR(10 g) = 0.559 mW/g Maximum value of SAR (measured) = 0.878 mW/g 0 dB = 0.878mW/g Nielsen Audio SAR Report MET Report: EMC40578-SAR © 2014, MET Laboratories, Inc. APPENDIX B - SYSTEM PERFORMANCE CHECK 835MHz validation DUT: Dipole 835 MHz; Communication System: CW; ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: M835 Medium parameters used: f = 835 MHz; σ = 0.94 mho/m; ε r = 53.07; ρ = 1000 kg/m 3 Phantom section: Flat Section - Probe: EX3DV4 - SN3722; ConvF(8.72, 8.72, 8.72); Calibrated: 7/29/2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn584; Calibrated: 7/18/2013 - Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 - Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.58 mW/g Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.3 V/m; Power Drift = 0.024 dB Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 2.38 mW/g; SAR(10 g) = 1.53 mW/g Maximum value of SAR (measured) = 2.56 mW/g 1800MHz Body validation DUT: D1800; Type: 1S2672 Communication System: CW; ; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: M1800 Medium parameters used: f = 1800 MHz; σ = 1.49 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section - Probe: EX3DV4 - SN3722; ConvF(7.1, 7.1, 7.1); Calibrated: 7/29/2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn584; Calibrated: 7/18/2013 - Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 - Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 d=10mm, Pin=250mW/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 12.0 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.0 V/m; Power Drift = -0.137 dB Peak SAR (extrapolated) = 19.2 W/kg SAR(1 g) = 10.5 mW/g; SAR(10 g) = 5.5 mW/g Maximum value of SAR (measured) = 11.9 mW/g

Nielsen Audio SAR Report MET Report: EMC40578-SAR © 2014, MET Laboratories, Inc. APPENDIX C – PROBE CALIBRATION CERTIFICATE

Nielsen Audio SAR Report MET Report: EMC40578-SAR © 2014, MET Laboratories, Inc. APPENDIX D – DIPOLE CALIBRATION CERTIFICATE

Nielsen Audio SAR Report MET Report: EMC40578-SAR © 2014, MET Laboratories, Inc. APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS Title SubTitle November 21, 2013 06:56 PM Frequency 800.000000 MHz 803.000000 MHz 806.000000 MHz 809.000000 MHz 812.000000 MHz 815.000000 MHz 818.000000 MHz 821.000000 MHz 824.000000 MHz 827.000000 MHz 830.000000 MHz 833.000000 MHz 836.000000 MHz 839.000000 MHz 842.000000 MHz 845.000000 MHz 848.000000 MHz 851.000000 MHz 854.000000 MHz 857.000000 MHz 860.000000 MHz 863.000000 MHz 866.000000 MHz 869.000000 MHz 872.000000 MHz 875.000000 MHz 878.000000 MHz 881.000000 MHz 884.000000 MHz 887.000000 MHz 890.000000 MHz 893.000000 MHz 896.000000 MHz 899.000000 MHz 902.000000 MHz e'e'' 53.473520.1925 53.428820.1918 53.388220.2009 53.334120.1701 53.311620.2121 53.284920.1774 53.257720.1875 53.199620.2031 53.166320.1932 53.148720.2109 53.121320.2154 53.094320.2198 53.074320.2272 53.037120.2462 53.000820.2213 52.980620.2395 52.928920.2150 52.901220.2252 52.908320.2117 52.887120.2086 52.856920.2089 52.829420.1868 52.815120.1706 52.795220.1672 52.778020.1416 52.741220.0917 52.747620.0996 52.710420.1029 52.674520.0532 52.692920.0355 52.634920.0364 52.627819.9920 52.592719.9689 52.586619.9399 52.568019.9314 905.000000 MHz 908.000000 MHz 911.000000 MHz 914.000000 MHz 917.000000 MHz 920.000000 MHz 923.000000 MHz 926.000000 MHz 929.000000 MHz 932.000000 MHz 935.000000 MHz 938.000000 MHz 941.000000 MHz 944.000000 MHz 947.000000 MHz 950.000000 MHz 52.540219.8852 52.515619.8997 52.489819.8839 52.474019.8796 52.451519.8575 52.390519.8404 52.384319.8325 52.367819.8489 52.349819.8355 52.307719.8619 52.271219.8509 52.261119.8294 52.238219.8633 52.188019.8529 52.151219.8623 52.116519.8758 Title SubTitle June 25, 2014 04:28 PM Frequency 1.750000000 GHz 1.752000000 GHz 1.754000000 GHz 1.756000000 GHz 1.758000000 GHz 1.760000000 GHz 1.762000000 GHz 1.764000000 GHz 1.766000000 GHz 1.768000000 GHz 1.770000000 GHz 1.772000000 GHz 1.774000000 GHz 1.776000000 GHz 1.778000000 GHz 1.780000000 GHz 1.782000000 GHz 1.784000000 GHz 1.786000000 GHz 1.788000000 GHz 1.790000000 GHz 1.792000000 GHz 1.794000000 GHz 1.796000000 GHz 1.798000000 GHz 1.800000000 GHz 1.802000000 GHz 1.804000000 GHz 1.806000000 GHz 1.808000000 GHz 1.810000000 GHz 1.812000000 GHz 1.814000000 GHz 1.816000000 GHz 1.818000000 GHz e'e'' 54.767814.8314 54.890914.8636 54.962314.8838 54.976714.8818 54.878914.8680 54.768814.8310 54.684114.8099 54.680814.8045 54.746814.8440 54.854814.8581 54.930814.9000 54.868714.9048 54.779214.8695 54.688314.8282 54.603814.8153 54.641014.8383 54.704214.8609 54.821814.9106 54.865914.9197 54.812314.8950 54.698014.8865 54.608214.8714 54.582014.8602 54.605314.8877 54.703714.9235 54.797914.9628 54.798514.9729 54.732814.9594 54.612914.9271 54.539714.9130 54.540514.9229 54.595714.9517 54.666314.9890 54.729715.0139 54.740415.0261 1.820000000 GHz 1.822000000 GHz 1.824000000 GHz 1.826000000 GHz 1.828000000 GHz 1.830000000 GHz 1.832000000 GHz 1.834000000 GHz 1.836000000 GHz 1.838000000 GHz 1.840000000 GHz 1.842000000 GHz 1.844000000 GHz 1.846000000 GHz 1.848000000 GHz 1.850000000 GHz 54.622415.0081 54.540314.9838 54.484114.9590 54.476914.9799 54.563615.0134 54.630715.0458 54.683715.0872 54.634415.0413 54.558815.0195 54.462615.0204 54.435715.0067 54.468115.0292 54.535515.0570 54.626615.0818 54.628115.0949 54.564615.0739 Nielsen Audio SAR Report MET Report: EMC40578-SAR © 2014, MET Laboratories, Inc. APPENDIX F – PHANTOM CERTIFICATE OF CONFORMITY Nielsen Audio SAR Report MET Report: EMC40578-SAR © 2014, MET Laboratories, Inc. APPENDIX G - DAE CALIBRATION CERTIFICATE

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE • BALTIMORE, MARYLAND 21230-3432 • PHONE (410) 354-3300 • FAX (410) 354-3313 33439 WESTERN AVENUE • UNION CITY, CALIFORNIA 94587 • PHONE (510) 489-6300 • FAX (510) 489-6372 3162 BELICK STREET • SANTA CLARA, CA 95054 • PHONE (408) 748-3585 • FAX (510) 489-6372 13301 MCCALLEN PASS • AUSTIN, TEXAS 78753 • PHONE (512) 287-2500 • FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory August 11, 2014 Nielsen Audio 9705 Patuxent Woods Drive Columbia, MD 21046 Dear Allen Zimmerman, Enclosed is the EMC Wireless test report for compliance testing of the Nielsen Audio, PPM 360 Meter as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B and ICES-003, Issue 5 August 2012 for a Class B Digital Device, and FCC Part 15 Subpart C and RSS-210, Issue 8, Dec. 2010 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Nielsen Audio\EMC40578A-FCC247 Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Nielsen Audio Cover Page PPM 360 Meter CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC40578A-FCC247 Rev. 1 © 2014, MET Laboratories, Inc. Page ii of viii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Nielsen Audio PPM 360 Meter Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators MET Report: EMC40578A-FCC247 Rev. 1 August 11, 2014 Prepared For: Nielsen Audio 9705 Patuxent Woods Drive Columbia, MD 21046 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Nielsen Audio Cover Page PPM 360 Meter CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC40578A-FCC247 Rev. 1 © 2014, MET Laboratories, Inc. Page iii of viii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Nielsen Audio PPM 360 Meter Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators Benjamin Taylor, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 5 August 2012, RSS-210, Issue 8, Dec. 2010 under normal use and maintenance. Asad Bajwa, Director, Electromagnetic Compatibility Lab Electromagnetic Compatibility Nielsen Audio Report Status PPM 360 Meter CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC40578A-FCC247 Rev. 1 © 2014, MET Laboratories, Inc. Page iv of viii DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  July 29, 2014 Initial Issue. 1 August 11, 2014 Editorial corrections. Electromagnetic Compatibility Nielsen Audio Table of Contents PPM 360 Meter CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC40578A-FCC247 Rev. 1 © 2014, MET Laboratories, Inc. Page v of viii DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample .................................................................................................................................6 E. Mode of Operation ..............................................................................................................................................7 F. Method of Monitoring EUT Operation ...............................................................................................................7 G. Modifications ......................................................................................................................................................7 a) Modifications to EUT ..…

Text truncated - open the document above for the full version.

Photograph 1. Conducted Emissions, Test Setup Photograph 2. Radiated Emissions, Test Setup Photograph 3. Conducted Emissions, 15.207(a), Test Setup Photograph 4. Radiated Spurious Emissions above 1GHz Test Setup Photograph 5. Radiated Spurious Emissions below 1GHz Photograph 6. Conducted Spurious Emissions, Test Setup
