IHDT56AN5

Motorola Mobility LLC

Mobile Cellular Phone

Click to zoom

Application Details

Equipment Class: CBE - Citizens Band End User Devices
Date of Grant: Nov 19, 2023
Application Purpose: Original Equipment
Date of Application: Nov 02, 2023
Equipment Note: Mobile Cellular Phone
Frequency Range: 3555.00000000 - 3694.98000000
Company: Motorola Mobility LLC
Country: United States

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

External Photos

ID Label/Location Info

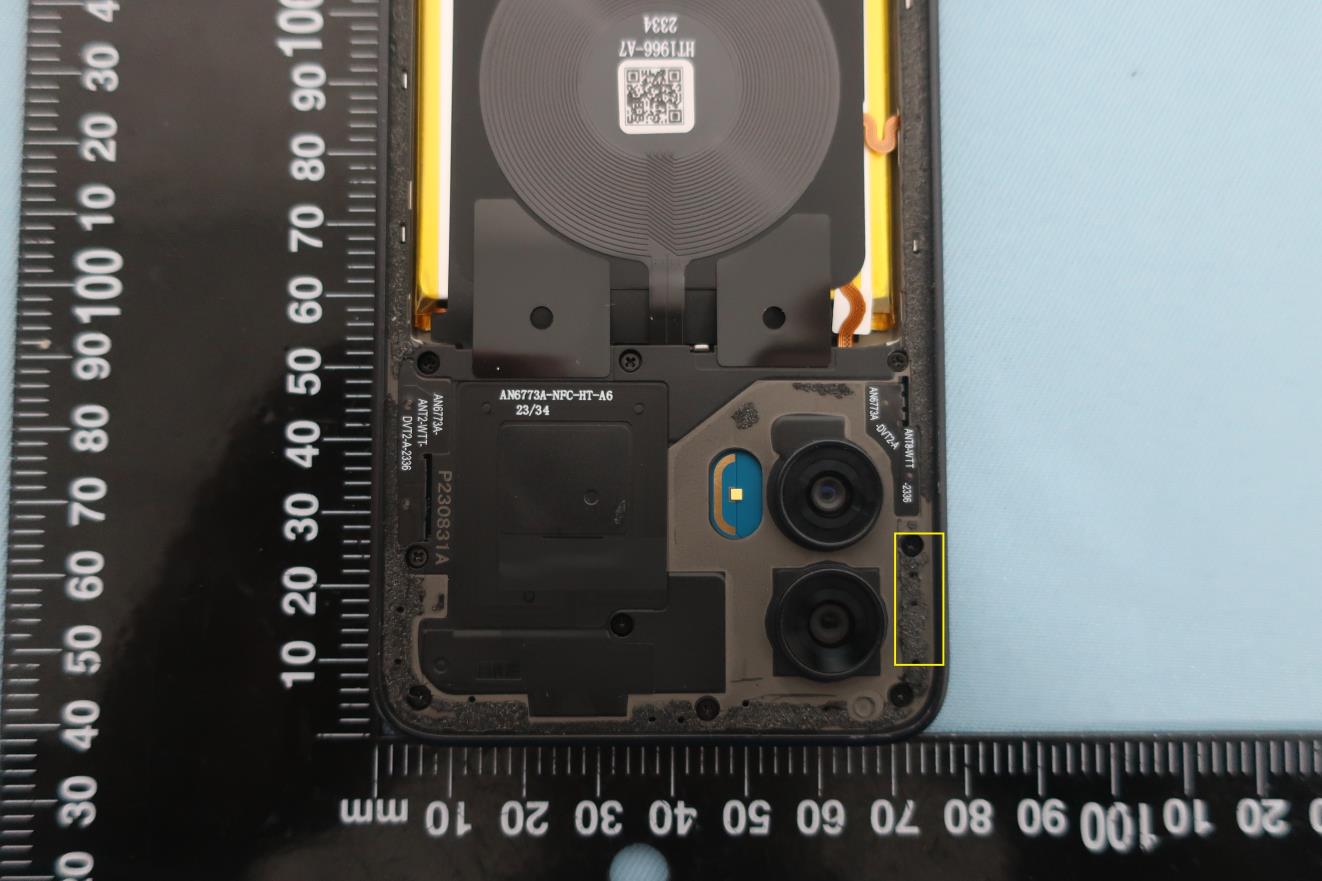

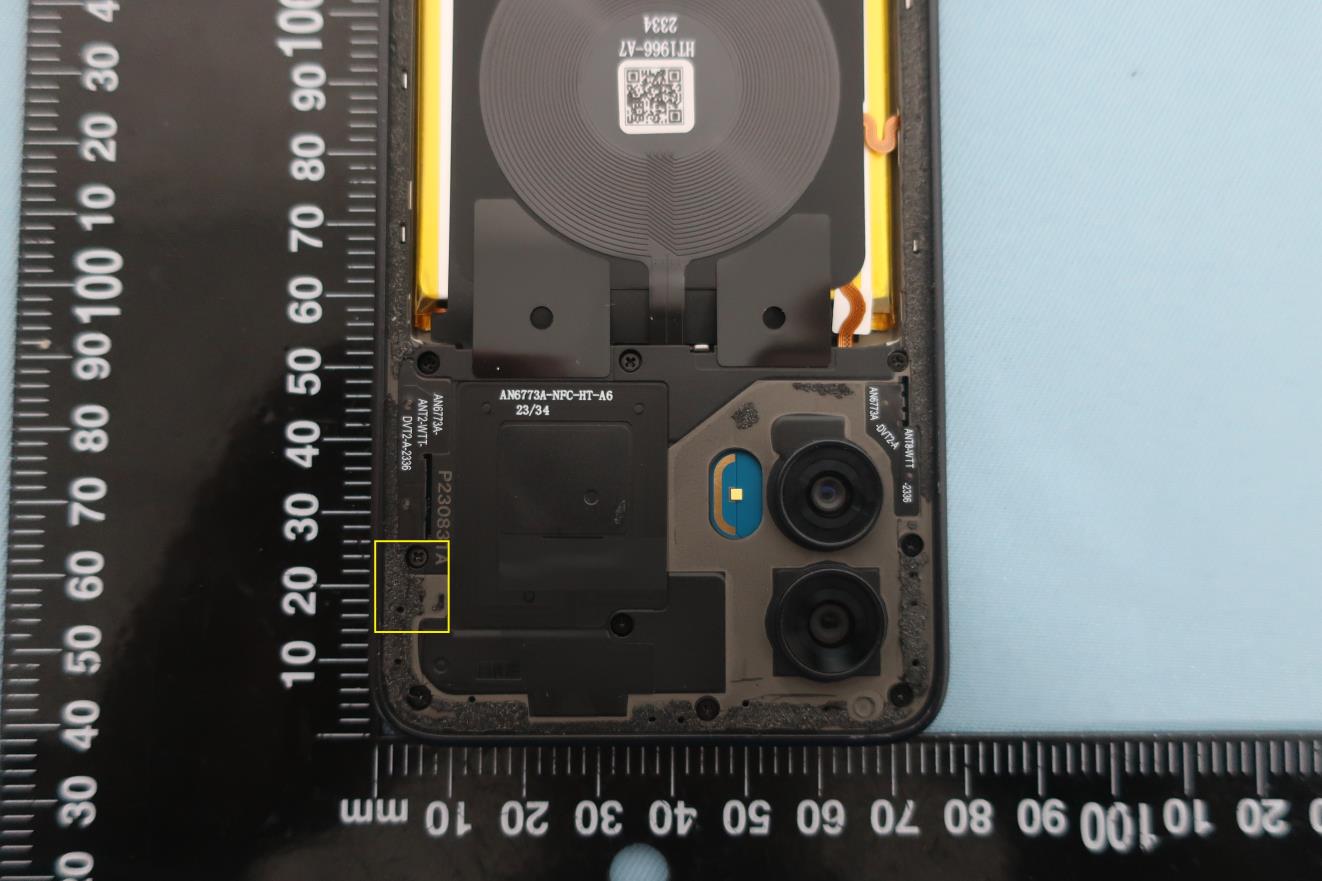

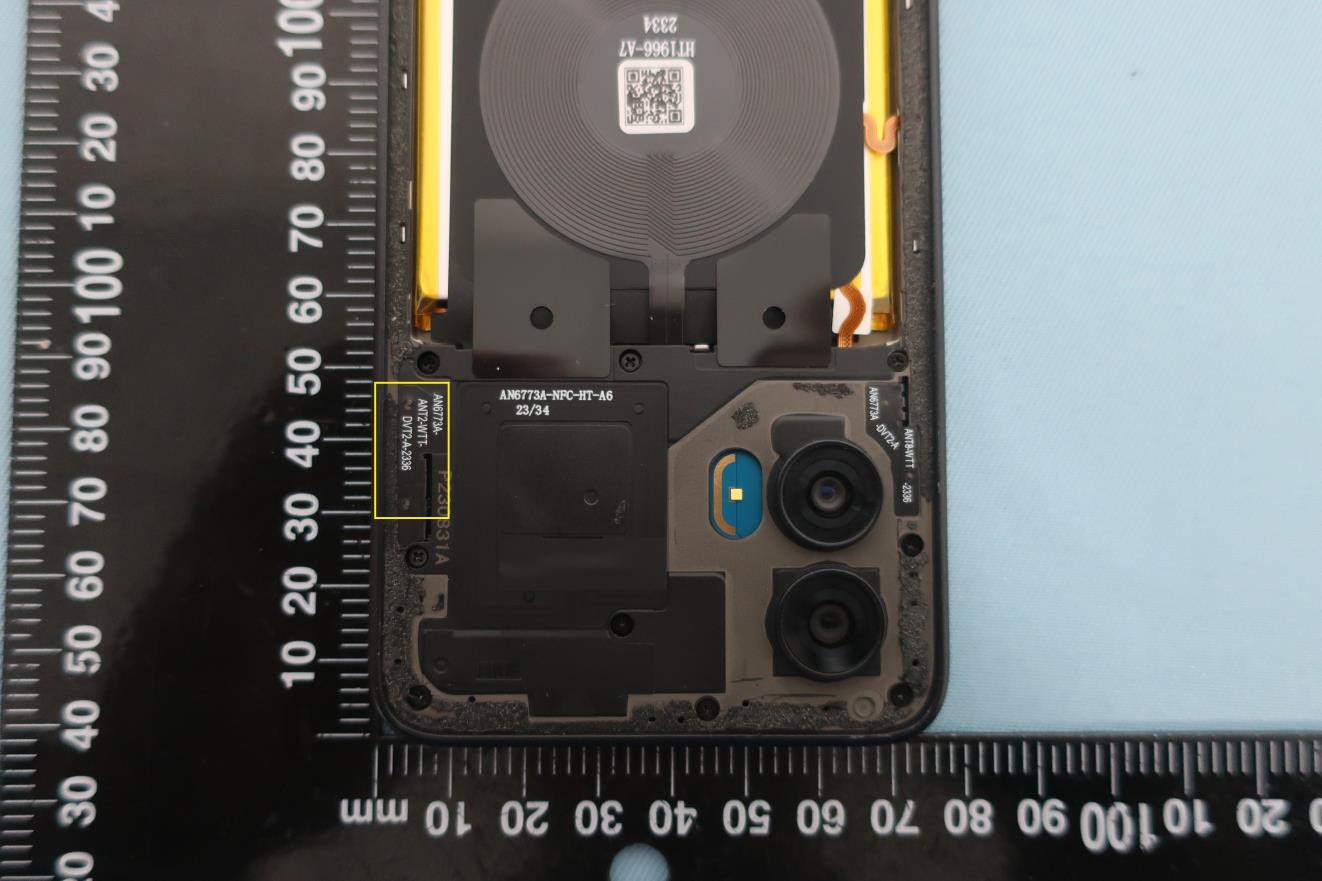

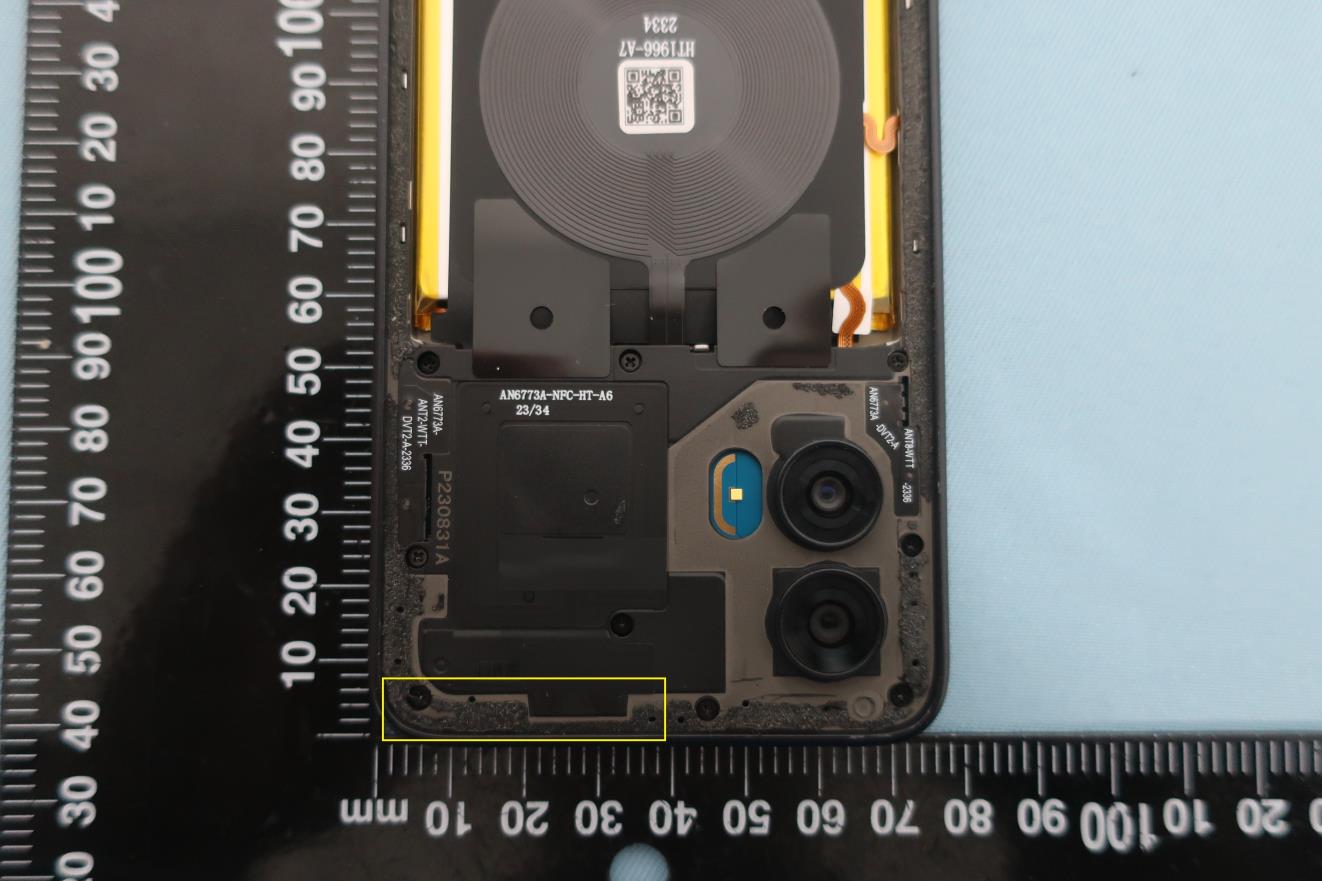

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
9	96	3.56 GHz - 3.69 GHz	124.20 mW	8M59W7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP. SAR compliance for body-worn operating configurations is limited to belt-clips and holsters that have no metallic components in the assembly and cause the device to operate with the minimum separation distance of 5.0 mm, as described in this filing. End-users must be informed of the body- worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), simultaneous transmission and product specific (10g SAR) exposure conditions are 1.05 W/kg, 1.02 W/kg, 0.71 W/kg, 1.59 W/kg and 2.77 W/kg, respectively. This device supports LTE of 5, 10, 15 and 20 MHz bandwidth modes for TDD LTE Band 48. This device also supports LTE uplink carrier aggregation as described in this filing. This device also supports Frequency Range 1 5G NR modes of 10, 15, 20 and 40 MHz bandwidth modes for TDD Band n48. Frequency Range 1 5G NR ENDC modes are supported by this device, as described in this filing. HAC Rating: M3 T3: 2011. T-coil 5G sub 6 bands appraised as equivalent LTE connections. for U.S.
