IIO-0328MPWireless MiniPCI Module

CNMP-511 User Guide Wireless MiniPCI Module 1. Introduction The CNMP-511 is designed to provide Wireless LAN function on a MiniPCI Type IIIB form factor which is for built-in notebook PCs. The function is based on SiS 160 chipset, which implements the full IEEE802.11b standard data rates up to 11 Mbps. 2. Features - IEEE802.11 Direct Sequency Spread Spectrum (DSSS) - IEEE802.11 Standard Data Rates: 1, 2, 5.5 and 11Mbps. 3. Specification 3.1 Interface - IEEE 802.11b compliant - PCI bus interface specification 2.2 - MiniPCI specification 1.0 3.2 Mechanical Dimension: 59 x 44 x 1 mm (L x W x H) 4. Environmental Operating Ranges - Operating Temperature: 0~55 , Humidity 10 ~ 90% - Storage Temperature: -20 ~ 90, Humidity 10 ~ 90% 5. Power Consumption DC3.3 V/ 200mA 6. Driver support Microsoft Windows 98SE, Window ME/2000/XP 7. Driver installation The following installation operates under Windows 2000. Procedures will be the same for Windows 98SE/ ME/XP. l Install the Driver and Utility A. Insert the CD into the CD-ROM device and execute the “setup.exe” program. The InstallShield Wizard box will appear, click “Next” to continue. B. Select an installation component, then choose a preferable destination location and program folder name, and then click ”Next” to continue. C. Follow the instruction of the installation program. The program will install the software for this device directly. D. Click “Finish” to complete the installation. E. After completing the Driver and Utility installation, a new icon will be displayed in the system tray at the bottom of the screen. Click the icon and start using the WLAN MiniPCI Adater. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: IIO-0328MP”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC ID: IIO-0328MP Report No.: RF920716H02 1 ADT No.: 920716H02 Modular Approval Request Letter Advance Data Technology Oct. 21, 2003 Dear Application Examiner, CNet Technology, Inc’s Wireless MiniPCI Module, FCC ID: IIO-0328MP, would like to have your authorization as a limited modular approval specific to the mobile device such as Notebook. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip SiS160. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 3.0VDC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is U12(B4251CK5-3.0) 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand alone configuration” The EUT was tested in a stand-alone configuration, the extender board is used to connect with host equipment. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: IIO-0328MP Report No.: RF920716H02 2 ADT No.: 920716H02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless MiniPCI Module MODEL NO.: CNMP-511 TRADE NAME: IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920716H02 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION Manufacturer USA Local Representative Company name: CNet Technology, Inc. To Be Determined. Address: No. 15, Park Avenue II, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Contact Person: Ray Chu Title: Manager Tel/Fax: 886-3-5786666\ 886-3-5783525

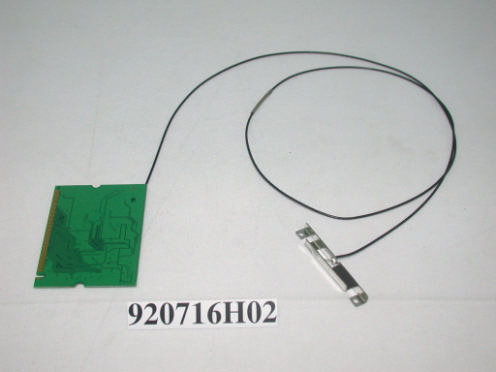

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

SERIAL NUMBER LABEL Cnet Brand 16-55-0 Technology Inc. UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MM NOTES-UNLESS OTHERWISE SPECIFIED 1. ISSUE: GENERAL TOLERANCES ±0.25% ±0.1 11 ~ 50 APPLICATION NEXT ASSY FINISH MATERIAL USED ON 101 ~ 51 ~ 100 ±0.15% ±0.15 0 ~ 10 ±0.05 A ±0.15 APPROVED CHECKED BY DESIGNED BY ±0.2 DATE SCALE SIZEDRAWING NO. DATE DATE CNMP-511(H) DRAWN BY ±0.1 B C PROJECT TITEL DATE SHEET OF 1 1 REV B1 According as NPDN- REV DEVISION DESCROPTION APPROVED BY DATE B1 * ¹Ï-±¤W¥~®Ø½u¬°LABELμô¤Á½u SIZE:42 x 25mm 2)ªÅ¥Õ®Æ ̧¹¬°16-55-0000-B1 1)§÷½è:»Éª© ̄È P/N: 16-55- S/N:ANV CODE 39 XXXXXXXXXX FCC ID: IIO-0328MP Made in Taiwan FCC ID: IIO-0328MP Voltage:3.3 Volt H/W version: 02 F/W version: 1.00 XXXXXXXXXXXX XX CODE 39 MAC address: ©T©w½X 16¶i ̈î 0008A1MAC ID: D=Non Brand A=US XXXXXX DX Model Name: CNMP-511 MiniPCI Type III B CNet Technology Inc. S/N: ANVXXXXXXXXXX () () :1. 2.CHINA S/N CODE

Page 2 Page 3 Page 4 Page 5

FCC ID: IIO-0328MP ADT No. 920716H02 Operational Description The transmitter of the EUT is powered by host equipment. The antenna is PIFA with UFL connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: IIO-0328MP Report No.: RF920716H02 ADT No. 920716H02 1 RF EXPOSURE REPORT REPORT NO.: RF920716H02 MODEL NO.: CNMP-511 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CNet Technology, Inc. ADDRESS: No. 15, Park Avenue II, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: IIO-0328MP Report No.: RF920716H02 ADT No. 920716H02 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: IIO-0328MP Report No.: RF920716H02 ADT No. 920716H02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: IIO-0328MP Report No.: RF920716H02 ADT No. 920716H02 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are -2.42dBi or 0.573 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 45.082 0.00514 1.0 6 2437 44.055 0.00502 1.0 11 2462 43.451 0.00495 1.0

FCC ID: IIO-0328MP Report No.: RF920716H02 1 Issued: Oct. 07, 2003 ADT No. 920716H02 FCC TEST REPORT REPORT NO.: RF920716H02 MODEL NO.: CNMP-511 RECEIVED: Jul. 16, 2003 TESTED: Jul. 16 to Oct. 06, 2003 APPLICANT: CNet Technology, Inc. ADDRESS: No. 15, Park Avenue II, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 44 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: IIO-0328MP Report No.: RF920716H02 2 Issued: Oct. 07, 2003 ADT No. 920716H02 Table of Contents 1 CERTIFICATION......................................................................................................4 2 SUMMARY OF TEST RESULTS..........................................................................5 3 GENERAL INFORMATION....................................................................................6 3.1 GENERAL DESCRIPTION OF EUT.....................................................................6 3.2 DESCRIPTION OF TEST MODES.......................................................................7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..................................7 3.4 DESCRIPTION OF SUPPORT UNITS................................................................8 4 TEST TYPES AND RESULTS...............................................................................9 4.1 CONDUCTED EMISSION MEASUREMENT.....................................................9 4.1.1 TEST INSTRUMENTS............................................................................................9 4.1.2 TEST PROCEDURES..........................................................................................10 4.1.3 DEVIATION FROM TEST STANDARD..............................................................10 4.1.4 TEST SETUP.........................................................................................................11 4.1.5 EUT OPERATING CONDITIONS.......................................................................11 4.1.6 TEST RESULTS....................................................................................................12 4.2 RADIATED EMISSION MEASUREMENT.........................................................14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT....................................14 4.2.2 TEST INSTRUMENTS..........................................................................................15 4.2.3 TEST PROCEDURES..........................................................................................16 4.2.4 DEVIATION FROM TEST STANDARD..............................................................16 4.2.5 TEST SETUP.........................................................................................................17 4.2.6 EUT OPERATING CONDITIONS.......................................................................17 4.2.7 TEST RESULTS....................................................................................................18 4.3 6DB BANDWIDTH MEASUREMENT.................................................................22 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT............................................22 4.3.2 TEST INSTRUMENTS..........................................................................................22 4.3.3 TEST PROCEDURE.............................................................................................23 4.3.4 DEVIATION FROM TEST STANDARD..............................................................23 4.3.5 TEST SETUP.........................................................................................................23 4.3.6 EUT OPERATING CONDITIONS.......................................................................23 4.3.7 TEST RESULTS....................................................................................................24 4.4 MAXIMUM PEAK OUTPUT POWER.................................................................28 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT............28 4.4.2 INSTRUMENTS.....................................................................................................28 4.4.3 TEST PROCEDURES..........................................................................................29 FCC ID: IIO-0328MP Report No.: RF920716H02 3 Issued: Oct. 07, 2003 ADT No. 920716H02 4.4.4 TEST SETUP.........................................................................................................29 4.4.5 EUT OPERATING CONDITIONS.......................................................................29 4.4.6 TEST RESULTS....................................................................................................30 4.5 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.....................31 4.5.1 TEST INSTRUMENTS..........................................................................................31 4.5.2 TEST PROCEDURE.............................................................................................32 4.5.3 DEVIATION FROM TEST STANDARD..............................................................32 4.5.4 TEST SETUP.........................................................................................................32 4.5.5 EUT OPERATING CONDITION..........................................................................32 4.5.6 TEST RESULTS....................................................................................................33 4.6 BAND EDGES MEASUREMENT.......................................................................37 4.6.1 LIMITS OF BAND EDGE…

Text truncated - open the document above for the full version.

Report No. RF920716H02 ADT No. 920716H02 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP 1093.4495.30 Dec. 19, 2003 HIGH PASS FILTER WHK3.1/18G-1 0SS SN4 Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE 2.5GHz~13GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable and a high pass filter. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 13GHz~25GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. RF920716H02 ADT No. 920716H02 2 4. TEST SETUP 2.5GHz~13GHz: 13GHz~25GHz: 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER EUT SPECTRUM ANALYZER HIGH PASS FILTER Report No. RF920716H02 ADT No. 920716H02 3 TEST RESULTS The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF920716H02 ADT No. 920716H02 4 Ch1 Report No. RF920716H02 ADT No. 920716H02 5 Ch11

FCC ID: IIO-0328MP Report No.: RF920716H02 42 Issued: Oct. 07, 2003 ADT No. 920716H02 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: IIO-0328MP Report No.: RF920716H02 43 Issued: Oct. 07, 2003 ADT No. 920716H02 RADIATED EMISSION TEST
