IIO-CNBR914WWireless Router

CWR-500 Wireless Router User Guide TOTAL NETWORK SOLUTIONS CWR500 August 2003 Specifications are subject to change without notice Trademarks & Trade Names belong to their owners CWR500-- Wireless 11b Broadband Router with Four (4) 100/10Mbps Switch ports The CWR500 is a Wireless Broadband Router with four (4) 100/10Mbps Switch ports and one IEEE802.11b wireless access point. With this cost economics device, an entire network, wire and wireless, can access to the Internet using a single high speed ADSL or Cable modem. A built-in firewall protects networks from outside intruders, while a built-in Access Control lets LAN administrators limit Internet access from individual workstations. Authorized Internet users are able to access to Web, FTP, and other servers on your LAN. The “Exposed Computer” and “Special Internet Application” features allow users to use special-purpose servers, two-way communication devices, and other non-standard Internet applications (such as ICQ, NetMeeting, Game, Quick Time, Real Player, etc.) KEY FEATURES ．IEEE 802.11 Direct Sequence high rate compatible. ．Provides two external dipole detachable antenna. ．Provides one WAN port for use with a ADSL or Cable modem. ．Provides four 100/10Mbps N-Way switch ports with auto MDI/MDI-X RJ-45 connectors. ．Complete web management using standard internet browser. ．Dynamic Host Configuration Protocol (DHCP) support. ．Internet sharing Static IP, Dynamic IP. ．Protocols TCP/IP, PPPoE, RIP. ．Provides firewall : NAT, Comprehensive logging, ．Provides VPN pass through, PAP/CHAP. (User Authentication) ．Provides user assignable DMZ. ．Maximum Users 253 PCs. ．Platforms supported Win 95/98/ME/NT/2000/XP/Linux. SPECIFICATIONS(the equipment version marketed in US is restricted to usage of the channels 1-11 only) Model CWR500 ChipSets Realtek RTL8181 / RTL8305 / Philps SA 2400 RF / Gatax W22 PA RTOS Linux Standards •IEEE 802.3u: 100BASE-TX •IEEE 802.3: 10BASE-T •IEEE 802.11b: Wireless LAN Protocols •DHCP, IP, NAT, PPPoE, IEEE 802.11b Ports •All ports 100BASE-TX/10BASE-T Media Support •100BASE-TX: Category 5 TP •10BASE-T: Category 3, 4 or 5 TP LAN Data Rate •148810 packets/second per port @ 100Mbps, maximum •14880 packets/second per port @ 10Mbps, maximum AP Data Rate •1 / 2 / 5.5 / 11 Mbps per Channel Modulation TYPE •CCK,BPSK,QPSK Channel •11 channels (US, Canada) •13 channels (ETSI) •14 channels (Japan) Frequency Range •2.4 ~ 2.4835GHz Flash Memory •2M bytes SDRAM •16M bytes Duplex Modes •All ports support Half-Duplex and Full-Duplex operation Auto-MDI/MDIX •All ports support Auto-MDI/MDIX LED Indicators •LED (Green): Status LED (Green): Power LED (Green): WLAN •LED1 (Green): WAN port for 100M •LED2 (Green): WAN port for Link/Activity •LED1 (Green): LAN port for 100M •LED2 (Green): LAN port for Link/Activity External Power Adapter •Output 5VDC, 2.5Amp (Input according to country) Power Consumption •10W maximum Environment •Operating Temperature: 0° ~ 45°C (32° ~ 113°F) •Storage Temperature: -20° ~ 70°C (-4° ~ 158°F) •Humidity: 10% ~ 90% Non-Condensing Certifications •FCC Class B, CE Dimensions •178 x 110 x 30 mm Mobile of end product Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Frequency range: − 2.4-2.4835 GHz, direct sequence spread spectrum Number of Channels: − Europe: 13 (CH01-CH13 ) − US: 11 (CH01-CH11 ) − France: 4 (CH10-CH13 ) − Japan: 14 (CH01-CH14 ) CONTENTS 1. INTRODUCTION................................................3 1.1 Product overview 1.2 Main benefits 1.3 About this manual 1.4 Package List 2. HARDWARE INSTALLATION................................4 2.1 Overview 2.2 Preparation 2.3 Resetting the wireless broadband router 3. PRIMARY SETUP..................................................6 3.1 Internet setup 3.2 LAN interface setup 3.3 Wireless interface setup 4. SECURITY..........................................................11 4.1 Password setup 4.2 Wireless security setup: 5. SYSTEM............................................................13 5.2 Save/reload settings 5.3 Upgrade firmware 5.4 DHCP server 6. ADVANCED WIRELESS.......................................17 6.1 Advanc…

Text truncated - open the document above for the full version.

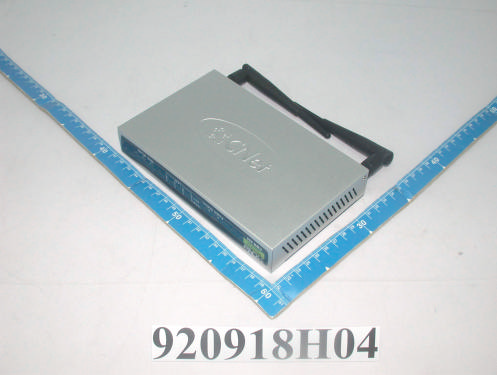

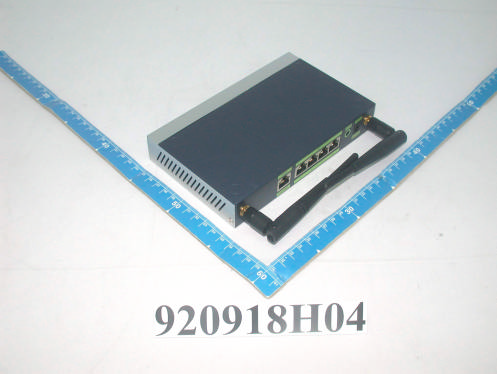

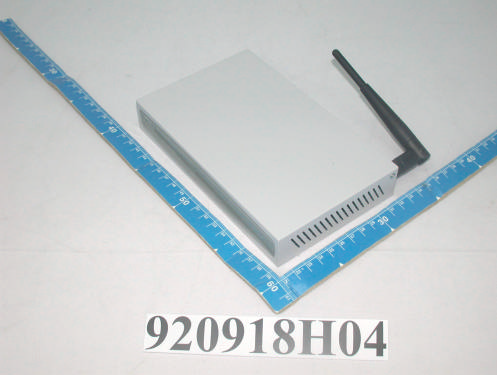

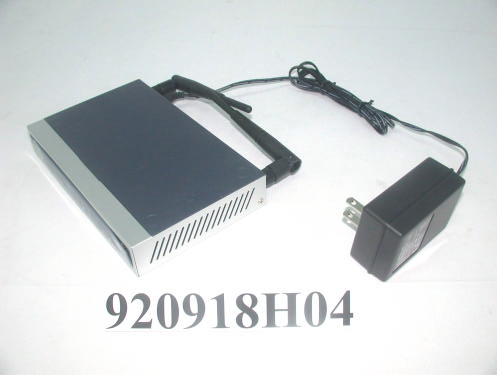

Page 1 CONSTRUCTION PHOTOS OF EUT For Model: CWR500 Page 2 Page 3 Page 4 For Model: CNBR-914W, BR-914W, FL-WL2044R, 70073, IS35784, MEG501 Page 5 Page 6

(Fig. 1) FCC ID: IIO-CNBR914W FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

FCC ID: IIO-CNBR914W Report No.: RF920918H04 ADT No.: 920918H04 Operational Description The transmitter of the EUT (Wireless Router) is powered by power adapter. The antenna used in this product is Dipole antenna with SMA connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by DBPSK and DQPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps.

FCC ID: IIO-CNBR914W ADT No.: 920918H04 RF EXPOSURE REPORT REPORT NO.: RF920918H04 MODEL NO.: CWR500, CNBR-914W, BR- 914W, FL-WL2044R, 70073, IS35784, MEG501 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CNet Technology, Inc. ADDRESS: No. 15, Park Avenue II, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: IIO-CNBR914W ADT No.: 920918H04 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: IIO-CNBR914W ADT No.: 920918H04 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: IIO-CNBR914W ADT No.: 920918H04 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.52Bi or 1.419 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241267.7640.01911.0 6243766.3740.01871.0 11246265.3130.01841.0

FCC ID: IIO-CNBR914W Report No.: RF920918H041Issued: Oct. 07, 2003 ADT No.: 920918H04 FCC TEST REPORT REPORT NO.: RF920918H04 MODEL NO.: CWR500, CNBR-914W, BR- 914W, FL-WL2044R, 70073, IS35784, MEG501 RECEIVED: Sep. 18, 2003 TESTED: Sep. 18 to 25, 2003 APPLICANT: CNet Technology, Inc. ADDRESS: No. 15, Park Avenue II, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 46 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: IIO-CNBR914W Report No.: RF920918H042Issued: Oct. 07, 2003 ADT No.: 920918H04 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS..............................................................................10 4.1CONDUCTED EMISSION MEASUREMENT.....................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................10 4.1.2TEST INSTRUMENTS...........................................................................................10 4.1.3TEST SETUP..........................................................................................................11 4.1.4EUT OPERATING CONDITIONS........................................................................12 4.1.5TEST RESULTS......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT..........................................................15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................15 4.2.2TEST INSTRUMENTS...........................................................................................16 4.2.3TEST PROCEDURES...........................................................................................17 4.2.4TEST SETUP..........................................................................................................18 4.2.5EUT OPERATING CONDITIONS........................................................................18 4.2.6TEST RESULTS......................................................................................................19 4.2.7TEST RESULTS......................................................................................................21 4.36dB BANDWIDTH MEASUREMENT..................................................................24 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................24 4.3.2TEST INSTRUMENTS...........................................................................................24 4.3.3TEST PROCEDURE..............................................................................................25 4.3.4TEST SETUP..........................................................................................................25 4.3.5EUT OPERATING CONDITIONS........................................................................25 4.3.6TEST RESULTS......................................................................................................26 4.4MAXIMUM PEAK OUTPUT POWER..................................................................30 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............30 4.4.2TEST INSTRUMENTS...........................................................................................30 4.4.3TEST PROCEDURES...........................................................................................31 4.4.4TEST SETUP..........................................................................................................31 4.4.5EUT OPERATING CONDITIONS........................................................................31 FCC ID: IIO-CNBR914W Report No.: RF920918H043Issued: Oct. 07, 2003 ADT No.: 920918H04 4.4.6TEST RESULTS......................................................................................................32 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................33 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................33 4.5.2TEST INSTRUMENTS...........................................................................................33 4.5.3TEST PROCEDURE..............................................................................................34 4.5.4TEST SETUP..........................................................................................................34 4.5.5EUT OPERATING CONDITIONS........................................................................34 4.5.6TEST RESULTS......................................................................................................35 4.6BAND EDGES MEASUREMENT.........................................................................39 4.6.1LIMITS OF BAND EDGES MEASUREMENT....................................................39 4.6.2TEST INSTRUMENTS...................................................................…

Text truncated - open the document above for the full version.

Report No. RF920918H04 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. RF920918H04 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. RF920918H04 3 TEST RESULTS The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF920918H04 4 Ch1 Report No. RF920918H04 5 Ch11

FCC ID: IIO-CNBR914W Report No.: RF920918H0444Issued: Oct. 07, 2003 ADT No.: 920918H04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: IIO-CNBR914W Report No.: RF920918H0445Issued: Oct. 07, 2003 ADT No.: 920918H04 RADIATED EMISSION TEST
