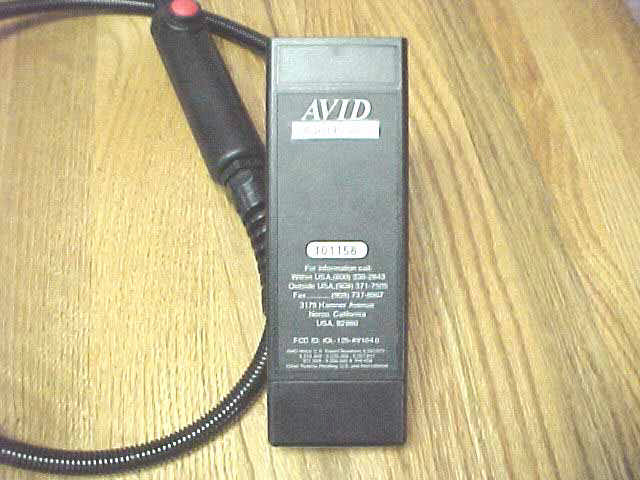

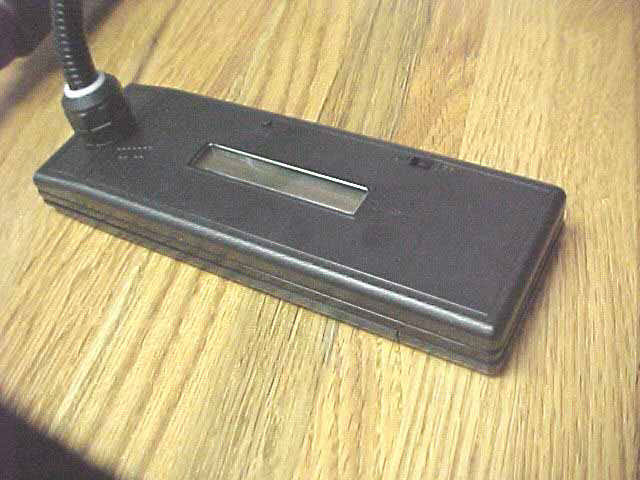

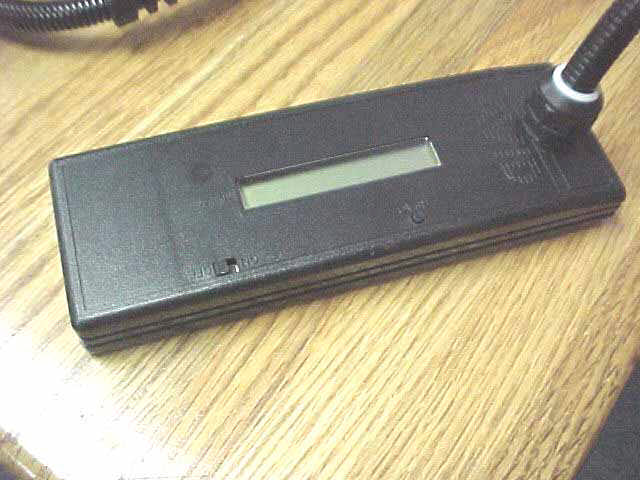

IOL-125-AV1040Wand Reader

Warranty and Service The Avid Mini-TracKer Wand Reader is warranted against defects in material and workmanship, under normal use and service, for a period of 1 year from the date of shipment from AVID. This warranty will not apply if repairs, parts or adjustments are required due to accident, neglect, damage during transportation, or causes other than ordinary use. AVID’s sole responsibility under this warranty shall be, at AVID’s option, to either repair or replace any product, which fails during the warranty period. In no event shall AVID be liable for any indirect or consequential damages or loss of profits. A Return Material Authorization (RMA) number must be issued before a unit is returned to AVID for service. Contact AVID for a RMA number or other service questions. (951) 371-7505. Copyright 2004 © Avid Identification Systems, Inc. 3 WandRdr1040.sxw 05/17/04 Mini-TracKer Wand Reader TM User's manual Multi Mode Reader Manufactured under one or more of the following Patents:

































                                                                        Other Patents Pending, U.S. and International FCC ID: IOL-125-AV1040 The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. WARNING: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. The user is cautioned that changes and modifications made to the equipment without approval of the manufacturer could void the user's authority to operate this equipment. For Information: Within USA.....................................(800) 336-2843 Outside USA..............................(+1 951) 371-7505 Fax..................................................(951) 737-8967 http://www.AvidID.com [email protected] Avid Identification Systems, Inc. 3185 Hamner Avenue Norco, California USA, 92860 Copyright 2004 © Avid Identification Systems, Inc. WandRdr1040.sxw 05/17/04 Introduction Congratulations on the purchase of your new AVID Mini-Tracker Wand Reader. This reader is capable of reading AVID and some other brands of electronic identification tags using the FECAVA protocol. Instructions 1. Power Button Turn the reader ON by sliding the lower right hand button on the face of the reader, forward. When the reader is powered on, it will emit a double beep sound and the LCD will display AVID ID READY . To turn the reader OFF, slide the button back. 2. Read Button Press the upper right button on the reader or the red button on the wand handle to put the reader into the LOOKING mode. The LCD will display LOOKING . When a microchip is found, the reader will emit two beep tones and display the number on the LCD. If the read button is released before finding a microchip, the message NO ID FOUND will display on the LCD. 3. Reading The reader antenna is located in the round loop on the end of the wand handle. This provides communications between the microchip and the reader. While pressing down the Read button, rotate the antenna in a circular pattern while moving down the animal’s back, starting from the back of the head. Chip orientation plays a major role in optimum performance of the reader and reading distances. In the figure below, CHIP A, in a parallel orientation to the Copyright 2004 © Avid Identification Systems, Inc. 1 WandRdr1040.sxw 05/17/04 antenna, will achieve its maximum reading distance towards the center of the coil. CHIP B, in the perpendicular orientation to the antenna, will achieve its maximum read distance towards the outside edges of the antenna. It is therefore recommended to move the antenna in a circular motion so that at some point you are energizing the chip with a greater magnetic field making it easier to find the microchip The Wand Reader antenna, handle and switch are waterproof and can be completely immersed underwater as long as the reader itself is kept out of the water. 4. Battery The reader is powered by one 9 volt battery. An alkaline battery is recommended for a longer battery life. The battery is located in the battery compartment on the lower backside of the reader. To replace the battery, slide the cover straight off. To secure it, slide the cover back to it’s original position making sure the wires are securely inside the compartment. WARNING: FOLLOW BATTERY INSTRUCTIONS FOR DISPOSAL. Operating the Reader Near Metal Metal objects (especially ferrous metals) absorb electromagnetic fields. Operating the reader antenna or placing the chip too close to metal object can severely limi…

Text truncated - open the document above for the full version.

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 May 14, 2004 CETCB 114 Olinda Drive Brea, CA 92823 Subject: Request for withholding from public disclosure of Avid Marketing, Inc. documents. Gentlemen: As appointed agent for Avid Identification Systems, Inc., 3185 Hamner Avenue, Norco, California 92860-9972 we would like to request that the Block Diagrams, Schematics, and Theory of Operation submitted with the application for certification be withheld from public disclosure as per Section 0.459 of the FCC Rules. This request is made under the provisions of Section 0.457 (d) of the FCC Rules and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize a withholding from public inspection materials, which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at (714) 579-0500. Regards, Kyle Fujimoto Test Engineer

1 scott To: Kyle Fujimoto Subject: FCC ID: IOL-125-AV1040 Mr. Fujimoto: In order for processing of this application (FCC ID: IOL-125-AV1040) to continue, the following issue(s) will have to be addressed: 1) The FCC Label on the device must contain the verbage required by 15.19(a)(3) of the FCC rules. The device is not small enough to justify placing this verbage in the user's manual. 2) The user's manual contains the instructions to the user for a Class A digital device. This device was measured against the Class B limits, and should contain the instructions found in 15.105(b) of the FCC rules. 3) Please submit a signed test report. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please submit your response(s) as correspondence on our electronic filing website, using correspondence number: IOL-125-AV1040-1 Any questions about the content of this correspondence should be directed to [email protected]. Best Regards, Scott McCutchan Operations Manager Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Main (714) 579-0500 Direct (714) 579-1489 Fax (714) 579-1850 [email protected] www.celectronics.com Correspondence by Project Project Number: 1084547888 Correspondence Number Memo IOL-125_AV1040-1 1. The FCC Label has been revised to show the FCC Statement. Please see the Revised FCC-ID Exhibit. 2. The Owner's Manual has been revised to show Class B -- See the Revised Owner's Manual 3. The Test Report has been uploaded again with the necessary signatures.

Report Number: B40429A2 FCC Part 15 Subpart B and FCC Section 15.209 Test Report Wand Reader Model: AVID1040 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 14 FCC PART 15, SUBPART B and C TEST REPORT for WAND READER MODEL: AVID1040 Prepared for AVID IDENTIFICATION SYSTEMS, INC. 3179 HAMNER AVENUE NORCO, CALIFORNIA 92860-9972 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: APRIL 29, 2004 REPORT APPENDICES TOTAL BODY A B C D E PAGES 14 2 2 2 11 6 37 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B40429A2 FCC Part 15 Subpart B and FCC Section 15.209 Test Report Wand Reader Model: AVID1040 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 14 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Radiated Emissions (Spurious, Fundamental, and Harmonics) Test 13 8. CONCLUSIONS 14 Report Number: B40429A2 FCC Part 15 Subpart B and FCC Section 15.209 Test Report Wand Reader Model: AVID1040 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 14 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of 3 Meter Radiated Test Site 2 Plot Map and Layout of 10 Meter Radiated Test Site Report Number: B40429A2 FCC Part 15 Subpart B and FCC Section 15.209 Test Report Wand Reader Model: AVID1040 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 14 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Wand Reader Model: AVID1040 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: AVID Identification Systems, Inc. 3179 Hamner Avenue Norco, California 92860-9972 Test Date: December 2, 2003 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205 and 15.209 Test Procedure: ANSI C63.4: 2001 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz The EUT is powered by a nine volt battery only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 1000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205 and 15.209. Highest Reading in Relation to Spec Limit: 38.92 dB μ V @ 72.079 MHz (*U c = 1.57 dB) Report Number: B40429A2 FCC Part 15 Subpart B and FCC Section 15.209 Test Report Wand Reader Model: AVID1040 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 14 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Wand Reader Model: AVID1040. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 2001. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205 and 15.209. Report Number: B40429A2 FCC Part 15 Subpart B and FCC Section 15.209 Test Report Wand Reader Model: AVID1040 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 14 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel AVID Identification Systems, Inc. Michael F Cruz Director of Engineering Compatible Electronics, Inc. Kirit Ramani Test Engineer Kyle Fujimoto Test Engineer Michael Christensen Senior Test Engineer 2.4 Date Test Sample was Received The test sample was received on December 1, 2003. 2.5 Disposition of the Test Sample The sample has not been returned to AVID Identification…
