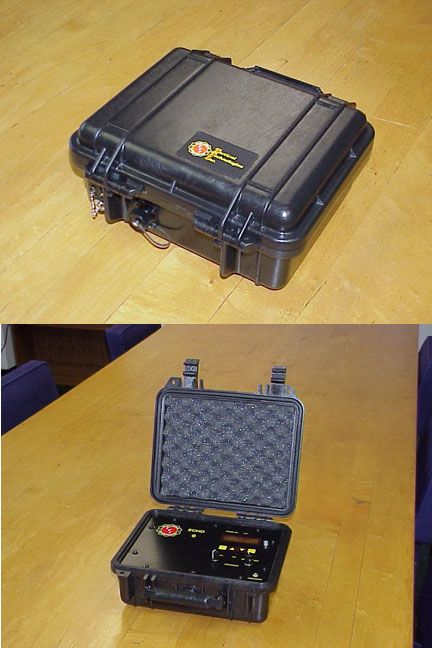

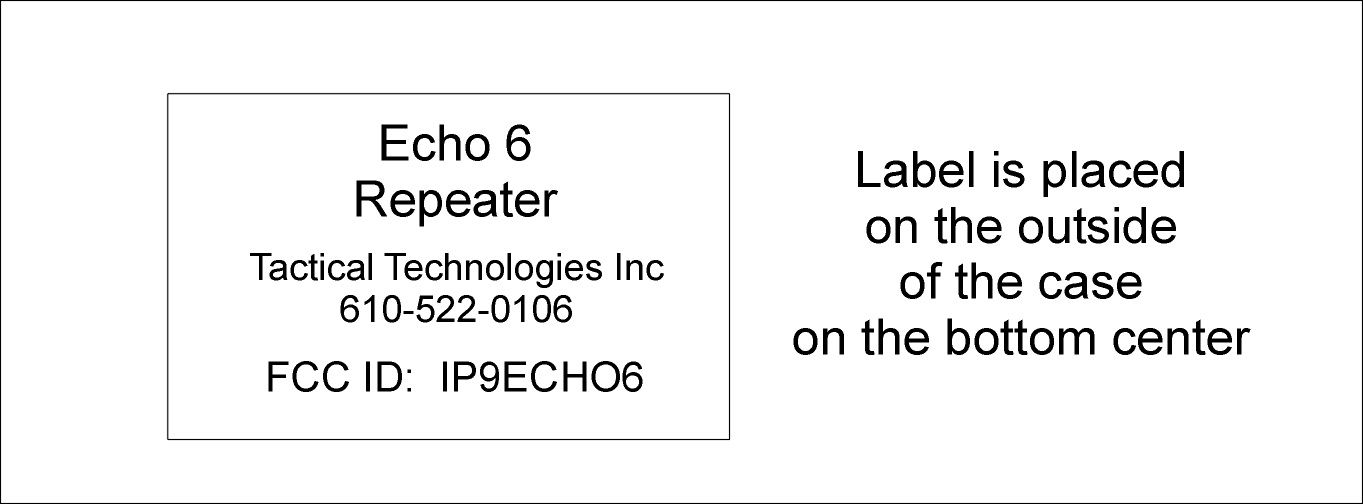

IP9ECHO6Law Enforcement Surveillance Repeater

© Tactical Technologies Inc ECHO-6 SURVEILLANCE REPEATER OPERATING INSTRUCTIONS OPERATIONS A.) Check Repeater Operating Mode Switch. This is a three position rotating switch: RIGHTRepeater's Transmitter and Receiver On (RPT) LEFTSystem Off (OFF) CENTERReceiver Only On - Monitor mode (MON) Set the switch in the OFF position. B.) Iinstall antenna in a position for maximum performance. The antenna supplied with the standard ECHO-6 is a unity gain quarter wave magnetic mount antenna. Attach the female BNC connector found on the cable end of the antenna on to the male BNC connector marked ANT on the ECHO-6's outside panel. The antenna's magnetic base should be installed on a flat metal surface. An approximate radius of 19" around the magnetic base will result in maximum antenna performance efficiency. C.) Select 12 VDC power source and connect to ECHO-6. INTERNAL BATTERY No additional setup is necessary to use internal battery. EXTERNAL 12 VDC (Cable supplied) 1.) Align 4 pin locking female connector found on the end of the cigarette lighter plug cable with the male connector on the ECHO-6's outside front panel marked PWR. 2.) Push connectors together, then turn the locking sleeve on the cable end connector clockwise until it stops. Do not overtighten. 3.) Connect the cable end to any appropriate 12 VDC power source. Attach the RED cable lead to the source's positive (+) 12 VDC terminal, and the BLACK lead to the source's negative (-) terminal. WARNING: DO NOT CONNECT POWER SOURCE TO REPEATER IN REVERSE POLARITY CONDITION! D.) Select Operating Frequencies via 4 key KEYPAD on the control panel. The ECHO-6 comes ready to be operated on any 12.5 Kc spaced frequency that falls +/- 200 Kc from a user supplied center frequency. The transmit and receive frequencies can be programmed separately, giving the operator a large number of frequency combination possibilities. In addition, the Echo 6 has 16 separate channel memory locations (numbered '00' to '15') so you can preprogram and store 16 different combinations of transmit and receive frequencies into the memory. 1.) Turn Echo-6 ON by rotating the OFF/MON/RPT switch to the MON position. 2.) Select channel to be programmed a.) Press the CHNL button on the keypad. b.) Observe the LCD Display. c.) Using the UP or DOWN arrow keys, step to the channel number you wish to program. d.) Press the CHNL key again to lock in the selection. 3.) Select transmit and receive frequencies to be used. a.) Press the FREQ button on the keypad. This will allow you to program your receive frequency. b.) Observe the LCD Display. c.) Using the UP or DOWN arrow keys, scroll through the available frequencies until the display shows you the frequency you wish to use. d.) Press the FREQ button again. This now allows you to program your transmit frequency. e.) Using the UP or DOWN arrow keys, scroll through the available frequencies until the display shows you the frequency you wish to use. f.) Press the FREQ button again to lock in the frequency combination. NOTE: You can repeat this procedure for each of the 16 different memory locations. For the repeater to operate, you must have one memory location programmed with operating frequencies. NOTE: There 1089 possible combinations of TX and RX channels available. Your Echo 6 may only hold 16 of them in its memory at one time. NOTE: To reprogram a channel memory location that has previously been used, simply use the above procedure - you will overwrite the old frequency combination with the new one you select. E.) Set the SQUELCH control 1.) Set Repeater Operating Mode Switch to MON (center postion) 2.) Adjust the squelch control found on the control panel fully to the counter-clockwise position. 3.) Insert the male mono mini plug of the supplied earphone into the female jack on the Echo 6 panel marked RECORDER. The noise you hear coming from the earphone is called White Noise. 4.) While listening, turn the squelch control clockwise just until the white noise goes away, and the receiver becomes 'quiet'. This is called the "Critical Squelch" point. Critical Squelch is the optimum point of squelch for the receiver. 5.) Squelch may then be adjusted to the operators preference at any time by turning the control clockwise to increase, or counter- clockwise to decrease the amount of squelch in the circuit. 6.) When you are finished, remove the earphone from the jack. NOTE: ALWAYS HAVE AN ANTENNA CONNECTED TO THE ECHO-6 WHEN SETTING THE SQUELCH CONTROL. G.) Select operating configuration via REPEATER OPERATING MODE SWITCH. MONITOR MODE: To receive and monitor/record reception only, place switch in the CENTER position (MON). REPEAT MODE: To rebroadcast reception, and monitor, place switch in the RIGHT position (RPT). H.) Select Memory Channel for correct frequency operation a.) Press the CHNL button on the keypad. b.) Observe the LCD Display. c.) Using the UP or DOWN arrow keys, scroll to the channel number you wish to use. d.) Press the CHNL key again to lock in the selection. OPERATING NOTES: 1.) Never Operate the ECHO-6 with the REPEATER OPERATING MODE SWITCH in the RPT (REPEAT) position without having an antenna connected to the unit. 2.) Keep the inside of the ECHO-6 dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits and cause extensive damage. 3.) Handle the ECHO-6 with care. Dropping the unit may damage circuit boards, the case, and/or the connectors rendering the unit inoperable. 4.) There are no user-serviceable parts in the ECHO-6. If for some reason the unit needs service, please return it to the factory. 5.) Before using this equipment in any active investigation, please check its operation and the operation of all other electronic components in your system. Be sure to use fresh or fully charged batteries at all times for optimum performance. 6.) Set Repeater Operating Mode Switch in the OFF position when not in use. 7.) When using the earphone to monitor t…

Text truncated - open the document above for the full version.

Part 90 Testing Echo6 16 Channel Synthesized FM Voice Repeater FCC ID: IP9ECHO6 Performed by Tactical Technologies Inc. 1701 Second Ave Folsom, PA 19033 610-522-0106 February 13, 2002 The audio frequency response, low pass filter test, occupied bandwidth, frequency stability, transient behavior, and modulation testing in this application for FCC Type Certification have been performed under my direct supervision. To the best of my knowledge these tests were conducted in accordance with the procedures outlined in Part 2 and Part 90 of the Commission's Rules and Regulations. I am presently employed by Tactical Technologies Inc. in Folsom, Pennsylvania as a Design Engineer. My prior experience consists of 10 years of designing and testing communications products in the VHF portion of the spectrum. Sincerely, Jeffrey N. Olson Engineer Tactical Technologies Inc. A. INTRODUCTION The following data are submitted in connection with this Application for Type Certification in accordance with Part 2, Subpart J, and Part 90, Subparts B,D, and I of the FCC Rules and Regulations. B. INFORM ATION REQUIRED BY PART 2 2.1003(a) See Form 731 2.1033(b) N/A 2.1003(c) (1) The full name and address of the applicant and manufacture for certification is: Tactical Technologies Inc. 1701 Second Ave. P.O. Box 91 Folsom, Pa. 19033 (2) The FCC Identifier of this device is IP9EHO6 (3) Operating Instructions are included in the Exhibits. (4) Emission: NBFM Voice – 11K2F3 Emission Calculations are included in the Exhibits. (5) Frequency Range 150 – 174 Mhz (6) Output Power of the device is 1940mw. @ 13.8 Volts (7) Maximum Power Rating is 2000mw. (8) All of the Pre-amp sections run off of regulated +5.0 Volts, and the RF Final transistor runs on 12 Volts. (9) Tune up procedure are included in the Exhibits. (10) Schematics are included in the Exhibits. (11) A drawing of the equipment identification label is included in the Exhibits. (12) Photographs of the internal and external construction of the device are included in the Exhibits. (13) N/A (14) Test Data required by Part 2.1046 through 2.1057, inclusive, is measured in accordance with the procedure in Part 2.1041. (15) N/A (16) N/A (17) N/A C. SUBMISSION OF EQUIPMENT FOR TESTING - Paragraph 2.943 Upon request, the test sample will promptly be made available by Radiation Science Inc. D. DESCRIPTION OF MEASUREMENT FACILITIES - Paragraph 2.947 The open-field tests were performed on the 3 meter range maintained by Radiation Science Inc. Complete description and measurement data have been placed on file with the Commission. E. TEST DAT A This section contains results of measurements required by Parts 2 and 90 of the rules. Data are presented in tabular and/or graphical form, and measurement procedures are described within the text of each reported test. The test sample operated on 172.0125 MHz (TX) and 165.0125 MHz (RX). 1. RF POWER OUTPUT - Paragraphs [2.1046(a),2.1033(c)(8),90.205(d)] Measurements pertaining to the power output of the transmitter were performed by the manufacturer. To the best of my knowledge, these tests were conducted in accordance with the procedures outlined in Parts 2 and 90 of the Commissions Rules and regulations. The data presented on Table 1 demonstrates compliance with the appropriate technical standards. 2. MODULATION CHARACTERISTICS - Paragraph [2.1047(a), 90.211(a)] Measurements pertaining to the modulation characteristics were performed by the manufacture. To the best of my knowledge, these tests were conducted in accordance with the procedures outlined in Parts 2 and 90 of the Commission's Rules and regulations. The data presented on figures 1 and 2 demonstrates compliance with the appropriate technical standards. 3. OCCUPIED BANDWIDTH - Paragraphs [2.1049, 90.211(a)] Figures 3 and 4 contain pictures taken from a Hewlett Packard 8558B Spectrum Analyzer. The transmitter was modulated with a sine wave tone at 2500 Hz at a level 16 dB above the required to produce 50% modulation at the frequency maximum response. Paragraph 90.210(d) requires that the mean power of emissions shall be attenuated below the mean output power of the transmitter by the following amounts: -- On any frequency removed from the center of the authorized bandwidth f0 to 5.625 khz removed from f0; Zero db. -- On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in khz) of more than 5.625 khz but no more than 12.5 khz. At least (fd – 2.88khz)db. -- On any frequency removed from the center of the authorized Bandwidth by a displacement frequency (fd in khz) of no more than 12.5 khz. At least 50 + log(P) or 70db, whichever is the lesser attenuation. 4. SPURIOUS EMISSIONS AT THE 50 OHM TEST POINT ON THE TRANSMITTER [2.1053, 90.209 Emission Mask D] The transmitter was modulated per paragraph 2.1053. The spectrum was checked with the spectrum analyzer from 10 MHz to the 10th harmonic of the carrier frequency. Observed emissions not reported are attenuated more than 20 dB below the permissible value of 40 dB, i, e., 50 + log (2.0W) = 53 dB given by Section 90.209. The data in Table 1 verifies that the test sample complies with Paragraph 90.209(c)(3). TABLE 1 CONDUCTED SPURIOUS EMISSIONS DATA EMISSION EMISSION FCC FREQUENCY LEVEL LIMIT (MHz) (dBc) (dBc) 172.0 REFEERENCE +33 dBm 344.0 -65 53 516.0 -70 53 688.0 -75 53 860.5 >-75 53 1032.1 >-75 53 1204.1 >-75 53 1376.1 >-75 53 1548.1 >-75 53 1720.1 >-75 53 5. FIELD STRENGTH OF SPURIOUS RADIATION - Paragraphs [2.1053,90.209] Measurements were made on the three meter range maintained by Radiation Science Inc. to quantify spurious emission level that] are radiated directly from the cabinet, control circuits, power leads and intermediate circuit elements under normal conditions of installation and operation. Particular attenuation was paid to harmonics of the carrier frequency as well as those frequencies removed from the carrier by multiples of the oscillator frequency. Data is submitted in …

Text truncated - open the document above for the full version.
