IR5DF10HANDHELD COMPUTER

HANDHELD COMPUTER DF10 USER’S GUIDE ○ BC Revision History Revision Date Changes Author 1.0.0 2023/02/15 Initial Release Annabelle Wu I Notice The company reserves the right to revise this publication or change its contents without any notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in any way responsible for any loss or damage resulting from the use (or misuse) of this publication. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following purchase, the buyer (and not the manufacturer, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any software defects. Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. Copyright© 2023, MilDef Crete Inc. All rights reserved. Trademark All other brand and product names are trademarks or registered trademarks of their respective companies. II FCC (Federal Communications Commission) Regulatory Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC 47 CFR Part 15 Subpart B FCC 47 CFR Part 15 Subpart C FCC 47 CFR Part 15 Subpart E FCC§2.1093 (SAR) Note: This device has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, the device may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ⚫ Reorient or relocate the receiving antenna. ⚫ Increase the separation between the device and receiver. ⚫ Connect the device to an outlet on a circuit different from that to which the receiver is connected. ⚫ Consult the dealer or an experienced radio/TV technician for help. Important: Changes or modifications to this product not authorized by MilDef Crete could void the electromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the product. In order to maintain compliance with FCC regulations, compliant peripheral devices and shielded cables must be used with this device. III Specific Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies .The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Device has also been tested against this SAR limit. This device was tested for typical body- worn operations with the product kept 0mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain an 0 mm separation distance between the user's body and the product. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. IV EU Declaration of Conformity The device is hereby confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to the Electromagnetic Compatibility Directive (2014/30/EU), Radio Equipment Directive (2014/53/EU), and Low Voltage Directive (2014/35/EU), if used for its intended use and that the following standards have been applied: 1. Safety Applied Standard(s): 2. Health Applied Standard(s): 3. Radio Frequency Spectrum Usage Applied Standard(s): 4. Electromagnetic Compatibility Directive Applied Standard(s): V UKCA The device is hereby confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive 2016, Radio Equipment Directive 2017, and UKCA-Electrical Equipment (Safety) Regulation 2016, if used for its intended use and that the following standards have been applied: 1. Safety Applied Standard(s): 2. Health Applied Standard(s): 3. Radio Frequency Spectrum Usage Applied Standard(s): 4. Electromagnetic Compatibility Directive Applied Standard(s): VI Power Conservation This device consumes less power compared to conventional consumer computers. The power consumption may be further reduced by properly configuring the Power Management Setup. It is recommended that the power saving features be enabled even when not running with battery power. Power Management features can conserve power without degrading system performance. Power Safety There are specific power requirements for your device: ⚫ Only use an approved AC Adapter designed for this d…

Text truncated - open the document above for the full version.

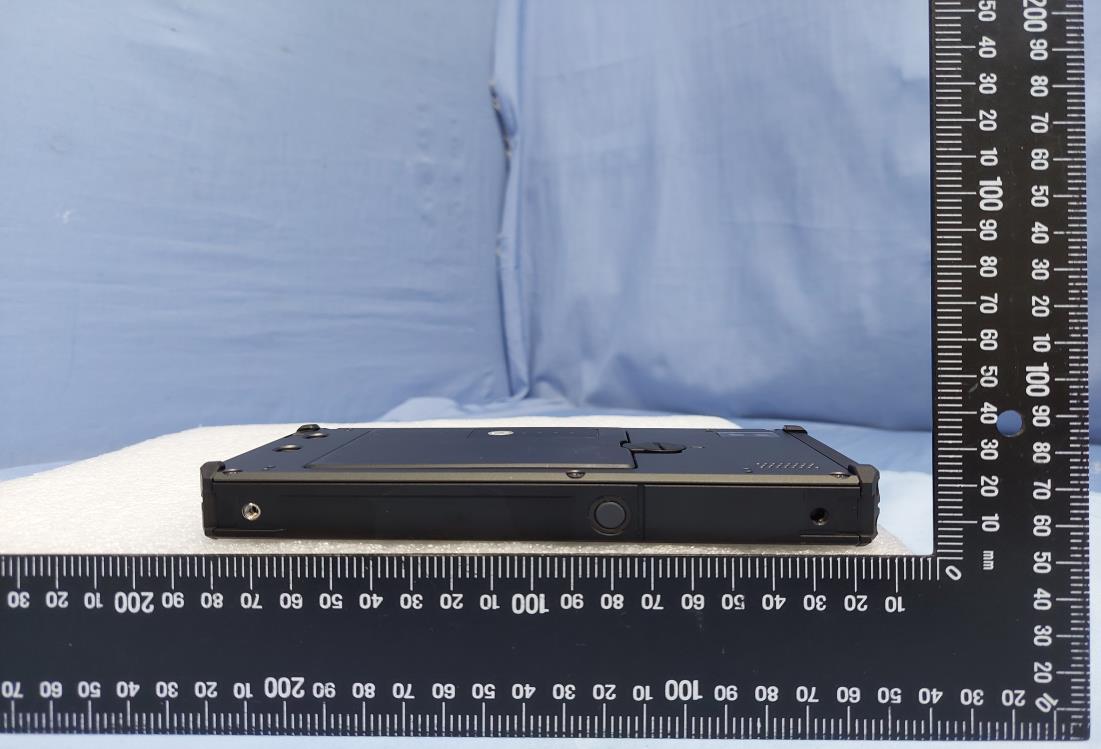

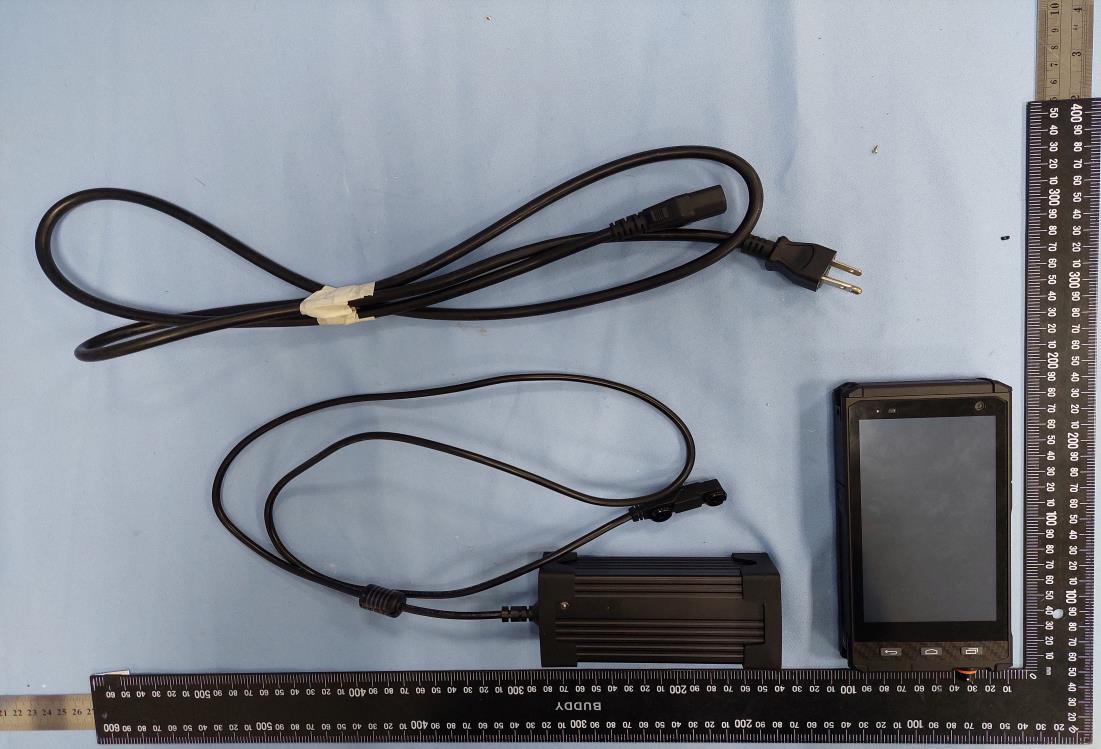

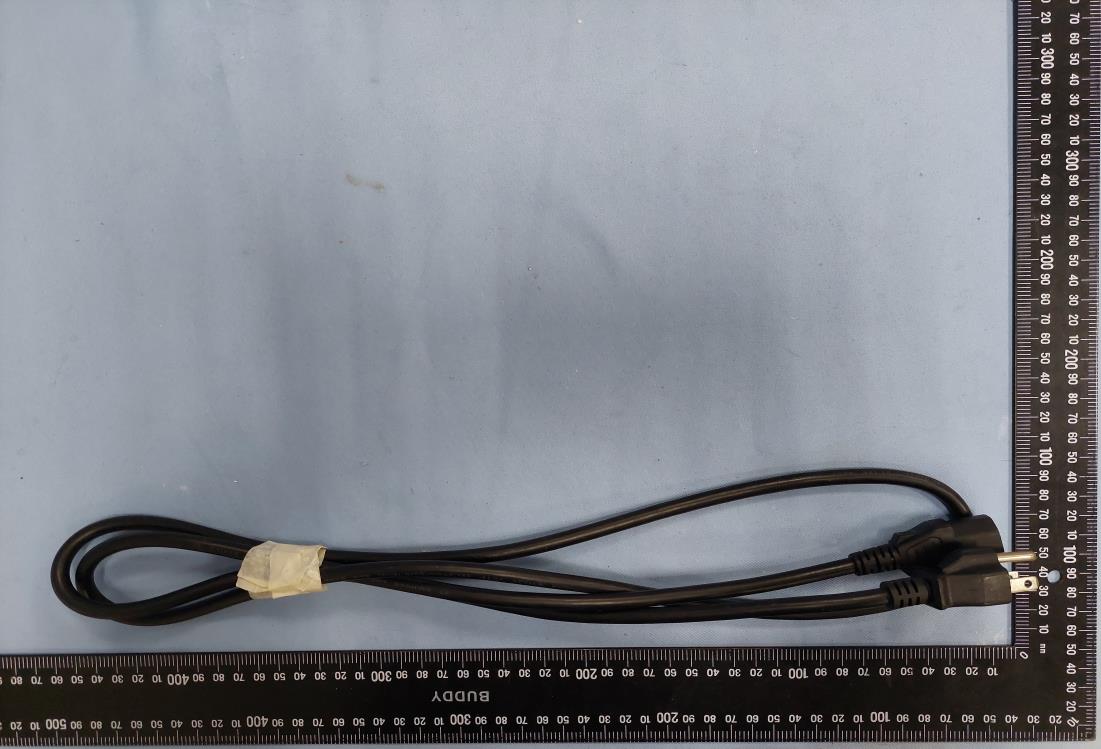

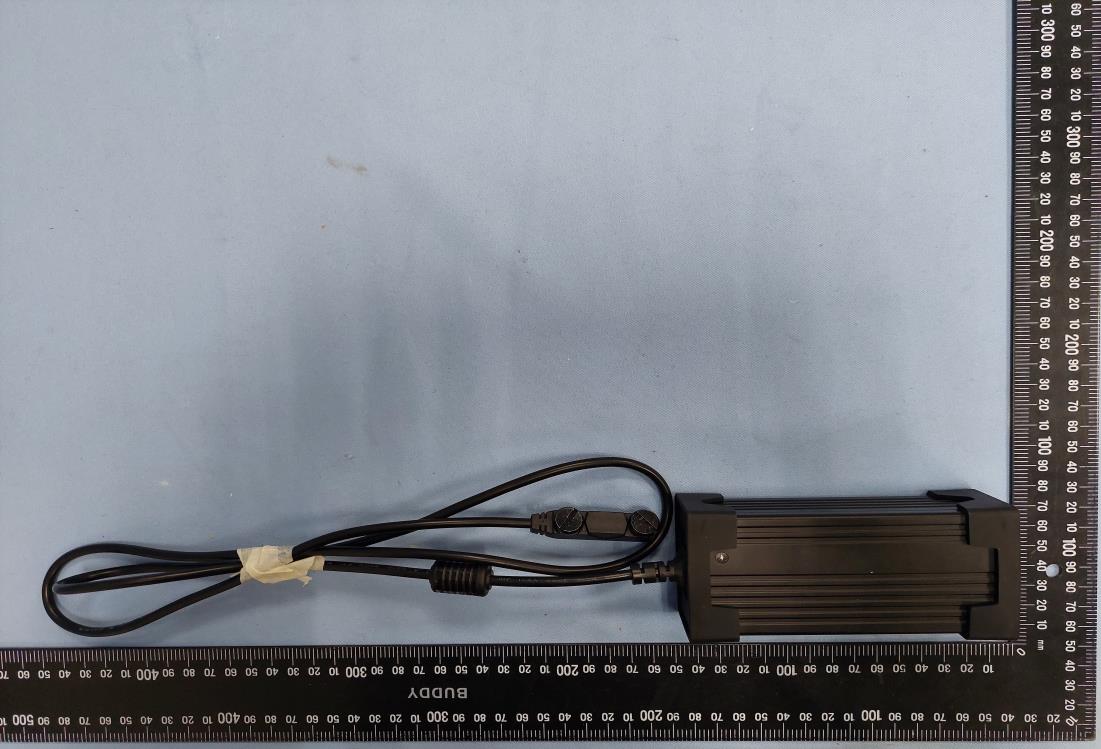

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 1 / 16 Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 2 / 16 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 3 / 16 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 4 / 16 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 5 / 16 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 6 / 16 Rev.: 00 Adapter This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 7 / 16 Rev.: 00 Cable

FCC:IR5DF10

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 8 / 16 Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 9 / 16 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 10 / 16 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 11 / 16 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 12 / 16 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 13 / 16 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 14 / 16 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 15 / 16 Rev.: 00 RF IC & Crystal This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2207000162P Page: 16 / 16 Rev.: 00 Antenna

Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2022/9/1 System Performance Check-D2450V2-727 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.4C; Liquid Temperature: 23.1C Medium parameters used: f = 2450 MHz; σ = 1.873 S/m; ε r = 39.351; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1260; Calibrated: 2021/9/20 - Probe: EX3DV4 - SN7642; ConvF(8.12, 8.12, 8.12) @ 2450 MHz; Calibrated: 2022/3/2 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Head/Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.2 W/kg Head/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 107.3 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 28.6 W/kg SAR(1 g) = 13.7 W/kg; SAR(10 g) = 6.34 W/kg Smallest distance from peaks to all points 3 dB below = 9 mm Ratio of SAR at M2 to SAR at M1 = 48.3% Maximum value of SAR (measured) = 21.1 W/kg 0 dB = 21.1 W/kg = 13.24 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2022/9/1 System Performance Check-D5GHzV2-1023-5250 Frequency: 5250 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.4C; Liquid Temperature: 23.1C Medium parameters used: f = 5250 MHz; σ = 4.65 S/m; ε r = 34.85; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1260; Calibrated: 2021/9/20 - Probe: EX3DV4 - SN7642; ConvF(5.69, 5.69, 5.69) @ 5250 MHz; Calibrated: 2022/3/2 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Head/Pin=100mW/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 17.1 W/kg Head/Pin=100mW/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 66.20 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 33.7 W/kg SAR(1 g) = 8.7 W/kg; SAR(10 g) = 2.52 W/kg Smallest distance from peaks to all points 3 dB below = 7.4 mm Ratio of SAR at M2 to SAR at M1 = 56.3% Maximum value of SAR (measured) = 17.9 W/kg 0 dB = 17.9 W/kg = 12.53 dBW/kg

Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2022/9/1 WiFi 2.4GHz_Edge 1_802.11b_Ch 6_0mm Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.4C; Liquid Temperature: 23.1C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.858 S/m; ε r = 39.421; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1260; Calibrated: 2021/9/20 - Probe: EX3DV4 - SN7642; ConvF(8.12, 8.12, 8.12) @ 2437 MHz; Calibrated: 2022/3/2 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Edge 1/802.11b/Area Scan (81x111x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.28 W/kg Edge 1/802.11b/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.76 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 2.52 W/kg SAR(1 g) = 0.974 W/kg; SAR(10 g) = 0.419 W/kg Smallest distance from peaks to all points 3 dB below = 6 mm Ratio of SAR at M2 to SAR at M1 = 42.8% Maximum value of SAR (measured) = 1.61 W/kg 0 dB = 1.61 W/kg = 2.07 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2022/9/1 WiFi 5GHz_Edge 1_802.11a_Ch 44_0mm Frequency: 5220 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.4C; Liquid Temperature: 23.1C Medium parameters used: f = 5220 MHz; σ = 4.614 S/m; ε r = 34.849; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1260; Calibrated: 2021/9/20 - Probe: EX3DV4 - SN7642; ConvF(5.69, 5.69, 5.69) @ 5220 MHz; Calibrated: 2022/3/2 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Edge 1/802.11a/Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.409 W/kg Edge 1/802.11a/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 9.825 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.17 W/kg SAR(1 g) = 0.242 W/kg; SAR(10 g) = 0.062 W/kg Smallest distance from peaks to all points 3 dB below = 4.7 mm Ratio of SAR at M2 to SAR at M1 = 55.4% Maximum value of SAR (measured) = 0.497 W/kg 0 dB = 0.497 W/kg = -3.04 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2022/9/1 WiFi 2.4GHz_Edge 1_802.11b_Ch 1_0mm_Repeated one Frequency: 2412 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.4C; Liquid Temperature: 23.1C Medium parameters used : f = 2412 MHz; σ = 1.829 S/m; ε r = 39.525; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1260; Calibrated: 2021/9/20 - Probe: EX3DV4 - SN7642; ConvF(8.12, 8.12, 8.12) @ 2412 MHz; Calibrated: 2022/3/2 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Edge 1/802.11b/Area Scan (81x111x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.39 W/kg Edge 1/802.11b/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.79 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 2.63 W/kg SAR(1 g) = 1.02 W/kg; SAR(10 g) = 0.431 W/kg Smallest distance from peaks to all points 3 dB below = 5 mm Ratio of SAR at M2 to SAR at M1 = 41.7% Maximum value of SAR (measured) = 1.63 W/kg 0 dB = 1.63 W/kg = 2.12 dBW/kg

Project No.: TM-2207000162P FCC ID: IR5FD10 Page: 1 / 32 Report No.: TMWK2207002821KS Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group SAR TEST REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 for HANDHELD COMPUTER Model Name.: DF10 Prepared for: MilDef Crete Inc. 7F, No.250, Sec.3,Pei Shen Rd.,Shen Keng District, New Taipei City, Taiwan Prepared by Compliance Certification Services Inc. Wugu Lab. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issue Date: October 11, 2022 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NIST or any government agencies. The test results in the report only apply to the tested sample. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 32 Report No.: TMWK2207002821KS Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 11, 2022 Initial Issue ALL Allison Chen This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 32 Report No.: TMWK2207002821KS Rev.: 00 Table of Contents 1 ATTESTATION OF TEST RESULTS ................................................................... 4 2 TEST SPECIFICATION, METHODS AND PROCEDURES ................................. 5 3 DEVICE UNDER TEST (DUT) INFORMATION .................................................... 6 3.1 DUT DESCRIPTION .............................................................................................................. 6 3.2 WIRELESS TECHNOLOGIES ............................................................................................... 7 4 SAR MEASUREMENT SYSTEM .......................................................................... 8 4.1 SYSTEM COMPONENTS ...................................................................................................... 9 4.2 SAR SCAN PROCEDURES ................................................................................................. 12 5 MEASUREMENT UNCERTAINTY ..................................................................... 14 6 RF EXPOSURE CONDITIONS (TEST CONFIGURATIONS) ............................. 15 6.1 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ........................................... 15 6.2 REQUIRED TEST CONFIGURATIONS .............................................................................. 16 7 DIELECTRIC PROPERTY MEASUREMENTS & SYSTEM CHECK.................. 17 7.1 DIELECTRIC PROPERTY MEASUREMENTS .................................................................... 17 7.2 SYSTEM CHECK ................................................................................................................. 20 8 CONDUCTED OUTPUT POWER MEASUREMENTS........................................ 22 8.1 WI-FI 2.4GHZ (DTS BAND) ................................................................................................. 22 8.2 WI-FI 5GHZ (U-NII BANDS) ................................................................................................. 23 8.3 BLUETOOTH........................................................................................................................ 24 9 MEASURED AND REPORTED (SCALED) SAR RESULTS ............................. 26 9.1 WI-FI (DTS BAND) ............................................................................................................... 26 9.2 WI-FI (U-NII BAND) .............................................................................................................. 26 10 SAR MEASUREMENT VARIABILITY ................................................................ 27 11 SIMULTANEOUS TRANSMISSION SAR ANALYSIS ....................................... 28 11.1 SUM OF THE SAR FOR WI-FI & BT ................................................................................... 30 12 EQUIPMENT LIST & CALIBRATION STATUS ................................................. 31 13 FACILITIES ........................................................................................................ 32 14 APPENDIXES ..................................................................................................... 32 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 32 Report No.: TMWK2207002821KS Rev.: 00 1 Attest…

Text truncated - open the document above for the full version.

1 茂 訊 電 腦 股 份 有 限 公 司 測 試 報 告 TEST REPORT 第 1/1 頁 機型：DF10 名稱： Antenna Test Report 1.DF10 Antenna location 2.Antenna Dimensions PN: G980210104 / PCBA ANT,DF10 Z FCC:IR5DF10 2 3. Antenna Return Loss 4. 3D-Chamber Measurement Test Y A A X 3 4-1 GSNN 3D Antenna Pattern GNSS 1565MHz GNSS 1575MHz GNSS 1585MHz GNSS 1605MHz GNSS 1615MHz Z X Y A A 4 4-2 WLAN 3D Antenna Pattern WLAN 2400MHz WLAN 2450MHz WLAN 2500MHz WLAN 5150MHz WLAN 5250MHz WLAN 5350MHz 5 WLAN 5470MHz WLAN 5500MHz WLAN 5600MHz WLAN 5725MHz WLAN 5850MHz 6 5. Antenna Efficiency: Category Frequency(MHz) Efficiency(%) Peak Gain GNSS 1565 35.24 0.37 1575 31.84 0.32 1585 37.24 1.05 1605 42.07 1.13 1615 44.77 0.82 Wi-Fi / BT 2400 36.9 0 2450 50.12 0.52 2500 55.08 0.92 5150 17.34 0.2 5250 17.5 0.48 5350 17.1 0.7 5470 25.12 1.52 5500 21.13 0.59 5600 31.26 2.21 5725 39.17 3.59 5850 50.58 3.78 審核： 承辦： QR-83-04

Project No: TM-2207000162P FCC ID: IR5FD10 Page: 1 / 83 Report No.: TMWK2207002885KR Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.247 Product name HANDHELD COMPUTER Brand Name MilDef Model No. DF10 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc. (Wugu Laboratory) Approved by: Sehni Hu Supervisor This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 83 Report No.: TMWK2207002885KR Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 11, 2022 Initial Issue ALL Allison Chen This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 83 Report No.: TMWK2207002885KR Rev.: 00 Table of contents 1. GENERAL INFORMATION ............................................................................................ 4 1.1 EUT INFORMATION....................................................................................................... 4 1.2 INFORMATION ABOUT THE FHSS CHARACTERISTICS ............................................ 5 1.3 EUT CHANNEL INFORMATION .................................................................................... 6 1.4 ANTENNA INFORMATION ............................................................................................ 6 1.5 MEASUREMENT UNCERTAINTY .................................................................................. 7 1.6 FACILITIES AND TEST LOCATION .............................................................................. 8 1.7 INSTRUMENT CALIBRATION ....................................................................................... 9 1.8 SUPPORT AND EUT ACCESSORIES EQUIPMENT ................................................... 10 1.9 TEST METHODOLOGY AND APPLIED STANDARDS ............................................... 10 2. TEST SUMMARY ......................................................................................................... 11 3. DESCRIPTION OF TEST MODES ................................................................................ 12 3.1 THE WORST MODE OF OPERATING CONDITION .................................................... 12 3.2 THE WORST MODE OF MEASUREMENT .................................................................. 13 3.3 EUT DUTY CYCLE ....................................................................................................... 14 4. TEST RESULT ............................................................................................................. 17 4.1 AC POWER LINE CONDUCTED EMISSION ............................................................... 17 4.2 20DB BANDWIDTH AND OCCUPIED BANDWIDTH (99%) ........................................ 22 4.3 OUTPUT POWER MEASUREMENT ............................................................................ 30 4.4 FREQUENCY SEPARATION ....................................................................................... 33 4.5 NUMBER OF HOPPING ............................................................................................... 38 4.6 CONDUCTED BANDEDGE AND SPURIOUS EMISSION ............................................ 41 4.7 TIME OF OCCUPANCY (DWELL TIME) ...................................................................... 49 4.8 RADIATION BANDEDGE AND SPURIOUS EMISSION .............................................. 54 APPENDIX 1 - PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 83 Report No.: TMWK2207002885KR Rev.: 00 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant MilDef Crete Inc. 7F, No.250, Sec.3,Pei Shen Rd.,Shen Keng District,New Taipei City, Taiwan Manufacturer MilDef Crete Inc. 7F, No.250, Sec.3,Pei Shen Rd.,Shen Keng District,New Taipei City, Taiwan Equipmen…

Text truncated - open the document above for the full version.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2207000162P Page: 1 / 4 Rev.: 00 ANTENNA LOCATION This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2207000162P Page: 2 / 4 Rev.: 00 SETUP PHOTOS Rear_0mm Edge 1_0mm This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2207000162P Page: 3 / 4 Rev.: 00 Rear 2_0mm Edge 4_0mm This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2207000162P Page: 4 / 4 Rev.: 00 EUT Front View Rear View

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-1 / A-4 Report No.: TMWK2207002885KR Rev.: 00 APPENDIX-A Test Photo Radiation (Below 1GHz) Radiation (Above 1GHz) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-2 / A-4 Report No.: TMWK2207002885KR Rev.: 00 Conducted Emission Set Up Photo This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-3 / A-4 Report No.: TMWK2207002885KR Rev.: 00 Conduction Set Up Photo This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-1 / A-4 Report No.: TMWK2207002885KR Rev.: 00
