ITQ-2150GRDUOGround Penetrating Radar

Rev. 2 054-140 2150GR Ground Penetrating Radar User Guide 2150GR Ground Penetrating Radar 054-140 - Rev. 2 ii / iii INDEX 1. INTRODUCTION ................................................................................................................... 1 1.1 Scope................................................................................................................................ 3 1.2 Trademarks ...................................................................................................................... 3 1.3 Acronyms and Definitions ............................................................................................... 3 1.3.1 Acronyms .........................................................................................................................3 1.3.2 Definitions........................................................................................................................3 2. OVERVIEW ............................................................................................................................ 4 2.1 How to use this manual ................................................................................................... 4 2.2 Background knowledge required ..................................................................................... 4 3. USER GUIDE .......................................................................................................................... 5 3.1 Description of the hardware............................................................................................ 5 3.1.1 The Radar Control Unit....................................................................................................6 3.1.2 The Antenna.....................................................................................................................6 3.1.3 Power supply....................................................................................................................7 3.1.3.1 Charge level and battery replacement...................................................................7 4. ASSEMBLY PROCEDURE................................................................................................... 8 4.1 How to assemble the trolley............................................................................................. 8 4.2 Connecting the cables.................................................................................................... 10 4.2.1 Connecting the battery ...................................................................................................10 4.2.2 Mounting the antenna and connecting its cables............................................................11 4.2.3 Mounting the PC notebook ............................................................................................12 4.2.4 Connecting the position sensor ......................................................................................13 4.2.5 Removing the trolley wheels..........................................................................................13 5. THE ACQUISITION SOFTWARE .................................................................................... 15 5.1 Basic characteristics of the notebook PC ...................................................................... 15 5.2 Software installation and configuration ........................................................................ 16 5.3 The operational phases.................................................................................................. 18 5.3.1 Running the software .....................................................................................................18 5.3.2 Pre-acquisition commands .............................................................................................19 5.3.3 Commands used during acquisition ...............................................................................20 5.3.4 Depth calibration............................................................................................................26 5.3.5 Post-acquisition commands............................................................................................29 5.4 Error messages ..............................................................................................................33 6. WORK PROCEDURE FLOWCHART .............................................................................. 34 7. HOW TO USE THE 2150GR............................................................................................... 35 APPENDIX A - THE PRELIMINARY INVESTIGATION ................................................. 38 APPENDIX B - THE TECHNICAL MAPS ........................................................................... 38 APPENDIX C - OPENING MANHOLES .............................................................................. 39 APPENDIX D - CARE, MAINTENANCE AND SAFETY WARNINGS ........................... 39 APPENDIX E - CLEANING INSTRUCTIONS .................................................................... 40 2150GR Ground Penetrating Radar 054-140 - Rev. 2 iii / iii FIGURES INDEX FIG. 3-1 – OVERVIEW OF THE 2150GR AND ITS COMPONENTS........................................................ 5 FIG. 3-2 – THE CONTROL UNIT ................................................................................................................ 6 FIG. 3-3 – THE ANTENNA-CONTROL UNIT CONNECTION CABLE ................................................... 6 FIG. 3-4 – THE INVERTED NETWORK CABLE ....................................................................................... 6 FIG. 3-5 – THE POWER SUPPLY CABLE .................................................................................................. 6 FIG. 3-6 – ATS ANTENNA........................................................................................................................... 6 FIG. 3-7 – LEAD BATTERY............................…

Text truncated - open the document above for the full version.

DAD Block Diagram ATS Antenna Block Diagram

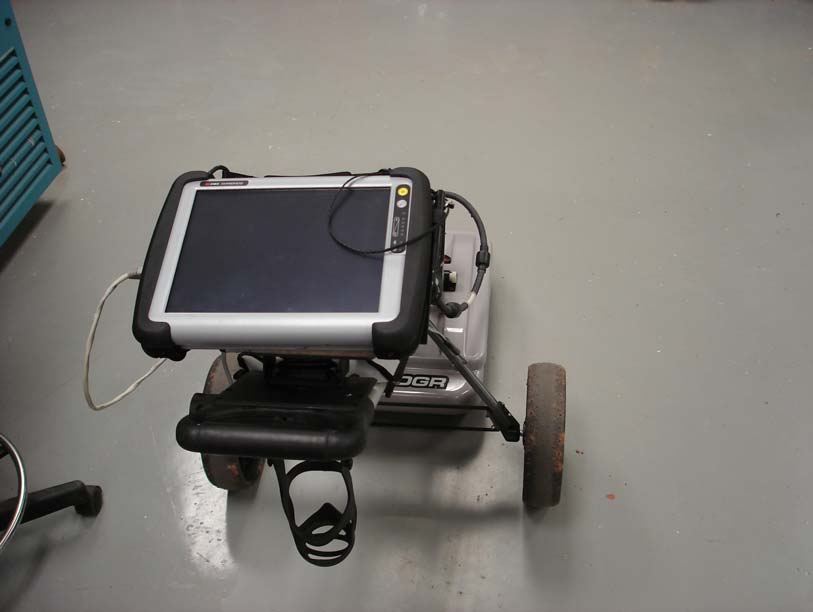

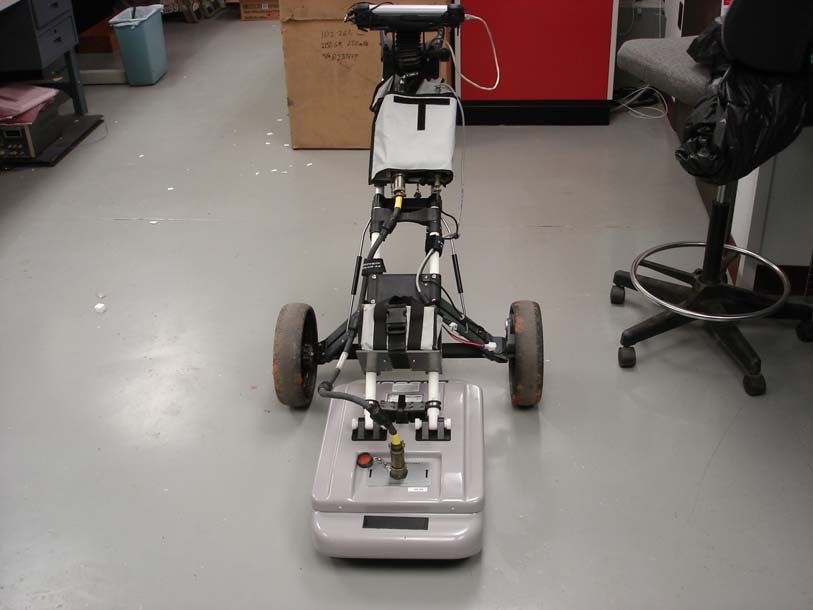

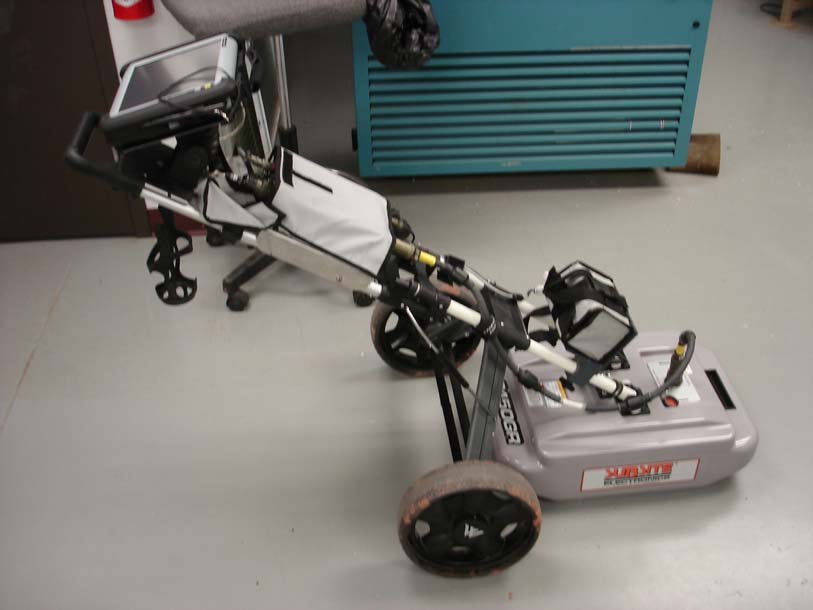

Unit Photos and Label Location FCC ID Label i

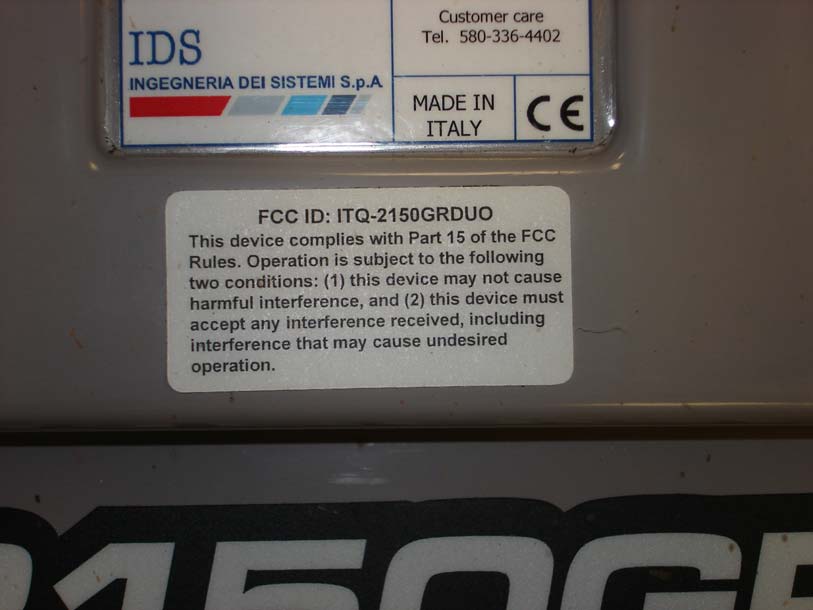

FCC ID: ITQ-2150GRDUO This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.625" 1.312"

FCCC ID Label

2150GR Digital Antenna Driver (D.A.D.) Unit: internal pictures Bottom Connector panel (antenna side) Trigger amplifier board Timing circuit A/D conversion board Power Supply board Top Connector panel (laptop side) Fig. 1: DAD internal pictures showing the internal boards and panels Fig. 2: Top connector panel: on the left the LAN interface board Fig. 3: LAN interface board - top side (left) and bottom side (right) Fig. 4: Bottom connector panel Fig. 5: Power supply board (component side) Fig. 6: Power supply board (bottom side) Fig. 7: Trigger amplifier board (component side) Fig. 8: Trigger amplifier board (bottom side) Fig. 9: Timing circuit (component side) Fig. 10: Timing circuit (bottom side) Metallic shield Fig. 11: A/D conversion board with shield (component side) Fig. 12: A/D conversion board with shield removed (component side) Fig. 13: A/D conversion board (bottom side)

Nemko Test Report: 5891RUS1 Applicant: The Charles Machine Works, Inc 1959 W. Fir Ave Perry, OK 73077 USA Equipment Under Test: 2150GR (E.U.T.) In Accordance With: FCC Part 15, Subpart F, Paragraph 15.509 Ultra Wide Band Operation Ground Pentrating Radar Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057 TESTED BY: DATE : 02 July 2007 David Light, Senior Wireless Engineer APPROVED BY: DATE : 2 nd July 2007 Harry Ward, Verifier Total Number of Pages: 15 Nemko USA, Inc. FCC PART 15, SUBPART C, Paragraph 15.509 Ultra Wide Band Operation EQUIPMENT: 2150GR Test Report No.: 5891RUS1 Page 2 of 15 Table Of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RADIATED EMISSIONS 7 SECTION 4. TEST EQUIPMENT LIST 19 ANNEX A TEST DIAGRAMS 20 Nemko USA, Inc. FCC PART 15, SUBPART C, Paragraph 15.509 Ultra Wide Band Operation EQUIPMENT: 2150GR Test Report No.: 5891RUS1 Section 1. Summary Of Test Results Manufacturer: The Charles Machine Works, Inc. Model No.: 2150GR Serial No.: Preproduction General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C, Paragraph 15.509 for ultra wide band operation. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated Emissions were made on an open area test site. with a 4 foot by 4foot by 4foot dry sand pit New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Page 3 of 15 Nemko USA, Inc. FCC PART 15, SUBPART C, Paragraph 15.509 Ultra Wide Band Operation EQUIPMENT: 2150GR Test Report No.: 5891RUS1 Page 4 of 15 Summary Of Test Data NAME OF TEST PARA. NO. RESULT Conducted Emissions 15.207 NA Pulse Repetition Frequency 15.509 Complies Definition of UWB 15.203(a)/15.209(a) Complies Radiated Emissions 15.509(d) Complies Radiated Emissions 15.509(e) Complies Peak Emission at f M 15.509(f) Complies Footnotes For N/A’s: The device is battery powered. Nemko USA, Inc. FCC PART 15, SUBPART C, Paragraph 15.509 Ultra Wide Band Operation EQUIPMENT: 2150GR Test Report No.: 5891RUS1 Page 5 of 15 Section 2. General Equipment Specification Frequency Range: Single Operating Frequency(ies) of Sample: 57 MHz to 415 MHz (20 dB BW) Tunable Bands: Single 20 dB Occupied Bandwidth: 358 MHz User Frequency Adjustment: None Integral Antenna Yes No Nemko USA, Inc. FCC PART 15, SUBPART C, Paragraph 15.509 Ultra Wide Band Operation EQUIPMENT: 2150GR Test Report No.: 5891RUS1 Page 6 of 15 Description of Device Tested Ground Penetrating Radar Bipolar Antenna System System Diagram Refer to separate exhibit. Nemko USA, Inc. FCC PART 15, SUBPART C, Paragraph 15.509 Ultra Wide Band Operation EQUIPMENT: 2150GR Test Report No.: 5891RUS1 Page 7 of 15 Section 3. Radiated Emissions NAME OF TEST: Radiated Emissions PARA. NO.: 15.509(d)&(e) TESTED BY: David Light DATE: 06 March 07 Minimum Standard: Para no. 15.509 Limits below 960 MHz (15.209 and 15.509): Frequency (MHz) Field Strength Limits (microvolts/m) Measuring RBW Distance (Meters) 0.009-0.490 0.490-1.705 1.705-30.0 30-88 88-216 216-960 2400/F(kHz) 24000/F(kHz) 30 100 150 200 1 kHz 10 kHz 10 kHz 100 kHz 100 kHz 100 kHz 300 30 30 3 3 3 Limits above 960 MHz (15.509) Frequency (MHz) E.I.R.P. (dBm) Measuring RBW Distance (Meters) 960-1610 1610-1990 1990-3100 3100-10600 Above 10600 1164-1240 1559-1610 -65.3 -53.3 -51.3 -41.3 -51.3 -75.3 -75.3 1 MHz 1 MHz 1 MHz 1 MHz 1 MHz 1 kHz 1 kHz 3 3 3 3 3 3 3 E.I.R.P limits converted to field strength during measurements per 15.521(g) Maximizing Emission Levels: The emissions were scanned from 30 MHz to 15000 MHz. For measurements below 960 MHz the emissions were made using a PEAK detector RBW=VBW=100 kHz For Frequency above 960 MHz and outside the below frequency bands, the emissions were measured using RMS detector, RBW=1MHz, VBW=3MHz For frequencies fall inside 1164-1240 and 1559-1610 MHz, the emissions were measured using EMI RMS Detector, RBW = 1 KHz, VBW = 1 MHz Note: The above tests were performed with the EUT in contact with the ground as its intended use. The EUT was tested in 8 positions (every 45°) Test Results: Complies Measurement Data: See attached table(s). Nemko USA, Inc. FCC PART 15, SUBPART C, Paragraph 15.509 Ultra Wide Band Operation EQUIPMENT: 2150GR Test Report No.: 5891RUS1 Test Data – Radiated Emissions Meas.Ant.Atten.MeterAntennaPathRFCorrectedSpec.CR/SLPass Freq. Pol.ReadingFactorLossGainReadinglimitDiff.Fail (MHz)(H/V)(dB)(dBuV)(dB)(dB)(dB)(dBuV/m) (dBuV/m)(dB)Unc.Comment 42.6V03012.22.324.819.740.0-20.3Pass 0º 65V042.98.43.024.729.640.0-10.4Pass 69.8V050.983.024.737.240.0-2.8PassPEAK 69.8V048.483.024.734.740.0-5.3PassQP 74.4V051.48.13.124.737.940.0-2.1PassPEAK 74.4V050.18.13.124.736.640.0-3.4PassQP 84.4V046.29.33.524.634.440.0-5.6Pass 114.6V044.411.83.824.735.343.5-8.2Pass 121V041.611.63.824.732.343.5-11.2Pass 132V034.4134.224.627.043.5-16.5Pass 143V040.413.74.224.633.743.5-9.8Pass 148.4V043.114.14.224.636.843.5-6.7Pass 159.2V044.7144.724.638.843.5-4.7Pass 165.2V041.3144.724.635.443.5-8.1Pass 170.2V040.113.94.724.634.143.5-9.4Pass 191V040.914.55.124.536.043.5-7.5Pass 207.4V038.915.55.524.535.443.5-8.1Pass 218.2V037.215.45.524.533.646.0-12.4Pass 229.2V036.215.95.924.533.5…
