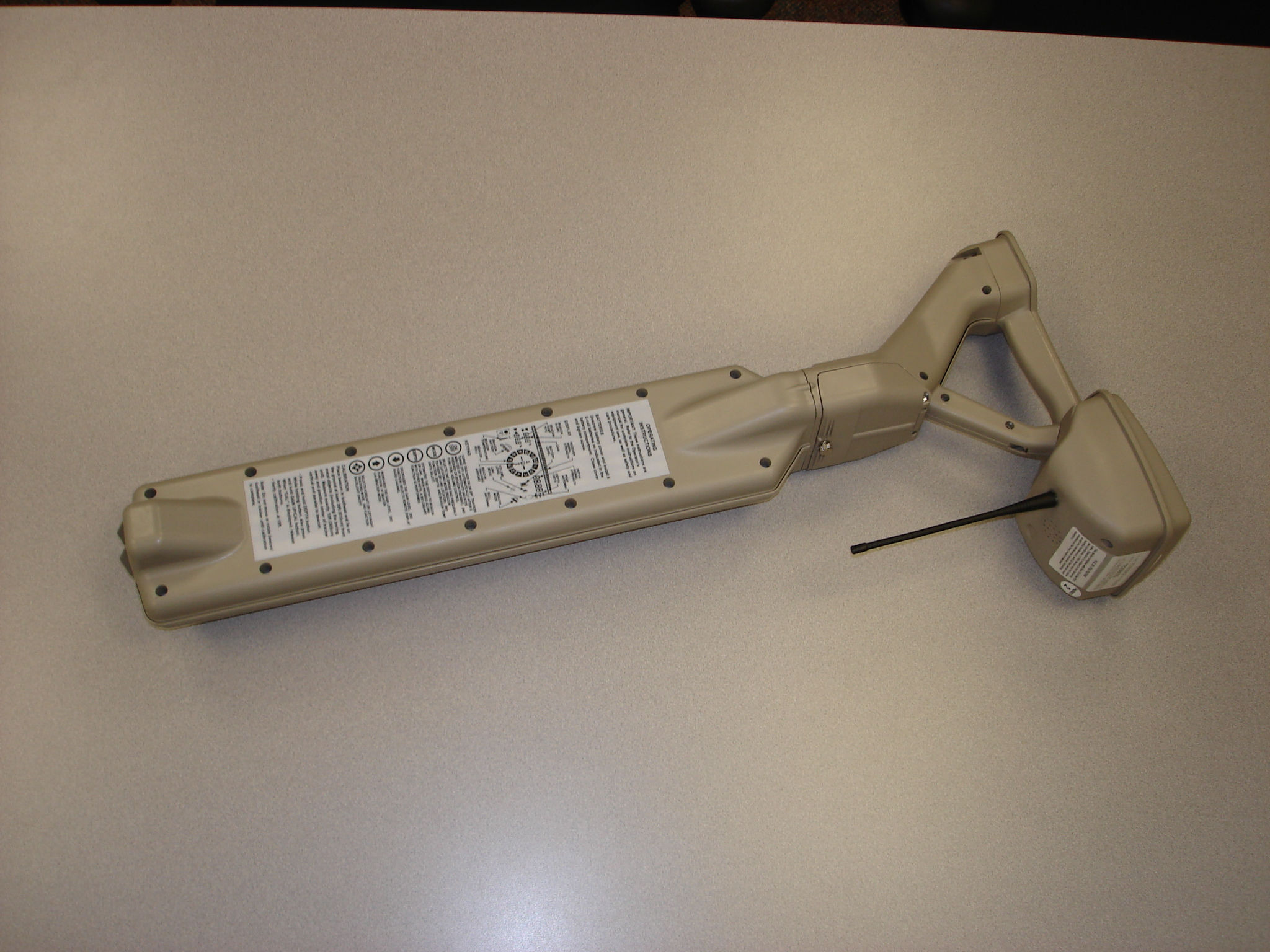

ITQ-752TKR752 Tracker

750/752 Tracker - SUPPORT1 SERIAL NUMBER RECORD 750/752 Tracker - SUPPORT1 SERIAL NUMBER RECORD SUPPORT SERIAL NUMBER RECORD Record the serial numbers and date of purchase of your Ditch Witch components in the spaces below. Date of purchase: Tracker serial number: SUPPORT SERIAL NUMBER RECORD Record the serial numbers and date of purchase of your Ditch Witch components in the spaces below. Date of purchase: Tracker serial number: 2750/752 Tracker - SUPPORT SERVICE PROCEDURE 2750/752 Tracker - SUPPORT SERVICE PROCEDURE SERVICE PROCEDURE Notify your authorized Ditch Witch dealer immediately of any malfunction of Ditch Witch equipment. Always give model, serial number, and approximate date of purchase. This information should be recorded and placed on file by owner at time of purchase. Give detailed explanation of malfunction. Return damaged parts to an authorized Ditch Witch dealer for inspection and warranty consideration. Order genuine Ditch Witch replacement or repair parts from your Ditch Witch dealer. Use of another manufacturer’s parts may void warranty. SERVICE PROCEDURE Notify your authorized Ditch Witch dealer immediately of any malfunction of Ditch Witch equipment. Always give model, serial number, and approximate date of purchase. This information should be recorded and placed on file by owner at time of purchase. Give detailed explanation of malfunction. Return damaged parts to an authorized Ditch Witch dealer for inspection and warranty consideration. Order genuine Ditch Witch replacement or repair parts from your Ditch Witch dealer. Use of another manufacturer’s parts may void warranty. 750/752 Tracker - FOREWORD3 FCC Statement -- Internal Transmitter 750/752 Tracker - FOREWORD3 FCC Statement -- Internal Transmitter FOREWORD This manual is an important part of your equipment. It provides safety information and operation instructions to help you use and maintain your Ditch Witch equipment. Read this manual before using your equipment. Keep it with the equipment at all times for future reference. If you sell your equipment, be sure to give this manual to the new owner. If you need a replacement copy, contact your Ditch Witch dealer. The descriptions and specifications in this manual are subject to change. The Charles Machine Works, Inc. reserves the right to improve equipment. Some product improvements may have taken place after this manual was published. Thank you for buying and using Ditch Witch equipment. FCC Statement -- Internal Transmitter FCC ID: ITQ-CMW-R-75T FCC ID: ITQ-752TKR This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to the device not expressly approved by The Charles Machine Works, Inc. could void the user’s authority to operate the equipment. FOREWORD This manual is an important part of your equipment. It provides safety information and operation instructions to help you use and maintain your Ditch Witch equipment. Read this manual before using your equipment. Keep it with the equipment at all times for future reference. If you sell your equipment, be sure to give this manual to the new owner. If you need a replacement copy, contact your Ditch Witch dealer. The descriptions and specifications in this manual are subject to change. The Charles Machine Works, Inc. reserves the right to improve equipment. Some product improvements may have taken place after this manual was published. Thank you for buying and using Ditch Witch equipment. FCC Statement -- Internal Transmitter FCC ID: ITQ-CMW-R-75T FCC ID: ITQ-752TKR This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to the device not expressly approved by The Charles Machine Works, Inc. could void the user’s authority to operate the equipment. 4750/752 Tracker - FOREWORD FCC Statement -- Internal Transmitter 4750/752 Tracker - FOREWORD FCC Statement -- Internal Transmitter Operator's Manual 750 Tracker/752 Tracker Issue No. 3.1/OP-3/07 Part Number 054-080 Copyright 1999, 2000, 2001, 2005, 2007 by The Charles Machine Works, Inc., Perry, Oklahoma , Ditch Witch, CMW, AutoCrowd, Modularmatic, Jet Trac, Roto Witch, Subsite, Fluid Miser, Perma- Soil, Power Pipe, Super Witch, Super Witch II, Pierce Airrow, The Underground, and The Underground Authority Worldwide are registered trademarks of The Charles Machine Works, Inc. U.S. Patent No. 5,065,098; 4,881,083. Other U.S. and foreign patents pending. Operator's Manual 750 Tracker/752 Tracker Issue No. 3.1/OP-3/07 Part Number 054-080 Copyright 1999, 2000, 2001, 2005, 2007 by The Charles Machine Works, Inc., Perry, Oklahoma , Ditch Witch, CMW, AutoCrowd, Modularmatic, Jet Trac, Roto Witch, Subsite, Fluid Miser, Perma- Soil, Power Pipe, Super Witch, Super Witch II, Pierce Airrow, The Underground, and The Underground Authority Worldwide are registered trademarks of The Charles Machine Works, Inc. U.S. Patent No. 5,065,098; 4,881,083. Other U.S. and foreign patents pending. 750/752 Tracker - CONTENTS5 FCC Statement -- Internal Transmitter 750/752 Tracker - CONTENTS5 FCC Statement -- Internal Transmitter CONTENTS SUPPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Serial Number Record . . . . . . . . . . . . . . . . . . . . . . . . . 1 Service Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7…

Text truncated - open the document above for the full version.

Antennas Analog Front End A/D Converter Micro- processor Power Supply RS232 Port Display Audio Output Radio System RF Antenna 752 Tracker Block Diagram

DRAWN BY: STDS. CK. TECH. REV. REVISIONS 1950 W. FIR AVE. PERRY, OK 73077 (580) 336-5546 FAX (580) 336-5495 SCALE: SHEET REV: DWG.NO.: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. TOLERANCES ARE: FRACTIONS DECIMALS ANGLES ± 1/32 .X ± .040 ± 2 ° FORMED .XX ± .015 .5 MACHINED .XXX .005 BEND RADIUS = MATL. THK. .040 FINISH: MATERIAL: REV. DATE ECO NUMBER DATE: PART NAME: OF THE INFORMATION IN THIS DRAWING IS THE SOLE PROPERTY OF SUBSITE ELECTRONICS. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISION OF SUBSITE ELECTRONICS IS PROHIBITED. 270-2172 A 12/18/07 500000007799 A DECAL, 752 TRACKER FCCSAM 12/18/07 1:1 1 1 .010 POLYCARBONATE VELVET MATTE PRE-TEXTURED 2.63 1.34 R.13 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: ITQ-752TKR FCC ID Label

ALIGNMENT PROCEDURE AND PERFORMANCE TESTS 6.1 GENERAL Receiver or transmitter alignment may be necessary if repairs are made that could affect tuning. Alignment points diagrams are located in Figure 6-3 or component layouts are located in Section 8. Fabricate test cables by referring to Section 2.2 Interfacing with Data Equipment. This cable should include power and ground, a transmit keying switch that applies 5.5 VDC to the Rx and Tx Enable, data input and data output. The test setup must apply the various supply voltages and load the synthesizer with channel information. 6.2 ALIGNMENT PROCEDURE 6.2.1 VCTCXO SETUP (Y801) 1. Apply 7.2 Vdc +\-0.1 Vdc to pins 3, 4, and 5. 2. Verify 2.5 Vdc +\- 0.05 Vdc is on pin 10. 3. Set Y801 (the VCTCXO) to 14.400000 MHz +\- 6.0 Hz (+\- 0.4PPM) 6.2.2 FREQUENCY AND CONTROL LINE VOLTAGE CHECK 1. Connect the test setup shown in Figure 6-1. Set the power supply for +7.2V DC. 2. Load the synthesizer with the channel frequency. 3. Connect a DC voltmeter at TP831 to measure the VCO control line voltage for a meter reading of ≥ 0.50 - ≤ 5.0VDC for all desired frequencies of operation in both transmit and receive. 6.2.3 100mW TRANSMITTER POWER ALIGNMENT 1. Connect the test setup shown in Figure 6-1. A DC ammeter capable of measuring up to 2.0 A should be installed in the supply line. 2. Load the synthesizer with the desired channel frequency. 3. Set the IDSS of the final by shorting TP601. To Ground R521, turn counter-clockwise for minimum transmit current. Note the current and adjust R521 for 200 mA more current. 4. Key the transmitter and make sure that pins 3, 4, and 5 on the RF board are 7.2V. (Do not transmit for extended periods.) 5. Adjust C552 for 100 milliwatts output power.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:20.00(dBm) Source-Based Time Averaging100.00(%) Corrected max peak output power:20.00(dBm) Maximum peak output power at antenna input terminal:100(mW) Antenna gain(typical):8(dBi) Maximum antenna gain:6.309573(numeric) Prediction distance:20(cm) Prediction frequency:470(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.306667(mW/cm^2) Power density at prediction frequency:0.125525(mW/cm^2) Time Avg. = 39% This plot is taken with the transmitter in normal TX mode and represents max. rf on 2 4R PG S π =

Nemko Test Report: 5891RUS6 Applicant: The Charles Machine Works, Inc. 1959 W. Fir Ave Perry, OK 73077 USA Equipment Under Test: 752 Tracker (E.U.T.) In Accordance With: FCC Part 90, Subpart I Private Land Mobile Transmitter Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE: 06 December 2007 David Light, Senior Wireless Engineer APPROVED BY: DATE: 10 December, 2007 Total Number of Pages: 32 Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 752 Tracker PROJECT NO.: 5891RUS6_Rev1 Page 2 of 32 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 7 SECTION 4. MODULATION CHARACTERISTICS 8 SECTION 5. OCCUPIED BANDWIDTH 9 SECTION 6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 12 SECTION 7. FIELD STRENGTH OF SPURIOUS EMISSIONS 16 SECTION 8. FREQUENCY STABILITY 17 SECTION 9. TRANSIENT FREQUENCY BEHAVIOR 19 SECTION 10. TEST EQUIPMENT LIST 22 ANNEX A - TEST METHODOLOGIES 23 ANNEX B - TEST DIAGRAMS 28 Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 752 Tracker PROJECT NO.: 5891RUS6_Rev1 Page 3 of 32 Section 1. Summary of Test Results Manufacturer: The Charles Machine Works, Inc. Model No.: 752 Tracker Serial No.: 8268361 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 752 Tracker PROJECT NO.: 5891RUS6_Rev1 Page 4 of 32 Summary of Test Data NAME OF TEST PARA. NO. RESULT RF Power Output 90.205 Complies Audio Frequency Response TIA EIA- 603.3.2.6 NA Audio Low-Pass Filter Response TIA EIA- 603.3.2.6 NA Modulation Limiting TIA EIA- 603.3.2.6 Complies Occupied Bandwidth 90.210 Complies Spurious Emissions at Antenna Terminals 90.210 Complies Field Strength of Spurious Emissions 90.210 Complies Frequency Stability 90.213 Complies Transient Frequency Behavior 90.214 Complies Footnotes: The DUT has no audio components. . Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 752 Tracker PROJECT NO.: 5891RUS6_Rev1 Page 5 of 32 Section 2. General Equipment Specification Transmitter Supply Voltage Input: 9 Vdc Frequency Range: 460 to 470 MHz Tunable Bands: 461.0375 to 469.550 MHz Frequency Deviation(rated): +/-1.5 kHz max. Data rate: 4800 bps Necessary Bandwidth: 7.8 kHz (calculated per Carson’s Rule) 2(1500Hz) + 2(4800/2) = 7800 Hz Type(s) of Modulation: F3E (Voice) F1D F2D D7W (QAM) Other Emission Designator: 7K8F1D Output Impedance: 50 ohms RF Power Output (rated): 100 mW Channel Spacing(s): 12.5 kHz Operator Selection of Operating Frequency: Dependent on receiver Power Output Adjustment Capability: None Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 752 Tracker PROJECT NO.: 5891RUS6_Rev1 Page 6 of 32 System Description The 752 Tracker is a hand held, 9 channel, dual-conversion, narrow-band FM tracking device used in horizontal directional drilling applications. The tracker provides comprehensive guidance data including pitch, roll angle, depth, location, beacon temperature, battery status, etc. The data is collected and transmitted to a receiver located on the operator's station of a directional drill. The unit operates in the 450MHz- 470MHz band and is powered by 6 C-cell alkaline batteries. System Diagram Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 752 Tracker PROJECT NO.: 5891RUS6_Rev1 Page 7 of 32 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.985 TESTED BY: David Light DATE: 05 December 07 Measurement Results: Complies. Measurement Data: Frequency (MHz) Measured Power (dBm) Measured Power (Watts) Rated Power (Watts) 461.0375 20.11 0.103 .100 466.0375 20.05 0.101 .100 469.5500 19.99 0.100 .100 Spectrum Analyzer Settings: RBW: 1 MHz VBW: 1 MHz Detector: Max Peak Measurement Conditions: Temperature: 22 °C Humidity: 31 % Test Equipment Used: 1036-1082-1469-1470 Measurement Uncertainty: +/- 1.7 dB Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 752 Tracker PROJECT NO.: 5891RUS6_Rev1 Page 8 of 32 Section 4. Modulation Characteristics NAME OF TEST: Modulation Characteristics PARA. NO.: 2.987 TESTED BY: David Light DATE: 07 December 2007 Measurement Results: Complies. Measurement Data: See following pages Measurement Conditions: Temperature:22 °C Humidity:45% Measurement Uncertainty: +/- 1.7 dB Description of modulation: FM Modulation Limiting Maximum deviation for non-voice modulation 2.987 kHz. Limit: 12 kHz Test Equipment Used: 1036-1082-1469-1470 Measurement Uncertainty: +/- 1.7 dB Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 752 Tracker PROJECT NO.: 5891RUS6_Rev1 Page 9 of 32 Section 5. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.989 TESTED BY: David Light DATE: 05 December 07 Measurement Results: Complies. Measurement Data: See attached data Frequency Deviation(rated): +/-1.5 kHz max. Data rate: 4800 bps Necessary Bandwidth: 7.8 kHz (calculated …
