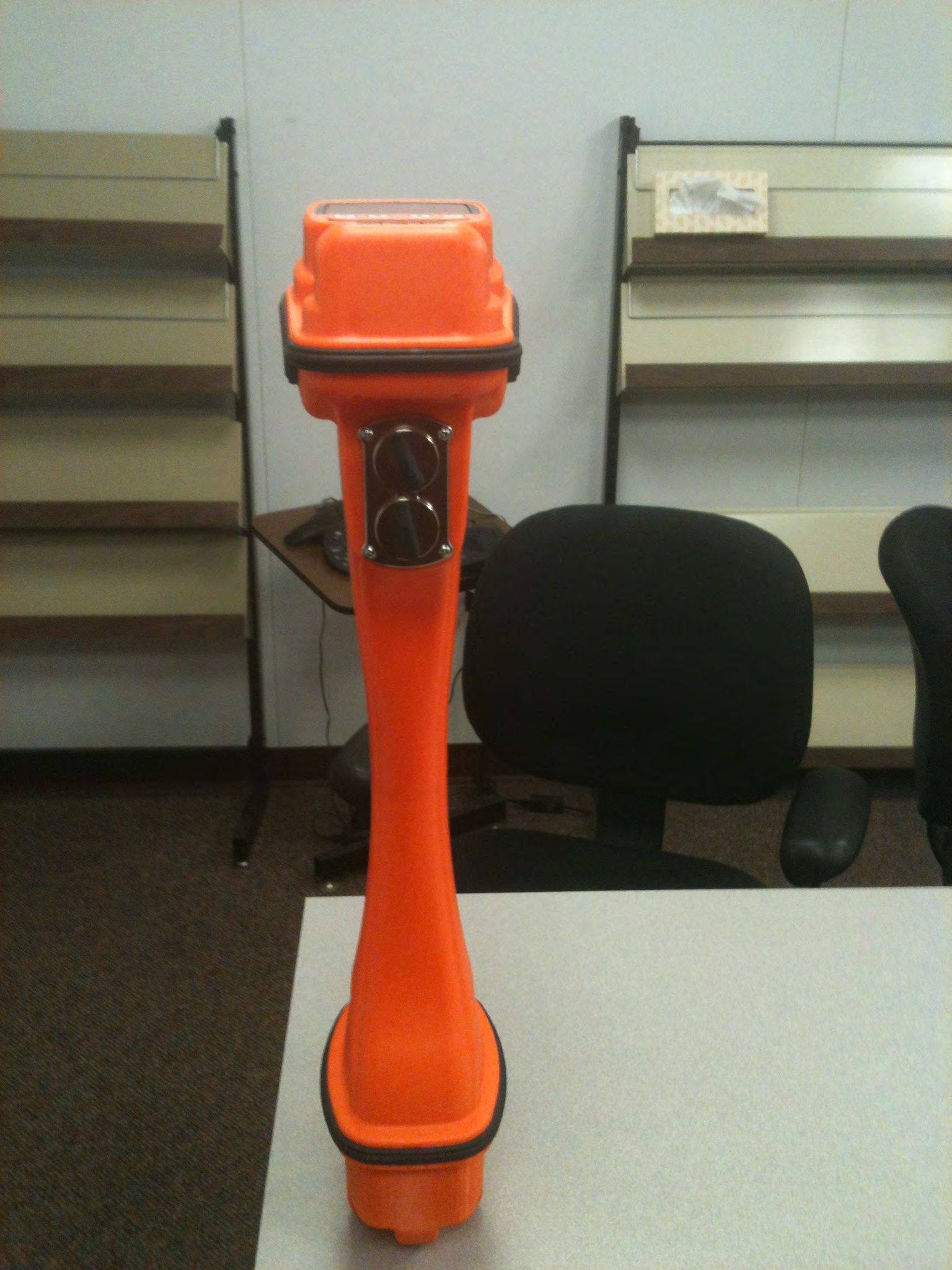

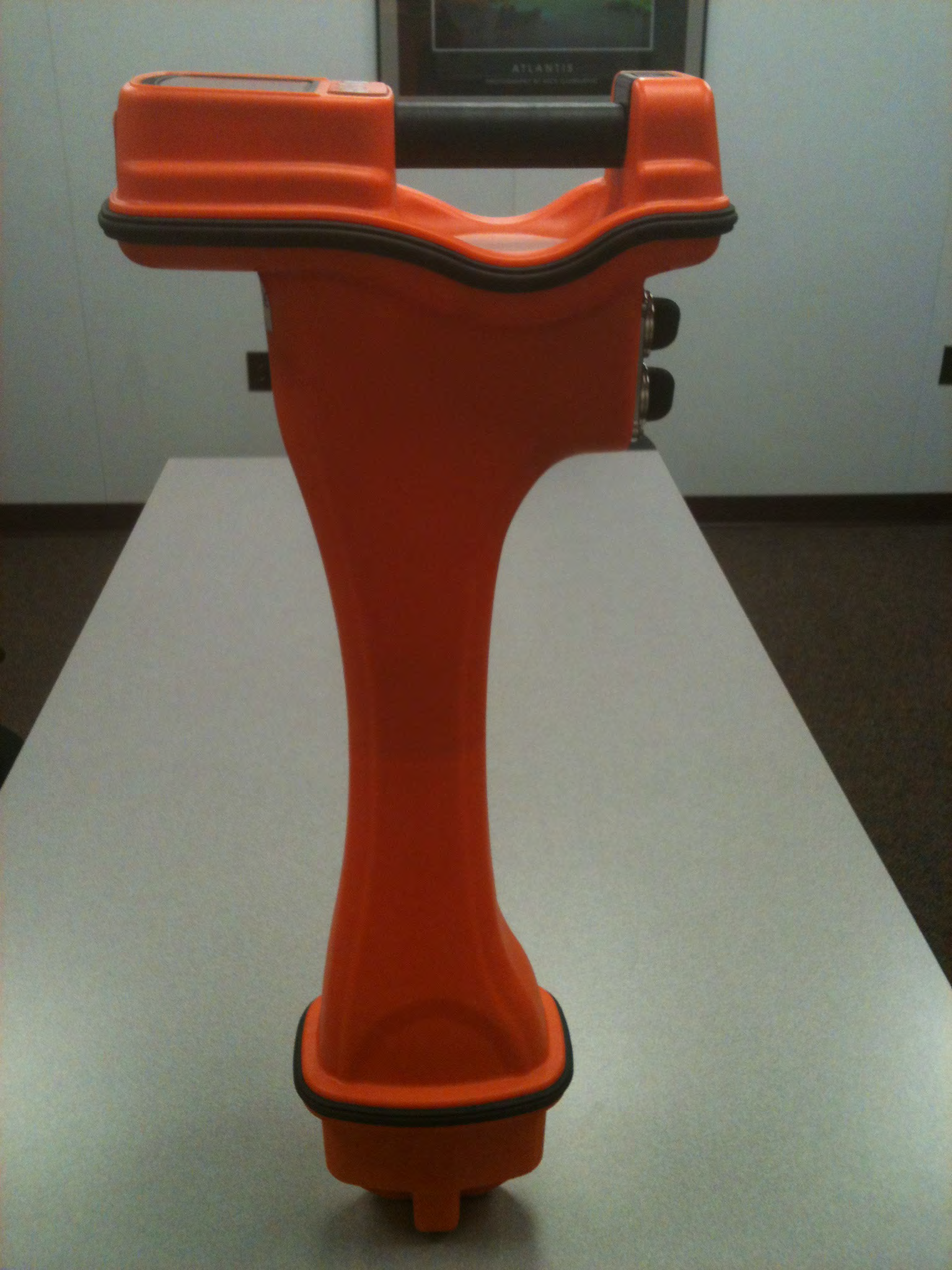

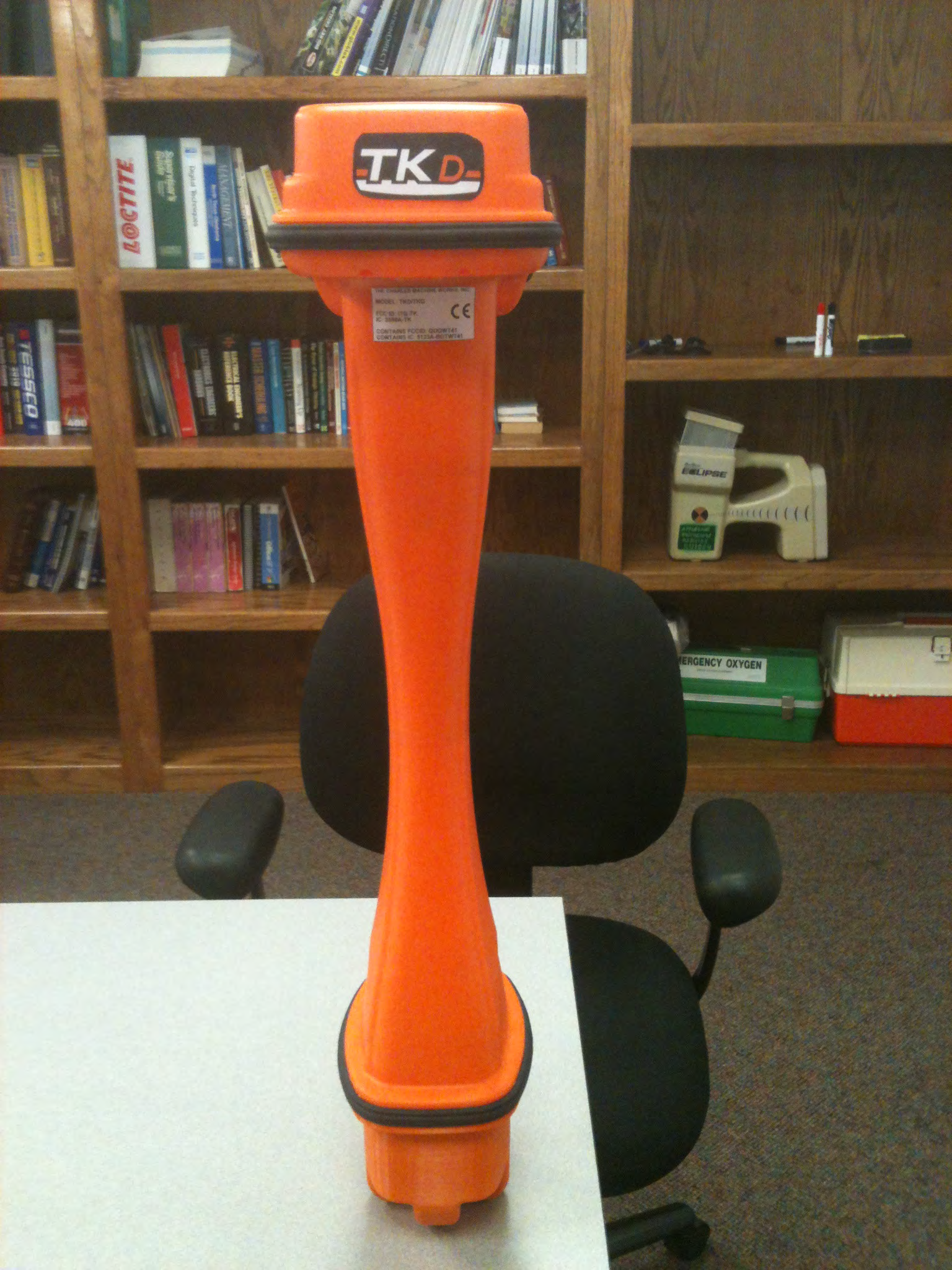

ITQ-TKTK Tracking System

TK/TKD/TKQ Quick Start FCCID: ITQ-TK IC: 3598A-TK IMPORTANT: See Operator’s Manual for detailed safety and operating instructions. P/N 790-XXXXA Getting to Know Your TK/TKD/TKQ Tracking System TK Controls Overview Select/Log: Press to take a depth and log the locate point. Down Arrow: Press to scroll down in menu. Also use to decrement values in settings. Up Arrow: Press to scroll up in menu. Also use to increment values in settings. Menu/On/OFF: Press to enter and exit menus. Press once to turn unit on. Press and hold to turn unit off. Screen Item Descriptions 1. Signal Strength: Signal strength is shown by bars at top of display and in numeric display. 2. Roll Position: Roll angle is displayed graphically by pointer on the clock and numerically by the time. 3. Pitch: Direction and amount of pitch up and down displayed in the units selected in the set up. 4. Depth: Displays the distance from the tracker to the beacon. This value is displayed in the units selected in the set up. 5. Tracker Battery Status: Indicates the level of the batteries currently installed in the tracker. 6. Time: Displays current time in 24 hour clock format. 7. Telemetry Radio: Tower indicates radio is on and numeric value indicates the channel. 8. Bluetooth Status: Indicates that Bluetooth is enabled and is currently in use with another device. 9. Beacon Battery Status/Beacon Type: Indicates the status of the battery level in the beacon. Text below indicates the type of beacon currently set in the tracker. 10. Communication Quality Graph: Indicates the quality of signal required for good communication. Full graph indicates excellent signal quality, while one bar indicates poor quality as it relates to communication. 11. Beacon Temperature: Indicates the status of the temperature graphically and numerically according to the units setting in the menu. 12. Bubble Level: Indicates the plumb and level of the tracker. The more level the unit the more accurate the depth measurement. 13. Gain Status: This bar indicates the amount of gain set in the tracker to get the signal currently displayed. Startup Tips Installing The Batteries TK Menus TK/TKD/TKQ Use four C-cell alkaline or NiMH batteries in tracker. To install 1. Remove battery caps. 2. Remove batteries. 3. Insert batteries as shown. 4. Install battery caps. 5. Check operation. The unit will not come on if a battery is installed backwards. • Press the Menu key to enter menus. • Scroll through menu selections with arrow keys. • Press Menu key again to go back to previous menu or exit menus mode. Drill-To/Walkover: Toggles unit between walkover and drill-to modes. Beacon: Handles beacon calibration, frequency settings, roll and pitch calibration, beacon information, and the bore-path analyzer. Wireless: Handles the settings for telemetry radio, channel settings, Bluetooth, tracker control, and tracker control codes. Settings: Set up for language, units, backlight, clock, volume, and auto-power settings. Logging: Settings for auto-log, creating new log, log manager, deletion of logs, and deletion of last pipe. System: Access to functions such as information about the tracker, diagnostics and software updates. TK/TKD/TKQ Quick Start FCCID: ITQ-TK IC: 3598A-TK IMPORTANT: See Operator’s Manual for detailed safety and operating instructions. P/N 790-XXXXA Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Les changements ou modifications non expressément approuvés par la partie responsable de la conformité pourraient annuler l'autorité de l'utilisateur à utiliser cet équipement. RF Exposure Statement In order to comply with RF exposure requirements during normal operation, this device must be held in front of the body horizontally. The antenna must be vertical in line with the body with at least 8” (20 cm) separation distance from the body. This equipment has been tested for RF exposure according to FCC rules for body-worn equipment. The equipment must be operated in accordance with manufacturer expectations to insure RF exposure compliance. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Health Canada’s Safety Code. The installer of this device should ensure that RF radiation is not emitted in excess of the Health Canada’s requirement. Information can be obtained at http://www.hc-sc.gc.ca/ewh-sem/pubs/radiation/radio_guide-lignes_direct-eng.php Cet appareil est conforme avec Santé Canada Code de sécurité 6. Le programme d ’installation de cet appareil doit s’ assurer que les rayonnements RF n’est pas émis au-delà de I’exigence de Santé Canada. Les informations peuvent être obtenues: http://www.hc-sc.gc.ca/ewhsemt/pubs/radiation/radio_ guide-lignes_direct-eng.php

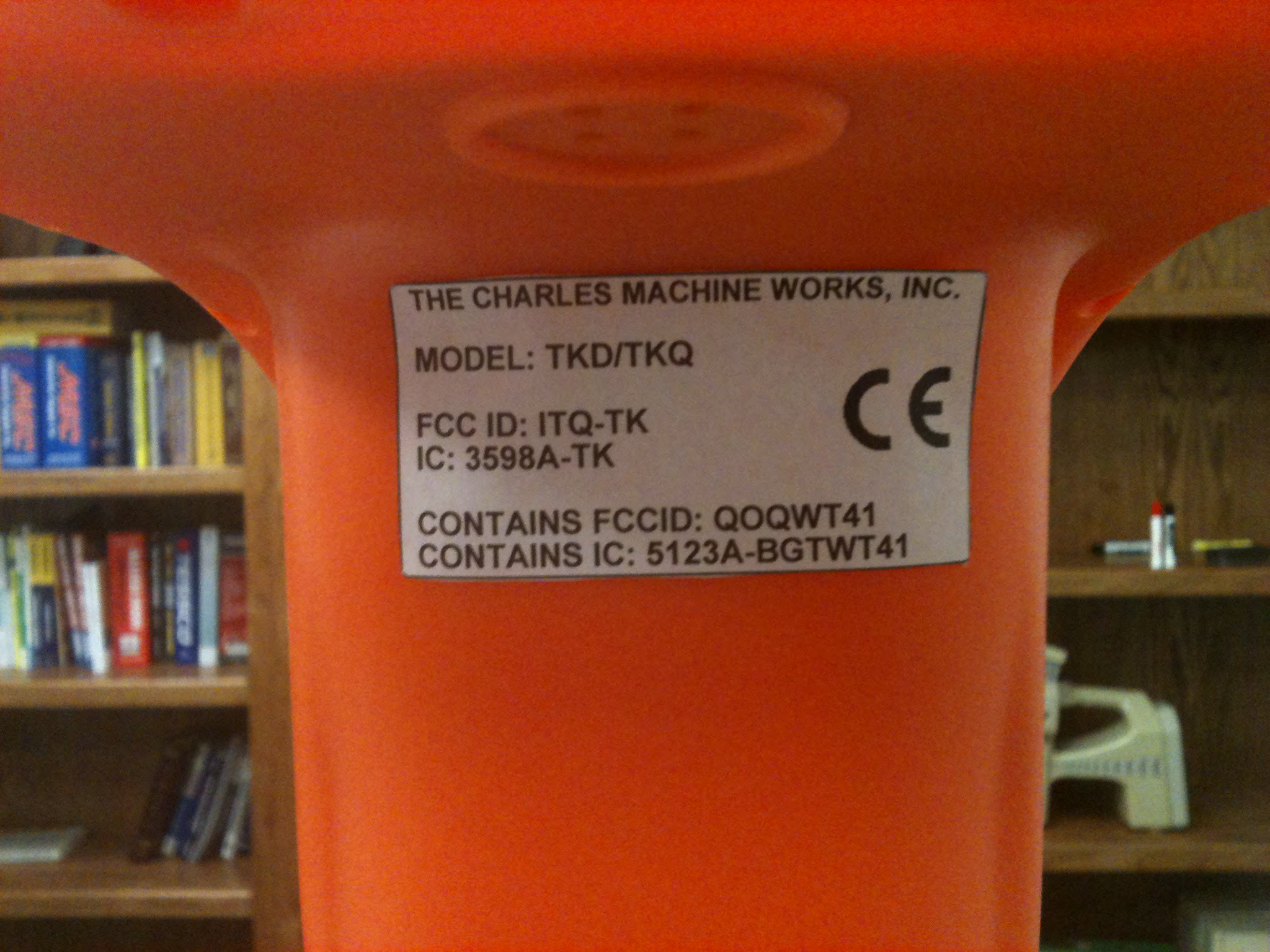

1.13 2.25 .38 .60 THE CHARLES MACHINE WORKS, INC. MODEL: TK FCC ID: ITQ-TK IC: 3598A-TK CONTAINS FCCID: QOQWT41 CONTAINS IC: 5123A-BGTWT41 VER: FORMED=2 MACHINED=.50 1:1 SHEET OF THIS INFORMATION IS CONFIDENTIAL, AND IS NOT TO BE USED OR DISCLOSED BY THE RECIPIENT FOR ANY REASON OTHER THAN THE INTENDED PURPOSE. .010 POLYCARBONATE 1 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. ANGLES: .X=.040 .XX=.015 .XXX=.005 DECIMALS: DWG: THIS DRAWING WAS PREPARED IN ACCORDANCE WITH ANSI Y14.5M-1982. NAME: THIRD ANGLE PROJECTION: MATERIAL: SCALE: RELEASE DATA VER DRAWN BY: STDS CK: TECH REV: 270-5316 DATE 01 11/15/12 BMSAMSAM 1 DECAL, TK APPROVAL 01 LAST SAVED BY: LAST SAVED DATE: FILE LOCATION:C:\Users\smclain\Documents\5000000-270-____\ Thursday, November 15, 2012 10:31:54 AM smclain ORIGINAL CREATOR: ADDITIONAL INFORMATION: DWGID NO. ID0309107270-5316 THE CHARLES MACHINE WORKS, INC. S.McLAIN VELVET MATTE PRE-TEXTURED FINISH: DWG 270-5317 ID NO. ID0309108 RELEASE DATA DRAWN STDS TECH VER DATE BY: CK: REV: 01 10/23/12 SAM BM SAM 2.25 .38 THE CHARLES MACHINE WORKS, INC. MODEL: TKD FCC ID: ITQ-TK IC: 3598A-TK CONTAINS FCCID: QOQWT41 CONTAINS IC: 5123A-BGTWT41 .60 1.13 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. DECIMALS: .X= .040 .XX= .015 .XXX= .005 ANGLES: FORMED= 2 MACHINED= .50 THIS DRAWING WAS PREPARED IN ACCORDANCE WITH ANSI Y14.5M-1982. MATERIAL: .010 POLYCARBONATE FINISH: VELVET MATTE PRE-TEXTURED THIS INFORMATION IS CONFIDENTIAL, AND IS NOT TO BE USED OR DISCLOSED BY THE RECIPIENT FOR ANY REASON OTHER THAN THE INTENDED PURPOSE. THE CHARLES MACHINE WORKS, INC. ADDITIONAL INFORMATION: THIRD ANGLE PROJECTION: ORIGINAL CREATOR: S.McLAIN NAME: DECAL, TKD APPROVAL SHEET 1 OF 1 SCALE: 1:1 DWG: 270-5317 VER: 01 DWG 270-5318 ID NO. ID0309109 RELEASE DATA DRAWN STDS TECH VER DATE BY: CK: REV: 01 10/23/12 SAM BM SAM 2.25 .38 THE CHARLES MACHINE WORKS, INC. MODEL: TKQ FCC ID: ITQ-TK IC: 3598A-TK CONTAINS FCCID: QOQWT41 CONTAINS IC: 5123A-BGTWT41 .60 1.13 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. DECIMALS: .X= .040 .XX= .015 .XXX= .005 ANGLES: FORMED= 2 MACHINED= .50 THIS DRAWING WAS PREPARED IN ACCORDANCE WITH ANSI Y14.5M-1982. MATERIAL: .010 POLYCARBONATE FINISH: VELVET MATTE PRE-TEXTURED THIS INFORMATION IS CONFIDENTIAL, AND IS NOT TO BE USED OR DISCLOSED BY THE RECIPIENT FOR ANY REASON OTHER THAN THE INTENDED PURPOSE. THE CHARLES MACHINE WORKS, INC. ADDITIONAL INFORMATION: THIRD ANGLE PROJECTION: ORIGINAL CREATOR: S.McLAIN NAME: DECAL, TKQ APPROVAL SHEET 1 OF 1 SCALE: 1:1 DWG: 270-5318 VER: 01

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:21.7(dBm)* Maximum peak output power at antenna input terminal:147.9(mW) Antenna gain(maximum):2.15(dBi)* Maximum antenna gain:1.64(numeric) Time Averaging:100(%)* Prediction distance:20(cm)* Prediction frequency:464.625(MHz)* MPE limit for uncontrolled exposure at prediction frequency:0.310(mW/cm^2) Power density at prediction frequency:0.048 (mW/cm^2) This equates to:0.48 W/m^2 2 4R PG S  

PABT101 PABT102 PABT103 COBT1 PAC102PAC101COC1 PAC202 PAC201 COC2 PAC302PAC301 COC3 PAC401PAC402COC4 PAC501 PAC502 COC5 PAC602PAC601 COC6 PAC702PAC701COC7 PAC802 PAC801 COC8 PAC902 PAC901 COC9 PAC1002PAC1001 COC10 PAC1102PAC1101 COC11 PAC1202PAC1201 COC12 PAC1302 PAC1301 COC13 PAC1402 PAC1401 COC14 PAC1502 PAC1501 COC15 PAC1601 PAC1602 COC16 PAC1701PAC1702COC17 PAC1802PAC1801 COC18 PAC1901 PAC1902 COC19 PAC2001 PAC2002 COC20 PAC2101PAC2102 COC21 PAC2201 PAC2202 COC22 PAC2302 PAC2301 COC23 PAC2402 PAC2401 COC24 PAC2502PAC2501COC25 PAC2602PAC2601 COC26 PAC2701PAC2702 COC27 PAC2801 PAC2802 COC28 PAC2902 PAC2901 COC29 PAC3001PAC3002 COC30 PAC3101 PAC3102 COC31 PAC3201 PAC3204 PAC3202 PAC3203 COC32 PAC3302PAC3301COC33 PAC3402PAC3401COC34 PAC3502PAC3501 COC35 PAC3601 PAC3602 COC36 PAC3702PAC3701 COC37 PAC3801 PAC3802 COC38 PAC3901 PAC3902 COC39 PAC4001PAC4002 COC40 PAC4101 PAC4102 COC41 PAC4201PAC4202 COC42 PAC4301 PAC4302 COC43 PAC4401 PAC4402 COC44 PAC4501 PAC4502 COC45 PAC4602PAC4601 COC46 PAC4701 PAC4702 COC47 PAC4801 PAC4802 COC48 PAC4901PAC4902 COC49PAC5001 PAC5002 COC50 PAC5101 PAC5102 COC51 PAC5201PAC5202 COC52 PAC5302PAC5301 COC53 PAC5402PAC5401 COC54 PAC5501PAC5502COC55 PAC5604PAC5603 PAC5601 PAC5602 COC56 PAC5704PAC5703 PAC5701 PAC5702 COC57 PAC5804PAC5803 PAC5801 PAC5802 COC58 PAC5904PAC5903 PAC5901 PAC5902 COC59 PAC6002PAC6001 COC60 PAC6101 PAC6102 COC61 PAC6401 PAC6402 COC64 PAC6501PAC6502 COC65 PAC6601 PAC6602 COC66 PAC6701 PAC6702 COC67 PAC6802 PAC6801 COC68 PAC6902 PAC6901 COC69 PAC7001PAC7002 COC70 PAC7102PAC7101COC71 PAC7202 PAC7201 COC72 PAC7301 PAC7302 COC73 PAC7401 PAC7402 COC74 PAC7502PAC7501 COC75 PAC7601PAC7602 COC76 PAC7702PAC7701 COC77 PAC7902PAC7901 COC79 PAC8002PAC8001 COC80 PAC8102 PAC8101 COC81 PAC8201 PAC8202 COC82 PAC8302 PAC8301 COC83 PAC8801 PAC8802 COC88 PAC8902 PAC8901 COC89 PAC9002 PAC9001 COC90 PAC9102 PAC9101 COC91 PAC9202 PAC9201 COC92 PAC9301 PAC9302 COC93 PAC9401 PAC9402 COC94 PAC9502 PAC9501 COC95 PAC9602 PAC9601 COC96 PAC9701PAC9702 COC97 PAC9801 PAC9802 COC98 PAC9901 PAC9902 COC99 PAC10002PAC10001 COC100 PAC10102PAC10101 COC101 PAD103 PAD102 PAD101 COD1 PAD202 PAD201 COD2 PAD302 PAD301 COD3 PAD401PAD402 PAD403 COD4 PAD503 PAD502PAD501 COD5 PAD601PAD602 COD6 PAD706PAD705PAD704 PAD701PAD703PAD702 PAD70 COD7 PAD801PAD802 COD8 PAD902PAD901 COD9 PAD1002PAD1001 COD10 PAD1101PAD1102 COD11 PAD1201 PAD1202 COD12 PAF102PAF101 COF1 PAF202 PAF201 COF2 PAFB101PAFB102COFB1 PAFB202PAFB201 COFB2 PAFB302PAFB301 COFB3 PAFB402PAFB401COFB4 PAFB502 PAFB501COFB5 PAFB601 PAFB602 COFB6 PAFB701PAFB702 COFB7 PAFB801PAFB802 COFB8 PAFB901PAFB902 COFB9 PAFB1101PAFB1102 COFB11 PAFB1202PAFB1201 COFB12 PAJ101PAJ103PAJ109PAJ105PAJ107 PAJ102PAJ108PAJ104PAJ106 PAJ1015PAJ1011PAJ1013PAJ1017PAJ1019 PAJ1014PAJ1010PAJ1012PAJ1016PAJ1018PAJ1020 COJ1 PAJ201 PAJ202 COJ2 PAJ306 PAJ305 PAJ304 PAJ302 PAJ303 PAJ301 COJ3 PAJ402 PAJ401 PAJ400 COJ4 PAJ50A PAJ50SH PAJ501PAJ502PAJ503PAJ504PAJ505PAJ506PAJ507PAJ508 COJ5 PAJ60MH PAJ601PAJ603 PAJ604PAJ602 PAJ609PAJ605PAJ607 PAJ6010PAJ606PAJ608 COJ6 PAJ700 PAJ701PAJ702PAJ703PAJ704PAJ705 COJ7 PAL101PAL102 COL1 PAL202PAL201 COL2 PAL301PAL302 COL3 PAL401PAL402 COL4 PAL501PAL502 COL5 PALED101PALED102 COLED1 PALED201PALED202 COLED2 PALED301PALED302 COLED3 PALED401PALED402 COLED4 PAQ104 PAQ103 PAQ102 PAQ101 PAQ105 PAQ106 PAQ107 PAQ108 COQ1 PAQ201PAQ203PAQ202 PAQ205PAQ206PAQ204 COQ2 PAQ302 PAQ303 PAQ301PAQ306 PAQ304 PAQ305 COQ3 PAQ406 PAQ405 PAQ404 PAQ401 PAQ402 PAQ403 COQ4 PAQ501 PAQ506 PAQ503PAQ502 PAQ505PAQ504 COQ5 PAQ601 PAQ606 PAQ603PAQ602 PAQ605PAQ604 COQ6 PAR102PAR101COR1 PAR202 PAR201 COR2 PAR301PAR302 COR3 PAR401PAR402 COR4 PAR501PAR502 COR5 PAR601 PAR602 COR6 PAR702 PAR701 COR7 PAR801PAR802 COR8 PAR1002PAR1001 COR10 PAR1102 PAR1101 COR11 PAR1201PAR1202COR12 PAR1301PAR1302 COR13 PAR1401PAR1402 COR14 PAR1502PAR1501 COR15 PAR1601PAR1602 COR16 PAR1702PAR1701COR17 PAR1801PAR1802 COR18 PAR1901PAR1902COR19 PAR2001PAR2002 COR20 PAR2801 PAR2802 COR28 PAR2901PAR2902 COR29 PAR3001 PAR3002 COR30 PAR3102PAR3101 COR31 PAR3201PAR3202 COR32 PAR3301PAR3302 COR33 PAR3402 PAR3401COR34 PAR3502 PAR3501 COR35 PAR3602 PAR3601 COR36 PAR3701 PAR3702 COR37 PAR3801 PAR3802 COR38 PAR3902PAR3901 COR39 PAR4002 PAR4001 COR40 PAR4101 PAR4102 COR41PAR4201PAR4202 COR42 PAR4302 PAR4301 COR43 PAR4401 PAR4402 COR44 PAR4501PAR4502 COR45 PAR4601 PAR4602 COR46 PAR4701 PAR4702 COR47 PAR4801 PAR4802 COR48 PAR4902 PAR4901 COR49 PAR5001PAR5002 COR50 PAR5102 PAR5101 COR51 PAR5201 PAR5202 COR52 PAR5301 PAR5302 COR53 PAR5402 PAR5401 COR54 PAR5501 PAR5502 COR55 PAR5601PAR5602 COR56 PAR5702 PAR5701 COR57 PAR5801PAR5802 COR58 PAR5901PAR5902COR59 PAR6002 PAR6001 COR60 PAR6101PAR6102 COR61 PAR6201PAR6202 COR62 PAR6301 PAR6302 COR63 PAR6401 PAR6402 COR64 PAR6501 PAR6502 COR65 PAR6602 PAR6601 COR66 PAR6902 PAR6901 COR69 PAR7302 PAR7301 COR73 PAR7601PAR7602 COR76 PAR7702 PAR7701 COR77 PAR7901PAR7902 COR79 PAR8001 PAR8002 COR80 PAR8102 PAR8101 COR81 PAR8401PAR8402 COR84 PAR8502PAR8501 COR85 PAR9002 PAR9001 COR90 PAR9102 PAR9101 COR91 PAR9202 PAR9201 COR92 PAR9302PAR9301 COR93 PAR9402 PAR9401 COR94 PAR9502PAR9501 COR95 PAR9602 PAR9601 COR96 PAR9702PAR9701 COR97 PAR9802 PAR9801 COR98 PAR9902 PAR9901 COR99 PAR10202 PAR10201 COR102 PAR10302 PAR10301 COR103 PAR10402PAR10401 COR104 PAR10501PAR10502 COR105 PATP001 COTP0 PATP101 COTP1 PATP201 COTP2 PATP301 COTP3 PATP401 COTP4 PATP501 COTP5 PATP601 COTP6 PATP701 COTP7 PATP801 COTP8 PATP901COTP9 PATP1001 COTP10 PATP1101 COTP11 PATP1201 COTP12 PATP1301 COTP13 PATP1401 COTP14 PATP1501COTP15 PATP1601 COTP16 PATP1701 COTP17 PATP1801 COTP18 PATP1901 COTP19 PATP2001 COTP20 PATP2101 COTP21 PAU1030 PAU1031 PAU1028 PAU1029 PAU1035 PAU1036 PAU1032 PAU1034 PAU1033 PAU1026 PAU1027 PAU1023 PAU1025 PAU1024 PAU1022 PAU1019 PAU1021 PAU1020 PAU1039PAU1040PAU1037PAU1038PAU1044PAU1045PAU1041PAU1043PAU1042PAU1046PAU1047PAU1051PAU1052PAU1048PAU1050PAU1049 PAU1012 PAU1013 PAU1010 PAU1011 PAU1017 PAU1018 PAU1014 PAU1016 PAU1015 PAU108 PAU109 PAU105 PAU107 PAU106 PAU103 PAU104 PAU102 PAU101…

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA VERDATE RELEASE DATA Ditch Witch ® Title DWG:Version Date: File Name: Sheetof Drawn by: 10/11/2012 TK DSP PCB Assembly - DSP/Power 216-10991 1 2 Bucky Cole DSP.SchDoc Subsite ® TECH REV: STDS CK: DWGID NO. 216-1099ID0296290 DRAWN BY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 J11 R61 4.7k DGND DGND R62 4.7k +3.3VD JTAG C90 0.1uF DGND +3.3VD CS 1 SO 2 WP 3 GND 4 SI 5 SCK 6 HOLD 7 VCC 8 U15 M25P16 R51 10.0KR50 10.0KR49 10.0KR48 10.0K R54 10.0K R53 10.0K C88 0.1uF DGND DGND +3.3VD +3.3VD RFS0 RSCLK0 DRPRI0 DRSEC0 SPI FLASH EN 1 GND 2 OUT 3 VCC 4 X2 24MHz C78 0.1uF DGND +3.3VD R43 0 + 4 5 - 3 U12A DS90LV011 - 4 5 + 3 U13A DS90LT012 VDD 1 GND 2 U12B DS90LV011 VDD 1 GND 2 U13B DS90LT012 RJ45 1 2 3 4 5 6 7 8 J10 8P8C Modular DGND Vin 1 24 U19A SN74LVC1G125 GND 3 VCC 5 U19B SN74LVC1G125 R72 1.00k C104 0.1uF C105 0.1uF C106 0.1uF DGNDDGND DGND +3.3VD+3.3VD +3.3VD C75 10uF C76 0.1uF C73 100uF C74 100uF C77 0.01uF R44 10.0K R41 10.0K R4210.0K R4510.0K R3910.0K J4 +3.3VD DGND +3.3VD Tune_F0 Tune_F1 Tune_F2 Tune_F3 HardSquash Fsel_0 Fsel_1 J4 I nstalled : Boot from UART J4 Not Installed : Boot from Flash R40 10.0K 24MHz Cry VDDEXT 3 VDDEXT 14 VDDEXT 25 VDDEXT 35 VDDEXT 46 VDDEXT 58 VDDINT 8 VDDINT 9 VDDINT 26 VDDINT 40 VDDINT 41 VDDINT 55 GND 65 GND 30 U18B BF592 C95 0.1uF C97 0.1uF C103 0.1uF C99 0.1uF C108 0.1uF C101 0.1uF C94 0.1uF C96 0.1uF C102 0.1uF C98 0.1uF C107 0.1uF C100 0.1uF C109 10uF C110 10uF DGND +3.3VDVDDINT C79 10uF C81 10uF C82 0.1uF C80 0.1uF C83 470pF R46 243k R47 76.8k R55 118k R56 150k DGNDDGND EN 1 VCON 2 FB 3 SGND 4 VOUT 5 PGND 6 VIN 7 VREF 8 PAD 9 U14LMZ10500 DGND C84 10uF C86 10uF C87 0.1uF C85 0.1uF C93 470pF DGNDDGND EN 1 VCON 2 FB 3 SGND 4 VOUT 5 PGND 6 VIN 7 VREF 8 PAD 9 U16LMZ10500 DGND +1.4VD +3.3VD VDDINTVin Vin C89 10uF DGND VDDIO 1 GND 2 RES 3 GND 4 GND 5 VS 6 CS 7 INT1 8 INT2 9 NC 10 RES 11 SDO 12 SDI 13 SCLK 14 U17 ADXL345 C5 0.1uF LED5LED4LED3LED2LED1 R67 100 R68 100 R69 100 R70 100 R71 100 DGND C4 0.1uF PF2/RSCLK1/PPI10 1 PF3/RFS1/PPI11 2 PF4/DTSEC1/PPI12 4 PF5/DTPRI1/PPI13 5 PF6/TSCLK1/PPI14 6 PF7/TFS1/PPI15 7 PF8/TMR2/SPI0SSEL2/WAKEN0 10 PF9/TMR0/PPI_FS1/SPI0SSEL3 11 PF10/TMR1/PPI_FS2 12 PF11/UART_TX/SPI0SSEL4 13 PF12/UART_RX/SPI0SSEL7/... 15 PF13/SPI0MOSI/SPI1SSEL3 16 PF14/SPI0MISO/SPI1SSEL4 17 PF15/SPI0SCK/SPI1SSEL5 18 EMU 19 TRST 20 TMS 21 TDI 22 TDO 23 TCK 24 BMODE2 27 BMODE1 28 BMODE0 29 PG0/DRSEC0/SPI0SSEL1/SPI0SS 31 PG1/DRPRI0/SPI1SSEL1/WAKEN3 32 PG2/RSCLK0/SPI0SSEL5 33 PG3/RFS0/PPI_FS3 34 PG4/HWAIT/DTSEC0/SPI0SSEL6 36 PG5/DTPRI0/SPI1SSEL6 37 PG6/TSCLK0 38 PG7/TFS0/SPI1SSEL7 39 PG8/SPI1SCK/PPI0 42 PG9/SPI1MOSI/PPI1 43 PG10/SPI1MISO/PPI2 44 PG11/SPI1SSEL5/PPI3 45 PG12/SPI1SSEL2/PPI4/WAKEN2 47 PG13/SPI1SSEL1/SPI1SS/PPI5 48 PG14/SPI1SSEL4/PPI6/TACLK1 49 PG15/SPI1SSEL6/PPI7/TACLK2 50 EXT_WAKE 51 PG 52 RESET 53 NMI 54 PPI_CLK 56 EXTCLK/SCK 57 SDA 59 SCL 60 CLKIN 61 XTAL 62 PF0/DRSEC1/PPI8/WAKEN1 63 PF1/DRPRI1/PPI9 64 U18A BF592 TP3TP7TP4TP5TP6 TP8 TP1 TP2 R27 33.0 TP9 R29 10.0K +3.3VD R28 DNP TK DSP Software222-3690 R3 10.0K +3.3VD SoftSquash TP10 TP11 TP12 TP13 +3.3VD DGND 1 2 3 4 J7 1 2 J8 DMP2160U 3 1 2 Q1 +3.3VD R30 10.0K Gate Pulled Low : UART Boot 110/10/2012SBCSBCBJS 222-3866v01 TK DSP Bare Board 1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA VERDATE RELEASE DATA Ditch Witch ® Title DWG:Version Date: File Name: Sheetof Drawn by: 10/11/2012 TK DSP PCB Assembly - A/D Converters 216-10991 2 2 Bucky Cole A2Ds.SchDoc Subsite ® TECH REV: STDS CK: DWGID NO. 216-1099ID0296290 DRAWN BY: VINL 1 VINH 2 Vref1 3 Vref2 4 Vcc 5 AGND 6 PDWN 7 BYP 8 TEST 9 LRCK 10 BCK 11 DOUT 12 DGND 13 Vdd 14 SCKI 15 OSR 16 FMT0 17 FMT1 18 MODE0 19 MODE1 20 U7 PCM1803A R18 10 C21 0.1uF AGND +5VA_R AGND C17 1uF C24 1uF R14 100 R25 100 C18 0.01uF C25 0.01uF C32 10uF C33 0.1uF C40 10uF C41 0.1uF C30 10uF C31 0.1uF C38 10uF C39 0.1uF VINL 1 VINH 2 Vref1 3 Vref2 4 Vcc 5 AGND 6 PDWN 7 BYP 8 TEST 9 LRCK 10 BCK 11 DOUT 12 DGND 13 Vdd 14 SCKI 15 OSR 16 FMT0 17 FMT1 18 MODE0 19 MODE1 20 U6 PCM1803A R17 10 C19 0.1uF AGND +5VA_L AGND C20 1uF C22 1uF R9 100 R26 100 C16 0.01uF C23 0.01uF C27 10uF C26 0.1uF C35 10uF C34 0.1uF C29 10uF C28 0.1uF C37 10uF C36 0.1uF AGNDAGND DGND AGND R10 0 R5 0R6 0 RFS0 RSCLK0 DRPRI0DRSEC0 +3.3VA_L+5VA_L+5VA_R+3.3VA_R IN_L _L IN_L _R MODE1_L MODE0_L FMT1_L FMT0_L R70 +5VA_R+5VA_R MODE1_R MODE0_R FMT1_R FMT0_R IN_R_L IN_R_R DGND AGND AGNDAGND DGND AGNDDGND AGND IN 1 GND 2 BYP 4 OUT 5 EN 3 U8 MI C5205-3.3 IN 1 GND 2 BYP 4 OUT 5 EN 3 U10 MI C5205-5 C43 0.1uF C44 10uF C45 0.1uF C50 470pF +5VA_L+5VA_L +3.3VA_L+5VA_L C53 10uF C54 0.1uF C55 10uF C56 0.1uF C61 470pF AGND AGND AGNDAGND +5VA_L SHDN 5 SENSE 2 BYP 4 GND 3 OUT 1 GND 6 GND 7 IN 8 U1 LT1763-5 C8 10uF C9 10uF C2 0.1uF C1 0.1uF C14 0.1uF AGND C10 10uF C6 0.1uF Vs 2 SLEEP 3 GND 4 OUT 6 U2 REF192 C3 0.01uF C13 0.1uF MRVin AGND AGNDAGND Sof tSquash +5VA Fsel_0 Fsel_1 Tune_F2 Tune_F1 Tune_F0 MR Tune_F3 C65 10uF C63 100uF C64 100uF C67 0.01uF C70 10uF C71 0.1uF C68 100uF C69 100uF AGND AGND Tune_F0 Tune_F1 Tune_F2 Tune_F3 SoftSquash Fsel_0 Fsel_1 AGNDDGND DGND DGND DGND DGND +5VA MASTERSL AVE R13DNP R8DNP R11DNPR12DNP C42 10uF +5VA R2 10.0M 24MHz Cry 1 2 3 J2 Male, CON 1x3 MR R15 10.0M 1 2 3 J6Male, CON 1x3 MR AGND R1 10.0M MR R4 10.0M 1 2 3 J5 Male, CON 1x3 MR J1 IN 1 GND 2 BYP 4 OUT 5 EN 3 U9 MI C5205-3.3 IN 1 GND 2 BYP 4 OUT 5 EN 3 U11 MI C5205-5 C46 10uF C47 0.1uF C48 10uF C49 0.1uF C51 470pF +3.3VA_R+5VA_R C57 10uF C58 0.1uF C59 10uF C60 0.1uF C62 470pF AGND AGND AGNDAGND +5VA_R DGND DGND DGND DGND +5VA 4 3 2 5 1 U3 AD8031 4 3 2 5 1 U20 AD8031 AGND R16 10 C11 0.1uF +5VA_L 4 3 2 5 1 U5 AD8031 R19 10 C12 0.1uF 4 3 2 5 1U4 AD8031 +5VA_R R2133.0 R2233.0 R23 33.0 R24 33.0 C7 1uF 2x9 Male Header 12 34 56 78 910 1112 1314 1516 1718 J3 HardSquash HardSquash R20 10.0K AGND Page 1 of 1TK DSP PCB Assembly DWG:ID NO:VER: 216-1099ID02962901 angedInVersionItem CMW P/N Quantity Designator TypeValueCommentDescriptionPackageManufacturerManufacturer P/N 1222-3866v011Bare BoardTK DSP Bare BoardTK DSP Bare Board 2222-1227…

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA VERDATE RELEASE DATA Ditch Witch ® Title DWG:Version Date: File Name: Sheetof Drawn by: 10/11/2012 TK Analog Board - Quad Frequency 216-11061 1 1 Bucky Cole Master.SchDoc Subsite ® TECH REV: STDS CK: DWGID NO. 216-1106ID0301496 DRAWN BY: REPEAT(Ch) Fsel_0 Fsel_1 Tune_F2 Tune_F1 Tune_F0 Tune_F3 Sof tSquash HardSquash REPEAT(Ch,1,3) AnalogChain.SchDoc Ch(1..3] Ch1 Ch2 Ch3 Ch C62 100uF C66 .1uF C61 10uF C60 100uF HardSquash C63 10uF +5VA FB17 FB21 Fsel_0 Fsel_1 C59.1uF C64.1uF C65.1uF C67.1uF C68.1uF C69.1uF Tune_F2 Tune_F1 Tune_F0 C72 100uF C71 .1uF C70 10uF MR R80 10kR81 10kR82 10kR83 10kR84 10kR85 10k FB24 1 2 3 J1 1 2 3 J2 TP14 TP15 R1510 R1610 R1710 R1810 R1910 R2010 R7210 R73 10k C88.1uF Tune_F3 1 2 3 J4 TPAGND 12 34 56 78 910 1112 1314 1516 1718 J3 R2110 R2210 R24 10kR23 10k Sof tSquashC33.1uF C35.1uF 222-3867v01 TK Analog Bare Board 110/10/2012SBCSBCBJS 1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA VERDATE RELEASE DATA Ditch Witch ® Title DWG:Version Date: File Name: Sheetof Drawn by: 10/11/2012 TK Analog Board - Quad Frequency 216-11061 1 1 Bucky Cole AnalogChain.SchDoc Subsite ® TECH REV: STDS CK: DWGID NO. 216-1106ID0301496 DRAWN BY: Ch_MR R3 20k C11 33pF C9 330pF D 5 S2 6 IN 1 U2A ADG719 C12 820pF C10 120pF S1 4 - 3 + 2 U2B ADG719 C14 270pF C13 2700pF D 5 S2 6 IN 1 U3A ADG719 Tune_F2Tune_F1 R2 34.0k R6 10k R11 34.0k 1 3 4 2 ANT1 +5VA C1 .1uF C7 10pF C20 10pF R8 10k R4 1.0k R5 10k C2 1.0uF C21 1.0uF R10 4.99k R1 4.99k C18 DNP C8 DNP +5VA C19 .1uF Ch_MR R9 1.0k R7 4.99k C17 1.0uF FE_Out Ch Ch_MR D 5 S2 6 IN 1 U5A ADG719 S1 4 - 3 + 2 U5B ADG719 D 5 S2 6 IN 1 U6A ADG719 +5VA C22 .1uF +5VA C23 .1uF +5VA C24 .1uF C16 0.1uF C15 0.1uF S1 4 - 3 + 2 U3B ADG719 Tune_F0 S1 4 - 3 + 2 U6B ADG719 +5VA C25 .1uF SoftSquash D3 MBR0520 D4 MBR0520 +5VA D1 MBR0520 D2 MBR0520 2 3 1 1 8 4 U1A LT6234 5 6 7 2 U1B LT6234 2 3 1 1 8 4 U4A LT6234 5 6 7 2 U4B LT6234 R91 10 R92 10 R93 10 R94 10 R95 10 R96 10 For LT6234, Pad is tied to V- TP10 TP13 TP11 S1 4 - 3 + 2 U18B ADG719 +5VA C87 .1uF R71 10 D 5 S2 6 IN 1 U18A ADG719 Tune_F3 Tune_F3 Tune_F2 Tune_F1 Tune_F0 4 3 2 5 1 U8 AD8031 +5VA C5 .1uF MR Ch_MR C26 .1uF C29 .1uF C6 10uF C30 .1uF C27 330pF C28 .1uF C31 .1uF C32 .1uF TP1 R14 10 NC 13 NC 2 Vdd 11 D 6 S3 10 NC 5 S4 9 S2 4 NC 7 A1 14 S1 3 A0 15 GND 12 PAD 17 Vss 1 NC 8 EN 16 U9 ADG1604 Fsel_0 Fsel_1 +5VA C3 .1uF R12 10 NC 13 NC 2 Vdd 11 D 6 S3 10 NC 5 S4 9 S2 4 NC 7 A1 14 S1 3 A0 15 GND 12 PAD 17 Vss 1 NC 8 EN 16 U7 ADG1604 +5VA C4 .1uF R13 10 ChA_In ChB_In ChC_In ChD_In ChA_Out ChB_Out ChC_Out ChD_Out Fsel_1 Fsel_0 Ch_MR Ch_MR Ch_MR Ch_MR FE_Out R39 0 DNP R40 0 DNP 4 3 2 5 1 U12 AD8031 +5VA C44 .1uF R28 10 Fsel_1 Fsel_0 Tune_F2 Tune_F1 Tune_F0 Tune_F3 Ch_MR_ 29k_In 29k_On 29k_Out U_Filter_29kHzFilter_29kHz.SchDoc Ch_MR_ 20k_In 20k_On 20k_Out U_Filter_20kHzFilter_20kHz.SchDoc Ch_MR_ 12k_In 12k_On 12k_Out U_Filter_12kHzFilter_12kHz.SchDoc Ch_MR_ 2k_In 2k_On 2k_Out U_Filter_2kHzFilter_2kHz.SchDoc J5J6J7J8 D 5 S2 6 IN 1 U11A ADG719 R26 470k HardSquash S1 4 - 3 + 2 U11B ADG719 +5VA C34 .1uF R27 10 Note : This schematic is used in multiple channels in the assembly . To differentiate components betw een channels the desginator will be followed by an " A" , " B", or " C". For exam ple, for Channel A, "D2" shown on this schematic will appear on the PCB as "D2A". 1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA VERDATE RELEASE DATA Ditch Witch ® Title DWG:Version Date: File Name: Sheetof Drawn by: 10/11/2012 TK Analog Board - Quad Frequency 216-11061 1 1 Bucky Cole Filter_29kHz.SchDoc Subsite ® TECH REV: STDS CK: DWGID NO. 216-1106ID0301496 DRAWN BY: C409 .1uF +5VA R417 1.62k R406 86.6k R418 39.2k R407 3.92k R408 39.2k C407 47pF C401 47pF R403 39.2k R400 39.2k C408 180pF C403 47pF R402 35.7k R409 35.7k R410 35.7k TP402 TP401 Ch_MR Ch_MR_ R415 10 29k_In Ch_MR Ch_MR C410 .1uF +5VA R419 1.33k R411 38.3k R420 34.0k R412 3.40k R413 34.0k C404 47pF C400 47pF R404 34.0k R401 34.0k TP403 R416 10 Ch_MR Ch_MR Ch_MR 16 1 11 2 15 U400A ADA4691-4 4 3 5 U400B ADA4691-4 9 10 8 76 U400C ADA4691-4 13 12 14 U400D ADA4691-4 29k_On 29k_On 16 1 11 2 15 U401A ADA4691-4 4 3 5 U401B ADA4691-4 9 10 8 76 U401C ADA4691-4 29k_On Ch_MR C402 180pF C405 180pF R414 28.7k R405 130k Ch_MR 29k_Out 13 12 14 U401D ADA4691-4 C406 180pF TP400 For ADA4691-4, Pad is tied to V-For ADA4691-4, Pad is tied to V- +0dB Gain Note : This schematic is used in multiple channels in the assembly . To differentiate components betw een channels the desginator will be followed by an " A" , " B", or " C". 1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA VERDATE RELEASE DATA Ditch Witch ® Title DWG:Version Date: File Name: Sheetof Drawn by: 10/11/2012 TK Analog Board - Quad Frequency 216-11061 1 1 Bucky Cole Filter_20kHz.SchDoc Subsite ® TECH REV: STDS CK: DWGID NO. 216-1106ID0301496 DRAWN BY: C309 .1uF +5VA R317 1.58k R306 86.6k R318 39.2k R307 3.92k R308 39.2k C307 68pF C301 68pF R303 39.2k R300 39.2k C308 47pF C303 15pF R302 80.6k R309 80.6k R310 51.1k TP302 TP301 Ch_MR Ch_MR_ R315 10 20k_In Ch_MR Ch_MR C310 .1uF +5VA R319 1.91k R311 54.9k R320 48.7k R312 4.87k R313 48.7k C304 47pF C300 47pF R304 48.7k R301 48.7k TP303 R316 10 Ch_MR Ch_MR Ch_MR 16 1 11 2 15 U300A ADA4691-4 4 3 5 U300B ADA4691-4 9 10 8 76 U300C ADA4691-4 13 12 14 U300D ADA4691-4 20k_On 20k_On 16 1 11 2 15 U301A ADA4691-4 4 3 5 U301B ADA4691-4 9 10 8 76 U301C ADA4691-4 20k_On Ch_MR C302 1nF C305 1nF R314 7.5k R305 33.2k Ch_MR 20k_Out 13 12 14 U301D ADA4691-4 C306 1nF TP300 For ADA4691-4, Pad is tied to V-For ADA4691-4, Pad is tied to V- +0dB Gain Note : This schematic is used in multiple channels in the assembly . To differentiate components betw een channels the desginator will be followed by an " A" , " B", or " C". 1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA VERDATE RELEASE DATA Ditch Witch ® Title DWG:Version Date: File Name: Sheetof Drawn by: 10/11/2012 TK Analog Board - Quad Frequency 216-11061 1 1 Bucky Cole Filter_12kHz.SchDoc Subsite ® TECH REV: STDS CK: DWGID NO. 216-1106ID0301496 DRAWN BY: C209 .1uF …

Text truncated - open the document above for the full version.

Nemko Test Report: 10228909RUS1rev3 Applicant: The Charles Machine Works, Inc. 1959 W. Fir Ave Perry, OK 73077 USA Equipment Under Test: TK/TKD/TKQ Tracker (E.U.T.) FCC ID.: ITQ-TK IC: 3598A-TK In Accordance With: CFR 47 Part 90, Subpart I and Industry Canada RSS-119, Issue 11 Private Land Mobile Radio Services Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE: 23 October 2012 David Light, Wireless Engineer APPROVED BY: DATE: 23 October 2012 Mike Cantwell Total Number of Pages: 30 Nemko USA, Inc. CFR 47 part 90, Subpart I andRSS-119, Issue 11 Private Land Mobile Radio Services EQUIPMENT: TK/TKD/TKQ Tracker PROJECT NO.: 10228909RUS1rev3 Page 2 of 30 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 7 SECTION 4. OCCUPIED BANDWIDTH 8 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 11 SECTION 6. FIELD STRENGTH OF SPURIOUS EMISSIONS 16 SECTION 7. FREQUENCY STABILITY 17 SECTION 8. TRANSIENT FREQUENCY BEHAVIOR 19 SECTION 9. TEST EQUIPMENT LIST 22 ANNEX A - TEST METHODOLOGIES 23 ANNEX B - TEST DIAGRAMS 27 Nemko USA, Inc. CFR 47 part 90, Subpart I andRSS-119, Issue 11 Private Land Mobile Radio Services EQUIPMENT: TK/TKD/TKQ Tracker PROJECT NO.: 10228909RUS1rev3 Page 3 of 30 Section 1. Summary of Test Results Manufacturer: The Charles Machine Works, Inc. Model No.: TK/TKD/TKQ Serial No.: None General: All measurements are traceable to national standards. Model TK: Single receive frequency tracker (29kHz). Model TKD – for the Standard, Dual Frequency Tracker (12 kHz and 29 kHz) Model TKQ (tested) – TKQ, has all parts installed and all beacon frequencies, 1.5 kHz, 12 kHz, 20 kHz and 29 kHz, enabled with the software. Variance is a software variance only to change from single frequency (TK), dual frequency (TKD) or quad frequency (TKQ) These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR 47 Part 90, Subpart I and Industry Canada RSS-119, Issue 11. New Submission Production Unit Modification Filing Pre-Production Unit Family Listing THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety, for use by the company’s employees only. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered…
