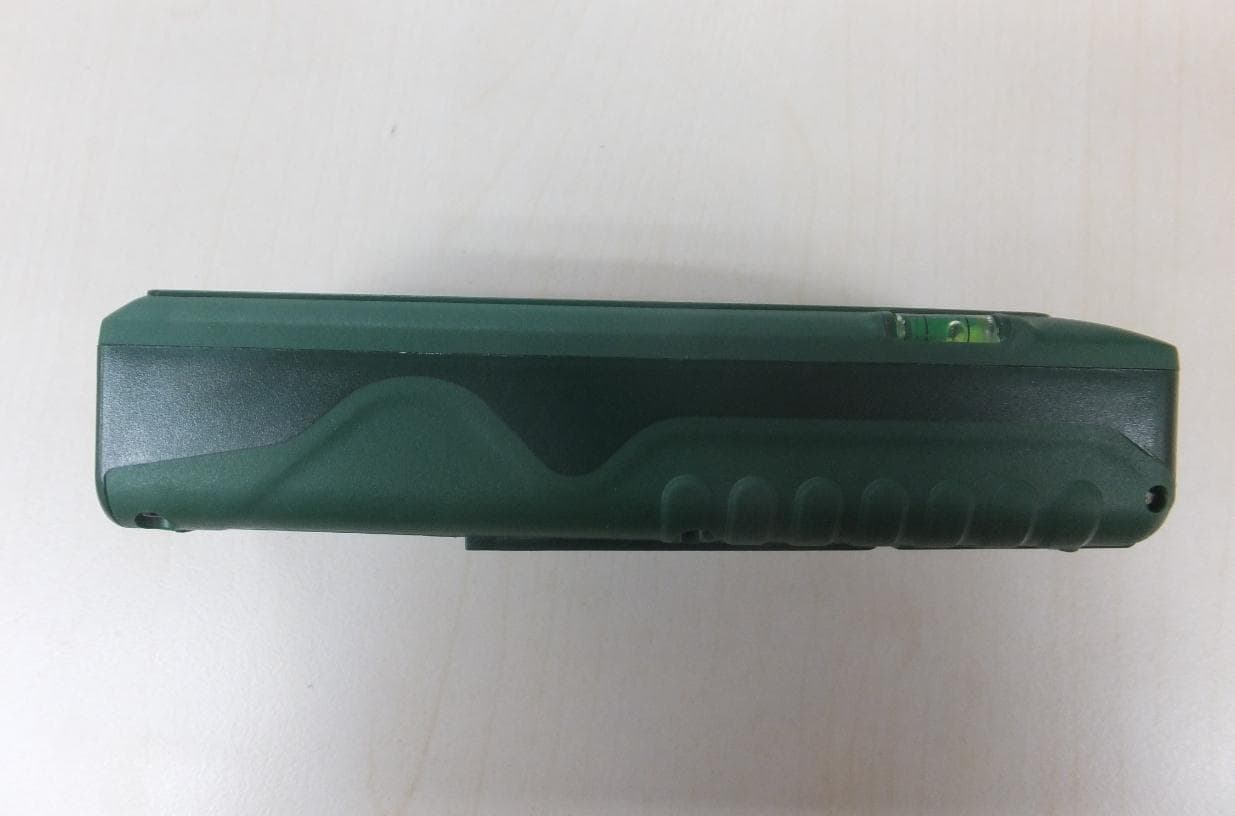

Page 1 of 4 Type Designation: DT500 External Photos Page 2 of 4 Type Designation: DT500 External Photos Page 3 of 4 Type Designation: DT500 External Photos Page 4 of 4 Type Designation: DT500 External Photos

Page 1 of 8 Type Designation: DT500 Internal Photos Page 2 of 8 Type Designation: DT500 Internal Photos Page 3 of 8 Type Designation: DT500 Internal Photos Page 4 of 8 Type Designation: DT500 Internal Photos Page 5 of 8 Type Designation: DT500 Internal Photos Page 6 of 8 Type Designation: DT500 Internal Photos Page 7 of 8 Type Designation: DT500 Internal Photos Page 8 of 8 Type Designation: DT500 Internal Photos

Produkte Products Prüfbericht - Nr.: Test Report No. 17045187 001 Seite 106 von 110 Page 106 of 110 6. Safety Human Exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Pass Test standard : FCC KDB Publication 447498 RSS-102 Issue 4 The minimum distance for the EUT is 5mm, since maximum peak output power of the transmitter is 1.10mW (0.43dBm), which is far below the SAR exclusion threshold level 10 mW (Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤50 mm), hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure. Guidance v05. And the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 4 as well.

Produkte Products Prüfbericht - Nr.: Test Report No. 17045187 001 Seite 2 von 82 Page 2 of 82 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 PEAK OUTPUT POWER RESULT: Pass 5.1.3 99% BANDWIDTH RESULT: Pass 5.1.4 20DB BANDWIDTH RESULT: Pass 5.1.5 CARRIER FREQUENCY SEPARATION RESULT: Pass 5.1.6 NUMBER OF HOPPING CHANNELS RESULT: Pass 5.1.7 DWELL TIME RESULT: Pass 5.1.8 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.9 RADIATED SPURIOUS EMISSIONS RESULT: Pass 5.2.1 RADIATED EMISSIONS RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17045187 001 Seite 3 von 82 Page 3 of 82 CONTENTS 1. GENERAL REMARKS ......................................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ........................................................................................... 5 2. TEST SITES ....................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 6 2.3 TRACEABILITY .................................................................................................................. 7 2.4 CALIBRATION .................................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ........................................................................................... 7 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 7 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 7 3. GENERAL PRODUCT INFORMATION .................................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 8 3.2 RATINGS AND SYSTEM DETAILS ......................................................................................... 8 3.3 INDEPENDENT OPERATION MODES ..................................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ........................................................ 9 3.5 SUBMITTED DOCUMENTS ................................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ............................................................................... 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE ERM COMPLIANCE ....................................................... 10 4.5 TEST SETUP DIAGRAM .................................................................................................... 11 5. TEST RESULTS ............................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ................................................................... 13 5.1.1 Antenna Requirement ................................................................................................................ 13 5.1.2 Peak Output Power .................................................................................................................... 14 5.1.3 99% Bandwidth .......................................................................................................................... 18 5.1.4 20dB Bandwidth ......................................................................................................................... 22 5.1.5 Carrier Frequency Separation ................................................................................................... 26 5.1.6 Number of Hopping Channels ................................................................................................... 29 5.1.7 Dwell Time ................................................................................................................................. 30 5.1.8 Conducted Spurious Emissions Measured in 100 kHz Bandwidth............................................ 31 5.1.9 Radiated Spurious Emissions .................................................................................................... 36 5.2 RADIATED EMISSIONS ..................................................................................................... 68 5.2.1 Radiated Emissions ................................................................................................................... 68 Produkte Products Prüfbericht - Nr.: Test Report No. 17045187 001 Seite 4 von 82 Page 4 of 82 6. SAFETY HUMAN EXPOSURE ............................................................................................. 78 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ................................................................... 78 6.1.1 Electromagnetic Fields .............................................................................................................. 78 7. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 79 8. LIST OF TABLES .............................................................................................................. 82 9. LIST OF PHOTOGRAPHS ................................................................................................... 82 Produkte Products Prüfbericht - Nr.: Test R…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17045187 001 Seite 107 von 110 Page 107 of 110 7. Photographs of the Test Set-Up Photograph 1: Set-up for Radiated Spurious Emissions, 9 KHz-30MHz Photograph 2: Set-up for Radiated Spurious Emissions, 30MHz-1GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17045187 001 Seite 108 von 110 Page 108 of 110 Photograph 3: Set-up for Radiated Spurious Emissions, 1GHz-18GHz Photograph 4: Set-up for Radiated Spurious Emissions, 18GHz-25GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17045187 001 Seite 109 von 110 Page 109 of 110 Photograph 5: Set-up for radio spectrum test
