IXLKWAProximity Reader

KWA_Manual.doc KWA ISO-15693/14443 Keyboard Wedge Page 1 of 3 Introduction The KWA Keyboard Wedge is a read-only device that rapidly and accurately captures a badge identification (BID) number from either an ISO14443A or ISO15693 physical security credential. . The KWA Keyboard Wedge is a data entry convenience device. It is not an access control reader. The KWA does not communicate with microcontrollers, or contribute to the determination of access privileges. . Connections The keyboard and system PC connections are made through PS/2-style 6-pin mini-DIN connectors, keyed for correct installation. The KWA 12VDC power plug is keyed so as to require proper ± conductor orientation. The power cable is permanently terminated at the AC power supply. KWA_Manual.doc KWA ISO-15693/14443 Keyboard Wedge Page 2 of 3 User Interface LED Control The red LED blinks on briefly to indicate a BID has been read and sent to the PC. The green LED is not active. The yellow LED indicates the KWA is powered, and that the attached PC is powered on. The yellow LED blinks off briefly to indicate a valid badge read. Beeper Control The beeper sounds briefly to indicate that a badge has been read. Operating Environment Temperature: -20°C to +70°C (-4°F to 158°F) Humidity: 0% to 95% humidity, non-condensing The KWA Keyboard Wedge is a desktop unit, intended for use in-doors only. KWA Use Power on the KWA configured personal computer. Place the cursor in BID field of the software application. Place the credential (typically a badge) on the KWA reader. The KWA Keyboard Wedge will read the credential and format the credential badge identification number as text, properly format the BID and send the resulting character string to the cursor designated data entry field. Proceed in the customary manner with creation of the badge holder record. KWA_Manual.doc KWA ISO-15693/14443 Keyboard Wedge Page 3 of 3 Regulatory Notices FCC Changes or modifications not expressly approved by deister electronic for compliance could void the user’s authority to operate the equipment. Agency Approvals The KWA has been agency tested to FCC part 15c, CE EN301489 and EN300330.

deister electronic GmbH - Hermann-Bahlsen-Straße 11-13 D-30890 Barsinghausen ! IDENTIFIKATION PHOENIX TEST-LAB GmbH! SICHERHEITSTECHNIK Product Certification! VERKEHRSELEKTRONIK Königswinkel 10 ! 05105-516-01 32825 Blomberg " 05105-516217 1. November 2004 RE:Certification Application FCC ID:IXLKWA Please be advised that the following information is to be held confidential and behalf of deister electronic GmbH, Hermann-Bahlsen-Strasse 11-13, 30890 Barsinghausen, Germany: - circuit diagrams - schematic (component) diagrams - block diagram - technical description of operation The application contains technical information which deister electronic GmbH deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention in this matter. (Stefan Eichler) deister electroinc GmbHHandelsregister :Bankverbindungen :Kto.-Nr.BLZ Hermann-Bahlsen-Straße 11-13Amtsger. Wennigsen HBR 1203Stadtsparkasse Barsinghausen05 304(251 512 70) 30890 BarsinghausenGeschäftsführung:Dresdner Bank Hannover76 142 02(250 800 20) ! (+49) 05105 516 01Anatoli StobbeDeutsche Bank Barsinghausen4 686 424(250 700 70) " (+49) 05105 516 217USt-IdNr. : DE 115507822Postgiro Hannover612 23-303 (250 100 30) Mitglied . BHE ®

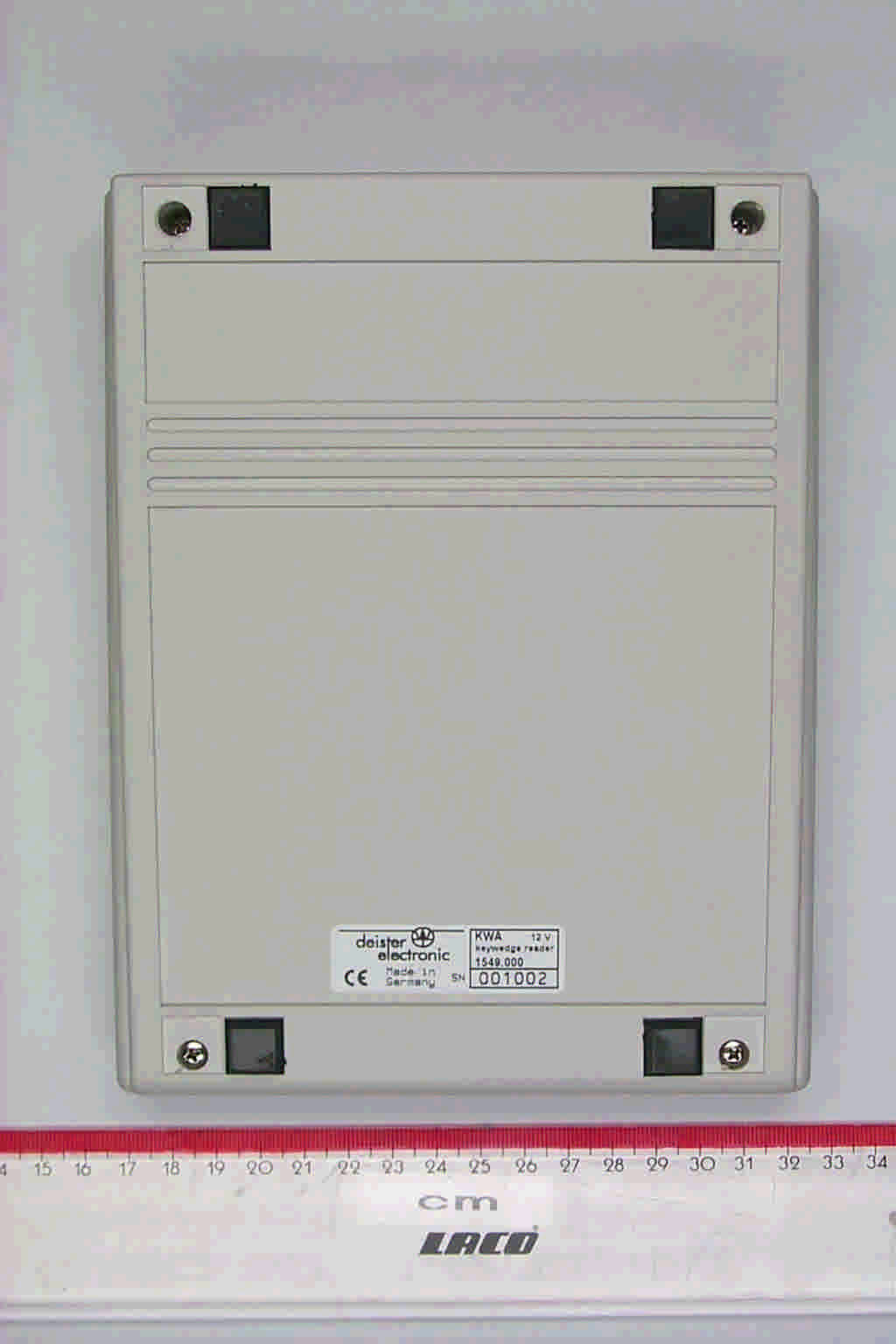

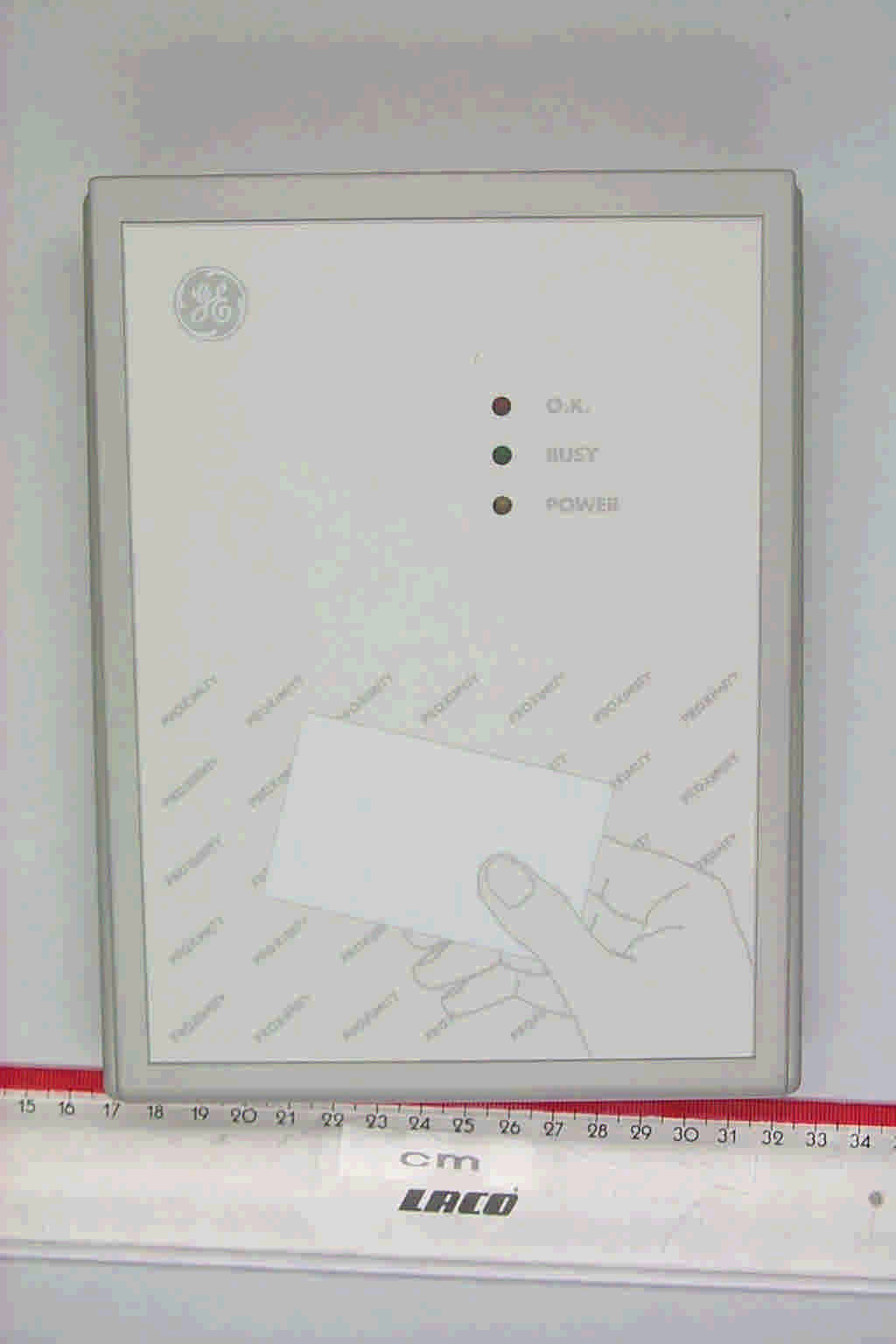

Annex C of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 1 of 4 40760_j.jpgKWA Model 24W, top view Annex C of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 2 of 4 40760_i.jpgKWA Model 24W, bottom view Annex C of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 3 of 4 40760_h.jpgKWA Model 24W, (rear) connector view Annex C of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 4 of 4 40760_k.jpgAC/DC adaptor used for conducted emission measurement

Annex B of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 1 of 7 40760_g.jpgKWA Model 24W, internal view Annex B of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 2 of 7 40760_b.jpgKWA Model 24W, main PCB, top view Annex B of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 3 of 7 40760_a.jpgKWA Model 24W, main PCB, bottom view Annex B of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 4 of 7 40760_e.jpgKWA Model 24W, reader PCB, top view Annex B of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 5 of 7 40760_f.jpgKWA Model 24W, reader PCB, bottom view Annex B of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 6 of 7 40760_c.jpgKWA Model 24W, antenna PCB, top view Annex B of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 7 of 7 40760_d.jpgKWA Model 24W, antenna PCB, bottom view

Königswinkel 10 32825 Blomberg Germany Phone+49 5235 9500-0 Fax+49 5235 9500-10 TEST REPORT Test Report Reference: R40760 Edition 2 Equipment under Test: KWA Model 24W Serial Number: 001002 Applicant: deister electronic GmbH Manufacturer: deister electronic GmbH Test Laboratory (CAB) accredited by DATech e.V. in compliance with DIN EN ISO/IEC 17025 under the Reg. No. DAT-P-105/99-20 and listed by FCC 31040/SIT1300F2 TEST REPORT REFERENCE: R40760 Edition 2 Examiner: Thomas KÜHNDate of issue: 27 October 2004Page 2 of 30 Contents:Page 1 IDENTIFICATION.....................................................................................................................................3 1.1 APPLICANT.....................................................................................................................................3 1.2 MANUFACTURER..........................................................................................................................3 1.3 DATES.............................................................................................................................................3 1.4 TEST LABORATORY......................................................................................................................4 1.5 RESERVATION...............................................................................................................................4 1.6 NORMATIVE REFERENCES..........................................................................................................4 1.7 TEST RESULTS..............................................................................................................................4 2 TECHNICAL DATA OF EQUIPMENT......................................................................................................5 2.1 DEVICE UNDER TEST...................................................................................................................5 2.2PEREPHERY DEVICES..................................................................................................................5 2.3 SPECIAL EMC MEASURES...........................................................................................................5 3 OPERATIONAL STATES AND PHYSICAL BOUNDARIES.....................................................................6 4 LIST OF TEST MODULES.......................................................................................................................7 4.1 EMISSION.......................................................................................................................................7 5 METHOD OF MEASUREMENT...............................................................................................................8 5.1 CONDUCTED EMISSIONS ON AC MAINS (150 kHzto 30 MHz)..................................................8 5.2 RADIATED EMISSIONS 9 kHzto 30 MHz......................................................................................9 5.3 RADIATED EMISSIONS 30 MHzto 1 GHz.....................................................................................11 5.4 FREQUENCY STABILITY WITH RESPECT TO AMBIENT TEMPERATURE AND SUPPLY VOLTAGE .........................................................................................................................................................13 6 TEST RESULTS EMISSION TEST..........................................................................................................15 6.1 CONDUCTED EMISSION MEASURMENT ON AC MAINS (150 kHzto 30 MHz)..........................15 6.2 PRELIMINARY RADIATED EMISSION TEST (9 kHzto 30 MHz)..................................................17 6.3 PRELIMINARY RADIATED EMISSION TEST (30 MHzto 1 GHz).................................................19 6.4 FINAL RADIATED EMISSION TEST (9 kHzto 30 MHz)................................................................21 6.5 FINAL RADIATED EMISSION TEST (30 MHzto 1 GHz)...............................................................22 6.6 OCCUPIED BANDWIDTH...............................................................................................................24 6.7 FREQUENCY TOLLERANCE.........................................................................................................25 7 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS.................................................................26 8 LIST OF ANNEXES..................................................................................................................................30 TEST REPORT REFERENCE: R40760 Edition 2 Examiner: Thomas KÜHNDate of issue: 27 October 2004Page 3 of 30 1IDENTIFICATION 1.1APPLICANT Name:deister electronic GmbH Address:Hermann-Bahlsen-Straße 11 – 13 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Harald Mohlfeld Phone:+49 51 05 516-127 Fax:+49 51 05 516-266 Mail address:[email protected] Applicant represented during the test by the following person: - 1.2MANUFACTURER Name:deister electronic GmbH Address:Hermann-Bahlsen-Straße 11 – 13 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Harald Mohlfeld Phone:+49 51 05 516-127 Fax:+49 51 05 516-266 Mail address:[email protected] Manufacturer represented during the test by the following person: - 1.3DATES Date of receipt of test sample:28 September 2004 Start of test:29 September 2004 End of test:07 October 2004 TEST REPORT REFERENCE: R40760 Edition 2 Examiner: Thomas KÜHNDate of issue: 27 October 2004Page 4 of 30 1.4TEST LABORATORY The tests were carried out at:PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 BlombergPhone: +49 (0) 52 35 / 95 00-0 GermanyFax:+49 (0) 52 35 / 95 00-10 accredited by DATech e.V. in compliance with DIN EN ISO/IEC 17025 under Reg. No. DAT-P-105/99-20 and listed by FCC 31040/SIT1300F2. Test engineer:Thomas KÜHN27 October 2004 NameSignatureDate Test report checked:Wilfried MEIER27 October 2004 NameSignatureDate Stamp 1.5RESERVATION T h i s …

Text truncated - open the document above for the full version.

Annex A of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 1 of 6 40760_9.jpgKWA Model 24W, test set-up fully anechoic chamber Annex A of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 2 of 6 40760_8.jpgKWA Model 24W, test set-up fully anechoic chamber Annex A of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 3 of 6 40760_2.jpgKWA Model 24W, test set-up outdoor test site Annex A of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 4 of 6 40760_6.jpgKWA Model 24W, test set-up open area test site Annex A of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 5 of 6 40760_4.jpgKWA Model 24W, test set-up conducted emission measurement Annex A of test report R40760 Edition 2 EUT: KWA Model 24W Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 27 October 2004page 6 of 6 40760_5.jpgKWA Model 24W, test set-up climatic chamber
