IXLMODEL24WProximity Reader

M24W Manual.doc Model 24 W ISO-15693 Keyboard Wedge Page 1 of 3 Introduction The Model 24W Keyboard Wedge is a read- only device that rapidly and accurately captures a badge identification (BID) number from either an ISO14443A or ISO15693 physical security credential. The captured BID is sent to one of four GE-Interlogix software products: Secure Perfect, Secure Perfect Imaging, Picture Perfect or Access Vision Imaging, doing so as if the BID had been entered from a keyboard. The M24W Keyboard Wedge is a data entry convenience device. It is not an access control reader. The M24W does not communicate with microcontrollers, or contribute to the determination of access privileges. M24W versions There are four version of the Model 24W Keyboard Wedge available; o 430185001 for M24W, 110VAC, 16-digit output o 430186001 for M24W, 230VAC, 16-digit output o 430189001 for M24W, 110VAC, 12-digit output o 430190001 for M24W, 230VAC, 12-digit output Currently Secure Perfect can only support 12-digit BID numbers. ISO15693 BID’s are 16-digits long. The 12-digit output versions of the M24W Keyboard Wedge will truncate the high-order 4 digits of an ISO15693 BID credential, making the resulting BID compatible with Secure Perfect. M24W Manual.doc Model 24 W ISO-15693 Keyboard Wedge Page 2 of 3 Connections The keyboard and system PC connections are made through PS/2-style 6-pin mini-DIN connectors, keyed for correct installation. The M24W 12VDC power plug is keyed so as to require proper ± conductor orientation. The power cable is permanently terminated at the AC power supply. User Interface LED Control The red LED blinks on briefly to indicate a BID has been read and sent to the PC. The green LED is not active. The yellow LED indicates the M24W is powered, and that the attached PC is powered on. The yellow LED blinks off briefly to indicate a valid badge read. Beeper Control The beeper sounds briefly to indicate that a badge has been read. Operating Environment Temperature: -20°C to +70°C (-4°F to 158°F) Humidity: 0% to 95% humidity, non-condensing The M24W Keyboard Wedge is a desktop unit, intended for use in-doors only. M24W Use Power on the M24W configured personal computer. Place the cursor in BID field of the software application. Place the credential (typically a badge) on the M24W reader. The M24W Keyboard Wedge will read the credential and format the credential badge identification number as text, properly format the BID and send the resulting character string to the cursor designated data entry field. Proceed in the customary manner with creation of the badge holder record. M24W Manual.doc Model 24 W ISO-15693 Keyboard Wedge Page 3 of 3 Regulatory Notices FCC Changes or modifications not expressly approved by GE- Interlogix for compliance could void the user’s authority to operate the equipment. Agency Approvals The M24W has been agency tested to FCC part 15c, CE EN301489, EN300330 and EN50130-4.

deister electronic GmbH - Hermann-Bahlsen-Straße 11-13 D-30890 Barsinghausen ! IDENTIFIKATION PHOENIX TEST-LAB GmbH! SICHERHEITSTECHNIK Product Certification! VERKEHRSELEKTRONIK Königswinkel 10 ! 05105-516-01 32825 Blomberg " 05105-516217 14. Juli 2003 RE:Certification Application FCC ID:IXLModel24W Please be advised that the following information is to be held confidential and behalf of deister electronic GmbH, Hermann-Bahlsen-Strasse 11-13, 30890 Barsinghausen, Germany: - circuit diagrams - schematic (component) diagrams - block diagram - technical description of operation The application contains technical information which deister electronic GmbH deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention in this matter. (Stefan Eichler) deister electroinc GmbHHandelsregister :Bankverbindungen :Kto.-Nr.BLZ Hermann-Bahlsen-Straße 11-13Amtsger. Wennigsen HBR 1203Stadtsparkasse Barsinghausen05 304(251 512 70) 30890 BarsinghausenGeschäftsführung:Dresdner Bank Hannover76 142 02(250 800 20) ! (+49) 05105 516 01Anatoli StobbeDeutsche Bank Barsinghausen4 686 424(250 700 70) " (+49) 05105 516 217USt-IdNr. : DE 115507822Postgiro Hannover612 23-303 (250 100 30) Mitglied . BHE ®

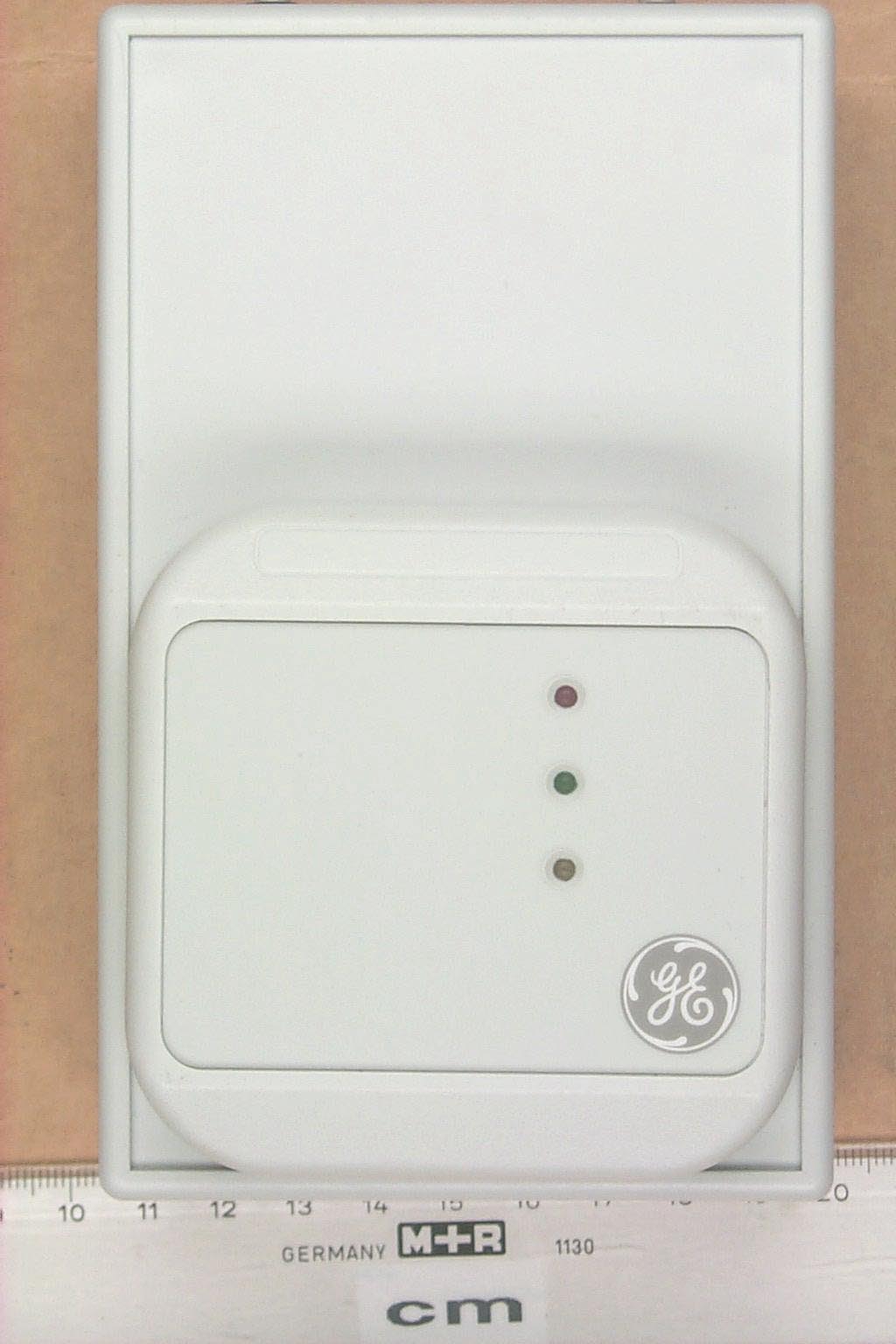

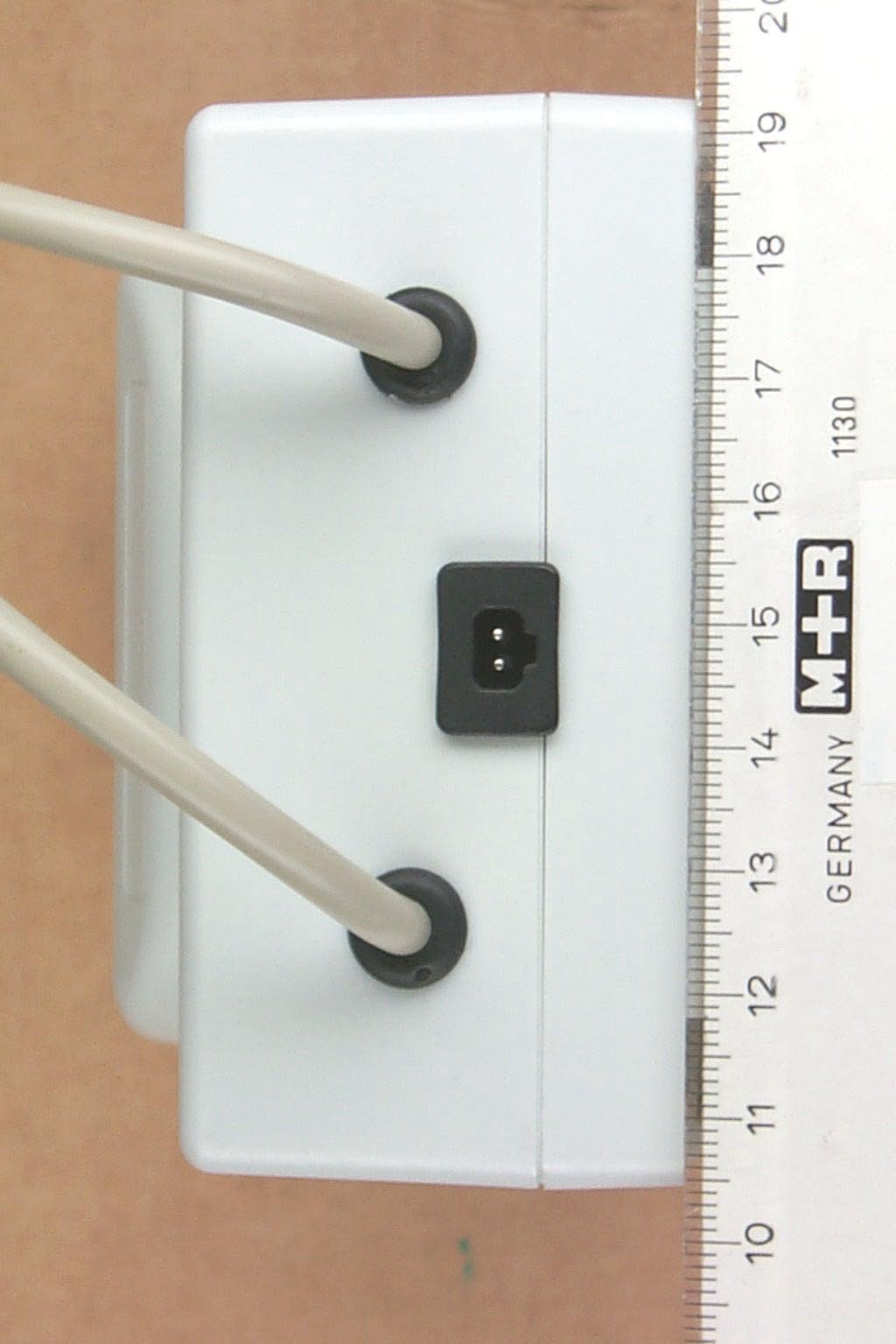

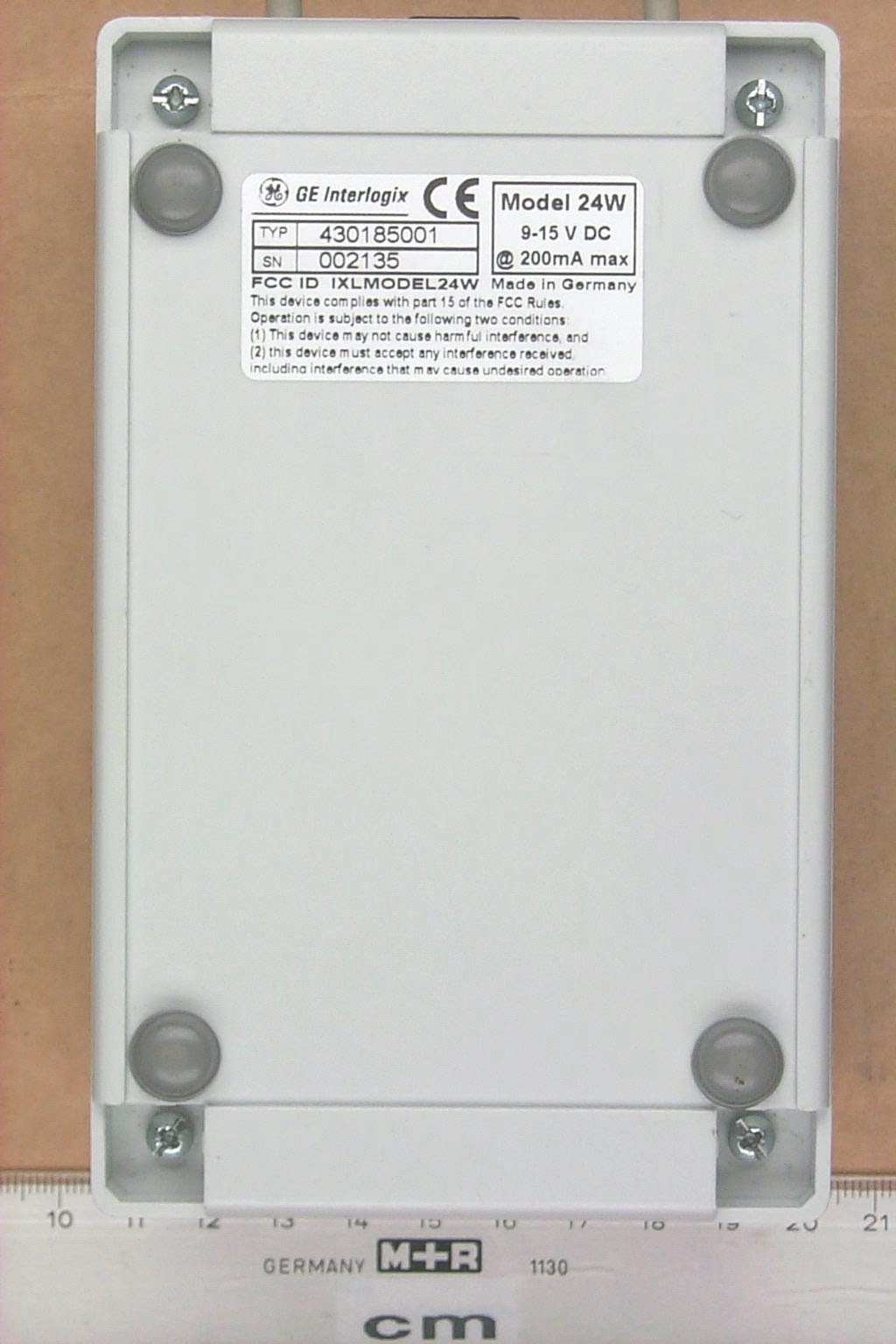

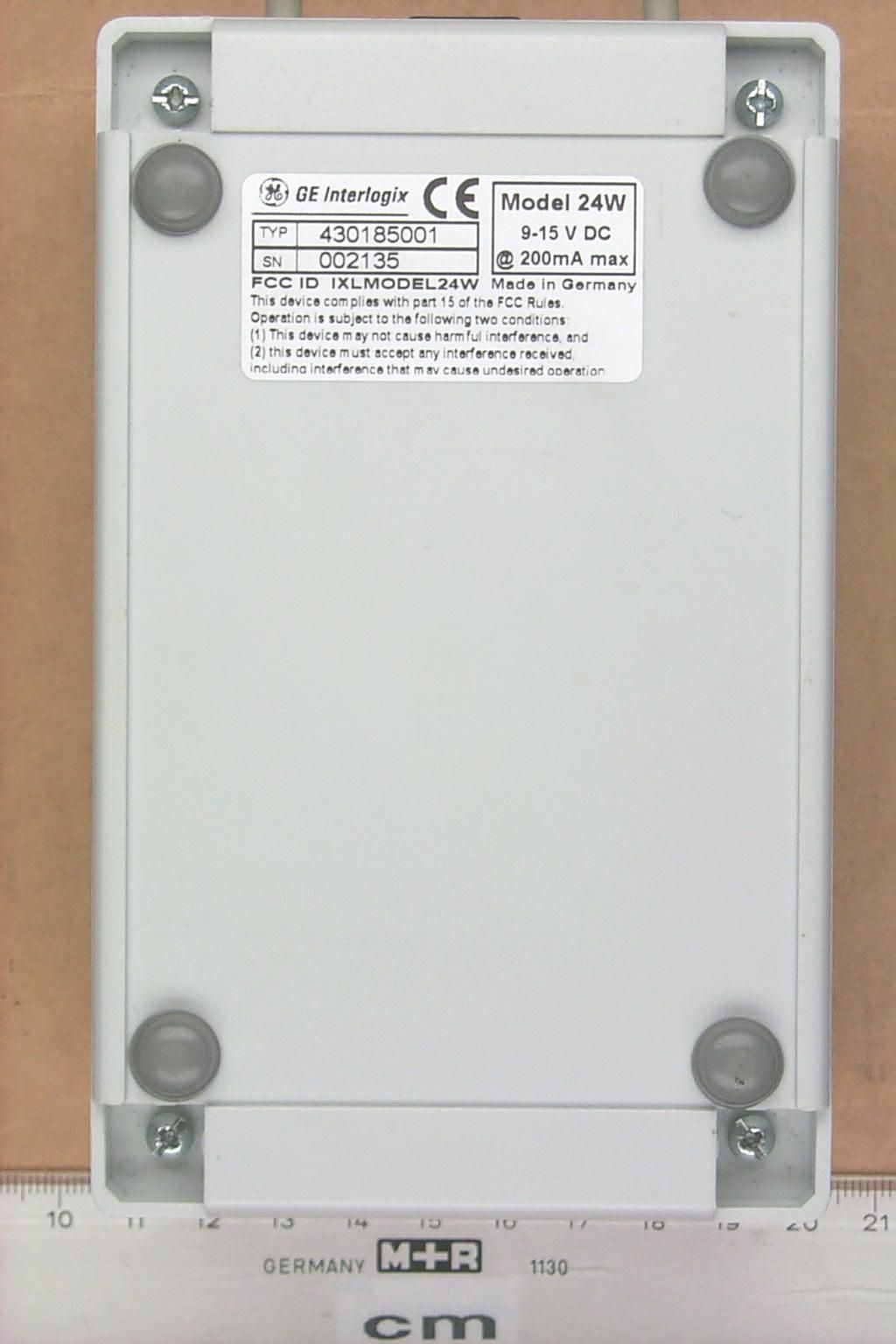

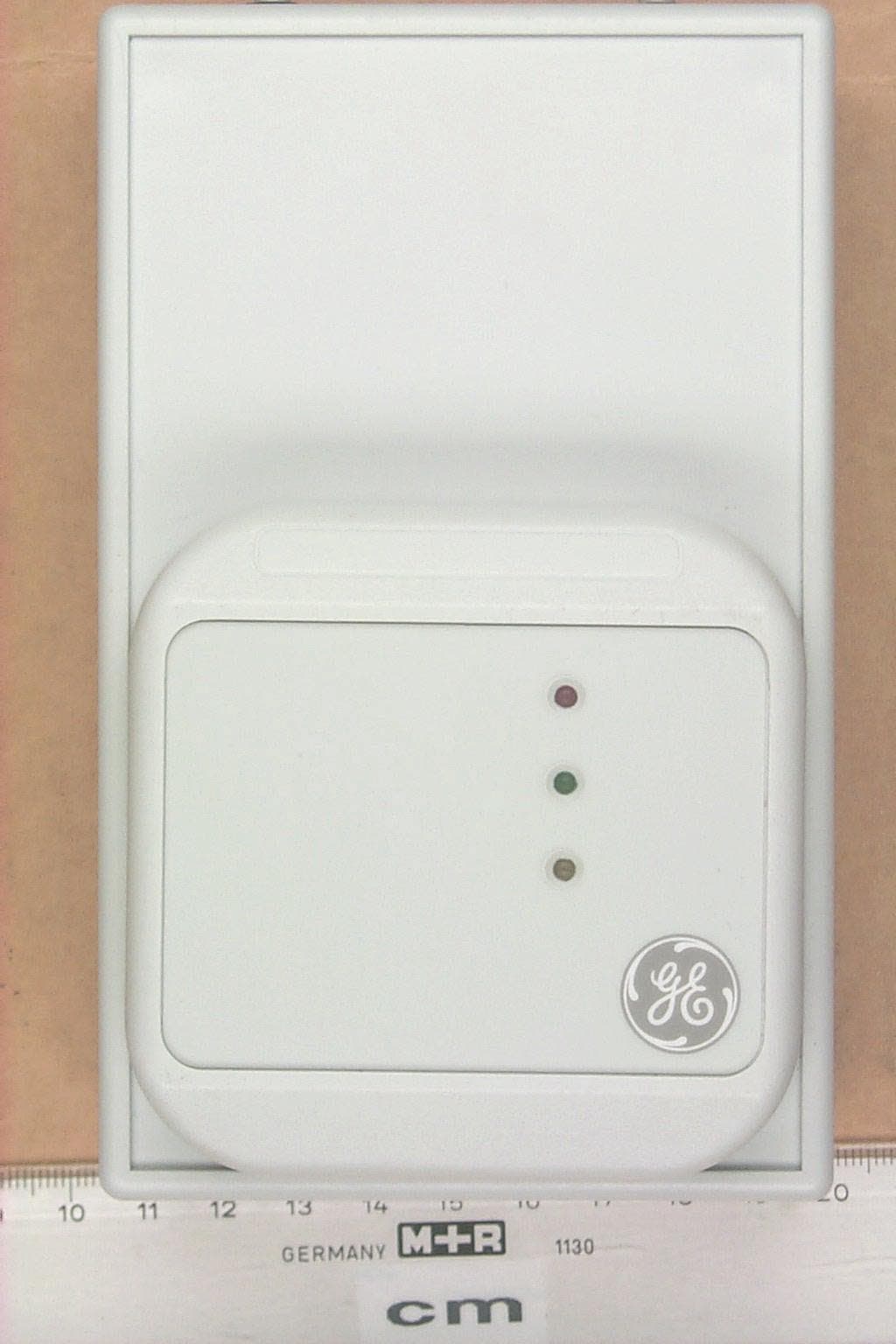

Annex B of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 1 of 4 30422_1.jpg Model 24W top view Annex B of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 2 of 4 30422_2.jpg Model 24W bottom view Annex B of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 3 of 4 30422_4.jpg Model 24W left-hand side Annex B of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 4 of 4 30422_3.jpg Model 24W type plate AC/DC adaptor

Annex C of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 1 of 4 30422_5.jpg Model 24W internal view Annex C of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 2 of 4 30422_7.jpg Model 24W PCB, top view Annex C of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 3 of 4 30422_6.jpg Model 24W PCB, bottom view Annex C of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 4 of 4 30422_8.jpg Model 24W bottom view of reader module

Königswinkel 10 32825 Blomberg Germany Phone +49 5235 9500-0 Fax +49 5235 9500-10 Test Report Reference: R30422 Version 2 Edition 2 Equipment under Test: Model 24W (PRA5 Wedgereader) Serial Number: 002135 Applicant: deister electronic GmbH Manufacturer: deister electronic GmbH FCC ID: IXLMODEL24W Test Laboratory (CAB) accredited by DATech e.V. in compliance with DIN EN ISO/IEC 17025 under the Reg. No. TTI-P-G071/94-11 and listed by FCC 31040/SIT1300F2 TEST REPORT REFERENCE: R30422 Version 2 Edition 2 Examiner: Thomas KÜHN Date of issue: 14 July 2003 Page 2 of 30 Contents: Page 1 IDENTIFICATION .................................................................................................................................... 3 1.1 APPLICANT .................................................................................................................................... 3 1.2 MANUFACTURER.......................................................................................................................... 3 1.3 DATES ............................................................................................................................................ 3 1.4 TEST LABORATORY ..................................................................................................................... 4 1.5 RESERVATION .............................................................................................................................. 4 1.6 NORMATIVE REFERENCES ......................................................................................................... 4 1.7 TEST RESULTS ............................................................................................................................. 4 2 TECHNICAL DATA OF EQUIPMENT...................................................................................................... 5 2.1 DEVICE UNDER TEST .................................................................................................................. 5 2.2 PEREPHERY DEVICES ................................................................................................................. 5 2.3 SPECIAL EMC MEASURES........................................................................................................... 5 3 OPERATIONAL STATES AND PHYSICAL BOUNDARIES .................................................................... 6 4 LIST OF TEST MODULES ...................................................................................................................... 7 4.1 EMISSION ...................................................................................................................................... 7 5 METHOD OF MEASUREMENT .............................................................................................................. 8 5.1 CONDUCTED EMISSIONS ON AC MAINS (150 kHz to 30 MHz) ................................................. 8 5.2 RADIATED EMISSIONS 9 kHz to 30 MHz ..................................................................................... 9 5.3 RADIATED EMISSIONS 30 MHz to 1 GHz .................................................................................... 11 5.4 FREQUENCY STABILITY WITH RESPECT TO AMBIENT TEMPERATURE AND SUPPLY VOLTAGE....................................................................................................................................... 13 6 TEST RESULTS EMISSION TEST ......................................................................................................... 15 6.1 CONDUCTED EMISSION MEASURMENT ON AC MAINS (150 kHz to 30 MHz)......................... 15 6.2 PRELIMINARY RADIATED EMISSION TEST (9 kHz to 30 MHz) ................................................. 17 6.3 PRELIMINARY RADIATED EMISSION TEST (30 MHz to 1 GHz)................................................. 19 6.4 FINAL RADIATED EMISSION TEST (9 kHz to 30 MHz)................................................................ 21 6.5 FINAL RADIATED EMISSION TEST (30 MHz to 1 GHz)............................................................... 22 6.6 OCCUPIED BANDWIDTH .............................................................................................................. 24 6.7 FREQUENCY TOLLERANCE ........................................................................................................25 7 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS ................................................................ 26 8 LIST OF ANNEXES ................................................................................................................................. 30 TEST REPORT REFERENCE: R30422 Version 2 Edition 2 Examiner: Thomas KÜHN Date of issue: 14 July 2003 Page 3 of 30 1 IDENTIFICATION 1.1 APPLICANT Name: deister electronic GmbH Address: Hermann-Bahlsen-Straße 11 – 13 30890 Barsinghausen Country: Germany Name for contact purposes: Mr. Stefan Eichler Phone: +49 51 05 516-129 Fax: +49 51 05 516-266 Mail address: [email protected] Applicant represented during the test by the following person: - 1.2 MANUFACTURER Name: deister electronic GmbH Address: Hermann-Bahlsen-Straße 11 – 13 30890 Barsinghausen Country: Germany Name for contact purposes: Mr. Stefan Eichler Phone: +49 51 05 516-129 Fax: +49 51 05 516-266 Mail address: [email protected] Manufacturer represented during the test by the following person: - 1.3 DATES Date of receipt of test sample: 05 June 2003 Start of test: 23 June 2003 End of test: 26 June 2003 TEST REPORT REFERENCE: R30422 Version 2 Edition 2 Examiner: Thomas KÜHN Date of issue: 14 July 2003 Page 4 of 30 1.4 TEST LABORATORY The tests were carried out at: PHOENIX TEST-LAB GmbH Königswinkel 10 D-32825 Blomberg Phone: +49 (0) 52 35 / 95 00-0 Germany Fax: +49 (0) 52 35 / 95 00-10 Test engineer: Thomas KÜHN 14 July 2003 Name Signature Date Test report checked: Bernd STEINER 14 July 2003 Name Signature Date Stamp 1.5 RESERVATION This test report is only valid in its original…

Text truncated - open the document above for the full version.

Annex A of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 1 of 6 30422_a.jpg Model 24W test set-up preliminary emission measurement (9 kHz to 1 GHz) Annex A of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 2 of 6 30422_b.jpg Model 24W test set-up preliminary emission measurement (9 kHz to 1 GHz) Annex A of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 3 of 6 30422_c.jpg Model 24W test set-up final emission measurement (9 kHz to 30 MHz) Annex A of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 4 of 6 30422_e.jpg Model 24W test set-up final emission measurement (30 MHz to 1 GHz) Annex A of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 5 of 6 30422_j.jpg Model 24W test set-up conducted emission measurement (150 kHz to 30 MHz) Annex A of test report R30422 Edition 2 EUT: Model 24W (PRA5 Wedgereader) Manufacturer: deister electronic GmbH Examiner: Thomas KÜHN Date of issue: 10 July 2003 page 6 of 6 30422_i.jpg Model 24W test set-up climatic chamber
