IXLPRX2SWH5000PROXIMITY READER

1 Model SWH-5000 Proximity 125 KHz Credential Reader Installation Guide Version A0 Part Number UM-099 September 2005 2 CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Model SWH-5000 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . 10 FCC Digital Device Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Canadian Radio Emissions Requirements . . . . . . . . . . . . . . . . . . . . . . . . 13 UL Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3 INTRODUCTION The SWH-5000 Proximity mullion reader will read a variety of prox cards at a frequency of 125 kHz. Compatible standards include HID and deister Prox SmartFrame®. Refer to Table 1 for a complete list of compatible standards and data. FEATURES „Universal compatibility with most 125 kHz Prox (including all HID® Prox formats) „Electrical protection (reverse polarity diode protection on power lines) „Data lines: high-speed transient voltage suppressor diodes „IP65-rated sealed electronics for deployment in both interior and exterior environments TABLE 1.Compatible Credential Formats - Model SWH-5000 HID® 26 BitOther HID pass through formats HID® Corporate 1000deister Prox SmartFrame® HID® 36 Bit WiegandCASI-RUSCO® Prox Lite HID® 37 Bit WiegandOthers - Future Expansion 4 MOUNTING Mount the reader module directly to a metal door frame, wall, or single- gang box, and snap the front cover in place as indicated in Figure 1. FIGURE 1. Mounting Assembly 5 Installation of two SWH-5000 readers side-by-side and back-to-back Read range is not affected if the center-to-center distance between two readers is greater than or equal to four (4) inches (101.6 mm). If the distance between the two readers is less than four inches, field interference between the two readers may result in a double-badge read. Two readers can simultaneously read the same badge or tag if the distance between the two readers is less than 4 inches, center-to-center. NOTE If two readers are being placed back-to-back on a wall less than 4 inches thick, maximum performance can be achieved by using a metal separation plate and then using isolation spacers as necessary. 6 WIRING The SWH-5000 model has ten terminals as noted in Table 2. When attaching wires to the connector, strip off only the minimum insulation required (approx. 1/8'') and push the wire into the connector until the insulation is flush or inside the connector body. This is particularly critical for outdoor readers. While the reader itself is designed and protected to IP65 standards, the cable wires can potentially corrode and short together if not carefully mounted and tightly fastened in the connector body. Table 3 indicates maximum wiring distances per Wiegand standard with the three most common gauges of cable. TABLE 2. Connector Pins for Model SWH-5000 PinDescriptionPin 1External Beeper Control6Reserved for Future Use 2Ground7External Green LED Control 3Power (8 to 16 VDC)8External Red LED Control 4D1 Wiegand9No connection 5D0 Wiegand10No connection TABLE 3.Maximum cable distance for 18, 20, or 22 AWG wire Wire Gauge18 AWG20AWG22 AWG Cable Distance 500 feet (152 meters) 300 feet (91 meters) 200 feet (61 meters) 7 Beeper Wiring Figure 2 shows how to wire the beeper so that it beeps when a valid card is presented to the reader. FIGURE 2. Beeper Wiring Terminal Block 110 AC or DC Red LED Green LED +12V GND Beeper D1 D0 For internal beep, connect Pin 6 to Pin 1 as shown 8 INSTALLATION NOTES Unless otherwise specified in this manual, please follow these guidelines: 1. Shielded cable is recommended in electrically noisy environments. 2. You can use a local power supply for the reader. If so, don’t connect the power supply from the controller to the reader. The ground line of the local power supply must be connected to the power supply of the controller. 3. The unit needs to be operated with a power source with limited power consumption according to EN 60950-1 (2001) paragraph 2.5. Das Gerät ist mit einer Stromquelle mit begrenzter Leistung nach EN 60950-1 (2001) Absatz 2.5 zu betreiben. Des Weiteren gilt die EN 60950-1 (2001) nur in Europa und nicht in den USA! 4. Use of a pull-up resistor may be required by some controllers. Consult your controller manual. 9 TROUBLESHOOTING If the operation of a component is in doubt, substitute a known good component and retry the system. Always verify wiring against the provided wiring information before powering up the reader. TABLE 4. Error Conditions and Possible Solutions ConditionPossible Solutions None of the LEDs are on. Check the following: „Power connections to the reader. „Reader supply voltage at connector pin 3 and that the ground connection pin 2 is secure and well connected. The door does not open and the green LED does not light when a qualified credential is presented. Verify that the door strike and the green LED are wired correctly. Verify that the access credential has been entered and that the reader has been properly configured in the host system. The green LED does not light but the door strike unlocks the door when a valid credential is presented. Verify that the door strike is wired correctly. Refer to the appropriate wiring diagram in your controller m…

Text truncated - open the document above for the full version.

deister electronic GmbH - Hermann-Bahlsen-Straße 11-13 D-30890 Barsinghausen ! IDENTIFIKATION PHOENIX TEST-LAB GmbH! SICHERHEITSTECHNIK Product Certification! VERKEHRSELEKTRONIK Königswinkel 10 ! 05105-516-01 32825 Blomberg " 05105-516217 8. November 2005 RE:Certification Application FCC ID:IXLPRX2SWH5000 Pursuant to Sections 0.459 of the Commission's Rule, deister electronic GmbH, hereby requests confidential treatment of information accompanying this application as outlined below: - schematic diagrams - block diagram - technical description of operation The application contains technical information which deister electronic GmbH deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention in this matter. (Stefan Eichler) deister electroinc GmbHHandelsregister :Bankverbindungen :Kto.-Nr.BLZ Hermann-Bahlsen-Straße 11-13Amtsger. Wennigsen HBR 1203Stadtsparkasse Barsinghausen05 304(251 512 70) 30890 BarsinghausenGeschäftsführung:Dresdner Bank Hannover76 142 02(250 800 20) ! (+49) 05105 516 01Anatoli StobbeDeutsche Bank Barsinghausen4 686 424(250 700 70) " (+49) 05105 516 217USt-IdNr. : DE 115507822Postgiro Hannover612 23-303 (250 100 30) Mitglied . BHE ®

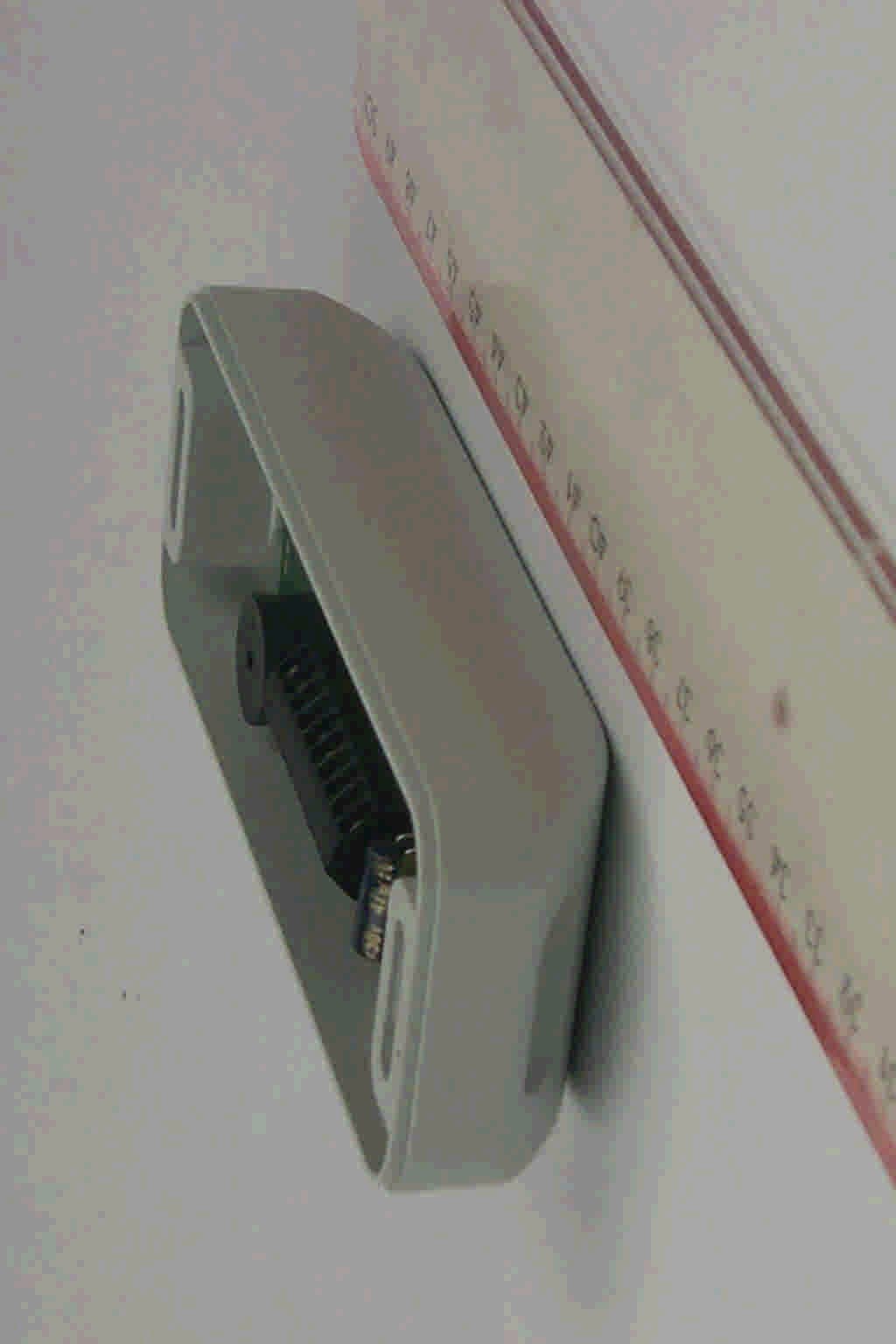

Annex C of test report R51588A Edition 1 EUT: PRX2 / SWH-5000 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 October 2005page 1 of 2 51588_1.jpgPRX2 / SWH-5000, 3D view 1 Annex C of test report R51588A Edition 1 EUT: PRX2 / SWH-5000 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 October 2005page 2 of 2 51588_7.jpgPRX2 / SWH-5000, 3D view 2

Annex B of test report R51588A Edition 1 EUT: PRX2 / SWH-5000 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 October 2005page 1 of 4 51588_2.jpgPRX2 / SWH-5000, rear view Annex B of test report R51588A Edition 1 EUT: PRX2 / SWH-5000 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 October 2005page 2 of 4 51588_6.jpgPRX2 / SWH-5000, internal view Annex B of test report R51588A Edition 1 EUT: PRX2 / SWH-5000 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 October 2005page 3 of 4 51588_5.jpgPRX2 / SWH-5000, PCB, top view Annex B of test report R51588A Edition 1 EUT: PRX2 / SWH-5000 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 October 2005page 4 of 4 51588_4.jpgPRX2 / SWH-5000, PCB, bottom view

Königswinkel 10 32825 Blomberg Germany Phone+49 5235 9500-0 Fax+49 5235 9500-10 TEST REPORT Test Report Reference: R51588A Edition 1 Equipment under Test: PRX2 / SWH-5000 Serial Number: - Applicant: deister electronic GmbH Manufacturer: deister electronic GmbH Test Laboratory (CAB) accredited by DATech e.V. in compliance with DIN EN ISO/IEC 17025 under the Reg. No. DAT-P-105/99-21, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469 TEST REPORT REFERENCE: R51588A Edition 1 Examiner: Thomas KÜHNDate of issue: 12 October 2005Page 2 of 27 Contents:Page 1 IDENTIFICATION.....................................................................................................................................3 1.1 APPLICANT.....................................................................................................................................3 1.2 MANUFACTURER..........................................................................................................................3 1.3 DATES.............................................................................................................................................3 1.4 TEST LABORATORY......................................................................................................................4 1.5 RESERVATION...............................................................................................................................4 1.6 NORMATIVE REFERENCES..........................................................................................................4 1.7 TEST RESULTS..............................................................................................................................4 2 TECHNICAL DATA OF EQUIPMENT......................................................................................................5 2.1 DEVICE UNDER TEST...................................................................................................................5 2.2 PEREPHERY DEVICES..................................................................................................................5 2.3 SPECIAL EMC MEASURES...........................................................................................................5 3 OPERATIONAL STATES AND PHYSICAL BOUNDARIES.....................................................................6 4 LIST OF TEST MODULES.......................................................................................................................7 4.1 EMISSION.......................................................................................................................................7 5 METHOD OF MEASUREMENT...............................................................................................................8 5.1 CONDUCTED EMISSIONS ON POWER SUPPLY LINES (150 kHz to 30 MHz)...........................8 5.2 RADIATED EMISSIONS 9 kHz to 30 MHz......................................................................................9 5.3 RADIATED EMISSIONS 30 MHz to 1 GHz.....................................................................................11 6 TEST RESULTS EMISSION TEST..........................................................................................................14 6.1 CONDUCTED EMISSION MEASURMENT ON AC MAINS (150 kHz to 30 MHz)..........................14 6.2 PRELIMINARY RADIATED EMISSION TEST (9 kHz to 30 MHz)..................................................15 6.3 PRELIMINARY RADIATED EMISSION TEST (30 MHz to 1 GHz).................................................17 6.4 FINAL RADIATED EMISSION TEST (9 kHz to 30 MHz)................................................................19 6.5 FINAL RADIATED EMISSION TEST (30 MHz to 1 GHz)...............................................................20 6.6 OCCUPIED BANDWIDTH...............................................................................................................22 7 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS.................................................................23 8 LIST OF ANNEXES..................................................................................................................................27 TEST REPORT REFERENCE: R51588A Edition 1 Examiner: Thomas KÜHNDate of issue: 12 October 2005Page 3 of 27 1IDENTIFICATION 1.1APPLICANT Name:deister electronic GmbH Address:Hermann-Bahlsen-Straße 11 – 13 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Stefan Eichler Tel:+49 51 05 516-129 Fax:+49 51 05 516-266 e-mail address:[email protected] 1.2MANUFACTURER Name:deister electronic GmbH Address:Hermann-Bahlsen-Straße 11 – 13 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Stefan Eichler Tel:+49 51 05 516-129 Fax:+49 51 05 516-266 e-mail address:[email protected] 1.3DATES Date of receipt of test sample:23 September 2005 Start of test:26 September 2005 End of test:07 October 2005 TEST REPORT REFERENCE: R51588A Edition 1 Examiner: Thomas KÜHNDate of issue: 12 October 2005Page 4 of 27 1.4TEST LABORATORY The tests were carried out at:PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 BlombergPhone: +49 (0) 52 35 / 95 00-0 GermanyFax:+49 (0) 52 35 / 95 00-10 accredited by DATech e.V. in compliance with DIN EN ISO/IEC 17025 under Reg. No. DAT-P-105/99-21, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469 Test engineer:Thomas KÜHN12 October 2005 NameSignatureDate Test report checked:Bernd STEINER12 October 2005 NameSignatureDate Stamp 1.5RESERVATION T h i s t e s t r e p o r t i s o n l y v a l i d i n i t s o r i g i n a l f o r m. Any reproduction of its contents without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further sam…
