IXLPRX5SWH5100Proximity Reader

1 T y c o C O N F I D E N T I A L Model SWH-5100 Proximity 125 KHz Credential Reader Installation Guide Version A2 Part Number UM-091 February 2005 2 T y c o C O N F I D E N T I A L CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Installation Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Model SWH-5100 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . .11 FCC Digital Device Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 UL Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3 T y c o C O N F I D E N T I A L INTRODUCTION The SWH-5100 Proximity single-gang reader will read a variety of prox cards at a frequency of 125 kHz. Compatible standards include HID and Diester Prox SmartFrame®. Refer to Table 1 for a complete list of compatible standards and data. TABLE 1.Compatible Credential Formats - Model SWH-5100 HID® 26 Bit HID® Corporate 1000 HID® 36 Bit Wiegand HID® 37 Bit Wiegand Other HID pass through formats Diester Prox SmartFrame® CASI-RUSCO® Prox Lite Others - Future Expansion 4 T y c o C O N F I D E N T I A L FEATURES „Universal compatibility with most 125 kHz Prox (including all HID® Prox formats) „Electrical protection (reverse polarity diode protection on power lines) „Data lines: high-speed transient voltage suppressor diodes „IP65-rated sealed electronics for deployment in both interior and exterior environments „Integrated reader tamper protection 5 T y c o C O N F I D E N T I A L MOUNTING Mount the single-gang backplate (with tamper magnet installed) onto the wall. FIGURE 1. Model SWH-5100 Reader Backplate (includes tamper switch magnet) NOTE Mounting holes fit standard U.S. single-width electrical box and standard European (EMEA) electrical box hole patterns. 6 T y c o C O N F I D E N T I A L Mount the reader module directly to the backplate and then snap the front cover in place as indicated in Figure 2. FIGURE 2. Mounting Assembly (including 1 optional isolation spacer) INSTALLATION CONSIDERATIONS An isolation spacer (available from Software House, part number SWH-ISOSPC) may be used to improve the read range distance when mounting the reader to a metal surface. To optimize reader range, use the number of backplates as indicated in Table 2. Use of Isolation Spacers is optional and not required for non-metal mounting surfaces. 7 T y c o C O N F I D E N T I A L Installation of two SWH-5100 readers side-by-side and back-to-back Read range is not affected if the center-to-center distance between two readers is greater than or equal to four (4) inches (101.6 mm). If the distance between the two readers is less than four inches, field interference between the two readers may result in a double-badge read. Two readers can simultaneously read the same badge or tag if the distance between the two readers is less than 4 inches, center-to-center. NOTE If two readers are being placed back-to-back on a wall less than 4 inches thick, maximum performance can be achieved by using a metal separation plate and then using isolation spacers as necessary. TABLE 2.Isolation spacer recommendation for mounting the SWH-5100 reader on metal. DistanceReading Distance No metal plate100% 4.5 cm100% 2.7 cm (3 tamper plates)85% 1.8 cm (2 tamper plates)70% 0.9 cm (1 tamper plate)50% 0 cm10% 8 T y c o C O N F I D E N T I A L WIRING The Model SWH-5100 has twelve terminals as noted in Table 3. The terminal strip is removable for easy installation and wiring. When attaching wires to the connector, strip off only the minimum insulation required (approx. 1/8'') and push the wire into the connector until the insulation is flush or inside the connector body. This is particularly critical for outdoor readers. While the reader itself is designed and protected to IP65 standards, the cable wires can potentially corrode and short together if not carefully mounted and tightly fastened in the connector body. Table 4 indicates maximum wiring distances per Wiegand standard with the three most common gauges of cable. TABLE 3. Connector Pins for Model SWH-5100 PinDescriptionPin 1External Beeper Control7External Green LED Control 2Ground8External Red LED Control 3Power (8 to 16 VDC)9Reserved for Future Use 4D1 Wiegand10Reserved for Future Use 5D0 Wiegand11Tamper (Normally Closed) 6Reserved for Future Use12Tamper (Normally Closed) TABLE 4.Maximum cable distance for 18, 20, or 22 AWG wire Wire Gauge18 AWG20AWG22 AWG Cable Distance 500 feet (152 meters) 300 feet (91 meters) 200 feet (61 meters) 9 T y c o C O N F I D E N T I A L INSTALLATION NOTES Unless otherwise specified in this manual, please follow these guidelines: 1. Shielded cable is recommended in electrically noisy environments. 2. You can use a local power supply for the reader. If so, don’t connect the power supply from the controller to the reader. The ground line of the local power supply must be connected to the power supply of the controller. 3. The unit needs to be operated with a power source with limited power consumption according to EN 60950-1 (2003) paragraph 2.5. Das Gerät ist mit einer Stromquelle mit begrenzter Leistung nach EN 60950-1 (2003) Absatz 2.5 zu betreiben. 4. Use of a pull-up resistor may be…

Text truncated - open the document above for the full version.

deister electronic GmbH - Hermann-Bahlsen-Straße 11-13 D-30890 Barsinghausen ! IDENTIFIKATION PHOENIX TEST-LAB GmbH! SICHERHEITSTECHNIK Product Certification! VERKEHRSELEKTRONIK Königswinkel 10 ! 05105-516-01 32825 Blomberg " 05105-516217 21. März 2005 RE:Certification Application FCC ID:IXLPRX5SWH5100 Pursuant to Sections 0.459 of the Commission's Rule, deister electronic GmbH, hereby requests confidential treatment of information accompanying this application as outlined below: - schematic diagrams - block diagram - technical description of operation The application contains technical information which deister electronic GmbH deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention in this matter. (Stefan Eichler) deister electroinc GmbHHandelsregister :Bankverbindungen :Kto.-Nr.BLZ Hermann-Bahlsen-Straße 11-13Amtsger. Wennigsen HBR 1203Stadtsparkasse Barsinghausen05 304(251 512 70) 30890 BarsinghausenGeschäftsführung:Dresdner Bank Hannover76 142 02(250 800 20) ! (+49) 05105 516 01Anatoli StobbeDeutsche Bank Barsinghausen4 686 424(250 700 70) " (+49) 05105 516 217USt-IdNr. : DE 115507822Postgiro Hannover612 23-303 (250 100 30) Mitglied . BHE ®

SWH 5100

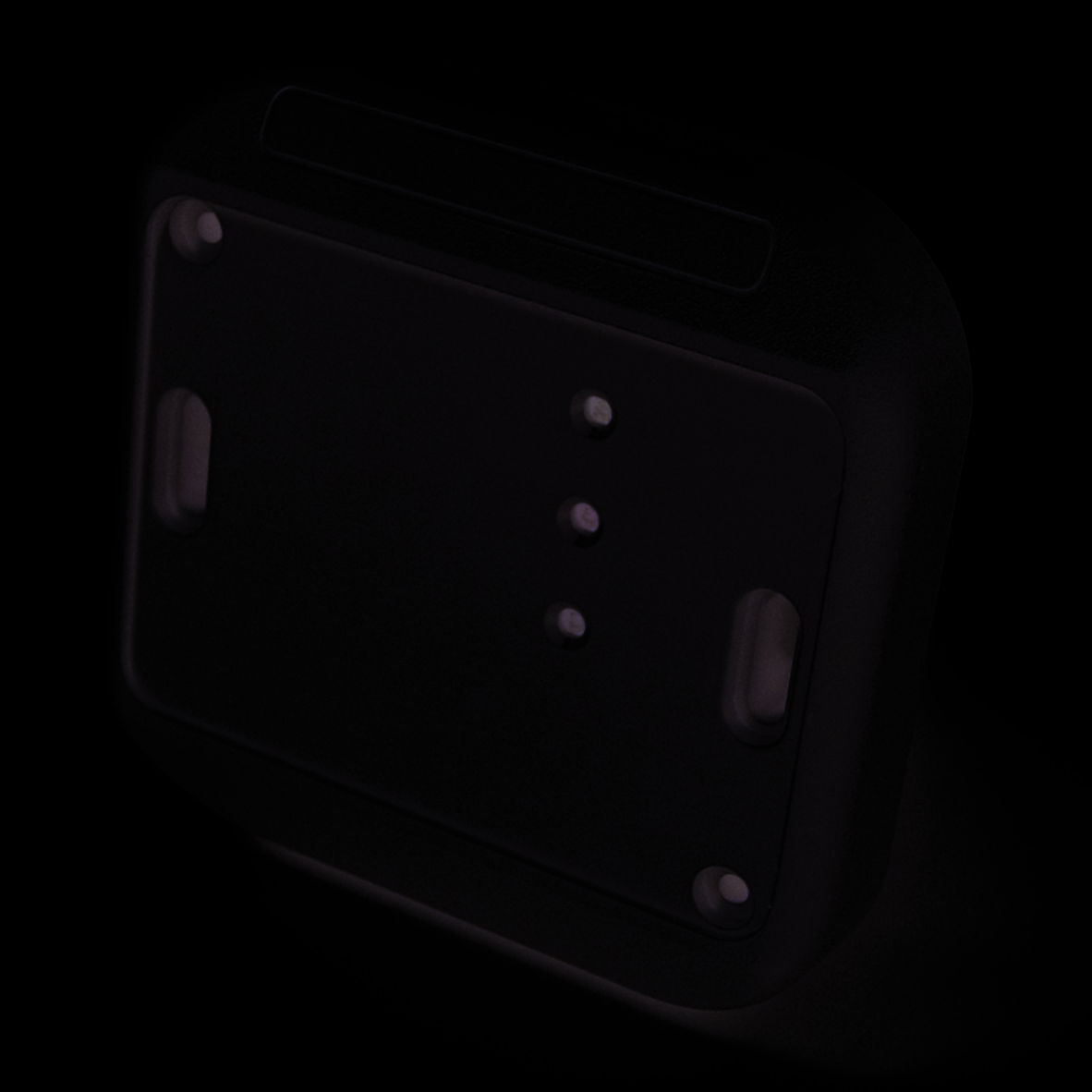

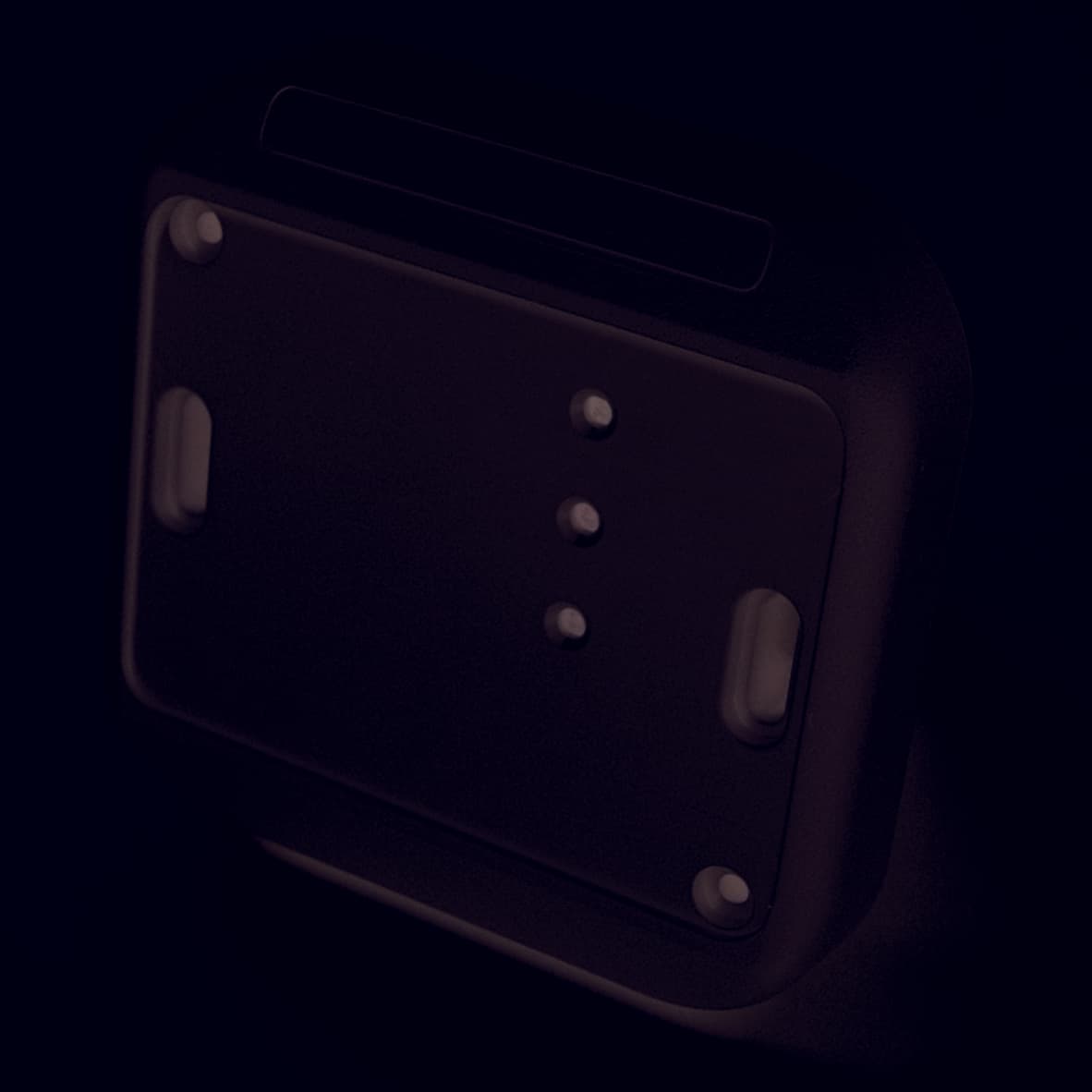

Annex B of test report R41091_A Edition 1 EUT: PRX5 / SWH-5100 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 15 March 2005page 1 of 3 41091_6.jpgPRX5 / SWH-5100, rear view Annex B of test report R41091_A Edition 1 EUT: PRX5 / SWH-5100 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 15 March 2005page 2 of 3 41091_5.jpgPRX5 / SWH-5100, main PCB, top view Annex B of test report R41091_A Edition 1 EUT: PRX5 / SWH-5100 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 15 March 2005page 3 of 3 41091_8.jpgPRX5 / SWH-5100, main PCB, bottom view

Königswinkel 10 32825 Blomberg Germany Phone+49 5235 9500-0 Fax+49 5235 9500-10 TEST REPORT Test Report Reference: R41091_A Edition 1 Equipment under Test: PRX5 / SWH-5100 Serial Number: - Applicant: deister electronic GmbH Manufacturer: deister electronic GmbH Test Laboratory (CAB) accredited by DATech e.V. in compliance with DIN EN ISO/IEC 17025 under the Reg. No. DAT-P-105/99-21 and listed by FCC 31040/SIT1300F2 TEST REPORT REFERENCE: R41091_A Edition 1 Examiner: Thomas KÜHNDate of issue: 15 March 2005Page 2 of 28 Contents:Page 1 IDENTIFICATION.....................................................................................................................................3 1.1 APPLICANT.....................................................................................................................................3 1.2 MANUFACTURER..........................................................................................................................3 1.3 DATES.............................................................................................................................................3 1.4 TEST LABORATORY......................................................................................................................4 1.5 RESERVATION...............................................................................................................................4 1.6 NORMATIVE REFERENCES..........................................................................................................4 1.7 TEST RESULTS..............................................................................................................................4 2 TECHNICAL DATA OF EQUIPMENT......................................................................................................5 2.1 DEVICE UNDER TEST...................................................................................................................5 2.2 PEREPHERY DEVICES..................................................................................................................5 2.3 SPECIAL EMC MEASURES...........................................................................................................5 3 OPERATIONAL STATES AND PHYSICAL BOUNDARIES.....................................................................6 4 LIST OF TEST MODULES.......................................................................................................................7 4.1 EMISSION.......................................................................................................................................7 5 METHOD OF MEASUREMENT...............................................................................................................8 5.1 CONDUCTED EMISSIONS ON POWER SUPPLY LINES (150 kHz to 30 MHz)...........................8 5.2 RADIATED EMISSIONS 9 kHz to 30 MHz......................................................................................9 5.3 RADIATED EMISSIONS 30 MHz to 1 GHz.....................................................................................11 6 TEST RESULTS EMISSION TEST..........................................................................................................14 6.1 CONDUCTED EMISSION MEASURMENT ON AC MAINS (150 kHz to 30 MHz)..........................14 6.2 PRELIMINARY RADIATED EMISSION TEST (9 kHz to 30 MHz)..................................................16 6.3 PRELIMINARY RADIATED EMISSION TEST (30 MHz to 1 GHz).................................................18 6.4 FINAL RADIATED EMISSION TEST (9 kHz to 30 MHz)................................................................20 6.5 FINAL RADIATED EMISSION TEST (30 MHz to 1 GHz)...............................................................21 6.6 OCCUPIED BANDWIDTH...............................................................................................................23 7 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS.................................................................24 8 LIST OF ANNEXES..................................................................................................................................28 TEST REPORT REFERENCE: R41091_A Edition 1 Examiner: Thomas KÜHNDate of issue: 15 March 2005Page 3 of 28 1IDENTIFICATION 1.1APPLICANT Name:deister electronic GmbH Address:Hermann-Bahlsen-Straße 11 – 13 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Stefan Eichler Tel:+49 51 05 516-129 Fax:+49 51 05 516-266 e-mail address:[email protected] 1.2MANUFACTURER Name:deister electronic GmbH Address:Hermann-Bahlsen-Straße 11 – 13 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Stefan Eichler Tel:+49 51 05 516-129 Fax:+49 51 05 516-266 e-mail address:[email protected] 1.3DATES Date of receipt of test sample:21 February 2005 Start of test:08 March 2005 End of test:08 March 2005 TEST REPORT REFERENCE: R41091_A Edition 1 Examiner: Thomas KÜHNDate of issue: 15 March 2005Page 4 of 28 1.4TEST LABORATORY The tests were carried out at:PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 BlombergPhone: +49 (0) 52 35 / 95 00-0 GermanyFax:+49 (0) 52 35 / 95 00-10 accredited by DATech e.V. in compliance with DIN EN ISO/IEC 17025 under Reg. No. DAT-P-105/99-21 and listed by FCC 31040/SIT1300F2. Test engineer:Thomas KÜHN15 March 2005 NameSignatureDate Test report checked:Frank EIKERMANN15 March 2005 NameSignatureDate Stamp 1.5RESERVATION T h i s t e s t r e p o r t i s o n l y v a l i d i n i t s o r i g i n a l f o r m. Any reproduction of its contents without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necess…

Text truncated - open the document above for the full version.

Annex A of test report R41091_A Edition 1 EUT: PRX5 / SWH-5100 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 15 March 2005page 1 of 6 41091_l.jpgPRX5 / SWH-5100, test set-up shielded chamber Annex A of test report R41091_A Edition 1 EUT: PRX5 / SWH-5100 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 15 March 2005page 2 of 6 41091_p.jpgPRX5 / SWH-5100, test set-up shielded chamber Annex A of test report R41091_A Edition 1 EUT: PRX5 / SWH-5100 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 15 March 2005page 3 of 6 41091_q.jpgPRX5 / SWH-5100, test set-up fully anechoic chamber Annex A of test report R41091_A Edition 1 EUT: PRX5 / SWH-5100 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 15 March 2005page 4 of 6 41091_r.jpgPRX5 / SWH-5100, test set-up fully anechoic chamber Annex A of test report R41091_A Edition 1 EUT: PRX5 / SWH-5100 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 15 March 2005page 5 of 6 41091_c.jpgPRX5 / SWH-5100, test set-up outdoor test site Annex A of test report R41091_A Edition 1 EUT: PRX5 / SWH-5100 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 15 March 2005page 6 of 6 41091_j.jpgPRX5 / SWH-5100, test set-up open area test site
