IXLSWH4500Proximity Reader

1 Model SWH-4x00 Contactless Multi-Technology 125 KHz and 13.56 MHz Reader Installation Guide Version D0 Part Number UM-090 January 2007 2 CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Installation Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Model SWH-4x00 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . .11 FCC Digital Device Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 UL Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3 INTRODUCTION The SWH-4100 and SWH-4200 Contactless readers will read Prox and Smart Cards at frequencies of both 125 kHz and 13.56 MHz. The reading capability includes, for Smart Cards, both unencrypted serial numbers and encrypted MIFARE® programmed sectors. Refer to Table 1 for a complete list of compatible standards and data. The SWH-4200 reader has a built-in keypad with 12 keys, including CMD/ ENTER and CE (Clear Entry). The reader outputs the PIN code in the 8-bit burst Wiegand. It also has the ability to read and verify the PIN on a Smart Card. This feature is eanbled with the use of program cards. Please contact Software House for more information on the PIN-on-Card function. TABLE 1.Compatible Credential Formats - Model SWH-4100 HID® 26 BitISO 14443A (MIFARE®) Sector HID® Corporate 1000ISO 14443B Serial Number HID® 36 Bit WiegandISO 15693 Serial Number HID® 37 Bit WiegandMIFARE® Sector Other HID pass through formatsDESFire® Serial Number deister Prox SmartFrame®iCLASS® Serial Number CASI-RUSCO® Prox LiteOthers - Future Expansion 4 FEATURES „Universal compatibility with most 125 kHz Prox (including all HID® Prox formats), all ISO 15693, and ISO 14443A credentials (badges, disk tags and key fobs). Reads both 125 kHz and 13.56 MHz credentials in the same reader. „Electrical protection (reverse polarity diode protection on power lines). „Data lines: high-speed transient voltage suppressor diodes. „IP65-rated sealed electronics for deployment in both interior and exterior environments. „Integrated reader tamper protection. 5 MOUNTING Mount the single-gang backplate (with tamper magnet installed) onto the wall. FIGURE 1. Model SWH-4x00 Reader Backplate (includes tamper switch magnet) NOTE Mounting holes fit standard U.S. single-width electrical box and standard European (EMEA) electrical box hole patterns. Mount the reader module directly to the backplate and then snap the front cover in place as indicated in Figure 2. 6 FIGURE 2. Mounting Assembly (including 1 optional isolation spacer) Please note that Figure 2 shows the SWH-4100 reader and cover plate. Although the SWH-4200 keypad reader and front cover plate differ, the mounting assembly is the same as the SWH-4100. INSTALLATION CONSIDERATIONS An isolation spacer (available from Software House, part number SWH-ISOSPC) may be used to improve the read range distance when mounting the reader to a metal surface. To optimize reader range, use the number of backplates as indicated in Table 2. Use of Isolation Spacers is optional and not required for non-metal mounting surfaces. 7 Installation of two SWH-4x00 readers side-by-side and back-to-back Read range is not affected if the center-to-center distance between two readers is greater than or equal to four (4) inches (101.6 mm). Two readers can simultaneously read the same badge or tag if the distance between the two readers is less than 4 inches, center-to-center. If the distance between the two readers is less than four inches, field interference between the two readers may result in a double-badge read. NOTE If two readers are being placed back-to-back on a wall less than 4 inches thick, maximum performance can be achieved by using a metal separation plate and then using isolation spacers as necessary. TABLE 2.Isolation spacer recommendation for mounting the SWH-4x00 reader on metal DistanceReading Distance No metal plate100% 4.5 cm100% 2.7 cm (3 tamper plates)85% 1.8 cm (2 tamper plates)70% 0.9 cm (1 tamper plate)50% 0 cm10% 8 WIRING SWH-4x00 models have twelve terminals as noted in Table 3. The terminal strip is removable for easy installation and wiring. When attaching wires to the connector, strip off only the minimum insulation required (approx. 1/ 8'') and push the wire into the connector until the insulation is flush or inside the connector body. This is particularly critical for outdoor readers. While the reader itself is designed and protected to IP65 standards, the cable wires can potentially corrode and short together if not carefully mounted and tightly fastened in the connector body. Table 4 indicates maximum wiring distances per Wiegand standard with the three most common gauges of cable. TABLE 3. Connector Pins for Model SWH-4x00 PinDescriptionPin 1External Beeper Control7External Green LED Control 2Ground8External Red LED Control 3Power (8 to 16 VDC)9A - RS485 - used for Flash upgrade 4D1 Wiegand10B - RS485 - used for Flash upgrade 5D0 Wiegand11Tamper (Normally Closed) 6Reserved for Future Use12Tamper (Normally Closed) TABLE 4.Maximum cable distance for 18, 20, or 22 AWG wire Wire Gauge18 AWG20AWG22 AWG Cable Distance 500 feet (152 meters) 300 feet (91 meters) 200 feet (61 meters) 9 IN…

Text truncated - open the document above for the full version.

deister electronic GmbH - Hermann-Bahlsen-Straße 11-13 D-30890 Barsinghausen { IDENTIFIKATION PHOENIX TEST-LAB GmbH { SICHERHEITSTECHNIK Product Certification { VERKEHRSELEKTRONIK Königswinkel 10 05105-516-01 32825 Blomberg  05105-516217 25. Januar 2007 RE: Certification Application FCC ID: IXLSWH4500 Pursuant to Sections 0.459 of the Commission's Rule, deister electronic GmbH, hereby requests confidential treatment of information accompanying this application as outlined below: - schematic diagrams - block diagram - technical description of operation The application contains technical information which deister electronic GmbH deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention in this matter. (Stefan Eichler) deister electroinc GmbH Handelsregister : Bankverbindungen : Kto.-Nr. BLZ BHE Hermann-Bahlsen-Straße 11-13 Amtsger. Wennigsen HBR 1203 Stadtsparkasse Barsinghausen 05 304 (251 512 70) 30890 Barsinghausen Geschäftsführung: Dresdner Bank Hannover 76 142 02 (250 800 20) (+49) 05105 516 01 Anatoli Stobbe Deutsche Bank Barsinghausen 4 686 424 (250 700 70)  (+49) 05105 516 217 USt-IdNr. : DE 115507822 Postgiro Hannover 612 23-303 (250 100 30) Mitglied . ®

Annex B of test report R70019_A Edition 1 EUT:SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page1 of1 70019_e.jpgSWH-4500, front view Annex C of test report R70019 Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page1 of5 70019_d.jpgSWH-4500, PCB,rearview

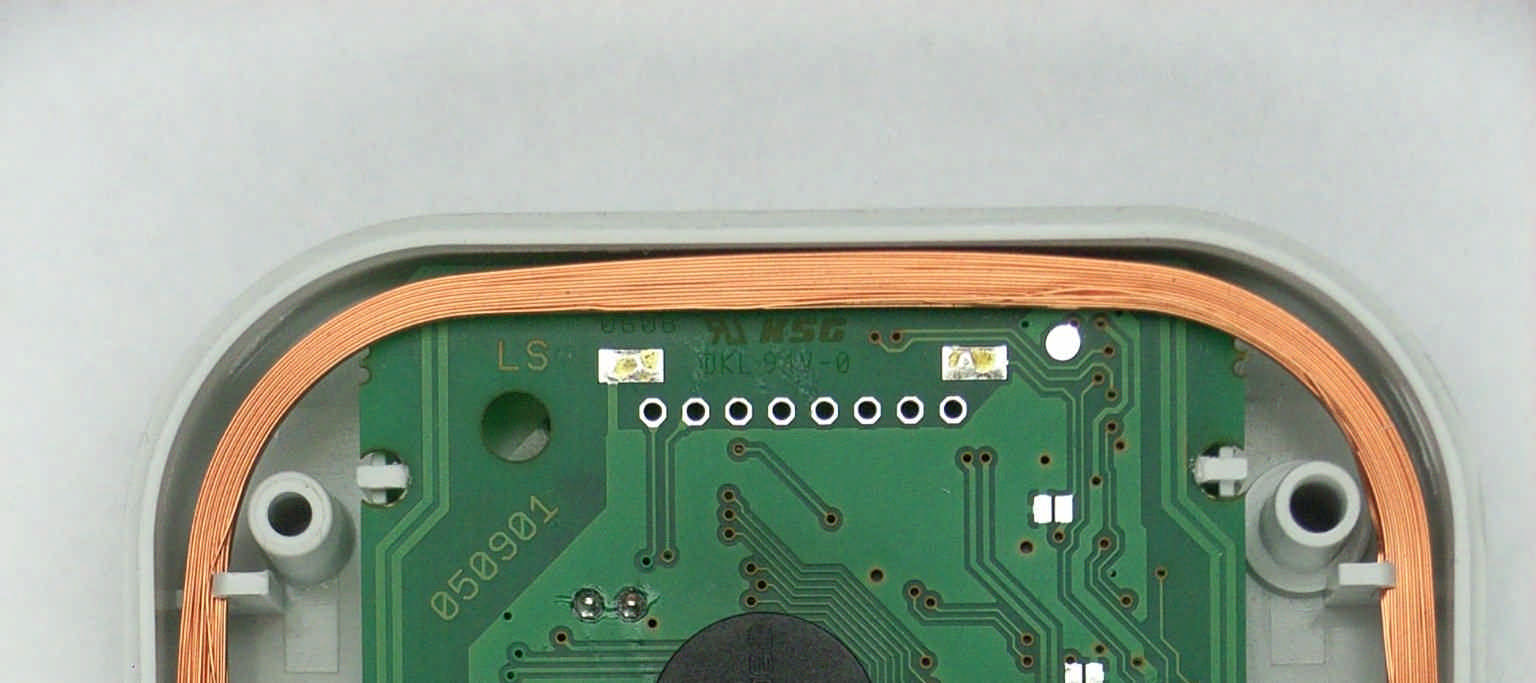

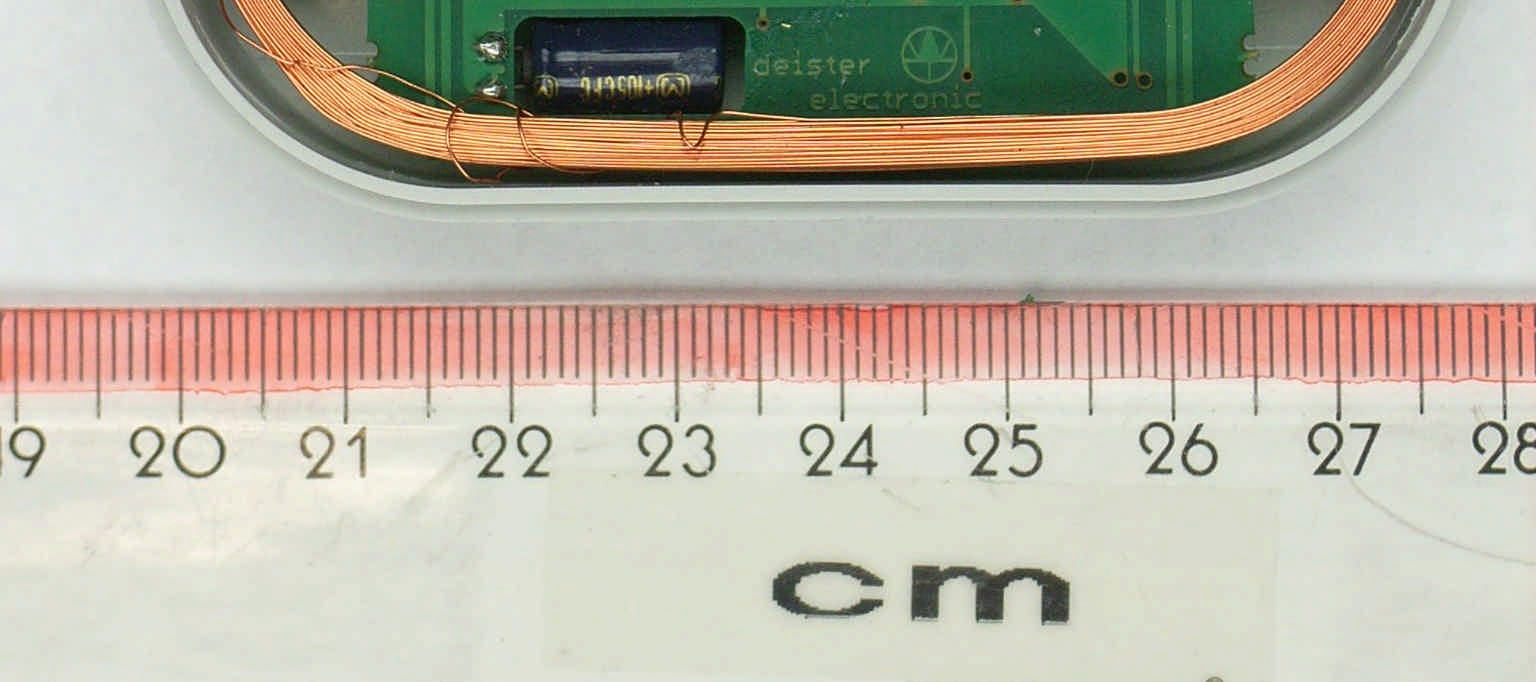

Annex C of test report R70019 Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page1 of5 70019_d.jpgSWH-4500, PCB,rearview Annex C of test report R70019 Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page2 of5 70019_c.jpgSWH-4500, main PCB, top view Annex C of test report R70019 Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page3 of5 70019_b.jpgSWH-4500, mainPCB, bottom view Annex C of test report R70019 Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page4 of5 70019_a.jpgSWH-4500,readerPCB, top view Annex C of test report R70019 Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page5 of5 70019_f.jpgSWH-4500,readerPCB,bottomview

Königswinkel 10 32825 Blomberg Germany Phone+49 5235 9500-0 Fax+49 5235 9500-10 TEST REPORT Test Report Reference: R70019_A Edition 1 Equipment under Test: SWH-4500 FCC ID: IXLSWH4500 Serial Number: None Applicant: deister electronic GmbH Manufacturer: deister electronic GmbH Test Laboratory (CAB) accredited by DATech GmbH in compliance with DIN EN ISO/IEC 17025 under the Reg. No. DAT-P-105/99-21 and FCC Test site registration number 90877 TEST REPORT REFERENCE: R70019_A Edition 1 Examiner: Thomas KÜHNDate of issue: 12 January 2007Page2 of31 Contents:Page 1 IDENTIFICATION.....................................................................................................................................3 1.1 APPLICANT.....................................................................................................................................3 1.2 MANUFACTURER..........................................................................................................................3 1.3 DATES.............................................................................................................................................3 1.4 TEST LABORATORY......................................................................................................................4 1.5 RESERVATION...............................................................................................................................4 1.6 NORMATIVE REFERENCES..........................................................................................................4 1.7 TEST RESULTS..............................................................................................................................4 2 TECHNICAL DATA OF EQUIPMENT......................................................................................................5 2.1 DEVICE UNDER TEST...................................................................................................................5 2.2 PERIPHERY DEVICES...................................................................................................................5 2.3 SPECIAL EMC MEASURES...........................................................................................................5 3 OPERATIONAL STATES AND PHYSICAL BOUNDARIES.....................................................................6 4 LIST OF TEST MODULES.......................................................................................................................7 4.1 EMISSION.......................................................................................................................................7 5 METHOD OF MEASUREMENT...............................................................................................................8 5.1 CONDUCTED EMISSIONS ON POWER SUPPLY LINES (150 kHz to 30 MHz)...........................8 5.2 RADIATED EMISSIONS 9 kHz to 30 MHz......................................................................................9 5.3 RADIATED EMISSIONS 30 MHz to 1 GHz.....................................................................................11 5.4 SPECTRUM MASK AND OCCUPIED BANDWIDTH......................................................................13 5.5 FREQUENCY TOLERANCE...........................................................................................................14 6 TEST RESULTS EMISSION TEST..........................................................................................................15 6.1 CONDUCTED EMISSION MEASUREMENT ON AC MAINS (150 kHz to 30 MHz).......................15 6.2 PRELIMINARY RADIATED EMISSION TEST (9 kHz to 30 MHz)..................................................17 6.3 PRELIMINARY RADIATED EMISSION TEST (30 MHz to 1 GHz).................................................19 6.4FINALRADIATED EMISSION TEST (9 kHz to 30 MHz)................................................................21 6.5 FINAL RADIATED EMISSION TEST (30 MHz to 1 GHz)...............................................................22 6.6SPECTRUM MASK.........................................................................................................................24 6.7OCCUPIED BANDWIDTH...............................................................................................................25 6.8 FREQUENCY TOLERANCE...........................................................................................................26 7 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS.................................................................27 8 LIST OF ANNEXES..................................................................................................................................31 TEST REPORT REFERENCE: R70019_A Edition 1 Examiner: Thomas KÜHNDate of issue: 12 January 2007Page3 of31 1 IDENTIFICATION 1.1APPLICANT Name:deister electronic GmbH Address:Hermann-Bahlsen-Str. 11 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Stefan EICHLER Tel:+ 49 51 05 51 61 29 Fax:+ 49 51 05 51 62 66 e-mail address:[email protected] 1.2MANUFACTURER Name:deister electronic GmbH Address:Hermann-Bahlsen-Str. 11 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Stefan EICHLER Tel:+ 49 51 05 51 61 29 Fax:+ 49 51 05 51 62 66 e-mail address:[email protected] 1.3DATES Date of receipt of test sample:22 December 2006 Start of test:09 January 2007 End of test:11 January 2007 TEST REPORT REFERENCE: R70019_A Edition 1 Examiner: Thomas KÜHNDate of issue: 12 January 2007Page4 of31 1.4TEST LABORATORY The tests were carried out at:PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 BlombergPhone:+49 (0) 52 35 / 95 00-0 GermanyFax:+49 (0) 52 35 / 95 00-10 accredited by DATech GmbH in compliance with DIN EN ISO/IEC 17025 underReg. No. DAT-P-105/99-21 and FCC Test site registration number 90877 Test engineer:Thomas KÜHN12 January 2007 NameSignatureD ate Test report checked:Bernd STEINER12 January 2007 NameSignatureDate…

Text truncated - open the document above for the full version.

Annex A of test report R70019_A Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page1 of7 70019_1.jpgSWH-4500, test set-up fully anechoic chamber Annex A of test report R70019_A Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page2 of7 70019_3.jpgSWH-4500, test set-up fully anechoic chamber Annex A of test report R70019_A Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page3 of7 70019_2.jpgSWH-4500, test set-up fully anechoic chamber Annex A of test report R70019_A Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page4 of7 70019_8.jpgSWH-4500, test set-up outdoor test-site Annex A of test report R70019_A Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page5 of7 70019_5.jpgSWH-4500, test set-upopen area test-site Annex A of test report R70019_A Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page6 of7 70019_4.jpgSWH-4500, test set-up conducted emission measurement Annex A of test report R70019_A Edition 1 EUT: SWH-4500 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 12 January 2007page7 of7 70019_10.jpgSWH-4500, test set-up climatic chamber
