IXLTSU25UDL250UHF RFID Reader

TSU25DB TSU25DB-PIR Long Distance Reader Wiring and Installation Instructions ts_tsu25db_wi_en_v171209_as_bf_de Art. #896130 PRELIMINARY DB Regulatory Notices Europe Hereby, deister electronic GmbH declares that this equipment - if used according to the instructions - is in compliance with the essential requirements and other relevant provisions of the RTTE Directive 1999/5/EC. A full declaration of conformity can be requested at: [email protected] Approved for use in all European countries. FCC Digital Device Limitations Radio and Television Interference This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and television reception. Caution! Changes or modifications not expressly approved by the manufacturer could void the user ́s authority to operate this equipment. 2ts_tsu25db_wi_en_v171209_as_bf_de Wiring and Installation TSU25DB PRELIMINARY FCC Notice To comply with FCC Part 15 rules in the United States, the system must be professionally installed to ensure compliance with the Part 15 certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in the United States. The use of the system in any other combination (such as co-located antennas transmitting the same information) is expressly forbidden. FCC Radiation Exposure Statement This equipment complies with the FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and the human body. Industry Canada This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. © Copyright 2009 by deister electronic GmbH Disclaimer deister electronic GmbH is not able to supervise the observance of the instructions given in this manual as well as the conditions and methods used during installation, operation and maintenance of the electronic devices and components respectively. Therefore we disclaim liability and reject responsibility for any losses, damages or costs that are caused by misapplication, installation, handling errors or faulty operation or related to the above in any other way. All our products are subject to current advancement, therefore we reserve the right for modifications without prior notice. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of deister electronic GmbH. deister electronic GmbH reserves the right to make changes to any and all parts of this documentation without obligation to notify any person or entity of such changes. Dezember 2009 IO/DE/SK/MP deister electronic GmbH Hermann-Bahlsen Str. 11 30890 Barsinghausen Germany Phone:+49 (0) 51 05 - 51 61 11 Fax:+49 (0) 51 05 - 51 62 17 E-Mail:[email protected] Web:www.deister.com ts_tsu25db_wi_en_v171209_as_bf_de3 Wiring and Installation TSU25DB PRELIMINARY DB 1. Technical Data Dimensions: mm (inch) W x H x D278 x 238 x 86 (11 x 9.4 x 3.4) Weight: kg (lbs)2,5 (5.5) Housing Material:ABS/PMMA, Al Protection Class:IP 65 Operating Temperature:-30 °C...+60 °C -22 °F...+140 °F Relative Humidity:5 %...95 %, non-condensing Power Requirement:12...28 VDC / max. 1 A Transmission Frequency:865 – 868 MHz (EU) or 902 – 928 MHz (US) or 953 – 956 MHz (JP) Radiated Transmit Power:max. 1.6 W E.R.P. (ETSI EN 302 208) or max. 2.6 W E.I.R.P. (FCC Part 15), configurable Transponder Protocols:ISO18000-6 C (EPC Class1 Gen2) Reading Distance: in m (ft.)up to 4 (up to 13) Interface:RS485 with deBus protocol Electrical Connection:M12-connector with 4 Pins Conformity:EN 50346 EN 301489 Air interface (EU)EN 302208 v1.2 Air interface (US)FCC Part 15 4ts_tsu25db_wi_en_v171209_as_bf_de Wiring and Installation TSU25DB PRELIMINARY 2. Mechanical Dimensions All dimensions in mm [inches]. 2.1 Side View 2.2 Front View 2.3 Rear View ts_tsu25db_wi_en_v171209_as_bf_de5 Wiring and Installation TSU25DB Attention! M6 Metric Screws only! PRELIMINARY DB 3. Wiring 3.1 Installation Notes 1) Attention: When installing the reader, make sure the tab connector (as shown) is professionally grounded with a yellow/green, flexible line with at least 0.75 mm² (0.11 inch²) (18 gauge) cross section. 2) Attention: The TSU25DB has fixed built-in termination resistors which cannot be switched off and is therefore suited for connection not for multi-drop use. It can only be operated at the end of an RS485-bus (Point to Point). If an installation is wanted with more than one TSU25DB on the same bus, a SIC2 is needed. For more information about regarding multiple reader installations with TSU25DB please contact your local sales and service partner. 3.2 Pin Assignment The TSU25DB has an M12-connector (ma…

Text truncated - open the document above for the full version.

deister electronic GmbH - Hermann-Bahlsen-Straße 11-13 D-30890 Barsinghausen { IDENTIFIKATION PHOENIX TEST-LAB GmbH { SICHERHEITSTECHNIK Product Certification { VERKEHRSELEKTRONIK Königswinkel 10 05105-516-01 32825 Blomberg  05105-516217 14. Dezember 2009 RE: Certification Application FCC ID: IXLTSU25UDL250 Pursuant to Sections 0.457 and 0.459 of the Commission's Rule, deister electronic GmbH, hereby requests confidential treatment of information accompanying this application as outlined below: - schematic diagrams - block diagram - technical description of operation The application contains technical information which deister electronic GmbH deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention in this matter. (Stefan Eichler) deister electroinc GmbH Handelsregister : Bankverbindungen : Kto.-Nr. BLZ ( ( ( Mitglied . BHE ® Hermann-Bahlsen-Straße 11-13 Amtsger. Wennigsen HBR 1203 Stadtsparkasse Barsinghausen 05 304 (251 512 70) 30890 Barsinghausen Geschäftsführung: Dresdner Bank Hannover 76 142 02 250 800 20) (+49) 05105 516 01 Anatoli Stobbe Deutsche Bank Barsinghausen 4 686 424 250 700 70)  (+49) 05105 516 217 USt-IdNr. : DE 115507822 Postgiro Hannover 612 23-303 250 100 30)

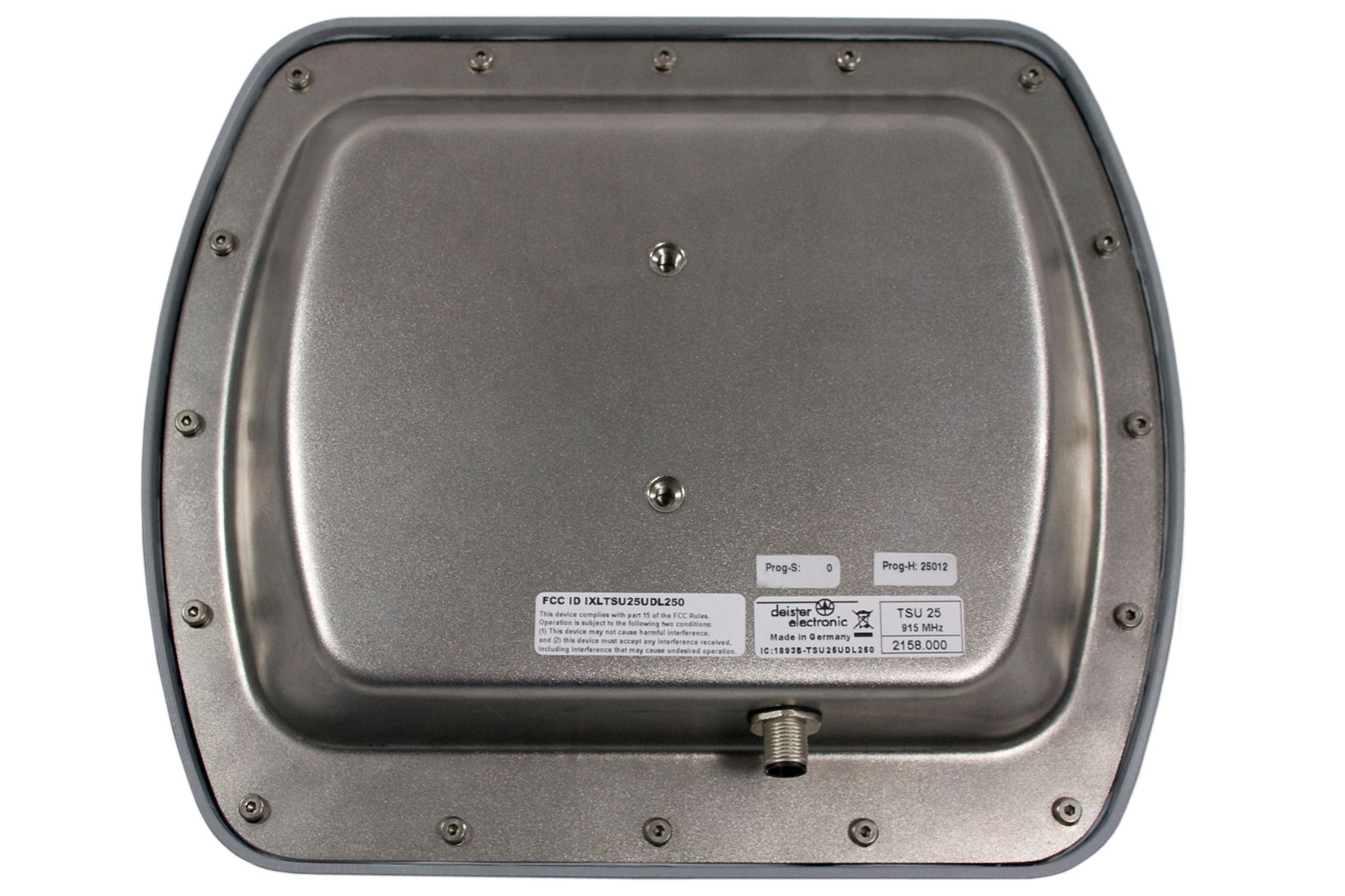

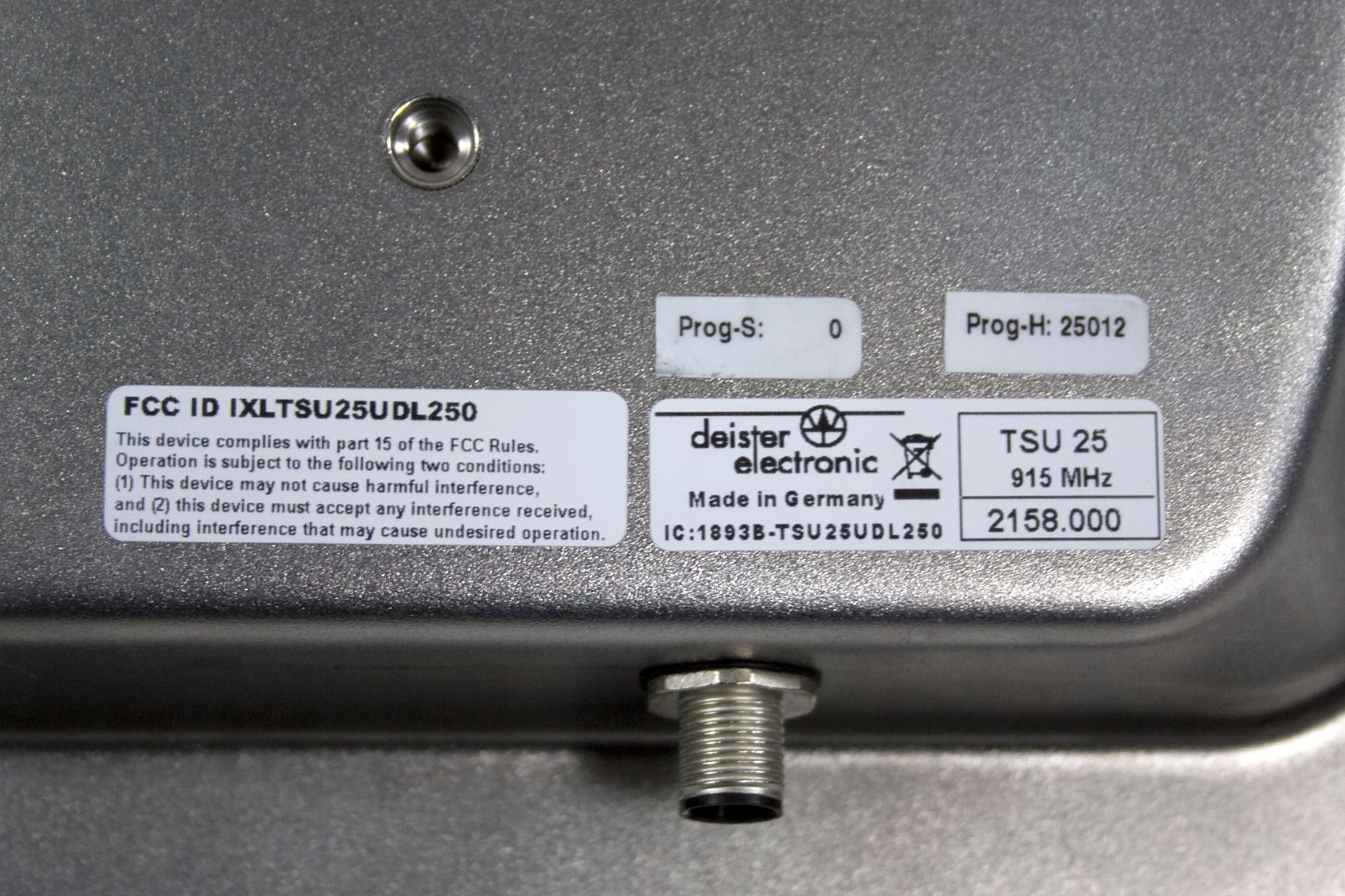

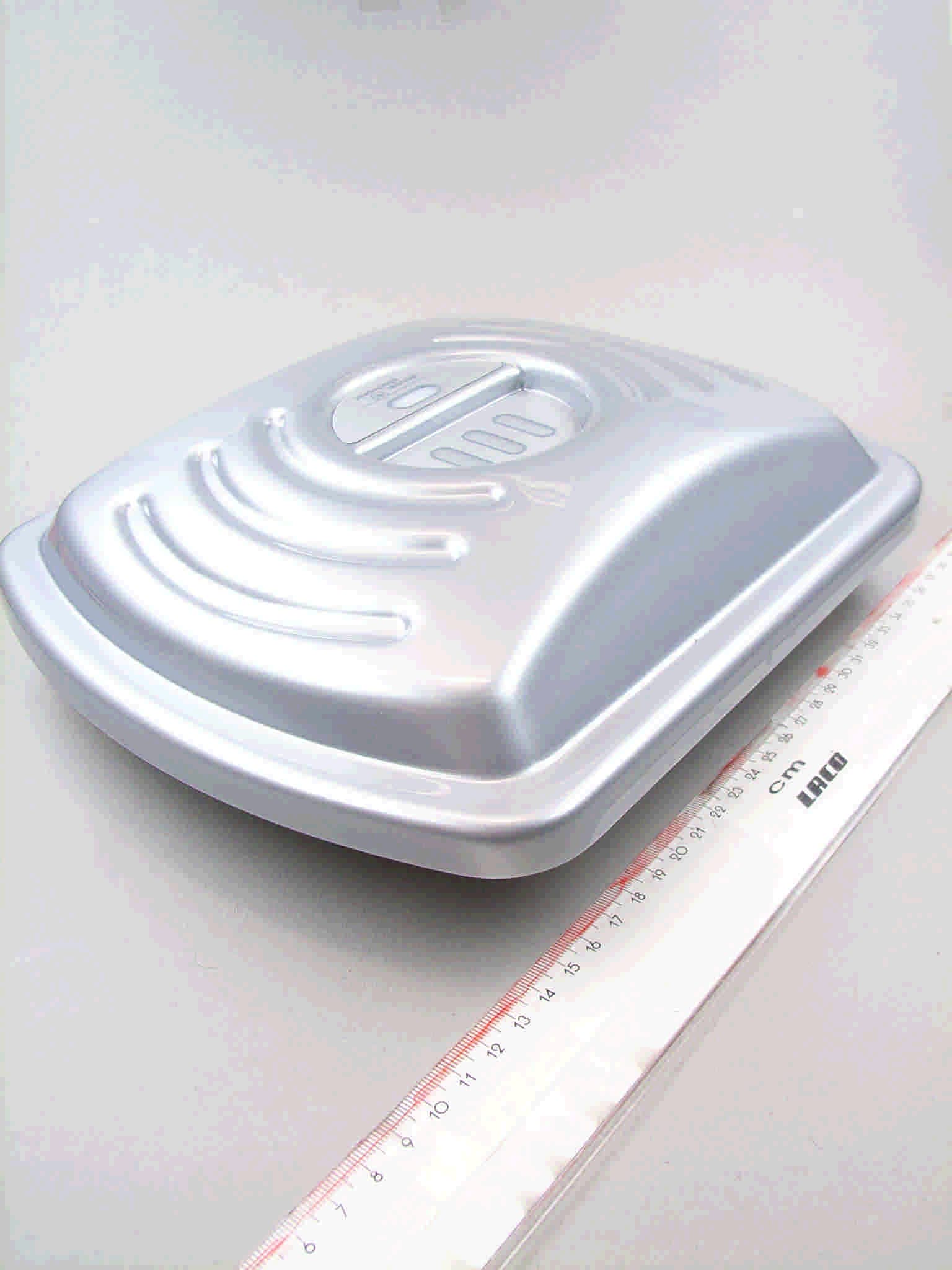

Annex C of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page1 of2 91187_a.jpgTSU25, 3-D view 1 Annex C of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page2 of2 91187_b.jpgTSU25, 3-D view 2

Annex B of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page1 of10 91187_d.jpgTSU25, internal top view Annex B of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page2 of10 91187_c.jpgTSU25, internal bottom view Annex B of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page3 of10 91187_k.jpgTSU25, main PCB, top view Annex B of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page4 of10 91187_l.jpgTSU25, main PCB, bottom view Annex B of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page5 of10 91187_e.jpgTSU25, antenna switch PCB, top view Annex B of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page6 of10 91187_f.jpgTSU25, antenna switch PCB, bottom view Annex B of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page7 of10 91187_n.jpgTSU25, rf-PCB (housing removed), top view Annex B of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page8 of10 91187_m.jpgTSU25, rf-PCB (housing removed), bottom view Annex B of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page9 of10 91187_g.jpgTSU25, LED-PCB, top view Annex B of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page10of10 91187_h.jpgTSU25, LED-PCB, bottom view

Calculation: RF-Exposure Type identification:TSU25 In accordance to theCFR Part 47, §1.1310 S: Limit for power density according to CFR Part 47, §1.1310: 6 W/m 2 P: 0.365 W G: 7.15 dBi = 5.19 D: Duty cycle: 100 % = 1 R: Distance in what the limit of S has to be reached: 0.2 m 222 77.3 )2.0(4 119.5365.0 4m W m W S R DGP S        The value for the “General population / Uncontrolled Exposure” of the power density is below the limit of CFR Part 47, §1.1310.

Königswinkel 10 32825 Blomberg Germany Phone+49 5235 9500-0 Fax+49 5235 9500-10 TEST REPORT Test Report Reference: F091187E4 Equipment under Test: TSU25 FCC ID: IXLTSU25UDL250 IC: 1893B-TSU25UDL250 Serial Number:0000000115 Applicant: deister electronic GmbH Manufacturer:deister electronic GmbH Test Laboratory (CAB) accredited by Deutsche Gesellschaft für Akkreditierung mbH (DGA) in compliance with DIN EN ISO/IEC 17025 under the Reg. No. DGA-PL-105/99-22, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469A-1 and FCC Test site registration number 90877 TEST REPORT REFERENCE: F091187E4 Examiner: Thomas KÜHNDate of issue:9 December 2009Page2 of50 Contents:Page 1 IDENTIFICATION.....................................................................................................................................3 1.1 APPLICANT.....................................................................................................................................3 1.2 MANUFACTURER..........................................................................................................................3 1.3 DATES.............................................................................................................................................3 1.4 TEST LABORATORY......................................................................................................................4 1.5 RESERVATION...............................................................................................................................4 1.6 NORMATIVE REFERENCES..........................................................................................................4 1.7 TEST RESULTS..............................................................................................................................4 2 TECHNICAL DATA OF EQUIPMENT......................................................................................................5 2.1 PERIPHERY DEVICES...................................................................................................................5 3 OPERATIONAL STATES AND PHYSICAL BOUNDARIES.....................................................................6 4 LIST OF MEASUREMENTS.....................................................................................................................7 5 TEST RESULTS.......................................................................................................................................8 5.1 20 dB BANDWIDTH........................................................................................................................8 5.1.1 METHOD OF MEASUREMENT (20 dBBANDWIDTH)......................................................8 5.1.2 TEST RESULTS (20 dBBANDWIDTH)..............................................................................9 5.2 CARRIER FREQUENCY SEPARATION.........................................................................................11 5.2.1 METHOD OF MEASUREMENT (CARRIER FREQUENCY SEPARATION)......................11 5.2.2 TEST RESULTS (CARRIER FREQUENCY SEPARATION)..............................................12 5.3 NUMBER OF HOPPING FREQUENCIES......................................................................................14 5.3.1 METHOD OF MEASUREMENT (NUMBER OF HOPPING FREQUENCIES)....................14 5.3.2 TEST RESULTS (NUMBER OF HOPPING FREQUENCIES)............................................15 5.4 DWELL TIME................................................................................................................................... 16 5.4.1 METHOD OF MEASUREMENT (DWELL TIME)................................................................16 5.4.2 TEST RESULTS (DWELL TIME)........................................................................................17 5.5 MAXIMUM PEAK OUTPUT POWER..............................................................................................19 5.5.1 METHOD OF MEASUREMENT (MAXIMUM PEAK OUTPUT POWER)............................19 5.5.2 TEST RESULTS (MAXIMUM PEAK OUTPUT POWER)...................................................20 5.6 RADIATED EMISSIONS..................................................................................................................22 5.6.1 METHOD OF MEASUREMENT (RADIATED EMISSIONS)...............................................22 5.6.2 TEST RESULTS (RADIATED EMISSIONS).......................................................................27 5.6.2.1 PRELIMINARY MEASUREMENT (9 kHz to 1 GHz)..............................................27 5.6.2.2 FINAL RADIATED EMISSION TEST (30 MHz to 1 GHz)......................................33 5.6.2.3 PRELIMINARY MEASUREMENT (1 GHz to 10 GHz)...........................................38 5.6.2.4 FINAL MEASUREMENT (1 GHz to 10 GHz).........................................................42 5.7 CONDUCTED EMISSIONS ON POWER SUPPLY LINES (150 kHz to 30 MHz)...........................45 5.7.1 METHOD OF MEASUREMENT..........................................................................................45 5.7.2 TEST RESULTS (CONDUCTED EMISSIONS ON POWER SUPPLY LINES) ..................46 6 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS.................................................................48 7 LIST OF ANNEXES..................................................................................................................................50 TEST REPORT REFERENCE: F091187E4 Examiner: Thomas KÜHNDate of issue:9 December 2009Page3 of50 1 IDENTIFICATION 1.1APPLICANT Name:deister electronic GmbH Address:Hermann-Bahlsen-Straße 11– 13 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Stefan Eichler Tel:+49 51 05 516-129 Fax:+49 51 05 516-266 e-mail address:[email protected] 1.2MANUFACTURER Name:deister electronic GmbH Address:Hermann-Bahlsen-Straße 11– 13 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Stefan E…

Text truncated - open the document above for the full version.

Königswinkel 10 32825 Blomberg Germany Phone+49 5235 9500-0 Fax+49 5235 9500-10 TEST REPORT Test Report Reference: F091187E4 Equipment under Test: TSU25 FCC ID: IXLTSU25UDL250 IC: 1893B-TSU25UDL250 Serial Number:0000000115 Applicant: deister electronic GmbH Manufacturer:deister electronic GmbH Test Laboratory (CAB) accredited by Deutsche Gesellschaft für Akkreditierung mbH (DGA) in compliance with DIN EN ISO/IEC 17025 under the Reg. No. DGA-PL-105/99-22, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469A-1 and FCC Test site registration number 90877 TEST REPORT REFERENCE: F091187E4 Examiner: Thomas KÜHNDate of issue:9 December 2009Page2 of50 Contents:Page 1 IDENTIFICATION.....................................................................................................................................3 1.1 APPLICANT.....................................................................................................................................3 1.2 MANUFACTURER..........................................................................................................................3 1.3 DATES.............................................................................................................................................3 1.4 TEST LABORATORY......................................................................................................................4 1.5 RESERVATION...............................................................................................................................4 1.6 NORMATIVE REFERENCES..........................................................................................................4 1.7 TEST RESULTS..............................................................................................................................4 2 TECHNICAL DATA OF EQUIPMENT......................................................................................................5 2.1 PERIPHERY DEVICES...................................................................................................................5 3 OPERATIONAL STATES AND PHYSICAL BOUNDARIES.....................................................................6 4 LIST OF MEASUREMENTS.....................................................................................................................7 5 TEST RESULTS.......................................................................................................................................8 5.1 20 dB BANDWIDTH........................................................................................................................8 5.1.1 METHOD OF MEASUREMENT (20 dBBANDWIDTH)......................................................8 5.1.2 TEST RESULTS (20 dBBANDWIDTH)..............................................................................9 5.2 CARRIER FREQUENCY SEPARATION.........................................................................................11 5.2.1 METHOD OF MEASUREMENT (CARRIER FREQUENCY SEPARATION)......................11 5.2.2 TEST RESULTS (CARRIER FREQUENCY SEPARATION)..............................................12 5.3 NUMBER OF HOPPING FREQUENCIES......................................................................................14 5.3.1 METHOD OF MEASUREMENT (NUMBER OF HOPPING FREQUENCIES)....................14 5.3.2 TEST RESULTS (NUMBER OF HOPPING FREQUENCIES)............................................15 5.4 DWELL TIME................................................................................................................................... 16 5.4.1 METHOD OF MEASUREMENT (DWELL TIME)................................................................16 5.4.2 TEST RESULTS (DWELL TIME)........................................................................................17 5.5 MAXIMUM PEAK OUTPUT POWER..............................................................................................19 5.5.1 METHOD OF MEASUREMENT (MAXIMUM PEAK OUTPUT POWER)............................19 5.5.2 TEST RESULTS (MAXIMUM PEAK OUTPUT POWER)...................................................20 5.6 RADIATED EMISSIONS..................................................................................................................22 5.6.1 METHOD OF MEASUREMENT (RADIATED EMISSIONS)...............................................22 5.6.2 TEST RESULTS (RADIATED EMISSIONS).......................................................................27 5.6.2.1 PRELIMINARY MEASUREMENT (9 kHz to 1 GHz)..............................................27 5.6.2.2 FINAL RADIATED EMISSION TEST (30 MHz to 1 GHz)......................................33 5.6.2.3 PRELIMINARY MEASUREMENT (1 GHz to 10 GHz)...........................................38 5.6.2.4 FINAL MEASUREMENT (1 GHz to 10 GHz).........................................................42 5.7 CONDUCTED EMISSIONS ON POWER SUPPLY LINES (150 kHz to 30 MHz)...........................45 5.7.1 METHOD OF MEASUREMENT..........................................................................................45 5.7.2 TEST RESULTS (CONDUCTED EMISSIONS ON POWER SUPPLY LINES) ..................46 6 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS.................................................................48 7 LIST OF ANNEXES..................................................................................................................................50 TEST REPORT REFERENCE: F091187E4 Examiner: Thomas KÜHNDate of issue:9 December 2009Page3 of50 1 IDENTIFICATION 1.1APPLICANT Name:deister electronic GmbH Address:Hermann-Bahlsen-Straße 11– 13 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Stefan Eichler Tel:+49 51 05 516-129 Fax:+49 51 05 516-266 e-mail address:[email protected] 1.2MANUFACTURER Name:deister electronic GmbH Address:Hermann-Bahlsen-Straße 11– 13 30890 Barsinghausen Country:Germany Name for contact purposes:Mr. Stefan E…

Text truncated - open the document above for the full version.

Königswinkel 10 D-32825 Blomberg, Germany Phone +49 (0) 52 35 95 00-0 Fax +49 (0) 52 35 95 00-20 [email protected] www.phoenix-testlab.de 29. November 2007 Dr. Altmaier-BD Bank: Stadtsparkasse Blomberg General Manager: Dr.-Ing. Holger Altmaier Legal Form: GmbH Routing Code: 476 512 25 Headquarter: Blomberg/Lippe Account No.: 113 720 Register of Companies: Amtsgericht Lemgo HRB 5233 Swift-Code: WELA DE D1 BLO Our VAT-No.: DE 162977933 Additional declaration part according to FCC 15.247 for a 902 MHz to 928 MHz FHSS devices 1. Frequency range The frequency range of this device is 902.25 to 926.75 MHz as declared by the applicant. 2. Examples of hopping sequences Example of a 50 hopping sequence: 28, 11, 24, 43, 15, 39, 23, 4, 14, 18, 32, 19, 44, 29, 8, 41, 25, 40, 38, 0 20, 13, 42, 27, 6, 34, 7, 45, 37, 16, 3, 47, 36, 46, 9, 2, 21, 5, 48, 17 1, 26, 35, 31, 22, 49, 12, 30, 33, 10,1, 23, 30, 15, 21, 22, 20, 7, 18, 36 33, 11, 3, 9, 2, 0, 14, 48, 27, 19, 28, 13, 8, 24, 31, 49, 4, 29, 17, 26 10, 25, 32, 44, 16, 37, 46, 12, 38, 43, 45, 35, 42, 47, 39, 34, 5, 41, 6, 40 3. Equally average use of frequencies in data mode The use of frequencies will be pseudo randomly generated by the use of different channel sequence tables. So the used hopping sequence will be always different from the one before and an equally average use of the frequencies is guaranteed. 4. The receiver input bandwidth The input bandwidth of the receiver is 320 kHz. This will be part of the device manufacturing test. FCC Federal Communications Commission PHOENIX TESTLAB GmbH • Königswinkel 10 • D-32825 Blomberg

Annex A of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page1 of6 91187_17.jpgTSU25, test set-up fully anechoic chamber Annex A of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page2 of6 91187_23.jpgTSU25, test setup fully anechoic chamber Annex A of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page3 of6 91187_16.jpgTSU25, test setup fully anechoic chamber Annex A of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page4 of6 91187_18.jpgTSU25, test setup fully anechoic chamber Annex A of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page5 of6 91187_8.jpgTSU25, test setup open area test site Annex A of test report F091187E4 EUT: TSU25 Manufacturer: deister electronic GmbH Examiner: Thomas KÜHNDate of issue: 9 December 2009page6 of6 91187_10.jpgTSU25, test setup shielded chamber
