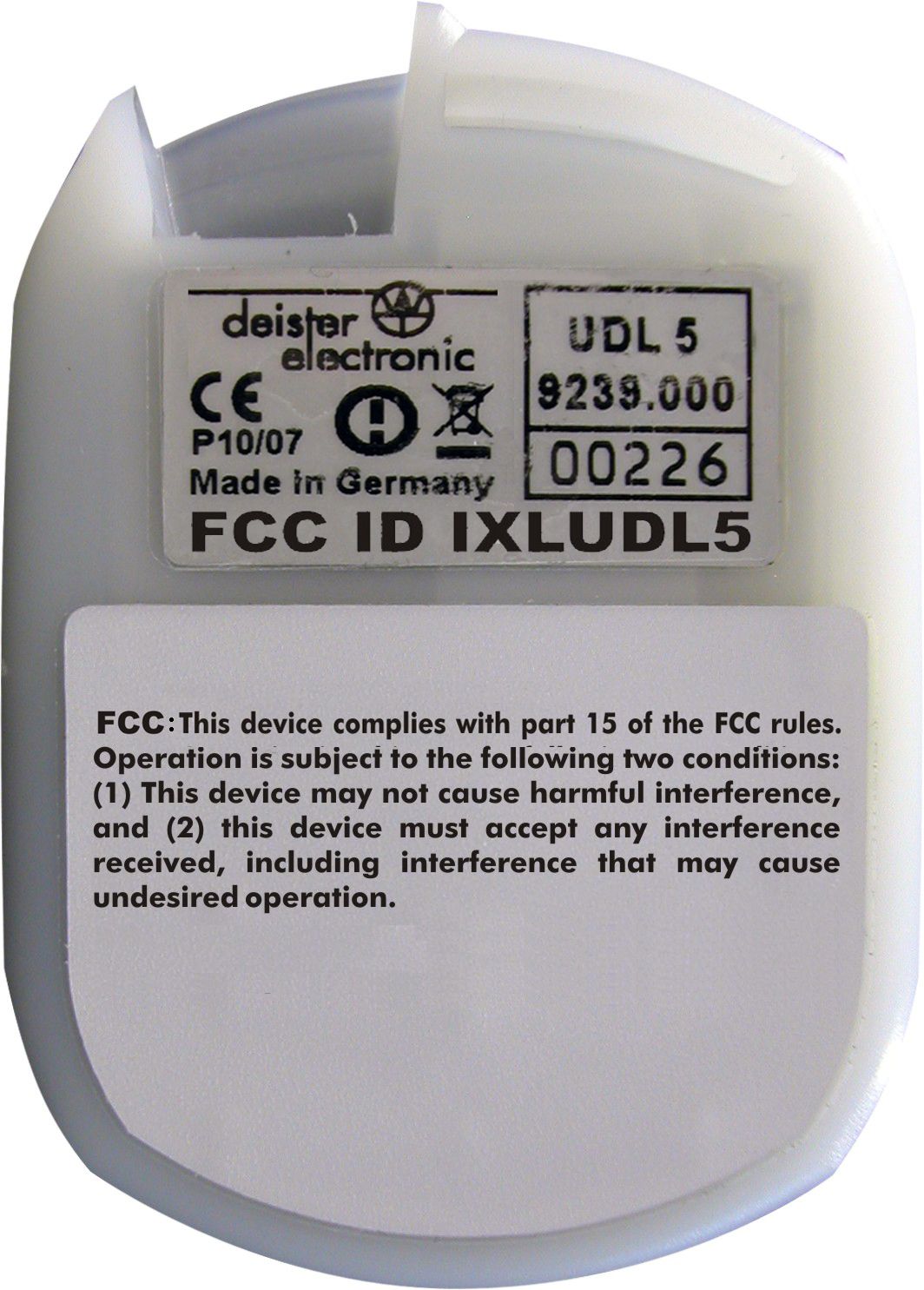

IXLUDL5UHF RFID Mouse

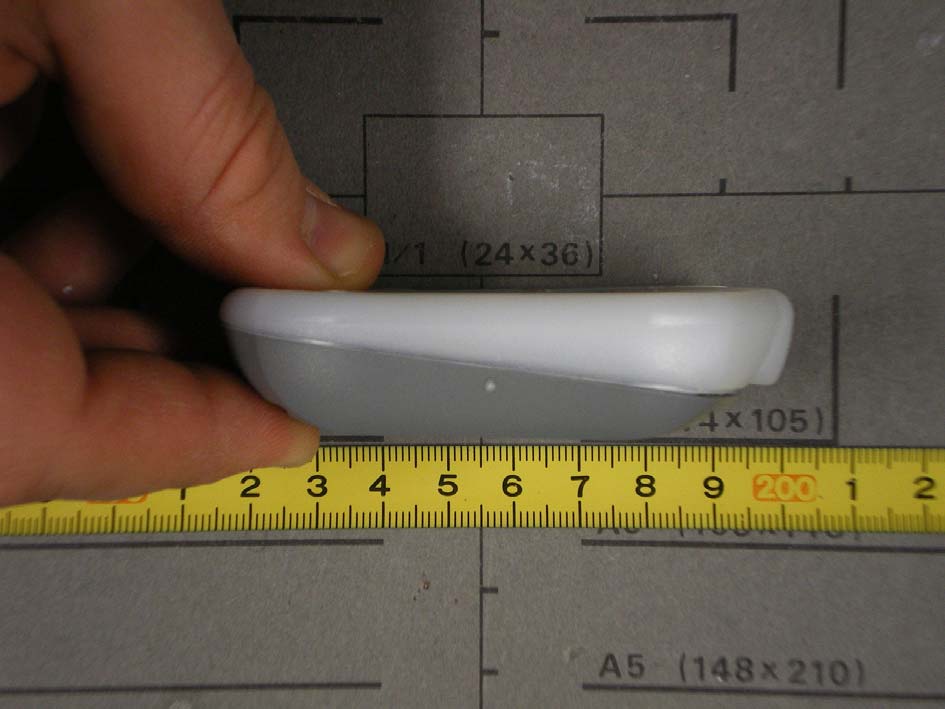

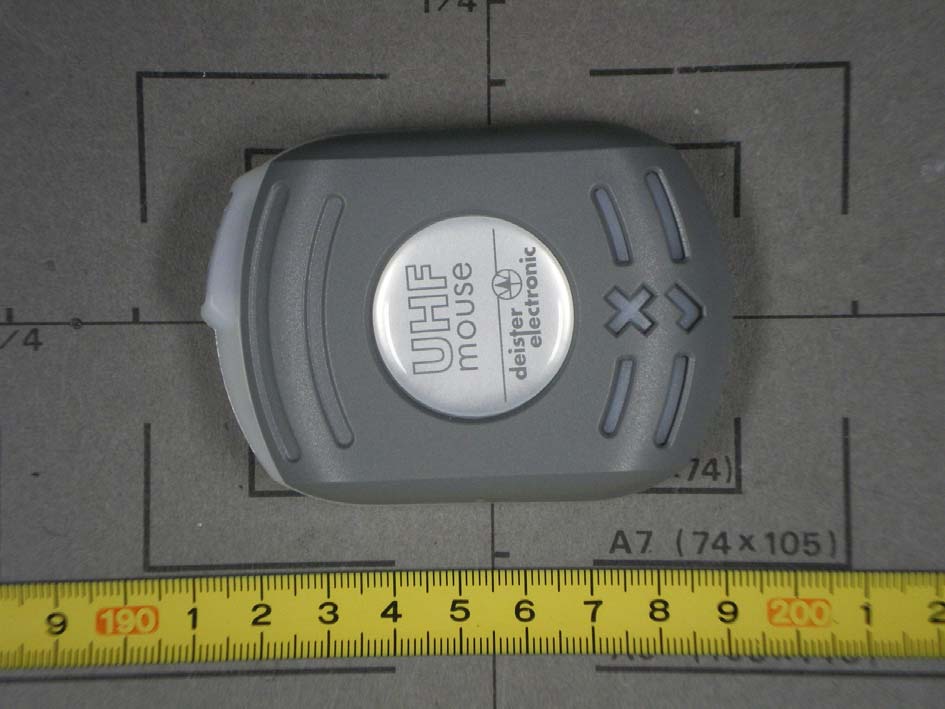

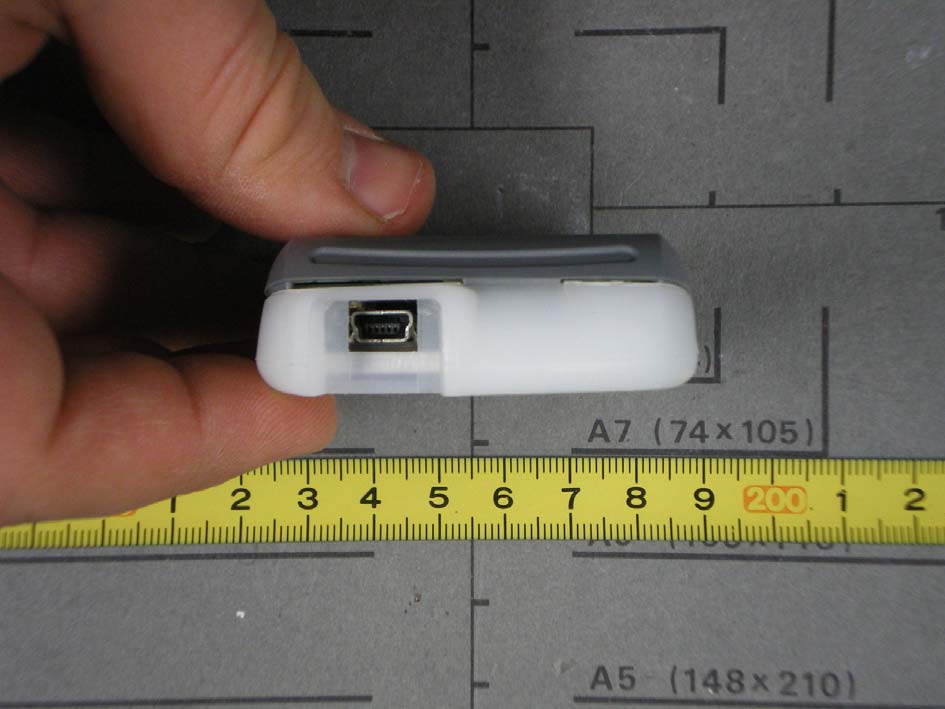

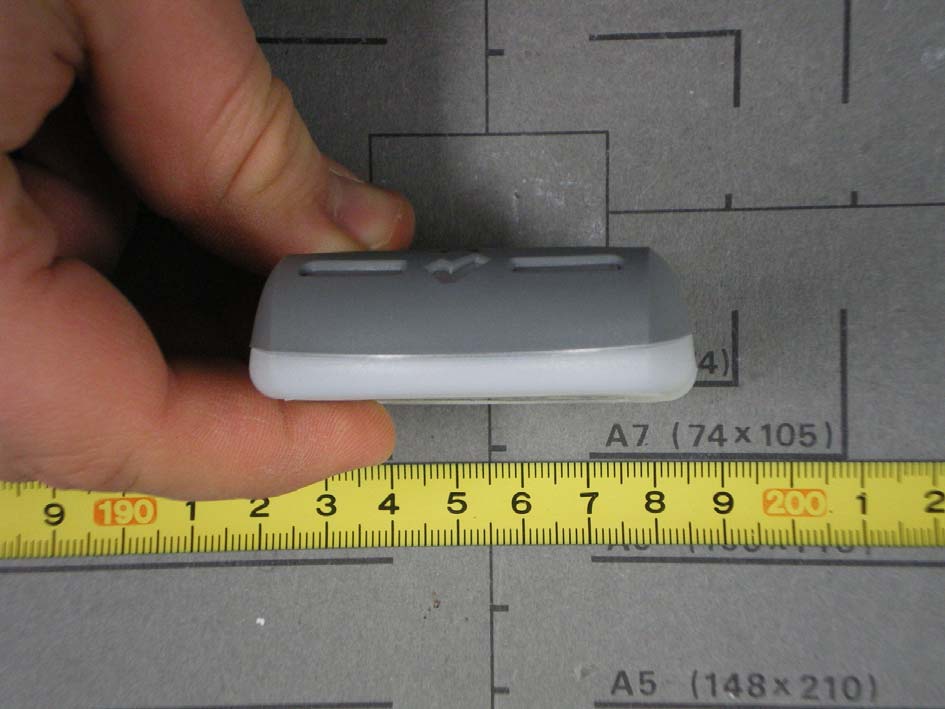

UDL5 – UHF mouse Quick start manual V27/09/07 © Copyright 2007 by deister electronic GmbH All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of deister electronic GmbH. deister electronic GmbH reserves the right to make changes to any and all parts of this documentation without obligation to notify any person or entity of such changes. September 2007 SK deister electronic GmbH Hermann-Bahlsen Str. 11 30890 Barsinghausen Germany Phone:+49 (0) 51 05 - 51 61 11 Fax:+49 (0) 51 05 - 51 62 17 E-Mail:[email protected] Web:www.deister.com 2 deister electronic GmbH 30890 Barsinghausen Germany V27/09/07 UDL5 - UHF mouse · Quick start manual Content 1. UDL5 description.........................................................4 1.1 Components.......................................................................................................4 2. Mechanical Dimensions..............................................4 2.1 LEDs and Beeper.................................................................................................5 3. Configuration and setting...........................................5 3.1 Transmission protocol..........................................................................................5 4. Getting started............................................................6 4.1 Installing USB driver............................................................................................6 4.2 Installing RDemo...............................................................................................10 4.3 Get connection.................................................................................................10 4.4 Reading block data...........................................................................................14 4.5 Writing block data.............................................................................................15 4.6 EPC class1 gen2 tag functions............................................................................16 4.7 RDemo command builder..................................................................................16 5. EPC class1 gen2 memory organisation.....................17 V27/09/07deister electronic GmbH 30890 Barsinghausen Germany 3 UDL5 - UHF mouse · Quick start manual 1.UDL5 description 1.1 Components The UDL5 delivery contains: •1x UDL5 – UHF mouse •1x USB cable •1x CD with technical information and software 2.Mechanical Dimensions All dimensions in mm (inch). SymbolLED colorStatus XredRF-field on/off √greenreading/writing tags bluepower Further explanation see next section 2.1 „LEDs and Beeper“. 4 deister electronic GmbH 30890 Barsinghausen Germany V27/09/07 UDL5 - UHF mouse · Quick start manual 2.1 LEDs and Beeper The device is equipped with three LEDs and one beeper to indicate the reader status. The following table refers to the standard settings (device set in trigger mode). LEDsStatus UDL5 blue and red: on green: off reader is ready to operate, RF-field is switched off blue: on red and green: off reader is ready to operate, RF-field is switched on, reader is ready to read or write to transponder blue and green: on red: off beeper: on reader is ready to operate, communication between reader and tag (reading/writing) blue, green and red: onreader carries out a reset, RF-field is switched off, reader is not ready to operate 3.Configuration and setting Please note: This manual is considered to be prelimiary. In the standard configuration the device is set in “Trigger Mode“. This means the device waits for a “Trigger On“ command to switch the RF-field on and a „Trigger Off“ command to switch the RF-field off. These software commands can be sent to the device using RDemo software (to be found on the CD which is part of the UDL5 package). The UDL5 in its current version is EPC class1 gen2 complicant only. 3.1 Transmission protocol The communication of the UDL5 is based on the “deBus” protocol. For integration into user- defined applications please contact your local sales and service center (see end of document). V27/09/07deister electronic GmbH 30890 Barsinghausen Germany 5 UDL5 - UHF mouse · Quick start manual 4.Getting started 4.1 Installing USB driver First the USB driver has to be installed. The following steps show how to install the driver under Windows XP (Windows Vista is supported as well): •Connect the UDL5 via USB cable to a spare USB Port at your Host/PC (USB cable as part of delivery of UDL5). •Windows XP indicates the new hardware with the message “Found New Hardware: HARVEMAC“. •The “Found New Hardware Wizard“ will now be started automatically. Select “No, not this time“ and click “Next“. If this procedure failed, the search for new hardware can be started manually by click on: “Start“ -> “Settings“ -> “Control Panel“ -> “System“ -> “Hardware“ -> “Device Manager“. Select the USB device, marked by a yellow question mark. 6 deister electronic GmbH 30890 Barsinghausen Germany V27/09/07 UDL5 - UHF mouse · Quick start manual •Select “Install from a list or specific location (Advanced)“ and click “Next“. •Select “Search for the best driver in these locations“. Enter path name into the combo- box or browse to path using the “Browse“ button. V27/09/07deister electronic GmbH 30890 Barsinghausen Germany 7 UDL5 - UHF mouse · Quick start manual •The screen below will be shown while Windows XP copies the required files. •The following message indicates a successful installation process. Click “Finish“ to close the wizard. Now the UDL5 is successfully installed. 8 deister electronic GmbH 30890 Barsinghausen Germany V27/09/07 UDL5 - UHF mouse · Quick start manual •After successful installation of the USB driver, the UDL5 is ready for use. The “Device Manager“ indicates the UDL5 as an additional device named “UsbHarve.Sys for Inte…

Text truncated - open the document above for the full version.

deister electronic GmbH - Hermann-Bahlsen-Straße 11-13 D-30890 Barsinghausen { IDENTIFIKATION PHOENIX TEST-LAB GmbH { SICHERHEITSTECHNIK Product Certification { VERKEHRSELEKTRONIK Königswinkel 10 05105-516-01 32825 Blomberg  05105-516217 17. Dezember 2007 RE: Certification Application FCC ID: IXLUDL5 Pursuant to Sections 0.457 and 0.459 of the Commission's Rule, deister electronic GmbH, hereby requests confidential treatment of information accompanying this application as outlined below: - schematic diagrams - block diagram - technical description of operation The application contains technical information which deister electronic GmbH deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention in this matter. (Stefan Eichler) deister electroinc GmbH Handelsregister : Bankverbindungen : Kto.-Nr. BLZ Mitglied . BHE ® Hermann-Bahlsen-Straße 11-13 Amtsger. Wennigsen HBR 1203 Stadtsparkasse Barsinghausen 05 304 (251 512 70) 30890 Barsinghausen Geschäftsführung: Dresdner Bank Hannover 76 142 02 (250 800 20) (+49) 05105 516 01 Anatoli Stobbe Deutsche Bank Barsinghausen 4 686 424 (250 700 70)  (+49) 05105 516 217 USt-IdNr. : DE 115507822 Postgiro Hannover 612 23-303 (250 100 30)

Königswinkel 10 D-32825 Blomberg, Germany Phone +49 (0) 52 35 95 00-0 Fax +49 (0) 52 35 95 00-20 [email protected] www.phoenix-testlab.de 19. Dezember 2007 Dr. Altmaier-R Bank: Stadtsparkasse Blomberg General Manager: Dr.-Ing. Holger Altmaier Legal Form: GmbH Routing Code: 476 512 25 Headquarter: Blomberg/Lippe Account No.: 113 720 Register of Companies: Amtsgericht Lemgo HRB 5233 Swift-Code: WELA DE D1 BLO Our VAT-No.: DE 162977933 Additional declaration part according to FCC 15.247 for a 902 MHz to 928 MHz FHSS devices 1. Frequency range The frequency range of this device is 902.75 to 927.25 MHz as declared by the applicant. 2. Examples of hopping sequences Example of a 50 hopping sequence: 28, 11, 24, 43, 15, 39, 23, 4, 14, 18, 32, 19, 44, 29, 8, 41, 25, 40, 38, 0 20, 13, 42, 27, 6, 34, 7, 45, 37, 16, 3, 47, 36, 46, 9, 2, 21, 5, 48, 17 1, 26, 35, 31, 22, 49, 12, 30, 33, 10,1, 23, 30, 15, 21, 22, 20, 7, 18, 36 33, 11, 3, 9, 2, 0, 14, 48, 27, 19, 28, 13, 8, 24, 31, 49, 4, 29, 17, 26 10, 25, 32, 44, 16, 37, 46, 12, 38, 43, 45, 35, 42, 47, 39, 34, 5, 41, 6, 40 3. Equally average use of frequencies in data mode The use of frequencies will be pseudo randomly generated by the use of different channel sequence tables. So the used hopping sequence will be always different from the one before and an equally average use of the frequencies is guaranteed. 4. The receiver input bandwidth The input bandwidth of the receiver is 720 kHz. This will be part of the device manufacturing test. FCC Federal Communications Commission PHOENIX TESTLAB GmbH • Königswinkel 10 • D-32825 Blomberg

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 50430-070565 (Edition 2) Page 1 of 72 Pages Straubing, December 19, 2007 T E S T - R E P O R T No. 50430-070565 (Edition 2) for UDL 5 UHF RFID Reader Applicant: deister electronic GmbH Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.107, 15.109, 15.205, 15.207, 15.215 and 15.247 Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Sections 7.2.2, 7.2.3 and RSS-210 Issue 7, Sections 2.2, A8 (Category I Equipment) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50430-070565 (Edition 2) Page 2 of 72 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 4 2 Administrative Data..................................................................................................... 5 3 Identification of the Test Laboratory ........................................................................... 6 4 Summary .................................................................................................................... 7 5 Operation Mode and Configuration of EUT................................................................. 8 6 Measurement Procedures........................................................................................... 9 6.1 Conducted Output Power ..................................................................................... 9 6.2 Bandwidth Measurements .................................................................................. 11 6.3 Conducted AC Powerline Emission .................................................................... 12 6.4 Radiated Emission Measurement 9 kHz to 30 MHz ........................................... 14 6.5 Radiated Emission in Fully or Semi Anechoic Room.......................................... 16 6.6 Radiated Emission at Open Field Test Site........................................................ 18 7 Photographs Taken During Testing .......................................................................... 19 8 Test Results for Transmitter ..................................................................................... 25 8.1 Occupied Bandwidth........................................................................................... 27 8.2 Bandwidth of the Emission ................................................................................. 33 8.3 Designation of Emissions ................................................................................... 37 8.4 Restricted Bands of Operation ........................................................................... 38 8.5 Channel Bandwidth ............................................................................................ 41 8.6 Hopping channel separation............................................................................... 42 8.7 Number of hopping frequencies used................................................................. 45 8.8 Time occupancy on any channel ........................................................................ 47 8.9 Maximum output power ...................................................................................... 51 8.10 Conducted Powerline Emission Measurement 150 kHz to 30 MHz................... 55 8.11 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 57 8.12 Radiated Emission Measurement 30 MHz to 10 GHz ....................................... 58 8.13 RF exposure requirement ................................................................................... 63 8.14 Exposure of Humans to RF Fields...................................................................... 64 9 Test Results for Receiver.......................................................................................... 66 9.1 Conducted Powerline Emission Measurement 150 kHz to 30 MHz................... 67 9.2 Radiated Emission Measurement 30 MHz to 5 GHz ......................................... 69 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50430-070565 (Edition 2) Page 3 of 72 Pages 10 Referenced Regulations ........................................................................................... 70 11 Revision History ........................................................................................................ 71 12 Charts taken during testing ....................................................................................... 72 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50430-070565 (Edition 2) Page 4 of 72 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : UDL 5 Parts 2 : Serial number(s): 9239.000 00231 Manufacturer: deister electronic GmbH Type of equipment: UHF RFID Reader Version: as received FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: 902 - 928 MHz Frequency range: 902.75 - 927.25 MHz Operating frequency: 902.75 MHz, 915.25 MHz 927.25 MHz Type of modulation: ASK Pulse train: --- Pulse width: --- Number of RF-channels: 50 Channel spacing: 500 kHz Designation of emissions 3 : 80K0A1D Type of antenna: Integrated Size/length of antenna: Connection of antenna: detachable not detachable Type of power supply: DC supply over USB interface Specifications for power supply: nominal voltage: 5.00 V minimum voltage: 4.50 V maximum voltage: 5.50 V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50430-070565 (Edition 2) …

Text truncated - open the document above for the full version.

Test Equipment List for Test Report No. 50430-070565 / Page 1 of 1 Page(s) EMI/EMC-Testcenter EMV-Prüfzentrum Test Equipment List with Calibration Data / Test date: November 2007 No. Type Inv.-No. Model Serial Number Manufacturer Calibration Organization Date of last calibration Date of next calibration 1 1. Test receiver 1028 ESHS 10 860043/016 Rohde & Schwarz Rohde & Schwarz 04/2007 04/2008 2. Test receiver 1025 ESVP 881120/024 Rohde & Schwarz Rohde & Schwarz 10/2006 10/2007 3. Spectrum analyzer 1078 R 3271 05050023 Advantest Rohde & Schwarz 03/2006 03/2008 4. Spectrum analyzer 1666 FSP 30 100063 Rohde & Schwarz Rohde & Schwarz 02/2006 08/2007 5. EMI test receiver 1569 ESMI 839379/013 839587/006 Rohde & Schwarz Rohde & Schwarz 12/2005 12/2007 6. Preamplifier 1142 R14601 13120026 Advantest Rohde & Schwarz 11/2006 11/2007 Matrix RELAX consists: 1941 7. Preamplifier 1651 CPA9231A1 3393 Schaffner Schaffner 02/2007 02/2008 8. Preamplifier 1684 AFS3-00100800-32-LN 847743 Miteq Senton GmbH 06/2006 06/2007 9. V-network 1060 ESH 3-Z5 862770/021 B1060 Rohde & Schwarz Senton GmbH 01/2007 01/2010 10. V-network 1218 ESH 3-Z5 830952/025 B1218 Rohde & Schwarz Senton GmbH 05/2005 05/2008 11. Loop antenna 1016 HFH2-Z2 882964/0001 Rohde & Schwarz Rohde & Schwarz 12/2007 12/2008 12. Trilog wide band antenna Chamber 2 1722 VULB 9163 9163-188 A1722 Schwarzbeck Schwarzbeck 10/2006 10/2007 13. Trilog wide band antenna Chamber 3 1802 VULB 9163 9163-214 A1802 Schwarzbeck Schwarzbeck 01/2006 07/2007 14. Biconical antenna EG 1 1518 HK 116 842204/001 Rohde & Schwarz Rohde & Schwarz 02/2007 02/2008 15. Log. per. antenna EG 1 1519 HL 223 841516/023 Rohde & Schwarz Rohde & Schwarz 01/2007 01/2008 16. Horn Antenna 1516 3115 9508-4553 Emco ARC-Seibersdorf 05/2005 05/2008 1 Accepted tolerance is ± 6 months.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50430-070565 (Edition 2) Page 20 of 72 Pages Test setup for conducted AC powerline emission measurement Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50430-070565 (Edition 2) Page 21 of 72 Pages Test setup for conducted AC powerline emission measurement - continued - Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50430-070565 (Edition 2) Page 22 of 72 Pages Test setup for radiated emission measurement (fully anechoic room) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50430-070565 (Edition 2) Page 23 of 72 Pages Test setup for radiated emission measurement (open field test site) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50430-070565 (Edition 2) Page 24 of 72 Pages Test setup for radiated emission measurement (open field test site) - continued -
