IXM-PAGBR05U.S. Robotics Wireless Maxg PCI Adapter

Wireless MAXg PC Card and PCI Adapter User Guide Home Installation Configuration Tutorials Help Introduction Features Warranty Regulatory Introduction The U.S. Robotics Wireless MAXg PC Card and PCI Adapter are the solution to your home and small business wireless connectivity needs. MAXg technology provides the maximum 802.11g range in the industry, delivering optimal wireless connections to your PCs, laptops, and other wireless devices. MAXg also provides the maximum speed up to 125 Mbps delivering large files like MP3s, digital photos, and digital video through your network fast and efficiently. And with MAXg, your network will be protected with a maximum security suite of capabilities, including Wi-Fi Protected Access (WPA), WPA2/802.11i (AES Encryption), Network name (SSID) authentication, and more. And to assure a simple, straight-forward installation, U.S. Robotics developed the SureStart installation wizard. SureStart walks you through the installation of any MAXg PC Cards, PCI Adapters, USB Adapters, or Routers in a seamless fashion. In addition, SureStart provides easy-to-understand guidance to set up security for your wireless network. Sharing Internet access securely, wirelessly or wired, has never been easier. What You Need to Begin nPC with an available PC card slot or PCI slot n A functioning Ethernet-based cable or DSL modem or other WAN connection for Internet access nA browser that supports HTML 4.01 specification with Javascript enabled rev 1 12/04 Wireless MAXg PC Card and PCI Adapter User Guide Home Installation Configuration Tutorials Help Introduction Features Warranty Regulatory Product Specifications Wireless MAXg PC Card nComplies with IEEE 802.11g 54 Mbps wireless radio standard n 100mW power output Wireless MAXg PCI Adapter nComplies with IEEE 802.11g 54 Mbps wireless radio standard n 100mW power output n 2 dBi Detachable Reverse SMA Antenna Security Features nWPA and WPA2 (Wi-Fi Protected Access) n 64/128-bit WEP (Wired Equivalent Privacy) data encryption n Ability to disable wireless radio Acknowledgements This product includes software developed by MDC and its licensors. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/). This product includes cryptographic software written by Eric Young ([email protected]). This product includes software written by Tim Hudson ([email protected]). Wireless MAXg PC Card and PCI Adapter User Guide Home Installation Configuration Tutorials Help Introduction Features Warranty Regulatory U.S. Robotics Corporation Two (2) Year Limited Warranty 1.0 GENERAL TERMS: 1.1 This Limited Warranty is extended only to the original end-user purchaser (CUSTOMER) and is not transferable. 1.2 No agent, reseller, or business partner of U.S. Robotics Corporation (U.S. ROBOTICS) is authorised to modify the terms of this Limited Warranty on behalf of U.S. ROBOTICS. 1.3 This Limited Warranty expressly excludes any product that has not been purchased as new from U.S. ROBOTICS or its authorised reseller. 1.4 This Limited Warranty is only applicable in the country or territory where the product is intended for use (As indicated by the Product Model Number and any local telecommunication approval stickers affixed to the product). 1.5 U.S. ROBOTICS warrants to the CUSTOMER that this product will be free from defects in workmanship and materials, under normal use and service, for TWO (2) YEARS from the date of purchase from U.S. ROBOTICS or its authorised reseller. 1.6 U.S. ROBOTICS sole obligation under this warranty shall be, at U.S. ROBOTICS sole discretion, to repair the defective product or part with new or reconditioned parts; or to exchange the defective product or part with a new or reconditioned product or part that is the same or similar; or if neither of the two foregoing options is reasonably available, U.S. ROBOTICS may, at its sole discretion, provide a refund to the CUSTOMER not to exceed the latest published U.S. ROBOTICS recommended retail purchase price of the product, less any applicable service fees. All products or parts that are exchanged for replacement will become the property of U.S. ROBOTICS. 1.7 U.S. ROBOTICS warrants any replacement product or part for NINETY (90) DAYS from the date the product or part is shipped to Customer. 1.8 U.S. ROBOTICS makes no warranty or representation that this product will meet CUSTOMER requirements or work in combination with any hardware or software products provided by third parties. 1.9 U.S. ROBOTICS makes no warranty or representation that the operation of the software products provided with this product will be uninterrupted or error free, or that all defects in software products will be corrected. 1.10 U.S. ROBOTICS shall not be responsible for any software or other CUSTOMER data or information contained in or stored on this product. 2.0 CUSTOMER OBLIGATIONS: 2.1 CUSTOMER assumes full responsibility that this product meets CUSTOMER specifications and requirements. 2.2 CUSTOMER is specifically advised to make a backup copy of all software provided with this product. 2.3 CUSTOMER assumes full responsibility to properly install and configure this product and to ensure proper installation, configuration, operation and compatibility with the operating environment in which this product is to function. 2.4 CUSTOMER must furnish U.S. ROBOTICS a dated Proof of Purchase (copy of original purchase receipt from U.S. ROBOTICS or its authorised reseller) for any warranty claims to be authorised. 3.0 OBTAINING WARRANTY SERVICE: 3.1 CUSTOMER must contact U.S. ROBOTICS Technical Support or an authorised U.S. ROBOTICS Service Centre within the applicable warranty period to obtain warranty service authorisation. 3.2 Customer must provide Product Model Number, Product Serial Number and dated Proof of Purchase (copy of original purchase receipt from U.S. ROBOTICS or its authorised reseller) to obtain warranty service authorisation. 3.3 For info…

Text truncated - open the document above for the full version.

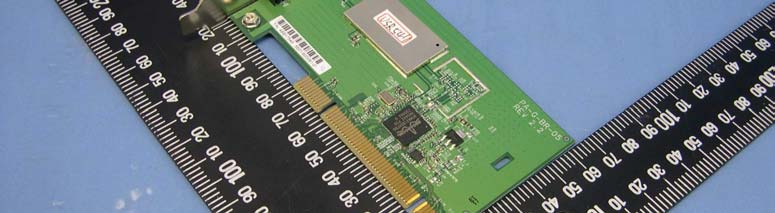

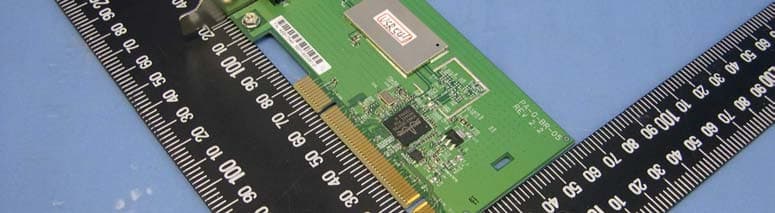

Page 1 CONSTRUCTION PHOTOS OF EUT With Centurion antenna, Gain: 2dBi Page 2 Page 3 With Joymax antenna, Gain: 2dBi Page 4 Page 5 With Joymax antenna, Gain: 5dBi Page 6 Page 7 With WHA YU antenna, Gain: 2dBi Page 8 Page 9 With WHA YU antenna, Gain: 3dBi Page 10 Page 11 With WHA YU antenna, Gain: 5dBi Page 12

(Fig. 1) FCC ID: IXM-PAGBR05 LABEL LOCATION Label

Page 1 CONSTRUCTION PHOTOS OF EUT With Centurion antenna, Gain: 2dBi Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 With Joymax antenna, Gain: 2dBi Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 With Joymax antenna, Gain: 5dBi Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 With WHA YU antenna, Gain: 2dBi Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 With WHA YU antenna, Gain: 3dBi Page 26 Page 27 Page 28 Page 29 Page 30 Page 31 With WHA YU antenna, Gain: 5dBi Page 32 Page 33 Page 34 Page 35 Page 36

FCC ID: IXM-PAGBR05 Report No. 931125H01 Operational Description This device is an U.S. Robotics Wireless Maxg PCI Adapter, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (U.S. Robotics Wireless Maxg PCI Adapter) is powered by host equipment. The antenna type used in this product is Dipole antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: IXM-PAGBR05 ADT No.:931125H01 1 RF EXPOSURE REPORT REPORT NO.: SA931125H01 MODEL NO.: USR5417 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LT D. ADDRESS:141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: IXM-PAGBR05 ADT No.:931125H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: IXM-PAGBR05 ADT No.:931125H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: IXM-PAGBR05 ADT No.:931125H01 4 6. Test Results 6.1 Antenna Gain With 2dBi antenna gain: The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.58489 (numeric). With 3dBi antenna gain: The maximum Gain measured in Fully Anechoic Chamber is 3dBi or 1.99526 (numeric). With 5dBi antenna gain: The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.16228 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b (With 2dBi antenna gain): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241266.06934480.0208319121.0 6243766.37430700.0209280681.0 11246265.76578370.0207361981.0 For Part 802.11b (With 3dBi antenna gain): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241266.06934480.0262258231.0 6243766.37430700.0263468761.0 11246265.76578370.0261053261.0 For Part 802.11b (With 5dBi antenna gain): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241266.06934480.0415651291.0 6243766.37430700.0417569851.0 11246265.76578370.0413741541.0 FCC ID: IXM-PAGBR05 ADT No.:931125H01 5 For Part 802.11g (With 2dBi antenna gain): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412109.1440340.0344135231.0 62437111.1731730.0350533181.0 112462110.9174820.0349726971.0 For Part 802.11g (With 3dBi antenna gain): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412109.1440340.0433240581.0 62437111.1731730.0441295121.0 112462110.9174820.044280171.0 For Part 802.11g (With 5dBi antenna gain): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412109.1440340.0686640051.0 62437111.1731730.0699405641.0 112462110.9174820.0697797051.0

FCC ID: IXM-PAGBR05 Report No.: RF931125H011Report Format Version 2.0.0 FCC TEST REPORT REPORT NO.:RF931125H01 MODEL NO.:USR5417 RECEIVED:Nov. 25, 2004 TESTED:Nov. 26 to 28, 2004 ISSUED: Dec. 02, 2004 APPLICANT:UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LT D. ADDRESS:141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: IXM-PAGBR05 Report No.: RF931125H012Report Format Version 2.0.0 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4TEST SETUP ...............................................................................................11 4.1.5EUT OPERATING CONDITIONS................................................................ 12 4.1.6TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 15 4.2.2TEST INSTRUMENTS ................................................................................ 16 4.2.3TEST PROCEDURES................................................................................. 17 4.2.4TEST SETUP .............................................................................................. 18 4.2.5EUT OPERATING CONDITIONS................................................................ 18 4.2.6TEST RESULTS.......................................................................................... 19 4.2.7TEST RESULTS - DSSS............................................................................. 20 4.2.8TEST RESULTS -OFDM ............................................................................. 23 4.36dB BANDWIDTH MEASUREMENT .......................................................... 26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 26 4.3.2TEST INSTRUMENTS ................................................................................ 26 4.3.3TEST PROCEDURE ................................................................................... 27 4.3.4TEST SETUP .............................................................................................. 27 4.3.5EUT OPERATING CONDITIONS................................................................ 27 4.3.6TEST RESULTS-DSSS............................................................................... 28 4.3.7TEST RESULTS-OFDM .............................................................................. 32 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 36 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 36 FCC ID: IXM-PAGBR05 Report No.: RF931125H013Report Format Version 2.0.0 4.4.2TEST INSTRUMENTS ................................................................................ 36 4.4.3TEST PROCEDURES................................................................................. 37 4.4.4TEST SETUP .............................................................................................. 37 4.4.5EUT OPERATING CONDITIONS................................................................ 37 4.4.6TEST RESULTS - DSSS............................................................................. 38 4.4.7TEST RESULTS - OFDM ............................................................................ 39 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 40 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 40 4.5.2TEST INSTRUMENTS ................................................................................ 40 4.5.3TEST PROCEDURE ................................................................................... 41 4.5.4TEST SETUP .............................................................................................. 41 4.5.5EUT OPERATING CONDITIONS................................................................ 41 4.5.6TEST RESULTS-DSSS............................................................................... 42 4.5.7TEST RESULTS-OFDM .............................................................................. 46 4.6BAND EDGES…

Text truncated - open the document above for the full version.

Report No. 931125H01 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 931125H01 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 931125H01 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 931125H01 4 Ch1 Ch11 Report No. 931125H01 5 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 931125H01 6 Ch1 Ch11

FCC ID: IXM-PAGBR05 Report No.: RF931125H0158Report Format Version 2.0.0 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: IXM-PAGBR05 Report No.: RF931125H0159Report Format Version 2.0.0 RADIATED EMISSION TEST
