IXMUGNAS-P3NETWORK ATTACHED STORAGE

1 Topkick1281P2 User Guide Version 1.1 1. Firmware Images Layout The u-boot image is about 512KB and located in the NAND or SPI flash between 0 and 0x0100000, be careful to erase it when update new u-boot. And layout of firmware images on NAND flash is as follows Note: Please DO NOT erase the UBoot space if it is not necessary eziStesffOegamI 000001x00x0toob-U 00002x0000081x0tnemnorivnetoob-U 000006x0000002x0lenreK 0000001x0000008x0)drtinI(metsyseliF Table 1-1: Firmware NAND Flash Layout 2. Network Service The eth0 static IP is 192.168.58.100. The wireless AP’s static IP is 192.168.1.1. The AP’s SSID is Topkick1281P2-AP-* and it has no encryption. The default network services on the board are Samba, FTP and Telnet. Username and password for Samba and Telnet’s are root:root. Username and password for Ftp is admin:admin. 3. How to Boot From SATA Disk The default u-boot bootcmd is “bootcmd=nand read.e 0x1200000 0x200000 0x600000;nand read.e 0x2000000 0x800000 0x1000000;bootm 0x1200000 0x2000000” and the bootargs valuable is “bootargs=console=ttyS0,115200” If you want to port the root filesystem to sata disk partition please type the command below in U-boot environment, which can be modified on your demand. Marvell>> setenv bootargs 'console=ttyS0,115200 root=/dev/sda1 rw' Marvell>> setenv bootcmd 'nand read.e 0x1200000 0x200000 0x600000;bootm 0x1200000' Marvell>> save Marvell>> boot 4. How to Boot From USB Disk The default u-boot bootcmd is “bootcmd=nand read.e 0x1200000 0x200000 0x600000;nand read.e 0x2000000 0x800000 0x1000000;bootm 0x1200000 0x2000000” and the bootargs valuable is “bootargs=console=ttyS0,115200” If you want to port the root filesystem to USB disk partition please type the command below in U-boot environment, which can be modified on your demand. Marvell>> setenv bootargs 'console=ttyS0,115200 root=/dev/sda1 rw rootdelay=10' //Note: root=/dev/sda1 can be changed to root=/dev/sdb1 or others according to USB partition name Marvell>> setenv bootcmd 'nand read.e 0x1200000 0x200000 0x600000;bootm 0x1200000' Marvell>> save Marvell>> boot Network-Attached Storage User Guide is Network-Attached Storage-AP-* and it has no encryption. 2 5. Programmable Function 5.1 Switch Function The switch action is detected by the daemon “pwrctl –d”. The switch has two directions. You can switch button to position A to shut down the system by script /usr/sbin/switch_off (t>2S), switch to position B to excute /usr/sbin/switch_optional which can be customized. See Figure 1-1 Figure 1-1: Topkick1281P2 Switch Indication 5.2 Led Control Function The board has five LEDs and their control commands and functions are as Table 1-1: LED Function L ed ColorLight OnLight OffBlink Bluepwrctl -o 502pwrctl -o 503pwrctl -o 504 System LED Redpwrctl -o 602pwrctl -o 603pwrctl -o 604 Yellowpwrctl -o 302pwrctl -o 303pwrctl -o 304 Wireless LED Greenpwrctl -o 702pwrctl -o 703pwrctl -o 704 SATA LED BlueNoneNoneNone Table 2-1: LED Control Function Table 5.3 WOL Function The topkick1281p2 system support WOL(Wake On Lan) function. The magic packet can be sent by magic packet tool such asmagpac.exe to turn on the system if the system is powered and connect to network. 5.4 WiFi Function The WiFi controller IC is sd8786 which work in AP mode. The file sd8786_uapsta.bin should be copied to /lib/firmware/mrvl/ directory. The operations to load the driver module, configure and bring up the wifi interface are as follows. / # insmod /lib/modules/mlan.ko / # insmod /lib/modules/sd8xxx.ko / # uaputl.exe sys_cfg_ssid $APNAME / # uaputl.exe bss_start / # ifconfig uap0 192.168.1.1 “uaputl.exe --help” for more details. Network-Attached Storage Switch Indication Network-Attached Storage 3 FCC Regulations: 15.19(a)(3): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.105(b): NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. zThe antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. RF Exposure Information This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. zThis device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

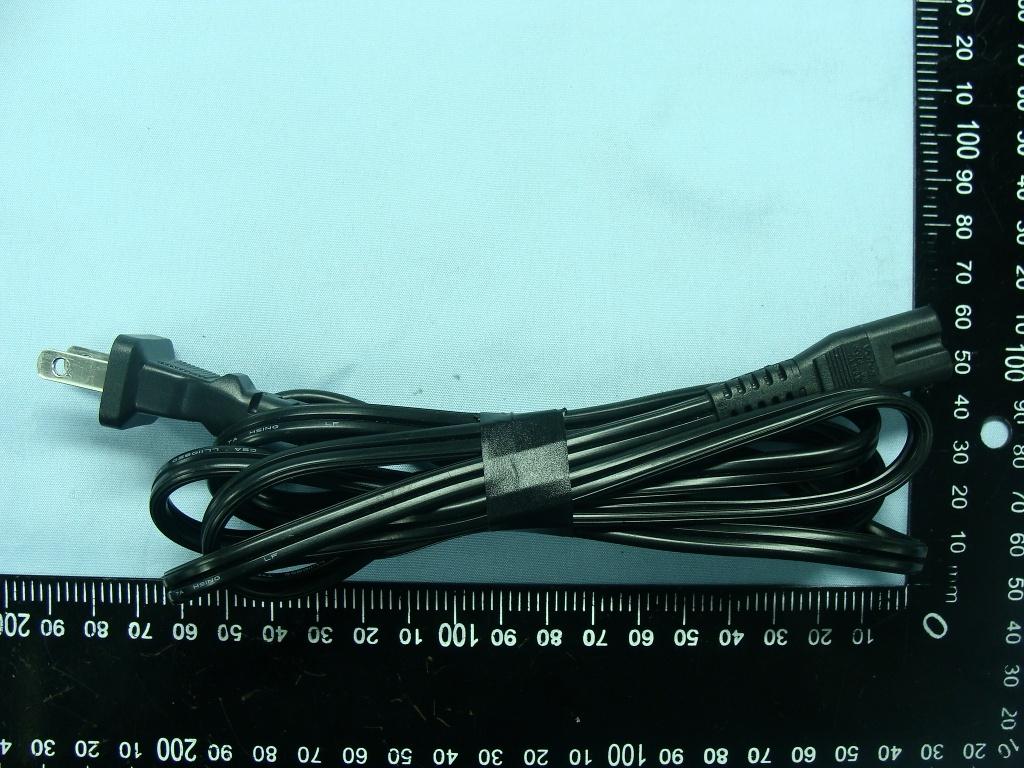

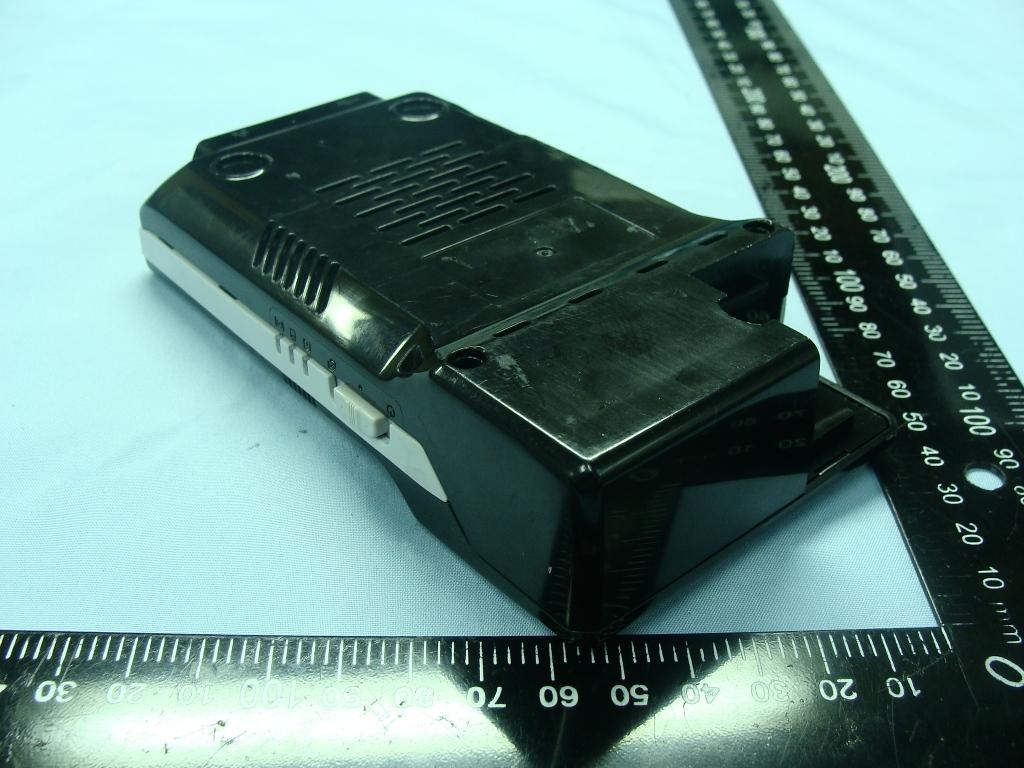

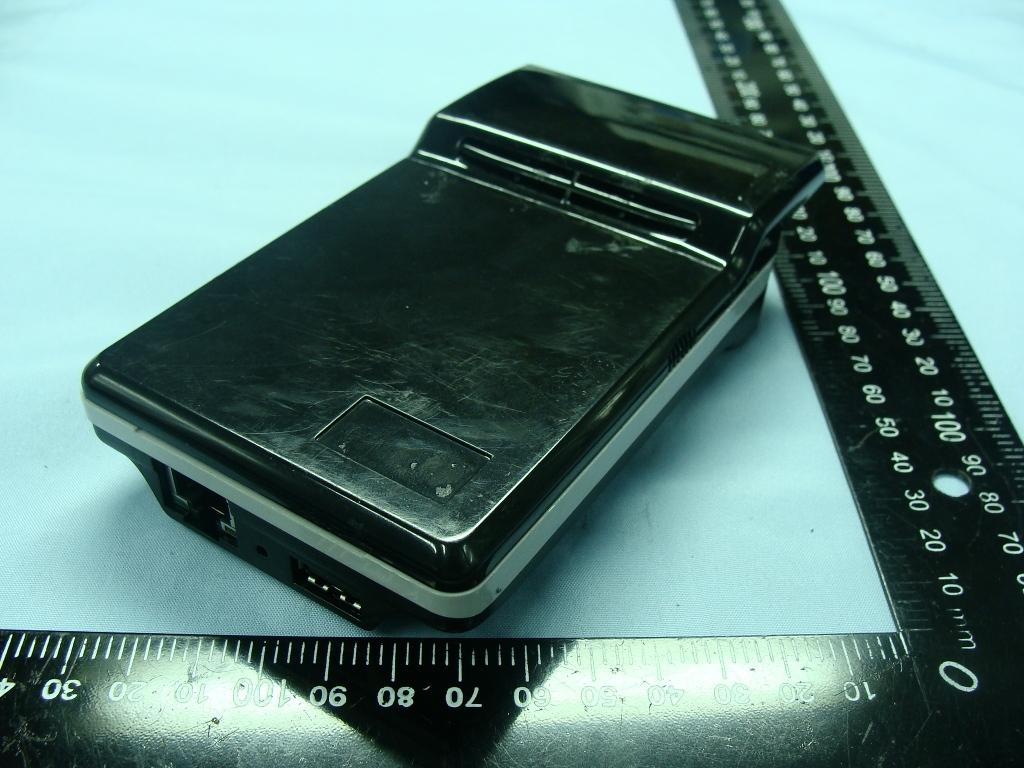

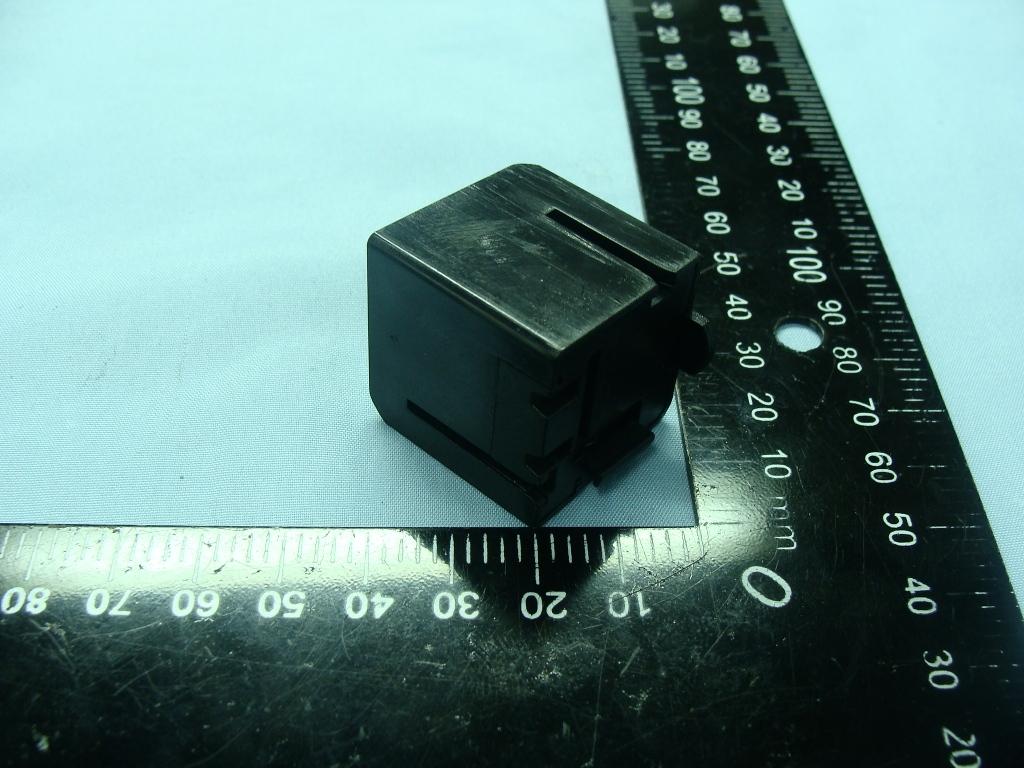

Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 1 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 2 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 720510 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 3 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Sample 2 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 4 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 5 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 List of Accessory: Specification of Accessory Shield Cable Brand Name N/A Model Name N/A Power Cord Type 0.9 meter shielded cable without ferrite core Power Cable Brand Name N/A Model Name N/A Power Cord Type 1.6 meter non-shielded cable without ferrite core Plug – for Power Brand Name N/A Model Name N/A Plug – US Brand Name N/A Model Name N/A Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 6 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Shield Cable Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 7 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Power Cable Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 8 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Plug -US Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 9 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 10 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Plug for Power Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 11 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3

Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 12 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 3. Internal Photograph of EUT Sample 1 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 13 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 14 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 15 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 720510 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 16 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Sample 2 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 17 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 18 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 19 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 20 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 WLAN Antenna for Sample 1 Photographs of EUT Report No.: EP111809 Brand Name: Universal Scientific Industrial Model Name: UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) SPORTON INTERNATIONAL INC. Page Number : 21 of 21 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 WLAN Antenna for Sample 2

SPORTON INTERNATIONAL INC. Page Number : 1 of 9 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 RF Exposure Evaluation Report Report No. : FA111809 RF Exposure Evaluation Report APPLICANT : Universal Scientific Industrial CO., LTD. EQUIPMENT : NAS BRAND NAME : Universal Scientific Industrial MODEL NAME : UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) FCC ID : IXMUGNAS-P3 FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 9 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 RF Exposure Evaluation Report Report No. : FA111809 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. RF EXPOSURE INTRODUCTION ............................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 9 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 RF Exposure Evaluation Report Report No. : FA111809 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA111809 Rev. 01 Initial issue of report Mar. 03, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 9 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 RF Exposure Evaluation Report Report No. : FA111809 1. RF Exposure Introduction Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) SPORTON INTERNATIONAL INC. Page Number : 5 of 9 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 RF Exposure Evaluation Report Report No. : FA111809 The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows:  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks.  General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 84 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 FCC RF Test Report Report No. : FR111809 FCC RF Test Report APPLICANT : Universal Scientific Industrial CO., LTD. EQUIPMENT : NAS BRAND NAME : Universal Scientific Industrial MODEL NAME : UGNASXXXXXXXXXX (X can be 0~9, a(A)~z(Z) or blank) FCC ID : IXMUGNAS-P3 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : Digital Transmission System (DTS) The product was received on Jan. 18, 2011 and completely tested on Jan. 24, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 84 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 FCC RF Test Report Report No. : FR111809 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Feature of Equipment Under Test ..................................................................................................... 5 1.3 Testing Site ........................................................................................................................................ 6 1.4 Applied Standards ............................................................................................................................. 6 1.5 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 RF Power ........................................................................................................................................... 7 2.2 Test Mode ........................................................................................................................................ 10 2.3 Connection Diagram of Test System ............................................................................................... 11 2.4 RF Utility .......................................................................................................................................... 12 3 TEST RESULT ........................................................................................................................................... 13 3.1 6dB Bandwidth Measurement ......................................................................................................... 13 3.2 Output Power Measurement ............................................................................................................ 22 3.3 Band Edges Measurement .............................................................................................................. 24 3.4 Spurious Emission Measurement .................................................................................................... 34 3.5 Power Spectral Density Measurement ............................................................................................ 47 3.6 AC Conducted Emission Measurement........................................................................................... 56 3.7 Radiated Emission Measurement .................................................................................................... 60 3.8 Antenna Requirements .................................................................................................................... 81 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 82 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 83 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 84 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 FCC RF Test Report Report No. : FR111809 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR111809 Rev. 01 Initial issue of report Mar. 03, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 84 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 FCC RF Test Report Report No. : FR111809 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.2 15.247(b) A8.4 Power Output ≤ 30dBm Pass - 3.3 15.247(d) A8.5 Frequency Band Edges ≤ 20dBc Pass - 0 15.247(d) A8.5 Spurious Emission < 20 dBc Pass - 0 15.247(e) A8.2(b) Power Spectral Density ≤ 8dBm Pass - 3.6 15.207 Gen 7.2.2 AC Conducted Emission 15.207(a) Pass Under limit 13.0 dB at 0.61 MHz 3.7 15.247(d) A8.5 Transmitter Radiated Emission 15.209(a) & 15.247(d) Pass Under …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 FCC RF Test Report Report No. : FR111809 Appendix B. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Mar. 03, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IXMUGNAS-P3 FCC RF Test Report Report No. : FR111809 <Radiated Emission>
