IXM-PC-B-IN-01802.11/b WLAN PCMICA Card

Wireless LAN PCMCIA Card User’s Manual Version 1.0 1 Copyright © 2002 by Airvast. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding to the product in this manual are subject to change without notice. We assumes no responsibility for errors contained herein or for direct, indirect, special, incidental or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The user should not modify or change this equipment without written approval form Airvast. Modification could void authority to use this equipment. Notice The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate this device. 2 1. INTRODUCTION This document describes how to install the WN-100, Wireless LAN PCMCIA Card. Wireless LAN is local area networking without wires, which uses radio frequencies to transmit and receive data between PC’s or other network devices. Wireless LAN is able to configure independent networks and infrastructure networks. The former is suitable for small or temporary peer-to-peer configurations, and the later is offering fully distributed data connectivity via micro cells and roaming. 2. INSTALLATION 2.1 Check the Product Package Before starting installation, please make sure the package you purchased includes the following two items: 1) Wireless LAN PCMCIA Card. 2) CD-ROM (containing Driver/Utility, and User’s Manual). Please contact your vendor if anything is missing or damaged. 2.2 Meet the Minimum Requirements To install the Card successfully, your computer should meet the following minimum requirements: 1) A PCMCIA slot complying with Release 2.1 of the PCMCIA specification. 2) Windows 95, 98, Me, NT, 2000, or XP operating system. 3) Minimum 5 Mbytes free disk space for installing the driver and the utility program. 2.3 Install the Driver and Utility Prior to the installation, you have to make sure the Card is not inserted to the PCMCIA slot. Please place the supplied CD-ROM to the CD-ROM drive, running AirvastWireless_V1.1.2.exe. Then, the InstallShield will guide you to install appropriate driver and utility. 2.4 Insert the Card Insert the Wireless LAN PCMCIA Card into PC’s PCMCIA slot in the right direction, pushing it gently into position. The Card is designed for plug-and-play, which allows you to insert it to a PC no matter it is powered ON or OFF. 2.5 Operation and Configuration As soon as you insert the Card, it can operate with the factory default settings. However, you may configure the desired settings by clicking the icon of PRISM Wireless Settings at the task bar.

141, Lane 351, Taiping Road, SEC.1, Tsao Tuen, Nan-Tou, Taiwan TEL：886-49-2350876•2325876 FAX：886-49-2315431•2329561•2350491 Federal Communications Commission Dear Sir: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN to act on our behalf in all matters relating to application for "Wireless LAN PCMCIA Card ( Model : PC-B-IN-01, FCC ID : IXM-PC-B-IN-01 )”authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). By:By:Johnson Ho (Signature)(Printed) Title :Section Manager Applicant :Universal Scientific Industrial Co., Ltd. Address :135, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan Tel :886-49-2350876Ext. 2332Fax:886-49-2351093 Date :March 14, 2003

Universal Scientific IndustrialCo. FCC ID: IXM-PC-B-IN-01 Transmitter Module Characteristics per FCC public notice DA 00-1407 requirements ItemRequirementsEUT 1Have its own RF shieldingDevice is equipped with Metal shielding to cover RF section. Refer to external photos 2Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal power regulator. Refer to Block diagram 4Meet the antenna requirements of Section 15.203 Device is equipped with Integral antenna . Refer to external photos 5Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside the host computer as stand-alone configuration. Refer to setup photos. 6Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. FCC ID label is included in the filing. Label is to be placed on the EUT. Refer to FCC ID label format and location file. 7The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. User instruction is provided in the user manual is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. 8Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). The max. output power measured is 32mW. This device has been tested with three typical NB during. SAR evaluation

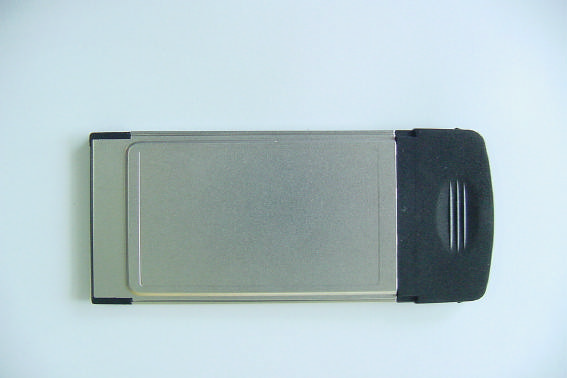

ETC Report No. : ET92R-03-028 FCC ID.: IXM-PC-B-IN-01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT

REAR VIEW OF EUT 48mm 42mm Model: PC-B-IN-01 FCC ID.: IXM-PC-B-IN-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED PERATION. Made in Taiwan

ETC Report No. : ET92R-03-028 FCC ID.: IXM-PC-B-IN-01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No. : ET92R-03-028 FCC ID.: IXM-PC-B-IN-01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB

The Wireless LAN PCMCIA Card designed with a transmitting method of direct sequence spread spectrum is for local area network operation, which operates at 2.4 GHz ISM band and data rate up to 11 Mbps.

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 802.11b Wireless LAN Card FCC ID: IXM-PC-B-IN-01 April 11, 2003 REPORT NO: 03U1943-1 Prepared for Universal Scientific Industrial Co Ltd 141, Lane 351, Taiping Rd, Sec. 1 Tsao Tuen, Nan-Tou Taiwan Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 03U1943-1 DATE: April 11, 2003 FCC ID: IXM-PC-B-IN-01 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 24 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Date of Tests: April 10 - 11, 2003 Report No: 03U1943-1 APPLICANT: Universal Scientific Industrial Co Ltd 141, Lane 351, Taiping Rd, Sec. 1 Tsao Tuen, Nan-Tou Taiwan FCC ID: IXM-PC-B-IN-01 DEVICE CATEGORY: MOBILE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating mode: Maximum continuous output Tx Frequency: 2412 – 2462 MHz Max. O/P Power: 16.08 dBm (Conducted) Max. SAR (1g): SAR (mW/g) Host devices 0.489 Toshiba 0.339 Compaq 0.219 IBM Application Type: Certification FCC Rule Part(s): §15.247 This wireless mobile device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03U1943-1 DATE: April 11, 2003 FCC ID: IXM-PC-B-IN-01 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 24 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION.............................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC...............5 3. DOSIMETRIC ASSESSMENT SYSTEM.................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM.............................................................................................6 3.2. SYSTEM COMPONENTS.................................................................................................................7 4. EVALUATION PROCEDURES..............................................................................9 5. MEASUREMENT UNCERTAINTY.......................................................................12 6. EXPOSURE LIMIT..............................................................................................13 7. MEASUREMENT RESULTS...............................................................................14 7.1. SYSTEM VALIDATION...................................................................................................................14 7.2. TEST LIQUID CONFIRMATION.....................................................................................................15 7.3. EUT TUNE-UP PROCEDURES......................................................................................................15 7.4. EUT SETUP PHOTOS....................................................................................................................16 7.5. SAR MEASUREMENT RESULTS..................................................................................................19 8. EUT PHOTOS....................................................................................................21 9. EQUIPMENTS LIST & CALIBRATION STATUS...................................................22 10. REFERENCES...................................................................................................23 11. ATTACHMENTS................................................................................................24 REPORT NO: 03U1943-1 DATE: April 11, 2003 FCC ID: IXM-PC-B-IN-01 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 24 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: Universal Scientific Industrial Co Ltd 141, Lane 351, Taiping Rd, Sec. 1 Tsao Tuen, Nan-Tou Taiwan FCC ID: IXM-PC-B-IN-01 DEVICE CATEGORY: MOBILE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating mode: Maximum continuous output Tx Frequency: 2412 – 2462 MHz Max. O/P Power: 16.08 dBm (Conducted) Max. SAR (1g): SAR (mW/g) Host devices 0.489 Toshiba 0.339 Compaq 0.219 IBM Application Type: Certification FCC Rule Part(s): §15.247 Host Device (s): Manufactured Model Name Serial Number Toshiba PS183U-00KP0X 91617937PU Compaq Presario 1500 1V31LDLZ20PG IBM 2659 AK-VND0G 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. REPORT NO: 03U1943-1 DATE: April 11, 2003 FCC ID: IXM-PC-B-IN-01 COMPLIANCE CERT…

Text truncated - open the document above for the full version.

Date/Time: 04/10/03 19:36:46 Test Laboratory: Compliance Certification Services File Name: D2450V2 SN 706_12.5 mW.da4 DUT: Dipole Type & Serial Number: D2450V2 SN 706 Program: System Validation (ET3DV6 SN 1577); I/P Power 250mW, Air temp. 25deg C, liquid temp. 23.5deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: Head 2450 MHz ( σ = 1.8836 mho/m, ε = 39.72, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 92.4 V/m Peak SAR = 26.9 mW/g SAR(1 g) = 12.5 mW/g; SAR(10 g) = 5.61 mW/g Power Drift = -0.07 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -22.4 -20.2 -17.9 -15.7 -13.5 -11.2 -8.97 -6.73 -4.49 -2.24 0 Date/Time: 04/11/03 17:40:40 Test Laboratory: Compliance Certification Services File Name: D2450V2 SN 706_12.8 mW.da4 DUT: Dipole Type & Serial Number: D2450V2 SN 706 Program: System Validation (ET3DV6 SN 1577); I/P Power 250mW, Air temp. 25deg C, liquid temp. 23.5deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: Head 2450 MHz ( σ = 1.81 mho/m, ε = 39.57, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 94.5 V/m Peak SAR = 27.3 mW/g SAR(1 g) = 12.8 mW/g; SAR(10 g) = 5.71 mW/g Power Drift = 0.006 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -22.6 -20.3 -18.1 -15.8 -13.5 -11.3 -9.03 -6.77 -4.51 -2.26 0

Date/Time: 04/10/03 21:03:24 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.481 mW.da4 EUT Setup Configuration 1 (Toshiba) SAR in dB -19 -17.1 -15.2 -13.3 -11.4 -9.52 -7.62 -5.71 -3.81 -1.9 0 Date/Time: 04/10/03 21:03:24 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.481 mW.da4 Applicant: Universal FCC ID: IXM-PC-B-IN-01 Program: EUT Setup Configuration 1; Air temp 25 deg C & Liquid temp 23.2 deg C Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9095 mho/m, ε = 50.47, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 8.68 V/m Peak SAR = 1.02 mW/g SAR(1 g) = 0.481 mW/g; SAR(10 g) = 0.241 mW/g Power Drift = -0.03 dB Area Scan (10x16x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -19 -17.1 -15.2 -13.3 -11.4 -9.52 -7.62 -5.71 -3.81 -1.9 0 Date/Time: 04/10/03 22:02:52 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.489 mW.da4 Applicant: Universal FCC ID: IXM-PC-B-IN-01 Program: EUT Setup Configuration 1; Air temp 25 deg C & Liquid temp 23.4 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9095 mho/m, ε = 50.47, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 9.56 V/m Peak SAR = 1.06 mW/g SAR(1 g) = 0.489 mW/g; SAR(10 g) = 0.243 mW/g Power Drift = -0.07 dB Area Scan (9x15x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -19.4 -17.5 -15.5 -13.6 -11.7 -9.71 -7.77 -5.83 -3.88 -1.94 0 Date/Time: 04/10/03 22:31:40 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.362 mW.da4 Applicant: Universal FCC ID: IXM-PC-B-IN-01 Program: EUT Setup Configuration 1; Air temp 25 deg C & Liquid temp 23.4 deg C Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9095 mho/m, ε = 50.47, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 10.9 V/m Peak SAR = 0.797 mW/g SAR(1 g) = 0.362 mW/g; SAR(10 g) = 0.179 mW/g Power Drift = -0.08 dB Area Scan (9x15x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -19.1 -17.2 -15.3 -13.4 -11.5 -9.55 -7.64 -5.73 -3.82 -1.91 0 Date/Time: 04/10/03 23:56:16 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.162 mW.da4 EUT Setup Configuration 2 (Toshiba) SAR in dB -18 -16.2 -14.4 -12.6 -10.8 -9 -7.2 -5.4 -3.6 -1.8 0 Date/Time: 04/10/03 23:56:16 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.162 mW.da4 Applicant: Universal FCC ID: IXM-PC-B-IN-01 Program: EUT Setup Configuration 2; Air temp 25 deg C & Liquid temp 23.2 deg C Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9095 mho/m, ε = 50.47, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Area Scan (9x11x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 9.69 V/m Peak SAR = 0.341 mW/g SAR(1 g) = 0.162 mW/g; SAR(10 g) = 0.0854 mW/g Power Drift = -0.09 dB SAR in dB -18 -16.2 -14.4 -12.6 -10.8 -9 -7.2 -5.4 -3.6 -1.8 0 Date/Time: 04/10/03 00:20:42 Test Laboratory: Compliance Certification Services File Name: 2M-CH_ mW.da4 Applicant: Universal FCC ID: IXM-PC-B-IN-01 Program: EUT Setup Configuration 2; Air temp 25 deg C & Liquid temp 23.3 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9095 mho/m, ε = 50.47, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 8.62 V/m Peak SAR = 0.305 mW/g SAR(1 g) = 0.144 mW/g; SAR(10 g) = 0.0759 mW/g Power Drift = -0.12 dB Area Scan (9x11x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -17.6 -15.9 -14.1 -12.4 -10.6 -8.82 -7.06 -5.29 -3.53 -1.76 0 Date/Time: 04/10/03 22:53:46 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.146 mW.da4 Applicant: Universal FCC ID: IXM-PC-B-IN-01 Program: EUT Setup Configuration 2; Air temp 25 deg C & Liquid temp 23.2 deg C Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9095 mho/m, ε = 50.47, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 8.78 V/m Peak SAR = 0.313 mW/g SAR(1 g) = 0.146 mW/g; SAR(10 g) = 0.0769 mW/g…

Text truncated - open the document above for the full version.

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless LAN PCMCIA Card FCC ID. : IXM-PC-B-IN-01 MODEL : PC-B-IN-01 for APPLICANT : Universal Scientific Industrial Co., Ltd. ADDRESS : 135, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET92R-03-028 ETC Report No. : ET92R-03-028 FCC ID.: IXM-PC-B-IN-01 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION.......................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device................................................................................................................1 1.3 Test Methodology..........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE.......................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation........................................................................................................5 2.4 Labeling Requirement.....................................................................................................................5 2.5 User Information............................................................................................................................6 3. SYSTEM TEST CONFIGURATION...........................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System.............................................................................................................7 4 RADIATED EMISSION MEASUREMENT..............................................................................8 4.1 Applicable Standard.......................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument...................................................................................................................10 4.4 Radiated Emission Data................................................................................................................11 4.4.1 RF Portion...............................................................................................................................11 4.4.2 Other Emission........................................................................................................................14 4.5 Field Strength Calculation.............................................................................................................14 4.6 Photos of Radiation Measuring Setup............................................................................................15 5 CONDUCTED EMISSION MEASUREMENT........................................................................16 5.1 Standard Applicable.....................................................................................................................16 5.2 Measurement Procedure...............................................................................................................16 5.3 Conducted Emission Data.............................................................................................................17 5.4 Result Data Calculation.................................................................................................................18 5.5 Conducted Measurement Equipment.............................................................................................19 5.6 Photos of Conduction Measuring Setup........................................................................................20 6 ANTENNA REQUIREMENT....................................................................................................21 6.1 Standard Applicable.....................................................................................................................21 6.2 Antenna Construction and Directional Gain...................................................................................21 7 EMISSION BANDWIDTH MEASUREMENT.........................................................................22 ETC Report No. : ET92R-03-028 FCC ID.: IXM-PC-B-IN-01 Rev. No 1.0 7.1 Standard Applicable.....................................................................................................................22 7.2 Measurement Procedure...............................................................................................................22 7.3 Measurement Equipment..............................................................................................................22 7.4 Measurement Data.......................................................................................................................23 8 OUTPUT POWER MEASUREMENT.......................................................................................24 8.1 Standard Applica…

Text truncated - open the document above for the full version.

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless LAN PCMCIA Card FCC ID. : IXM-PC-B-IN-01 MODEL : PC-B-IN-01 for APPLICANT : Universal Scientific Industrial Co., Ltd. ADDRESS : 135, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI…
