IXM-TP7500WTablet PC with Bluetooth and WLAN

Quick Reference TP7500X TeamPad FHT681A1A, FHT682A1A FHT681B1A, FHT682B1A FHTLA681 TP7500X Quick Reference Contents Welcome and What’s in the Box .......................................................2 Safety Information ............................................................................2 To Avoid ..........................................................................................2 Lithium Battery Notice......................................................................2 Chapter 1 Introduction ......................................................................3 Features ..........................................................................................3 Regulatory Approval.........................................................................6 Environment Requirement ..............................................................6 Chapter 2 Getting Started........................................................7 Exploring Your TeamPad.........................................................7 Powering Your TeamPad.........................................................9 Connecting to Your Desktop PC..............................................11 FCC ID: IXMTP7500W FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. TP7500X Quick Reference 2 Welcome and What’s in the Box This section lists the contents of your TP7500X TeamPad package and provides a overview of this user’s guide. The TP7500X package includes the following items: z TP7500X wireless digital assistant (includes stylus and one replaceable 4400mA battery) z AC adapter z TP7500X quick reference Safety Information To Avoid Never connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this product during an electrical danger. Lithium Battery Notice Attention: Danger of explosion if battery is incorrectly replaced. When replacing the battery, use an equivalent type battery recommended by the manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of. Do Not: z Throw or immerse into water z Heat to more than 100°C(I°F) z Repair or disassemble Dispose of the battery as required by local ordnances or regulations. TP7500X Quick Reference 3 Chapter 1 Introduction Features This section provides an overview of the TeamPad hardware specification and preinstalled software. Dimension Height: 25 mm Width: 285 mm Depth: 205 mm Weight 1000grams Microprocessor Intel PXA-255 400MHz 32-bitCPU. Memory 1. Flash memory: 64MB Flask memory can be customer-specified up to 128MB. (User accessible is around 32 MB for 64 MB Flash, 32 MB + 64 MB for 128MB) 2. SDRAM: SDRAM can be customer-specified and could be 64MB up to 128MB on board. (User accessible is around 32 MB for 64 MB Flash, 64 MB for 128MB) LCD Display 1. 10.4 inch SVGA/XGA TFT Color LCD with FL tube backlight. 2. 256k color, touch sensitive. 3. Visual ability at outdoor and indoor. Brightness adjustable. Wireless LAN Communication 1. A CF interface 802.11b based WiFi compatible wireless LAN module was used, up to 11 Mbps data transfer rate and with an internal antenna. (MiniPCI interface 802.11b) 2. PCMCIA port TP7500X Quick Reference 4 CF Card Slot Standard Type II CF Card slot Buttons 1. Power On/Off button 2. Backligh control key 3. 4 programmable function hot key buttons 4. 10 numeric keys and and ENT/CLS/BKS keys 5. 4 direction keys Audio 1. Audio record and playback 2. One speaker, one headphone jack, One integrated microphone Interface and I/O Ports 1. Headphone output jack 2. AC/DC power jack 3. Cradle Connector: (1). Auxiliary AC/DC power input (2). 2 USB Host Ports (3). USB client for sync with desktop PC 4. Serial port Power and Battery 1. An external replaceable 7.2 volts 4400mAh battery pack 2. An external 2200mAh battery pack, or external 6600mAh battery pack (Optional) 3. Operating Time: at least 6 hours continuous at 30% processor utilization with front 30% light off. 4. Charge time: The battery pack can be quick charged to at least 90% capacity in less than 2.5 hours at room temperature (+20 °C ) when using the AC/DC adapter, no matter the system is on or off. 5. RAM can be retained for at least 72 hours after automatic low battery shutdown. TP7500X Quick Reference 5 Indicators A two color LED is used to indicate the power status. It also could be controlled by the S/W to indicate some information like the warning or alarm. 1. Green: On mode : resume proecess Suspend process Boot process Suspend /OFF: On charging 2. Re…

Text truncated - open the document above for the full version.

Universal Scientific Industrial Co., Ltd. Jan 19,2004 Federal Communications Commission Authorization and Evaluation Division FCC ID：IXM-TP7500W Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block diagram 2. Schematic 3. BOM The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Yaochia shih / Section Manager Applicant: Terry Lee ADDRESS: 135,lane 351,Taiping Road ,Sec 1 Tsao Tuen, Nan-Tou, Taiwan TEL:+886-492350876 Ext 1765 FAX:+886-492372931

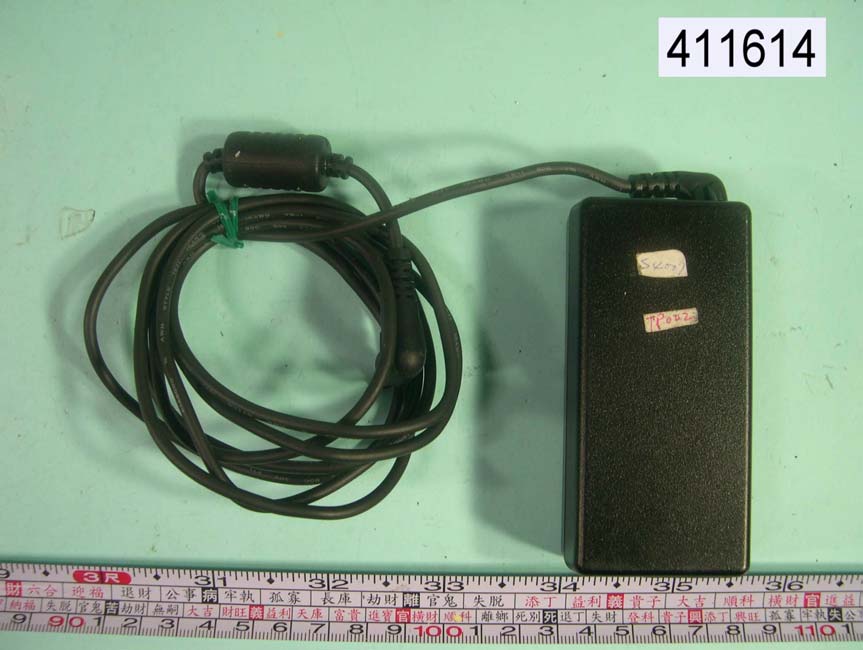

FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 1OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 APPENDIX A. Photographs of External FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 2OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 3OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 4OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 5OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 6OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 7OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 8OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 9OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 10OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 11OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 12OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 13OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : A 14OF A14 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255

Label Position

FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 1OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 APPENDIX B. Photographs of Internal FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 2OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 3OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 4OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 5OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 6OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 7OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 8OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 9OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 10OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 11OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 12OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 13OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 14OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 15OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 16OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 17OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 18OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 19OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 20OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 21OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 22OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 23OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 24OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 25OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 26OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 27OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 28OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 29OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 30OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 31OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 32OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-A SPORTON International Inc. PAGE NUMBER : B 33OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F411614-01-B SPORTON International Inc. PAGE NUMBER : B 34OF B34 TEL : 886-2-2696-2468 ISSUED DATE : July 01, 2004 FAX : 886-2-2696-2255

Description of Operation EUT is a CardBus Wireless LAN Card with 11 channels. This device provided a convergence procedure for the 2, 5.5, and 11 Mbps mandatory 802.11b modes the optional PBCC-22 and PBCC-33 optional modes, and the optional CCK-OFDM modes at 6, 9, 12, 18, 24, 36, 48, and 54Mbit/s specification in which PSDUs are converted to and from PPDUs. The device adapts Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) modulation. The antenna is Printed Antenna, and there is antenna connector. This CardBus Wireless LAN Card is an IEEE 802.11g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the CardBus Wireless LAN Card transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11g network.

©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O461902-1-2-01 Specific Absorption Rate (SAR) Test Report for Universal Scientific Industrial Co., Ltd. on the TeamPad7500W Report No. : O461902-1-2-01 Trade Name : FUJITSU LIMITED Model Name : FHTLA681 FCC ID : IXM-TP7500W Date of Testing : June 14, 2004 Date of Report. : June 15, 2004 Date of Review : July 01, 2004 ‚ The test results refer exclusively to the presented test model / sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ©2004 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ O461902-1-2-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................................ 1 2. Administration Data ................................................................................................................................................................... 2 2.1. Testing Laboratory ............................................................................................................................................................. 2 2.2. Detail of Applicant.............................................................................................................................................................. 2 2.3. Detail of Manfacturer ......................................................................................................................................................... 2 2.4. Application Detail .............................................................................................................................................................. 2 3. Scope............................................................................................................................................................................................. 3 3.1. Description of Device Under Test (DUT) ........................................................................................................................... 3 3.2. Product Photo..................................................................................................................................................................... 4 3.3. Applied Standards: ............................................................................................................................................................. 5 3.4. Device Category and SAR Limits ....................................................................................................................................... 6 3.5. Test Conditons .................................................................................................................................................................... 6 3.5.1. Ambient Condition: ..................................................................................................................................................... 6 3.5.2. Test Configuration: ...................................................................................................................................................... 6 4. Specific Absorption Rate (SAR) ................................................................................................................................................. 7 4.1. Introduction ........................................................................................................................................................................ 7 4.2. SAR Definition .................................................................................................................................................................... 7 5. SAR Measurement Setup............................................................................................................................................................ 8 5.1. DASY4 E-Field Probe System............................................................................................................................................. 9 5.1.1. ET3DV6 E-Field Probe Specification ....................................................................................................................... 10 5.1.2. ET3DV6 E-Field Probe Calibration .......................................................................................................................... 10 5.2. DATA Acquisition Electronics (DAE) ................................................................................................................................11 5.3. Robot ................................................................................................................................................................................ 12 5.4. Measurement Server ......................................................................................................................................................... 12 5.5. SAM Twin Phantom .......................................................................................................................................................... 12 5.6. Data Storage and Evaluation ........................................................................................................................................... 14 5.6.1. Data Storage .............................................................................................................................................................. 14 5.6.2. Data Evaluation ......................................................................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F411614-01-A SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR Part 15 Subpart C Equipment : TeamPad7500W Model No. : FHTLA681 FCC ID : IXM-TP7500W Filing Type : Certification Applicant : Universal Scientific Industrial Co., Ltd. 135,Lane 351,Taiping Road,Sec.1,Tsao Tuen,Nan -Tou,Taiwan ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F411614-01-A SPORTON International Inc. FCC ID : IXM-TP7500W TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : July 01, 2004 Table of Contents History of this test report ....................................................................................................iii CERTIFICATE OF COMPLIANCE .........................................................................................1 1. General Description of Equipment under Test ...............................................................2 1.1. Applicant ................................................................................................................................................................................... 2 1.2 Manufacturer............................................................................................................................................................................. 2 1.3 Basic Description of Equipment under Test............................................................................................................................... 2 1.4 Feature of Equipment under Test................................................................................................................................................. 3 2 Test Configuration of Equipment under Test .................................................................4 2.1 Test Manner.............................................................................................................................................................................. 4 2.2 Description of Test System ....................................................................................................................................................... 4 2.3 Connection Diagram of Test System ......................................................................................................................................... 5 3 Operation of Equipment under Test ................................................................................6 4 General Information of Test .............................................................................................7 4.1 Test Voltage.............................................................................................................................................................................. 7 4.2 Standard for Methods of Measurement ..................................................................................................................................... 7 4.3 Test in Compliance with ............................................................................................................................................................ 7 4.4 Frequency Range Investigated.................................................................................................................................................. 7 4.5 Test Distance............................................................................................................................................................................ 7 5 Report of Measurements and Examinations...................................................................8 5.1 List of Measurements and Examinations ................................................................................................................................... 8 5.2 6dB Bandwidth.......................................................................................................................................................................... 9 5.3 Power Spectral Density ........................................................................................................................................................... 11 5.4 Band Edges Measurement...................................................................................................................................................... 13 5.5 Peak Output Power ................................................................................................................................................................. 14 6. Test of Conducted Emission ..........................................................................................16 6.1. Major Measuring Instruments：.............................................................................................................................................. 16 6.2. Test Procedures：.................................................................................................................................................................. 16 6.3. Test Result of Conducted Emission：..................................................................................................................................... 17 7. Test of Radiated Emission .............................................................................................19 7.1. Major Measuring Instruments .................................................................................................................................................. 19 7.2. Test Procedures.................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F411614-01-A SPORTON International Inc. Page No. : C1 of C20 TEL : 886-2-2696-2468 Issued Date : July 01, 2004 FAX : 886-2-2696-2255 1.1. Emission Bandwidth Mode1 : 11b CH01 (2412MHz) B Att 25 dB * Ref 16.7 dBm Offset 1.7 dB LVL 2 MHz/Center 2.412 GHzSpan 20 MHz * * RBW 100 kHz VBW 100 kHz SWT 500 ms * VIEW 1 PK PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 4.95 dBm 2.411760000 GHz ndB [T1] 6.00 dB BW 7.320000000 MHz T1 Temp 1 [T1 ndB] -1.10 dBm 2.407920000 GHz T2 Temp 2 [T1 ndB] -1.16 dBm 2.415240000 GHz D1 4.95 dBm D2 -1.05 dBm APPENDIX C. Test Pattern FCC TEST REPORT Report No. : F411614-01-A SPORTON International Inc. Page No. : C2 of C20 TEL : 886-2-2696-2468 Issued Date : July 01, 2004 FAX : 886-2-2696-2255 Mode 2 : 11b CH6 (2437MHz) B Att 25 dB * Ref 16.7 dBm Offset 1.7 dB LVL 2 MHz/Center 2.437 GHzSpan 20 MHz * * RBW 100 kHz VBW 100 kHz SWT 500 ms * 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 5.07 dBm 2.436760000 GHz ndB [T1] 6.00 dB BW 7.320000000 MHz T1 Temp 1 [T1 ndB] -1.26 dBm 2.432920000 GHz T2 Temp 2 [T1 ndB] -0.96 dBm 2.440240000 GHz D1 5.07 dBm D2 -0.93 dBm FCC TEST REPORT Report No. : F411614-01-A SPORTON International Inc. Page No. : C3 of C20 TEL : 886-2-2696-2468 Issued Date : July 01, 2004 FAX : 886-2-2696-2255 Mode 3 : 11b CH11 (2462MHz) B Att 25 dB * Ref 16.7 dBm Offset 1.7 dB LVL 2 MHz/Center 2.462 GHzSpan 20 MHz * * RBW 100 kHz VBW 100 kHz SWT 500 ms * VIEW 1 PK PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 5.52 dBm 2.461760000 GHz ndB [T1] 6.00 dB BW 7.320000000 MHz T1 Temp 1 [T1 ndB] -0.62 dBm 2.457920000 GHz T2 Temp 2 [T1 ndB] -0.65 dBm 2.465240000 GHz D1 5.52 dBm D2 -0.48 dBm FCC TEST REPORT Report No. : F411614-01-A SPORTON International Inc. Page No. : C4 of C20 TEL : 886-2-2696-2468 Issued Date : July 01, 2004 FAX : 8…
