IXM-USGAT01Wireless USB Adapter

Directory USB Client User Manual Before You Start.............................................2 Software Installation........................................3 Hardware Installation.......................................5 Configuration..................................................7 Regulatory Statement.......................................9 1 USB Client User Manual Please follow the procedure to use this manual. Before You Start Please check USB client package content: •A USB Client •A Stand •A USB Client driver Install software before hardware installation. Software Installation Insert the CD-ROM, and it auto-runs. You need to install the software before hardware installation. 2 Click “Next” to continue the installation. . Click “Continue Anyway” to continue the setup. 3 After you click “Next”, the system will start to install the program as the following picture shows. Click “Finish” to complete the installation. 4 Hardware Installation Please plug the USB client to the Stand socket and the other end of the Stand cable to the USB socket of your computer. For Windows XP users, the system detects a new device when you plug the cable into the USB socket. Just follow the system’s instruction to add a new device. 5 The system will show a Hardware Installation dialog window. Please click “Continue Anyway” to continue the installation. After the steps, please click “Finish” to complete the installation. 6 Configuration To connect the wireless network, please do the following steps: 1. Cancel your browser’s proxy setting. Open your browser and click Tool Internet OptionsConnections LAN SettingsUnpick Proxy setting as the following figure shows. 2. Change your network setups. Select “WPA” and “AES”. 7 Move the cursor to and double click the mouseClick “Property” double click Wireless Networks select “WPA” and “AES”. 2. Change your TCP/IP setups. Tick “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Go back to Internet Protocol (TCP/IP) and double click tick “Obtain an IP address automatically” and “Obtain DNS server address automatically”. 3. After both software and hardware installation, your USB Client connects wireless network automatically. 8 Regulatory Statement Technical Support Universal Scientific Industrial Co., Ltd. Address : 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan Tel : + 886-49-2350876, 2325876 Fax : +886-49-2329561, 2337360 E-mail : [email protected] Technical Support in the US Address : 3590 Peterson Way, Santa Clara, CA 95054, USA Tel : +1-408-986-6589 Fax : +1-408-432-0440 E-mail : [email protected] ; [email protected] 9 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. This equipment has been SAR-evaluated for use in laptops (notebooks) with side slot configuration.

UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LTD. 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C. TEL: +886 49-235-0876 FAX: +886 943-226-744 FCC ID : IXM-USGAT01 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________ Martin Shih / Section Manager UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LTD. Tel: +886 49-235-0876*2332 Fax:+ 886 943-226-744 E-mail: [email protected]

UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LTD. 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C. TEL: +886 49-235-0876 FAX: +886 943-226-744 POWER OF ATTORNEY To whom it may concern: We, the undersigned UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LTD ., hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, __________________________________ Martin Shih / Section Manager UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LTD. Tel: +886 49-235-0876*2332 Fax:+ 886 943-226-744 E-mail: [email protected]

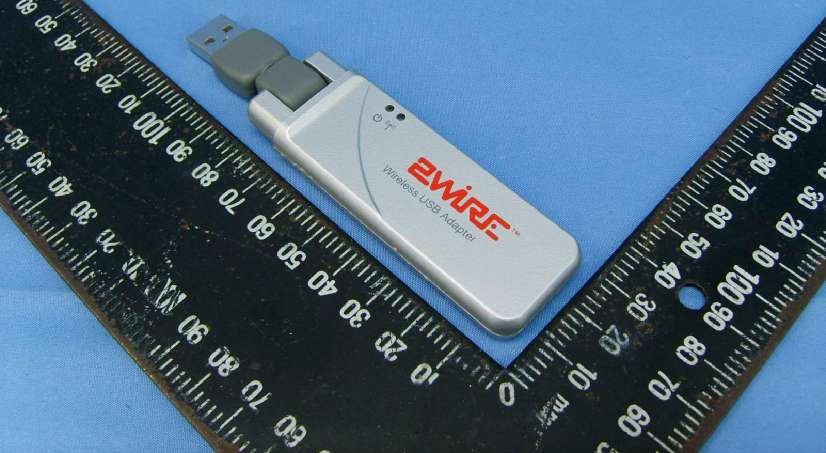

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig.1) FCC ID: IXM-USGAT01 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 3 Page 4 Page 5 Page 6

FCC ID: IXM-USGAT01 Report No. 950510H02 Operational Description This device is a WIRELESS USB ADAPTER, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (WIRELESS USB ADAPTER) is powered from DC 5V from host equipment . The antenna used in this product is Printed antenna without connector. The other instruction, please have a look at the users manual.

Report No.: RF950510H021Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.:RF950510H02 MODEL NO.:US-G-AT-01 RECEIVED:May 12, 2006 TESTED:May 12 to 16, 2006 ISSUED: May 16, 2006 APPLICANT:UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LT D. ADDRESS:141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950510H022Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ................ 8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ............................. 10 3.5DESCRIPTION OF SUPPORT UNITS.........................................................11 3.6CONFIGURATION OF SYSTEM UNDER TEST ......................................... 12 4TEST TYPES AND RESULTS..................................................................... 13 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 13 4.1.2TEST INSTRUMENTS ................................................................................ 13 4.1.3TEST PROCEDURES................................................................................. 14 4.1.4TEST SETUP .............................................................................................. 14 4.1.5EUT OPERATING CONDITIONS................................................................ 15 4.1.6TEST RESULTS.......................................................................................... 16 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS.......................................................................................... 22 4.2.7TEST RESULTS - DSSS............................................................................. 24 4.2.8TEST RESULTS - OFDM ............................................................................ 31 4.36dB BANDWIDTH MEASUREMENT .......................................................... 38 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 38 4.3.2TEST INSTRUMENTS ................................................................................ 38 4.3.3TEST PROCEDURE ................................................................................... 39 4.3.4TEST SETUP .............................................................................................. 39 4.3.5EUT OPERATING CONDITIONS................................................................ 39 4.3.6TEST RESULTS –DSSS ............................................................................. 40 4.3.7TEST RESULTS-OFDM .............................................................................. 43 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 46 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 46 4.4.2TEST INSTRUMENTS ................................................................................ 46 4.4.3TEST PROCEDURES................................................................................. 47 4.4.4TEST SETUP .............................................................................................. 47 Report No.: RF950510H023Report Format Version 2.0.4 4.4.5EUT OPERATING CONDITIONS................................................................ 47 4.4.6TEST RESULTS – DSSS ............................................................................ 48 4.4.7TEST RESULTS –OFDM ............................................................................ 49 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 50 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 50 4.5.2TEST INSTRUMENTS ................................................................................ 50 4.5.3TEST PROCEDURE ................................................................................... 51 4.5.4TEST SETUP .............................................................................................. 51 4.5.5EUT OPERATING CONDITIONS................................................................ 51 4.5.6TEST RESULTS –DSSS ............................................................................. 52 4.5.7TEST RESULTS –OFDM ............................................................................ 55 4.6CONDUCTED EMISSIO…

Text truncated - open the document above for the full version.

Report No.: RF950510H0265Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (WITH USB CRADLE) Report No.: RF950510H0266Report Format Version 2.0.4 RADIATED EMISSION TEST (WITHOUT USB CRADLE) Report No.: RF950510H0267Report Format Version 2.0.4 RADIATED EMISSION TEST (WITH USB CRADLE)
