IXMBM-GP-CS-03Bluetooth Module

All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Class 2 Bluetooth Module BM-GP-CS-03 Data Sheet Mar. 2004 Rev 1.2 Class 2 Bluetooth Module (BM-GP-CS-03) All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. 2 This device is intended only for OEM integrators under the following conditions: The transmitter module may not be co-located with any other transmitter or antenna. As long as conduction above is met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: IXMBM-GP-CS-03”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements. The antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Class 2 Bluetooth Module (BM-GP-CS-03) All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. 3 General Applications and more can be designed using this ready-to-use module as a surface mount component to enable a rapid design cycle and short time-to-market. The SPI (Serial Peripheral Interface) is used only for programming and testing the module. The PCM ports are used to connect to an external CODEC to provide two-way audio communication or to a PCM audio stream to and from the host. The HCI can be a standard four wire UART or a USB interface. Device Terminal Functions PIO The Parallel Input Output (PIO) Port is a general-purpose input/output interface to/from BM-GP-CS-03. The port consists of eight programmable, bi-directional I/O lines, PIO[0:7]. Programmable Input/Output can be accessed either via an embedded application running on BM-GP-CS-03 or via private channel or manufacturer-specific HCI commands. PIO[0] / RXEN This is a multifunction terminal. Its function is selected by setting the Persistent Store Key PSKEY_TX/RX_PIO_CONTROL (0x209). It can be used as a programmable I/O, however it will normally be used to control the radio front-end receive switch. PIO[1] / TX This is a multifunction terminal. Its function is selected by setting the Persistent Store Key PSKEY_TX/RX_PIO_CONTROL (0x209). It can be used as a programmable I/O, however it will normally be • Laptop and Desktop PCs • Mobile Phones • Cordless Headsets • Personal Digital Assistants (PDAs) • Computer Accessories (USB Dongles) • Mice, Keyboards and Joysticks • Digital Cameras and Camcorders • Domestic and Industrial Appliances • FAX • Printers • Scanners Class 2 Bluetooth Module (BM-GP-CS-03) All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. 4 used to control the radio front end transmit switch. Refer to CSR documentation for BlueCore2-External software. PIO[2] / USB_PULL_UP This is a multifunction terminal. On UART versions of BM-GP-CS-03 this terminal is a programmable I/O. On USB versions, its function is selected by setting the Persistent Store Key PSKEY_USB_PIO_WAKEUP (0x2cf) either as a programmable I/O or …

Text truncated - open the document above for the full version.

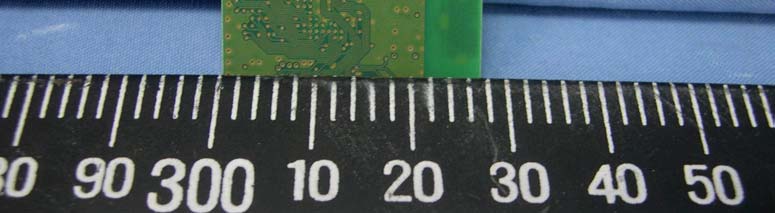

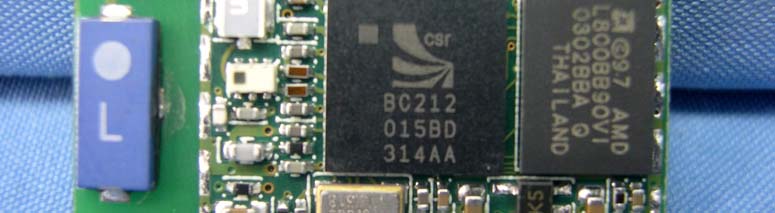

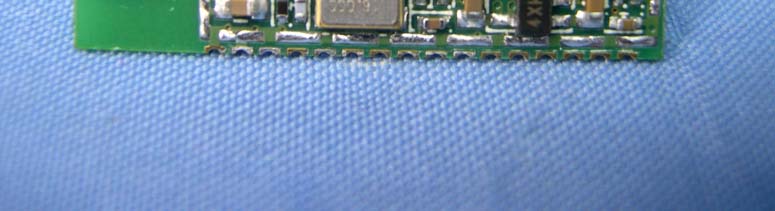

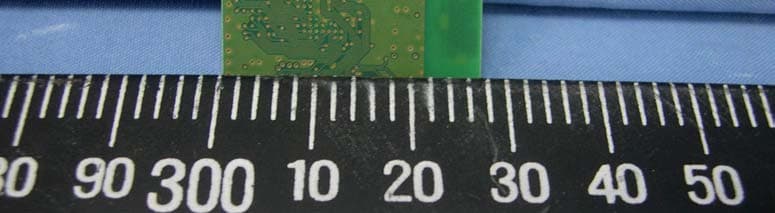

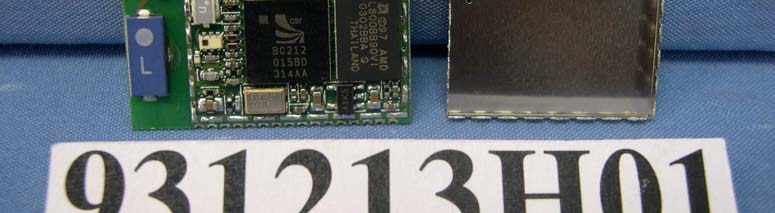

FCC ID: IXMBM-GP-CS-03 Report No. RF931213H01 Modular Approval Request Letter Advance Data Technology Jan. 13, 2005 Dear Application Examiner, UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LTD.’s Bluetooth Module, FCC ID: IXMBM-GP-CS-03, would like to have your authorization as a modular approval specific to the Notebook Computer, Access Point..etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BC212015BDN. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The UART/USB/SPI/PCM interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is XC6204B182MR. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: IXMBM-GP-CS-03 Report No. RF931213H01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

(Fig. 1) FCC ID:IXMBM-GP-CS-03 LABEL LOCATION Label

1 2 3 4 5 A A B B C C D D E E F F △ 6 SOURCE ORGANIZATION △ 5 TITLE: LBL MODULE,CD128B,20.5*13MM,WACOM,REV:1 TAIWAN / COM △ 4 MODEL NO DWG NO 2B-008249 △ 3 DESIGNER DATESCALE: 6/1 UNIT: mm △ 2 Edmond Hsieh 12/28”04 USI P/N SHEETREV △ 1 Initial Release 12/28“04 APP BY DATE G NO DESCRIPTION DATE Unless otherwise Tolerance specified +/- 0.05 Daniel Hsu 12/28”04 59-455037-00 1 A1 G 1 2 3 4 5 Note: 1.Material(材質) : BradyB497，USI PN:59-513419-00。 2.Color(顏色):White paper;Black text。(白底 ; 黑字) 3.Thickness（厚度）: 0.05 ±0.003mm 4.All text must be readable(所有文字必須可辨識)。 5.Barcode format(條碼格式):Code 128B，Expansion:1，Ratio:1/3，Height:2.5mm 6.Barcode (條碼內容):the same with 12 codes of MAC(與MAC同，12碼MAC) 7.YYWW(製造週別)-YY:Year，WW:Week 8.MAC:12 codes of BD Address 9.Ink(建議碳帶):Sony 4070，B110C 10.Font(字型):Arial SCALE 1:1 20.5 13 Note.7 Note.5、6 Note.8

Page 2 Page 3 Page 4

FCC ID: IXMBM-GP-CS-03 Report No.: 931213H01 Operational Description This device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Ceramic antenna without connector. The EUT is a Bluetooth Module. Bluetooth is a short-range wireless technology operating in the 2.4 GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the users manual.

FCC ID: IXMBM-GP-CS-03 ADT No.: SA931213H01 1 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) LowF(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.4022.4802.44124.62 Maximum measured transmitter power: Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 1.24202.242 Threshold for no SAR evaluation is 24.62 mW Maximum TX Power is 1.242 mW Conducted and 2.242 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

FCC ID: IXMBM-GP-CS-03 Report No.: RF931213H011Issued: Dec. 22, 2004 FCC TEST REPORT REPORT NO.:RF931213H01 MODEL NO.:BM-GP-CS-03 RECEIVED:Dec. 12, 2004 TESTED:Dec. 12 to 20, 2004 APPLICANT:UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LTD. ADDRESS:141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 54 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536No. 2177-01 ILAC MRA FCC ID: IXMBM-GP-CS-03 Report No.: RF931213H012Issued: Dec. 22, 2004 TABLE OF CONTENTS 1CERTIFICATION......................................................................................................4 2SUMMARY OF TEST RESULTS..............................................................................5 3GENERAL INFORMATION ......................................................................................6 3.1GENERAL DESCRIPTION OF EUT.........................................................................6 3.2DESCRIPTION OF TEST MODES...........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................7 3.4DESCRIPTION OF SUPPORT UNITS .....................................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST......................................................8 4TEST PROCEDURES AND RESULTS ....................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ...........................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................ 9 4.1.2TEST INSTRUMENTS ............................................................................................ 9 4.1.3TEST PROCEDURES............................................................................................10 4.1.4DEVIATION FROM TEST STANDARD ..................................................................10 4.1.5TEST SETUP.........................................................................................................11 4.1.6EUT OPERATING CONDITIONS...........................................................................11 4.1.7TEST RESULTS ....................................................................................................12 4.2NUMBER OF HOPPING FREQUENCY USED ......................................................14 4.2.1LIMIT OF HOPPING FREQUENCY USED ............................................................14 4.2.2TEST INSTRUMENTS ...........................................................................................14 4.2.3TEST PROCEDURES............................................................................................15 4.2.4DEVIATION FROM TEST STANDARD ..................................................................15 4.2.5TEST SETUP.........................................................................................................16 4.2.6TEST RESULTS ....................................................................................................16 4.3DWELL TIME ON EACH CHANNEL ......................................................................18 4.3.1LIMIT OF DWELL TIME USED ..............................................................................18 4.3.2TEST INSTRUMENTS ...........................................................................................18 4.3.3TEST PROCEDURES............................................................................................19 4.3.4DEVIATION FROM TEST STANDARD ..................................................................19 4.3.5TEST SETUP.........................................................................................................19 4.3.6TEST RESULTS ....................................................................................................20 4.4CHANNEL BANDWIDTH .......................................................................................24 4.4.1LIMITS OF CHANNEL BANDWIDTH .....................................................................24 4.4.2TEST INSTRUMENTS ...........................................................................................24 4.4.3TEST PROCEDURE..............................................................................................25 4.4.4DEVIATION FROM TEST STANDARD ..................................................................25 4.4.5TEST SETUP.........................................................................................................25 4.4.6EUT OPERATING CONDITION .............................................................................25 FCC ID: IXMBM-GP-CS-03 Report No.: RF931213H013Issued: Dec. 22, 2004 4.4.7TEST RESULTS ....................................................................................................26 4.5HOPPING CHANNEL SEPARATION .....................................................................29 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION .....................................................29 4.5.2TEST INSTRUMENTS ...........................................................................................29 4.5.3TEST PROCEDURES............................................................................................30 4.5.4DEVIATION FROM TEST STANDARD ..................................................................30 4.5.5TEST SETUP...................................................................…

Text truncated - open the document above for the full version.

FCC ID: IXMBM-GP-CS-03 Report No.: RF931213H0152Issued: Dec. 22, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: IXMBM-GP-CS-03 Report No.: RF931213H0153Issued: Dec. 22, 2004 RADIATED EMISSION TEST
