IXMBMGPCS08ABLUETOOTH 2.0+EDR USB MODULE

All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. Data Sheet March 2006 Rev 1.0 Bluetooth 2.0+EDR USB module (BM-GP-CS-08A) Introduction The Bluetooth Class 2 Module (model number BM-GP-CS-08A) is a small module with 10- way connector that provides a complete 2.4GHz Bluetooth system. This ready-to-use Class2 Bluetooth module provides a fully compliant Bluetooth system V2.0+EDR for data and audio communications. This module also provides the coexistence solution that is critical for Notebook implementation. The coexistence solution includes AFH, and Activity Signaling (CSR coexistence solution), WCS (Wireless Coexistence Solution). AFH and Activity Signaling is the default setting. This module is provided with Toshiba PC stack for Windows XP. The module is ideally for Notebook PC, Table PC and UMPC. www.usi.com.tw Features
Fully Qualified Bluetooth v2.0 system
Enhanced Data Rate(EDR) compliant for both 2Mbps & 3Mbps modulation modes
With small size suitable for compact system integration. Low power consumption, extend the battery life.
Support for 802.11b/g Coexistence including Intel WCS (Wireless Coexistence System) (Optional).
Integrated Printed Antenna
On board 8 Mbits flash memory for firmware upgrade 格 格格 格式化 式化式化 式化: :: : 項目符號及編號 格 格格 格式化 式化式化 式化: :: : 項目符號及編號 Bluetooth USB Module (BM-GP-CS-08A) All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. 1 General Description Features Description Standards Fully compliant with Bluetooth TM 2.0+EDR Standard Frequency Band 2.402GHz ~ 2.480GHz Sensitivity -82 dBm Output Power 4 dBm max with power control (Maximum Power measurement is from chip set) Integrated Antenna Type A: Average gain: -2.95dbi @2.45GHz (max) Type B: Average gain: -4.4dbi @2.45GHz (max) Coverage 10m ~20m (Varies depending on operating environment) Temperature Operating temperature: 0 °C to +70 °C Storage temperature: -40 °C to +85 °C Operating Voltage 3.3V DC +/- 10% Power Consumption Peak RF current during TX burst: 65 mA Peak RF current during RX burst: 47 mA Data Rate Asynchronous:723.2kbps/57.6kbps Synchronous:433.9kbps/433.9kbps Interface JST SM10B-SRSS-TB connector Dimensions Length: 36.0 mm, Width: 13.8 mm, Height: 3.8 mm Weight 2.0 grams +/- 15% Electrical Connector Pinout Figure 1: Connector pin assignment Pin Number Pin Name Description 1 GND Ground 2 USB_D+ USB D+ 3 USB_D- USB D- 4 BT_Active BT_Active output to WLAN for Co-Existence. 5 BT_Priority / Ch_Clk BT Priority and Channel Clock for WCS. (Only available when WCS is enabled.) 6 HW_RADIO_DIS# (Optional) Disable radio transmissions when low 7 WLAN_Active / Ch_Data WLAN_Active input from WLAN for Activity Signalling. Or Channel Data for WCS (Only available when WCS is enabled). 8 +3.3V 3.3V power input 9 LED LED indicator for radio activity. (Not available when WCS is enabled) 10 GND Ground Table 2: Connector pin assignment Bluetooth USB Module (BM-GP-CS-08A) All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. 2 Block Diagram Figure 2: Module Block Diagram Electrical Characteristics Absolute Maximum Ratings Rating Min Max Storage Temperature -40 °C +85 °C Supply Voltage: VDD -0.40V +3.60V Recommended Operating Conditions Operating Condition Min Max Operating Temperature Range* 0 °C +70 °C Supply Voltage: VDD +3.0V +3.60V Bluetooth USB Module (BM-GP-CS-08A) All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. 3 Input/Output Terminal Characteristics Digital Terminals Min Typ Max Unit Input Voltage VIL input logic level low (VDD=3.0V) -0.4 +0.8 V VIH input logic level high 0.7VDD - VDD+0.4 V Output Voltage VOL output logic level low, (l O = 4.0mA), VDD=3.0V - - 0.2 V VOH output logic level high, (l O = -4.0mA), VDD=3.0V VDD-0.2 - - V USB Terminals Min Typ Max Unit Input threshold VIL input logic level low - - 0.3VDD V VIH input logic level high 0.7VDD - - V Input leakage current VSS < VIN< VDD -1 1 5 μA CI Input capacitance 2.5 - 10 pF Output levels to correctly terminated USB Cable VOL output logic level low 0 - 0.2 V VOH output logic level high 2.8 - VDD V Average Current Consumption VDD=3.3V Temperature = 20°C Mode Typ Unit ACL data transfer 1Mbps USB (Slave) 50 mA ACL data transfer 1Mbps USB (Master) 58 mA Standby Mode (Connected to host, no RF activity) 10 mA Deep Sleep 380 uA Peak Current Consumption VDD=3.3V Temperature = 20°C Mode Typ Unit Peak RF current during TX burst (+4 dBm , CW mode) 55.0 mA Peak RF current during TX burst (0 dBm , CW mode) 52.0 mA Peak RF current during RX burst (-82 dBm) 44.0 mA Bluetooth USB Module (BM-GP-CS-08A) All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. 4 Radio Characteristics Radio Characteristics, VDD = 3.3V Temperature = +20°C Receiver Frequency (GHz) Min Typ Max Bluetooth Specification Unit 2.402 - -82 -78 dBm 2.441 - -84 -80 dBm Sensitivity at 0.1% BER 2.480 - -84 -80 ≤−70 dBm 2.402 0 - - dBm 2.441 0 - - dBm Maximum received signal at 0.1% BER 2.480 0 - - ≥-20 dBm Transmitter Frequency (GHz) Min Typ Max Bluetooth Specification Unit 2.402 -3 4 - dBm 2.441 -3 4 - dBm RF transmit power 2.480 -3 4 - -6 to +4 (4) dBm 2.402 - 10 35 kHz 2.441 - 10 35 kHz Initial carrier frequency tolerance 2.480 - 10 35 75 kHz RF power control range 25 35 - ≥16 dB 20dB bandwidth for modulated carrier - 820 1000 ≤1000 kHz Drift ( five slot packet) - ±15 ±25 ±25 kHz Drift Rate - ±250 ±400 ±400 Hz/μs Frequency (GHz) Min Typ Max Bluetooth Specification Unit 2.402 140 165 175 kHz 2.441 140 165 175 kHz ∆f1avg “Maximum Modulation” 2.480 140 165 175 140≤f1avg≤175 kHz 2.402 115 140 - kHz 2.441 115 140 - kHz ∆f2max “Minimum Modulation” 2.480 115 140 - ≥115 kHz Notes: Results shown are referenced to input of the RF Balanced-Filter…

Text truncated - open the document above for the full version.

141, Lane 351, Taiping Road, Sec. 1, Tsao Tue, Nan-Tou, Taiwan Tel: +886-49-2350-876; Fax: +886-49-3226-744 Date: October 11, 2007 Request for Modular Approval FCC ID: IXMBMGPCS08A Item Requirements EUT 1 The modular transmitter must have its own RF shielding. The radio portion of this module has been shielded, please see exhibition external photo. 2 The modular transmitter must have buffered modulation / data inputs. The EUT has buffer modulation / data inputs. 3 The modular transmitter must have its own power supply regulation. The EUT has its own power supply regulation. 4 The modular transmitter must comply with the antenna requirements of the Section 15.203 and 15.204(c). The EUT meets the FCC antenna requirements. The spurious emission, no antenna connector and photo of antennas are shown in the External and Internal photos. 5 The modular transmitter must be tested in a stand-alone configuration. The BT module was tested on demo board without any cover on it. 6 The modular transmitter must be labeled with its own FCC ID number. The BT module will be labeled with its own FCC ID. 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The copy of the instructions will be included in the integration guide. 8 The modular transmitter must comply with any applicable RF exposure requirement. The modular transmitter complies with RF exposure.

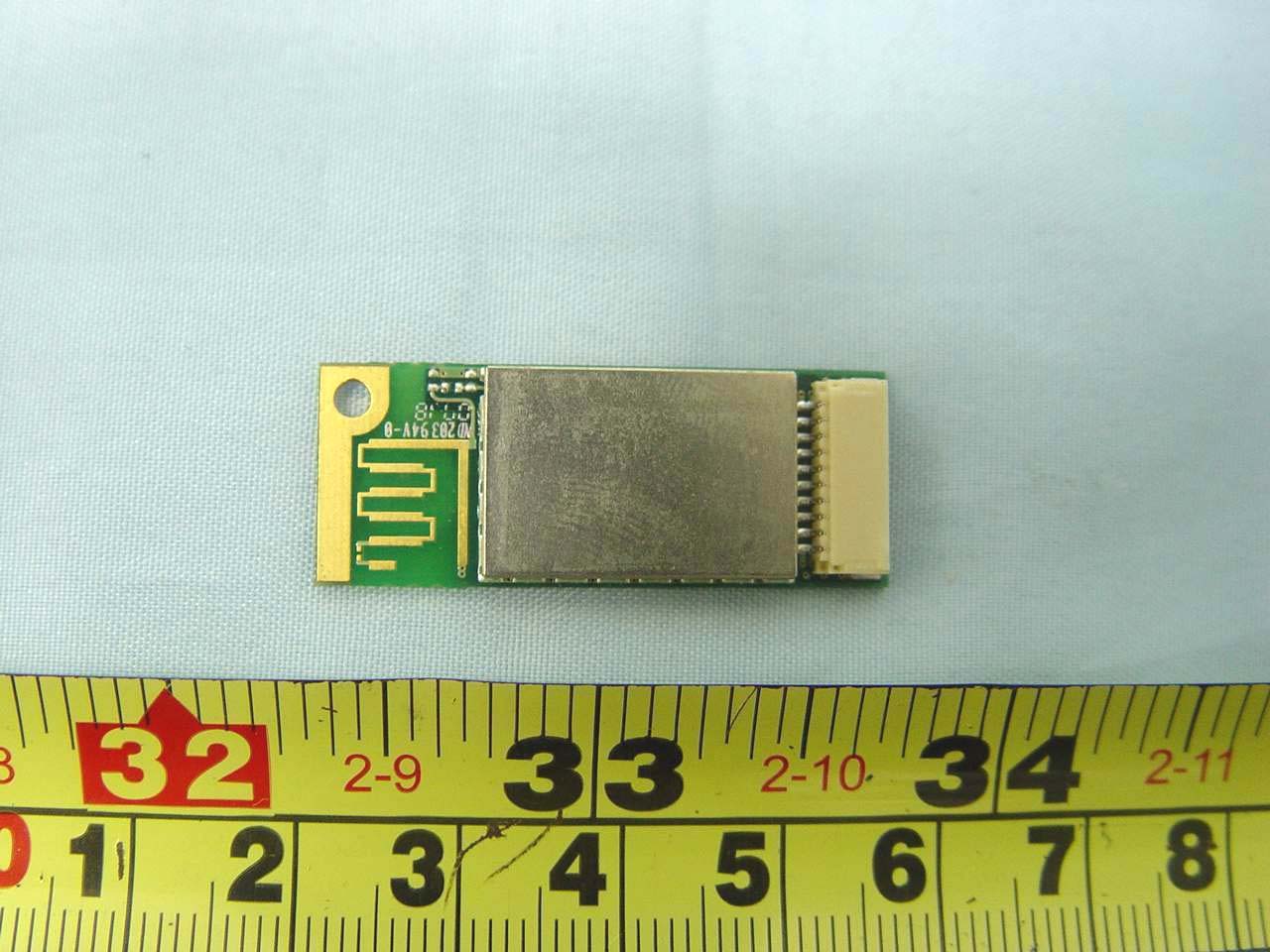

FCC Test Report Report No. : FR7O0313 SPORTON International Inc. Page Number : A1 OF A2 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev.02 FCC ID: IXMBMGPCS08A Appendix A. External Photographs of EUT FCC Test Report Report No. : FR7O0313 SPORTON International Inc. Page Number : A2 OF A2 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev.02 FCC ID: IXMBMGPCS08A

FCC Test Report Report No. : FR7O0313 SPORTON International Inc. Page Number : A1 OF A1 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev.02 FCC ID: IXMBMGPCS08A Label Location

2 △ 6 SOURCE ORGANIZATION △ 5 TITLE: LBL BAG,CD20,POLY,51*13MM,DELL-SIMILAR China / MD △ 4 MODEL NO BLUETOOTH DWG NO 2B-008228 △ 3 DESIGNER DATE SCALE: UNIT: mm △ 2 Add FCC ID 10/18”07 04/16”07 USI P/N SHEET REV △ 1 Initial Release 04/16”07 APP BY DATE NO DESCRIPTION DATE Unless otherwise tolerance Specified: ± 2.0 04/16”07 59-455035-00 1 A2 A B C D E F G A B C D E 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 1 2 3 △ 2 Note: 1. Material( 材質 ):Facestock( 表紙 ):Polyester;USI PN:59-513001-01 2. Color( 顏色 ):White paper;Black texts( 白紙黑字 ) 3. Barcode format( 條碼格式 ):Code 128B 4. Font( 字型 ):Arial 5. Barcode can be scanned clearly.( 條碼必須可清楚掃讀 ) 6. Printing text can be visible clearly.( 文字印刷需清楚可辨 ) Instruction( 設定 ): 1. USI DATE: USI YYWW(YY 为年 ， 2007 为 07 ， WW 为周 ， 50 为周 50) 。 2. P/N 为 USI 成品 P/N ，如： 9701-600173-11 4558-600173-11 3. FCC ID： IXMBMGPCS08A △ 2 4. Mac Adrs XXXXXXXXXXXX(MAC 地址 ，条码为 12 位 MAC 地址 ) 。 5. Barcode content( 條碼內容 ):” CXXXXXXXXXXXXYMDSSSS ”, contents as ( 6 ),but not including dash. 6. C-XXXXXXXXXXXX-YMD-SSSS : C – Country of Origin( 製造地 ):China XXXXXXXXXXXX – USI PN 如 (5)9701-600173-11 ，則為 970160017311 4558-600173-11 ， 則為 455860017311 若遇不滿 12 碼編碼者 ，以前置零補滿到 12 碼為止 YMD – Date Code( 製造日期 ). SSSS – Serial Number, start from 0001 everyday( 流水號 , 每日由 0001 重新計數 。 ) 7. Made in China: Country of Origin( 製造地 ). Y- 如 2003 年 , 表為 3 M- 如 10 月，表为 A 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 A B C D- 如 10 日，表为 A 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 A B C 13 14 15 16 17 18 19 20 21 22 23 24 D E F G H I J K L M N O 25 26 27 28 29 30 31 P Q R S T U V Date Code 設定表 設定表設定表設定表 此处由 TE 另外定义 4 5 6 7

FCC Test Report Report No. : FR7O0313 SPORTON International Inc. Page Number : B1 OF B6 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev.02 FCC ID: IXMBMGPCS08A Appendix B. Internal Photographs of EUT FCC Test Report Report No. : FR7O0313 SPORTON International Inc. Page Number : B2 OF B6 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev.02 FCC ID: IXMBMGPCS08A FCC Test Report Report No. : FR7O0313 SPORTON International Inc. Page Number : B3 OF B6 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev.02 FCC ID: IXMBMGPCS08A FCC Test Report Report No. : FR7O0313 SPORTON International Inc. Page Number : B4 OF B6 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev.02 FCC ID: IXMBMGPCS08A FCC Test Report Report No. : FR7O0313 SPORTON International Inc. Page Number : B5 OF B6 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev.02 FCC ID: IXMBMGPCS08A FCC Test Report Report No. : FR7O0313 SPORTON International Inc. Page Number : B6 OF B6 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev.02 FCC ID: IXMBMGPCS08A

SPORTON International Inc. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Report Version: Rev.02 FCC TEST REPORT Report No. : FR7O0313 FCC TEST REPORT for 47 CFR Part 15 Subpart C Equipment : Bluetooth 2.0+EDR USB Module Trade Name : Universal Scientific Industrial Co., Ltd. Model No. : BM-GP-CS-08A FCC ID : IXMBMGPCS08A Filing Type : Certification Applicant : Universal Scientific Industrial Co., Ltd. 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou ,Taiwan ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Oct. 09, 2007 at Sporton International Inc. LAB. ‚ Report No.: FR7O0313, Report Version: Rev.02 Jones Tsai Manager SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev.02 FCC ID : IXMBMGPCS08A FCC TEST REPORT Report No. : FR7O0313 Table of Contents History of this test report .....................................................................................................................................................ii 1. General Description of Equipment under Test...............................................................................................................1 1.1 Applicant.................................................................................................................................................................1 1.2 Manufacturer ..........................................................................................................................................................1 1.3 Basic Description of Equipment under Test............................................................................................................1 1.4 Feature of Equipment under Test ...........................................................................................................................1 2. Test Configuration of Equipment under Test .................................................................................................................2 2.1 Test Manner...........................................................................................................................................................2 2.2 Test Mode...............................................................................................................................................................2 2.3 Ancillary Equipment List .........................................................................................................................................3 2.4 Connection Diagram of Test System ......................................................................................................................3 3. RF Utility ............................................................................................................................................................................4 4. General Information of Test .............................................................................................................................................5 4.1 Test Voltage...........................................................................................................................................................5 4.2 Standard for Methods of Measurement ..................................................................................................................5 4.3 Test Compliance.....................................................................................................................................................5 4.4 Frequency Range................................................................................................................ ...................................5 4.5 Test Distance..........................................................................................................................................................5 5. Test Data and Test Result ................................................................................................................................................6 5.1 List of Measurements and Examinations ................................................................................................................6 5.2 Band Edges Measurement .....................................................................................................................................7 5.3 Hopping Channel Separation................................................................................................................................16 5.4 Number of Hopping Frequency.............................................................................................................................27 5.5 Hopping Channel Bandwidth ................................................................................................................................32 5.6 Dwell Time of Each Frequency.............................................................................................................................43 5.7 Peak Output Power Measurement........................................................................................................................63 5.8 Radiated Emission Measurement .........................................................................................................................74 5.9 Antenna Requirements .........................................................................................................................................96 6. List of Measuring Equipments Used…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR7O0313 SPORTON International Inc. Page No. : C1 of C1 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2007 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IXMBMGPCS08A Radiation Emission Mode 1~3, 6 and 9 FRONT VIEW REAR VIEW Appendix C. Photographs of Setup
