IXMMPGBR05802.11b/g Mini-PCI Module

All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. MP-G-BR-05 802.11G WIRELESS LAN MINI PCIADAPTER Data Sheet Nov. 2004 Rev 1.6 www.usi.com.tw Features • Automatic fallback: 54 Mbit/s, 48 Mbit/s, 36 Mbit/s, 24 Mbit/s, 18 Mbit/s, 12 Mbit/s, 11 Mbit/s, 9 Mbit/s, 6 Mbit/s, 5.5 Mbits/s, 2 Mbits/s, or 1 Mbit/s . • Advanced silicon breakthrough single chip solution with Encore technology in this product which gain the advantage to better resistance to multipath; improve Rx sensitivity by enhanced DSP processing and adaptive equalization algorithms. • Feature with Afterburner technology for this 54g platform, Products with this new technology provide up to 40 percent greater throughput than typical standard 802.11g systems without impacting the performance of neighboring wireless LANs. • Low power consumption & Automatic power management to reduce battery use. • Easy integration into mobile and hand-held platforms. It’s flexible for design and antenna placement. • External antenna diversity. • Support AES-CCM, WPA (SSN-TKIP), and WEP (64-bit/128-bit or 152-bit). • Corresponding to IEEE 802.11b/gspecification. • Interoperable with other IEEE 802.11a/b/gcompliant systems. • Conformable to industry-standard Mini-PCI Card Type III-B specification. • Support Windows 98SE/ME/2K/XP,Linux, Introduction The Mini-PCI Adapter type-III B is a high-speed 54 Mbits/s wireless networking card providing a multimode 802.11 b/g or 11g mode only connectivity for enterprise and home wireless LAN access. The Mini-PCI Card uses direct sequence spread spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM) technology, and implements DBPSK, DQPSK, and CCK, OFDM modulation, as defined in the IEEE® 802.11b, g. This gives a very robust radio channel, which is made even better by the excellent receiver sensitivity and delay spread robustness. In environments with radio interference, the Mini-PCI Card, because of its acknowledgment protocol and its option to be tuned to another frequency channel, continues to run. Superior echo path management makes it suitable for areas with a large delay spread, for example, warehouses. This reduces the number of cells required and, therefore, reduces the total cost of ownership. A firmware-based architecture is capable of supporting the latest industry standards in the security and quality of service (QoS), as the draft 802.11i and 802.11e standards, respectively. The Mini-PCI Card is complemented by drivers and networking tools for various versions of the Windows ® operating system. USI provides extensive technical documentation on integration issues such as antenna design, customizing drivers, and management software. 802.11 b/g Wireless LAN Mini-PCI Adapter All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. Physical Dimension/Packaging The Mini-PCI Card has been designed to conform to the Mini-PCI specification, as defined in Mini-PCI Specification Rev 0.1. All dimensions in this section have a tolerance as permitted in the Mini-PCI Specification. Dimension: 59.8 mm x 44.8 mm x 5.0 mm Weight: Less than 25 g Package: Bulk in 200 pcs. Figure 1. Mini-PCI Type III-B dimension Mechanically unique coaxial connectors for two external antennas. Operating Conditions Operating Temperature 0° to 70° Celsius Operating Humidity 90% (non-condensing) Storage Temperature -20°C to +75°C ambient temperature Storage Humidity 95% (non-condensing) Voltage and Current The MP-G-BR-05 will comply with the following features and standards Voltage 3.3 VDC from host (+/-0.2V) Current 802.11g (Typ.) Transmit <450mA Receive <350mA Stand By <50mA Wireless Specification The MP-G-BR-05 will comply with the following features and standards: Features Description WLAN Standards IEEE 802 Part 11b/g 802.11 b/g Wireless LAN Mini-PCI Adapter All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. Antenna Connector Hirose connector supported with diversity Data Rates 1, 2, 5.5, 11 Mbps for 802.11b 6, 9, 12, 18, 24, 36, 48, 54 Mbps for 802.11g and 125Mbps for AfterBunrer Medium Access Protocol CSMA/CA (Collision Avoidance) with ACK RF specification Features Description Frequency Band 2.412 – 2.497 GHz (2.4 GHz ISM Band) Number of Channels 14 Channels Modulation DBPSK, DQPSK, CCK DSSS for 802.11b & g DPSK, QPSK, 16QAM, 64QAM OFDM for 802.11 g Supported Rates 1, 2, 5.5, 11 Mbps for 802.11b 6, 9, 12, 18, 24, 36, 48, 54 Mbps for 802.11g Maximum Receive Level -20dBm (with PER< 10%) for 802.11g Antenna External (Hirose U-F-L) Max. Output Power 19 dBm for 11b 15 dBm for 11g Note: Actual output power may vary based on manufacturing process variations 802.11g Receive Sensitivity Data Rates Receive Sensitivity 54 Mbps -72 dBm (typ) 11 Mbps -87dBm (typ.) 6 Mbps -88 dBm (typ.) 1 Mbps -95 dBm (typ.) Note: Actual receive sensitivity for individual products may vary based on manufacturing process and environmental variations Antenna Specifications The Mini-PCI adapter is available in two variants: unique coax connectors with diversity function. On-Board Diversity Switch This variant of the Mini-PCI Card has connectors for two external passive antennas: MAIN and AUX. One of the antennas is used for transmission, and the DSP selects which of the two to use for reception, based on signal strength. 802.11 b/g Wireless LAN Mini-PCI Adapter All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI. The coax connectors for the antennas are mechanically unique, so that no off-the-shelf connector will fit (FCC requirement). Switch electronics for selection between the two antennas for reception of the stronger receive signal is provided onboard. Security At the physical layer, transmissions are encrypted using WEP; three levels of encryption are possible： • 40-bit…

Text truncated - open the document above for the full version.

Mike Kuo From: [email protected] Sent: Wednesday, May 04, 2005 1:01 AM To: Mike Kuo Cc: [email protected] Subject: FW: Universal Scientific Industrial Co., Ltd. , FCC ID: IXMMMPGBR05 , Assessment NO.: AN05T4751, Notice#1--Updated(0504) Attachments: MP-G-BR-05_Operational Description(0504).pdf; MP-G-BR-05_Report_FRF (0504).pdf; MP-G-BR-05_Confidentiality Letter.pdf; MP-G-BR-05_Modular Approval.pdf 5/12/2005 Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 x: 105 Fax: (408)463-0888 http://www.ccsemc.com -----Original Message----- "Mike Kuo" <[email protected]> 2005/04/29 06:55 <[email protected]> <[email protected]> From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, April 28, 2005 9:03 AM To: Mike Kuo Cc: [email protected] Subject: Universal Scientific Industrial Co., Ltd. , FCC ID: IXMMMPGBR05 , Assessment NO.: AN05T4751, Notice#1 Hi Mike, This is a 802.11g mini PCI card submitted by HsinChu Lab and the questions are as below. Question#1: Please submit test report, confirm the FCC ID number. TCB application listed as IXMMMPGBR05, label indicates IXMMPGBR05. Ans:Sorry for the confused.The coreect FCC ID number as: IXMMPGBR05 Please also find the attached for updated:MP-G-BR-05_Report(FRF)0504. Question#2: Please submit modular request letter to demonstrate the compliance of DA 00-1407PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL requirement. Ans:Please find the attached for updated:MP-G-BR-05_Modular Approval letter. Question#3: Theory of operation indicated this device is capable of operating from 2400 to 2497MHz which doesn't agree with the user manual. Please explain. Ans:Sorry for confused you.Our client has remarked that"Channels 1-11(US, Taiwan)" Please also find the attached for updated:MP-G-BR-05_Operational Description(0504). Question#4: Theory of operation indicated an integral antenna with the highest antenna gain 3.24dBi is used in this device. But according to the submitted antenna specification, test setup/external photos that two dipole antennas: 1.8dBi and 5dBi are applied. So please clarify and make the proper correction. Ans:Sorry for confused you.The antenna applied for 1.8dBi and 5dBi are corect. Please also find the attached for updated:MP-G-BR-05_Operational Description(0504). Question#5: Theory of operation indicated the average conducted output power for 802.11b and g are 17.5dBm and 15dBm which are different from the user manual: 19dBm for 802.11b and 15dBm for 802.11g. Please explain. Ans:Sorry for confused you.Please also find the attached for updated:MP-G-BR-05_Operational Description(0504). Other question may be arose after test report is received. Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 5/12/2005

Compliance Certification Services Inc. Report No.：50331303 Page 1 of 7 External Photo Compliance Certification Services Inc. Report No.：50331303 Page 2 of 7 Compliance Certification Services Inc. Report No.：50331303 Page 3 of 7 Compliance Certification Services Inc. Report No.：50331303 Page 4 of 7

Label Format “Contains Transmitter Module FCC ID: IXMMPGBR05” or “Contains FCC ID: IXMMPGBR05”.

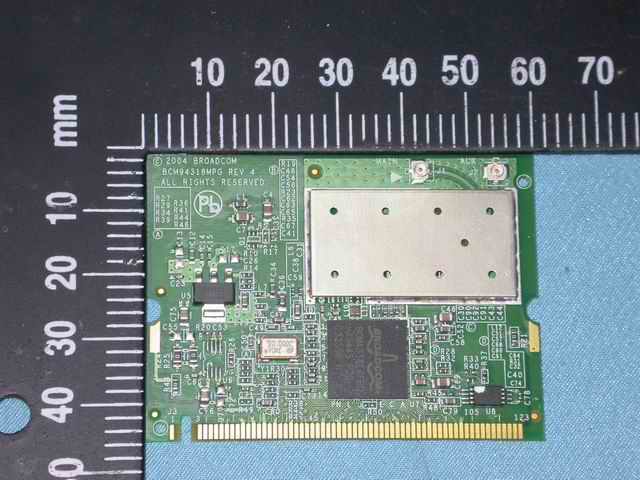

Compliance Certification Services Inc. Report No.：50331303 Page 5 of 7 Internal Photo Compliance Certification Services Inc. Report No.：50331303 Page 6 of 7 Compliance Certification Services Inc. Report No.：50331303 Page 7 of 7

!Compliance Certification Services Inc.!FCC ID : IXMMPGBR05! Report No.Κ50331303-RP2 Page 1 of 71 ! ! ! FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless mini pci card Model : MP-G-BR-05 Brand Name : USI Issued for Universal Scientific Industrial Co., Ltd. 135, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-8012 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. !Compliance Certification Services Inc.!FCC ID : IXMMPGBR05! Report No.Κ50331303-RP2 Page 2 of 71 ! ! ! Test Report Certification Applicant Κ Universal Scientific Industrial Co., Ltd. Address Κ 135, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C . Equipment Under Test Κ Wireless mini pci card Brand Name Κ USI Model Κ MP-G-BR-05 Tested Date Κ April 01 ~ 16, 2005 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C (2004) No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. !Compliance Certification Services Inc.!FCC ID : IXMMPGBR05! Report No.Κ50331303-RP2 Page 3 of 71 ! ! ! TABLE OF CONTENTS TITLE PAGE NO. 1. EUT DESCRIPTION.................................................................................................................. 4 1.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 2. TEST METHODOLOGY............................................................................................................5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................... 6 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 6 4.2 MEASUREMENT UNCERTAINTY....................................................................................... 6 5. SETUP OF EQUIPMENT UNDER TEST................................................................................ 7 6. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 9 6.1 6dB BANDWIDTH ................................................................................................................ 9-14 6.2 99% BANDWIDTH ............................................................................................................... 15-2 6.3 MAXIMUM PEAK OUTPUT POWER ................................................................................. 21-26 6.4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 27-28 6.5 AVERAGE POWER............................................................................................................... 29 6.6 POWER SPECTRAL DENSITY ............................................................................................ 30-35 6.7 CONDUCTED SPURIOUS EMISSION................................................................................ 36-42 6.8 RADIATED EMISSIONS ...................................................................................................... 43 6.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ................................................ 43-46 6.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ................................................ 47 6.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz............................................... 48-59 6.8.4 BAND EDGE................................................................................................................... 60-61 6.9 POWERLINE CONDUCTED EMISSIONS .......................................................................... 62-67 7. SETUP PHOTOS ........................................................................................................................ 68-70 8. ANTENNA REQUIREMENT .................................................................................................... 71 8.1 STANDARD APPLICABLE................................................................................................... 71 8.2 ANTENNA CONNECTED CONSTRUCTION ...................................................................... 71 !Compliance Certification Services Inc.!FCC ID : IXMMPGBR05! Report No.Κ50331303-RP2 Page 4 of 71 ! ! ! 1. EUT DESCRIPTION 1.1 DESCRIPTION OF EUT & POWER Product Name Wireless mini pci card Model Number MP-G-BR-05 ϬIEEE 802.11b/g ISM Band Operating Frequency 2.412GHz ~ 2.462GHz (CH1 ~ CH11) Frequency Channel 2412MHz + 5×n (MHz), nЈ0, 1, 2,......10 Channel Number 11 Channel Spacing 5MHz Air Data Rate 11Mbps(802.11b Mode), 54Mbps(802.11g Mode) ϬIEEE 802.11b (DSSS) : 5.5/11 Mbps (CCK) , 2 Mbps (DQPSK), 1 Mbps (DBPSK) ϬIEEE 802.11g (OFDM / DSSS) : 48/54 Mbps (QAM-64), 24/36 Mbps (QAM-16), 12/18 Mbps (QPSK) , 6/9 Mbps (BPSK) , 5.5/11 Mbps (CCK) , 2 Mbps (DQPSK) , 1 Mbps Type of Modulation (DBPSK) Frequency Selection by software / firmware Transmitter Classification Mobile device 2.4GHz (Direct Sequence Spread Spectrum and Orthogonal Frequency Division Multiplex) EUT Description Data Transceiver for WLAN application Antenna Type 1/2O Dipole Antenna Antenna Cable : 15±2cm, Cable lose :1.1dB Connector type: MHF connector Antenna (1) Antenna Gain : Main 5dBi, Aux 5dBi (2…

Text truncated - open the document above for the full version.

!Compliance Certification Services Inc.!FCC ID : IXMMPGBR05! Report No.Κ50331303-RP2 Page 67 of 70 ! ! ! 7. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP ! !Compliance Certification Services Inc.!FCC ID : IXMMPGBR05! Report No.Κ50331303-RP2 Page 68 of 70 ! ! ! !Compliance Certification Services Inc.!FCC ID : IXMMPGBR05! Report No.Κ50331303-RP2 Page 69 of 70 ! ! ! ! POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
