IXMPCBAG2345802.11b Wireless LAN PCMICA Card

System Product Contract Mfg Business Division Document No.Rev.1.0 Project No.Cost down pc_card User Manual for PCBAG-02,03,04,05 PC CARD SOURCE ORGANIZATION: USI COM/PDV/HW Prepared by: JinfangDate: May, 6, 2003 Checked by: SunmoonDate: May, 6, 2003 Approved by: Date: Concurrence: Date: Universal Scientific Industrial Corp.. Doc No.Rev1.0 Document released by COM/RD/SZDate.2003/05/6Page 2 Description User manual for PCBAG-02,03,04,05 PC CARD The content of this document is to be treated as strictly confidential and is not to be disclosed, reproduced or used, except as authorized i n writing by Universal Scientific Industrial Co. ,Ltd. Copyright © 2003 Universal Scientific Industrial Co. ,Ltd. Change Sheet Rev.Date Description of changeApproval & Date 1.02003/5/6PageAll Initial Universal Scientific Industrial Corp.. Doc No.Rev1.0 Document released by COM/RD/SZDate.2003/05/6Page 3 Description User manual for PCBAG-02,03,04,05 PC CARD The content of this document is to be treated as strictly confidential and is not to be disclosed, reproduced or used, except as authorized i n writing by Universal Scientific Industrial Co. ,Ltd. Copyright © 2003 Universal Scientific Industrial Co. ,Ltd. USER MANUAL FOR PCBAG-01 PC CARD.........................錯誤! 尚未定義書籤。 1.OVERVIEW............................................................................................................ 4 1.1. SOFTWARE REQUIREMENT.......................................................................... 4 1.2. HARDWARE REQUIREMENT......................................................................... 4 2.INSTALLATION..................................................................................................... 4 3.EXECUTE THE CONFIGURATION PROGRAM............................................. 4 4.CONFIGURATION PROFILES........................................................................... 6 4.1. USING CONFIGURATION PROFILES........................................................... 6 4.2. SELECT PROFILE.............................................................................................. 8 4.3. SET PROFILE PROPERTIES............................................................................ 9 4.4. NETWORK TYPE................................................................................................ 9 4.5. IDENTIFY NETWORK....................................................................................... 9 4.6. SECURITY SETTINGS..................................................................................... 10 4.7. CARD POWER MANAGEMENT.................................................................... 10 4.8. TCP/IP BEHAVIOR........................................................................................... 10 5.BASIC TROUBLESHOOTING........................................................................... 11 5.1. POWER LED ON, LINK LED OFF................................................................. 11 5.2. POWER LED ON, LINK LED FLICKERING............................................... 11 5.2.1.................................................Both LEDs blink once every 10 seconds11 5.3. NO LED ACTIVITY........................................................................................... 12 5.3.1..........................................................................Power LED is Flickering12 5.4. NETWORK PROTOCOL SETTINGS............................................................. 12 5.5. ANOTHER DEVICE DOES NO LONGER WORK....................................... 13 Universal Scientific Industrial Corp.. Doc No.Rev1.0 Document released by COM/RD/SZDate.2003/05/6Page 4 Description User manual for PCBAG-02,03,04,05 PC CARD The content of this document is to be treated as strictly confidential and is not to be disclosed, reproduced or used, except as authorized i n writing by Universal Scientific Industrial Co. ,Ltd. Copyright © 2003 Universal Scientific Industrial Co. ,Ltd. Overview This document is for a user who wants to install PCBAG-02~05 PC CARD in Notebook/PC desk , the user can read the document to configure his wireless PC Card. Software Requirement OS: Windows95,98,2K,NT,XP Software Package: Wireless Client Manager Ver:2.125 NDIS Driver Ver: 12/06/2002,7.81.0.308 Hardware Requirement PCBAG-02~05 PC CARD. PC running in win95,98,2k,NT,XP . Cardbus controller in PC or PCMCIA interface in Notebook Installation z Install the Client Manager Ver2.125 in your host. z Insert PC Card in to the PC Card slot of host PC (Note: connect PC Card to PC Desk via adapter of pcmcia – cardbus) z Install NDIS Driver 7.81.0.308 based on setup guide . Execute the Configuration Program There are two ways to start the configuration program. z After installation NDIS driver, insert the card into PC host, the program will be executed automatically, and display a tray icon Universal Scientific Industrial Corp.. Doc No.Rev1.0 Document released by COM/RD/SZDate.2003/05/6Page 5 Description User manual for PCBAG-02,03,04,05 PC CARD The content of this document is to be treated as strictly confidential and is not to be disclosed, reproduced or used, except as authorized i n writing by Universal Scientific Industrial Co. ,Ltd. Copyright © 2003 Universal Scientific Industrial Co. ,Ltd. z Start the program in the Start->Programs, click the icon “wireless Client Manager” to run the program, after that, popup following dialog in the screen Universal Scientific Industrial Corp.. Doc No.Rev1.0 Document released by COM/RD/SZDate.2003/05/6Page 6 Description User manual for PCBAG-02,03,04,05 PC CARD The content of this document is to be treated as strictly confidential and is not to be disclosed, reproduced or used, except as authorized i n writing by Universal Scientific Industrial Co. ,Ltd. Copyright © 2003 Universal Scientific Industrial Co. ,Ltd. Configuration Profiles z Start the program in the Start->Programs, click the icon “wireless network setting” to run the program, after that, popup following di…

Text truncated - open the document above for the full version.

From: Mike Kuo Sent: Monday, July 07, 2003 4:07 PM To: Will Yauo (E-mail); ETC/Iris (E-mail) Subject: FW: Universal Scientific Industrial Co., Ltd., FCC ID:IXMPCBAG2345, AN03T2886 -----Original Message----- From: CERTADM Sent: Monday, July 07, 2003 4:06 PM To: '[email protected]' Subject: Universal Scientific Industrial Co., Ltd., FCC ID:IXMPCBAG2345, AN03T2886 Notice_content ------------- Question #1: Please provide additional internal photos by removing the metal plate. For your information : MPE test report is not applicable for the device to be used in portable configuration. MPE test report will not be submitted to FCC for review. For your information : Three host evaluation is only required for portable device with 1)conducted or EIRP greater than 100mW or 2) the device subject to routine evaluation per section 2.1093 of FCC rules. If three host evaluation is required, three host evaluation shall only be addressed during SAR evaluation. Per the confirmation from the Commission, three host evaluation is not required for radiated or RF conducted tests. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

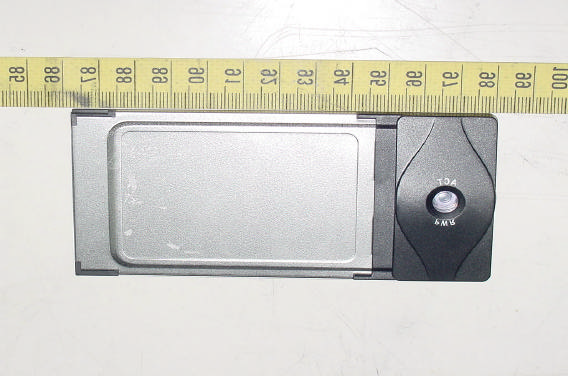

ETC Report No. : ET92R-05-059-01 FCC ID.: IXMPCBAG2345 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT

This statement will be placed in User’s Manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Back LABEL 40 mm 64 mm

ETC Report No. : ET92R-05-059-01 FCC ID.: IXMPCBAG2345 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No. : ET92R-05-059-01 FCC ID.: IXMPCBAG2345 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB

Preliminary: PC Card 802.11b Agere PC-B-AG-03 PC-B-AG-02 PC-B-AG-05 PC-B-AG-04 Description Wireless LAN uses radio frequencies to transmit and receive data between PC’s or other network devices without wires or cables. The applications of wireless LAN include independent networks (suitable for small or temporary peer-to-peer configurations) and infrastructure networks, offering fully distributed data connectivity via micro cells and roaming. Faster data transfers means increased productivity. With the PC-B-AG-02, 03, 04, 05in your Notebook, you can transfer large files quickly, run stream MPEG video smoothly. The performance of this 802.11b wireless PC Card saves your time, money and make your wireless networking experience enjoyable. Features y Automatic data rate fallback under noisy environment y Advanced power management for power saving y Two high-gain antennas provided support diversity switching y One external antenna (Option) y Supports a wide range of operating systems y Interoperable with IEEE 802.11b compliant equipment y Supports full mobility and seamless roaming from cell to cell y Plug-and-play installation and easy client management with utility software y Operating Range - Open environment: Up to 550m(1750ft) - Office environment: Up to100m(318ft) Specifications y General: - Compliant with IEEE 802.11b Standard - Security: WEP 64/128-bit, WPA/TKIP SSN(2003,Q2) y Hardware - RF Range: 2.4 ~ 2.4835 GHz - Data Rate: 11/ 5.5 / 2 / 1 Mbps - Modulation: BPSK for 1 Mbps QPSK for 2 Mbps CCK for 5.5 / 11 Mbps - Number of Channels: Europe - 13, US - 11, France - 4, Japan - 14 - Host Interface: PCMCIA typeII 16 bit - Transmit Power (Typ.): +15 dBm - Receive Sensitivity: -93 dBm for 1 Mbps; -89 dBm for 2 Mbps; -87 dBm for 5.5 Mbps; -83 dBm for 11 Mbps (Typ. 8% PER) - Current Drain (max. @3.3 V dc ): Tx mode: 285 mA; Receive mode: 180 mA , standby mode: 15 mA y Software - Driver Support: Windows 98SE / Me / NT4.0 / 2000 / XP/Linux/VxWORKs - Utility: User setup & diagnostic tool y Mechanical - Two Integrated Antennas - Blue LED for Link/Act. Indication - Input Voltage: 5V dc - Package: PCMCIA type II extended - Dimensions: 118.7 x 54.0 x 7.3mm(PC-B-AG-02, 04); 117.8 x 54.0 x 8.4mm (PC-B-AG-03, 05) - Weight: Less than 75 grams y Environmental - Temperature: 0 ~ +60°C (operating) -15 ~ +85°C (storage) - Relative Humidity: 5%~95% (non-condensing) y Radio Approval U.S., Canada: FCC Part 15C, sections 15.247, 15.205, 15.209; RSS-210 Europe: ETS 300 328 Japan: Telec ARIB SDT T-66(Channel 1-13), D- 33(Channel 14) Notes: 1. Specifications are subject to change without notice. 2. Windows 98SE / Me / NT4.0 / 2000 / XP are the registered trademark of Microsoft.

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 802.11b Wireless LAN PCMCIA Card In Laptop PC FCC ID: IXMPCBAG2345 June 20, 2003 REPORT NO: 03U2098-1 Prepared for Universal Scientific Industrial Co Ltd. 141, Lane 351, Taiping Rd, Sec. 1 Tsao Tuen, Nan-Tou Taiwan Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 03U2098-1 DATE: June 20, 2003 FCC ID: IXMPCBAG2345 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 20 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Date of Tests: June 20, 2003 Report No: 03U2098-1 APPLICANT: Universal Scientific Industrial Co Ltd 141, Lane 351, Taiping Rd, Sec. 1 Tsao Tuen, Nan-Tou Taiwan MODEL: PC-B-AG-02, PC-B-AG-03, PC-B-AG-04, PC-B-AG-05 FCC ID: IXMPCBAG2345 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating mode: Maximum continuous output Tx Frequency: 2412-2462 MHz Max. O/P Power: 13.63 dBm (Conducted) Max. SAR (1g): SAR (mW/g) Host devices 0.230 Toshiba Application Type: Certification FCC Rule Part(s): §15.247 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03U2098-1 DATE: June 20, 2003 FCC ID: IXMPCBAG2345 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 20 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION.........................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC........................5 3. DOSIMETRIC ASSESSMENT SYSTEM.................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM............................................................................................................6 3.2. SYSTEM COMPONENTS.............................................................................................................................7 4. EVALUATION PROCEDURES..............................................................................9 5. MEASUREMENT UNCERTAINTY........................................................................11 6. EXPOSURE LIMIT..........................................................................................12 7. MEASUREMENT RESULTS...............................................................................13 7.1. SYSTEM VALIDATION...............................................................................................................................13 7.2. TEST LIQUID CONFIRMATION...................................................................................................................14 7.3. EUT TUNE-UP PROCEDURES..................................................................................................................14 7.4. EUT SETUP PHOTOS..............................................................................................................................15 7.5. SAR MEASUREMENT RESULTS...............................................................................................................16 8. EUT PHOTOS..............................................................................................17 9. EQUIPMENT LIST & CALIBRATION STATUS........................................................18 10. REFERENCES...............................................................................................19 11. ATTACHMENTS.............................................................................................20 REPORT NO: 03U2098-1 DATE: June 20, 2003 FCC ID: IXMPCBAG2345 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 20 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: Universal Scientific Industrial Co Ltd 141, Lane 351, Taiping Rd, Sec. 1 Tsao Tuen, Nan-Tou Taiwan MODEL: PC-B-AG-02, PC-B-AG-03, PC-B-AG-04, PC-B-AG-05 FCC ID: IXMPCBAG2345 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating mode: Maximum continuous output Tx Frequency: 2412-2462 MHz Max. O/P Power: 13.63 dBm (Conducted) Max. SAR (1g): SAR (mW/g) Host devices 0.230 Toshiba Application Type: Certification FCC Rule Part(s): §15.247 Host Device (s): Manufactured Model Name Serial Number Toshiba PS183U-00KP0X 91617937PU 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Do…

Text truncated - open the document above for the full version.

Date/Time: 06/20/03 10:10:40 Test Laboratory: Compliance Certification Services File Name: D2450V2 SN 706.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Program: System Performance Check at 2450 MHz Ambient Temperature: 25 deg C; Liquid Temperature: 23 deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: Head 2450 MHz (σ = 1.8879 mho/m, ε r = 39.0372, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 27.5 W/kg SAR(1 g) = 13.2 mW/g ; SAR(10 g) = 6.01 mW/g Reference Value = 93.2 V/m Power Drift = 0.02 dB Maximum value of SAR = 14.5 mW/g

Date/Time: 06/20/03 12:15:04 Test Laboratory: Compliance Certification Services File Name: EUT Seup Configuration 1.da4 DUT: Universal; Type: PC-B-AG-02; Serial N/A Program: EUT Setup Configuration 1_1Mbps Ambient Temperature: 25 deg C; Liquid Temperature: 23 deg C Communication System: DSSS; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.9833 mho/m, ε r = 51.4104, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 L-CH_Sep:11.2mm, Rate:1Mbps=0.201mW/Area Scan (10x7x1): Measurement grid: dx=15mm, dy=15mm L-CH_Sep:11.2mm, Rate:1Mbps=0.201mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.42 W/kg SAR(1 g) = 0.201 mW/g ; SAR(10 g) = 0.106 mW/g Reference Value = 7.98 V/m Power Drift = -0.04 dB Maximum value of SAR = 0.209 mW/g Date/Time: 06/20/03 12:39:02 Test Laboratory: Compliance Certification Services File Name: EUT Seup Configuration 1.da4 DUT: Universal; Type: PC-B-AG-02; Serial N/A Program: EUT Setup Configuration 1_1Mbps Ambient Temperature: 25 deg C; Liquid Temperature: 23 deg C Communication System: DSSS; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.9833 mho/m, ε r = 51.4104, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 M-CH_Sep:11.2mm, Rate:1Mbps=0.23mW/Area Scan (10x7x1): Measurement grid: dx=15mm, dy=15mm M-CH_Sep:11.2mm, Rate:1Mbps=0.23mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.495 W/kg SAR(1 g) = 0.23 mW/g ; SAR(10 g) = 0.118 mW/g Reference Value = 9.94 V/m Power Drift = -0.12 dB Maximum value of SAR = 0.239 mW/g Date/Time: 06/20/03 12:39:02 Test Laboratory: Compliance Certification Services File Name: EUT Seup Configuration 1_1Mbps.da4 DUT: Universal; Type: PC-B-AG-02; Serial: N/A Program: EUT Setup Configuration 1_1Mbps Communication System: DSSS; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.9833 mho/m, ε r = 51.4104, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 M-CH_Sep:11.2mm, Rate:1Mbps=0.23mW/Z Scan (1x1x63): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 9.94 V/m Power Drift = - 0.12 dB Maximum value of SAR = 0.0865 mW/g Date/Time: 06/20/03 13:11:20 Test Laboratory: Compliance Certification Services File Name: EUT Seup Configuration 1.da4 DUT: Universal; Type: PC-B-AG-02; Serial N/A Program: EUT Setup Configuration 1_1Mbps Ambient Temperature: ? deg C; Liquid Temperature: ? deg C Communication System: DSSS; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.9833 mho/m, ε r = 51.4104, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 H-CH_Sep:11.2mm, Rate:1Mbps=0.225mW/Area Scan (10x7x1): Measurement grid: dx=15mm, dy=15mm H-CH_Sep:11.2mm, Rate:1Mbps=0.225mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.49 W/kg SAR(1 g) = 0.225 mW/g ; SAR(10 g) = 0.116 mW/g Reference Value = 9.14 V/m Power Drift = -0.12 dB Maximum value of SAR = 0.231 mW/g Date/Time: 06/20/03 13:36:36 Test Laboratory: Compliance Certification Services File Name: EUT Seup Configuration 1_2Mbps.da4 DUT: Universal; Type: PC-B-AG-02; Serial N/A Program: EUT Setup Configuration 1_2Mbps Ambient Temperature: 25 deg C; Liquid Temperature: 23 deg C Communication System: DSSS; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.9833 mho/m, ε r = 51.4104, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 L-CH_Sep:11.2mm, Rate:2Mbps=0.202mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm L-CH_Sep:11.2mm, Rate:2Mbps=0.202mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.428 W/kg SAR(1 g) = 0.202 mW/g ; SAR(10 g) = 0.105 mW/g Reference Value = 8.55 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.209 mW/g Date/Time: 06/20/03 13:56:16 Test Laboratory: Compliance Certification Services File Name: EUT Seup Configuration 1_2Mbps.da4 DUT: Universal; Type: PC-B-AG-02; Serial N/A Program: EUT Setup Configuration 1_2Mbps Ambient Temperature: 25 deg C; Liquid Temperature: 23 deg C Communication System: DSSS; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.9833 mho/m, ε r = 51.4104, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postpr…

Text truncated - open the document above for the full version.

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 802.11b Wireless LAN PCMCIA CARD FCC ID. : IXMPCBAG2345 MODEL : PC-B-AG-02, PC-B-AG-03, PC-B-AG-04, PC-B-AG-05 for APPLICANT: Universal Scientific Industrial Co., Ltd. ADDRESS: 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail:[email protected] Report Number : ET92R-05-059-01 ETC Report No. : ET92R-05-059-01FCC ID.: IXMPCBAG2345 Rev No 1 0 TEST REPORT CERTIFICATION Applicant: Universal Scientific Industrial Co., Ltd. 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan Manufacturer: Universal Scientific Industrial Co., Ltd. 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan Description of EUT: a) Type of EUT: 802.11b Wireless LAN PCMCIA CARD b) Trade Name: USI c) Model No.: PC-B-AG-02, PC-B-AG-03, PC-B-AG-04, PC-B-AG-05 d) Power Supply: From Notebook PC Regulation Applied: FCC Rules and Regulations Part 15 Subpart B & C (2002) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :May 26, 2003 Test Engineer : ( Kevin Lee ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET92R-05-059-01FCC ID.: IXMPCBAG2345 Rev No 1 0 Table of ContentsPage 1 GENERAL INFORMATION....................................................................................................... 1 1.1 Product Description........................................................................................................................ 1 1.2 Characteristics of Device................................................................................................................ 1 1.3 Test Methodology.......................................................................................................................... 1 1.4 Test Facility.................................................................................................................................... 1 2 PROVISIONS APPLICABLE....................................................................................................... 2 2.1 Definition........................................................................................................................................ 2 2.2 Requirement for Compliance........................................................................................................... 3 2.3 Restricted Bands of Operation........................................................................................................ 5 2.4 Labeling Requirement..................................................................................................................... 5 2.5 User Information............................................................................................................................ 6 3. SYSTEM TEST CONFIGURATION........................................................................................... 7 3.1 Justification..................................................................................................................................... 7 3.2 Devices for Tested System............................................................................................................. 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard....................................................................................................................... 8 4.2 Measurement Procedure................................................................................................................. 8 4.3 Measuring Instrument................................................................................................................... 10 4.4 Radiated Emission Data................................................................................................................ 11 4.4.1 RF Portion...............................................................................................................................11 4.4.2 Other Emission........................................................................................................................16 4.5 Field Strength Calculation............................................................................................................. 17 4.6 Photos of Radiation Measuring Setup............................................................................................ 18 5 CONDUCTED EMISSION MEASUREMENT........................................................................ 19 5.1 Standard Applicable..................................................................................................................... 19 5.2 Measurement Procedure............................................................................................................... 19 5.3 Conducted Emission Data............................................................................................................. 20 5.4 Result Data Calculation................................................................................................................. 21 5.5 Conducted Measurement Equipment............................................................................................. 22 5.6 Photos o…

Text truncated - open the document above for the full version.
