IXMPCI111200Wireless LAN PCI Adapter

IBM High Rate Wireless LAN (PCI) 1 IBM High Rate Wireless LAN (PCI) Quick User’s Guide ( Draft Version ) IBM High Rate Wireless LAN (PCI) 2 About this book This manual contains instructions for installing and using the IBM High Rate Wireless LAN (PCI) card. The manual is divided into two parts: Part 1: Installation and user’s guide This guide contains the product description, hardware and software installation instructions, product use information, and maintenance information. Part 2: Appendices The appendices contain help information, service information, the product warranties, and notices. Note: The illustrations in this manual may be slightly different from your hardware. IBM High Rate Wireless LAN (PCI) 3 INDEX 1 INTRODUCTION.................................................................................................................................................4 1.1 Features (bullets changed).......................................................................................................................4 1.2 Applications (bullets changed)...............................................................................................................4 Product description..........................................................................................................................................6 IBM High Rate WLAN ( PCI )..............................................................................................................................7 Installing the Card Hardware.........................................................................................................................7 Introducing the Card to your Computer.......................................................................................................8 2 DRIVER/UTILITY INSTALLATION.....................................................................................................9 2.1 System Requirements......................................................................................................................9 2.2 Driver installation.............................................................................................................................9 2.2.1 Windows 95/98/Me/2000/NT............................................................................................9 2.3 IBM Wireless LAN Client Manager Installation......................................................................11 Appendix A. Product specifications....................................................................................................................16 Physical specifications..................................................................................................................................16 Power characteristics.....................................................................................................................................16 Networking characteristics...........................................................................................................................16 Radio characteristics.....................................................................................................................................17 Wireless LAN Range....................................................................................................................................18 Supported frequency sub-bands..................................................................................................................18 Regulatory Information..........................................................................................................................................19 USA-Federal Communications Commission (FCC)...............................................................................19 Information to the user..................................................................................................................................19 Canada-Industry Canada (IC)......................................................................................................................20 Europe-EC Declaration of Conformity......................................................................................................20 Technical Specifications...............................................................................................................................20 Appendix B. Troubleshooting..............................................................................................................................21 Troubleshooting the LEDs...........................................................................................................................21 Appendix C. Help and service information........................................................................................................22 Appendix D. Product warranties and notices.....................................................................................................23 Trademarks.....................................................................................................................................................24 Compliance information...............................................................................................................................24 IBM High Rate Wireless LAN (PCI) 4 1 INTRODUCTION Wireless LAN is local area networking without wires, which uses radio frequencies to transmit and receive data between PC’s or other network devices without wires or cables. Wireless LAN configurations include independent networks suitable for small or temporary peer-to-peer configurations and infrastructure networks, offering fully distributed data connectivity via micro cells and roaming. The IBM High Rate Wireless LAN (PCI) card is designed to meet the mobility, performance, security, interoperability, management, and reliability requirements of IEEE 802.11b high data rate standard. It is easy to install o…

Text truncated - open the document above for the full version.

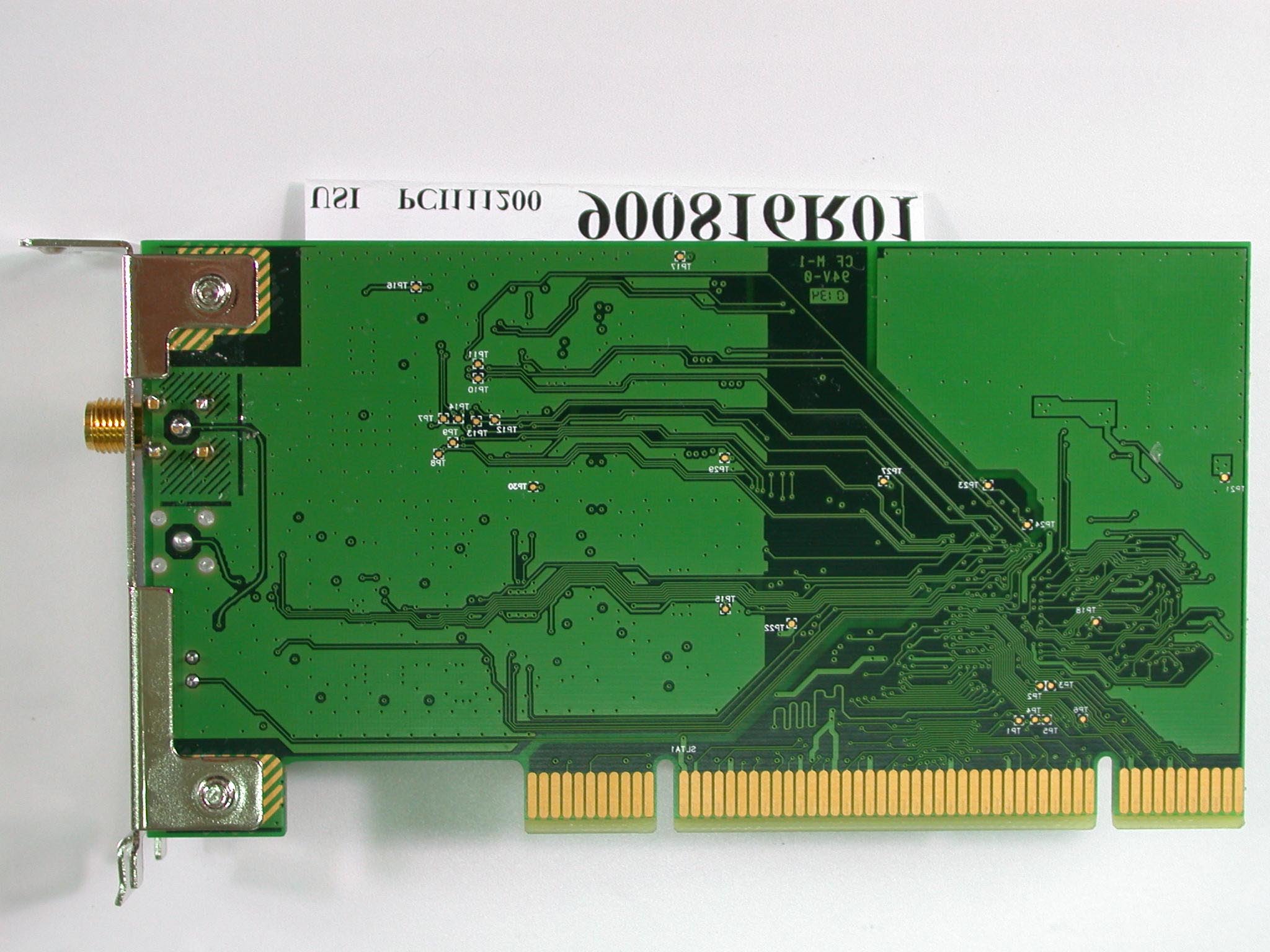

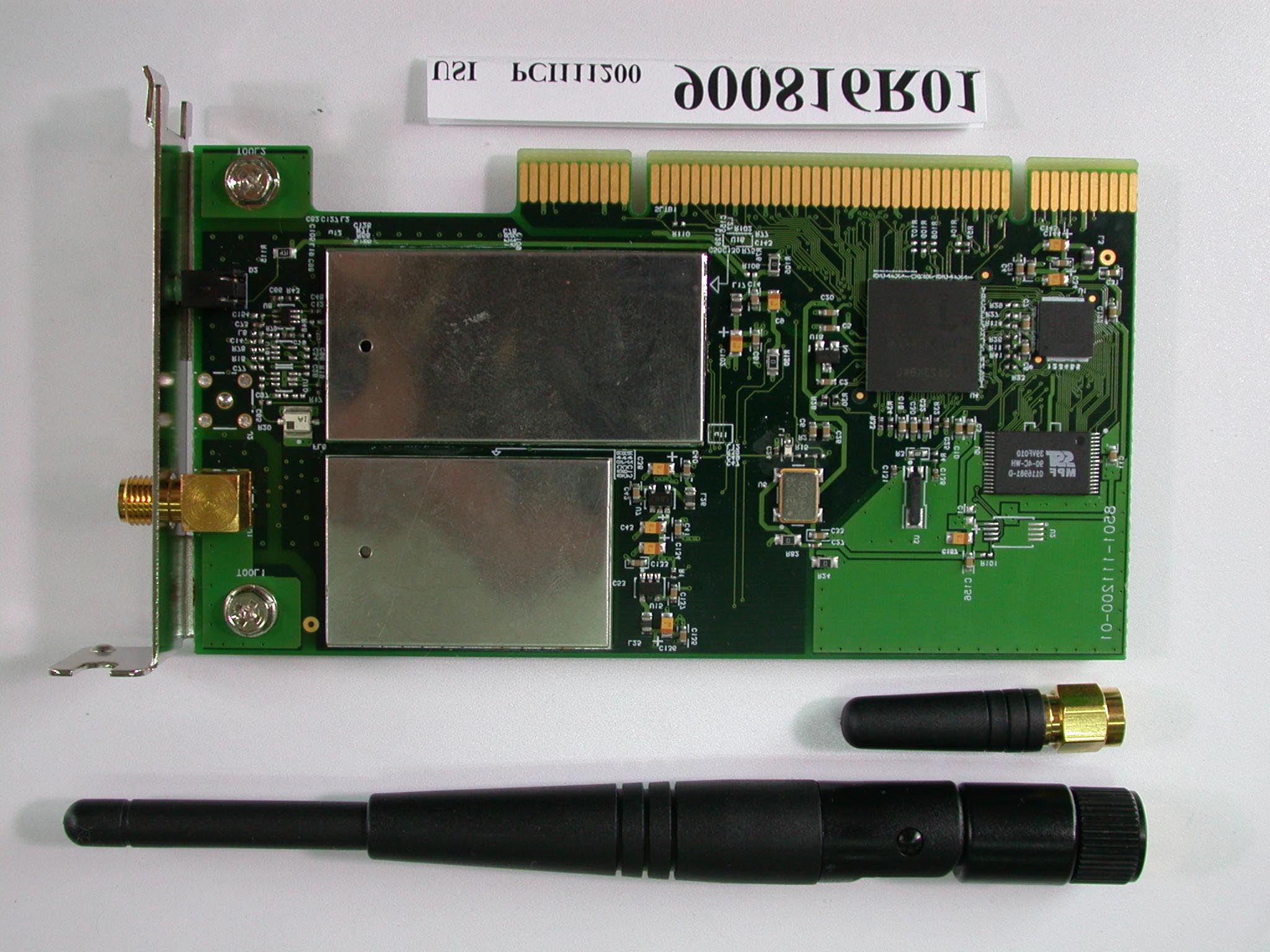

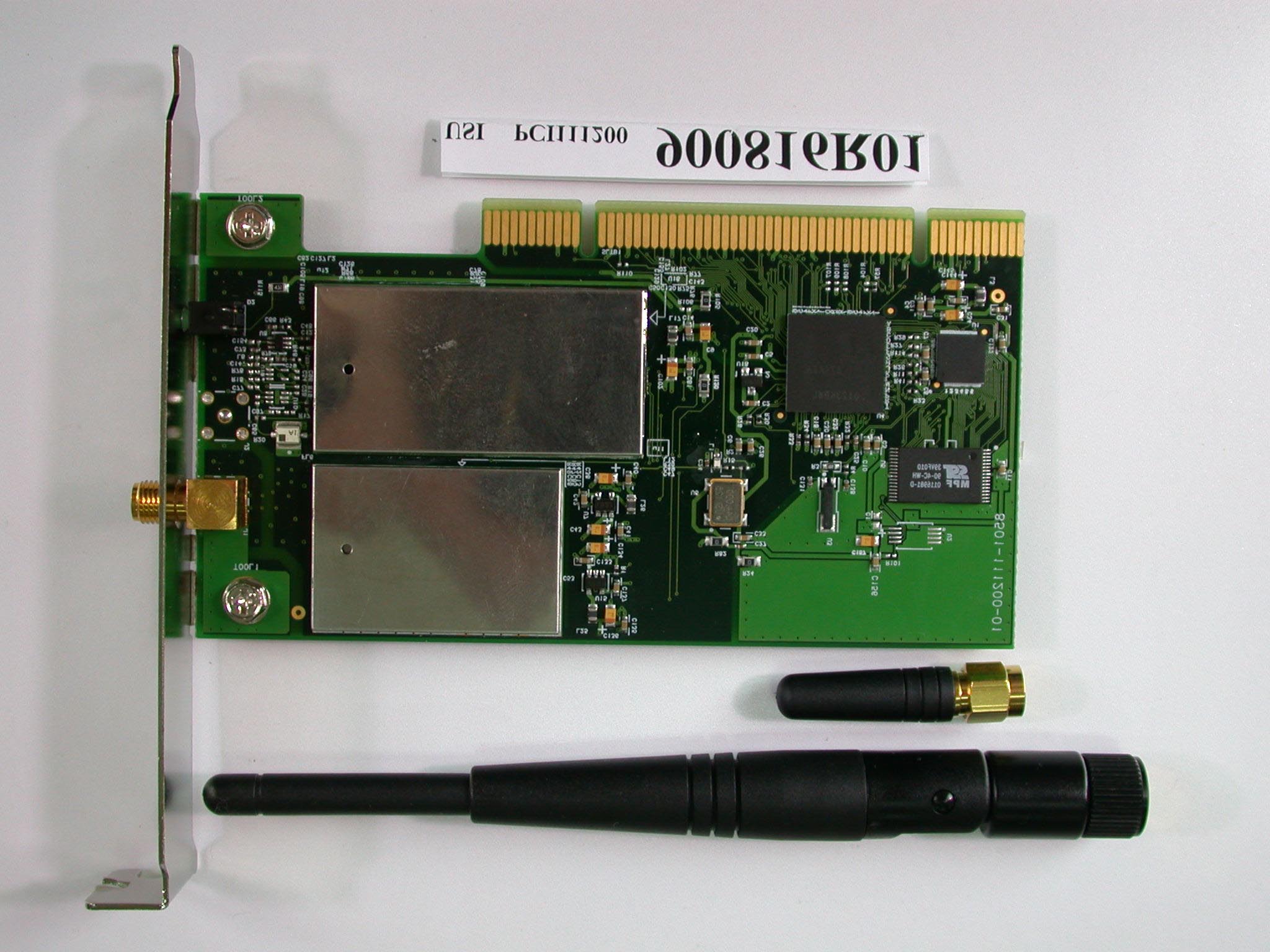

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4

Page 5

0560

0560

Page 6 Page 7

FCC ID: IXMPCI111200 ADT No.900816R01 Operational Description The transmitter of the EUT (IEEE802.11 Wireless LAN PCI Adapter) is powered by host equipment and plugged in PCI slot. The antenna used in this product is dipole antenna and helical antenna. The antenna connector is reversed SMA. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: IXMPCI111200 ADT No.: 900816R01 FCC TEST REPORT REPORT NO.: RF900816R01 MODEL NO.: PCI111200 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: UNVERSAL SCIENTIFIC INDUSTRIAL CO., LTD. ADDRESS: 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 FCC ID: IXMPCI111200 ADT No.: 900816R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: IXMPCI111200 ADT No.: 900816R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: IXMPCI111200 ADT No.: 900816R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.5 dBi or 1.41 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241256.362.51 6243758.482.56 11246256.362.51 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: IXMPCI111200 Report No.: RF900816R01 1 Issued: August 28, 2001 FCC TEST REPORT REPORT NO.: RF900816R01 MODEL NO.: PCI111200 RECEIVED: August 16, 2001 TESTED: August 22~ August 24, 2001 APPLICANT: UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LTD. ADDRESS: 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 Lab Code: 200102-0 FCC ID: IXMPCI111200 Report No.: RF900816R01 2 Issued: August 28, 2001 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS ................................................................... 5 3GENERAL INFORMATION............................................................................ 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES ................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS ....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................. 9 4.1.2TEST INSTRUMENTS................................................................................... 9 4.1.3TEST PROCEDURES ................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS ................................................................ 11 4.1.6TEST RESULTS(A) ..................................................................................... 12 4.1.7TEST RESULTS(B) ..................................................................................... 18 4.2RADIATED EMISSION MEASUREMENT ................................................... 24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................. 24 4.2.2TEST INSTRUMENTS................................................................................. 25 4.2.3TEST PROCEDURES ................................................................................. 26 4.2.4TEST SETUP .............................................................................................. 27 4.2.5EUT OPERATING CONDITIONS ................................................................ 27 4.2.6TEST RESULTS(A) ..................................................................................... 28 4.2.7TEST RESULTS(B) ..................................................................................... 33 4.36DB BANDWIDTH MEASUREMENT .......................................................... 38 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 38 4.3.2TEST INSTRUMENTS................................................................................. 38 4.3.3TEST PROCEDURE.................................................................................... 39 4.3.4TEST SETUP .............................................................................................. 39 4.3.5EUT OPERATING CONDITIONS ................................................................ 39 4.3.6TEST RESULTS .......................................................................................... 40 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 44 4.4.2TEST INSTRUMENTS................................................................................. 44 4.4.3TEST PROCEDURES ................................................................................. 45 FCC ID: IXMPCI111200 Report No.: RF900816R01 3 Issued: August 28, 2001 4.4.4TEST SETUP .............................................................................................. 45 4.4.5EUT OPERATING CONDITIONS................................................................ 45 4.4.6TEST RESULTS .......................................................................................... 46 4.5POWER SPECTRAL DENSITY MEASUREMENT ...................................... 47 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 47 4.5.2TEST INSTRUMENTS................................................................................. 47 4.5.3TEST PROCEDURE.................................................................................... 48 4.5.4TEST SETUP .............................................................................................. 48 4.5.5EUT OPERATING CONDITIONS ................................................................ 48 4.5.6TEST RESULTS .......................................................................................... 49 4.6BAND EDGES MEASUREMENT ................................................................ 53 4.6.1LIMITS OF BAND EDGES MEASUREMENT .............................................. 53 4.6.2TEST INSTRUMENTS................................................................................. 53 4.6.3TEST PROCEDURE.................................................................................... 53 4.6.4EUT OPERATING CONDITION .................................................................. 54 4.6.5TES…

Text truncated - open the document above for the full version.

FCC ID: IXMPCI111200 Report No.: RF900816R01 47 Issued: August 28, 2001 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ TEST RECEIVER ESMI839379/002Dec. 28, 2001 HP ATTENUATOR8496B3247A18505Cal. on use HP PLOTTER7475A2641V27755N/A NOTE: 1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: IXMPCI111200 Report No.: RF900816R01 48 Issued: August 28, 2001 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 TEST SETUP 4.5.5 EUT OPERATING CONDITIONS Same as 4.3.5 EUT SPECTRUM ANALYZER Attenuator FCC ID: IXMPCI111200 Report No.: RF900816R01 49 Issued: August 28, 2001 4.5.6 TEST RESULTS EUT IEEE802.11 Wireless LAN PCI Adapter MODEL PCI111200 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 70%RH, 1005 hPa TESTED BY: Gary Chang CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-9.478PASS 62437-9.528PASS 112462-9.808PASS FCC ID: IXMPCI111200 Report No.: RF900816R01 50 Issued: August 28, 2001 CH1 FCC ID: IXMPCI111200 Report No.: RF900816R01 51 Issued: August 28, 2001 CH6 FCC ID: IXMPCI111200 Report No.: RF900816R01 52 Issued: August 28, 2001 CH11 FCC ID: IXMPCI111200 Report No.: RF900816R01 53 Issued: August 28, 2001 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ TEST RECEIVER ESMI 848926/005 846839/018 Dec 28, 2001 HP ATTENUATOR8496B3247A18505 Cal. on use HP PLOTTER7475A2641V27755 N/A NOTE: 1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. FCC ID: IXMPCI111200 Report No.: RF900816R01 54 Issued: August 28, 2001 4.6.4 EUT OPERATING CONDITION Same as Item 4.3.5 4.6.5 TEST RESULTS The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot on the following 2 pages shows 20.0dB delta between carrier maximum power and local maximum emission in restrict band (2.5371GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.6 (Page 28) is 100.3dBuV/m, so the maximum field strength in restrict band is 100.3-50.71=49.59 dBuV/m which is under 54 dBuV/m limit. FCC ID: IXMPCI111200 Report No.: RF900816R01 55 Issued: August 28, 2001 FCC ID: IXMPCI111200 Report No.: RF900816R01 56 Issued: August 28, 2001

FCC ID: IXMPCI111200 Report No.: RF900816R01 57 Issued: August 28, 2001 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna used in this product are dipole antenna and helical antenna. The antenna connector is reversed SMA. And the maximum Gain of this antenna is only 1.5dBi. FCC ID: IXMPCI111200 Report No.: RF900816R01 58 Issued: August 28, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Dipole Antenna) FCC ID: IXMPCI111200 Report No.: RF900816R01 59 Issued: August 28, 2001 CONDUCTED EMISSION TEST (Helical Antenna) FCC ID: IXMPCI111200 Report No.: RF900816R01 60 Issued: August 28, 2001 RADIATED EMISSION TEST (Dipole Antenna) FCC ID: IXMPCI111200 Report No.: RF900816R01 61 Issued: August 28, 2001 RADIATED EMISSION TEST (Helical Antenna) FCC ID: IXMPCI111200 Report No.: RF900816R01 62 Issued: August 28, 2001 6 INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USA FCC, NVLAP Germany TUV Rheinland Japan VCCI New Zealand MoC Norway NEMKO R.O.C. BSMI, DGT, CNLA Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Lin Kou EMC Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC Lab: Tel: 886-35-935343 Fax: 886-35-935342 Lin Kou Safety Lab: Tel: 886-2-26093195 Fax: 886-2-26093184 Lin Kou RF&Telecom Lab Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also.

FCC ID: IXMPCI111200 Report No.: RF900816R01 58 Issued: August 28, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Dipole Antenna) FCC ID: IXMPCI111200 Report No.: RF900816R01 59 Issued: August 28, 2001 CONDUCTED EMISSION TEST (Helical Antenna) FCC ID: IXMPCI111200 Report No.: RF900816R01 60 Issued: August 28, 2001 RADIATED EMISSION TEST (Dipole Antenna) FCC ID: IXMPCI111200 Report No.: RF900816R01 61 Issued: August 28, 2001 RADIATED EMISSION TEST (Helical Antenna)
