IXMUSB114401WLAN USB Adapter

USB Client Quick Start Flyer 5. Set Network Name & Security Settings 1. Verify Kit Contents 6. Install Driver & Client Manager If the CD-ROM does not start automatically, consult the section Troubleshooting. Select Install New Product. 2. Insert CD-ROM Follow the instructions on your screen. 7. Connect USB Client Hardware a. Enter the Network Name of the wireless network. b. (If required) Adjust Security Settings. 3. Install Software before Hardware 8. Start using your Wireless Network 4. Select Identify Settings a. Use this button to return to the first page. b. Use this button to display the table of contents. c. Select this link to find more information. Troubleshooting If the CD-Wizard does not start automatically: a. Click the Start button on the Windows task bar and select Run. b. Type "d:\ezsetup.exe", and click OK (where d:\ represents the drive letter of your CD- ROM drive). If you have other problems installing or using this product: a. Consult the section “Find Information“ on the CD- ROM (described on the previous page). b. Consult the “readme.txt“ file on the CD-ROM. c. Contact your hardware Reseller or Manufacturer. REGULATORY STATEMENT Technical Support Universal Scientific Industrial Co., Ltd. Address : 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan Tel : + 886-49-2350876, 2325876 Fax : +886-49-2329561, 2337360 E-mail : [email protected] Technical Support in the US Address : 3590 Peterson Way, Santa Clara, CA 95054, USA Tel : +1-408-986-6589 Fax : +1-408-432-0440 E-mail : [email protected] ; [email protected] CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Wireless LAN USB Client Product Specification Parameter Description Frequency Range 2400 MHz to 2484 MHz Frequency Stability Within 25 kHz of nominal value Transmitter Output Power 15 dBm ± 2 dB Nominal Antenna Port Impedance 50
Media Access Protocol CSMA/CA with ACK Direct sequence spread spectrum CCK (11 Mbit/s and 5.5 Mbit/s) DQPSK (2 Mbit/s) Modulation Technique DBPSK (1 Mbit/s) Spreading 11-chip Barker sequence Data Rate Receiver sensitivity (bit error rate < 10 -5 ) Delay spread robustness (FER < 1%) 11 Mbits/s –82 dBm 65 ns 5.5 Mbits/s –87 dBm 225 ns 2 Mbits/s –91 dBm 400 ns 1 Mbits/s –94 dBm 500 ns USI Co.,Ltd.

Regulatory Statement: Product Name: USB Client Maodel Number: LC_USB Technical Support Universal Scientific Industrial Co., Ltd. Address : 141, Lane 351, Taiping Rd., Sect.1, Tsao Tuen, Nan-tou, Taiwan, R.O.C. Tel. : +886-49-2350876 Fax : +886-49-2329567 Email : [email protected] Technical Support in the US Address : 3590 Peterson Way, Santa Clara, CA 95054, USA. Tel. : +1-408-9866589 Fax : +1-408-4320440 Email : [email protected] ; [email protected] 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help.

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 Email: [email protected] TRCSince1985 ® September 25, 2002 RE: Universal Scientific Industrial Co., Ltd. FCC ID: IXMUSB114401 Dear Timothy: After the review of your comments, we have made some response upon your advice; they are summarized as follows: 1. The EUT is tested according to the requirements of both PC peripheral and Tx device. We will note that and having the photo inserted into our report in the future. For the photo with the minimum PC configuration, please find them in the uploads as an exhibit separately. 2. The pages with the regulatory statement 15.105(b) is inserted to the manual and uploaded as an exhibit separately. 3. You may find the description about the antenna at the right hand side on the page 5. 4. The pages with the corrected DoC statement of compliance is inserted and uploaded with the exhibit of comment #2 together. Should you have any questions or more information is needed, please don’t hesitate to ask us. Thank you. Sincerely yours, Eric Wong Project Engineer Training Research Co Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 24, 2002 RE: Universal Scientific Industrial Co., Ltd. FCC ID: IXMUSB114401 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The EUT is considered a composite device (PC Peripheral Device + transmitter) and is subject to the applicable requirements of both. However in the configuration specified in the test report, the EUT has only been tested for the transmitter portion of the device (contrary to the information provided in Section 11 of the test report). For meeting the requirements of 15.107/15.207 & 15.109 the device should have also been tested with a minimum PC configuration as specified by ANSI C63.4 in order to meet the DoC requirements as a PC Peripheral Device. The device was not tested in this configuration as given in this report. Please confirm that the EUT has been properly evaluated and tested in a properly configured configuration or provide a copy of the DoC report. 2) The users manual should also include the information specified in 15.105(b). 3) The EUT appears to contain 2 antennas. However the schematics do not appear to show connection to 2 antennas. Please comment. 4) To meet the requirements of 2.1077 for the DoC statement of compliance in the users manual, the model name and or number should be listed on the same page as the responsible party (page 2 of the currently provided users manual). Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

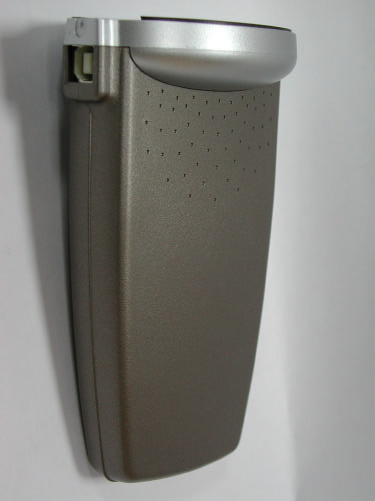

Exterior Photo of the USI LC_USB Exterior Photo of the USI LC_USB

0123456789 A A B B C C D D E E F F △ 6 G △ 5 Universal Scientific Industrial Co.,Ltd G △ 4 △ 3 TITLE LC_USB product label △ 2 DWN BY DATE SCALE:1/1 UNIT: mm △ 1 Joanne 08/20/02 DOC NO SHEET REV NO DESCRIPTION DATE APP DATE H 6’98 PAPER SIZE A4 Unless otherwise tolerence specified ± 0.5 8501- 114401-D01 10 H 0123456789 9 The followin g information to be p rinted b y the ULTS: xxxxxx/y: Part number with revision level, where: xxxxxx= 6 digits numeric conform the drawing number of the assembly that uses this printed label. Y= single alpha character conform the latest revision of the assembly that uses this printed label. ITEM NAME AND DESCRIPTION NOTES 1 Label Blank, 72 x 20 mm 2 Serial Number specification 3 Ethernet MAC-Address 4UL Mark5CE-Mark6 JATE Mark 7 FCC Mark 8 CE Alert Symbol 9 Telec TX Inside Statement 10 Same with Agere format 11 Note:1. Material: Poly2. Label color: white coated, black text3. Thickness: 0.09mm4. Glue: acrylic 10 5 7 6 8 4 Label Location of the USI LC_USB

Interior Photo of the USI LC_USB Interior Photo of the USI LC_USB Interior Photo of the USI LC_USB Interior Photo of the USI LC_USB Interior Photo of the USI LC_USB Interior Photo of the USI LC_USB Interior Photo of the USI LC_USB Interior Photo of the USI LC_USB Interior Photo of the USI LC_USB

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 Email: [email protected] TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT EUT : USB Client Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Model No. : LC_USB Granted FCC ID : IXMUSB114401 Frequency Range : 2.412 GHz ~ 2.462GHz Antenna Kit : 2 monopole antenna Supported Channel: 11 Channel Modulation Skill : DBPSK, DQPSK, CCK Power Type : Powered by the USB port of the client’s device Applicant : Universal Scientific Industrial Co., Ltd. 135, Lane 351, Taiping Rd., Sect.1, Tsao Tuen, Nan-Tou 542, Taiwan, R.O.C. Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 Email: [email protected] TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 23 22 /1064.9 )20(4 585.158.30 4 cmmW R PG S − ×= × == ππ Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (2 / 10) = 1.585

Test Report -------------------------------------------------------------------------------- 1/43 Report No.: U1315771 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of WIRELESS LAN USB ADAPTER Applicant : Universal Scientific Industrial Co., Ltd. Model No. : LC_USB EUT : USB Client FCC ID : IXMUSB114401 Report No. : U1315771 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------- 3/43 Report No.: U1315771 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ......................................................................................................................... 5 1.1 Introduction .................................................................................................................. 5 1.2 Description of EUT ....................................................................................................... 5 1.3 Description of Support Equipment ................................................................................. 6 1.4 Configuration of System Under Test .............................................................................. 7 1.5 Verify the Frequency and Channel ................................................................................. 8 1.6 Test Procedure ............................................................................................................. 9 1.7 Location of the Test Site ................................................................................................ 9 1.8 General Test Condition .................................................................................................. 9 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators....................... 10 III. Section 15.203 : Antenna Requirement............................................................................. 11 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units ................... 12 4.1 Test Condition & Setup ................................................................................................ 12 4.2 List of Test Instruments ................................................................................................ 12 4.3 Test Configuration ........................................................................................................ 13 4.4 Test Result of Conducted Emissions ............................................................................. 14 V. Section 15.247(a) : Technical Description of the EUT..................................................... 17 VI. Section 15.247(a)(2) : Bandwidth for Direct Sequence System ..................................... 18 6.1 Test Condition & Setup ................................................................................................ 18 6.2 Test Instruments Configuration ...................................................................................... 18 6.3 List of Test Instruments ................................................................................................ 18 6.4 Test Result of Bandwidth ............................................................................................... 19 VII. Section 15.247(b) : Power Output .................................................................................... 23 7.1 Test Condition & Setup ................................................................................................ 23 7.2 List of Test Instruments ................................................................................................ 23 7.3 Test Result ................................................................................................................... 24 VIII.Section 15.247(c) : Spurious Emissions (Radiated) ....................................................... 25 8.1 Test Condition & Setup ................................................................................................ 25 8.2 List of Test Instruments ................................................................................................ 26 8.3 Test Instruments Configuration ...................................................................................... 27 8.4 Test Result of Spurious Radiated Emissions .................................................................. 28 8.5 Test Result of Band-edge Compliance............................................................................ 35 IX.Section 15.247(d) : Power Spectral Density ...................................................................... 38 9.1 Test Condition & Setup ................................................................................................ 38 9.2 Test Instruments Configuration ...................................................................................... 38 9.3 List of Test Instruments.................................................................................................. 38 Test Report -------------------------------------------------------------------------------- 4/43 Report No.: U1315771 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 9.4 Test Result of Power Spectral Density .......................................................................... 39 Appendix A: Set Up Procedure ............................................................................................... 43 Test Report -------------------------------------------------------------------------------- 5/43 Report No.: U1315771 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 . GENERAL 1.1 Introduction The following measurement report is submitted on behalf of Applicant in support of a wireless access CompactFlash card certification in accordance with Part 2 Subpart J and Par…

Text truncated - open the document above for the full version.

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Test setup photos: 2.4GHz Wireless LAN PC Card (Test report no.:U1315771) FCC ID: IXMUSB114401 Test Instruments Configuration of Conducted Emissions Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Test Instruments Configuration of Bandwidth Test Configuration of Bandwidth for Direct Sequence System P.S.: Notebook computer to control the EUT at maximal power output and channel Number and set antenna kit Test Condition & Setup of Power Output EUT Spectrum Analyzer (RBW:100kHz; VBW: 100kHz) EUT BOONTON 4532 RF Power Meter Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Test Instruments Configuration of the Spurious Radiated Emissions Front View of the Test Configuration Rear View of the Test Configuration The test configuration for frequency between 1GHz to 18GHz is same as above. Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Test Instruments Configuration of Power Spectral Density Test Configuration of Power Spectral Density P.S.: Notebook computer to control the EUT at maximal power output and channel number and set antenna kit EUT Spectrum Analyzer (RBW:3kHz; VBW: 10kHz)

Supplementary Setup Photo for the Subpart B (PC peripheral device) Test Configuration for the Conducted Emissions Front View of the Test Configuration Q Side View of the Test Configuration Test Configuration for the Spurious Emissions Front View of the Test Configuration Rear View of the Test Configuration The test configuration for frequency between 1GHz to 18GHz is same as above.
