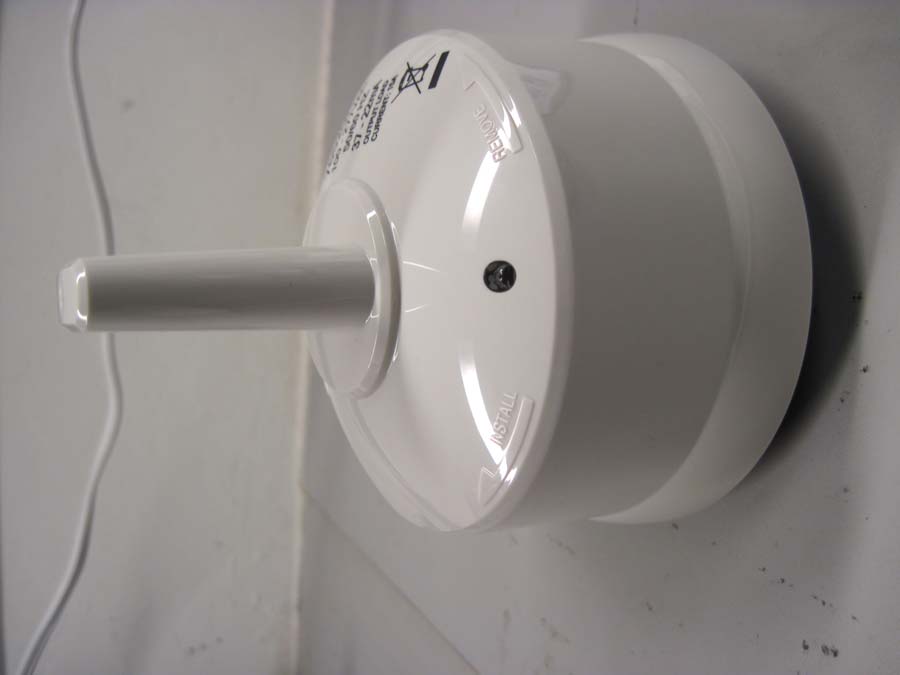

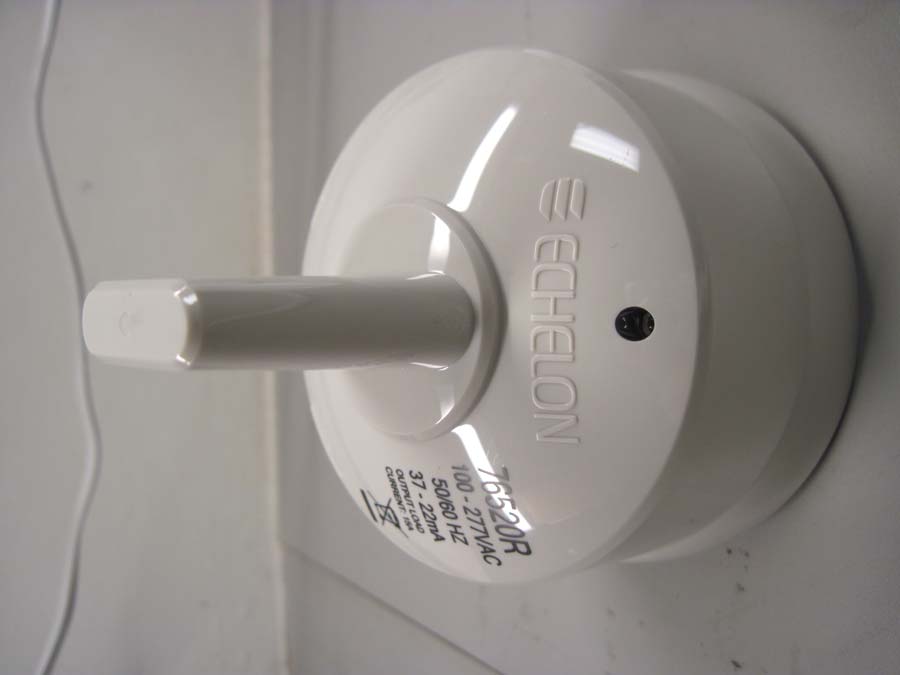

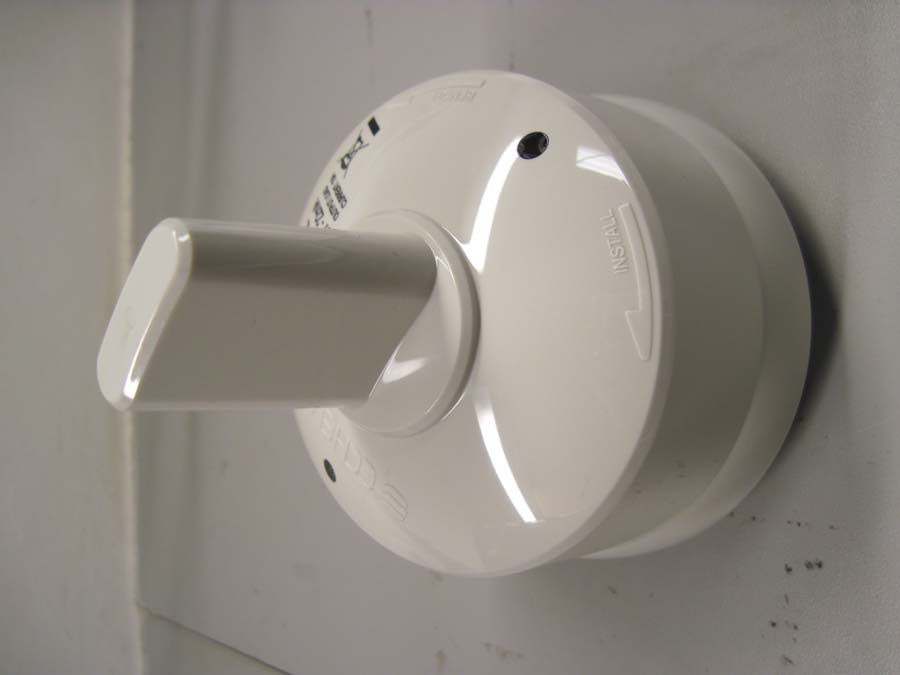

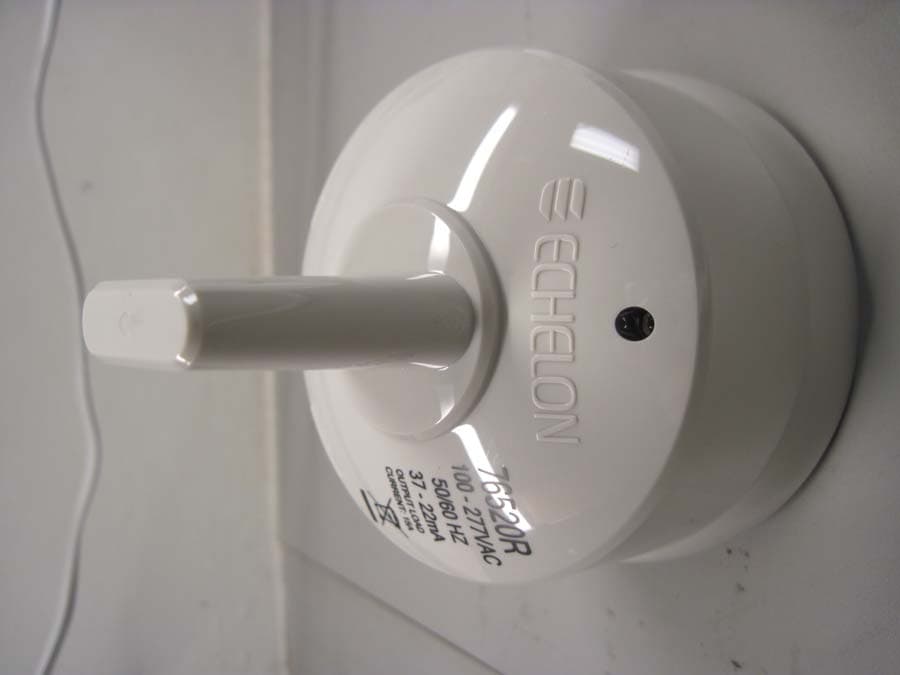

IZP76510RIEM RF Module ZIGBEE:835-0701-51 with Street Light Bridge (SLB)

@echelon ® Street Light Bridge Integrator’s Guide SECOND REVIEW DRAFT 078-0439-01A Echelon, LONWORKS, LONMARK, LonTalk, Neuron, 3120, 3150, LonMaker, and the Echelon logo are trademarks of Echelon Corporation registered in the United States and other countries. 3170 is a trademark of the Echelon Corporation. Other brand and product names are trademarks or registered trademarks of their respective holders. Neuron Chips and other OEM Products were not designed for use in equipment or systems, which involve danger to human health or safety, or a risk of property damage and Echelon assumes no responsibility or liability for use of the Neuron Chips in such applications. Parts manufactured by vendors other than Echelon and referenced in this document have been described for illustrative purposes only, and may not have been tested by Echelon. It is the responsibility of the customer to determine the suitability of these parts for each application. ECHELON MAKES AND YOU RECEIVE NO WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED, STATUTORY OR IN ANY COMMUNICATION WITH YOU, AND ECHELON SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Echelon Corporation. Printed in the United States of America. Copyright © 1997, 2010 Echelon Corporation. Echelon Corporation www.echelon.com Street Light Bridge Integrator’s Guide iii Welcome Intelligent street lighting uses electronic ballasts, power line communications hardware, and local network controllers that are interconnected with specialized control and reporting software. A street lighting network establishes two-way communications with each lighting fixture so that you can control the lighting level of each fixture, turn it on and off, and monitor its condition. The luminaires in a street lighting network use a L ONWORKS ® power line communications channel for the network, which is managed by an Echelon i.LON ® SmartServer, known as the Segment Controller because it controls segments of the street lighting network. To extend the network across low- voltage step-down distribution transformers, Echelon introduces a power line and radio frequency (RF) wireless hybrid device, the Street Light Bridge module. This document describes the elements of the Echelon street lighting solution, including the Street Light Bridge module and the Segment Controller. Audience This document assumes that you understand basic networking and that you have some experience working with an i.LON SmartServer. It also assumes that you understand the basics of a low-voltage power distribution network. Related Documentation The following manuals are available from the Echelon Web site ( www.echelon.com) and provide additional information that can help you manage a street lighting network: • i.LON SmartServer 2.0 User's Guide (078-0345-01E). This document describes how to configure the i.LON SmartServer and use its applications to manage control networks. • Introduction to the LONWORKS Platform (078-0183-01B). This manual provides an introduction to the ISO/IEC 14908-1 (ANSI/CEA-709.1 and EN14908) Control Network Protocol, and provides a high-level introduction to L ONWORKS networks and the tools and components that are used for developing, installing, operating, and maintaining them. All of the Echelon documentation is available in Adobe ® PDF format. To view the PDF files, you must have a current version of the Adobe Reader ® , which you can download from Adobe at: get.adobe.com/reader. FCC Compliance If the wide-are network (WAN) Card will be integrated into an American National Standards Institute (ANSI) Internet protocol (IP) Meter, and used within the United States of America, then the complete ANSI IP Meter (including the WAN Card) must comply with United States Federal Communications Commission (FCC) regulations. In addition, the accompanying documentation for the complete product would need to include a notice such as the following: iv This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules per sections 15.107 and 15.109. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that which the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Statements This equipment also complies with the limits for wireless devices per FCC sections 15.203, 15.205, 15.207, 15.209 and 15.247. It uses frequency 2.4 GHz per Institute of Electrical and Electronics Engineers (IEEE) standard 802.15.4- 2006, and uses a frequency bandwidth from 2400 MHz to 2483.5 MHz. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your bo…

Text truncated - open the document above for the full version.

eECHELON@ October26,2010 METLaboratories,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFORSTREETLIGHTBRIDGE(SLB)WITH IEMRFMODULEZIGBEE:835-0701-51,MODEL76520R,FCCIDIZP76510 ToWhomIt MayConcern: Thisletterservesas an officialrequestforconfidentialityunderFCCRuleSections0.457 & 0.459.WehaverequestedthattheSchematics,BlockDiagram,Operational/Technical and802.15.4ModuleHardwareSpecification,requiredto be submittedwiththis applicationbe withheldfrompublicreview. TheabovedocumentsareEchelonCorporationconfidentialandproprietaryinformation thatcouldnevergetintothepossessionof yourcompetition. Pleasecontactmeif thereis anyinformationyoumayneed. Sincerely, Yaqoob1. Bhimla Sr.RegulatoryComplianceEngineer Office:408-938-5353 FAX:408-790-3311 E-mail:[email protected] 550MeridianAve. SanJose,CA951~6 tel:4089385~00 fax:4087903800 www.echelon.com

A B C 123 1234 A B C DIMENSIONS ARE IN MM TOLERANCES UNLESS OTHERWISE SPECIFIED: ANGULAR/BEND: ±0.5° 0.50 - 6.00: ± 0.05 6.01 - 30.00: ± 0.1 30.01 - 120.00: ± 0.2 120.01 - 400.00: ± 0.4 >400.00: ± 0.5 550 Meridian Avenue San Jose, CA 95126 408-938-5200 fax 790-3800 PROPRIETARY AND CONFIDENTIAL This document and the specifications and information contained herein are the exclusive property of Echelon and shall not be copied, reproduced, or disclosed outside of Echelon except as required to execute the terms of a contract or purchase order issued by Echelon. They shall not be included in any proposal or presentation materials without prior written direction of Echelon Corporation. ECHELON Rev 34° 53.00 42.00 3X 7.25 21.00 DRAWING NO.SHEETREV. 272-0479-51127 REVDESCRIPTIONINITIALSCONTROL #DATE 25RELEASE TO DEVELOPMENTTW CUB01558 12-AUG-10 26CHANGE TO "MADE IN USA"LICUB01603 24-SEP-10 27 ADD COMPLIANCE ARTWORK. MODIFY INNER GEOMETRY LNCUB01620 13-OCT-10 1 of 1 Sheet NA Finish: SEE NOTES Material: 12-AUG-10 Date: TW Drawn By: TW Eng: 27 272-0479-51 Doc. #: LABEL, PRODUCT - SLB Title: NOTES: 1. MATERIAL: 3M7222 SILVER MATTE THERMAL TRANSFER POLYESTER LABEL. 2. THICKNESS: 0.05MM (.002") WITH 0.02MM (.0008") THICK ADHESIVE. 3. GRAPHICS COLOR: BLACK 4. ALL MATERIALS AND PROCESS MUST BE ROHS COMPLIANT PER EU DIRECTIVE 2002/95/EC. 5. CAMERA READY ARTWORK PROVIDED IN .eps FORMAT. CENTER SHALL BE KISS CUT

Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2400-2483.5 MHz ; highest conducted power = 7.45dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 2.1 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (5.55mW) G = Antenna Gain (1.62 numeric) R = (5.55*1.62/ 4*3.14*1.0) 1/2 = (9.01 / 12.56) 1/2 = 0.847cm

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory December 2, 2010 Echelon Corporation 550 Meridian Avenue San Jose, CA 95126 Dear Yaqoob Bhimla, Enclosed is the EMC Wireless test report for compliance testing of the Echelon Corporation, IEM RF Module ZIGBEE:835-0701-51 with Street Light Bridge (SLB)/Antenna as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B for a Class B Digital Device and FCC Part 15 Subpart C for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Echelon Corporation\EMCS82296-FCC247 Rev. 3) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Echelon Corporation Electro magnetic Compatibility IEM RF Module ZIGBEE:835-0701-51 Cover Page with Street Light Bridge (SLB)/Antenna CFR Title 47, Part 15B, 15.247 MET Report: EMCS82296-FCC247 Rev. 3 © 2010, MET Laboratories, Inc. Page ii of vii DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Echelon Corporation IEM RF Module ZIGBEE:835-0701-51 with Street Light Bridge (SLB)/Antenna Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B for Class B Digital Devices & 15.247 Subpart C for Intentional Radiators 3 MET Report: EMCS82296-FCC247 Rev. 3 December 2, 2010 Prepared For: Echelon Corporation 550 Meridian Avenue San Jose, CA 95126 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Echelon Corporation Electro magnetic Compatibility IEM RF Module ZIGBEE:835-0701-51 Cover Page with Street Light Bridge (SLB)/Antenna CFR Title 47, Part 15B, 15.247 MET Report: EMCS82296-FCC247 Rev. 3 © 2010, MET Laboratories, Inc. Page iii of vii DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Echelon Corporation IEM RF Module ZIGBEE:835-0701-51 with Street Light Bridge (SLB)/Antenna Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B for A Digital Devices & 15.247 Subpart C for Intentional Radiators Anderson Soungpanya Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Echelon Corporation Electro magnetic Compatibility IEM RF Module ZIGBEE:835-0701-51 Report Status with Street Light Bridge (SLB)/Antenna CFR Title 47, Part 15B, 15.247 MET Report: EMCS82296-FCC247 Rev. 3 © 2010, MET Laboratories, Inc. Page iv of vii DOC-EMC702 2/18/2010 Report Status Sheet Revision Report Date Reason for Revision  October 27, 2010 Initial Issue. 1 November 16, 2010 Revised to reflect correct EUT name. 2 November 23, 2010 Revised to reflect engineer corrections. 3 December 2, 2010 Revised to reflect engineer corrections. Echelon Corporation Electro magnetic Compatibility IEM RF Module ZIGBEE:835-0701-51 Table of Contents with Street Light Bridge (SLB)/Antenna CFR Title 47, Part 15B, 15.247 MET Report: EMCS82296-FCC247 Rev. 3 © 2010, MET Laboratories, Inc. Page v of vii DOC-EMC702 2/18/2010 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................8 F. Support Equipment .............................................................................................................................................8 G. Ports and Cabling Information .................................................…

Text truncated - open the document above for the full version.

Photograph 1. Conducted Emissions, Test Setup Photograph 2. Conducted Emissions, Test Setup, Side View Photograph 3. Radiated Emissions, Test Setup Photograph 4. Radiated Emissions, Test Setup, Biolog Photograph 5. Radiated Emission, Test Setup, Rear Review Photograph 6. Conducted Emissions, 15.207, Test Setup Photograph 7. Conducted Emissions, 15.207, Test Setup, Side View Photograph 8. Radiated Spurious Emissions, Test Setup Photograph 9. Radiated Spurious Emissions, Test Setup, 30 MHz – 1 GHz Photograph 10. Radiated Spurious Emissions, Test Setup, 1 GHz – 18 GHz
