JA7TH-1030Thermal Remote Control

REV 09/02 Page 1 of TH-1030 INSTALLATION AND OPERATING INSTRUCTIONS INTRODUCTION This SUPER STAR remote control transmitter was developed to convert a standard SUPER STAR ON/OFF remote control systems Models 1001, 1001D, 1410, 1315, and 1315G to a ON/OFF/THERMO remote control systems for use on heater rated gas heating appliances. Its battery operation allows the system to operate independently of household current. The system operates on radio frequencies with non-directional signals. The SYSTEMS operating range is approximately 20 feet. The system operates on one of 255 security codes which can be set on the transmitter. The transmitter operates on (2) AAA-size 1.5V batteries and (1) 12V battery. It is recommended that ALKALINE batteries always be used for longer battery life and maximum operational performance. IMPORTANT: New or fully charged batteries are essential for proper operation of the multi-function transmitter. Insert (2) AAA-size 1.5 V batteries and (1) 12V battery into the battery compartment on the back of the transmitter, positioning the (+) and (-) ends of the batteries as indicated on the casing. When the batteries are inserted, the screen at right (with similar numbers) will display. Note: If a LOW battery icon appears on the screen, check the position of the batteries; a reversed battery will activate the LOW battery icon. Note: Due to the sensitive temperature-monitoring components in the transmitter, it may be necessary to allow the transmitter to stabilize to room temperature before accurate room temperatures are displayed on the screen. If the transmitter is activated from a severe cold condition, it can take up to fifteen minutes for accurate temperature readings to appear. 1. LOW- Battery power is low. Replace batteries within two weeks. 2. TIMER- Indicates time remaining before system shuts off, when timer-programmed; 9- hour maximum setting. 3. MODE- Indicates operation MODE of system. ON indicates the system is on, either manually or thermostatically. THERMO indicates the system will automatically cycle on/off, depending on programmed SET temperature. OFF indicates the entire system is turned off. 4. SET- Indicates desire SET room temperature for THERMO operation 5. FLAME – Indicates burner/valve in operation. 6. CLOCK – Indicates the current time in AM/PM 7. ROOM – Indicates CURRENT room temperature. 8. 0 F indicates degrees Fahrenheit ( 0 C indicates degrees Celsius). FUNCTIONS To operate the system, press the MODE button on the transmitter to select the operational MODE desired. • ON indicates the system is on, either manually, timed or thermostatically • THERMO indicates the system will automatically cycle ON/OFF, depending on • programmed set temperature. • OFF indicates the entire system is turned off. TRANSMITTER Cover Closed MODETIMER TIMER MODE SETTIME UP DOWN CODE Cover Open LCD DISPLAY SCREEN 1 8 7 2 3 5 4 6 ON ROOM L O W OFF TIMER THERMO SET PM FLAME ON ROOM L O W OFF TIMER THERMO SET PM FLAME ON ROOM L O W OFF TIMER THERMO SET PM FLAME ON ROOM L O W OFF TIMER THERMO SET PM FLAME LCD - Liquid Crystal Display ON ROOM TIMER SET PM REV 09/02 Page 2 of Flip open the plastic cover on the front of the transmitter to expose the “SET” buttons. The flip cover protects the SET buttons from being changed accidentally. Close the cover after completing the following settings/ programming. Flashing numbers on the display indicate the system is awaiting user input, such as using the UP and DOWN buttons to program a new setting. If no change is made to flashing digits within 15 seconds, the system will complete the procedure last programmed and reset the display to its normal state. 1. Press and hold the TIME button on the transmitter for more than two seconds. The hour digit(s) will begin flashing. 2. Press the UP or DOWN button until the desired hour is displayed in AM or PM. 3. After setting the desired hour, press and release the TIME button again to set the minutes; the minute digits will begin flashing. 4. Press the UP or DOWN button until the desire minutes are displayed. 5. After setting the desired hour and minutes press the SET button on the transmitter to stop the minutes digits from flashing and the time is set. SETTING 0 F / 0 C SCALE The factory setting for temperature is 0 F. To change this setting to 0 C, first press and hold the UP button on the transmitter, then press the DOWN button. Follow this same procedure to change from 0 C back to 0 F. When changing between the 0 F and 0 C scales, the temperature in the SET frame defaults to the lowest temperature (45 0 F, or 6 0 C ). SETTING DESIRED ROOM TEMPERATURE This remote control system can be thermostatically controlled when the transmitter is in the THERMO mode (THERMO must be displayed on the screen). To set the DESIRED room temperature, press the MODE button to place the transmitter into THERMO mode, then press the UP or DOWN button to select the desired room temperature. The highest SET temperature is 99 0 Fahrenheit (32 0 Celsius). The lowest SET temperature is 45 0 Fahrenheit (6 0 Celsius). OPERATIONAL NOTE: TO CONSERVE BATTERY POWER, CHANGES IN ROOM TEMPERATURE ARE ONLY UPDATED EVERY TWO MINUTES. The Thermo Mode on the transmitter operates the appliance when ever the ROOM TEMPERATURE varies a certain number of degrees from the SET TEMPERATURE. This variation is called the “SWING” or TEMPERATURE DIFFERENTIAL. The normal operating cycle of an appliance may be 2-4 times per hour depending on how well the room or home is insulated from the cold or drafts. The factory setting for the “swing number” is (2). This represents a temperature variation of +/- 2 0 F (1 0 C between SET temperature and ROOM temperature, which determines when the fireplace will be activated. SETTING THE COUNTDOWN TIMER This remote control system can operate with a built-in countdown timer when the transmitter is in the ON or THERMO modes (THERMO or ON must be displayed on the screen). 1. Press and release the TIMER button…

Text truncated - open the document above for the full version.

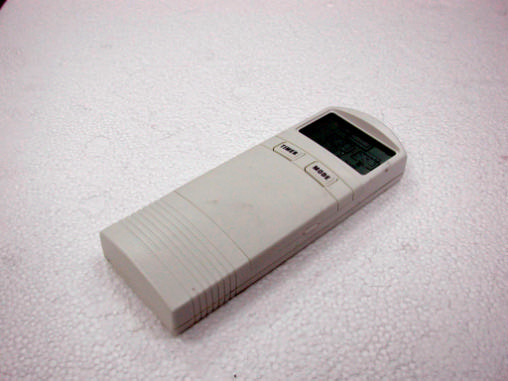

ETC Report No.: ET91S-09-100Page A1 of A1 FCC ID: JA7TH-1030 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Front view of EUT 2. Rear view of EUT

ETC Report No.: ET91S-09-100Page B1 of B3 FCC ID: JA7TH-1030 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside 1 of EUT 2. Inside 2 of EUT ETC Report No.: ET91S-09-100Page B2 of B3 FCC ID: JA7TH-1030 3. Inside 3 of EUT 4. Front view of PCB ETC Report No.: ET91S-09-100Page B3 of B3 FCC ID: JA7TH-1030 5. Rear view of PCB

TH-1030 INTRODUCTION Thermal Remote Control system was developed to provide a safe, reliable, and user- friendly remote control system for gas heating appliances. Its battery operation allows the system to operate independently of household current. The system operates on radio frequencies with nondirectional. The Thermal Remote Control’s operating range is approximately 80 feet with 255 security codes programmed at the factory. OPERATING The transmitter operates on a 12V battery made specifically for remote controls and electronic lighters. Before using the transmitter, remote the insulation tab protecting one end of the battery in the battery compartment. The transmitter has ON and OFF functions that are activated by pressing either button on the face of the transmitter. When ON button on the transmitter is pressed, the security code of 303.875MHZ will send to the receiver. Meanwhile, transmitter’s LCD will display . Otherwise, the OFF is pressed then the LCD will show no . When ON/OFF are pressed at the same time, the temperature display will change the ºC or ºF option function.

FCC ID.JA7TH-1030 Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Thermal Remote Control FCC ID. : JA7TH-1030 MODEL : TH-1030 Working Frequency : 303.875 MHz for APPLICANT: SUPER STAR TECHNOLOGY CO., LTD. ADDRESS: No.7, Lane 306, Sec.2, Tai-Lin Rd., Tai-Shan Shiang, Taipei Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333, TAIWAN, R.O.C. Tel: (03) 3276170-3276174 Fax: (03) 3276188 Report Number: ET91S-09-100 ETC Report No.:ET91S-09-100FCC ID.: JA7TH-1030 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: SUPER STAR TECHNOLOGY CO., LTD. No.7, Lane 306, Sec.2, Tai-Lin Rd., Tai-Shan Shiang, Taipei Hsien, Taiwan, R.O.C. Manufacturer: SUPER STAR TECHNOLOGY CO., LTD. No.7, Lane 306, Sec.2, Tai-Lin Rd., Tai-Shan Shiang, Taipei Hsien, Taiwan, R.O.C. Description of EUT: a) Type of EUT: Thermal Remote Control b) Model No.: TH-1030 c) Serial No.: 020001 d) FCC ID: JA7TH-1030 e) Working Frequency: 303.875 MHz f) Power Supply: DC 12V Battery x 1 (Main Power) and 1.5V Battery x 2 ( for LCD Display ) Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (2002) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note:1.The results of the testing report relate only to the items tested. 2.The testing report shall not be reproduced except in full, without the written approval of ETC. 3.The report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Issue Date : Sep. 26, 2002 Test Engineer : Approve & Authorized Signer : Win-Po Tsai, Manager, NVLAP Signatory EMC Dept. of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET91S-09-100FCC ID.: JA7TH-1030 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION............................................................................................................................................................1 1.1 PRODUCT DESCRIPTION.................................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:.......................................................................................................................................................1 1.3 TEST METHODOLOGY......................................................................................................................................................................1 1.4 TEST FACILITY..................................................................................................................................................................................1 2. DEFINITION AND LIMITS..............................................................................................................................................................2 2.1 DEFINITION........................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.............................................................................................................................................2 2.3 LIMITATION.......................................................................................................................................................................................3 2.4 LABELING REQUIREMENT...............................................................................................................................................................4 2.5 USER INFORMATION.........................................................................................................................................................................4 3. RADIATED EMISSION MEASUREMENT....................................................................................................................................5 3.1 APPLICABLE STANDARD.................................................................................................................................................................5 3.2 MEASUREMENT PROCEDURE..........................................................................................................................................................5 3.3 TEST DATA.........................................................................................................................................................................................7 3.4 FIELD STRENGTH CALCULATION..................................................................................................................................................8 3.5 RADIATED TEST EQUIPMENT.........................................................................................................................................................8 3.6 MEASURING INSTRUMENT SETUP.................................................................................................................................................8 3.7 RADIATED MEASUREMENT PHOTOS.............................................................................................................................................9 4. BANDWIDTH OF EMISSION AND DUTY FACTOR..............................................................................................................14 4.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH AND DUTY FACTOR...............................................................14 4.2 TEST EQUIPMENT...........................................................................................................................................................................14 4.3 ACTIVE TIM…
