JA7TM-1305T9Remote Control Key Locator

1 2 3 4 SMARTKEY FINDER INSTRUCTION Transmitter TM-1305T9 Receiver MFD-1004 INTRODUCTION OPERATION TO REPLACE BATTERY The product is ideal finder to detect some forgettable article. When pressing one button on the transmitter , the correspondence receiver which has different color will send out beep sound , and locate the article you are seeking . Transmitter Receiver Transmitter Buttons red blue yellow green 1.Attach receiver to forgettable article 1.Open the cover of battery with screwdriver . 2. Open the cover of transmitter 3. Remove insulating tab for battery 4. Press any button on transmitter, accordance receiver send out beep sound 2. Slide out of the battery cover Close battery cover , tighten it with screwdriver. Insert one 3V battery Frequency: 434MHz Battery: 12V(A23) for transmitter 3V(3023) for receiver . SPECIFICATION: FCC ID : JA7TM-1305T9 NOTE:The changes or modifications not expressly approved by the party responsible for compliance could void the user s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter.

SUPER STAR TECHNOLOGY CO., LTD SUPER STAR TECHNOLOGY CO., LTDSUPER STAR TECHNOLOGY CO., LTD SUPER STAR TECHNOLOGY CO., LTD NO.7, LANE 306, TAI-LIN RD., SEC.2 TAI-SHAN HSIANG, TAIPEI HSIEN, TAIWAN. R.O.C. TEL: 886-2-2909-4818 FAX; 886-2-2909-2300 FCC ID: JA7TM-1305T9 Federal Communications Commission Dear Sir: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. By:By:Andrew Lin (Signature)(Printed) Title : MANAGER Applicant : SUPER STAR TECHNOLOGY CO., LTD. Address : NO.7, LANE 306, TAI-LIN RD., SEC.2, TAI-SHAN HSIANG, TAIPEI HSIEN, TAIWAN. R.O.C. Tel :886-2- 2909-4818Fax: 886-2- 2909-2300 Date :JUN 15, 2005 E_Mail : [email protected]

SUPER STAR TECHNOLOGY CO., LTD SUPER STAR TECHNOLOGY CO., LTDSUPER STAR TECHNOLOGY CO., LTD SUPER STAR TECHNOLOGY CO., LTD NO.7, LANE 306, TAI-LIN RD., SEC.2 TAI-SHAN HSIANG, TAIPEI HSIEN, TAIWAN. R.O.C. TEL: 886-2-2909-4818 FAX; 886-2-2909-2300 Federal Communications Commission Dear Sir, We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN LAB, to act on our behalf in all matters relating to application for Remote Control Key Locator , MODEL NO: TM-1305T9 , FCC ID No.：JA7TM-1305T9 ” authorization, including the signing of all documents relating to these matters. Any and all carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.A. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). By: By: Andrew Lin (Signature)(Printed) Title : MANAGER Applicant : SUPER STAR TECHNOLOGY CO., LTD. Address : NO.7, LANE 306, TAI-LIN RD., SEC.2, TAI-SHAN HSIANG, TAIPEI HSIEN, TAIWAN. R.O.C. Tel : 886-2- 2909-4818Fax: 886-2- 2909-2300 Date : JUN 15, 2005 E mail : [email protected]

1 Helen Zhao Subject:FW: SUPER STAR TECHNOLOGY CO., LTD., FCC ID: JA7TM-1305T9, Assessment NO.: AN05T4877, Notice#1 9406099_Test Report.pdf Confidentiality request.pdf From: hsieh Sent: Thursday, June 23, 2005 1:43 AM To: Helen Zhao Subject: Re: SUPER STAR TECHNOLOGY CO., LTD., FCC ID: JA7TM-1305T9, Assessment NO.: AN05T4877, Notice#1 Dear Helen, Attached please find the new Test report and Confidentiality request for your questions. Please see the new duty cycle plots on the report. The star mark "*" is the unsuitable procedure result after "View" function of R&S FSU46. Thank you. Best regards, Joe Hsieh -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Tuesday, June 21, 2005 5:39 PM To: Helen Zhao Subject: SUPER STAR TECHNOLOGY CO., LTD., FCC ID: JA7TM-1305T9, Assessment NO.: AN05T4877, Notice#1 Question #1: Form 731 indicates that this application includes a request for confidentiality. But Request for confidentiality letter was not submitted. Please submit the letter if Form 731 was filled in correctly. Question #2: The report show some duty cycle plots with red star mark "*". If it means unstable status, please update the plots. Question #3: Please correct a typo in the report page 14. it should be 0.3125(ms) x 24 + 1.0337(ms) x 5. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to 2 the e-mail address listed below the name of the sender.

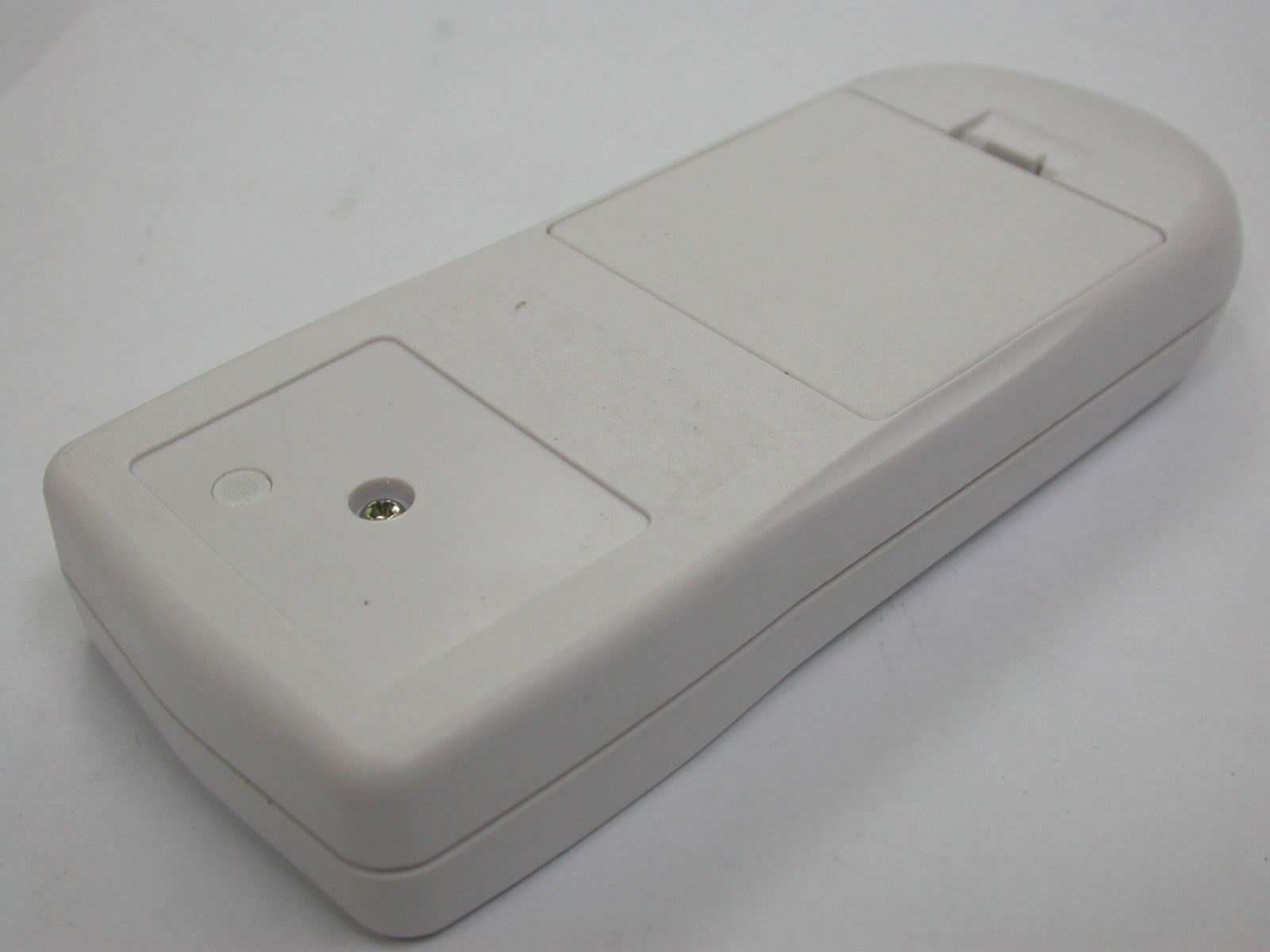

ETC Report No.: ET94S-06-099 Page A1 of A1 FCC ID: JA7TM-1305T9 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

1.562" 1.186" Company: Super Star Technology Co., Ltd. Item: TM-1305T9

ETC Report No.: ET94S-06-099 Page B1 of B2 FCC ID: JA7TM-1305T9 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: ET94S-06-099 Page B2 of B2 FCC ID: JA7TM-1305T9 3. Front view of PCB 4. Rear view of PCB

ETC Report No. : ET94S-06-099 Sheet 1 of 24 Sheets FCC ID.: JA7TM-1305T9 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: ET94S-06-099 Client: SUPER STAR TECHNOLOGY CO., LTD. Product: Remote Control Key Locator Model: TM-1305T9 FCC ID: JA7TM-1305T9 Manufacturer/supplier: SUPER STAR TECHNOLOGY CO., LTD. Date test item received: 2005/06/13 Date test campaign completed: 2005/06/13 Date of issue: 2005/06/16 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 24 pages Total number of pages of photos: External photos 1 pages Internal photos 2 pages Setup photos 2 pages Test Engineer Checked By Approved By James Mark Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33382, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : ET94S-06-099 Sheet 2 of 24 Sheets FCC ID.: JA7TM-1305T9 Rev. No 1.0 TEST REPORT CERTIFICATION Client : SUPER STAR TECHNOLOGY CO., LTD. Address : No.7, Lane 306, Sec.2, Tai-Lin Rd., Tai-Shan Shiang, Taipei Hsien,Taiwan,R.O.C. Manufacturer : SUPER STAR TECHNOLOGY CO., LTD. Address : No.7, Lane 306, Sec.2, Tai-Lin Rd., Tai-Shan Shiang, Taipei Hsien,Taiwan,R.O.C. EUT : Remote Control Key Locator Trade name : SMART KEY FINDER Model No. : TM-1305T9 Power Source : 12VDC Regulations applied : FCC 47 CFR, Part 15 Subpart C (2004) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA 5 FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 ETC Report No. : ET94S-06-099 Sheet 3 of 24 Sheets FCC ID.: JA7TM-1305T9 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ......................................................................................................................................4 1.1 P RODUCT D ESCRIPTION .................................................................................................................................................4 1.2 C HARACTERISTICS OF D EVICE : ......................................................................................................................................4 1.3 T EST M ETHODOLOGY ....................................................................................................................................................4 1.4 T EST F ACILITY ...............................................................................................................................................................4 2. DEFINITION AND LIMITS........................................................................................................................................5 2.1 D EFINITION ....................................................................................................................................................................5 2.2 RESTRICTED BANDS OF OPERATION...............................................................................................................................5 2.3 LIMITATION....................................................................................................................................................................6 2.4 L ABELING R EQUIREMENT ..............................................................................................................................................7 2.5 U SER I NFORMATION .......................................................................................................................................................7 3. RADIATED EMISSION MEASUREMENT..............................................................................................................8 3.1 A PPLICABLE S TANDARD .................................................................................................................................................8 3.2 M EASUREMENT P ROCEDURE .........................................................................................................................................8 3.3 T EST D ATA ..................................................................................................................................................................10 3.4 FIELD STRENGTH CALCULATION..................................................................................................................................14 3.5 RADIATED TEST EQUIPMENT.......................................................................................................................................14 3.6 M EASURING I NSTRUMENT S ETUP .................................................................................................................................19 4. BANDWIDTH OF EMISSION...........................................…
