JFE-D2D00002Wireless Lan

HZ1500USB Wireless USB LAN Adapter User’s Guide www.direct2data.com REVISION: 1 VERSION: 111203B DATE: Nov. 2003 HZ1500USB Wireless USB LAN Adapter 2 COPYRIGHT ©2003 ParkerVision Inc. All rights reserved. Horizons Wireless™ and D2D™ Technology are registered trademarks of ParkerVision Inc. All specifi cations are subject to change without notice. May include one or more of the following patents: US6421534, US6049706, US6266518, US6061555, US6061551,US6353735, US6091940, US6370371 Additional Patents Pending. Designed and manufactured in the USA. FCC INTERFERENCE STATEMENT FCC ID: JFE-D2D00002 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operations. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harm- ful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio/television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. INFORMATION TO USER: THE USER’S MANUAL OR INSTRUCTION MANUAL FOR AN INTENTION- AL OR UNINTENTIONAL RADIATOR SHALL CAUTION THE USER THAT CHANGES OR MODIFICA- TIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. “FCC RF exposure requirements: When in operation, the device should be located such that it is more than 20 cm. away from people and their person. This transmitter is restricted for use with the specifi c antenna(s) tested in the application for Certifi cation. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.” HZ1500USB Wireless USB LAN Adapter 3 LIMITED WARRANTY PLEASE READ THIS MANUFACTURER’S GUARANTEE CAREFULLY TO UNDERSTAND YOUR RIGHTS AND OBLIGATIONS. MANUFACTURER’S GUARANTEE AND LIMITATION OF LIABILITY Note: The following guarantee is not restricted to any territory and does not affect any statutory rights that you may have. The term “Hardware Device” means the enclosed Direct2Data™ Technologies Hardware Device. This Manufacturer’s Guarantee does not cover your data, or any separate software, whether or not packaged or included with the Hardware Device. Direct2Data Technologies GUARANTEE. Direct2Data Technologies guarantees (this “Guarantee”) that on the day you receive the Hardware Device and for the next (1) year thereafter (a) the Hardware Device will be substantially free from defects in materials and workmanship, and (b) any support services provided by Direct2Data Technologies will be substantially as described in applicable written materials provided to you by Direct2Data Technologies, and Direct2Data Technologies support engineers will use reasonable efforts, care and skill to solve any problem issues. In the event that the Hardware Device fails to comply with this Guarantee, Direct2Data Technologies shall either, at Direct2Data Technologies’ option, (a) repair or replace the Hardware Device or (b) return the price you paid for the Hardware Device (if any), provided that you return the Hardware Device to Direct2Data Technologies with a copy of your receipt of purchase. You may exercise this remedy without charge, except that you are responsible for any expenses you may incur. This Guarantee is void if failure of the Hardware Device results from any accident, abuse or misapplication. Any replacement Hardware Device shall be guaranteed for the remainder of the original Guarantee period or thirty (30) days, whichever is longer. Direct2Data Technologies shall not be liable for any loss or damage that you could have reasonably avoided, for example, by backing up your software and fi les regularly, In addition, you may receive a full refund of your purchase price within the fi rst 30 days following the purchase of the Hardware Device for any reason provided that you return the Hardware Device to the Manufacturer in its original condition, accompanied by the receipt of purchase. EXCLUSION OF ALL OTHER TERMS. YOU AGREE THAT THIS GUARANTEE IS YOUR SOLE GUARANTEE IN RELATION TO THE HARDWARE DEVICE AND ANY SUPPORT SERVICES. DIRECT2DATA TECHNOLOGIES AND ITS SUPPLIERS MAKE NO OTHER GUARANTEES OR WARRANTIES WITH RESPECT TO THE HARDWARE DEVICE, THE SUPPORT SERVICES AND ANY PRODUCT MANUAL(S) OR OTHER WRITTEN MATERIALS THAT ACCOMPANY THE HARDWARE DEVICE. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW AND SUBJECT TO THIS GUARANTEE, DIRECT2DATA TECHNOLOGIES AND ITS SUPPLIERS DISCLAIM ALL WARRANTIES, CONDITIONS AND OTHER TERMS, EITHER EXPRESS OR IMPLIED (WHETHER BY STATUTE, COMMON LAW, COLLATERALLY OR OTHERWISE), INCLUDING BUT NOT LIMITED TO ANY (IF ANY) IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR PARTICULAR PURPOSE, LACK OF VIRUSES, LACK OF NEGLIGENCE, LACK OF WORKMANLIKE EFFORT, TITLE, AUTHORITY, OR NONINFRINGEMENT WITH RESPECT TO THE HARDWARE DEVICE, THE SUPPORT SERVICES AND THE PRODUCT MANUAL(S) OR OTHER WRITTEN MATERIALS THAT ACCOMPANY THE HARDWARE DEVICE. Continued Next Page HZ1500USB Wireless USB LAN Adapter 4 ANY IMPLIED WARRANTIES THAT ARE NOT DEEMED EXCLUDED ARE LIMITED TO THE ORIGINAL GUARANT…

Text truncated - open the document above for the full version.

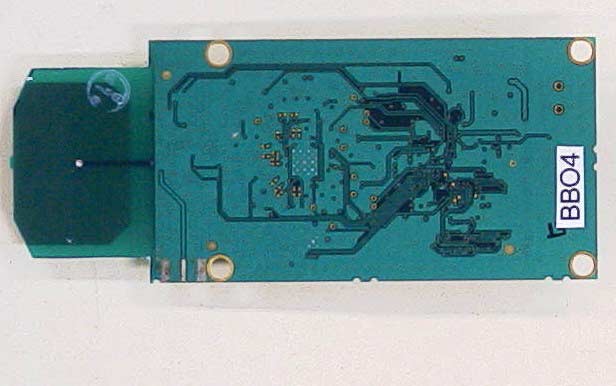

APPLICANT: PARKERVISION INC. FCC ID: JFE-D2D00002 REPORT #: P\PARKERJFE\1467BUT3\1467BUT3TestReport.doc TABLE OF CONTENTS LIST APPLICANT: PARKERVISION INC. FCC ID: JFE-D2D00002 TABLE OF CONTENTS FOR A DIRECT SEQUENCE SPREAD SPECTRUM TEST REPORT CONTAINING: PAGE 1.............LETTER OF EXPLANATION PAGE 2.............LIST OF TEST EQUIPMENT PAGE 3.............TEST PROCEDURES PAGE 4.............OCCUPIED BANDWIDTH & POWER OUTPUT PAGE 5.............6 dB BANDWIDTH PLOT PAGE 6.............METHOD OF MEASURING RF CONDUCTED SPURIOUS EMISSIONS AT ANTENNA TERMINALS DATA PAGE 7-8...........RADIATION INTERFERENCE TEST DATA PAGE 9.............METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 10-11.........POWERLINE CONDUCTED INTERFERENCE PAGE 12............RADIATED SPURIOUS EMISS. INTO ADJACENT RESTRICTED BANDS PAGE 13-14.........BANDEDGE PLOTS PAGE 15............POWER SPECTRAL DENSITY PAGE 16............MPE CALCULATION EXHIBIT ATTACHMENTS: EXHIBIT 1..........REQUEST FOR CONFIDENTIALITY LETTER EXHIBIT 2..........BLOCK DIAGRAM EXHIBIT 3..........SCHEMATICS EXHIBIT 4..........USERS MANUAL EXHIBIT 5..........LABEL SAMPLE EXHIBIT 6..........LABEL LOCATION EXHIBIT 7..........EXTERNAL PHOTOGRAPHS EXHIBIT 8..........INTERNAL PHOTOGRAPHS EXHIBIT 9..........OPERATIONAL DESCRIPTION EXHIBIT 10.........TEST SET UP PHOTOGRAPH EXHIBIT 11.........SAR TEST REPORT APPLICANT: PARKERVISION INC. FCC ID: JFE-D2D00002 REPORT #: P\PARKERJFE\1467BUT3\1467BUT3TestReport.doc Page 1 of 16 SEPTEMBER 4, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: PARKERVISION INC. FCC ID: JFE-D2D00002 To Whom It May Concern: The attached application is for a direct sequence spread spectrum Wireless lan with an integrated antenna. This wireless lan complies to the 802.11 specifications and operates in the 2412-2462 MHz band. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Mario R. de Aranzeta C.E.T. MRD/sh Encl. APPLICANT: PARKERVISION INC. FCC ID: JFE-D2D00002 REPORT #: P\PARKERJFE\1467BUT3\1467BUT3TestReport.doc Page 2 of 16 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Double- Ridged Horn Antenna Electro- Metrics RGA-180 2319 CAL 2/17/03 2/17/05 LISN Electro- Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log-Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 Log-Periodic Antenna Electro- Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro- Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro- Metrics LPA-30 409 CAL 3/4/03 3/4/05 Peak Power Meter HP 8900C 2131A00545 CAL 7/2/03 7/2/05 Power Meter HP 432A 1141A07655 CAL 4/15/03 4/15/05 Silver Tower Preamplifier HP 8449B 3008A01075 CHAR 1/28/02 1/28/04 Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/14/02 10/14/04 Silver Tower RF Preselector HP 85685A 2620A00294 CAL 10/14/02 10/14/04 Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/14/02 10/14/04 Tan Tower Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 8/31/01 8/31/03 Tan Tower RF Preselector HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 Harmonic Mixer HP 11970K 3003A04991 N/A N/A HORN SYSTRON DONNOR DBE-520-20 N/A N/A N/A APPLICANT: PARKERVISION INC. FCC ID: JFE-D2D00002 REPORT #: P\PARKERJFE\1467BUT3\1467BUT3TestReport.doc Page 3 of 16 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. Shielded interface cables were used in all cases except for cables connecting to the telephone line and the power cords. A test program was run which simulated a normal data transmission on a network. POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STANDARD C63.4- 1992 using a 50uH LISN. Both lines were observed with the UUT transmitting. The bandwidth of the spectrum analyzer was 10kHz with an appropriate sweep speed. The ambient temperature of the UUT was 76°F with a humidity of 55%. BANDWIDTH 6.0dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW)=1.0MHz and the video bandwidth (VBW) =3.0MHz and the span set as shown on plot. POWER OUTPUT: The RF power output was measured at the antenna feed point using a peak power meter. ANTENNA CONDUCTED EMISSIONS: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30MHz to the 10 th Harmonic of the fundamental. Above 1.0 GHz the resolution bandwidth was 1.0 MHz and the VBW = 3.0 MHz and the span to 50 MHz. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth (RBW) of the spectrum analyzer was 100kHz up to 1GHz and 1.0MHz above 1GHz with an appropriate sweep speed. The VBW above 1.0GHz was = 3.0MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient temperature of the UUT was 53°F with a humidity of 17%. APPLICANT: PARKERVISION INC. FCC ID: JFE-D2D00002 REPORT #: P\PARKERJFE\1467BUT3\1467BUT3TestReport.doc Page 4 of 16 APPLICANT: PARKERVISION INC. FCC ID: JFE-D2D00002 NAME OF TEST: 6.0dB BANDWIDTH RULES PART NO.: 15.247(a)(2) REQUIREMENTS: The 6.0dB bandwidth must be greater than 500 kHz. MEASUREMENT: See plot on next page. MEASUREMENT DATA: See plot NAME OF TEST: POWER OUTPUT RULES PART NO.: 15.247(b) 1.0Watt or +30dBm MEASUREMENT: 21.2 dBm at 2412 MHz 15.247(c) Method of Measuring RF Power output: The Peak power Sensor was connected in place of the antenna. Measurements were made on …
