JFEMDS-2003CAMERA CONTROL RECEIVER

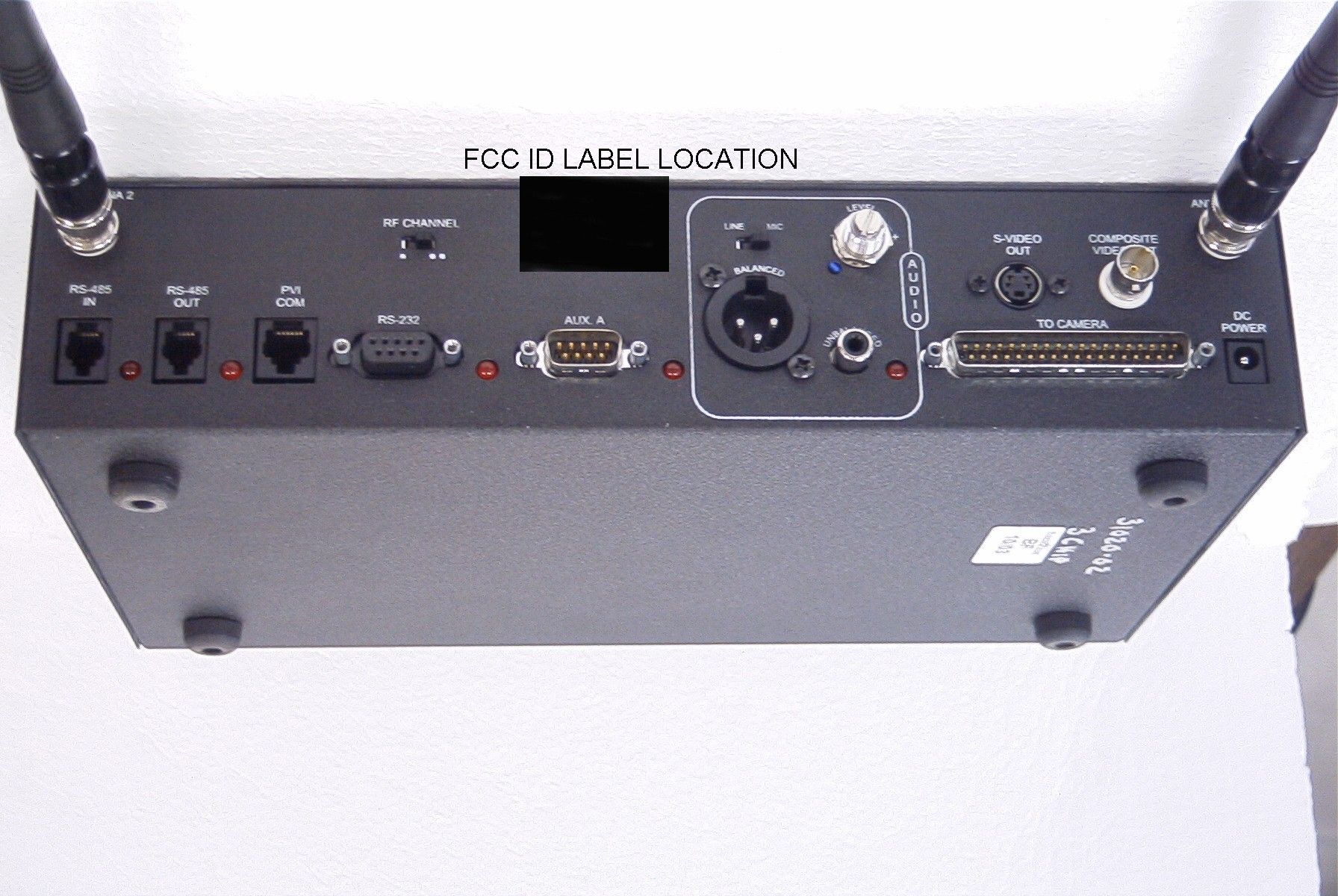

TIMCO ENGINEERING INC. 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PARKERVISION INC. FCC ID: JFEMDS-2003 REPORT #: T:\P\PARKERJFE\235UT4\235ut4TestReport.doc COVER PAGE Test Report Product Name: CAMERAMAN FCC ID: JFEMDS-2003 Applicant: PARKERVISION INC. 8493 BAYMEADOWS WAY JACKSONVILLE, FL 32256 Date Receipt: FEBRUARY 26, 2004 Date Tested: MARCH 9, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PARKERVISION INC. FCC ID: JFEMDS-2003 REPORT #: T:\P\PARKERJFE\235UT4\235ut4TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: PARKERVISION INC. FCC ID: JFEMDS-2003 TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURES PAGE 3...............RADIATION INTERFERENCE TEST DATA PAGE 4...............POWER LINE CONDUCTED INTERFERENCE PAGE 5-7.............POWER LINE CONDUCTED PLOTS EXHIBITS CONTAINING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PARKERVISION INC. FCC ID: JFEMDS-2003 REPORT #: T:\P\PARKERJFE\235UT4\235ut4TestReport.doc Page 1 of 7 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2926A00983CAL 4/15/03 4/15/05 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 LISN Electro- Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PARKERVISION INC. FCC ID: JFEMDS-2003 REPORT #: T:\P\PARKERJFE\235UT4\235ut4TestReport.doc Page 2 of 7 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2001 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHZ and the video bandwidth was 300KHZ. The ambient temperature of the UUT was 70ºF with a humidity of 30%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2001 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. TIMCO ENGINEERING INC. 849 NW State Road 45 A2LA CERT # 0955-01 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PARKERVISION INC. FCC ID: JFEMDS-2003 REPORT #: T:\P\PARKERJFE\235UT4\235ut4TestReport.doc Page 3 of 7 APPLICANT: PARKERVISION INC. FCC ID: JFEMDS-2003 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 209.4 220.07 15.1 V 1.88 11.30 28.28 17.72 209.4 220.07 17.5 H 1.88 12.00 31.38 14.62 212.5 223.23 13.4 V 1.89 11.33 26.62 19.38 212.5 223.23 15.5 H 1.89 11.94 29.33 16.67 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE: ANSI STANDARD C63.4-2001 using a Hewlett Packard Model 8566B spectrum analyzer, a Hewlett Packard Model 85685A Preselector, a Hewlett Packard Model 85650A Quasi-Peak adapter, and an appropriate antenna – see the test equipment list. The bandwidth of spectrum analyzer was 100 kHz with an appropriate sweep speed. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. Emissions that are attenuated more than 20 dB below the permissible value are not reported. PERFORMED BY: NAM NGUYEN DATE: MARCH 9, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 A2…

Text truncated - open the document above for the full version.
