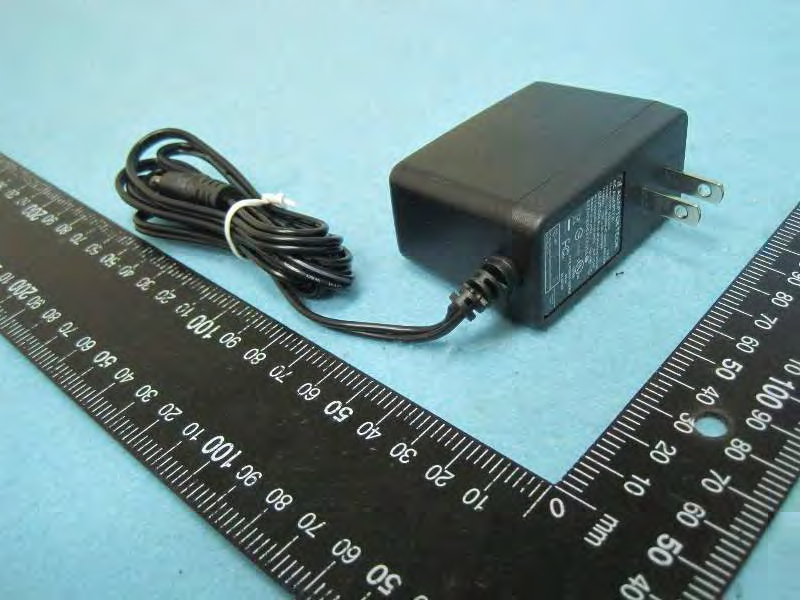

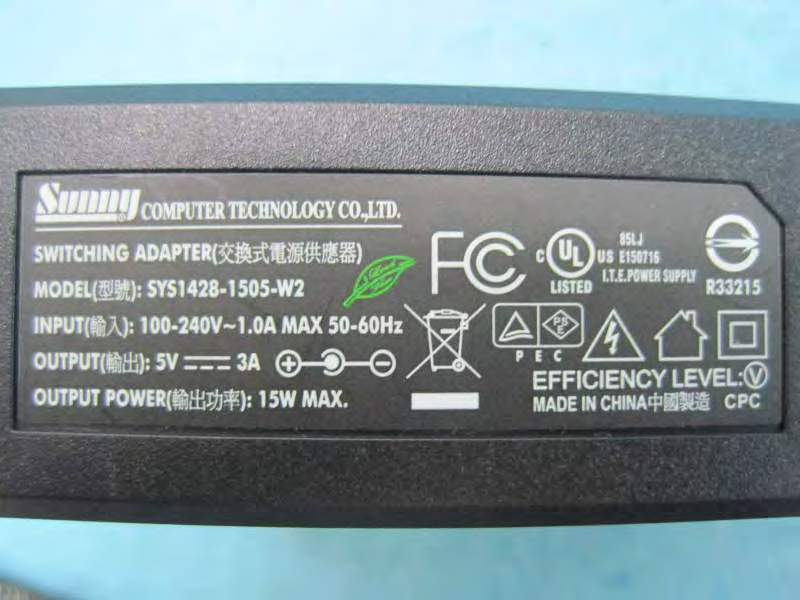

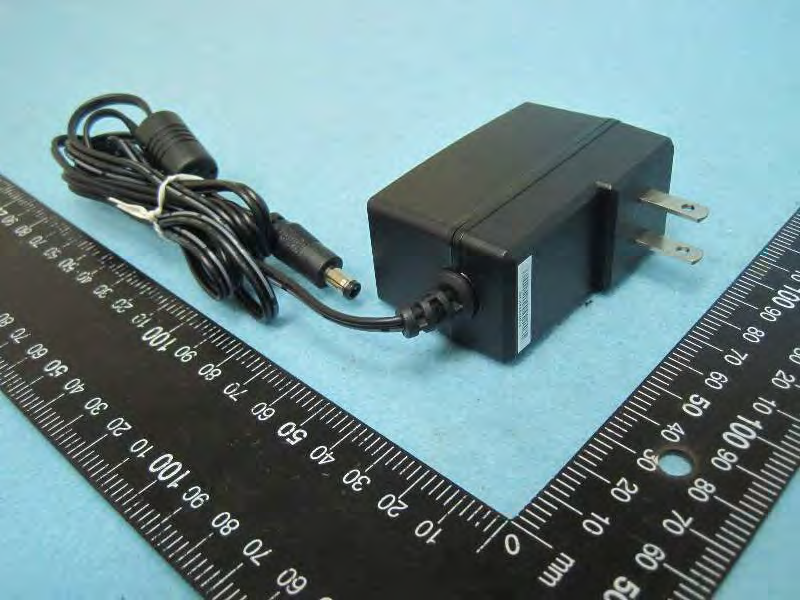

Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Adapter 1 Brand Holder: Sunny Model No.: SYS1428-1505-W2 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Adapter 2 Brand Holder: ADAPTER TECH. Model No.: STD-05030U Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255

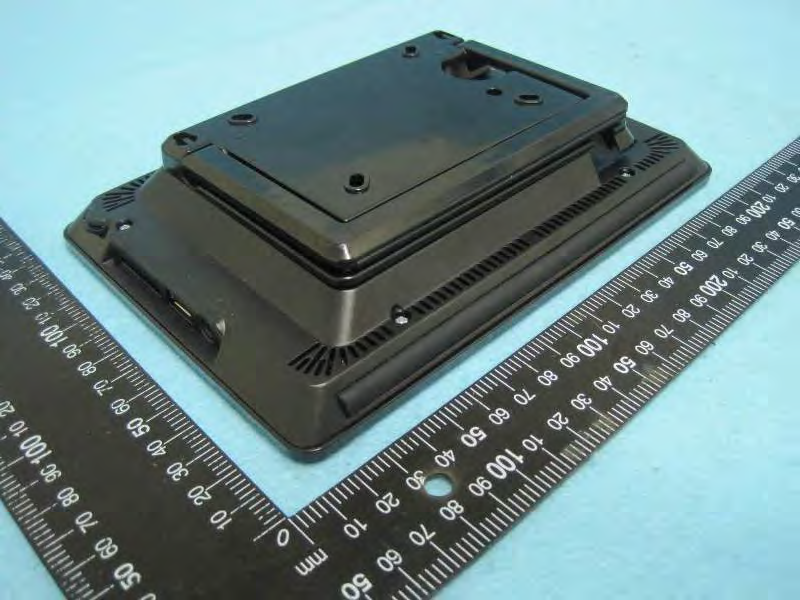

Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 1 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 2 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 3 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 4 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 5 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 6 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 7 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 8 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 9 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 10 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 11 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 12 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 13 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 14 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 15 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 16 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 17 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 18 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 19 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 20 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 21 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 22 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 23 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 24 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 25 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 26 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 27 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255 Battery 1 Brand Holder: GETAC Model No.: 541385120001 Report No.: 2N2120 SPORTON International Inc. PAGE NUMBER : 28 OF 28 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2013 FAX : 886-2-2696-2255

Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : B3 of B3 1.3. Calculated Result and Limit For ZigBee Antenna Type : Chip Antenna Max Conducted Power for IEEE 802.15.4 ZigBee: 21.94 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.20 2.0893 21.9400 156.3148 0.065006 1 Complies For Wifi Antenna Type : Chip Antenna Max Conducted Power for IEEE 802.11n 20MHz MCS8: 22.38 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 22.3768 172.8551 0.054530 1 Complies For 3G GSM824 Antenna Type : PIFA Antenna, Antenna Gain: 2.68 Max Conducted Power: 30.24 dBm Frequency (MHz) ERP power(dBm) EIRP power(dBm) EIRP power(mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 824 28.0900 30.2400 1056.8175 0.210 0.549 Complies CONCULSION: Both of the WiFi + Zibee + 3G can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.065006 / 1 + 0.054530 / 1+ 0.210 / 0.55 = 0.50135, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 60% Test Engineer Satoshi Yang Configurations WiFi + ZigBee + 3G Horizontal Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company SMC Networks, Inc. Applicant Address 20 Mason, Irvine, California 92618 United States FCC ID JI5-RB6741 Manufacturer’s company Accton Technology Corporation Manufacturer Address #1, Creation Rd. III, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C Product Name Aegis 3G Brand Name SMC Model Name RB6741-Z Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2405~ 2475MHz Received Date Oct. 08, 2012 Final Test Date Dec. 20, 2012 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.15.4 ZigBee part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C and KDB 558074 D01 v02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR2N2120 Report Format Version: 01 Page No. : i of ii FCC ID: JI5-RB6741 Issued Date : Jan. 03, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................15 4.3. Power Spectral Density Measurement ..............................................................................................................................................17 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................21 4.5. Radiated Emissions Measurement ....................................................................................................................................................24 4.6. Band Edge Emissions Measurement .................................................................................................................................................33 4.7. Antenna Requirements .....................................................................................................................................................................37 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 38 6. TEST LOCATION.............................................................................................................................................. 40 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 41 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE .......................................................................................... B1 ~ B3 APPENDIX C. CO-LOCATION REPORTT ...........................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : A4 of A5 Test Mode: Mode 3 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR2N2120 FCC ID: JI5-RB6741 Page No. : A5 of A5 Test Mode: Mode 2 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
