Date: 2013/1/31 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Modular Approval Request Letter AUDIX Technology Corporation. Jan. 16, 2013 Dear Application Examiner, The 2.4GHz 802.11n 3T3R wifi module, modem name is SMC-RT359333DB24 , FCC ID: JI5-RT359333DB24 , would like to have your authorization as a modular approval specific to the mobile device such as digital device emissions, The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: Yes, the radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” Yes, he buffer is invisible for embedding in chip. 3. “The modular transmitter must have its own power supply regulation.” Yes, the EUT has its’ own power supply regulation. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” Yes, the EUT meets the FCC antenna requirements. The spurious emission, the antenna is PCB antenna and intergrated. 5. “The modular transmitter must be tested in a stand-alone configuration” Yes, the EUT was tested in a stand-alone configuration via an USB cable. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes, this module has been labeled with its’ own FCC ID number. Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” Yes, the EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes, the EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

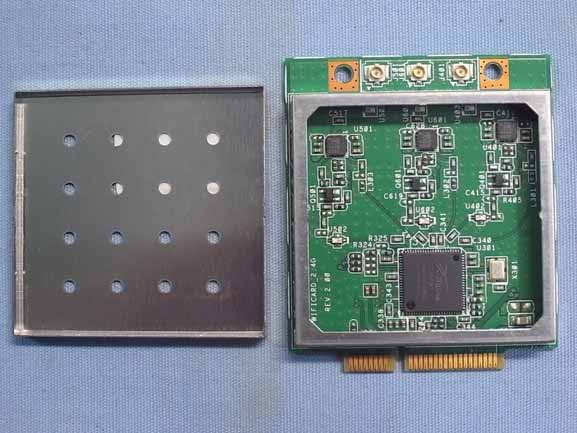

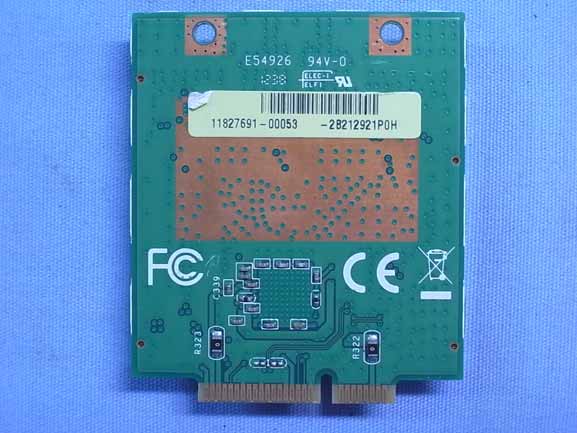

SMC Networks Inc 2.4GHz 802.11n 3T3R wifi module FCC ID. : JI5-RT359333DB24 EUT External Photos Figure 1 2.4GHz 802.11n 3T3R wifi module (Front View) Figure 2 2.4GHz 802.11n 3T3R wifi module (Removed Shielded Cover, Front View) SMC Networks Inc 2.4GHz 802.11n 3T3R wifi module FCC ID. : JI5-RT359333DB24 Figure 3 2.4GHz 802.11n 3T3R wifi module (Front View) Figure 4 2.4GHz 802.11n 3T3R wifi module (Back View)

SMC Networks Inc 2.4GHz 802.11n 3T3R wifi module FCC ID. : JI5-RT359333DB24 FCC ID Label Location z Label Placement Location z FCC ID Label Format FCC ID : JI5-RT359333DB24 Model : SMC- RT359333DB24 Made in Taiwan R.O.C. 10mm 19mm FCC ID & IC Label Placement Location

SMC Networks Inc 2.4GHz 802.11n 3T3R wifi module FCC ID. : JI5-RT359333DB24 EUT External Photos Figure 1 2.4GHz 802.11n 3T3R wifi module (Front View) Figure 2 2.4GHz 802.11n 3T3R wifi module (Removed Shielded Cover, Front View) SMC Networks Inc 2.4GHz 802.11n 3T3R wifi module FCC ID. : JI5-RT359333DB24 Figure 3 2.4GHz 802.11n 3T3R wifi module (Front View) Figure 4 2.4GHz 802.11n 3T3R wifi module (Back View)

Maximum Permissive Exposure FCC ID: JI5-RT359333DB24 Product Name: 2.4GHz 802.11n 3T3R wifi module Model No: SMC- RT359333DB24 SMC Networks, Inc. declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain of 2.4GHz is 1.8 dBi, and the power output is 500.0345mW, the power density is 0.1505 mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* * r^2) or r = (P * G) / (4 * * S) Where S = Power Density in mW/cm^2 P = 26.99dBm =500.0345mW G = 1.8 dBi = 1.513 Numerical r = 20cm S = 500.0345*1.513 / 4** 20^2 = 0.1505mW/cm^2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

FCC ID: JI5-RT359333DB24 Page 1 of 75 AUDIX Technology Corporation Report No. EM-F1010981 APPLICATION FOR CERTIFICATION On Behalf of SMC Networks, Inc. 2.4GHz 802.11n 3T3R wifi module Model No. : SMC-RT359333DB24 FCC ID : JI5-RT359333DB24 Brand : SMC Networks, Inc. Prepared for : SMC Networks, Inc. 20 Mason, Irvine, California, United States, 92618 Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1211259 Report Number EM-F1010981 Date of Test Dec. 03 ~ Jan. 14, 2013 Date of Report Jan. 25, 2013 FCC ID: JI5-RT359333DB24 Page 2 of 75 AUDIX Technology Corporation Report No. EM-F1010981 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ................................................................................................ 4 1. GENERAL INFORMATION .................................................................................................. 5 1.1. Description of Device (EUT)........................................................................................................... 5 1.2. Data Rate Relative to Output Power................................................................................................ 6 1.3. Test Configuration for Each Test Item ............................................................................................ 7 1.4. Tested Supporting System Details ................................................................................................... 7 1.5. Description of Test Facility ............................................................................................................. 7 1.6. Measurement Uncertainty................................................................................................................ 8 2. CONDUCTED EMISSION MEASUREMET........................................................................ 9 2.1. Test Equipment ................................................................................................................................ 9 2.2. Block Diagram of Test Setup........................................................................................................... 9 2.3. Powerline Conducted Emission Limit §15.207, Class B, RSS-Gen §7.2.2/Table 2] ................... 9 2.4. Operating Condition of EUT ......................................................................................................... 10 2.5. Test Procedure ............................................................................................................................... 10 2.6. Conducted Emission Measurement Results................................................................................... 10 3. RADIATED EMISSION MEASUREMENT ....................................................................... 13 3.1. Test Equipment .............................................................................................................................. 13 3.2. Test Setup ...................................................................................................................................... 13 3.3. Radiated Emission Limits (§15.209, RSS-210 §2.7/Table 2)........................................................ 15 3.4. Operating Condition of EUT ......................................................................................................... 15 3.5. Test Procedure ............................................................................................................................... 16 3.6. Test Results.................................................................................................................................... 17 4. 6dB BANDWIDTH MEASUREMENT ................................................................................ 43 4.1. Test Equipment .............................................................................................................................. 43 4.2. Block Diagram of Test Setup......................................................................................................... 43 4.3. Specification Limits [§15.247(a)(2), RSS-210 §A8.2 (a)] ............................................................ 43 4.4. Operating Condition of EUT ......................................................................................................... 43 4.5. Test Procedure ............................................................................................................................... 43 4.6. Test Results.................................................................................................................................... 44 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .............................................. 51 5.1. Test Equipment .............................................................................................................................. 51 5.2. Block Diagram of Test Setup......................................................................................................... 51 5.3. Specification Limits (§15.247(b)-(3))............................................................................................ 51 5.4. Operating Condition of EUT ......................................................................................................... 51 5.5. Test Procedure ............................................................................................................................... 51 5.6. Test Results.................................................................................................................................... 52 6. EMISSION LIMITATIONS MEASUREMENT ................................................................. 53 7. BAND EDGES MEASUREMENT........................................................................................ 54 7.1. Test Equipment .................................................…

Text truncated - open the document above for the full version.

FCC ID: JI5-RT359333DB24 Page 73 of 75 AUDIX Technology Corporation Report No. EM-F1010981 10. PHOTOGRAPHS 10.1. Photos of Conducted Disturbance Measurement FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID: JI5-RT359333DB24 Page 74 of 75 AUDIX Technology Corporation Report No. EM-F1010981 10.2. Photos of Radiated Measurement at Semi-Anechoic Chamber 10.2.1.Frequency Below 1GHz 10.2.2. Frequency Above 1GHz FCC ID: JI5-RT359333DB24 Page 75 of 75 AUDIX Technology Corporation Report No. EM-F1010981 10.3. Photo of Section Maximum Peak Output Power Measurement 10.4. Photo of Section RF Conducted Measurement
