JI5-RT359333DB55GHz 802.11n 3T3R wifi module

JI5-RT359333DB5 User Manual 802.11 a/n Wireless Mini PCIE SMC Networks 20 Mason Irvine, CA 92618 U.S.A. Copyright © 2013 SMC Networks All Rights Reserved Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, or for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or stored in a database or retrieval system for any purpose without the express written permission of SMC. Microsoft and Windows are registered trademarks of Microsoft Corporation. Apple and Macintosh are registered trademarks of Apple, Inc. All other brands, product names, trademarks, or service marks are property of their respective owners. iii SMCD3GNV5 Administrator Manual Compliance Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. iv JI5-RT359333DB5 User Manual IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11 a/n operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. This device is intended only for OEM integrators under the following conditions:  The antenna must be installed such that 20 cm is maintained between the antenna and users, and  The transmitter module may not be co-located with any other transmitter or antenna. As long as the above two conditions are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. 注意 ! 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用 者均不得擅自 變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現 有干擾現象時， 應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信規定作業之無線電信。 低功率射頻電機 須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干 擾。 v SMCD3GNV5 Administrator Manual End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: JI5-359333DB5”. Manual Information That Must be Included This module must be properly installed in an approved device to function properly.Installation should be performed only at the factory or by a qualified service technician.The module should be inserted into the mini-PCIE connector. Once installed into the mini-PCIE card slot, carefully attach the Wi-Fi antennas to the connectors on the card. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user manual of the end product which integrates this module. The user manual for OEM integrators must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. For all the model ship to USA market, OEM integrator shall limit the accessible channel to US channel 36-48 and 149-165 only during the manufacturing process by special firmware setting which is not available to the end user. vi JI5-RT59333DB5 User Manual Contents Compliance ................…

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: Jan 16 th , 2013 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: AUDIX Technology Corporation is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: Jan. 16, 2014 By: __________________________ John Sweeney (Signature) (Print name) Title: VP of Technology On behalf of: SMC Networks, Inc (Company Name) Telephone: + 1 770-331-3817

Request for Confidentiality Date: Jan 16 th , 2013 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: JI5-RT359333DB5 To whom it may concern, Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Functional Block Diagram  Operational Description (theory of operation)  Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ___________________________ John Sweeney SMC Networks, Inc. VP of Technology Tel: +1 (770) 331-3817 Email: [email protected]

Date: 2013/1/31 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Modular Approval Request Letter AUDIX Technology Corporation. Jan. 16, 2013 Dear Application Examiner, The 5GHz 802.11n 3T3R wifi module, name is SMC-RT359333DB5, FCC ID: JI5-RT359333DB5 , would like to have your authorization as a modular approval specific to the mobile device such as digital device emissions, The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: Yes, the radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” Yes, the buffer is invisible for embedding in chip. 3. “The modular transmitter must have its own power supply regulation.” Yes, the EUT has its’ own power supply regulation. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” Please refer to ANT report. 5. “The modular transmitter must be tested in a stand-alone configuration” Yes, the EUT was tested in a stand-alone configuration. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes, this module has been labeled with its’ own FCC ID number. Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” Yes, the EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes, the EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

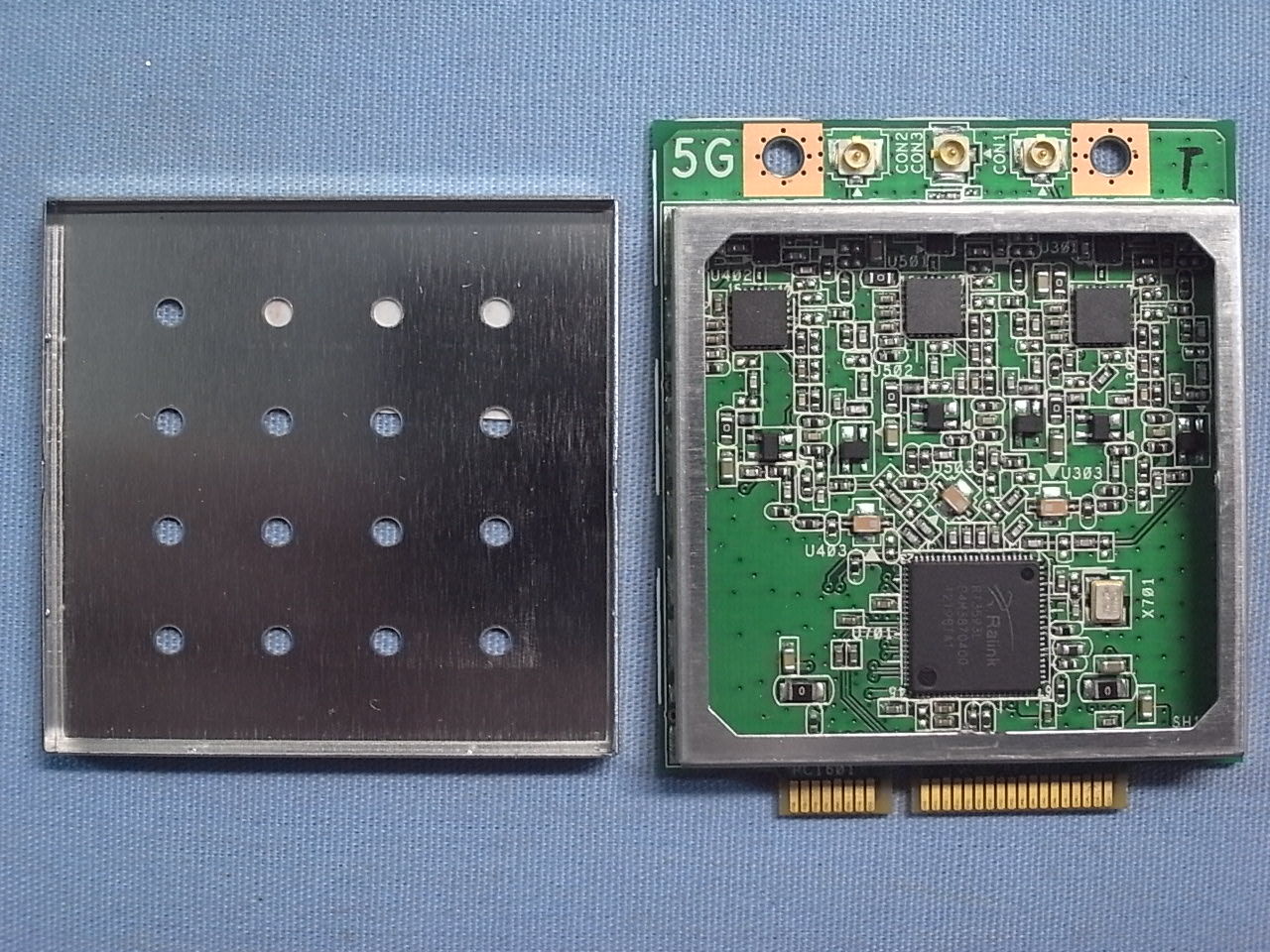

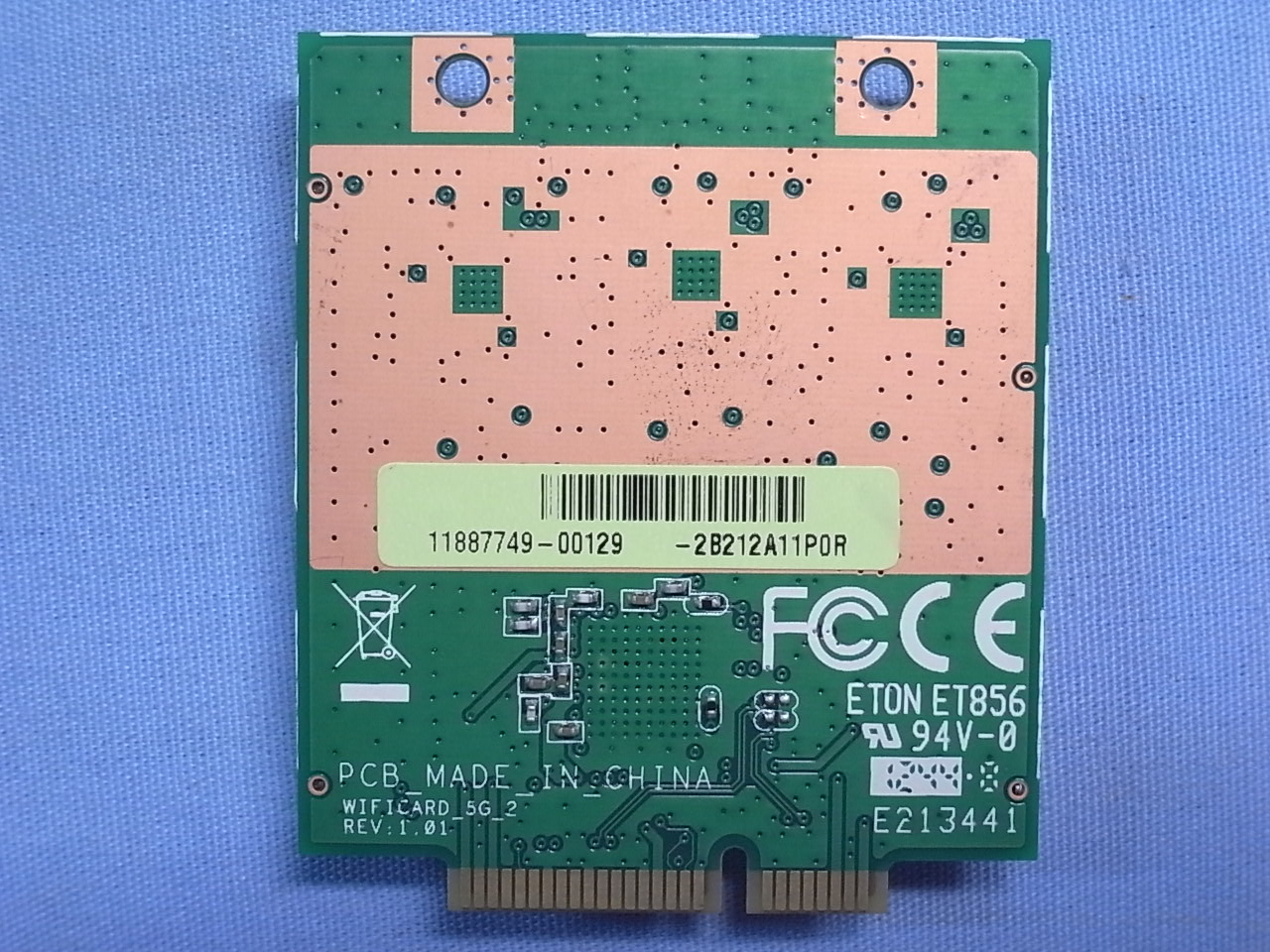

SMC Networks Inc 5GHz 802.11n 3T3R wifi module FCC ID. : JI5-RT359333DB5 EUT External Photos Figure 1 5GHz 802.11n 3T3R wifi module (Front View) Figure 2 5GHz 802.11n 3T3R wifi module (Removed Shielded Cover, Front View) SMC Networks Inc 5GHz 802.11n 3T3R wifi module FCC ID. : JI5-RT359333DB5 Figure 3 5GHz 802.11n 3T3R wifi module (Front View) Figure 4 5GHz 802.11n 3T3R wifi module (Back View)

SMC Networks Inc 5GHz 802.11n 3T3R wifi module FCC ID. : JI5-RT359333DB5 FCC ID & IC Label Location z Label Placement Location z FCC ID & IC Label Format FCC ID & IC Label Placement Location

SMC Networks Inc 5GHz 802.11n 3T3R wifi module FCC ID. : JI5-RT359333DB5 EUT External Photos Figure 1 5GHz 802.11n 3T3R wifi module (Front View) Figure 2 5GHz 802.11n 3T3R wifi module (Removed Shielded Cover, Front View) SMC Networks Inc 5GHz 802.11n 3T3R wifi module FCC ID. : JI5-RT359333DB5 Figure 3 5GHz 802.11n 3T3R wifi module (Front View) Figure 4 5GHz 802.11n 3T3R wifi module (Back View)

Maximum Permissive Exposure FCC ID: JI5-RT359333DB5 Product Name: 5GHz 802.11n 3T3R wifi module Model No: SMC-RT359333DB5 5.2GHz band: SMC Networks Inc declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain of 5GHz is 1.9 dBi, and the power output is 788.86mW, the power density is 0.0132 mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* * r^2) or r = (P * G) / (4 * * S) Where S = Power Density in mW/cm^2 P = 16.34dBm =43.052mW G = 1.9 dBi = 1.548 Numerical r = 20cm S = 43.052*1.548 / 4** 20^2 = 0.0132mW/cm^2 5.8GHz band: SMC Networks Inc declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain of 5GHz is 1.9 dBi, and the power output is 788.86mW, the power density is 0.2429 mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* * r^2) or r = (P * G) / (4 * * S) Where S = Power Density in mW/cm^2 P = 28.97dBm =788.86mW G = 1.9 dBi = 1.548 Numerical r = 20cm S = 788.86*1.548 / 4** 20^2 = 0.2429mW/cm^2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

FCC ID: JI5-RT359333DB5 Page 1 of 57 AUDIX Technology Corporation Report No. EM-F1010979 APPLICATION FOR CERTIFICATION On Behalf of SMC Networks Inc 5GHz 802.11n 3T3R wifi module Model No.SMC-RT359333DB5 FCC ID : JI5-RT359333DB5 Brand : SMC Networks, Inc. Prepared for : SMC Networks Inc 20 Mason, Irvine, California, United States, CA 92618 Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1211260 Report Number EM-F1010979 Date of Test Nov. 30 ~ Dec. 20, 2012 Date of Report Jan. 29, 2013 FCC ID: JI5-RT359333DB5 Page 2 of 57 AUDIX Technology Corporation Report No. EM-F1010979 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................4 1. GENERAL INFORMATION .........................................................................................................5 1.1. Description of Device (EUT).................................................................................................................. 5 1.2. Data Rate Relative to Output Power....................................................................................................... 6 1.3. Test Configuration for Each Test Item ................................................................................................... 6 1.4. Tested Supporting System Details .......................................................................................................... 7 1.5. Description of Test Facility .................................................................................................................... 7 1.6. Measurement Uncertainty....................................................................................................................... 8 2. CONDUCTED EMISSION MEASUREMENT ............................................................................9 2.1. Test Equipment ....................................................................................................................................... 9 2.2. Block Diagram of Test Setup.................................................................................................................. 9 2.3. Powerline Conducted Emission Limit [§15.207, Class B] ..................................................................... 9 2.4. Operating Condition of EUT ................................................................................................................ 10 2.5. Test Procedure ...................................................................................................................................... 10 2.6. Powerline Conducted Emission Measurement Results......................................................................... 10 3. RADIATED EMISSION MEASUREMENT ..............................................................................13 3.1. Test Equipment ..................................................................................................................................... 13 3.2. Test Setup ............................................................................................................................................. 13 3.3. Radiated Emission Limits ..................................................................................................................... 15 3.4. Operating Condition of EUT ................................................................................................................ 15 3.5. Test Procedure ...................................................................................................................................... 16 3.6. Test Results........................................................................................................................................... 17 4. 26dB BANDWIDTH MEASUREMENT .....................................................................................34 4.1. Test Equipment ..................................................................................................................................... 34 4.2. Block Diagram of Test Setup................................................................................................................ 34 4.3. Operating Condition of EUT ................................................................................................................ 34 4.4. Test Procedure ...................................................................................................................................... 34 4.5. Test Results........................................................................................................................................... 35 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .....................................................40 5.1. Test Equipment ..................................................................................................................................... 40 5.2. Block Diagram of Test Setup................................................................................................................ 40 5.3. Specification Limits [§15.407(a)-(1)]................................................................................................... 40 5.4. Operating Condition of EUT ................................................................................................................ 40 5.5. Test Procedure ...................................................................................................................................... 41 5.6. Test Results........................................................................................................................................... 41 6. POWER SPECTRAL DENSITY MEASUREMENT ................................................................42 6.1. Test Equipment ............................…

Text truncated - open the document above for the full version.

FCC ID: JI5-RT359333DB5 Page 55 of 57 AUDIX Technology Corporation Report No. EM-F1010979 9. PHOTOGRAPHS 9.1. Photos of Conducted Emission Measurement FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID: JI5-RT359333DB5 Page 56 of 57 AUDIX Technology Corporation Report No. EM-F1010979 9.2. Photos of Radiated Measurement at Semi-Anechoic Chamber 9.2.1. Frequency Below 1GHz 9.2.2. Frequency Above 1GHz FCC ID: JI5-RT359333DB5 Page 57 of 57 AUDIX Technology Corporation Report No. EM-F1010979 9.3. Photo of Section RF Conducted Measurement 9.4. Photo of Maximum Peak Output Power Measurement
