JNF-BRC-RS95Wireless Communication Cradle

ASCII Tab l e A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 Enter Quick Guide Gun Type Wireless Handheld Scanner Scanner Outline Description Function Scan Window Emits a red beam for barcode reading Power Button/Scan Trigger Press and hold for 1 second until a long beep is heard to turn power on or press to scan barcodes Buzzer Emit audible signals Hand Strap Hole Used to attach hand straps LED Indicator Indicates the scanning status Battery Compartment Secured by a screw, battery is stored here USB‐C slot Used for communication and charging Package Contents Wireless scanner with battery / Scanner cradle (optional) (with cradle) (without cradle) Quick Guide Rechargeable Battery USB‐C Cable/ Communication cable (optional) 5V USB Power Adapter Cable Clip *Note: Content in this section is for reference only. Please consult the actual packaging for contents. Additionally, product appearance may differ. 593‐N319BP‐001 Ver.A USB‐C Slot LED Indicator Scan Windo w Buzzer Power Button/ Scan Trigger Battery Compartment Hand Strap Hole Installation  Battery: Unscrew the cap to install the battery, ensuring the positive end is facing forward. Caution: Incorrect installation may damage the scanner. Additionally, when removing the battery, support it with your thumb, as it may spring out due to the internal spring.  Cable Clip: Insert the cable clip into the hand strap hole, turn to secure, and press firmly until locked. Finally, use the clasp to secure the cable as shown.  Cradle: Connect USB‐C cable and communication cable to the cradle as illustrated Pairing the Device Cradle Host Mode SPP Client Mode (PC as Host) In this mode, the scanner is discoverable from a remote device and it can request the scanner for connection. There are several ways to connect the wireless scanner to your PC. Please check the corresponding guides for more details on how to configure your host device’s wireless connections. 1. Turn on the host computer and activ ate its wireless connection. 2. Power on the scanner and program it with “SPP Client mode” label. Start Scanner SPP Client enable End 3. In the host computer, execute the discovering procedure and find the scanner. 4. Scanner should be on the list of discoverable devices. The default name of the scanner is “ZBBT”. Select “ZBBT” and click “Next”. 5. Select “Let me choose my own passkey” and enter the pin code. The de fault pin code is “12345678” (must be at least 4 digits and not more than 8 numeric digits). 6. Click “Next” to connect the scanner to the host. A short beep should be heard upon connection. SPP Host Mode (Scanner as Host) 1. Connect the cradle and the computer using the cables. Please make sure the cradle LED is flashing blue indicating it’s not linked to any scanner. 2. Power on the scanner and scan the following barcodes: Start Of Configuration, Cradle Host mode enable, and End Of Configuration to enable Cradle Host mode. Start Cradle Host Mode Commu nication cable USB‐C B to US B power End 3. Scan the pairing barcode attached at the bottom of the cradle to begin pairing. 3 short beeps will be heard. 4. The LED indicator on the scanner will flash blue rapidly indicating search mode in progress. LED on the cradle will become steady blue when the pairing is successful. 5. To se t the host interface for the cradle, scan the corresponding barcode label found in the System Settings in the User’s Manual. BT HID/Smart Phone Mode 1. Power on the scanner and program it with “BT HID Mode.” To connect to a smart phone (ie. iPhone, Android), the Smart phone mode must also be enabled. Start BT HID mode (default) Smart phone mode End 2. Enable wireless discovery on your smart phone. (see your phone’s user’s manual for instructions) 3. The scanner should be on the list of discoverable devices. The default name of the scanner is “ZBBT”. Select “ZBBT” from the list and a pin code will appear on your smart phone. 4. To input the pin co de, use the scanner to scan the barcodes in the ASCII table found in the previous section. For example: if the pin code is “0111”, scan “0”, “1”, “1”, “1” from the ASCII barcode labels. 5. Scan the Enter barcode in the ASCII table to confirm. 6. A short be ep should be heard upon connection. In this mode, the scanner initiates the connection to the remote device. 1. Power on of the remote device and have its address ready in hand and make it discoverable. 2. Program the scanner with the “SPP Host enable” barcode. Start Scanner SPPHost enable 3. Scan “Set wireless address” to set the address. Set wireless address (SPP Host only) 4. Use the ASCII table provided in the preceding section to input the 12‐digit wireless address. For instance, if the address reads “011B1345600,” proceed by scanning the corresponding ASCII barcode labels: “0,” “0,” “1,” “1,” “B,” “1,” “3,” “4,” “5,” “6,” “0,” “0.” Alternatively, if an a ddress label is accessible, simply scan it instead. 5. Scan “Confirm Setting” to store the address. Confirm Setting (for address and pin code setting required) 6. Scan ”End” to finish the setup. End 7. If necessary, set up and input the pin code (For details, please see User's Manual). Finally. scan “Required Pair with client (SPP Host)” to begin pairing. Required Pair with client (SPP Host) Radio Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio…

Text truncated - open the document above for the full version.

Applicant Declaration QSF27-14 -04 Rev 1.1 Jan 17 , 202 4 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name ZEBEX INDUSTRIES INC. Address B1F. -1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwan FRN 0015442908 Grantee Code JNF FCC ID JNF -BRC -RS95 Authorized Contact Name Sherry Lin Contact Email [email protected] Contact Phone +886(02)8913-2598 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, t he Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100 , the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/ or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and -innovation-division/rules -regulations-title -47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt -gst.nsf/eng/sf01130.html Link to the Covered List: Covered List ZEBEX INDUSTRIES INC. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. ZEBEX INDUSTRIES INC. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: June 21, 2024 Print Name: Sherry Lin Title: CEO *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Da te: June 13, 2024 To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: ZEBEX INDUSTRIES INC. B1F.-1, No. 207, Sec. 3, Beixin Rd., Xindian Dist New Taipei City Taiwan Regarding: Confidentiality Request regarding application for FCC ID: JNF-BRC-RS95 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Sherry Lin Title: C EO Phone: +886(02)8913-2598 E-Mail: sherry.lin@zeb ex.com

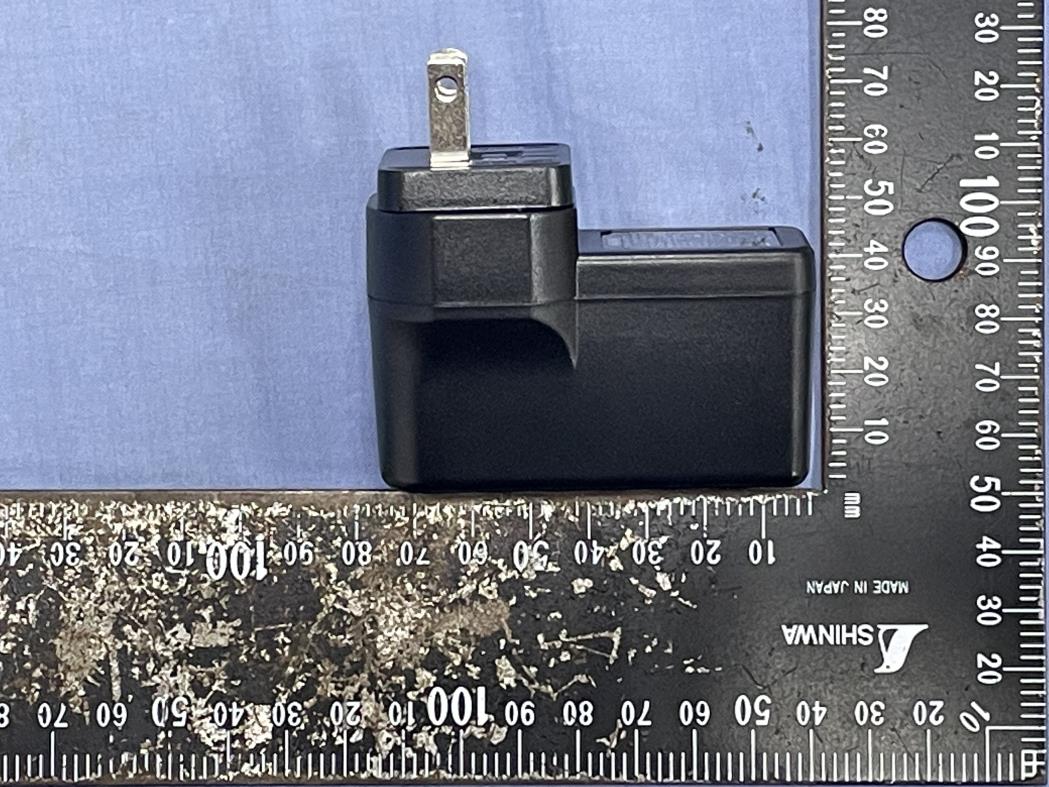

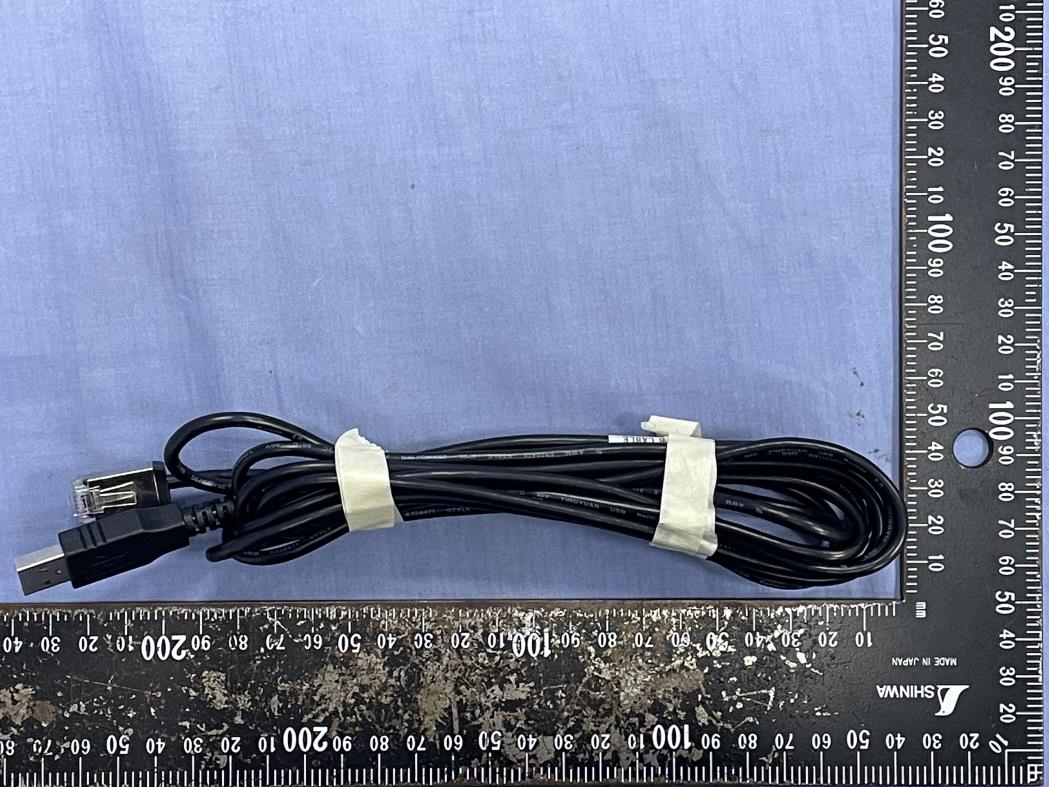

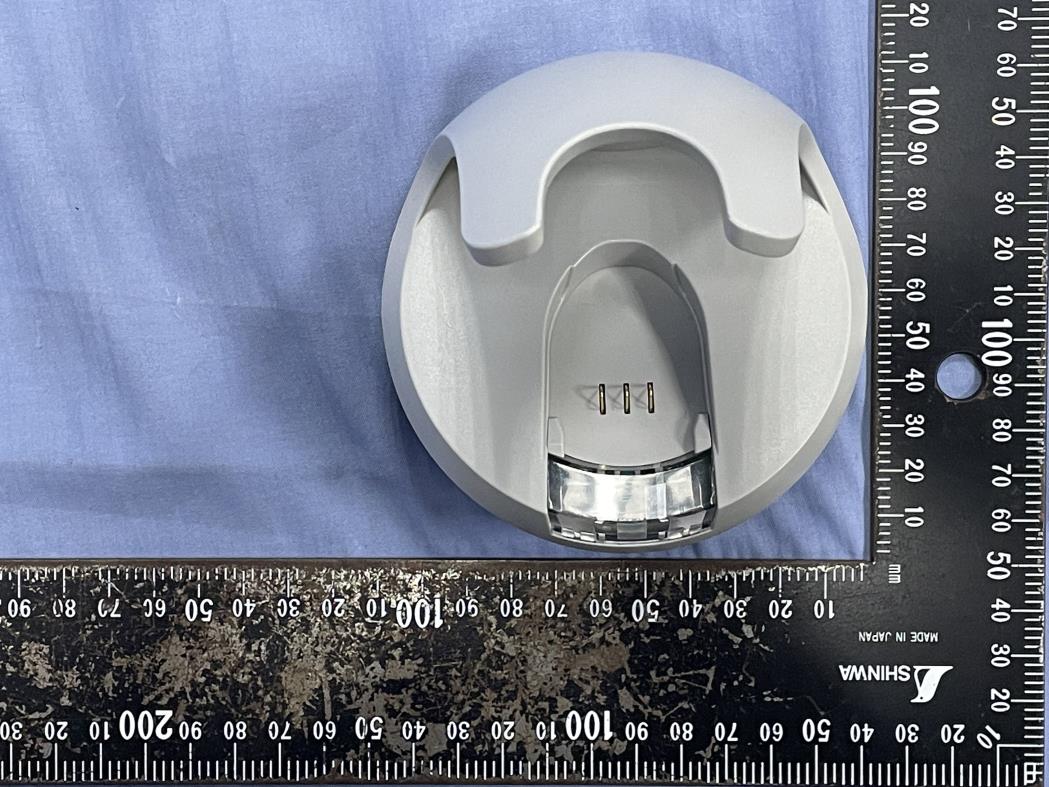

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 1 / 14 Project No.: TM-2402000256P Rev.: 01 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 14 Project No.: TM-2402000256P Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 14 Project No.: TM-2402000256P Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 14 Project No.: TM-2402000256P Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 5 / 14 Project No.: TM-2402000256P Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 6 / 14 Project No.: TM-2402000256P Rev.: 01 Adapter (BILLION / BA018-050200HXX) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 7 / 14 Project No.: TM-2402000256P Rev.: 01 Type C Cable (WHALETURN / USB A/M TO Type C/M L=1.5M) RJ45 to USB Cable (WHALETURN / USB cable for In counter scanner)

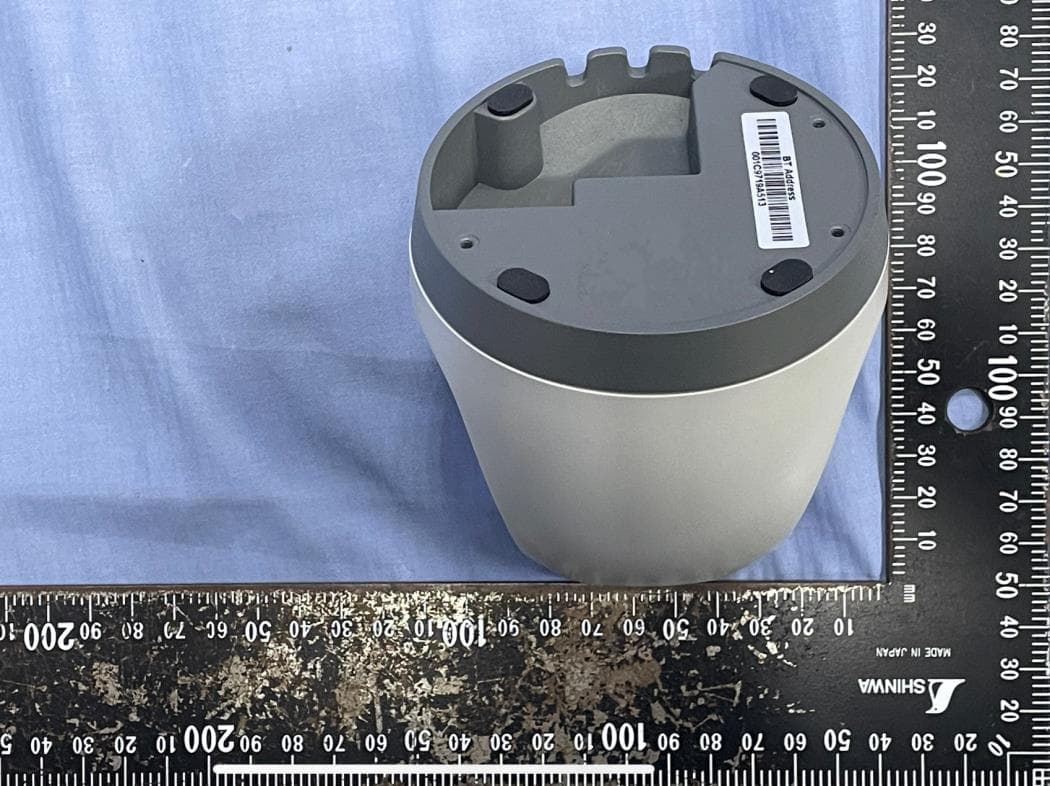

The label is affixed on an immovable part of the bottom side of the device. Placing the Part 15.19 statements on the device cannot be done without ruining the aesthetics, which would impact revenue, the statement is specified in user manual.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 8 / 14 Project No.: TM-2402000256P Rev.: 01 INTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 9 / 14 Project No.: TM-2402000256P Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 10 / 14 Project No.: TM-2402000256P Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 11 / 14 Project No.: TM-2402000256P Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 12 / 14 Project No.: TM-2402000256P Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 13 / 14 Project No.: TM-2402000256P Rev.: 01 RF IC Crystal This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 14 / 14 Project No.: TM-2402000256P Rev.: 01 Antenna (M.gear / 162-24008R-570)

Project No: TM-2402000256P FCC ID: JNF-BRC-RS95 Page 1 / 13 Report No.: TMWK2402000536KS Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RF Exposure Evaluation Report FCC 47 CFR § 2.1091 for Wireless Communication Cradle Model: RS-95 Prepared for: ZEBEX INDUSTRIES INC. B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwan Prepared by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan Issued Date: July 3, 2024 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NIST or any government agencies. The test results in the report only apply to the tested sample. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 2 / 13 Report No.: TMWK2402000536KS Rev.: 01 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 7, 2024 Initial Issue ALL Peggy Tsai 01 July 3, 2024 See the following Note Rev. (01) ALL Peggy Tsai Note: Rev. (01) 1. Modify report number to TMWK2402000536KS. 2. Added BLE assessment. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 3 / 13 Report No.: TMWK2402000536KS Rev.: 01 Table of Contents 1 ATTESTATION OF TEST RESULTS ................................................................... 4 2 TEST SPECIFICATION, METHODS AND PROCEDURES ................................. 5 3 DEVICE UNDER TEST (DUT) INFORMATION .................................................... 6 3.1 DUT DESCRIPTION .............................................................................................. 6 3.2 WIRELESS TECHNOLOGIES ............................................................................... 7 4 MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 8 4.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................ 8 4.2 MPE CALCULATION METHOD ............................................................................. 9 4.3 MPE EXEMPTION ............................................................................................... 10 4.4 MULTIPLE RF SOURCES ................................................................................... 11 5 MPE EXEMPTION OPTION B ............................................................................ 12 6 FACILITIES ........................................................................................................ 13 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 4 / 13 Report No.: TMWK2402000536KS Rev.: 01 1 Attestation of Test Results Applicant ZEBEX INDUSTRIES INC. B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwa Manufacturer ZEBEX INDUSTRIES INC. B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwa Model Name Wireless Communication Cradle Applicable Standards FCC 47 CFR § 2.1091 FCC 47 CFR § 1.1307 FCC 47 CFR § 1.1310 Published RF exposure KDB procedures Receive EUT Date: February 22, 2024 Compliance Certification Services Inc. , tested the above equipment in accordance with the requirements set forth in the above standards. Determination of compliance is based on the results of the compliance measurement,not taking into account measurement instrumentation uncertainy.All indications of Pass/Fail in this report are opinions expressed by Compliance Certification Services Inc, based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved & Released By: Sky Zhou Asst. Section Manager Compliance Certification Services Inc. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 5 / 13 Report No.: TMWK2402000536KS Rev.: 01 2 Test Specification, Methods and Procedures The tests documented in this report were performed in accordance with FCC 47 CFR § 2.1091, the following FCC Published RF exposure KDB procedures: o 447498 D04 Interim General RF Exposure Guidance v01 o 865664 D02 RF Exposure Reporting v01r02 This document cannot be reproduced except in full, without prior written approval…

Text truncated - open the document above for the full version.

SPECIFICATION FOR APPROVAL MANUFACTURERCUSTOMER SIGNATURESIGNATURE WHA YU GROUP WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE) Address: No. 326,Sec. 2,Kung Tao 5 Road, Hsin Chu Ciry, Taiwan, R.O.C. Address:Lakeside Industrial Park,Da Ling Shan Town,Dong Guan City,GuangDong,China TAI HWA ELECTRONC FACTORY Address: Pak Ho District, Hou Street Town, Dong Guan City, Guangdong, China HUA HONG INTERNATIONAL LTD. Address:Rm.1103A,President Commercial Centre,608 Nathan Road,Mong Kok,Kowloon,Hong Kong Tel: + 86-852-27712210 Fax: + 86-852-23843747 SHANGHAI HUA YU ELECTRONIC CO., LTD. (CHINA) Address:3586,WaiQing Song Road,Qing Pu County, Shanghai China Tel: + 86-21-59741348 + 86-21-59744101~4 Fax: + 86-21-59741347 SU ZHOU AEON TECH CO., LTD. (CHINA) Address:Limin North Road, LiLi Town,LiLi Industrial Park,LinHu Economic Zone Wujiang City,Jiangsu Province,China Tel: + 86-512-63627980 Fax: + 86-512-63627981 Tel: + 86-769-85655858 Fax: + 86-769-85655258 W. Y. P/NO.: REV.: A PART NO.: REVISION: CUSTOMER: PART NAME: Z-319xBT Bluetooth ANTENNA TAI HWA ELECTRONIC CO., LTD.(CHINA) SHANGHAI HUA YU ELECTRONIC CO., LTD.(CHINA) Tel: + 86-769-85599375 + 86-769-85912375 Fax: + 86-769-85599376 DATE : Tel:+886-3-5714225(REP.) Fax:+ 886-3-5713853+ 886-3-5723600 DONGGUAN AEON TECH CO.,LTD.(CHINA) SU ZHOU AEON TECH CO., LTD. (CHINA) APPROVED BY : Item 1. 2. 3. 4. INDEX Content ................................. .................. ................................. ................................. ............... 2.2 Storage Temp………………………-30 ~ +75 2.1 Operating Temp…………………….-10 ~ +55 2. Physical Properties 1.5 Admitted Power…………………………1W WIFI Antenna 1. Electrical Properties 1.1 Frequency Range…………2.4~2.5GHz Average Gain………………………2.4~2.5GHz-4.0dBi 1.4 Peak Gain…………………………2.4~ 2.5GHz2.0dBi 1.3 VSWR…………………………… 2.0 1.2 Impedance…………………… 50 Nominal W.Y V ER.1.0 1 ZEBEX Z-319xBT Bluetooth ANTENNA R&DSherlock20112.02.13 W.Y V ER.1.0 1. Index Index Outline Drawing P3 Antenna Photo P4 Antenna Related Data P5 Antenna Testing Conditions P6 Test Result P8 W.Y V ER.1.0 2. Outline Drawing 319BT WLAN ANTENNA W.Y V ER.1.0 4 Antenna Photo Pasted on agency front Pasted on agency behind W.Y V ER.1.0 5 Antenna Related Data Frequency Range: WLAN 2400~2500MHz V.S.W.R.: WLAN : 2.0 Polarization: Linear Impedance: 50 Antenna type : PIFA for WLAN 802.11b/g/n applicationConnector Type: Technova/CON. Connector for 1.13 cableCable Type: OD 1.13 RF Cable W.Y V ER.1.0 6 Antenna Testing Conditions Test Configuration W.Y V ER.1.0 7 Antenna Testing Conditions Test Configuration W.Y V ER.1.0 Test Result WLAN V.S.W.R Frequency (MHz) 2450 2400 2500 Pasted on agency behind 1.21 1.75 2.65 8 Frequency (MHz) 2450 2400 2500 Pasted on agency front 1.19 1.17 1.58 W.Y V ER.1.0 Gain value (Testing by 3D anechoic chamber) 9 2450 Efficiency (%) AVG 2500 2400 Frequency (MHz) Pasted on agency behind Pasted on agency front 2450 Efficiency (%) AVG 2500 2400 Frequency (MHz) W.Y V ER.1.0 3D radiation pattern 10 Pasted on agency behind W.Y V ER.1.0 3D radiation pattern 11 Pasted on agency front

Project No: TM-2402000256P FCC ID: JNF-BRC-RS95 Page: 1 / 78 Report No.: TMWK2402000535KR Rev.: 04 Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.247 Product name Wireless Communication Cradle Brand Name ZEBEX Model No. RS-95 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc.( Wugu Laboratory) Approved by: Shawn Wu Supervisor This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 78 Report No.: TMWK2402000535KR Rev.: 04 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 7, 2024 Initial Issue ALL Peggy Tsai 01 July 3, 2024 See the following Note Rev. (01) P.4, 11, 35, 64, 65 Peggy Tsai 02 July 9, 2024 See the following Note Rev. (02) P.4, 16, 25, 32, 34, 36, 38, 44 Peggy Tsai 03 July 15 2024 See the following Note Rev. (03) P. 49, A-3 Peggy Tsai 04 July 17 2024 See the following Note Rev. (04) P. 50 Peggy Tsai Note: Rev. (01) 1. Added EUT Serial #: P90PH000001. 2. Modify support and EUT accessories equipment in section 1.8. 3. Modify test data in section 4.4.4. 4. Modify TX test data in section 4.8.4. Rev. (02) 1. Modify date of test in section 1.1. 2. Modify date of RF Conducted test. Rev. (03) 1. Modify test procedure in section 4.8.2. 2. Modify conducted emission set up photo. Rev. (04) 1. Modify test procedure in section 4.8.2. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 78 Report No.: TMWK2402000535KR Rev.: 04 Table of contents 1. GENERAL INFORMATION ............................................................................................ 4 1.1 EUT INFORMATION ...................................................................................................... 4 1.2 INFORMATION ABOUT THE FHSS CHARACTERISTICS ............................................ 5 1.3 EUT CHANNEL INFORMATION .................................................................................... 6 1.4 ANTENNA INFORMATION ............................................................................................ 6 1.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 1.6 FACILITIES AND TEST LOCATION .............................................................................. 8 1.7 INSTRUMENT CALIBRATION ....................................................................................... 9 1.8 SUPPORT AND EUT ACCESSORIES EQUIPMENT ................................................... 11 1.9 TEST SET UP DIAGRAM ............................................................................................. 12 1.10 TEST METHODOLOGY AND APPLIED STANDARDS ............................................... 12 2. TEST SUMMERY ......................................................................................................... 13 3. DESCRIPTION OF TEST MODES ............................................................................... 14 3.1 THE WORST MODE OF OPERATING CONDITION .................................................... 14 3.2 THE WORST MODE OF MEASUREMENT .................................................................. 15 3.3 EUT DUTY CYCLE ....................................................................................................... 16 4. TEST RESULT ............................................................................................................. 19 4.1 AC POWER LINE CONDUCTED EMISSION ............................................................... 19 4.2 20DB BANDWIDTH AND OCCUPIED BANDWIDTH (99%) ........................................ 24 4.3 OUTPUT POWER MEASUREMENT ............................................................................ 31 4.4 FREQUENCY SEPARATION ....................................................................................... 33 4.5 NUMB…

Text truncated - open the document above for the full version.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 46 / 78 Report No.: TMWK2402000535KR Rev.: 04 Test Data Dwell Time_GFSK_1M_DH1_2441MHz Dwell Time_GFSK_1M_DH3_2441MHz Dwell Time_GFSK_1M_DH5_2441MHz Dwell Time_π/4DQPSK_2M_DH1_2441MHz Dwell Time_π/4DQPSK_2M_DH3_2441MHz Dwell Time_π/4DQPSK_2M_DH5_2441MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 47 / 78 Report No.: TMWK2402000535KR Rev.: 04 Dwell Time_8DPSK_3M_DH1_2441MHz Dwell Time_8DPSK_3M_DH3_2441MHz Dwell Time_8DPSK_3M_DH5_2441MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 48 / 78 Report No.: TMWK2402000535KR Rev.: 04 4.8 RADIATION BANDEDGE AND SPURIOUS EMISSION 4.8.1 Test Limit FCC according to §15.247(d), §15.209 and §15.205, In any 100 kHz bandwidth outside the authorized frequency band, all harmonic and spurious must be least 20 dB below the highest emission level with the authorized frequency band. Radiation emission which fall in the restricted bands must also follow the FCC section 15.209 as below limit in table. Below 30 MHz Frequency Field Strength (microvolts/m) Magnetic H-F…

Text truncated - open the document above for the full version.
