JNF-BTS-325XHandy Wireless Scanner

Z-325XBT GLLS 1 Z-3250/Z3251 Handy Wireless Scanner i USER’S MANUAL Revision History Changes to the original manual are listed below: Version Date Description of Version Preliminary 2014/01/22 Initial release Handy Wireless Scanner ii USER’S MANUAL Important Notice No warranty of any kind is made in regard to this material, including, but not limited to, implied warranties of merchantability or fitness for any particular purpose. We are not liable for any errors contained herein nor for incidental or consequential damages in connection with furnishing, performance or use of this material. We shall be under no liability in respect of any defect arising from fair wear and tear, willful damage, negligence, abnormal working conditions, failure to follow the instructions and warnings, or misuse or alteration or repair of the products without written approval. No part of this document may be reproduced, transmitted, stored in a retrieval system, transcribed, or translated into any human or computer or other language in any form or by any means electronic, mechanical, magnetic, optical, chemical, biological, manual or otherwise, except for brief passages which may be quoted for purposes of scholastic or literary review, without express written consent and authorization. We reserve the right to make changes in product design without reservation and without notification. The material in this guide is for information only and is subject to change without notice. All trademarks mentioned herein, registered or otherwise, are the properties of their various, ill, assorted owners. General Handling Precautions Do not dispose the scanner in fire. Do not put the scanner directly in the sun or by any heat source. Do not use or store the scanner in a very humid place. Do not drop the scanner or allow it to collide violently with other objects. Do not take the scanner apart without authorization Guidance for Printing This manual is in A5 size. Please double check your printer setting before printing it out. When the barcodes are to be printed out for programming, the use of a high-resolution laser printer is strongly suggested for the best scan result. Copyright © 2014. All rights reserved. USER’S MANUAL Radio Notice This equipment generates uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions in this manual, it may cause interference to radio communications. The equipment has been tested and found to comply with the limits for a Class A computing device pursuant to EN55022 and 47 CFR, Part 2 and Part 15 of the FCC rules. These specifications are designed to provide reasonable protection against interference when operated in a commercial environment. Radio and Television Interference Operation of this equipment in a residential area can cause interference to radio or television reception. This can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures: - Reorient the receiving antenna. - Relocate the device with respect to the receiver. - Move the device away from the receiver. - Plug the device into a different outlet so that the device and the receiver are on different branch circuits. If necessary the user may consult the manufacturer, and authorized dealer, or experienced radio/television technician for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, DC 20402 U.S.A., Stock No. 04000003454. 0 Laser Safety This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions in this manual, it may cause interference to radio communications. The equipment has been tested and found to comply with the limits for a Class A computing device pursuant to EN55022 and 47 CFR, Part 2 and Part 15 of FCC Rules. These specifications are designed to provide reasonable protection against interference when operated in a commercial environment. Radiant Energy: The laser scanner uses one low-power visible laser diodes operating at 650nm in an opto-mechanical scanner resulting in less than 3.9μW radiated power as observed through a 7mm aperture and averaged over 10 seconds. Do not attempt to remove the protective housing of the scanner, as unscanned laser light with a peak output up to 0.8mW would be accessible inside. Handy W ireless Scanner iii Handy Wireless Scanner iv USER’S MANUAL Laser Light Viewing: The scan window is the only aperture through which laser light may be observed from this product. A failure of the scanner engine, while the laser diode continues to emit a laser beam, may cause emission levels to exceed those for safe operation. The scanner has safeguards to prevent this occurrence. If, however, a stationary laser beam is emitted, the failing scanner should be disconnected from its power source immediately. Adjustments: Do not attempt any adjustments or alteration of this product. Do not remove the protective housing of the scanner. There are no user-serviceable parts inside. Optical: The use of optical instruments with this product will increase the eye hazard. Optical instruments include binoculars, magnifying glasses, and microscopes but do not include normal eye glasses worn by the user. CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. For CE-Countries This scanner is in conformity with CE standards. Please note that an approved, CE-marked power supply unit should be used in order to maintain CE conformance. Power Supply  Use only the type of battery and the charging equipments that came with your scanner.  Using any other type of battery and charging equipment may damage the scan…

Text truncated - open the document above for the full version.

ZEBEX INDUSTRIES INC. B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City, 23143, Taiwan Date (12 March 2014) BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, Due to the business consideration, we hereby declare that our product of Handy Wireless Scanner Model: Z-3250, Z-3251 have as following difference Please see the table as below for the model discrepancy Model Discrepancy All the above models are engine different, but BT module is the same please see the table as below: Model Difference Z-3250 Wireless Linear CCD barcode scanner Z-3251 Wireless Laser barcode scanner Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely, Signature Name/Title: Sherry Lin / Chairman and CEO Company Name: ZEBEX INDUSTRIES INC. TEL: +886-2-8913-2598 Address:B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City, 23143, Taiwan Email: [email protected]

ZEBEXINDUSTRIESINC. B1F.1,No.207,Sec.3,BeixinRd,XindianDist,NewTaipeiCity,23143,Taiwan

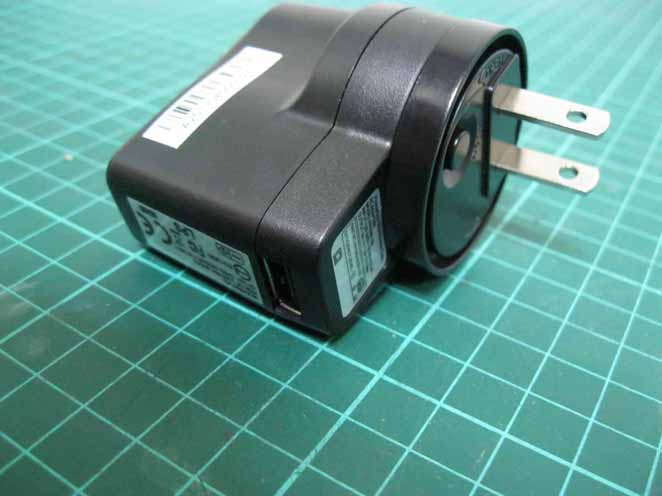

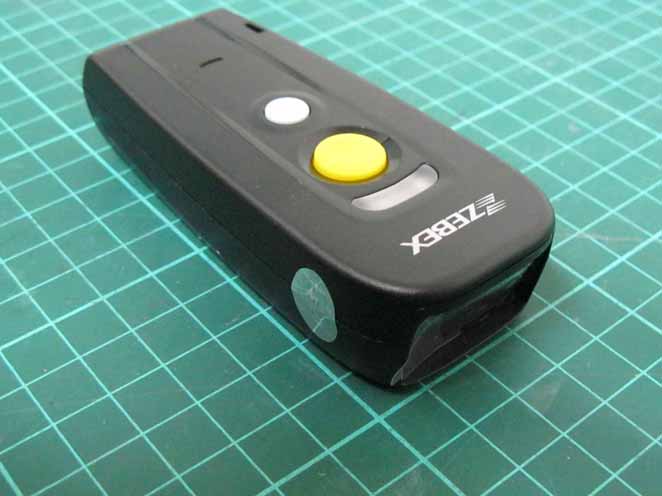

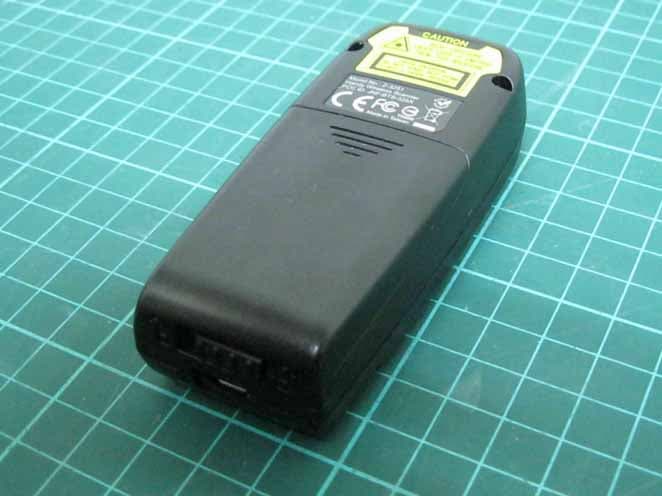

Report No.T140219D05 Page 1 of 10 External Photo(Model: Z-3250) Report No.T140219D05 Page 2 of 10 Report No.T140219D05 Page 3 of 10 Report No.T140219D05 Page 4 of 10 External Photo(Model: Z-3251) Report No.T140219D05 Page 5 of 10 Report No.T140219D05 Page 6 of 10 Report No.T140219D05 Page 7 of 10 Power Adapter(Model: PA1005-1SI) Report No.T140219D05 Page 8 of 10 Report No.T140219D05 Page 9 of 10 Battery Report No.T140219D05 Page 10 of 10 Micro USB Cable

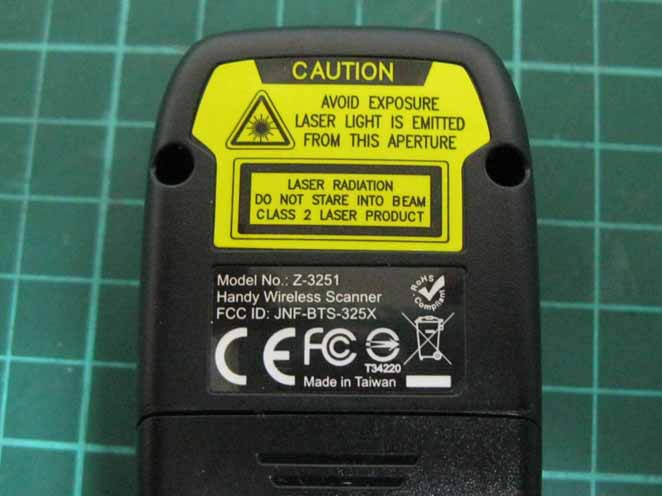

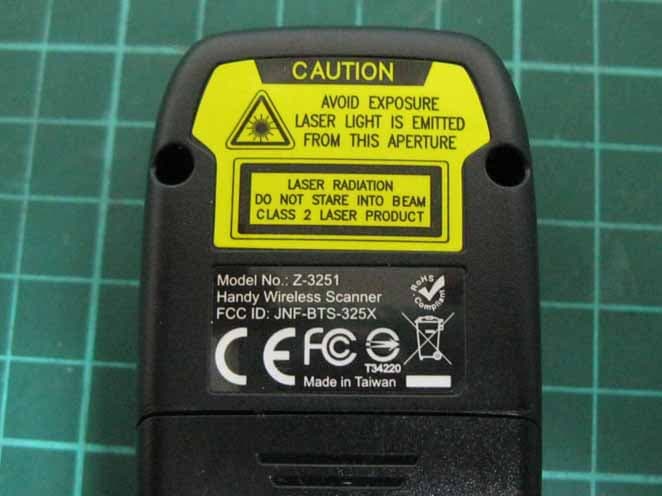

Model: Z-3250 Label Label Location Model: Z-3251 Label Label Location

Report No.T140219D05 Page 1 of 6 Internal Photo Report No.T140219D05 Page 2 of 6 Report No.T140219D05 Page 3 of 6 Report No.T140219D05 Page 4 of 6 Report No.T140219D05 Page 5 of 6 Report No.T140219D05 Page 6 of 6

FCC ID : JNF-BTS-325X Report No.T140219D05-RP1 Page 79 / 83 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I RADIO FREQUENCY EXPOSURE PROCEDURES According to § 15.247 (i) and § 1.1307(b)(1), system operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. KDB 447498 D01: Approximate SAR test exclusion power thresholds at selected frequencies and test separation distances are illustrated in the following table: MHz 5 10 15 20 25 mm 150 39 77 116 155 194 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 SAR Test Exclusion Threshold (mW) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz) ] = 5.8/5*√2.441 = 1.81 ≤ 3.0 Threshold at which no SAR required is 10mW and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion : The SAR measurement is exempt.

FCC ID : JNF-BTS-325X Report No.T140219D05-RP1 Page 1 / 83 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2009 TEST REPORT For Handy Wireless Scanner Model : Z-3250 Data Applies To : Z-3251 Trade Name : ZEBEX Issued for ZEBEX INDUSTRIES INC. B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: March 03, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC ID : JNF-BTS-325X Report No.T140219D05-RP1 Page 2 / 83 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 03/03/2014 Initial Issue All Page 83 Gloria Chang FCC ID : JNF-BTS-325X Report No.T140219D05-RP1 Page 3 / 83 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6-7 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 10 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 11 7.1 DUTY CYCLE CORRECTION FACTOR................................................................ 11-12 7.2 20dB BANDWIDTH FOR HOPPING...................................................................... 13-18 7.3 MAXIMUM PEAK OUTPUT POWER..................................................................... 19-20 7.4 AVERAGE POWER ............................................................................................... 21-22 7.5 HOPPING CHANNEL SEPARATION..................................................................... 23-28 7.6 NUMBER OF HOPPING FREQUENCY USED ...................................................... 29-31 7.7 DWELL TIME ON EACH CHANNEL ...................................................................... 32-46 7.8 CONDUCTED SPURIOUS EMISSION .................................................................. 47-53 7.9 RADIATED EMISSION........................................................................................... 54-73 7.10 CONDUCTED EMISSION .................................................................................... 74-78 APPENDIX I RADIO FREQUENCY EXPOSURE PROCEDURES.................................. 79 APPENDIX II SETUP PHOTOS ....................................................................................... 80-83 FCC ID : JNF-BTS-325X Report No.T140219D05-RP1 Page 4 / 83 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant ZEBEX INDUSTRIES INC. Address B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwan Equipment Under Test Handy Wireless Scanner Model Z-3250 Data Applies To Z-3251 Trade Name ZEBEX Tested Date February 19 ~ March 03, 2014 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC ID : JNF-BTS-325X Report No.T140219D05-RP1 Page 5 / 83 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Handy Wireless Scanner Model Number Z-3250 Data Applies To Z-3251 Identify Number T140219D05 Received Date February 19, 2014 Frequency Range 2402MHz to 2480MHz f = 2402 + nMHz, n = 0, .....78 Transmit Power 7.65 dBm (0.0058W) Channel Spacing 1MHz Channel Number 79 Channels Transmit Data Rate GFSK (1Mbps), π/4-DQPSK (2Mbps), 8-DPSK (3Mbps) Type of Modulation Frequency Hopping Spread Spectrum Antenna Type Chip Antenna, Antenna Gain 0.5 dBi Power Rating 3.7Vdc, 850mAh, 3.14Wh (For Battery) 5Vdc (For Charging) Test Voltage 120Vac, 60Hz Signal Cable Shielded Micro USB cable 1.5 m × 1 (Detachable) I/O P…

Text truncated - open the document above for the full version.

FCC ID : JNF-BTS-325X Report No.T140219D05-RP1 Page 80 / 83 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC ID : JNF-BTS-325X Report No.T140219D05-RP1 Page 81 / 83 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz FCC ID : JNF-BTS-325X Report No.T140219D05-RP1 Page 82 / 83 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC ID : JNF-BTS-325X Report No.T140219D05-RP1 Page 83 / 83 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
