JNF-BT-CRADLE2.4GHZ Wireless Communication Cradle

i No warranty of any kind is made in regard to this material, including, but not limited to, implied warranties of merchantability or fitness for a particular purpose. We are not liable for any errors contained herein or incidental or consequential damages in connection with furnishing, performance or use of this material. No part of this document may be reproduced, transmitted, stored in a retrieval system, transcribed, or translated into any language or computer language in any form or by any means electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without express written consent and authorization. We reserve the right to make changes in product design without reservation and without notification. The material in this guide is for information only and is subject to change without notice. All trademarks mentioned herein, registered or otherwise, are the properties of their various respective owners. Copyright © 2006. All rights reserved. Radio Notice This equipment generates uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions in this manual, it may cause interference to radio communications. The equipment has been tested and found to comply with the limits for a Class A computing device pursuant to EN55022 and 47 CFR, Part 2 and Part 15 of the FCC rules. These specifications are designed to provide reasonable protection against interference when operated in a commercial environment. Radio and Television Interference Operation of this equipment in a residential area can cause interference to radio or television reception. This can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures: Reorient the receiving antenna. Relocate the device with respect to the receiver. Move the device away from the receiver. Plug the device into a different outlet so that the device and the receiver are on different branch circuits. If necessary the user may consult the manufacturer, and authorized dealer, or experienced radio/television technician for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, DC 20402 U.S.A., Stock No. 004000003454. For CE-countries This scanner is in conformity with CE standards. Please note that an approved, CE-marked power supply unit should be used in order to maintain CE conformance. i Laser Safety The laser scanner complies with safety standard IEC 60825 -1for a Class I laser produce. It also complies with CDRH as applicable to a Class IIa laser product. Avoid long term staring into direct laser light. Radiant Energy: The laser scanner uses one low-power visible laser diodes operating at 650nm in an opto-mechanical scanner resulting in less than 3.9μW radiated power as observed through a 7mm aperture and averaged over 10 seconds. Do not attempt to remove the protective housing of the scanner, as unprotected laser light with a peak output up to 0.8mW would be accessible inside. Laser Light Viewing: The scan window is the only aperture through which laser light may be observed from this product. A failure of the scanner motor, while the laser diode continues to emit a laser beam, may cause emission levels to exceed those for safe operation. The scanner has safeguards to prevent this occurrence. If, however, a stationary laser beam is emitted, the failing scanner should be disconnected from its power source immediately. Adjustments: Do not attempt any adjustments or alteration of this product. Do not remove the protective housing of the scanner. There are no user-serviceable parts inside. Caution: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Optical: The use of optical instruments with this product will increase the eye hazard. Optical instruments include binoculars, magnifying glasses, and microscopes but do not include normal eye glasses worn by the user. ii 1. General Information 1.1. Introduction This scanner is well featured with Bluetooth® wireless technology, enabling working efficiency for simultaneous data transfer when scanning as well as working portability as not being constrained by short of cable length. Working places as shipping industry, cargo warehouses, superstores, pharmacies, and many more open-space or large-scale manufacturing sites are delighted to enjoy this move-around freedom. The cradle, a Bluetooth® dongle or any device with Bluetooth® wireless technology can be the host of this scanner. As far as 100-meter connection range, all scanned data are instantly transferred to the connected host. As if out of connection range, the embedded 32KB flash memory provides sufficient data space to store up to 2000 sets of data. Either scanning in the handheld or hands-free mode, this scanner always offers a high-accuracy and reliable scanning ability. This scanner would be your trusted tool scanning partner. 2 1.2. Unpacking This scanner package contains: 1 ea. Wireless Single-Line Laser Scanner 1 ea. Charging Cradle or Cradle with Radio Communication 1 ea. DC 9V Power Adapter 2 ea. Ni-MH AA Recharge Battery 1 ea. Interface Cable (only for the cradle with radio communication) 1 ea. Hand stripe 1 ea. User’s Manual If any contents are damaged or missing, please contact your dealer immediately. Please leave this user’s manual within easy access of person using the scanner. 3 1.3. Scanner Outline 1.4. Cradle Outline 4 2. Getting Started 2.1. Installing and Charging Scanner Batteries Installing Batteries The rechargeable batteries are packed individually for shipping safety. Please follow up the steps below to install the batteries. Always use the rechargeable batteries provided by the manufactu…

Text truncated - open the document above for the full version.

1 Helen Zhao Subject: FW: FW: ZEBEX INDUSTRIES INC., FCC ID: JNF-BT-CRADLE, Assessment NO.: AN07T6456, Notice#1 From: gloria.huang [mailto:[email protected]]On Behalf Of application Sent: Wednesday, January 24, 2007 1:41 AM To: Helen Zhao Subject: Re:FW: ZEBEX INDUSTRIES INC., FCC ID: JNF-BT-CRADLE, Assessment NO.: AN07T6456, Notice#1 Dear Helen, We have added 15.21 user information into the manual. Pls find the attached. Thank you Rgds, Gloria -----Original Message----- From: Helen Zhao Sent: Tuesday, January 23, 2007 6:42 PM To: Helen Zhao Subject: ZEBEX INDUSTRIES INC., FCC ID: JNF-BT-CRADLE, Assessment NO.: AN07T6456, Notice#1 Question #1: The user manual does not contain 15.21 user information. Please revise the manual. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Z-3051BT ersManual revised01

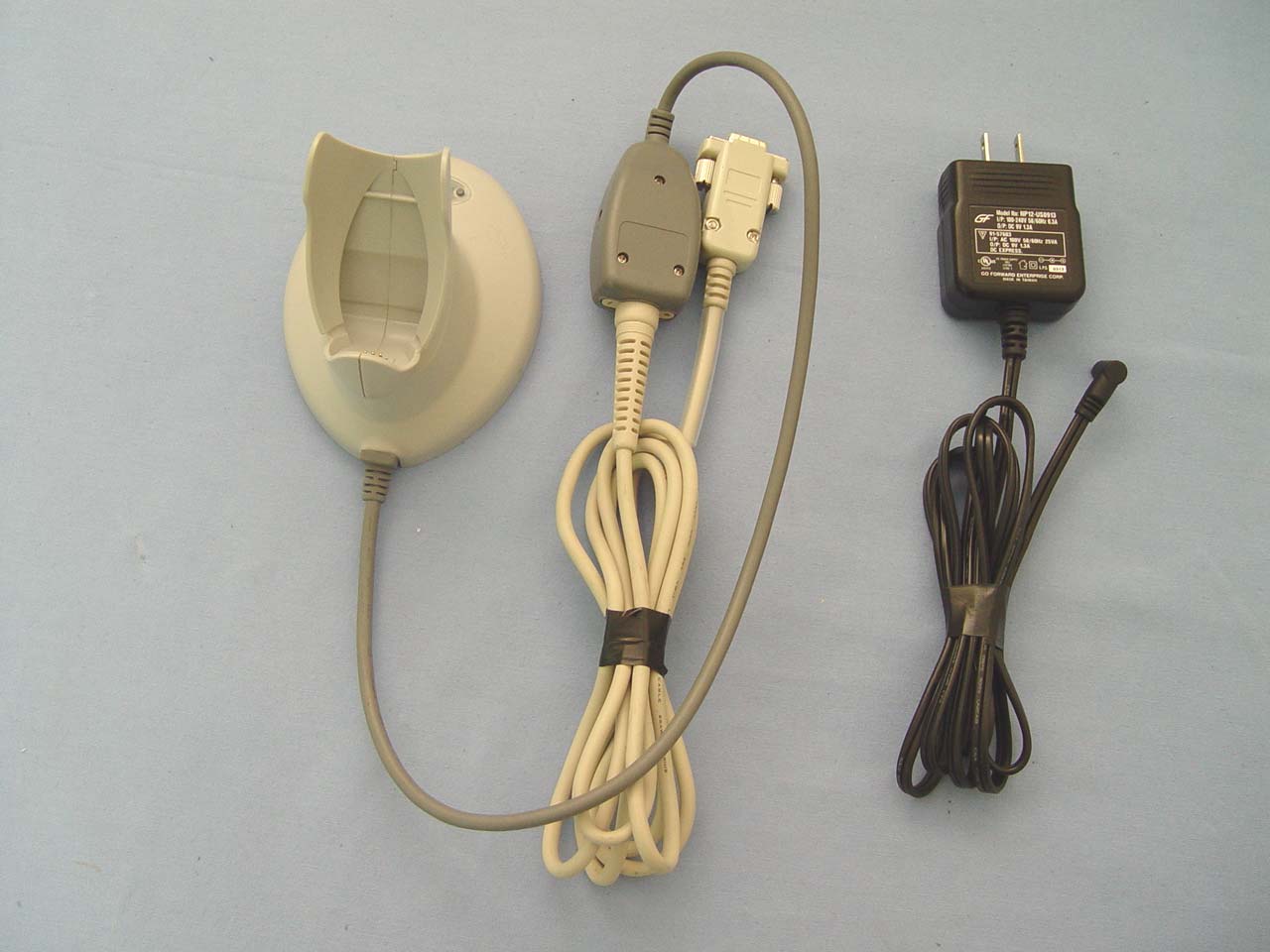

Compliance Certification Services Inc. Report No.: 61129201 Date of Issue: January 2, 2007 Page 1 Total Page: 4 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61129201 Date of Issue: January 2, 2007 Page 2 Rev. 00

Compliance Certification Services Inc. Report No.: 61129201 Date of Issue: January 2, 2007 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61129201 Date of Issue: January 2, 2007 Page 4 Rev.00 Free Antenna

Walsin Technology Corporation Page 1 of 9 ASC_RGFRA1903041A0T_V01 Feb. 2006 FREE ANTENNA RGFRA Pb free Series - RoHS Compliance 2.4 GHz ISM Band Working Frequency



*Contents in this sheet are subject to change without prior notice . Walsin Technology Corporation Page 2 of 9 ASC_RGFRA1903041A0T_V01 Feb. 2006 FEATURES
 Surface Mounted Devices with a small dimension of 19.0 x 3.0 x 3.8 mm 3 .
Able to be placed above/on ground plane. No external keep-out zone (empty space) required, which relatively save more space on PC board.
Allow placing other components besides antenna or on the backside of PCB right underneath antenna.
 Low sensitive to environmental includes hand effects. Ideal for Handheld devices application. APPLICATIONS
 Bluetooth, ISM 2.4GHz in samrt phone, PDA and other handheld devices.
 ISM band 2.4GHz applications DESCRIPTION Walsin Technology Corporation develops a new antenna specified for 2.4 GHz ISM Band application, as shown in below “CONSTRUCTION”. It’s application typically located on this unlicensed frequency band which range covers from 2.4GHz to 2.4835GHz. To fulfill the friendly usage for antenna, this antenna has been designed to no empty space required and no sensitive to environmental through Walsin’s superior product design via 3D EM Simulation Skill. CONSTRUCTION Fig 1. Outline of Free Antenna – RGFRA1403041A0T DIMENSIONS Figure Dimension Port definition L 19.0 ± 0.15 mm - W 3.0 ± 0.15 mm - T 3.8 ± 0.20 mm - P w 3.0 ± 0.10 mm Pad width P 1 1.0 ± 0.10 mm Soldering terminal P 2 1.0 ± 0.10 mm Soldering terminal P 3 1.0 ± 0.10 mm Feed terminal ` P 4 1.0 ± 0.10 mm Ground terminal L T W P w P 1 P 2 P 4 P 3 Soldering Feed Ground Walsin Technology Corporation Page 3 of 9 ASC_RGFRA1903041A0T_V01 Feb. 2006 ELECTRICAL CHARACTERISTICS Item Specification Working Frequency Range 2.4 GHz Д 2.5GHz Gain 2 dBi (Typical) VSWR 2 max. Polarization Linear Azimuth Beamwidth Omni-directional Impedance 50 W Rated Power (max.) 1 W Operation Temperature -40 ̓ C ~ +85 ̓ C Remark: The specification is defined based on the test board dimension as in below Antenna on Test Board Top View Bottom View
      50ohm **No Empty Area Required Walsin Technology Corporation Page 4 of 9 ASC_RGFRA1903041A0T_V01 Feb. 2006 Antenna S11 on Test Board -10dB bandwidth 200MHz VSWR: Walsin Technology Corporation Page 5 of 9 ASC_RGFRA1903041A0T_V01 Feb. 2006 SOLDER LAND PATTERN DESIGN Figure Symbol Dimension Unit: mm RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of RGFRA1903041A0T antenna was measured based on the test board size and the antenna installation position as shown in the below: Y X Z Antenna outline Ground, connect to ground Feed, connected to 50ohm transmission line Soldering pads Walsin Technology Corporation Page 6 of 9 ASC_RGFRA1903041A0T_V01 Feb. 2006 Horizontal Vertical Y - Z Plane Average Gain= -0.889 dBi Peak Gain = 1.54dBi Average Gain = -3.41 dBi Peak Gain= -0.02dBi Average Gain=-4.45 dBi X - Z Plane Average Gain= -0.738 dBi Peak Gain= -0.88 dBi Average Gain= -6.69dBi Peak Gain= 1.21 dBi Average Gain= -2.01 dBi X - Y Plane Average Gain= -1.437 dBi Peak Gain= 1.02 dBi Average Gain= -2.09 dBi Peak Gain= -6.63 dBi Average Gain= -9.99 dBi z Y z Y z X z X X Y X Y Walsin Technology Corporation Page 7 of 9 ASC_RGFRA1903041A0T_V01 Feb. 2006 RELIABILITY TEST  Mechanical performance Test item Test condition / Test method Specification Solderability Solder temp. : 235 ± 5 ∞ C Immersion time: 2 ± 1 sec Solder: SN63 95% min. coverage of all metabolised area Resistance to soldering heat Solder: Sn63 Preheating temperature: 150 ± 10 ∞ C Solder Temperature: 260 ± 5 ∞ C Immersion time: 10 ± 1 sec Measurement to be made after keeping at room temp. for 24±2 hrs. No mechanical damage. Ceramic surface shall not be exposed in the middle of the termination or on the terminated product edge by leaching. Drop test Height : 75 cm Times : 3 times No mechanical damage. Samples shall satisfy electrical specification after test.. Environmental characteristics Test item Test condition / Test method Specification Humidity Resistance Humidity:85% to 90% R.H. Tempertaure:85±2∞C Time: 500±24 hours. Measurement: After placing for 24 hours Minimum. No mechanical damage. Samples shall satisfy electrical specification after test. Temperature shock 1. 15+3/-0 minutes at -55∞C±3∞C, 2. 15+3/-0 minutes at +125∞±3∞C, Total 100 continuous cycles Measurement after placing for 48±2 hrs min. No mechanical damage. Samples shall satisfy electrical specification after test. Walsin Technology Corporation Page 8 of 9 ASC_RGFRA1903041A0T_V01 Feb. 2006 ORDERING CODE RG FRA 190304 1 A 0 - T Walsin RG: RF /Pb free device Product code FRA : Antenna Dimension code Per 2 digits of Length, Width, Thickness : e.g. : 190304= Length 19.0, Width 3.0, Thickness 3.8 Unit of dimension 0 : 0.1 mm 1 : 1.0 mm Application A : 2.4GHZ ISM Band Specification Code from 0 ~ 9 dependent on different electrical specification Packing T : Reeled PACKAGING Plastic Tape specifications (unit :mm) Index Ao Bo F D T W Dimension (mm) 3.25 ± 0.1 19.35 ± 0.1 1.55 ± 0.05 4.05 ± 0.1 32 ± 0.3 Index E F Po P1 P2 Dimension (mm) 1.75 ± 0.1 14.2 ± 0.1 4.0 ± 0.1 12.0 ± 0.1 2.0 ± 0.1 Reel dimensions ! A! B!C! Typing Quantity: 1000 pieces per 13” reel Index A B C Dimension (mm) F330±1 F99 ±1 F17.4 ± 0.5           F  Walsin Technology Corporation Page 9 of 9 ASC_RGFRA1903041A0T_V01 Feb. 2006 CAUTION OF HANDLING Limitation of Applications Please contact us before using our products for the applications listed below which require especially high reliability for the prevention of defects, which might directly cause damage to the third party’s life, body or property. (1) Aircraft equipment (2) Aerospace equipment (3) Undersea equipment (4) Medical equipment (5) Disaster prevention / crime prevention equipment (6) Traffic signal equipment (7) Transportation equipment (vehi…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 61129201-RP1 FCC ID: JNF-BT-CRADLE Date of Issue: December 27, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 49 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 2.4GHZ wireless communication cradle Model: Z-3051BT Trade Name: ZEBEX Issued to ZEBEX INDUSTRIES INC. B1-1, No. 207, Sec 3, Beisin Road, Sindian City, Taipei 231, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 61129201-RP1 FCC ID: JNF-BT-CRADLE Date of Issue: December 27, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.....................................................................................................3 2. EUT DESCRIPTION...........................................................................................................................4 3. TEST METHODOLOGY....................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED......................................................................................8 5. FACILITIES AND ACCREDITATIONS ...........................................................................................9 5.1 FACILITIES ......................................................................................................................................9 5.2 EQUIPMENT.....................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST........................................................................................11 6.1 SETUP CONFIGURATION OF EUT....................................................................................................11 6.2 SUPPORT EQUIPMENT ............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 PEAK POWER.................................................................................................................................12 7.2 BAND EDGES MEASUREMENT .............................................................................................13 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................18 7.4 FREQUENCY SEPARATION....................................................................................................21 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................23 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................25 7.7 SPURIO US EMISSIONS .............................................................................................................32 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................42 APPENDIX I RADIO FREQUENCY EXPOSURE ................................................................................45 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...............................................................................47 Compliance Certification Services Inc. Report No.: 61129201-RP1 FCC ID: JNF-BT-CRADLE Date of Issue: December 27, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product 2.4GHZ wireless communication cradle Trade Name ZEBEX Model Number Z-3051BT Model Discrepancy N/A Power Supply Power Adapter: Model Number: NP12-US0913 I/P: AC 100-240V, 50-60Hz, 0.3A O/P: DC 9V, 1.3A Frequency Range 2402 ~ 2480 MHz Transmit Power 13.70 dBm Modulation Technique FHSS (GFSK) Transmit Data Rate 1Mbps Number of Channels 79 Channels Antenna Specification Gain: 1.54 dBi Antenna Designation Free Antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: JNF-BT-CRADLE filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 61129201-RP1 FCC ID: JNF-BT-CRADLE Date of Issue: December 27, 2006 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is ins…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 61129201-RP1 FCC ID: JNF-BT-CRADLE Date of Issue: December 27, 2006 Page 47 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photo Compliance Certification Services Inc. Report No.: 61129201-RP1 FCC ID: JNF-BT-CRADLE Date of Issue: December 27, 2006 Page 48 Rev. 00 Radiated Emission Setup Photos Compliance Certification Services Inc. Report No.: 61129201-RP1 FCC ID: JNF-BT-CRADLE Date of Issue: December 27, 2006 Page 49 Rev. 00 Powerline Conducted Emissions Setup Photos
