JNF-Z-107XPortable Data Terminal

i Copyright © 2006. All rights reserved. No warranty of any kind is made in regard to this material, including, but not limited to, implied warranties of merchantability or fitness for a particular purpose. Although every effort is made to assure accuracy and completeness, we can not be held liable for any errors contained herein nor incidental or consequential damages in connection with furnishing, performance or use of this material. We shall be under no liability in respect of any defect arising from fair wear and tear, willful damage, negligence, abnormal working conditions, failure to follow the instructions and warnings, or misuse or alteration or repair of the products without written approval. No part of this document may be reproduced, transmitted, stored in a retrieval system, transcribed, or translated into any language or computer language in any form or by any means electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without express written consent and authorization. We reserve the right to make changes in product design without reservation and without notification. The material in this guide is for information only and is subject to change without notice. All trademarks mentioned herein, registered or otherwise, are the properties of their various respective owners. ii Laser Safety The portable data terminal complies with safety standard IEC 60825 for a Class I laser product. It also complies with CDRH as applicable to a Class IIa laser product. Avoid long term staring into direct laser light. Radiant Energy: The advanced portable data terminal uses two low-power visible laser diodes operating at 650nm in an opto-mechanical scanner resulting in less than 3.9μW radiated power as observed through a 7mm aperture and averaged over 10 seconds. Do not attempt to remove the protective housing of the scanner, as unscanned laser light with a peak output up to 0.8mW would be accessible inside. Laser Light Viewing: The scan window is the only aperture through which laser light may be observed from this product. A failure of the scanner motor, while the laser diode continues to emit a laser beam, may cause emission levels to exceed those for safe operation. The scanner has safeguards to prevent this occurrence. If, however, a stationary laser beam is emitted, the failing scanner should be disconnected from its power source immediately. Adjustments: Do not attempt any adjustments or alteration of this product. Do not remove the protective housing of the scanner. There are no iii user-serviceable parts inside. Caution: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Optical: The use of optical instruments with this product will increase the eye hazard. Optical instruments include binoculars, magnifying glasses, and microscopes but do not include normal eye glasses worn by the user. iv Table of Contents Unpacking ......................................... 1 Finding Your Way Around................................ 2 Battery Care ......................................... 3 Installing Batteries..................................... 5 Charging Batteries..................................... 6 Getting Started ......................................... 8 Scanning and Storing Data.............................. 8 Uploading Data to a PC................................. 11 Uploading Data with WinTaskGen.................... 13 Uploading Data with HyperTerminal..................15 Setup ....................................... 16 LCD Contrast ....................................... 17 Beep Volume ....................................... 17 System Timer ........................................18 Barcode Setup ....................................... 20 Specifications ....................................... 21 Specifications ....................................... 21 Dimensions ....................................... 23 v Table of Figures Figure 1: Pocket-Sized Personal Data Collector... 2 Figure 2: Inserting Batteries............................. 5 Figure 3: Connecting the Power Adapter............ 7 Figure 4: Turning On...................................... 8 Figure 5: Bootup Screen................................. 9 Figure 6: Main Menu...................................... 9 Figure 7: Communication Cable...................... 11 Figure 8: Bootup Screen................................ 13 Figure 9: Main Menu..................................... 16 Figure 10: Main Menu.................................... 16 Figure 11: PDC Dimensions........................... 23 vi Congratulations on your purchase of the Personal Data Collector (PDC) with LCD display. Along with superior portability and visually safe scanning LEDs, the PDC features a real-time clock, a buzzer, a dual-color status LED, and a UART port for direct connection to external equipment. The on-board 32K EEPROM provides a robust, stable, programmable memory space. Some of this non-volatile memory is dedicated to storing scanned data. The PDC can retain more than 1000 records. The Personal Data Collector comes already pro- grammed with a basic data collection program, called FREETASK, that can scan and store barcodes, and do simple edits on the stored data. Data can be uploaded to a PC through the RS-232 / USB cable. WinTaskGen, a program on the included CD-ROM, can be used to create data collection programs (Tasks) for download and use with the PDC. A Task can have up to four data forms with up to 16 separate data fields per form. For more advanced requirements, there are available libraries for developing programs under the Keil C environment. Contact your agent if you are interested in this approach. 1 Unpacking The PDC package should contain: - 1 ea. Pocket-Sized Personal Data Collector - 1 ea. DB-9(F) serial communication cable - 1 ea. USB cable (Optional) - 3 ea. AA NiMH rechargeable batteries - 1 ea Power Adapter - 1 ea. CD-ROM support…

Text truncated - open the document above for the full version.

Chris Harvey From: gina.lo [[email protected]] on behalf of application [[email protected]] Sent: Wednesday, January 24, 2007 8:29 PM To: [email protected] Subject: Re:Re:ZEBEX INDUSTRIES INC., FCC ID: JNF-Z-107X, Assessment NO.: AN07T6465, Notice#1 Attachments: Z-1070 Schematic for module.pdf Page 1 of 3 1/24/2007 Dear Sir, The client provides for the schematic diagram of the Bluetooth circuitry. Please help to ignore the earlier schematic. Sorry for any inconvenience caused！ Best Regards, Gina Dear Sir, Regarding Question 1, Best Regards, application 寄件人： gina.lo 吳鏗雰 2007/01/24 05:27 PM 收件人： <[email protected]> 副本抄送： 主旨： Re:ZEBEX INDUSTRIES INC., FCC ID: JNF-Z-107X, Assessment NO.: AN07T6465, Notice#1連結 Amanda Dear Gina Lo, You are listed as the technical contact for the above referenced TCB application. The following items need to be addressed before the review can be completed. 1. The RF Exposure evaluation information in the Test Report incorrectly states that this device does not need to be evaluated. This is a handheld device, which can be categorized as a Mobile RF Exposure category, since its operation is at 20cm from the body, excluding hands, wrists, feet and ankles. If operation is likely against the body, the RF power of 23.8mW + a 2dBi antenna would put the EIRP at (13.77dBm + 2dBi = 15.77dBm EIRP = 37.8mW) 37.8 mW, which is above the low threshold of the TCB Exclusion List. If this device is Portable, then SAR evaluation is required. If this device is Mobile, which appears to be the case, then an MPE evaluation must be submitted. Please update the RF Exposure evaluation in the test report. Additionally (if Mobile) please provide information to be provided to the user about the need to maintain 20cm separation and about incidental transmission situation if carried in the pocket. Ans: The threshold limit 25mW is the conducted power without antenna gain, so 13.77dBm = 23.82mW, which is lower than the threshold limit of exclustion list. This device is a handheld device and it does not have voice function. The normal operation of the device is handheld without head/body-worn position, so SAR measurements are exempt from testing, which is also confirmed by FCC under Inquiry Tracking Number: 673863. 2. The schematic diagram exhibit has a location for the Bluetooth Module, but the circuitry of this module has not been submitted. Please submit the schematic diagram of the Bluetooth circuitry. Ans: Please see the schematic diagram of the Bluetooth circuitry. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, <[email protected]> 2007/01/23 10:57 PM 收件人： <[email protected]> 副本抄送： <[email protected]> 主旨： ZEBEX INDUSTRIES INC., FCC ID: JNF-Z-107X, Assessment NO.: AN07T6465, Notice#1 Page 2 of 3 1/24/2007 Chris Harvey [email protected] Page 3 of 3 1/24/2007

Generic Office of Engineering Technology <[email protected] c.gov> 2007/01/11 07:39 AM 收件人：[email protected] 副本抄送： 主旨： Response to Inquiry to FCC (Tracking Number 673863) Inquiry: Dear Sir, We are Compliance Certification Services Inc.,a testing lab in Taiwan. We are going to file a submission to TCB which is subject to the item#6 of permit-but-ask procedure and product information are as below: FCC ID: JNF-Z-107X The above FCC ID device (Portable Data Terminal) is a handheld device and it does not have voice function. The normal operation of the device is handheld without head/body-worn position. Therefore, we, Compliance Certification Services Inc., hereby confirm that SAR measurements are exempt from testing. Please comment, thank you. Amanda Response: Thank you for your inquiry, which appears to describe a hand-held hand-operated only final product containing part 15 transmitter(s), operating in portable RF exposure conditions relative to user's hand and mobile RF exposure conditions relative to most other parts of persons' bodies. Based on description, and below notes, permit-but-ask and SAR evaluation do not appear to be applicable. FYI here again is related context from Oct06 and Oct05 FCC-TCB conference notes: Concerning SAR in hands, wrists, feet, and ankles: - Compliance issues are not expected, and SAR testing is not requested, for most present handsets and transmitters in consumer notebook and tablet computers -- Higher SAR limit -- Devices typically have SAR compliance info for other normal-use positions - Uniform SAR test and TCB review & approval procedures have not been established for hands, wrists, feet, ankles exposures -- TCBs and/or applicants should contact FCC Lab before submitting new or evolved types of product configurations and technologies which have only hands, wrists, feet, or ankles normal-use position - Wireless-PDA generally hand-held-only PORTABLE device (wrt hand, extremity SAR limit higher) operating at 20 cm from the body (mobile wrt body) -- When submitted by applicant’s choice, wireless-PDA lap-held SAR data is reviewed for compliance -- User instructions may be appropri! ate for wireless-PDA lap-held or in-pocket incidental transmitting conditions, or SAR evaluated by applicant’s choice Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

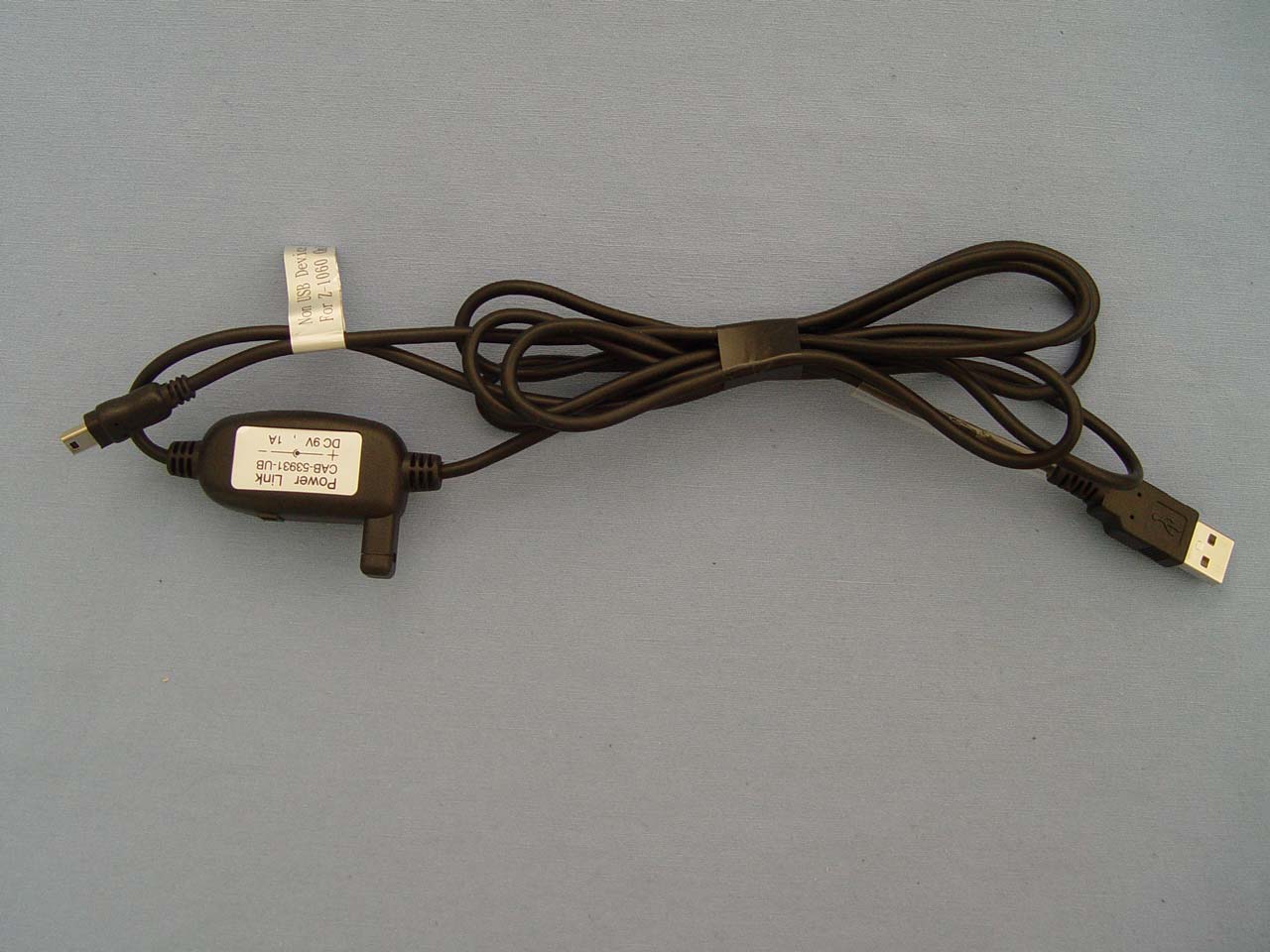

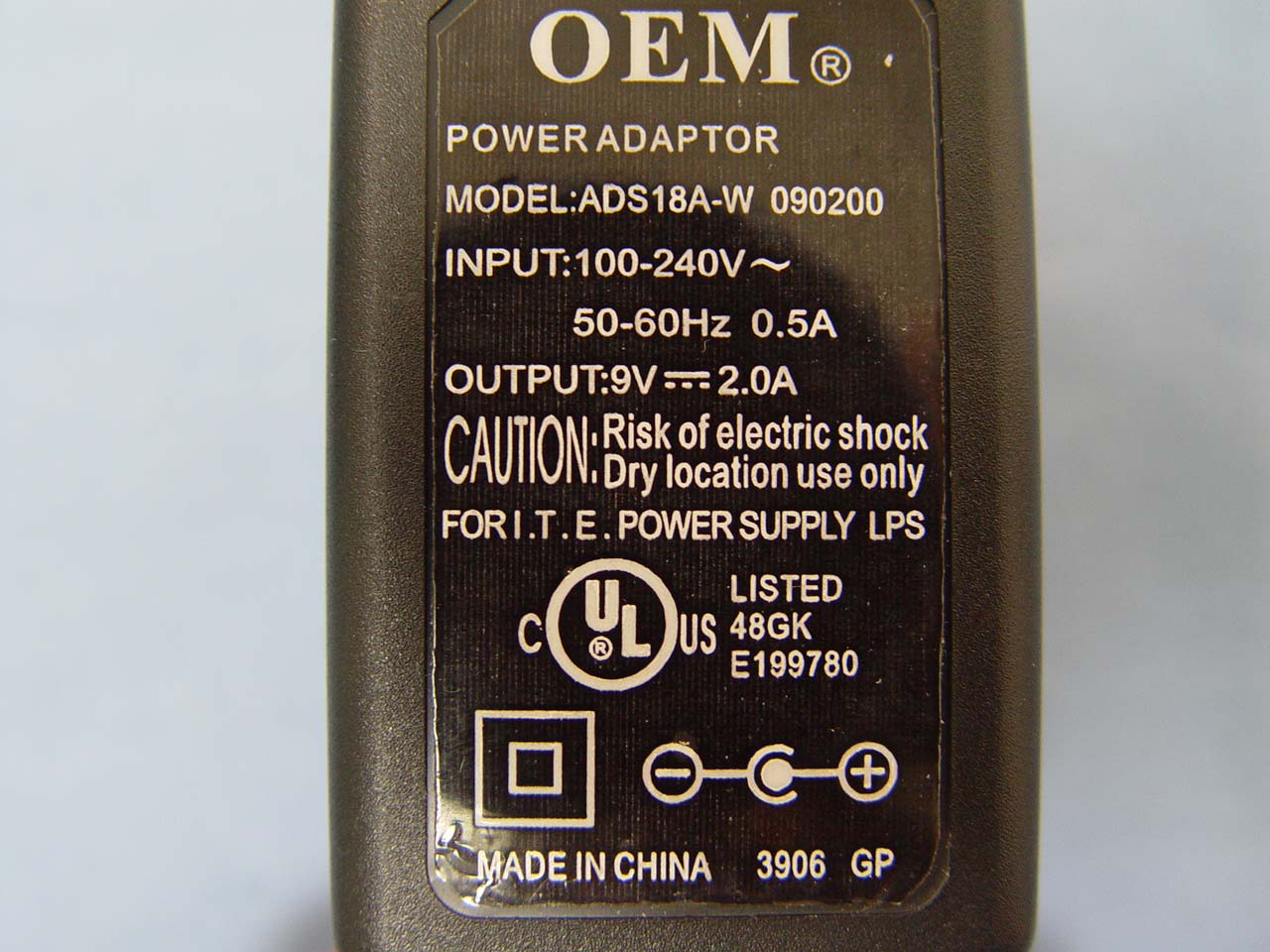

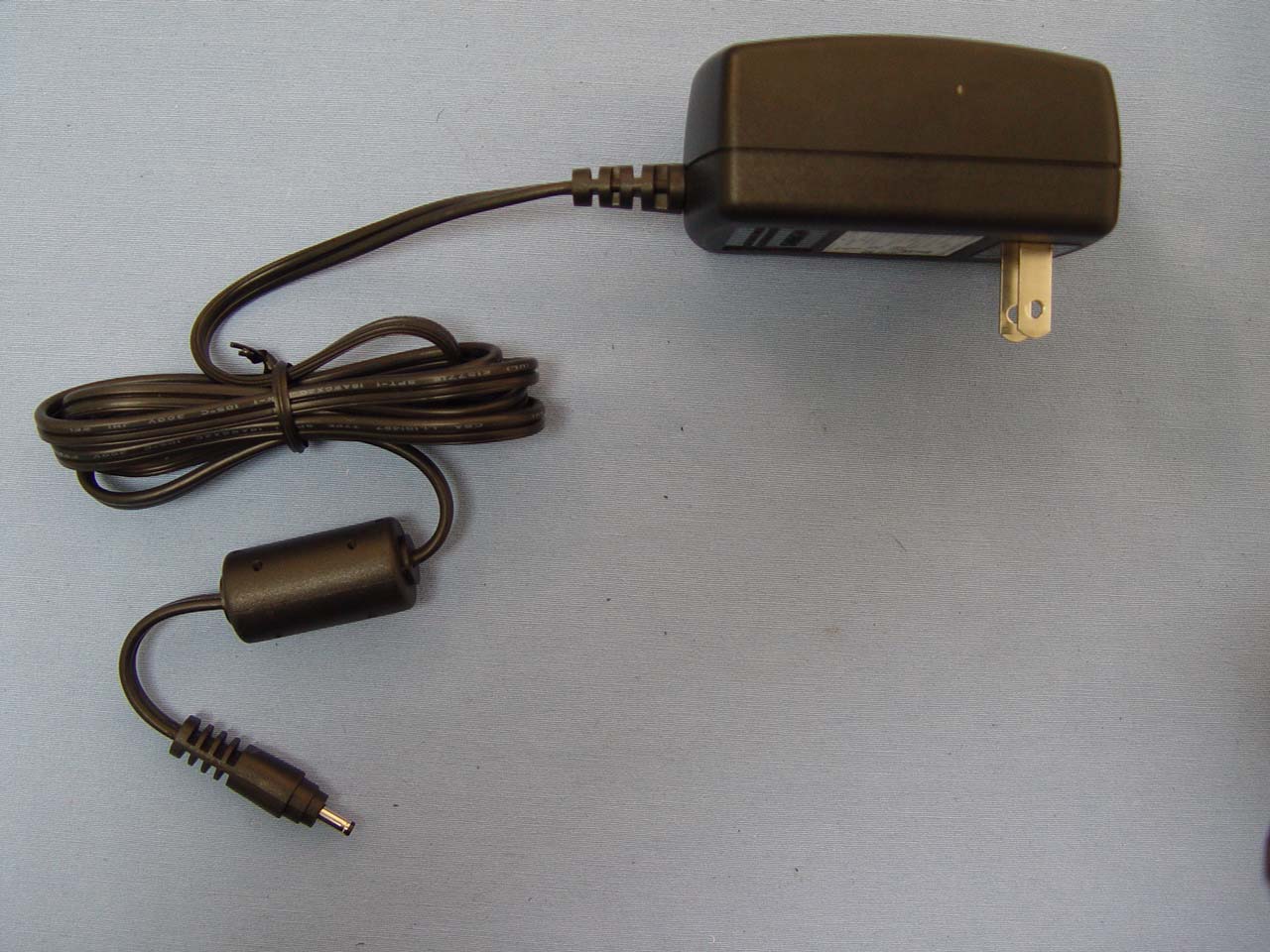

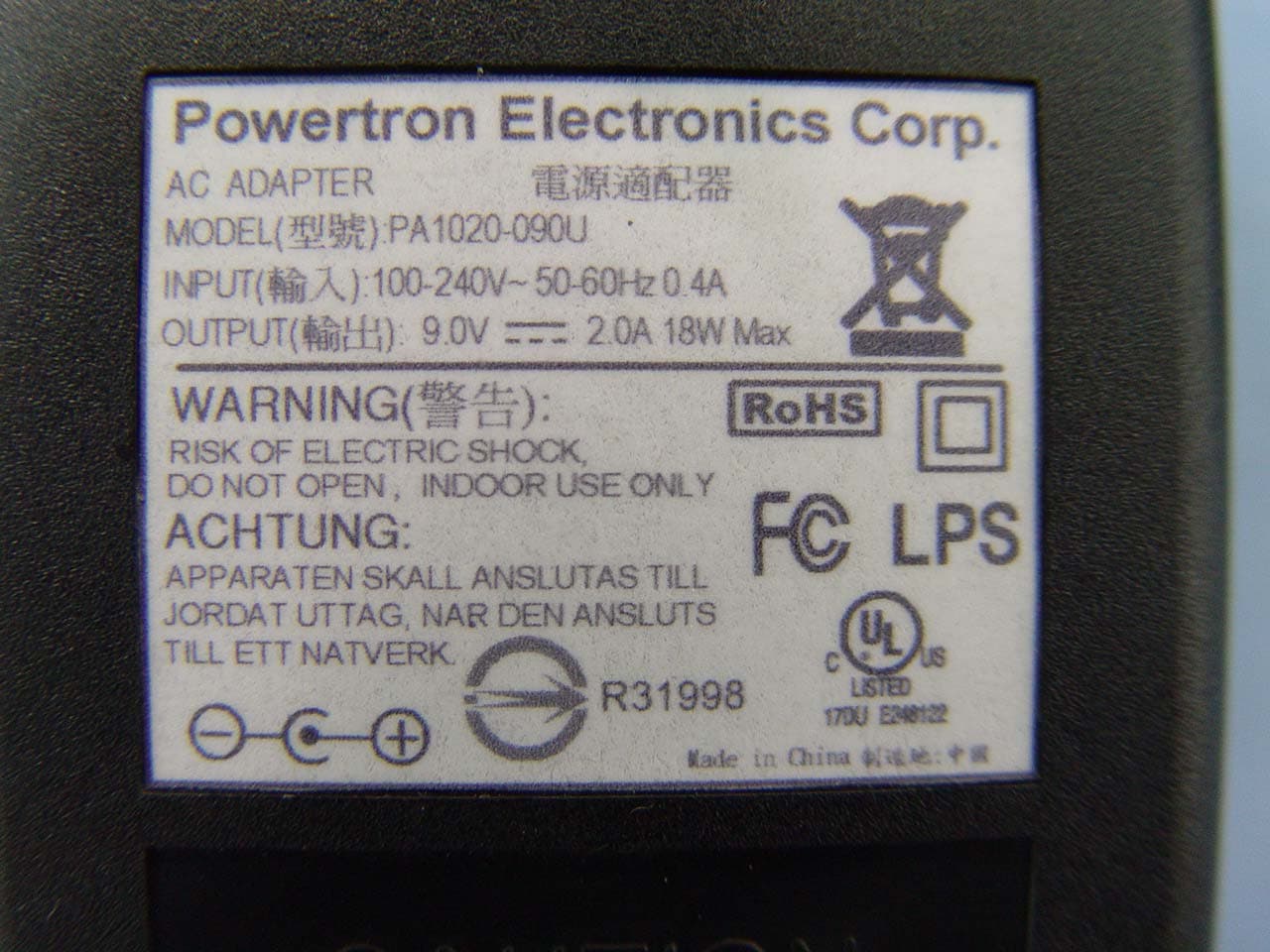

Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 1 Total Page: 25 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 2 Rev. 00 Model: Z-1070 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 3 Rev. 00 Model: Z-1071 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 6 Rev. 00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 7 Rev. 00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 8 Rev. 00

Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 9 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Model: Z-1070 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 10 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 11 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 12 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 13 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 14 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 15 Rev.00 Chip Antenna Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 16 Rev.00

Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 17 Rev.00 Model: Z-1071 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 18 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 19 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 20 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 21 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 22 Rev.00 Chip Antenna Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 23 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 24 Rev.00 Compliance Certification Services Inc. Report No.: 61122201 Date of Issue: December 27, 2006 Page 25 Rev.00

Walsin Technology Corporation Page 1 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 MULTILAYER CERAMIC ANTENNA RFANT BROADBAND Series 2.4 GHz ISM Band Working Frequency
   *Contents in this sheet are subject to change without prior notice. Walsin Technology Corporation Page 2 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 REVISION HISTORY Rev P/N Description Date V01 RFANT7635110A1T First Version 2004-07-13 V06 RFANT7635110A1T Increase Revision History as Page-2 Update the “±” Mark. 2004-12-08 Walsin Technology Corporation Page 3 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 FEATURES
 Surface Mounted Devices with a small dimension of 7.6 x 3.5 x 1.1 mm 3 meet future miniaturization trend.
 380MHz broad bandwidth design makes less influence, less frequency shifting due to outside environmental deviation.
 70% small footprint compared to normal band design (140MHz).
 Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product.
 High Stability in Temperature / Humidity Change
 Free Impedance Matching APPLICATIONS
 Bluetooth
 Wireless LAN
 HormRF
 ISM band 2.4GHz wireless applications DESCRIPTION Walsin Technology Corporation develops a new ceramic embedded antenna specified for 2.4 GHz ISM Band application, as shown in below “CONSTRUCTION”. Both of Wireless LAN IEEE 802.11b and Bluetooth TM typically located on this unlicensed frequency band which range covers from 2.4GHz to 2.4835GHz. To fulfil the friendly usage for antenna, this antenna has been designed to a typical 400MHz bandwidth through Walsin’s advanced LTCC (Low Temperature Co-fired Ceramic) technology and superior product design via 3D EM Simulation Skill. This antenna has a rectangular ceramic body with a tiny dimension of 7.6 x 3.5 x 1.1 mm 3 meet the future SMT automation and miniaturization requirements on modern portable devices. CONSTRUCTION Fig 1. Outline of 2.4GHz Chip Antenna DIMENSIONS Figure Dimension Port definition L 7.60 ² 0.30 mm - W 3.50 ² 0.20 mm - T 1.10 ² 0.10 mm - Fd 0.50 ² 0.20 mm Feed termination G 0.80 ² 0.20 mm Ground termination C 0.50 ² 0.20 mm D 0.50 ² 0.20 mm P 1 0.80 ² 0.20 mm Solder termination P 2 0.80 ² 0.20 mm Solder termination P 3 0.50 ² 0.10 mm Solder termination MARKING: Upon customer requested, max. 5-digit code is allowed. P 3 G L P 2 D C Fd G P 1 WTC W T P 3 G L P 2 D C Fd G P 1 WTC W T Walsin Technology Corporation Page 4 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 L L p Wp Wf Wg L g Ws L h L f
          W    L L p Wp Wf Wg L g WsWs L h L f
          W    SOLDER LAND PATTERN DESIGN Figure Symbol Dimension L 8.10 ² 0.10 mm Lp 1.00 ² 0.10 mm Wp 1.20 ² 0.10 mm Lf 1.50 ² 0.10 mm Wf 0.80 ² 0.10 mm Lg 1.50 ² 0.10 mm Wg 1.50 ² 0.10 mm Ws 0.40 ² 0.10 mm Lh 0.50 ² 0.10 mm ELECTRICAL CHARACTERISTICS Item Specification Central frequency 2.450 GHz (Note-1) Bandwidth 380 MHz (Typical value) Gain 0 ~ 2 dBi VSWR 2 max. Polarization Linear Azimuth Bandwith Omni-directional Impedance 50 W Rated Power (max.) 5 Watts Maximum Input Power 10 Watts for 5 minutes Operation Temperature -40 ̓ C ~ +85 ̓ C Note-1. Central Frequency should be defined after customers’ application approval. Walsin Technology Corporation Page 5 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. Walsin’s LTCC chip antenna is an electrically small antenna (size smaller than 1/10 l ). The specification of RFANT7635110A1x series chip antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Return Loss (S11) E-Plane (dBi) H-Plane (dBi) The typical tuning range of Walsin’s chip antenna is about ±150MHz. The performance of embedded ceramic antenna is sensitive influenced by customer's ground area, PC board size, thickness, material, mechanical design and the material of housing for end product. WTC engineers have significant expertise on embedded antenna designs and applications. We can work closely with you to ensure the requirements are met, and optimise the WTC’s antenna performance when installing on your application.

 50 W !"

 50 W !" Walsin Technology Corporation Page 6 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 RELIABILITY TEST Mechanical performance Test item Test condition / Test method Specification Solderability Solder temp. : 235 ² 5 ∞ C Immersion time: 2 ² 1 sec Solder: SN63 95% min. coverage of all metabolised area Resistance to soldering heat Solder: Sn63 Preheating temperature: 150 ² 10∞C Solder Temperature: 260 ² 5∞C Immersion time: 10 ² 1 sec Measurement to be made after keeping at room temp. for 24 ²2 hrs. No mechanical damage. Ceramic surface shall not be exposed in the middle of the termination or on the terminated product edge by leaching. Drop test Height : 75 cm Direction : 3 directions Times : 3 times for each direction. No mechanical damage. Samples shall satisfy electrical specification after test.. Environmental characteristics Test item Test condition / Test method Specification Humidity Resistance Humidity:90% to 95% R.H. Tempertaure:40 ² 2∞C Time: 500 ² 24 hours. Measurement: After placing for 24 hours Minimum. No mechanical damage. Samples shall satisfy electrical specification after test. Temperature cycle 1. 30 ² 3 minutes at -40∞C ² 3∞C, 2. 10~15 minutes at room temperature, 3. 30 ± 3 minutes at +85 ∞ ²3 ∞ C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement after placing for 48 ²2 hrs min. No mechanical damage. Samples shall satisfy electrical specification after test. High temperature Temperature: 85 ∞ C²2 ∞ C Test duration: 24 hours Measurement must be taken after subjection to the above conditions, followed by exposu…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 61122201-RP1 FCC ID: JNF-Z-107X Date of Issue: January 2, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 48 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Portable Data Terminal Model: Z-1070, Z-1071 Trade Name: ZEBEX Issued to ZEBEX INDUSTRIES INC. B1-1, No. 207, Sec 3, Beisin Road, Sindian City, Taipei 231, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 61122201-RP1 FCC ID: JNF-Z-107X Date of Issue: January 2, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.....................................................................................................3 2. EUT DESCRIPTION...........................................................................................................................4 3. TEST METHODOLOGY....................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED......................................................................................8 5. FACILITIES AND ACCREDITATIONS ...........................................................................................9 5.1 FACILITIES ......................................................................................................................................9 5.2 EQUIPMENT.....................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST........................................................................................11 6.1 SETUP CONFIGURATION OF EUT....................................................................................................11 6.2 SUPPORT EQUIPMENT ............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 PEAK POWER.................................................................................................................................12 7.2 BAND EDGES MEASUREMENT .............................................................................................13 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................18 7.4 FREQUENCY SEPARATION....................................................................................................21 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................23 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................25 7.7 SPURIO US EMISSIONS .............................................................................................................32 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................42 APPENDIX I RADIO FREQUENCY EXPOSURE ................................................................................45 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...............................................................................46 Compliance Certification Services Inc. Report No.: 61122201-RP1 FCC ID: JNF-Z-107X Date of Issue: January 2, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Portable Data Terminal Trade Name ZEBEX Model Number Z-1070, Z-1071 Model Discrepancy All the specification and layout are identical except that model number: Z-1070 with CCD function and model number: Z-1071 with Laser. Power Supply Power Adapter 1: Model number: NP12-US0913 I/P: AC 100-240V, 0.3A, 50-60Hz O/P: DC 9V, 1.3A Power Adapter 2: Trade Name / Model number: OEM / ADS18A-W 090200 I/P: AC 100-240V, 0.5A, 50-60Hz O/P: DC 9V, 2.0A Power Adapter 3: Model number: PA1020-090U I/P: AC 100-240V, 0.4A, 50-60Hz O/P: DC 9.0V, 2.0A, 18W Battery: Rechargeable alkaline AA battery 1.2V*3(3.6V) Frequency Range 2402 ~ 2480 MHz Transmit Power 13.77 dBm Modulation Technique FHSS (GFSK) Transmit Data Rate 1Mbps Number of Channels 79 Channels Antenna Specification Gain: 2.0 dBi Antenna Designation Chip Antenna USB Cable Shielded 1.2m Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: JNF-Z-107X filing to comply with Section 15.207, 15.209 and 15.247 o…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 61122201-RP1 FCC ID: JNF-Z-107X Date of Issue: January 2, 2007 Page 46 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photo Compliance Certification Services Inc. Report No.: 61122201-RP1 FCC ID: JNF-Z-107X Date of Issue: January 2, 2007 Page 47 Rev. 00 Radiated Emission Setup Photos Compliance Certification Services Inc. Report No.: 61122201-RP1 FCC ID: JNF-Z-107X Date of Issue: January 2, 2007 Page 48 Rev. 00 Powerline Conducted Emissions Setup Photos
