JNF-Z-117XPocket-Sized Personal Data Collector

ii Copyright © 2010. All rights reserved. No warranty of any kind is made in regard to this material, including, but not limited to, impl ied warranties of merchantability or fitness for a particular purpose. Although every effort is made to assure accuracy and completeness, we can not be held liable for any errors contained herein no r incidental or consequential damages in connection with furnishing, performance or use of this material. We shall be under no liability in respect of any defect arising from fair wear and tear, willful damage, negligence, abnormal working conditions, failure to follow the instructions and warnings, or misuse or alteration or repair of the products without written approval. No part of this document may be reproduced, transmitted, stored in a retrieval system, transcribed, or translated into any language or computer language in any form or by any means electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without express written consent and authorization. We reserve the right to make changes in product design without reservation and without notification. The material in this guide is for information only and is subj ect to change without notice. All trademarks mentioned herein, regi stered or other wise, are the properties of their various respective owners. iii Table of Content General Info rmation ...................................................................1 Introducti on............................................................................ 1 Unpacki ng .............................................................................. 2 Device Out line........................................................................ 3 Battery Care ........................................................................... 4 Bluetooth® Co mmunication ................................................. 6 Use Bluetooth® Dongle....................................................... 10 Getting Start............................................................................. 14 Installing and ch arging ba ttery........................................... 14 Power on device to collect data ......................................... 16 Scan ba rcode ....................................................................... 18 Key in data............................................................................ 19 Upload Data.......................................................................... 21 Upload data with Windows Software ................................. 21 Delete Data ........................................................................... 21 Power off device .................................................................. 21 Device Setu p............................................................................ 22 LCD Cont rast........................................................................ 22 Beep Vo lume ........................................................................ 22 System Cl ock ....................................................................... 22 Barcode Se tup ..................................................................... 23 Communicat ion.................................................................... 23 Auto Powe r off ..................................................................... 28 Default Para meter ................................................................ 28 User Rese t ............................................................................... 30 1 General Information 1.1. Introduction Congratulations on your purchase of the Bluetooth Personal Data Collector (PDC) with LCD display. Along with superior portability and visually safe scanning Engine of, the PDC features a real-time clock, a buzzer, a dual-color status LED, also an UART port with optional Bluetooth or various communication cable for connection to external equipment. The on-board 64K EEPROM provides a robust, stable memory space dedicated to storing scanned data. The PDC can retain more than 2000 records construct by an UPC code with timestamp. The Personal Data Collector comes with a built-in basic data collection firmware, called FREETASK that can scan and store barcodes, and do simple edits on the stored data. Data can be uploaded to a PC through the Bluetooth or RS-232 / USB cable. WinTaskGen, a software program on the ZEBEX website, can be used to create customized programs (Tasks) for download and use with the PDC. A Task can have up to four operation procedures to manage four data forms each with 16 separate data fields. For more advanced requirements, there are available libraries for developing programs under the GCC environment. Contact your agent if you are interested in this approach. 2 1.2. Unpacking The PDC package should contain: - 1 ea. Pocket-Sized Personal Data Collector - 1 ea. DB-9(F) serial communication cable ( For data upload and download) - 3 ea. AAA NiMH rechargeable batteries - 1 ea Power Adapter If any package contents are damaged or missing, please contact your dealer immediately. Optional Accessory - Bluetooth USB Dongle - USB-232 or USB-HID cable ( To transfer data from PDC to a PC) 3 1.3. Device Outline Figure 1: Pocket-Sized P ersonal Data Collector Scan LCD Up Key Function LED Down UART port 4 1.4. Battery Care In the interests of providing the best product performance possible, the Personal Data Collector comes with high quality, rechargeable Nickel Metal Hydride (NiMH) batteries and a Power Adapter. After NiMH batteries are installed, connect the Power Adapter cable and the batteries charge right in the unit. Before you use new Personal Data Collector and new NiMH batteries for the first time you should charge them fully at least 6 hours. Please note that new NiMH batteries need to go through three to five charge-dis-charge cycles before they reach peak performance and capacity. For the first few times that you use new NiMH batteries, you may find that they discharg…

Text truncated - open the document above for the full version.

Bluetooth Declaration Per FCC 15.247 Requirements 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviors: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviors for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. There for all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth system is 1Mhz independent of the operating mode. The maximum “initial carrier frequency tolerance” which is allowed for Bluetooth is fcenter = 75 kHz. This was checked during the Bluetooth Qualification tests (Test Case:…

Text truncated - open the document above for the full version.

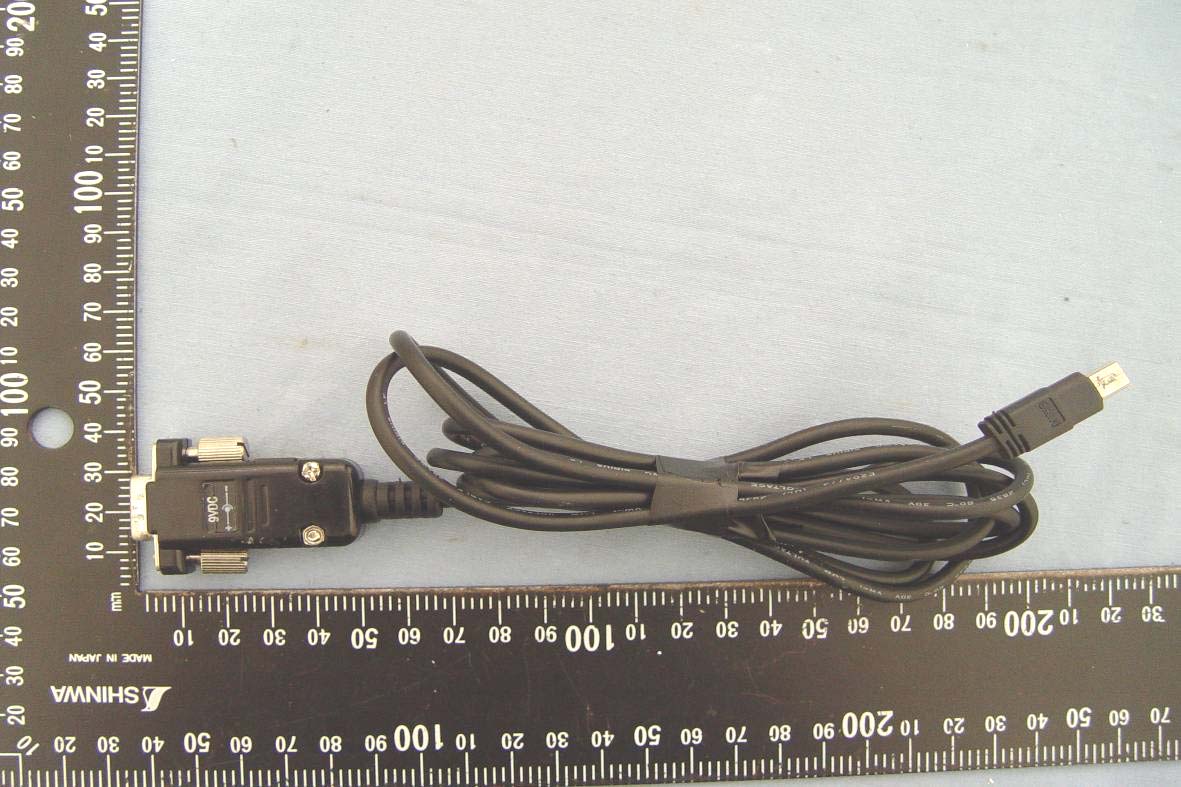

Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 1 Total Page: 23 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 12 Rev. 00

Label Sample & Location

Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 13 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 15 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 16 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 17 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 18 Rev. 00 BT Module BT Antenna Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 19 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 20 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 21 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 22 Rev. 00 Compliance Certification Services Inc. Report No.: T100907202 Date of Issue: October 27, 2010 A1 - 23 Rev. 00

Compliance Certification Services Inc. Report No.: T100907202-RP1 FCC ID: JNF-Z-117X Date of Issue: October 27, 2010 Page 1 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Pocket-Sized Personal Data Collector Model: Z-117X (X=0~9, A~Z or blank), Z-117X-Plus (X=0~9, A~Z or blank), Z-117XUK-RT1 (X=0~9, A~Z or blank), Z-117XE (X=0~9, A~Z or blank), Z-117XBT (X=0~9, A~Z or blank), Z-117XBT-Plus (X=0~9, A~Z or blank) Trade Name: ZEBEX Issued to ZEBEX INDUSTRIES INC. B1-1, No. 207, Sec 3, Beisin Road, Sindian City, Taipei County 23143, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100907202-RP1 FCC ID: JNF-Z-117X Date of Issue: October 27, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION.....................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................8 4.3 MEASUREMENT UNCERTAINTY ............................................................................................9 5. FACILITIES AND ACCREDITATIONS .....................................................................................10 5.1 FACILITIES ....................................................................................................................................10 5.2 EQUIPMENT...................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................12 6.1 SETUP CONFIGURATION OF EUT....................................................................................................12 6.2 SUPPORT EQUIPMENT ............................................................................................................12 7. FCC PART 15.247 REQUIREMENTS..........................................................................................13 7.1 20 DB BANDWIDTH..................................................................................................................13 7.2 PEAK POWER.................................................................................................................................18 7.3 AVERAGE POWER.........................................................................................................................20 7.4 BAND EDGES MEASUREMENT .............................................................................................21 7.5 FREQUENCY SEPARATION ....................................................................................................30 7.6 NUMBER OF HOPPING FREQUENCY....................................................................................34 7.7 TIME OF OCCUPANCY (DWELL TIME) ................................................................................37 7.8 SPURIOUS EMISSIONS .............................................................................................................50 APPENDIX I RADIO FREQUENCY EXPOSURE ............................................................................68 APPENDIX II PHOTOGRAPHS OF TEST SETUP ..........................................................................69 Compliance Certification Services Inc. Report No.: T100907202-RP1 FCC ID: JNF-Z-117X Date of Issue: October 27, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: ZEBEX INDUSTRIES INC. B1-1, No. 207, Sec 3, Beisin Road, Sindian City, Taipei County 23143, Taiwan, R.O.C. Equipment Under Test: Pocket-Sized Personal Data Collector Tr a d e N a m e : ZEBEX Model: Z-117X (X=0~9, A~Z or blank), Z-117X-Plus (X=0~9, A~Z or blank), Z-117XUK-RT1 (X=0~9, A~Z or blank), Z-117XE (X=0~9, A~Z or blank), Z-117XBT (X=0~9, A~Z or blank), Z-117XBT-Plus (X=0~9, A~Z or blank) Date of Test: September 9 ~ 30, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Review…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100907202-RP1 FCC ID: JNF-Z-117X Date of Issue: October 27, 2010 Page 69 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTO Compliance Certification Services Inc. Report No.: T100907202-RP1 FCC ID: JNF-Z-117X Date of Issue: October 27, 2010 Page 70 Rev. 00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: T100907202-RP1 FCC ID: JNF-Z-117X Date of Issue: October 27, 2010 Page 71 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
