JNF-Z-2121Portable Data Collector

Portable Data Collector Z-2121series( Version 1.00) User’s Manual ZEBEX INDUSTRIES INC. SubjectVersion Date Page Z-2121 series User’s Manual1.00 2009/11/252 / 47 Editorial Record VersionDate of editedPageContent ZEBEX INDUSTRIES INC. SubjectVersion Date Page Z-2121 series User’s Manual1.00 2009/11/253 / 47 Table of Contents Preface About This Manual.......................................................................................................... 4 Symbols used in this manual....................................................................................... 4 Copyright........................................................................................................................... 5 Safety Information........................................................................................................... 5 Laser Safety...................................................................................................................... 5 Safety Operation.............................................................................................................. 6 FederalCommunication Commission(FCC) Statement........................................ 7 Unpacking Package Contents............................................................................................................ 8 Optional Parts................................................................................................................... 9 Cradlepackage................................................................................................................. 9 Purchaseable accessories............................................................................................ 9 General Guide................................................................................................................. 10 Getting Start Inserting the Battery..................................................................................................... 11 Remove the Battery .........................................................................................12 Charging the Battery.................................................................................................... 13 Charging by cable.......................................................................................................... 13 Charging by cradle........................................................................................................ 13 Charging the Battery Separate in the Cradle..........................................15 PC System Requirements............................................................................................ 16 Connecting To PC.......................................................................................................... 16 Connecting via USB Cradle........................................................................................ 16 Connecting the Z-2070 directly via USB cable....................................................... 17 About The Product........................................................................................................ 18 Prerequisites................................................................................................................... 20 Specifications................................................................................................................. 21 Start to operate the Z-2121 Fimware Operstion and Start Guide....................................................22 ZEBEX INDUSTRIES INC. SubjectVersion Date Page Z-2121 series User’s Manual1.00 2009/11/254 / 47 Preface About This Manual Thank you for your purchase of the ZEBEX Z-2121 PortableData Collector. ZEBEX Z-2121product is at the forefront of data collector technology, and this manual will provide the necessary information on the many and varied options available to you. The Z-2121 product is a compact, ergonomic, modularand durable data collector. It is designed for easy upgrade with an integrated BT communication, 1Dbarcode scanner and vibration. Thedesign is ideal for the mobile worker as i t simple andeasy to use anywhere along a supply chain. Symbols used in this manual A triangular shape indicates you should exercise caution. A circle shape indicates something you should not to do. A black circle indicates something you must to do. A note symbol indicates you the information that is important and you should be observed. ZEBEX INDUSTRIES INC. SubjectVersion Date Page Z-2121 series User’s Manual1.00 2009/11/255 / 47 Copyright ZEBEX Industries Inc. makes no warranty of any kind with regard to thismaterial. Including but not limited to the imply warranties of merchantability and fitness for a particular purpose. ZEBEX Industries Inc. shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance or use of this product. ZEBEX IndustriesInc.will beunder noliability inrespect ofany defect arising from fair wear and tear, willful damage, negligence, abnormal workingconditions, failure tofollow theinstructions and warnings, or misuse or alteration or repair of the products without written approval. No part of this document may be reproduced, transmitted,stored i n a retrieval system, transcribed or translated into any language or computer language in any form or by any means electronic, mechanical, magnetic, optical, chemical, manual or otherwise, with express writ- ten consent and authorization. We reserve theright to makechanges in productdesign without reservation and witho ut notification. The material in this guide is for information only and is subject to change without notice. ZEBEX is a registered trademark of ZEBEX INDUSTRIES INC. © Copyright 2009 ZEBEX. Safety Information Your safety is of the utmost importance so please observe and follow the following guidelines that allow you to use the scanner in a safe and responsible wa y. Laser Safety The Z-2121 se…

Text truncated - open the document above for the full version.

Bluetooth Declaration Per FCC 15.247 Requirements 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviors: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviors for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. There for all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth system is 1Mhz independent of the operating mode. The maximum “initial carrier frequency tolerance” which is allowed for Bluetooth is fcenter = 75 kHz. This was checked during the Bluetooth Qualification tests (Test Case:…

Text truncated - open the document above for the full version.

ZEBEX INDUSTRIES INC Data: December 18, 2009 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Job Title: Section Manager Email: @ccsrf.com I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: ZEBEX / Z-2121 series FCC ID: JNF-Z-2121 Product Name: Portable Data Collector Signature Name/Title: John Chen/ President Company Name: ZEBEX INDUSTRIES INC. Address: B1-1, No. 207, Sec 3, Beisin Road, Sindian City, Taipei County 23143, Taiwan, R.O.C. TEL: 8913-2598 FAX: 8913-2597 Email: [email protected]

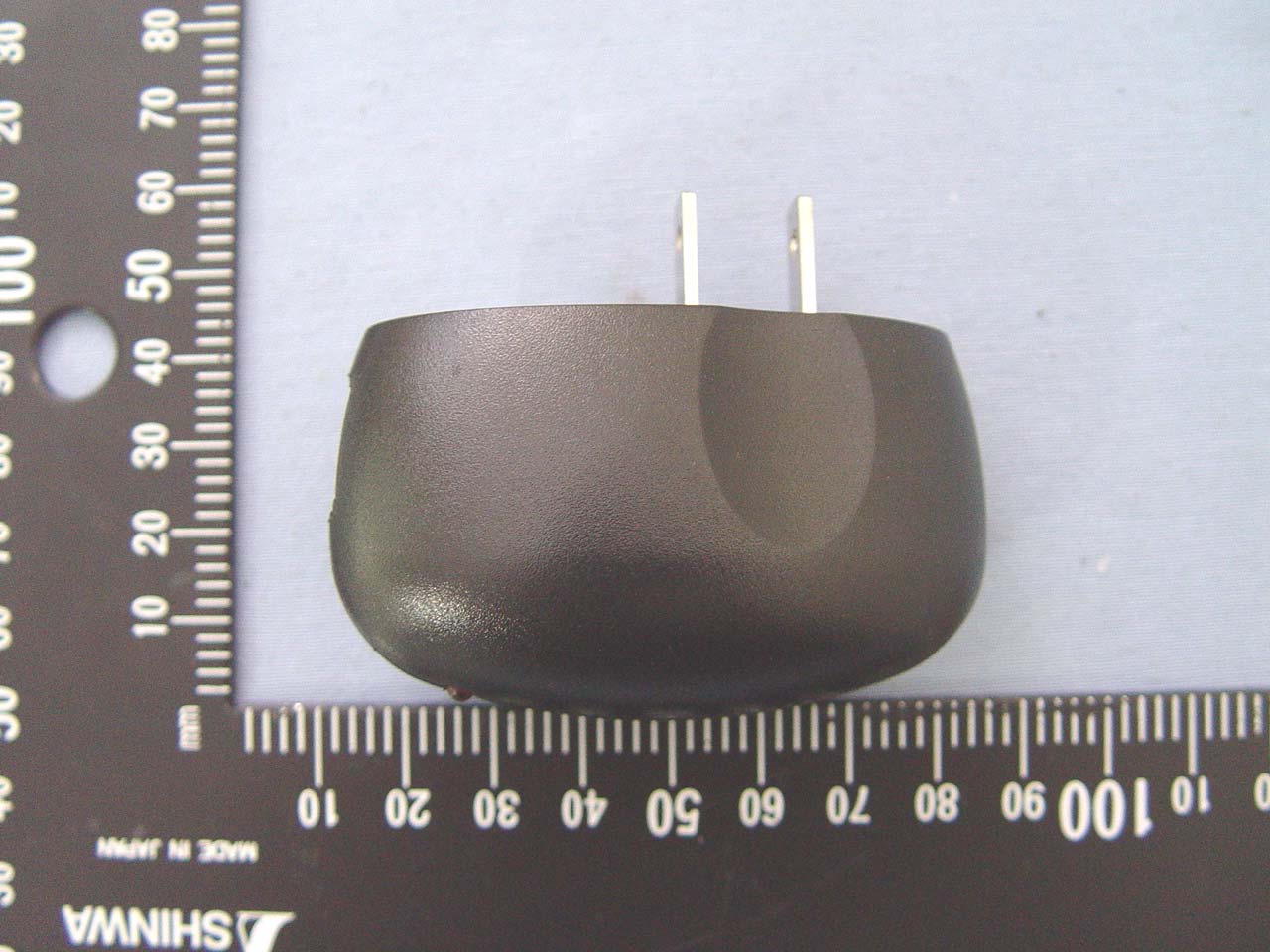

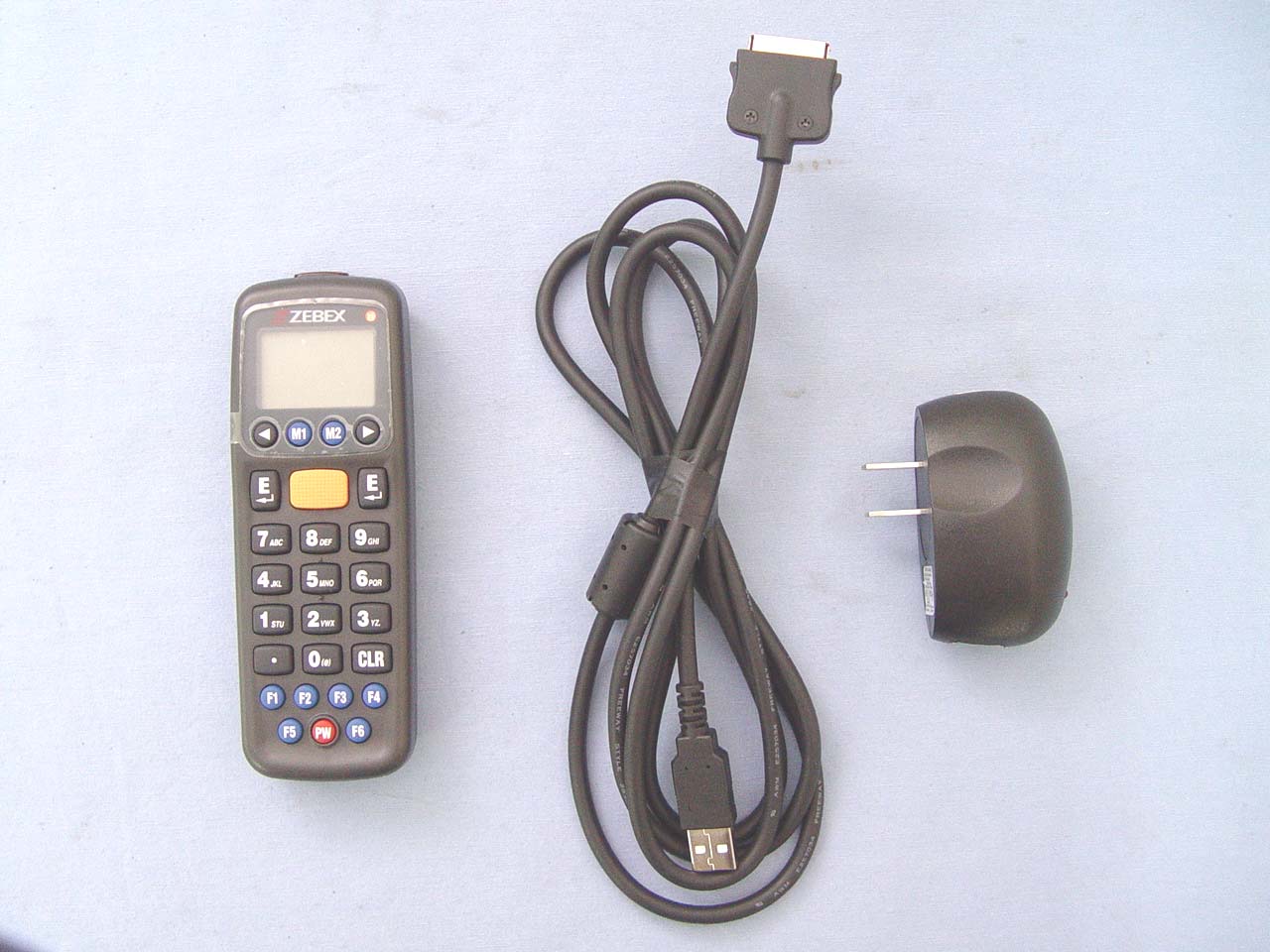

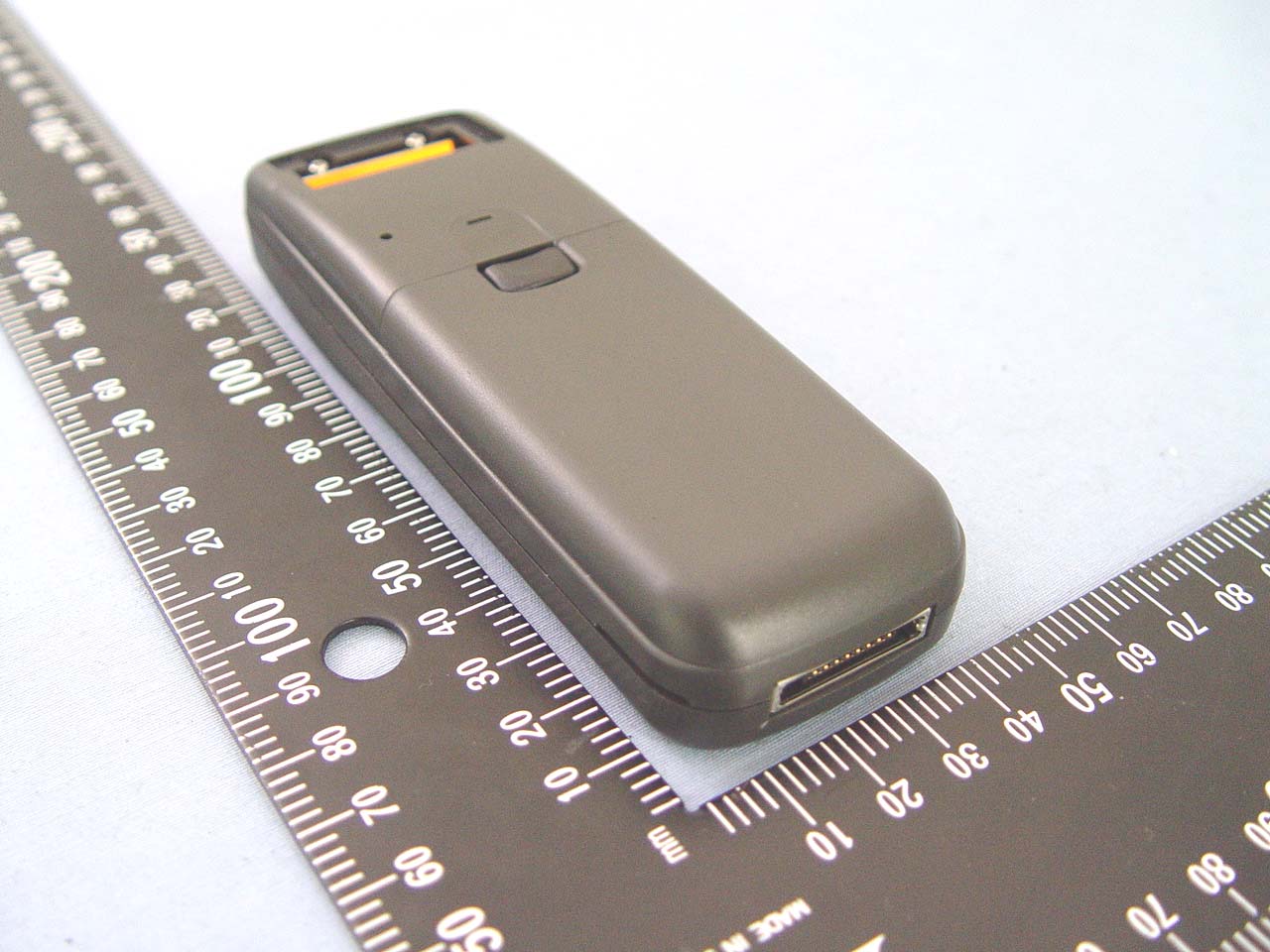

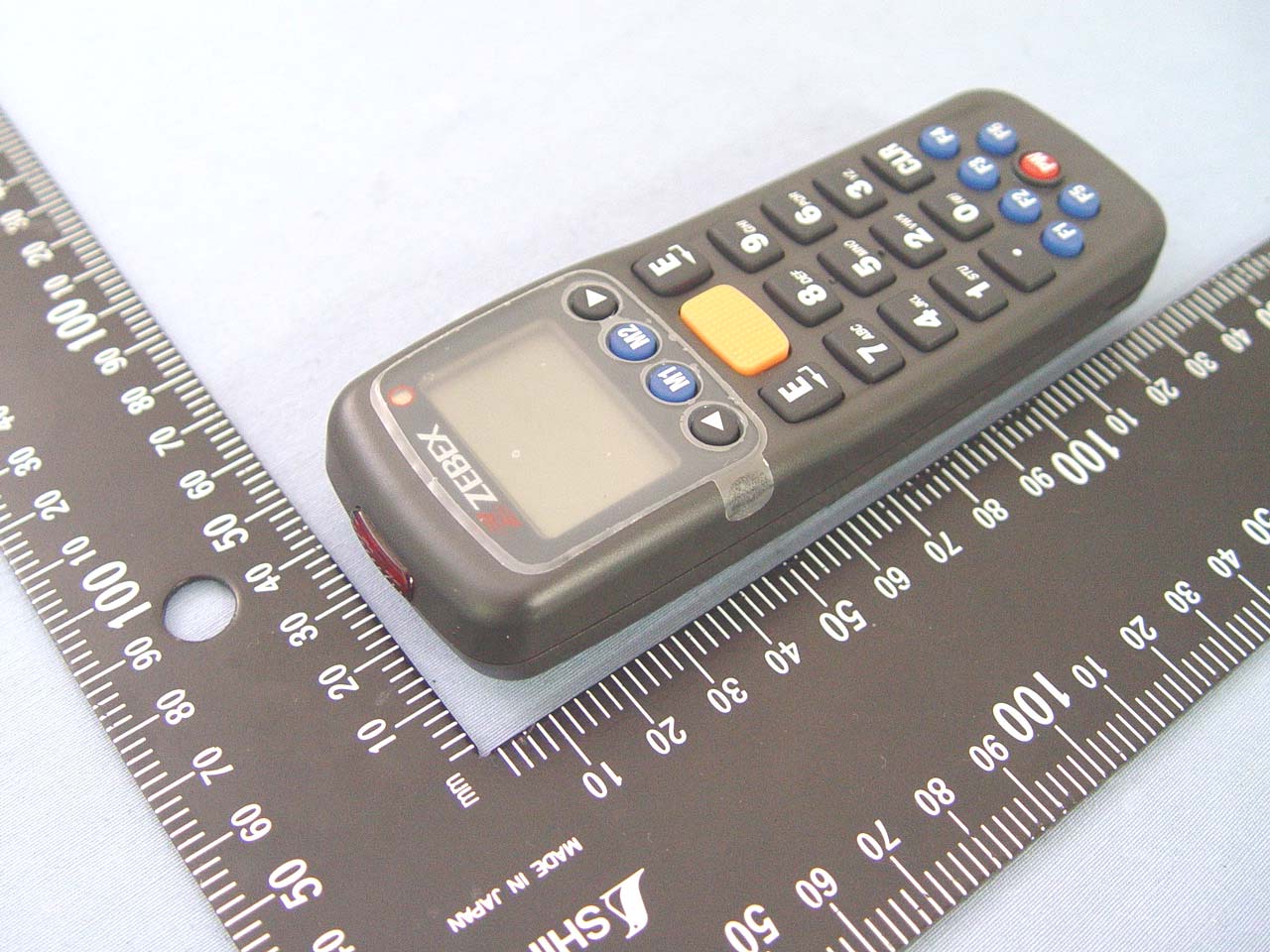

Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 1 Total Page: 11 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 4 Rev. 00

Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 5 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 6 Rev. 00 Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 7 Rev. 00 Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 8 Rev. 00 Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 9 Rev. 00 Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 10 Rev. 00 Compliance Certification Services Inc. Report No.:90903206 Date of Issue: October 26, 2009 Page 11 Rev. 00 Chip Antenna

Compliance Certification Services Inc. Report No.: 90903206-RP1 FCC ID: JNF-Z-2121 Date of Issue: October 21, 2009 Page 1 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Portable Data Collector Model: Z-2121 series Trade Name: ZEBEX Issued to ZEBEX INDUSTRIES INC. B1-1, No. 207, Sec 3, Beisin Road, Sindian City, Taipei 231, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 90903206-RP1 FCC ID: JNF-Z-2121 Date of Issue: October 21, 2009 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION.....................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................8 4.3 MEASUREMENT UNCERTAINTY ............................................................................................9 5. FACILITIES AND ACCREDITATIONS .....................................................................................10 5.1 FACILITIES ....................................................................................................................................10 5.2 EQUIPMENT...................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................11 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................12 6.1 SETUP CONFIGURATION OF EUT....................................................................................................12 6.2 SUPPORT EQUIPMENT ............................................................................................................12 7. FCC PART 15.247 REQUIREMENTS..........................................................................................13 7.1 20 DB BANDWIDTH..................................................................................................................13 7.2 PEAK POWER.................................................................................................................................18 7.3 AVERAGE POWER.........................................................................................................................20 7.4 BAND EDGES MEASUREMENT .............................................................................................21 7.5 FREQUENCY SEPARATION ....................................................................................................30 7.6 NUMBER OF HOPPING FREQUENCY....................................................................................34 7.7 TIME OF OCCUPANCY (DWELL TIME) ................................................................................37 7.8 SPURIOUS EMISSIONS .............................................................................................................50 7.8.3 POWERLINE CONDUCTED EMISSIONS............................................................................................65 APPENDIX I RADIO FREQUENCY EXPOSURE ............................................................................68 APPENDIX II PHOTOGRAPHS OF TEST SETUP ..........................................................................69 Compliance Certification Services Inc. Report No.: 90903206-RP1 FCC ID: JNF-Z-2121 Date of Issue: October 21, 2009 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: ZEBEX INDUSTRIES INC. B1-1, No. 207, Sec 3, Beisin Road, Sindian City, Taipei 231, Taiwan, R.O.C. Equipment Under Test: Portable Data Collector Tr a d e N a m e : ZEBEX Model: Z-2121 series Date of Test: September 10 ~ October 16, 2009 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 90903206-RP1 FCC ID: JNF-Z-2121 Date of Issue: October 21, 2009 Page 4 Rev. 00 2. EUT DESCRIPTI…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 90903206-RP1 FCC ID: JNF-Z-2121 Date of Issue: October 21, 2009 Page 69 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTO Compliance Certification Services Inc. Report No.: 90903206-RP1 FCC ID: JNF-Z-2121 Date of Issue: October 21, 2009 Page 70 Rev. 00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: 90903206-RP1 FCC ID: JNF-Z-2121 Date of Issue: October 21, 2009 Page 71 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
