JNF-Z-217XHANDHELD COMPUTER

Handheld Computer Z-2170 series ( Version 1.0) User’s Manual ZEBEX INDUSTRIES INC.  Subject Version DatePage Z-2170 series User’s Manual 1.00 2011/3/10 2 / 52 Editorial Record Version Date of edited PageContent Ver1.00 2011/03/10 Ver1.01 2012/02/09 Updated FCC statement ZEBEX INDUSTRIES INC.  Subject Version DatePage Z-2170 series User’s Manual 1.00 2011/3/10 3 / 52 Table of Contents Preface About This Manual....................................................................................5 Symbols used in this manual.............................................................5 Copyright..................................................................................................6 Safety Information.....................................................................................6 Laser Safety......................................................................................6 Safety Operation...............................................................................7 Federal Communication Commission (FCC) Statement........................8 Unpacking Package Contents.....................................................................................9 Optional Parts.........................................................................................10 Cradle package................................................................................10 Purchaseable accessories...............................................................11 General Guide.........................................................................................12 Getting Start Inserting the Battery.................................................................................15 Remove the Battery.................................................................................15 Charging the Battery...............................................................................16 Charging by cable............................................................................16 Charging by cradle..........................................................................16 Charging the battery separately in the cradle.....................................18 System Reset..........................................................................................19 Using the Warm reset function.........................................................19 Using the Cold reset function...........................................................19 PC System Requirements........................................................................20 Connecting To PC...................................................................................20 Connecting via USB Cradle..............................................................20 Connecting the Z-2170 directly via USB cable...................................21 About The Product..................................................................................22 Prerequisites...................................................................................22 Specifications.................................................................................23 Using Barcode Scanner Scanning Barcodes.................................................................................24 Using RFID Scanner Scanning RFID........................................................................................26 Using Zebex Power Pack Backlight ................................................................................................................ 29 Calculator............................................................................................................... 31 ZEBEX INDUSTRIES INC.  Subject Version DatePage Z-2170 series User’s Manual 1.00 2011/3/10 4 / 52 File Transfer ........................................................................................................... 32 File Transfer Operation .......................................................................................... 33 Preload Manager .............................................................................. .. 35 Preload operation .................................................................................................. 36 Switch .................................................................................................................... 39 Scan Manager .................................................................................... .41 Backup/Restore ..................................................................................................... 45 Firmware Information ............................................................................................. 47 Function Key Manager ........................................................................................... 48 ZEBEX INDUSTRIES INC.  Subject Version DatePage Z-2170 series User’s Manual 1.00 2011/3/10 5 / 52 Preface About This Manual Thank you for your purchase of the ZEBEX Z-2170 handheld computer. ZEBEX Z-2170 product is at the forefront of handheld computer technology, and this manual will provide the necessary information on the many and varied options available to you. The Z-2170 product is a compact, ergonomic, modular and durable handheld computer. It is designed for easy upgrade with an integrated WiFi wireless communication, 1D barcode scanner, 2D Imager, RFID HF solution. The design is complies with IP54 regulations and ideal for the mobile worker as it simple and easy to use anywhere along a supply chain. Symbols used in this manual A triangular shape indicates you should exercise caution. A circle shape indicates something you should not to do. A black circle indicates something you must to do. A note symbol indicates the information is important and you should observe. ZEBEX INDUSTRIES INC.  Subject Version DatePage Z-2170 series User’s Manual 1.00 2011/3/10 6 / 52 Copyright ZEBEX Industries Inc. makes no warranty of any kind with regard to thi…

Text truncated - open the document above for the full version.

Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) Mr. Jason Lin Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: ZEBEX / Z-217x ( x: 0~9 ) FCC ID: JNF-Z-217X Product Name: Handheld Computer

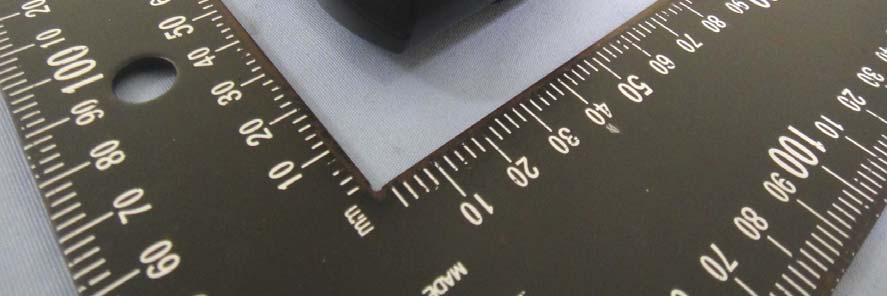

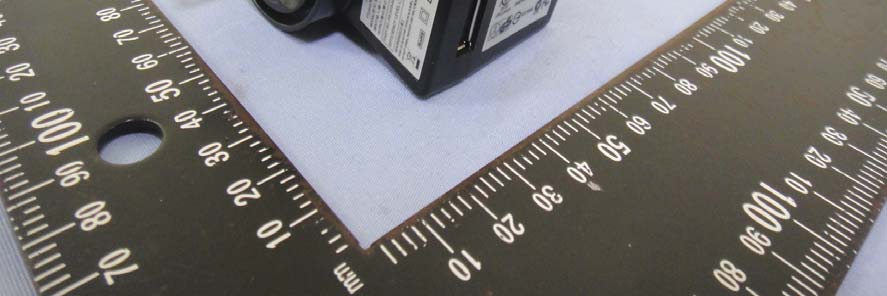

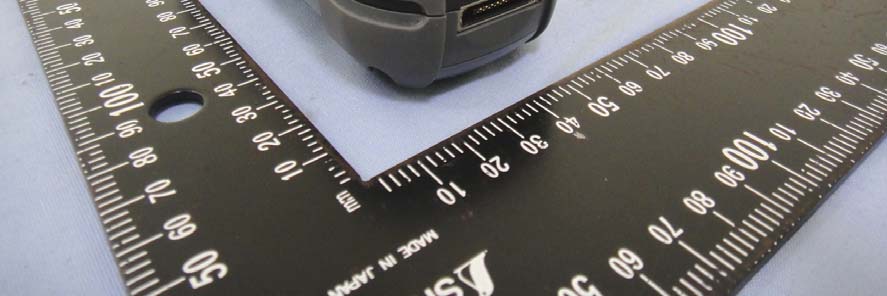

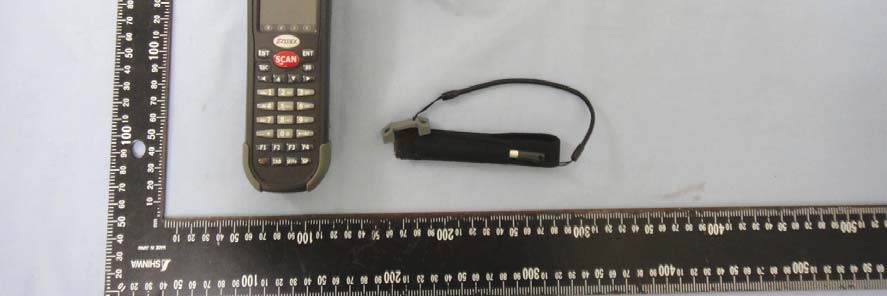

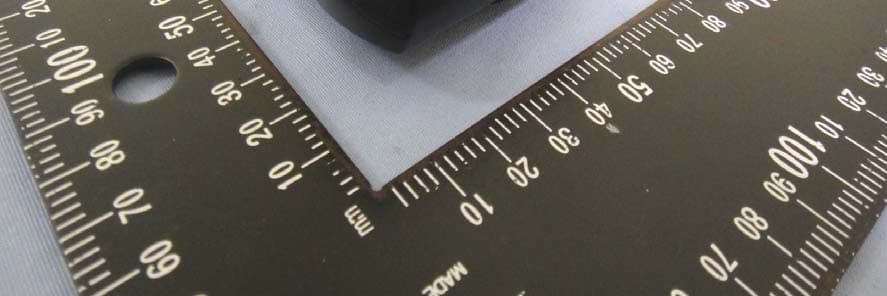

Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 1 Total Page: 21 Rev.00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 2 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 3 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 4 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 5 Rev.00

Label Sample & Location

Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 7 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 8 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 9 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 10 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 11 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 12 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 13 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 14 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 15 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 16 Rev.00 WLAN Module Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 17 Rev.00 Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 18 Rev.00 BT Module Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 19 Rev.00 WLAN Antenna PCB Antenna Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 20 Rev.00 BT Antenna Chip Antenna Compliance Certification Services Inc. Report No.: T110224206 Date of Issue: March 1, 2012 A1 - 21 Rev.00 Battery

Walsin Technology Corporation Page 1 of 7 ASC_ANT7635110A1T_V07 Mar.2006 MULTILAYER CERAMIC ANTENNA RFANT BROADBAND Series – RoHS Compliance 2.4 GHz ISM Band Working Frequency
   *Contents in this sheet are subject to change without prior notice. Walsin Technology Corporation Page 2 of 7 ASC_ANT7635110A1T_V07 Mar.2006 FEATURES
 Surface Mounted Devices with a small dimension of 7.6 x 3.5 x 1.1 mm 3 meet future miniaturization trend.
 380MHz broad bandwidth design makes less influence, less frequency shifting due to outside environmental deviation.
 70% small footprint compared to normal band design (140MHz).
 Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product.
 High Stability in Temperature / Humidity Change
 Free Impedance Matching APPLICATIONS
 Bluetooth
 Wireless LAN
 HormRF
 ISM band 2.4GHz wireless applications DESCRIPTION Walsin Technology Corporation develops a new ceramic embedded antenna specified for 2.4 GHz ISM Band application, as shown in below “CONSTRUCTION”. Both of Wireless LAN IEEE 802.11b and Bluetooth TM typically located on this unlicensed frequency band which range covers from 2.4GHz to 2.4835GHz. To fulfil the friendly usage for antenna, this antenna has been designed to a typical 400MHz bandwidth through Walsin’s advanced LTCC (Low Temperature Co-fired Ceramic) technology and superior product design via 3D EM Simulation Skill. This antenna has a rectangular ceramic body with a tiny dimension of 7.6 x 3.5 x 1.1 mm 3 meet the future SMT automation and miniaturization requirements on modern portable devices. CONSTRUCTION Fig 1. Outline of 2.4GHz Chip Antenna DIMENSIONS Figure Dimension Port definition L 7.60 ² 0.30 mm - W 3.50 ² 0.20 mm - T 1.10 ² 0.10 mm - Fd 0.50 ² 0.20 mm Feed termination G 0.80 ² 0.20 mm Ground termination C 0.50 ² 0.20 mm D 0.50 ² 0.20 mm P 1 0.80 ² 0.20 mm Solder termination P 2 0.80 ² 0.20 mm Solder termination P 3 0.50 ² 0.10 mm Solder termination MARKING: Upon customer requested, max. 5-digit code is allowed. P 3 G L P 2 D C Fd G P 1 WTC W T P 3 G L P 2 D C Fd G P 1 WTC W T Walsin Technology Corporation Page 3 of 7 ASC_ANT7635110A1T_V07 Mar.2006 L L p Wp Wf Wg L g Ws L h L f
          W    L L p Wp Wf Wg L g WsWs L h L f
          W    SOLDER LAND PATTERN DESIGN Figure Symbol Dimension L 8.10 ² 0.10 mm Lp 1.00 ² 0.10 mm Wp 1.20 ² 0.10 mm Lf 1.50 ² 0.10 mm Wf 0.80 ² 0.10 mm Lg 1.50 ² 0.10 mm Wg 1.50 ² 0.10 mm Ws 0.40 ² 0.10 mm Lh 0.50 ² 0.10 mm ELECTRICAL CHARACTERISTICS Item Specification Central frequency 2.450 GHz (Note-1) Bandwidth 380 MHz (Typical value) Gain 0 ~ 2 dBi VSWR 2 max. Polarization Linear Azimuth Bandwith Omni-directional Impedance 50W Rated Power (max.) 5 Watts Maximum Input Power 10 Watts for 5 minutes Operation Temperature -40 ̓ C ~ +85 ̓ C Note-1. Central Frequency should be defined after customers’ application approval. Walsin Technology Corporation Page 4 of 7 ASC_ANT7635110A1T_V07 Mar.2006 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. Walsin’s LTCC chip antenna is an electrically small antenna (size smaller than 1/10l). The specification of RFANT7635110A1x series chip antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Return Loss (S11) E-Plane (dBi) H-Plane (dBi) The typical tuning range of Walsin’s chip antenna is about ±150MHz. The performance of embedded ceramic antenna is sensitive influenced by customer's ground area, PC board size, thickness, material, mechanical design and the material of housing for end product. WTC engineers have significant expertise on embedded antenna designs and applications. We can work closely with you to ensure the requirements are met, and optimise the WTC’s antenna performance when installing on your application.

 50 W !"

 50 W !" Walsin Technology Corporation Page 5 of 7 ASC_ANT7635110A1T_V07 Mar.2006 RELIABILITY TEST Mechanical performance Test item Test condition / Test method Specification Solderability Solder temp. : 235 ² 5∞C Immersion time: 2 ² 1 sec Solder: SN63 95% min. coverage of all metabolised area Resistance to soldering heat Solder: Sn63 Preheating temperature: 150 ² 10 ∞ C Solder Temperature: 260 ² 5 ∞ C Immersion time: 10 ² 1 sec Measurement to be made after keeping at room temp. for 24 ²2 hrs. No mechanical damage. Ceramic surface shall not be exposed in the middle of the termination or on the terminated product edge by leaching. Drop test Height : 75 cm Direction : 3 directions Times : 3 times for each direction. No mechanical damage. Samples shall satisfy electrical specification after test.. Environmental characteristics Test item Test condition / Test method Specification Humidity Resistance Humidity:90% to 95% R.H. Tempertaure:40 ² 2 ∞ C Time: 500²24 hours. Measurement: After placing for 24 hours Minimum. No mechanical damage. Samples shall satisfy electrical specification after test. Temperature cycle 1. 30 ² 3 minutes at -40 ∞ C ² 3 ∞ C, 2. 10~15 minutes at room temperature, 3. 30±3 minutes at +85∞ ² 3∞C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement after placing for 48 ² 2 hrs min. No mechanical damage. Samples shall satisfy electrical specification after test. High temperature Temperature: 85∞C ² 2∞C Test duration: 24 hours Measurement must be taken after subjection to the above conditions, followed by exposure in room environment for 1 to 2 hours. No mechanical damage. Samples shall satisfy electrical specification after test. Low temperature Temperature: -40∞C²3∞C Test duration: 24 hours Measurement must be taken after subjection to the abo…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: JNF-Z-217X Report No.: T110224206-RP1 Page 54 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Handheld Computer Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: Bluetooth: 2.402GHz ~ 2.480GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 2.25 dBm (0.0017mW) Antenna gain (Max) 2 dBi (Numeric gain: 1.58) Evaluation applied MPE Evaluation SAR Evaluation N/A* Remark: The maximum output power is 2.25 dBm (0.0017 mW) at 2480MHz (with 1.58 numeric antenna gain.) TEST RESULTS No non-compliance noted. Note: (1) This EUT none voice function (only data function). And According KDB447498 D01 4 C) iii). (2) This EUT is hand-held and hand-operated device. (3) Bluetooth average maximum conducted output power 1.34 dBm is less than SAR test power theory (60/ f(GHz)), and can’t simultaneously with WLAN antenna, so simultaneously SAR is not required. MPE EVALUATION Not applicable.

Compliance Certification Services Inc. FCC ID: JNF-Z-217X Report No.: T110224206-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 57 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Handheld Computer Model: Z-217x (x: 0~9 ) Trade Name: ZEBEX Issued to ZEBEX INDUSTRIES INC B1-1, No. 207, Sec. 3, Beisin Road, Sindian-Tien City Taiwan Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: February 24, 2012 Compliance Certification Services Inc. FCC ID: JNF-Z-217X Report No.: T110224206-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 February 24, 2012 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: JNF-Z-217X Report No.: T110224206-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................4 2. EUT DESCRIPTION ........................................................................................................................5 3. TEST METHODOLOGY .................................................................................................................6 3.1 EUT CONFIGURATION.....................................................................................................................6 3.2 EUT EXERCISE.................................................................................................................................6 3.3 GENERAL TEST PROCEDURES..........................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................7 3.5 DESCRIPTION OF TEST MODES........................................................................................................8 4. INSTRUMENT CALIBRATION.....................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................9 4.3 MEASUREMENT UNCERTAINTY ..........................................................................................10 5. FACILITIES AND ACCREDITATIONS .....................................................................................11 5.1 FACILITIES ....................................................................................................................................11 5.2 EQUIPMENT...................................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................13 6.1 SETUP CONFIGURATION OF EUT....................................................................................................13 6.2 SUPPORT EQUIPMENT ............................................................................................................13 7. FCC PART 15.247 REQUIREMENTS..........................................................................................14 7.1 20 DB BANDWIDTH..................................................................................................................14 7.2 PEAK POWER.................................................................................................................................18 7.3 BAND EDGES MEASUREMENT .............................................................................................19 7.4 FREQUENCY SEPARATION ....................................................................................................29 7.5 NUMBER OF HOPPING FREQUENCY....................................................................................32 7.6 TIME OF OCCUPANCY (DWELL TIME) ................................................................................35 7.7 SPURIOUS EMISSIONS .............................................................................................................39 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................51 APPENDIX I RADIO FREQUENCY EXPOSURE ............................................................................54 APPENDIX II PHOTOGRAPHS OF TEST SETUP ..........................................................................55 Compliance Certification Services Inc. FCC ID: JNF-Z-217X Report No.: T110224206-RP1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: ZEBEX INDUSTRIES INC. B1-1, No. 207, Sec. 3, Beisin Road, Sindian-Tien City Taiwan Equipment Under Test: Handheld Computer Tr a d e N a m e : ZEBEX Model: Z-217x (x: 0~9 ) Date of Test: January 19, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Jason Lin Gina Lo Sec…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: JNF-Z-217X Report No.: T110224206-RP1 Page 55 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTO Compliance Certification Services Inc. FCC ID: JNF-Z-217X Report No.: T110224206-RP1 Page 56 Rev. 00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: JNF-Z-217X Report No.: T110224206-RP1 Page 57 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
