JNF-Z-3051BT2.4GHZ Wireless Barcode Scanner

i No warranty of any kind is made in regard to this material, including, but not limited to, implied warranties of merchantability or fitness for a particular purpose. We are not liable for any errors contained herein or incidental or consequential damages in connection with furnishing, performance or use of this material. No part of this document may be reproduced, transmitted, stored in a retrieval system, transcribed, or translated into any language or computer language in any form or by any means electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without express written consent and authorization. We reserve the right to make changes in product design without reservation and without notification. The material in this guide is for information only and is subject to change without notice. All trademarks mentioned herein, registered or otherwise, are the properties of their various respective owners. Copyright © 2006. All rights reserved. Radio Notice This equipment generates uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions in this manual, it may cause interference to radio communications. The equipment has been tested and found to comply with the limits for a Class A computing device pursuant to EN55022 and 47 CFR, Part 2 and Part 15 of the FCC rules. These specifications are designed to provide reasonable protection against interference when operated in a commercial environment. Radio and Television Interference Operation of this equipment in a residential area can cause interference to radio or television reception. This can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures: Reorient the receiving antenna. Relocate the device with respect to the receiver. Move the device away from the receiver. Plug the device into a different outlet so that the device and the receiver are on different branch circuits. If necessary the user may consult the manufacturer, and authorized dealer, or experienced radio/television technician for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, DC 20402 U.S.A., Stock No. 004000003454. For CE-countries This scanner is in conformity with CE standards. Please note that an approved, CE-marked power supply unit should be used in order to maintain CE conformance. i Laser Safety The laser scanner complies with safety standard IEC 60825 -1for a Class I laser produce. It also complies with CDRH as applicable to a Class IIa laser product. Avoid long term staring into direct laser light. Radiant Energy: The laser scanner uses one low-power visible laser diodes operating at 650nm in an opto-mechanical scanner resulting in less than 3.9μW radiated power as observed through a 7mm aperture and averaged over 10 seconds. Do not attempt to remove the protective housing of the scanner, as unprotected laser light with a peak output up to 0.8mW would be accessible inside. Laser Light Viewing: The scan window is the only aperture through which laser light may be observed from this product. A failure of the scanner motor, while the laser diode continues to emit a laser beam, may cause emission levels to exceed those for safe operation. The scanner has safeguards to prevent this occurrence. If, however, a stationary laser beam is emitted, the failing scanner should be disconnected from its power source immediately. Adjustments: Do not attempt any adjustments or alteration of this product. Do not remove the protective housing of the scanner. There are no user-serviceable parts inside. Caution: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Optical: The use of optical instruments with this product will increase the eye hazard. Optical instruments include binoculars, magnifying glasses, and microscopes but do not include normal eye glasses worn by the user. ii 1. General Information 1.1. Introduction This scanner is well featured with Bluetooth® wireless technology, enabling working efficiency for simultaneous data transfer when scanning as well as working portability as not being constrained by short of cable length. Working places as shipping industry, cargo warehouses, superstores, pharmacies, and many more open-space or large-scale manufacturing sites are delighted to enjoy this move-around freedom. The cradle, a Bluetooth® dongle or any device with Bluetooth® wireless technology can be the host of this scanner. As far as 100-meter connection range, all scanned data are instantly transferred to the connected host. As if out of connection range, the embedded 32KB flash memory provides sufficient data space to store up to 2000 sets of data. Either scanning in the handheld or hands-free mode, this scanner always offers a high-accuracy and reliable scanning ability. This scanner would be your trusted tool scanning partner. 2 1.2. Unpacking This scanner package contains: 1 ea. Wireless Single-Line Laser Scanner 1 ea. Charging Cradle or Cradle with Radio Communication 1 ea. DC 9V Power Adapter 2 ea. Ni-MH AA Recharge Battery 1 ea. Interface Cable (only for the cradle with radio communication) 1 ea. Hand stripe 1 ea. User’s Manual If any contents are damaged or missing, please contact your dealer immediately. Please leave this user’s manual within easy access of person using the scanner. 3 1.3. Scanner Outline 1.4. Cradle Outline 4 2. Getting Started 2.1. Installing and Charging Scanner Batteries Installing Batteries The rechargeable batteries are packed individually for shipping safety. Please follow up the steps below to install the batteries. Always use the rechargeable batteries provided by the manufactu…

Text truncated - open the document above for the full version.

Generic Office of Engineering Technology <[email protected] c.gov> 2007/01/11 07:39 AM 收件人：[email protected] 副本抄送： 主旨： Response to Inquiry to FCC (Tracking Number 424398) Inquiry: Dear Sir, We are Compliance Certification Services Inc.,a testing lab in Taiwan. We are going to file a submission to TCB which is subject to the item#6 of permit-but-ask procedure and product information are as below: FCC ID: JNF-Z-3051BT The above FCC ID device (2.4GHZ wireless barcode scanner) is a handheld device and it does not have voice function. The normal operation of the device is handheld without head/body-worn position. Therefore, we, Compliance Certification Services Inc., hereby confirm that SAR measurements are exempt from testing. Please comment, thank you. Amanda ---Reply from Customer on 01/09/2007--- Dear Sir, We are Compliance Certification Services Inc.,a testing lab in Taiwan. We are going to file a submission to TCB which is subject to the item#6 of permit-but-ask procedure and product information are as below: FCC ID: JNF-Z-3051BT The above FCC ID device (2.4GHZ wireless barcode scanner) is a handheld device and it does not have voice function. The normal operation of the device is handheld without head/body-worn position. Therefore, we, Compliance Certification Services Inc., hereby confirm that SAR measurements are exempt from testing. Please comment, thank you. Amanda Response: Thank you for your inquiry, which appears to describe a hand-held hand-operated only final product containing part 15 transmitter(s), operating in portable RF exposure conditions relative to user's hand and mobile RF exposure conditions relative to most other parts of persons' bodies. Based on description, and below notes, permit-but-ask and SAR evaluation do not appear to be applicable. FYI here again is related context from Oct06 and Oct05 FCC-TCB conference notes: Concerning SAR in hands, wrists, feet, and ankles: - Compliance issues are not expected, and SAR testing is not requested, for most present handsets and transmitters in consumer notebook and tablet computers -- Higher SAR limit -- Devices typically have SAR compliance info for other normal-use positions - Uniform SAR test and TCB review & approval procedures have not been established for hands, wrists, feet, ankles exposures -- TCBs and/or applicants should contact FCC Lab before submitting new or evolved types of product configurations and technologies which have only hands, wrists, feet, or ankles normal-use position - Wireless-PDA generally hand-held-only PORTABLE device (wrt hand, extremity SAR limit higher) operating at 20 cm from the body (mobile wrt body) -- When submitted by applicant’s choice, wireless-PDA lap-held SAR data is reviewed for compliance -- User instructions may be appropri! ate for wireless-PDA lap-held or in-pocket incidental transmitting conditions, or SAR evaluated by applicant’s choice Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

1 Helen Zhao Subject: FW: FW: ZEBEX INDUSTRIES INC., FCC ID: JNF-Z-3051BT, Assessment NO.: AN07T6457, Notice#1 From: gloria.huang [mailto:[email protected]]On Behalf Of application Sent: Wednesday, January 24, 2007 1:39 AM To: Helen Zhao Subject: Re:FW: ZEBEX INDUSTRIES INC., FCC ID: JNF-Z-3051BT, Assessment NO.: AN07T6457, Notice#1 Dear Helen, Pls see the attached for your ref. FCC DoC logo was removed. Thank you Rgds, Gloria -----Original Message----- From: Helen Zhao Sent: Tuesday, January 23, 2007 6:43 PM To: Helen Zhao Subject: ZEBEX INDUSTRIES INC., FCC ID: JNF-Z-3051BT, Assessment NO.: AN07T6457, Notice#1 Question #1: The proposed FCC ID label format shows a FCC DoC logo. Please explain why this hand-held wireless scanner is subject to FCC DoC. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Z-3051BT Label Smp & Location ...

1 Helen Zhao Subject: FW: FW: ZEBEX INDUSTRIES INC., FCC ID: JNF-Z-3051BT, Assessment NO.: AN07T6457, Notice#1 From: gloria.huang [mailto:[email protected]]On Behalf Of application Sent: Wednesday, January 24, 2007 1:39 AM To: Helen Zhao Subject: Re:FW: ZEBEX INDUSTRIES INC., FCC ID: JNF-Z-3051BT, Assessment NO.: AN07T6457, Notice#1 Dear Helen, Pls see the attached for your ref. FCC DoC logo was removed. Thank you Rgds, Gloria -----Original Message----- From: Helen Zhao Sent: Tuesday, January 23, 2007 6:43 PM To: Helen Zhao Subject: ZEBEX INDUSTRIES INC., FCC ID: JNF-Z-3051BT, Assessment NO.: AN07T6457, Notice#1 Question #1: The proposed FCC ID label format shows a FCC DoC logo. Please explain why this hand-held wireless scanner is subject to FCC DoC. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Z-3051BT Label Smp & Location ...

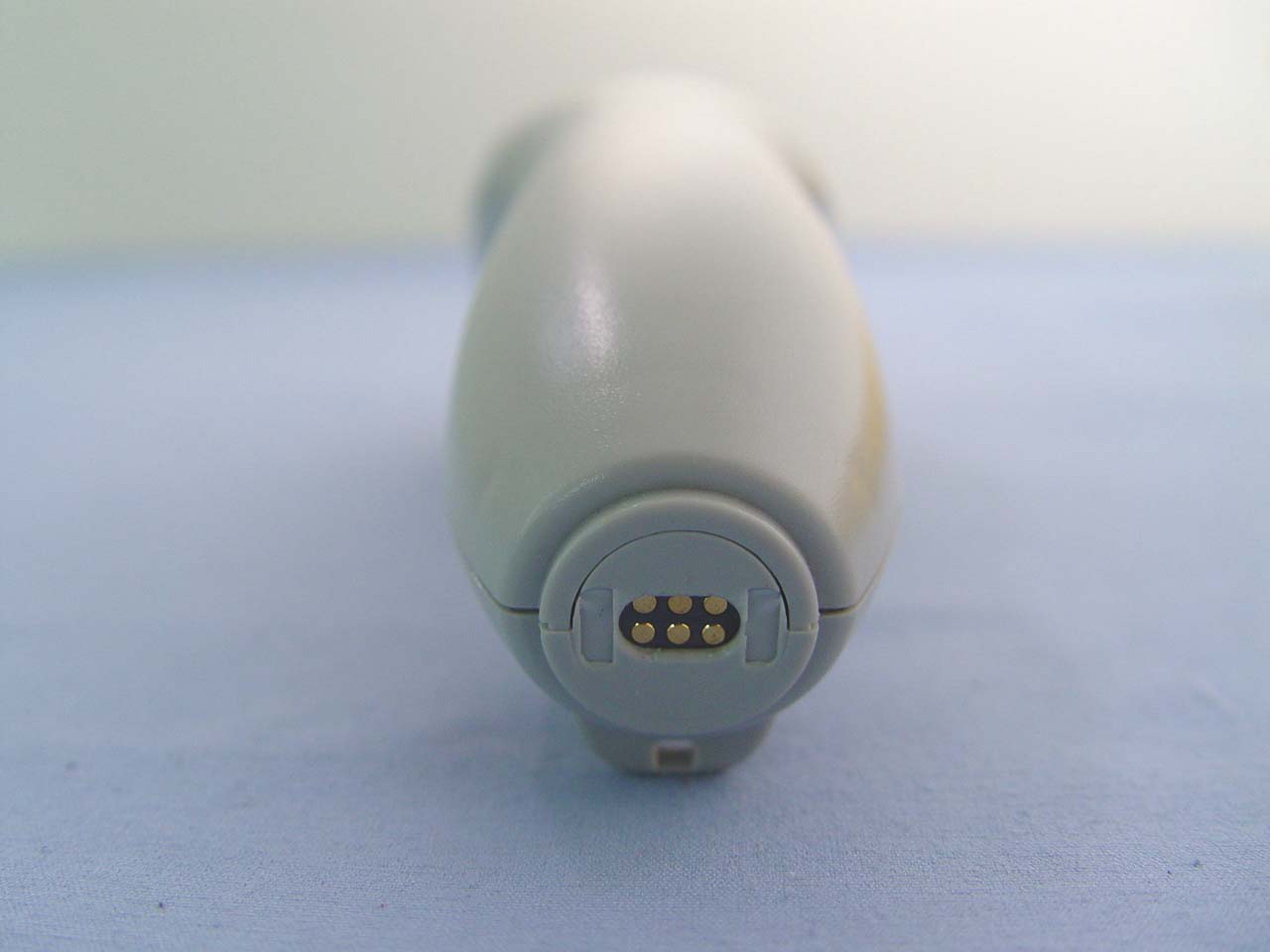

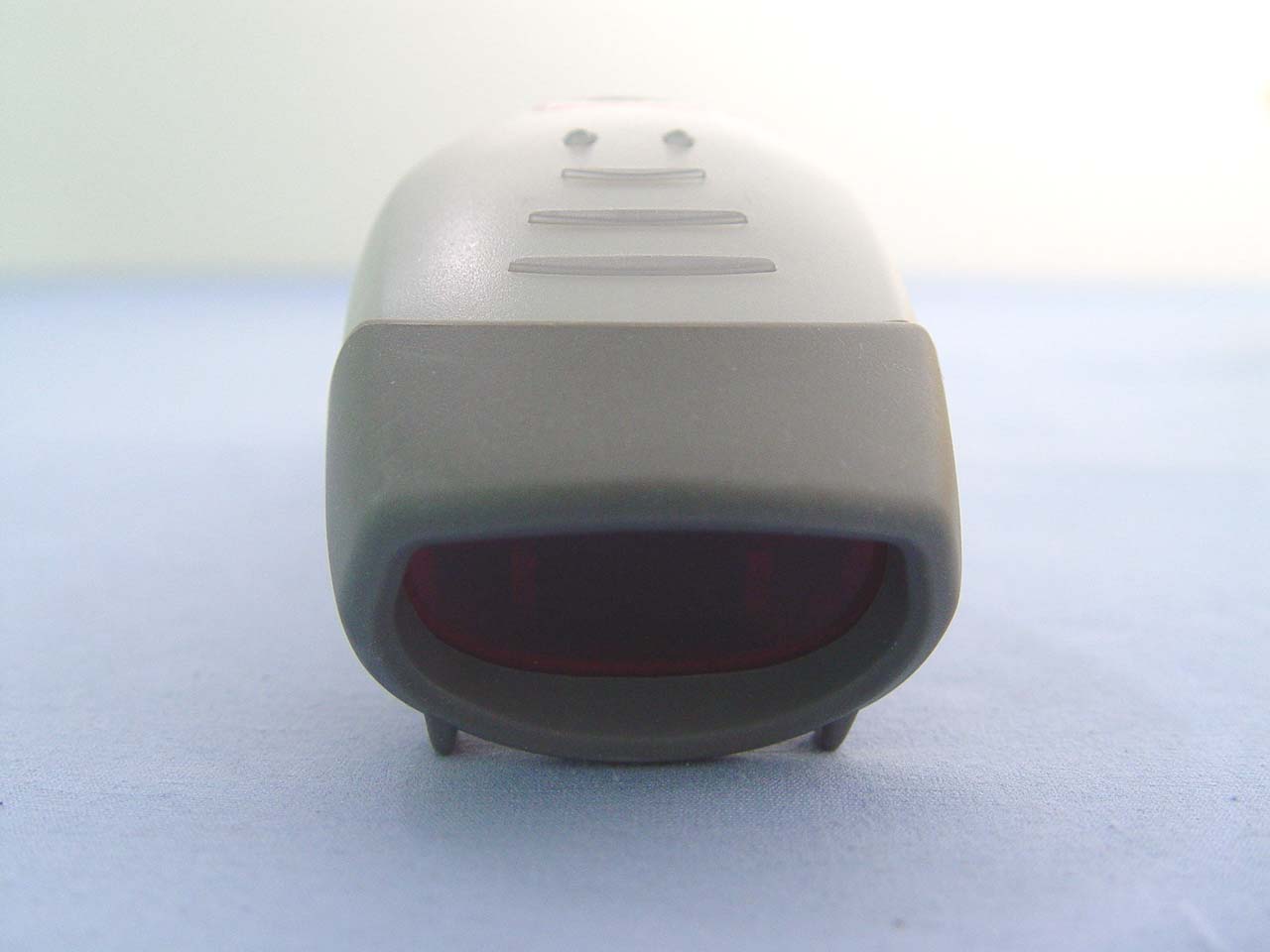

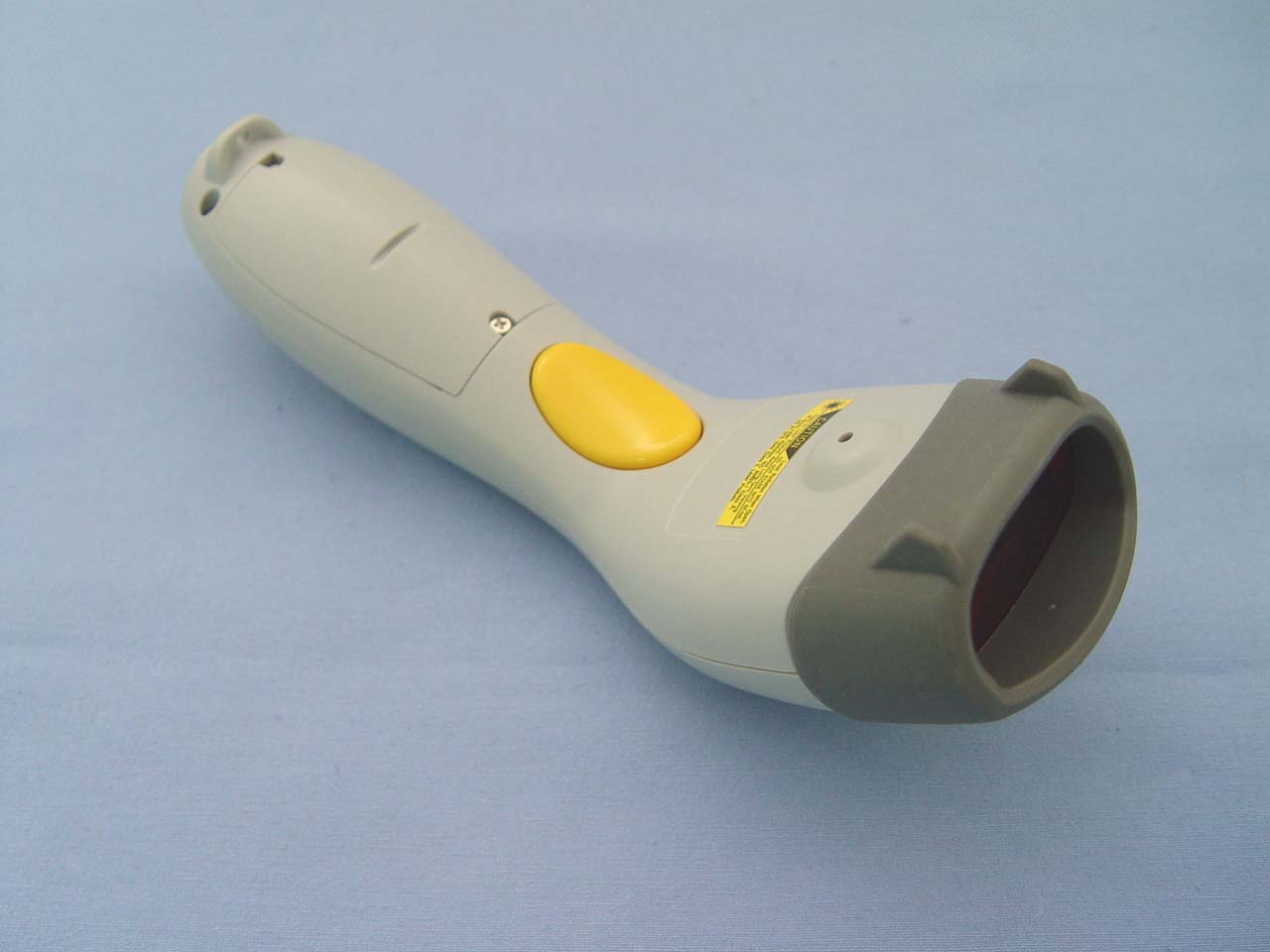

Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 1 Total Page: 12 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 2 Rev. 00

Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 5 Rev.00 Chip Antenna Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 6 Rev.00 Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 7 Rev.00 Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 9 Rev.00 Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 10 Rev.00 Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 11 Rev.00 Compliance Certification Services Inc. Report No.: 61123207 Date of Issue: December 27, 2006 Page 12 Rev.00

Walsin Technology Corporation Page 1 of 7 ASC_ANT7635110A1T_V07 Mar.2006 MULTILAYER CERAMIC ANTENNA RFANT BROADBAND Series – RoHS Compliance 2.4 GHz ISM Band Working Frequency
   *Contents in this sheet are subject to change without prior notice. Walsin Technology Corporation Page 2 of 7 ASC_ANT7635110A1T_V07 Mar.2006 FEATURES
 Surface Mounted Devices with a small dimension of 7.6 x 3.5 x 1.1 mm 3 meet future miniaturization trend.
 380MHz broad bandwidth design makes less influence, less frequency shifting due to outside environmental deviation.
 70% small footprint compared to normal band design (140MHz).
 Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product.
 High Stability in Temperature / Humidity Change
 Free Impedance Matching APPLICATIONS
 Bluetooth
 Wireless LAN
 HormRF
 ISM band 2.4GHz wireless applications DESCRIPTION Walsin Technology Corporation develops a new ceramic embedded antenna specified for 2.4 GHz ISM Band application, as shown in below “CONSTRUCTION”. Both of Wireless LAN IEEE 802.11b and Bluetooth TM typically located on this unlicensed frequency band which range covers from 2.4GHz to 2.4835GHz. To fulfil the friendly usage for antenna, this antenna has been designed to a typical 400MHz bandwidth through Walsin’s advanced LTCC (Low Temperature Co-fired Ceramic) technology and superior product design via 3D EM Simulation Skill. This antenna has a rectangular ceramic body with a tiny dimension of 7.6 x 3.5 x 1.1 mm 3 meet the future SMT automation and miniaturization requirements on modern portable devices. CONSTRUCTION Fig 1. Outline of 2.4GHz Chip Antenna DIMENSIONS Figure Dimension Port definition L 7.60 ² 0.30 mm - W 3.50 ² 0.20 mm - T 1.10 ² 0.10 mm - Fd 0.50 ² 0.20 mm Feed termination G 0.80 ² 0.20 mm Ground termination C 0.50 ² 0.20 mm D 0.50 ² 0.20 mm P 1 0.80 ² 0.20 mm Solder termination P 2 0.80 ² 0.20 mm Solder termination P 3 0.50 ² 0.10 mm Solder termination MARKING: Upon customer requested, max. 5-digit code is allowed. P 3 G L P 2 D C Fd G P 1 WTC W T P 3 G L P 2 D C Fd G P 1 WTC W T Walsin Technology Corporation Page 3 of 7 ASC_ANT7635110A1T_V07 Mar.2006 L L p Wp Wf Wg L g Ws L h L f
          W    L L p Wp Wf Wg L g WsWs L h L f
          W    SOLDER LAND PATTERN DESIGN Figure Symbol Dimension L 8.10 ² 0.10 mm Lp 1.00 ² 0.10 mm Wp 1.20 ² 0.10 mm Lf 1.50 ² 0.10 mm Wf 0.80 ² 0.10 mm Lg 1.50 ² 0.10 mm Wg 1.50 ² 0.10 mm Ws 0.40 ² 0.10 mm Lh 0.50 ² 0.10 mm ELECTRICAL CHARACTERISTICS Item Specification Central frequency 2.450 GHz (Note-1) Bandwidth 380 MHz (Typical value) Gain 0 ~ 2 dBi VSWR 2 max. Polarization Linear Azimuth Bandwith Omni-directional Impedance 50W Rated Power (max.) 5 Watts Maximum Input Power 10 Watts for 5 minutes Operation Temperature -40 ̓ C ~ +85 ̓ C Note-1. Central Frequency should be defined after customers’ application approval. Walsin Technology Corporation Page 4 of 7 ASC_ANT7635110A1T_V07 Mar.2006 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. Walsin’s LTCC chip antenna is an electrically small antenna (size smaller than 1/10l). The specification of RFANT7635110A1x series chip antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Return Loss (S11) E-Plane (dBi) H-Plane (dBi) The typical tuning range of Walsin’s chip antenna is about ±150MHz. The performance of embedded ceramic antenna is sensitive influenced by customer's ground area, PC board size, thickness, material, mechanical design and the material of housing for end product. WTC engineers have significant expertise on embedded antenna designs and applications. We can work closely with you to ensure the requirements are met, and optimise the WTC’s antenna performance when installing on your application.

 50 W !"

 50 W !" Walsin Technology Corporation Page 5 of 7 ASC_ANT7635110A1T_V07 Mar.2006 RELIABILITY TEST Mechanical performance Test item Test condition / Test method Specification Solderability Solder temp. : 235 ² 5∞C Immersion time: 2 ² 1 sec Solder: SN63 95% min. coverage of all metabolised area Resistance to soldering heat Solder: Sn63 Preheating temperature: 150 ² 10 ∞ C Solder Temperature: 260 ² 5 ∞ C Immersion time: 10 ² 1 sec Measurement to be made after keeping at room temp. for 24 ²2 hrs. No mechanical damage. Ceramic surface shall not be exposed in the middle of the termination or on the terminated product edge by leaching. Drop test Height : 75 cm Direction : 3 directions Times : 3 times for each direction. No mechanical damage. Samples shall satisfy electrical specification after test.. Environmental characteristics Test item Test condition / Test method Specification Humidity Resistance Humidity:90% to 95% R.H. Tempertaure:40 ² 2 ∞ C Time: 500²24 hours. Measurement: After placing for 24 hours Minimum. No mechanical damage. Samples shall satisfy electrical specification after test. Temperature cycle 1. 30 ² 3 minutes at -40 ∞ C ² 3 ∞ C, 2. 10~15 minutes at room temperature, 3. 30±3 minutes at +85∞ ² 3∞C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement after placing for 48 ² 2 hrs min. No mechanical damage. Samples shall satisfy electrical specification after test. High temperature Temperature: 85∞C ² 2∞C Test duration: 24 hours Measurement must be taken after subjection to the above conditions, followed by exposure in room environment for 1 to 2 hours. No mechanical damage. Samples shall satisfy electrical specification after test. Low temperature Temperature: -40∞C²3∞C Test duration: 24 hours Measurement must be taken after subjection to the abo…

Text truncated - open the document above for the full version.

Walsin Technology Corporation Page 1 of 7 ASC_ANT7635110A1T_V07 Mar.2006 MULTILAYER CERAMIC ANTENNA RFANT BROADBAND Series – RoHS Compliance 2.4 GHz ISM Band Working Frequency
   *Contents in this sheet are subject to change without prior notice. Walsin Technology Corporation Page 2 of 7 ASC_ANT7635110A1T_V07 Mar.2006 FEATURES
 Surface Mounted Devices with a small dimension of 7.6 x 3.5 x 1.1 mm 3 meet future miniaturization trend.
 380MHz broad bandwidth design makes less influence, less frequency shifting due to outside environmental deviation.
 70% small footprint compared to normal band design (140MHz).
 Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product.
 High Stability in Temperature / Humidity Change
 Free Impedance Matching APPLICATIONS
 Bluetooth
 Wireless LAN
 HormRF
 ISM band 2.4GHz wireless applications DESCRIPTION Walsin Technology Corporation develops a new ceramic embedded antenna specified for 2.4 GHz ISM Band application, as shown in below “CONSTRUCTION”. Both of Wireless LAN IEEE 802.11b and Bluetooth TM typically located on this unlicensed frequency band which range covers from 2.4GHz to 2.4835GHz. To fulfil the friendly usage for antenna, this antenna has been designed to a typical 400MHz bandwidth through Walsin’s advanced LTCC (Low Temperature Co-fired Ceramic) technology and superior product design via 3D EM Simulation Skill. This antenna has a rectangular ceramic body with a tiny dimension of 7.6 x 3.5 x 1.1 mm 3 meet the future SMT automation and miniaturization requirements on modern portable devices. CONSTRUCTION Fig 1. Outline of 2.4GHz Chip Antenna DIMENSIONS Figure Dimension Port definition L 7.60 ² 0.30 mm - W 3.50 ² 0.20 mm - T 1.10 ² 0.10 mm - Fd 0.50 ² 0.20 mm Feed termination G 0.80 ² 0.20 mm Ground termination C 0.50 ² 0.20 mm D 0.50 ² 0.20 mm P 1 0.80 ² 0.20 mm Solder termination P 2 0.80 ² 0.20 mm Solder termination P 3 0.50 ² 0.10 mm Solder termination MARKING: Upon customer requested, max. 5-digit code is allowed. P 3 G L P 2 D C Fd G P 1 WTC W T P 3 G L P 2 D C Fd G P 1 WTC W T Walsin Technology Corporation Page 3 of 7 ASC_ANT7635110A1T_V07 Mar.2006 L L p Wp Wf Wg L g Ws L h L f
          W    L L p Wp Wf Wg L g WsWs L h L f
          W    SOLDER LAND PATTERN DESIGN Figure Symbol Dimension L 8.10 ² 0.10 mm Lp 1.00 ² 0.10 mm Wp 1.20 ² 0.10 mm Lf 1.50 ² 0.10 mm Wf 0.80 ² 0.10 mm Lg 1.50 ² 0.10 mm Wg 1.50 ² 0.10 mm Ws 0.40 ² 0.10 mm Lh 0.50 ² 0.10 mm ELECTRICAL CHARACTERISTICS Item Specification Central frequency 2.450 GHz (Note-1) Bandwidth 380 MHz (Typical value) Gain 0 ~ 2 dBi VSWR 2 max. Polarization Linear Azimuth Bandwith Omni-directional Impedance 50W Rated Power (max.) 5 Watts Maximum Input Power 10 Watts for 5 minutes Operation Temperature -40 ̓ C ~ +85 ̓ C Note-1. Central Frequency should be defined after customers’ application approval. Walsin Technology Corporation Page 4 of 7 ASC_ANT7635110A1T_V07 Mar.2006 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. Walsin’s LTCC chip antenna is an electrically small antenna (size smaller than 1/10l). The specification of RFANT7635110A1x series chip antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Return Loss (S11) E-Plane (dBi) H-Plane (dBi) The typical tuning range of Walsin’s chip antenna is about ±150MHz. The performance of embedded ceramic antenna is sensitive influenced by customer's ground area, PC board size, thickness, material, mechanical design and the material of housing for end product. WTC engineers have significant expertise on embedded antenna designs and applications. We can work closely with you to ensure the requirements are met, and optimise the WTC’s antenna performance when installing on your application.

 50 W !"

 50 W !" Walsin Technology Corporation Page 5 of 7 ASC_ANT7635110A1T_V07 Mar.2006 RELIABILITY TEST Mechanical performance Test item Test condition / Test method Specification Solderability Solder temp. : 235 ² 5∞C Immersion time: 2 ² 1 sec Solder: SN63 95% min. coverage of all metabolised area Resistance to soldering heat Solder: Sn63 Preheating temperature: 150 ² 10 ∞ C Solder Temperature: 260 ² 5 ∞ C Immersion time: 10 ² 1 sec Measurement to be made after keeping at room temp. for 24 ²2 hrs. No mechanical damage. Ceramic surface shall not be exposed in the middle of the termination or on the terminated product edge by leaching. Drop test Height : 75 cm Direction : 3 directions Times : 3 times for each direction. No mechanical damage. Samples shall satisfy electrical specification after test.. Environmental characteristics Test item Test condition / Test method Specification Humidity Resistance Humidity:90% to 95% R.H. Tempertaure:40 ² 2 ∞ C Time: 500²24 hours. Measurement: After placing for 24 hours Minimum. No mechanical damage. Samples shall satisfy electrical specification after test. Temperature cycle 1. 30 ² 3 minutes at -40 ∞ C ² 3 ∞ C, 2. 10~15 minutes at room temperature, 3. 30±3 minutes at +85∞ ² 3∞C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement after placing for 48 ² 2 hrs min. No mechanical damage. Samples shall satisfy electrical specification after test. High temperature Temperature: 85∞C ² 2∞C Test duration: 24 hours Measurement must be taken after subjection to the above conditions, followed by exposure in room environment for 1 to 2 hours. No mechanical damage. Samples shall satisfy electrical specification after test. Low temperature Temperature: -40∞C²3∞C Test duration: 24 hours Measurement must be taken after subjection to the abo…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 61123207-RP1 FCC ID: JNF-Z-3051BT Date of Issue: December 27, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 45 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 2.4GHZ wireless barcode scanner Model: Z-3051BT Trade Name: ZEBEX Issued to ZEBEX INDUSTRIES INC. B1-1, No. 207, Sec 3, Beisin Road, Sindian City, Taipei 231, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 61123207-RP1 FCC ID: JNF-Z-3051BT Date of Issue: December 27, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.....................................................................................................3 2. EUT DESCRIPTION...........................................................................................................................4 3. TEST METHODOLOGY....................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED......................................................................................8 5. FACILITIES AND ACCREDITATIONS ...........................................................................................9 5.1 FACILITIES ......................................................................................................................................9 5.2 EQUIPMENT.....................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST........................................................................................11 6.1 SETUP CONFIGURATION OF EUT....................................................................................................11 6.2 SUPPORT EQUIPMENT ............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 PEAK POWER.................................................................................................................................12 7.2 BAND EDGES MEASUREMENT .............................................................................................13 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................18 7.4 FREQUENCY SEPARATION....................................................................................................21 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................23 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................25 7.7 SPURIO US EMISSIONS .............................................................................................................32 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................42 APPENDIX I RADIO FREQUENCY EXPOSURE ................................................................................43 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...............................................................................44 Compliance Certification Services Inc. Report No.: 61123207-RP1 FCC ID: JNF-Z-3051BT Date of Issue: December 27, 2006 Page 4 Rev. 00 2.…
