JY8DW09WI-READER

FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.Reorient the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. CAUSION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Confidentiality request letter To Whom it may concern, This application ,FCC ID : JY8DW09, will include a request for long term and short term confidentiality for any portion(s) of the data contained in this application pursuant to FCC DA 04-1705 (date 06/15/2004). pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. SRT was authorized to have this letter and Carry Technology Co., Ltd. will keep in long term and short term confidentiality for any portion(s) of the data contained in this application. short term confidentiality for 180 days: • PHOTOS OF EUT-External.pdf • PHOTOS OF EUT-Internal.pdf • PHOTOS OF TESTING.pdf • User manual.pdf Long term exhibits can be: • BLOCK DIAGRAM.pdf • SCHEMATIC DIAGRAM.pdf If you have any questions , please feel free to contact Spectrum Research and Testing Laboratory, Inc. (886)34987684 or e-mail:[email protected]. Thank You! Sincerely, ________________ Johnson Ho SRT LAB./President Date : 05/08/2012 PS: Attached is the Carry Technology Co., Ltd. 律 頻 科 技 股 份 有 限 公 司 SPECTRUM RESEARCH & TESTING LAB., INC. 總公司：中壢市山東里山下八鄰101-10號 TEL: (03)498-7684 FAX: (03)498-6528 No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. New:桃園縣中壢市山東里8鄰山東路780巷167號 No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County

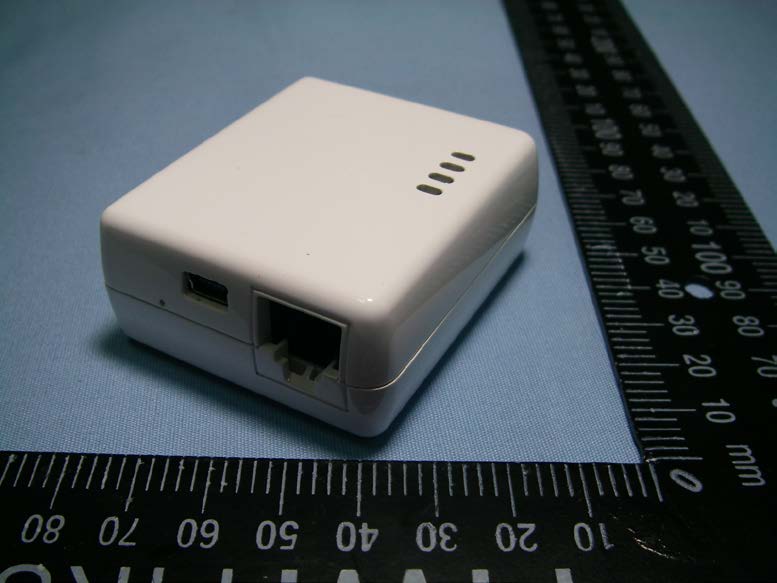

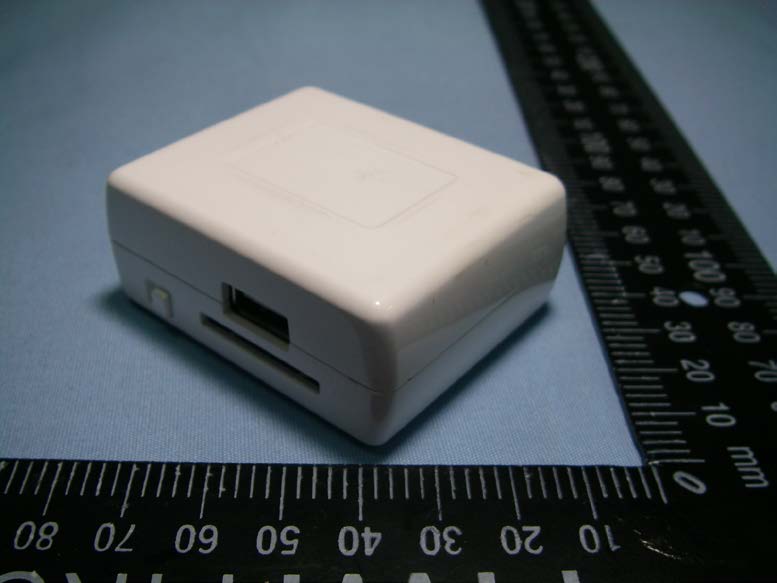

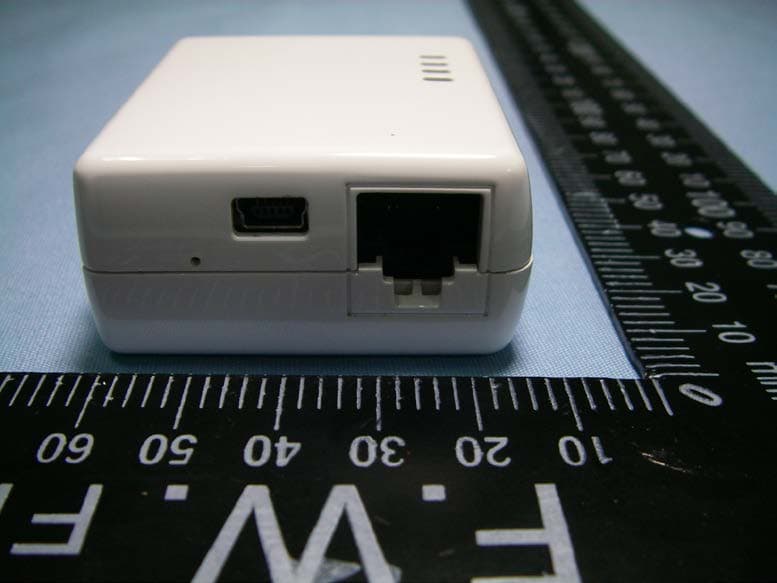

Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12040901 Photo Page: 1 of 2 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12021309 Photo Page: 2 of 2 PHOTOS OF EUT

Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12040901 Photo Page: 1 of 5 TOP INSIDE Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12040901 Photo Page: 2 of 5 PCB Main Board PCB Main Board Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12040901 Photo Page: 3 of 5 PCB Main Board PCB Main Board Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12040901 Photo Page: 4 of 5 Cable Spectrum Research & Testing Lab., Inc. No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Reference No.: A12040901 Photo Page: 5 of 5 Case Case

TECHNOLOGICAL SPEC. 1. Product Name： Wi-Reader Model： DW09 Brand： Apotop 2. Power Source： ■ DC 5.0 V, 0.45 A; □ AC V, A 3. Frequency Band： 2.400GHz ~ 2.4835GHz Carrier Frequency： 2.412 ~ 2.462 GHz 4. Number of Channel： b/g/n(20M):11 ; n(40M):7 5. Channel Spacing： 5 MHz 6. RF Output Power (ERP or EIRP) ： 11b : 0.0160 W ; 11g : 0.0167 W ; 11n(40M):0.0189 W 7. I.F.： MHz; L.O.： MHz 8. Modulation Type： b: DSSS ; g: OFDM ; n: SISO-OFDM 9. Duty Cycle： % 10. Mode of operation (duplex, simplex, half duplex) ： Half duplex 11. Bit Rate of Transmission： b: 1, 2, 5.5,11Mbps ; n(40MHz): up to 150Mbps g: 6, 9, 12, 18, 24, 36, 48, 54Mbps ; n(20MHz): up to 72Mbps 12. Antenna Type： PIFA 13. Antenna gain： -3.22 dBi 14. Operating Temperature Range： 0 ~ 40 °C 15. Channel bandwidth ： 20/40 MHZ

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12040901 Report No.:FCCA12040901 FCC ID: JY8DW09 Page:1 of 8 Date: May. 18, 2012 FMNG-059.10 REPORT Product Name: Wi-Reader Model No.: DW09 Applicant: Apotop 4F, No.119, Jiankang Road, Jhonghe Dist., New Taipei City 23858, Taiwan. Date of Receipt: Apr. 09, 2012 Finished date of Test: May. 14, 2012 Applicable Standards: FCC 47CFR ANSI/IEEE C95.1-1992 FCC OET Bulletin 65 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Te s ted By : , Date: Approved By : (Jeff Lo) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12040901 Report No.:FCCA12040901 FCC ID: JY8DW09 Page:2 of 8 Date: May. 18, 2012 FMNG-059.10 REPORT Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT ................................................. 3 1.1 DOCUMENT POLICY ......................................................................................... 3 1.2 TEST STATEMENT ............................................................................................ 3 1.3 EUT MODIFICATION .......................................................................................... 3 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 4 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 4 3.1 RF POWER EXPOSURE EVALUATION TEST .................................................. 5 3.1.1 LIMIT ............................................................................................................... 5 3.1.2 TEST PROCEDURE ........................................................................................ 6 3.1.3 EUT OPERATING CONDITION ....................................................................... 7 3.1.4 CONNECT POWER AT THE ANTENNA CONNECTOR RESULT ................... 8 Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12040901 Report No.:FCCA12040901 FCC ID: JY8DW09 Page:3 of 8 Date: May. 18, 2012 FMNG-059.10 REPORT 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. DC power source from external power adapter which has Input: AC 120 V, 60Hz , Output: DC 5.0V , 0.45A 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12040901 Report No.:FCCA12040901 FCC ID: JY8DW09 Page:4 of 8 Date: May. 18, 2012 FMNG-059.10 REPORT 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wi-Reader MODEL NO. DW09 POWER SUPPLY DC power source from external USB power adapter which has Input: AC 120V ,60Hz , Output: DC 5.0 V , 0.45 A CABLE N/A FREQUENCY BAND 2400 MHz ~ 2483.5 MHz CARRIER FREQUENCY 2412 MHz ~ 2462 MHz NUMBER OF CHANNEL 11 (802.11b,g), 7 (802.11n) CHANNEL SPACING 5 MHz RATED RF OUTPUT POWER 2.4GHz -11b:12.04 dBm (0.0160 W) -11g:12.23 dBm (0.0167 W) -11n:12.76 dBm (0.0189 W) MODULATION TYPE IEEE802.11b DSSS(BPSK/QPSK/CCK) IEEE802.11g OFDM(BPSK/16QAM/64QAM) IEEE802.11n SISO-OFDM(BPSK/16QAM/64QAM) MODE OF OPERATION Half duplex BIT RATE OF TRANSMISSION 11b: 1, 2, 5.5, 11Mbps; 11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 11n: MCS0~MCS7 (Max. 150Mbps) ANTENNA TYPE PIFA ANTENNA GAIN -3.22 dBi CHANNEL BANDWIDTH 20 MHz(802.11b,g) 40MHz(802.11n) NOTE : 1. For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer. Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12040901 Report No.:FCCA12040901 FCC ID: JY8DW09 Page:5 of 8 Date: May. 18, 2012 FMNG-059.10 REPORT 3.1 RF POWER EXPOSURE EVALUATION TEST 3.1.1 LIMIT According to the requirement of IEEE C95.1 and FCC OET Bulletin 65. Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength(E) (V/m) Magnetic Field Strength(H) (A/m) Power density (S) (mW/cm²) Averaging Time |E|², |H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f²)* 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E) (V/m) Magnetic Field Strength(H) (A/m) Power density (S) (mW/cm²) Averaging Time |E|², |H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f²)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 f = frequency in MHz *Plane-wave equivalent power density NOTE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2: General population/uncontrolled exposures ap…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12040901 Report No.:FCCA12040901 FCC ID: JY8DW09 Page:1 of 85 Date: Ma y. 18, 2012 FMNG-059.10 REPORT Product Name: Wi-Reader Model No.: DW09 Applicant: Apotop 4F, No.119, Jiankang Road, Jhonghe Dist., New Taipei City 23858, Taiwan. Date of Receipt: Apr. 09, 2012 Finished date of Test: May. 14, 2012 Applicable Standards: 47 CFR Part 15, Subpart C ANSI C63.4: 2003 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Te s ted By : , Date: Approved By : (Jeff Lo) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12040901 Report No.:FCCA12040901 FCC ID: JY8DW09 Page:2 of 85 Date: May. 18, 2012 FMNG-059.10 REPORT Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT ................................................. 4 1.1 DOCUMENT POLICY ......................................................................................... 4 1.2 TEST STATEMENT ............................................................................................ 4 1.3 EUT MODIFICATION .......................................................................................... 4 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 5 2.2 DESCRIPTION OF EUT INTERNAL DEVICE .................................................... 5 2.3 DESCRIPTION OF TEST MODE........................................................................ 6 2.4 DESCRIPTION OF SUPPORT UNIT .................................................................. 7 2.5 EUT OPERATING CONDITION .......................................................................... 8 3. DESCRIPTION OF APPLIED STANDARDS ....................................................... 8 3.1 SUMMARY OF TEST RESULT S ..................................................................... 9 4 . TECHNICAL CHARACTERISTICS TEST ........................................................ 10 4.1 CONDUCTED EMISSION TEST ...................................................................... 10 4.1.1 LIMIT ............................................................................................................. 10 4.1.2 TEST EQUIPMENT ....................................................................................... 10 4.1.3 TEST SETUP ................................................................................................. 11 4.1.4 TEST PROCEDURE ...................................................................................... 11 4.1.5 TEST RESULT ............................................................................................... 12 4.2 RADIATED EMISSION TEST ......................................................................... 21 4.2.1 LIMIT ............................................................................................................. 21 4.2.2 TEST EQUIPMENT ....................................................................................... 22 4.2.3 TEST SET-UP ................................................................................................ 23 4.2.4 TEST PROCEDURE ...................................................................................... 25 4.2.5 TEST RESULT ............................................................................................... 26 4.3 BANDWIDTH TEST ........................................................................................ 44 4.3.1 LIMIT ............................................................................................................. 44 4.3.2 TEST EQUIPMENT ....................................................................................... 44 4.3.3 TEST SET-UP ................................................................................................ 44 4.3.4 TEST PROCEDURE ...................................................................................... 44 4.3.5 EUT OPERATING CONDITION ..................................................................... 44 4.3.6 TEST RESULT ............................................................................................... 45 Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12040901 Report No.:FCCA12040901 FCC ID: JY8DW09 Page:3 of 85 Date: May. 18, 2012 FMNG-059.10 REPORT 4.4 PEAK POWER TEST ....................................................................................... 51 4.4.1 LIMIT ............................................................................................................. 51 4.4.2 TEST EQUIPMENT ....................................................................................... 51 4.4.3 TEST SET-UP ................................................................................................ 51 4.4.4 TEST PROCEDURE ...................................................................................... 51 4.4.5 EUT OPERATING CONDITION ..................................................................... 51 4.4.6 TEST RESULT ............................................................................................... 52 4.5 BAND EDGE TEST .......................................................................................... 58 4.5.1 LIMIT .........................................................................................…

Text truncated - open the document above for the full version.
