KBCFEX21RIM902Rugged Handheld PC with RIM 902 Mobitex Radio Mode

FCC RF EXPOSURE INFORMATION Please read this information before using the radio modem In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. CAUTION To comply with FCC RF exposure requirements this device must be operated with a minimum separation distance of 4cm (1.6 inches) between the user/nearby persons and the antenna, with the antenna in the vertical upright position, which is the intended position of the antenna when operating the RIM 902 radio modem installed in the unit. For more information about RF exposure, please visit the FCC website at www.fcc.nov

FCC RF EXPOSURE INFORMATION Please read this information before using the radio modem In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. CAUTION To comply with FCC RF exposure requirements this device must be operated with a minimum separation distance of 4cm (1.6 inches) between the user/nearby persons and the antenna, with the antenna in the vertical upright position, which is the intended position of the antenna when operating the RIM 902 radio modem installed in the unit. For more information about RF exposure, please visit the FCC website at www.fcc.nov

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 \L.~~~l~~~:~.)lll’\.(‘oII1 September 29, 20002 Federal Communications Commission Equipment Au,thorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: ITRONIX CORPORATION FCC ID: KBCFEX21RIM902 Gentlemen: The ltronix product FeX21 with RIM 902 Mobitex radio investigated for SAR compliance is not initiated at this time to be marketed with vehicle installation provisions. Final design and testing is in process allowing the FeX21 with cradle option to be installed in a vehicle utlizing alternate antennas. After final operational investigation a sample unit will be investigated for MPE compliance with report and applications submitted to the FCC for approval. Sincerely, SIGNATURE Fred Phillips Certification Engineer ITRONIX COFIPORATION

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. V1Y 9L3 Canada Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.globuswireless.com/celltech/celltech.htm October 19, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: ITRONIX CORPORATION FCC ID: KBCFEX21RIM902 Part 90 Certification Gentlemen: On behalf of Itronix Corporation we hereby submit an application for Part 90 Certification of the Itronix Rugged Handheld PC with RIM 902 Mobitex radio modem as follows: FCC ID: KBCFEX21RIM902 Model(s): FeX21 Equipment Class: Licensed Non-Broadcast Station Transmitter (TNB) Equipment Type: Rugged Handheld PC with Mobitex Radio Modem Tx Freq. Range: 896 - 901 MHz Rx Freq. Range: 935 - 941 MHz Max. RF Output Power: 2 Watts Emission Designator: 12K8F1D Attached is the Letter of Authorization, Confidentiality Request, measurement report data and test plots, RF exposure measurement report data & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Itronix Corporation

RESEARCH IN MOTION Research In Motion Limited 295 Phillip Street Waterloo, Ontario Canada N2L 3W8 +1 519 888 7465, fax +1 519 888 6906 E-mail: [email protected] Our Ref: 01947-CERT-FCC-COVER-021_mod1October 26, 2000 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 Reference :FCC ID : L6AR902M-2-O Subject :Letter requesting confidentiality of R902M-2-O radio modem device FCC Certification application. Pursuant to CFR 47 Chapter 1 Section 0.459, Research In Motion Limited (RIM) requests that the following identified detailed technical information regarding the R902M-2-O device be held confidential by the Federal Communication Commission (FCC) and as such be withheld from public inspection. RIM does not disclose proprietary confidential information about our products to any third parties and as such we request that the FCC does the same and forward the confidentiality acceptance letter to RIM. Our FCC submissions are considered proprietary confidential information. Pursuant to CFR 47 Chapter 1 Sections 0.457(d) and 0.457(d)(2)(i) the exhibits contain details of trade secrets and technical data that is customarily guarded from competitors and not released to the public by Research In Motion Limited. The specific parts of the Exhibits indicated in this letter are considered confidential by RIM and as such should be prevented from disclosure to public and competitors. RIM has taken necessary measures to have limited access to confidential documents only to RIM internal employees on a need-to-know basis, and have signed confidentiality agreements with employees. If the disclosure of such information is made public, it will cause serious competitive harm to RIM. Previously, none of the requested confidential Exhibits have been disclosed to third parties by RIM. The following Exhibits with specific sections described, submitted with the Form 731 Attachments should be held confidential: Exhibit Parts List/Tune Up InfoSection 010-9-1 and 010-9-2, CFR 47 Section 2.983(d)(9) - Description of operational, test, and device tune-up technical procedure-“DOC-01606-007”, and operators’ manual-“DOC- 01606-008” Section 010-10, CFR 47 Section 2.983(d)(10) - Description of frequency stabilizing circuitry Exhibit Parts List/Tune Up InfoSection 010-11-1, CFR 47 Section 2.983(d)(11) - Description of circuits for suppression of spurious radiation Section 010-11-2, CFR 47 Section 2.983(d)(11) - Description of circuits for modulation limiting Section 010-11-3, CFR 47 Section 2.983(d)(11) - Description of circuits for power limiting Exhibit Operational DescriptionSection 010-12 and 010-12-1, CFR 47 Section 2.983(d)(12) - Description of digital modulation format and necessary bandwidth Exhibit Parts List/Tune Up InfoSection 010-12-2 and 010-12-3, CFR 47 Section 2.983(d)(12) – Modulation generation methods and circuits. Detailed diagrams of modulation format and generation methods and circuits Exhibit Operational DescriptionSection 011-1 and 011-2, CFR 47 Sections 2.975(a)(3), 2.983(d)(6) and 2.1033(b)(4) - Detailed system and functional description Exhibit Parts List/Tune Up InfoSection 011-3, CFR 47 Sections 2.975(a)(3), 2.983(d)(6) and 2.1033(b)(4) - Detailed technical RF and electrical circuit description Exhibit Block Diagram01947-CERT-FCC-BLOCK-“R902M-2-O RADIO BLOCK”, CFR 47 Section 2.983(d)(6) – Detailed technical radio modem block diagram Exhibit Schematics“Tadpole OEM” SCH-01947-001, CFR 47 Section 2.983(d)(7) - Complete technical schematic circuit diagrams Yours truly, MasudS.Attayi,P.Eng. Senior Certification Engineer Research In Motion Limited ( 519 ) 888 – 7465 x 2442 [email protected] RESEARCH IN MOTION Research In Motion Limited 295 Phillip Street Waterloo, Ontario Canada N2L 3W8 +1 519 888 7465, fax +1 519 888 6906 E-mail: [email protected] Our Ref: 01947-CERT-FCC-Cover-022_mod1October 26, 2000 Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Rd. Columbia, Md. 21046 FCC ID:L6AR902M-2-O Subject:FCC Part 90 Certification Application for Research In Motion Limited, Model R902M-2-O This is to inform that Research In Motion is submitting the technical documentation of our radio modem Model R902M-2-O (existing FCC ID: L6AR902M-2-O ) in support of the application for Certification of our integrator, Itronix, FeX21 Handheld PC with FCC ID KBCFEX21RIM902. The Model R902M-2-O is a radio modem intended for integration into other equipment to allow wireless data communication. All required documents in compliance with Parts 2 and 90 of the FCC Rules have been provided in the attached Exhibits. Research In Motion would like to request confidentiality as indicated in the Form 731, Item 8 and as requested in the letter Ref: CERT-01677-021_mod1, under Exhibit “Covering Letters”. Please do hesitate to call at (519) 888-7465 x2442 or email at [email protected] should you require additional information or have any questions. Yours truly, MasudS.Attayi,P.Eng. Senior Certification Engineer Research In Motion Limited ( 519 ) 888 – 7465 x 2442 [email protected]

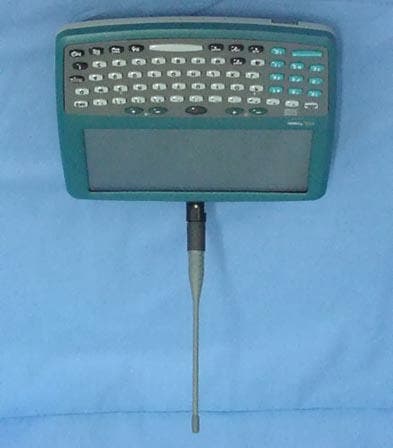

CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 Rugged Handheld PC with RIM 902 Mobitex Radio Modem EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 Rugged Handheld PC with RIM 902 Mobitex Radio Modem EXTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. ITRONIX FCC ID: KBCFEX21RIM902 Rugged Handheld PC with Mobitex Radio Modem FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 Rugged Handheld PC with RIM 902 Mobitex Radio Modem INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 Rugged Handheld PC with RIM 902 Mobitex Radio Modem INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 Rugged Handheld PC with RIM 902 Mobitex Radio Modem INTERNAL EUT PHOTOGRAPHS

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. CAUTION To comply with FCC RF exposure requirements this device must be operated with a minimum separation distance of 4cm (1.6 inches) between the user/nearby persons and the antenna, with the antenna in the vertical upright position, which is the intended position of the antenna when operating the RIM 902 radio modem installed in the unit. For more information about RF exposure, please visit the FCC website at www.fcc.gov Please read this information before using the radio modem

CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna, Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. (See test report). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant Name: ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99204 Attn: Fred Phillips, Certification Engineer Phone: 509-742-1506 Fax: 509-626-4204 FCC ID: KBCFEX21RIM902 Model(s): FeX21 Equipment Type: Rugged Handheld PC w/ RIM 902 Mobitex Radio Modem Tx Frequency Range: 896-902 MHz Rx Frequency Range: 935-941 MHz Max. RF Output Power: 2.0 Watts FCC Rule Part(s): 2.1093; ET Docket 96.326 CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna, Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 MEASUREMENT SUMMARY.................................................. 3 5.0 SAR LIMITS........................................................................ 3 6.0 DETAILS OF SAR EVALUATION........................................... 4 7.0 EVALUATION PROCEDURES................................................. 5 8.0 SYSTEM VALIDATION.......................................................... 5 9.0 SIMULATED EQUIVALENT TISSUES...................................... 6 10.0 TISSUE PARAMETERS......................................................... 6 11.0 SYSTEM SPECIFICATIONS.................................................... 7 12.0 TEST EQUIPMENT LIST........................................................ 8 13.0 MEASUREMENT UNCERTAINTIES........................................ 9 14.0 REFERENCES...................................................................... 10 APPENDIX A - SAR MEASUREMENT DATA........................................ 11 APPENDIX B - DIPOLE VALIDATION................................................ 12 APPENDIX C - PROBE CALIBRATION............................................... 13 APPENDIX D - TEST SETUP PHOTOGRAPHS..................................... 14 CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna, Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 1 Rugged Handheld PC with RIM 902 Mobitex Radio Modem 1.0 INTRODUCTION This measurement report is designed to show compliance of the Itronix Model: FeX21 Rugged Handheld PC with RIM 902M-2-0 Mobitex Radio Modem FCC ID: KBCFEX21RIM902 with FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1 - 1992 (1), FCC OET Bulletin 65– 1997 were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) Figure 1. Front of EUT Figure 2. Rear of EUT Figure 3. Antenna Figure 4. Radio Modem EUT Type Rugged Handheld PC with RIM 902 Mobitex Radio Modem Equipment Class Licensed Non-Broadcast Station Transmitter (TNB) Radio Type RIM 902M-2-O (Mobitex Network) Model No.(s) FeX21 FCC ID KBCFEX21RIM902 S/N No. Pre-production Tx Frequency Range (MHz) 896-902 Max. RF Output Power 2.0 Watts Rx Frequency Range (MHz) 935-941 Signal Modulation(s) GMSK Antenna Type Dipole Antenna Length 160 mm CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna, Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 2 Rugged Handheld PC with RIM 902 Mobitex Radio Modem 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the generic twin phantom containing brain or muscle equivalent material (see Figure 6). The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell con…

Text truncated - open the document above for the full version.

CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 ____________________________________________________________________________________________________________________ © 2000 Celltech Research Inc. CERTIFICATE OF COMPLIANCE FCC PART 90 CERTIFICATION This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant Name: ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99024 Attn: Fred Phillips, Certification Engineer Phone: 509-742-1506 Fax: 509-626-4204 FCC Classification: Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): §90, §2 FCC ID: KBCFEX21RIM902 Model(s): FeX21 Equipment Type: Rugged Handheld PC w/ RIM 902 Mobitex Radio Modem Tx Frequency Range: 896 - 902 MHz Rx Frequency Range: 935 - 941 MHz Max. RF Output Power: 2.0 Watts Frequency Tolerance: 1.5 PPM Emission Designator: 12K8F1D CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. TABLE OF CONTENTS 1.1 GENERAL INFORMATION 1 2.1 MEASUREMENT PROCEDURES 2 Occupied Bandwidth (2.1049) 2 Spurious/Harmonic Emissions at Antenna Terminal (2.1051) 3 Radiated Spurious & Harmonic Emissions (2.1053) 3 Frequency Stability/Temperature Variation (2.1055) 3 3.1 TEST DATA 4 Effective Radiated Power Output 4 Field Strength of Spurious Radiation 5-6 Frequency Stability 7-8 4.1 LIST OF TEST EQUIPMENT 9 5.1 CONCLUSION 10 ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL EUT PHOTOGRAPHS ATTACHMENT H: INTERNAL EUT PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS / DESCRIPTION ATTACHMENT K: PARTS LIST / TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL / RF EXPOSURE WARNING ATTACHMENT N: SAR MEASUREMENT REPORT CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 1 Rugged Handheld PC with RIM 902 Mobitex Radio Modem APPLICANT: ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99024 Attn: Fred Phillips, Certification Engineer Phone: 509-742-1506 Fax: 509-626-4204 MEASUREMENT REPORT - FCC PART 90 1.1 SCOPE Measurement and determination of electromagnetic emissions (EME) from radio frequency devices for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033(a) General Information FCC ID KBCFEX21RIM902 Model(s) FeX21 EUT Type Rugged Handheld PC with RIM 902 Mobitex Radio Modem Classification Licensed Non-Broadcast Station Transmitter (TNB) Rule Part(s) §90, §2 Max. RF Output Power 2.0 Watts Tx Freq. Range 896-902 MHz Rx Freq. Range 935-941 MHz Emission Designator 12K8F1D Signal Modulation GMSK Modes Tested Unmodulated Carrier, Modulated Carrier CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 2 Rugged Handheld PC with RIM 902 Mobitex Radio Modem 2.1 MEASUREMENT PROCEDURES 2.2 OCCUPIED BANDWIDTH - §2.1049(c) The antenna output terminal of the EUT was connected to the input of a 50Ω spectrum analyzer through a matched 30dB attenuator. The radio transmitter was operating at maximum output power with and without internal data modulation. Test Results A. UNMODULATED CARRIER – High power 30.0dBm conducted power with a 30dB matched attenuator and coaxial cable with a total loss of 1.0dB. B. INTERNAL MODULATION Please see attached test plots. 100% of the in-band modulation is below the specified mask per 90.210(j). Emission Mask - 896-901MHz (Mobitex) FREQUENCY (MHz) FORMULA LIMIT (dBc) -26500 50+10 log (P) - 53 -0.0115 157 log (f d / 5.3) - 53 -0.0095 157 log (f d / 5.3) or 103 log (f d / 3.9) - 39.8 -0.0062 103 log (f d / 3.9) or 53 log (f d / 2.5) - 21.1 -0.0025 53 log (f d / 2.5) 0.0 0.0025 53 log ((f d / 2.5) 0.0 0.0062 103 log (f d / 3.9) or 53 log (f d / 2.5) - 21.1 CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 3 Rugged Handheld PC with RIM 902 Mobitex Radio Modem 2.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL - §2.1051 The level of the carrier and the various conducted spu…

Text truncated - open the document above for the full version.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 •• Fax. 250-860-3110 •• e-mail: [email protected] www.globuswireless.com/celltech/celltech.htm November 9, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Steve Dayhoff SUBJECT: ITRONIX CORPORATION FCC ID: KBCFEX21RIM902 731 Confirmation No.: EA99094 Correspondence Reference No.: 17033 Dear Steve, On behalf of Itronix Corporation we hereby submit the following amendment in response to your e-mail dated November 9 requesting additional information for the subject application. 1. After rechecking our ERP data sheet it was found that the numbers submitted for the upper frequency (901MHz) were entered incorrectly. We have revised the ERP data sheet with the appropriate numbers as attached. Please note that the SAR measurements were performed prior to the ERP test and the conducted power was maintained at 33dBm for both upper and lower frequencies. Since this is a clerical error and not a measurement error the SAR results were not affected. 2. For future filings we will ensure that the file sizes do not exceed 2MB. If you have any further questions or comments, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Itronix Corporation CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 4 Rugged Handheld PC with RIM 902 Mobitex Radio Modem 3.1 TEST DATA 3.2 EFFECTIVE RADIATED POWER OUTPUT - §2.1046 Freq. Tuned EUT Conducted Power Max. Field Strength of EUT Polarization Dipole Gain Dipole Forward Conducted Power ERP of EUT Dipole Gain + Dipole Forward Conducted Power (MHz) (dBm) (dBm) (H/V) (dBd) (dBm) dBm Watts 896 33.0 - 6.10 V - 0.84 33.88 33.04 2.0 901 33.0 - 6.20 V - 0.84 33.27 32.43 1.75 Notes: ERP Measurements by Substitution Method: The EUT was placed on a turntable 3-meters from the receive antenna. The field of maximum intensity was found by rotating the EUT approximately 360 degrees and changing the height of the receive antenna from 1 to 4 meters. The field strength was recorded from a calibrated spectrum analyzer for each channel being tested. A half-wave dipole was substituted in place of the EUT. The dipole was fed through a directional coupler and the power at the coupler port was monitored. A signal generator and power amplifier controlled the dipole, and the input level of the dipole was adjusted to the same field strength level as the EUT. The feed point for the dipole was then connected to a calibrated power meter and the power adjusted to read the same as the coupler port previously recorded, this is to account for any mismatch in impedance, which may occur at the dipole antenna. The conducted power at the antenna feed point was recorded. The forward power for the dipole was then determined and the ERP level was determined by adding the forward dipole power and the dipole gain in dB. For readings above 1GHz the above method is repeated using standard gain horn antennas.

CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 Rugged Handheld PC with RIM 902 Mobitex Radio Modem RADIATED TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 Rugged Handheld PC with RIM 902 Mobitex Radio Modem RADIATED TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 100200-25KBC 1955 Moss Court, Kelowna Dates of Tests: October 02-04, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. ITRONIX FeX21 FCC ID: KBCFEX21RIM902 Rugged Handheld PC with RIM 902 Mobitex Radio Modem RADIATED TEST SETUP PHOTOGRAPHS
