GoBook® Q•100 Help English Français Deutsch GoBook® Q•100 Help Controls Batteries Maintaining Your GoBook Q•100 Using Your GoBook Q•100 Safely CompactFlash Cards Peripherals ActiveSync Troubleshooting Legal Information Controls The GoBook Q•100 is equipped with a numeric keypad, cursor keys and a few special function keys. Other functions are available via the touch-screen. Backlight Stylus Entering Data Resetting Your GoBook Q•100 Backlight Press the FN key along with the left or right arrow keys to adjust the backlight. The backlight has four levels of brightness. It is on by default and turns off automatically after 3 minutes of inactivity. These settings may be adjusted in the GoBook Q•100's settings . When the display backlight turns on, the keypad backlight also turns on. It turns off whenever the display backlight turns off. See Also Stylus Entering Data Resetting Your GoBook Q•100 Using the Stylus The stylus is designed to be light-weight and comfortable to use, as well as being gentle on the touch screen. It is stored in a channel in the back of the terminal. To remove the stylus from the channel, press on its textured part and push it up and out. NOTE It is good practice to return the stylus to the holder when not in use. If you lose the stylus you may use your fingertips instead, but they are not as precise. CAUTION Do not use a ballpoint pen or sharp pointed object to operate the touch screen, as this can damage the screen. See Also Backlight Entering Data Resetting Your GoBook Q•100 Entering Data Use the keypad to enter numerical data. Use the cursor keys to move the cursor around the screen. If your GoBook Q•100 has a Yes key, it operates as an enter or return key in most cases, when the response is expected to be affirmative. The FN key has these functions: FN+Enter Enters Alpha Mode so you can use the keypad to enter text. Once in Alpha mode, hold down a key to cycle through the characters available. Release the key to choose a letter or number. For example, if you hold down the 5 key it will cycle through j, k, l, and 5. FN+Left / Right Arrow Toggles the backlight FN+Number When the number key is pushed repeatedly, it cycles through the Alpha mode characters available for that key. FN+Power Key When held for five seconds this performs a Soft Reset. FN+Power Key+Top Center Key When held for five seconds this performs a Hard Reset. CAUTION The Hard Reset is an emergency procedure only. Use the Soft Reset instead if possible. If you Hard Reset, you will lose the settings saved in the Pocket PC operating system as well as all data stored in RAM. You will have to recalibrate your terminal's touch screen and personal data when you restart. The FN key may also have different functions depending on the program in use. When a field appears requiring text entry, the virtual (soft) keyboard will pop up. This can then be operated with the stylus. For more information about entering data via the virtual keyboard or other input method see Entering Information See Also Use the soft keyboard Backlight Stylus Resetting Your GoBook Q•100 Resetting your GoBook Q•100 If your GoBook Q•100 locks up or fails to operate, you may need to reset it in one of two ways. Soft Reset Hold down both the Power and FN keys for about five seconds. After a few seconds the screen will blank and the GoBook Q•100 will perform a Soft Reset. The Soft Reset does not affect the Pocket PC operating system and no data loss will occur. Hard Reset Hold down the Power, FN and the center top number key simultaneously for about five seconds. This will perform a Hard Reset resulting in data loss. CAUTION The Hard Reset is an emergency procedure only. Use the Soft Reset instead if possible. If you Hard Reset, you will lose the settings saved in the Pocket PC operating system as well as all data stored in RAM. You will have to recalibrate your terminal's touch screen and personal data when you restart. See Also Backlight Stylus Entering Data Batteries Battery Information Checking the Batteries Battery Conservation Battery Charging Battery Replacement Battery Storage Battery Information The GoBook Q•100's primary battery is a rechargeable Lithium-Ion (Li-Ion) pack. DO NOT use other batteries. They may damage your GoBook Q•100. After inserting a new Li-Ion battery pack, charge it to 100% before use. This ensures that the battery pack's power gauge calculations will be correct. Frequent incomplete charges lead to progressively larger errors that only a full charge can fix. Charge on AC power at least 7 hours to ensure the internal backup battery is also fully charged; however it may take longer if the ambient temperature is extremely hot or cold. The internal backup battery retains data up to 48 hours if the main battery pack is fully discharged or removed. Its charge is automatically topped-off whenever the GoBook Q•100 is awake and on external or main battery power. To ensure data integrity, the main battery should always be kept charged and important data should be saved in non-volatile memory, such as on the CompactFlash card . Whenever possible, use the AC power adapter with the GoBook Q•100 to conserve the battery pack. The AC Adapter charges the battery pack and supplies a maintenance charge to the backup battery. Ideally, you should charge your battery pack at the end of every day. Proper charging practice keeps both batteries in good condition. If you do not intend to use your GoBook Q•100 for an extended period of time, back-up all important data in non-volatile memory, such as on a CompactFlash card. See Also Checking the Batteries Battery Conservation Battery Charging Battery Replacement Battery Storage Checking the Batteries To view battery information tap the Windows icon > Settings > System tab > Power icon. Main Battery Status The Main battery power bar shows its current charge status. High: the battery should not need charging in the next few hours. Low: charge or replace the battery within the next hour. Crit…

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com November 7, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX100AC555 FCC Part 22((H)/24(E) Certification Request for Confidentiality In accordance with 0.459 of CFR 47, Itronix Corporation hereby requests confidentiality of the Block Diagram, Schematic Diagram(s), Parts List, Tune-Up Procedure, Operational Description, and Antenna Specifications attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com December 24, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 SUBJECT: Itronix Corporation FCC ID: KBCIX100AC555 Part 24(E)/22(H) - Certification On behalf of Itronix Corporation is an application for Part 22(H)/24(E) Certification of Rugged Handheld PC Model: IX100 with internal Dual-Band CDMA Modem Card Model: AirCard 555/550 manufactured by Sierra Wireless Inc. (FCC ID: N7NACRD555, originally granted September 25, 2001). Model: IX100 Device Classification: PCS Licensed Transmitter (PCB) Device Type: Rugged Handheld PC with Dual-Band CDMA Modem Card (with Alpha-numeric and Numeric keypad types) Emission Designator: 1M25F9W Tx Frequency Range: 1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) Antenna Type: ¼ Wave Helix Battery Type(s): 7.4V Lithium-ion, 2.8Ah Max. Conducted Power Tested: 23.0 dBm (PCS CDMA) 23.0 dBm (Cellular CDMA) Max. RF Output Power Tested: 0.418 Watts EIRP (PCS CDMA) 0.263 Watts ERP (Cellular CDMA) Max. Body SAR Measured: 0.917 W/kg (PCS CDMA) 0.871 W/kg (Cellular CDMA) Attached is the applicant’s confidentiality request, Part 22(H)/24(E) EMC measurement report data and photographs, RF exposure SAR measurement report data & photographs, FCC ID label and location, internal and external device photographs, block diagram (confidential), schematic diagrams (confidential), operational description (confidential), parts list (confidential), tune-up procedure (confidential), antenna specifications (confidential), and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Itronix Corporation

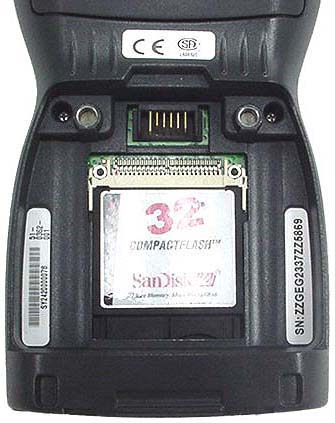

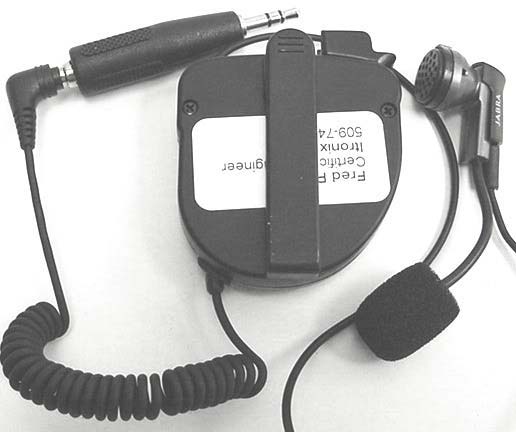

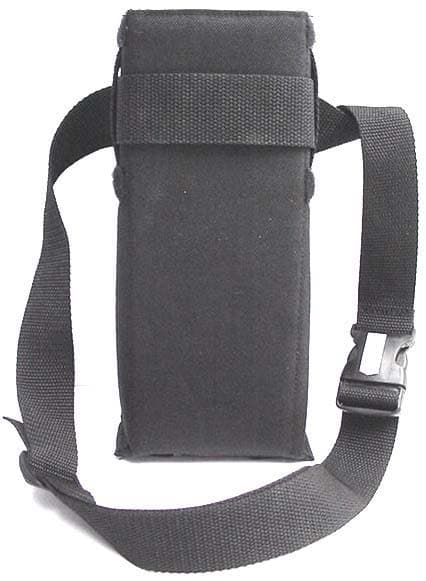

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Alpha-numeric Keypad Unit Numeric Keypad Unit © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Alpha-numeric Keypad Unit with Carry Case (P/N: 54-0644-001) & JABRA Ear-microphone Numeric Keypad Unit with Carry Case (P/N: 54-0644-001) & JABRA Ear-microphone © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Carry Case (P/N: 54-0644-001) Carry Case (P/N: 54-0644-001) Headset Model: JABRA Headset Model: JABRA

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem TRSN: 101403-438/439KBC LABELING REQUIREMENTS PER §2.925 The label shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 24(E) LABEL SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL FCC ID LABEL & LOCATION

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e001-2.JPG INTERNAL EUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e004-4. jpg INTERNAL EUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e006-6. jpg INTERNAL EUT PHOTOGRAPHS 08/03/2001 file://H:\Rosetta\docs\Re g ulator y %20A pp rovals\FCC\Part%2024\ p hotos\Ima g e010. jpg INTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS

© 2003 Celltech Labs Inc. 1 of 27 Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation Celltech Labs Inc. declares under its sole responsibility that this wireless portable device was compliant with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210-0179 Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (01-01) FCC Device Classification: PCS Licensed Transmitter (PCB) IC Device Classification: 2 GHz Personal Communication Services (RSS-133) 800MHz CDMA Cellular Transmitter (RSS-129 Issue 2) FCC ID: KBCIX100AC555 IC Certification No.: 1943A-IX100555 Model(s): IX100 Device Type: Rugged Handheld PC (Alpha-numeric & Numeric Keypad types) with Sierra Wireless AirCard 555/550 Dual-Band PCS/Cellular CDMA Modem Tx Frequency Range: 1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) Max. RF Output Power Tested: 23.0 dBm Conducted (PCS CDMA) 23.0 dBm Conducted (Cellular CDMA) Battery Type: 7.4V Lithium-ion, 2.8Ah Antenna Type: ¼ Wave Helix (Length: 54 mm) Body-Worn Accessories Tested: Nylon Carry Case (P/N: 54-0644-001) Ear-Microphone (Model: JABRA) Max. Body SAR Measured: 0.917 W/kg (PCS CDMA) 0.871 W/kg (Cellular CDMA) © 2003 Celltech Labs Inc. 2 of 27 Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION......................................................................3 2.0DESCRIPTION OF DUT............................................................. 3 3.0SAR MEASUREMENT SYSTEM ................................................ 4 4.0MEASUREMENT SUMMARY...................................................... 5-8 5.0DETAILS OF SAR EVALUATION............................................... 9-10 6.0EVALUATION PROCEDURES.................................................... 11 7.0SYSTEM PERFORMANCE CHECK............................................. 12 8.0SIMULATED TISSUES MIXTURES............................................. 13 9.0SAR LIMITS........................................................................... 13 10.0SYSTEM SPECIFICATIONS....................................................... 14 11.0PROBE SPECIFICATION.......................................................... 15 12.0SAM PHANTOM V4.0C.............................................................. 15 13.0PLANAR PHATNOM................................................................ 15 14.0DEVICE HOLDER..................................................................... 15 14.0TEST EQUIPMENT LIST............................................................ 16 15.0MEASUREMENT UNCERTAINTIES............................................. 17-18 16.0REFERENCES........................................................................19 APPENDIX A - SAR MEASUREMENT DATA............................................... 20 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................. 21 APPENDIX C - SYSTEM VALIDATION....................................................... 22 APPENDIX D - PROBE CALIBRATION...................................................... 23 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS.................. 24 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY................. 25 APPENDIX G - PLANAR PHANTOM CERTIFICATE OF CONFORMITY.......... 26 APPENDIX H - SAR TEST SETUP PHOTOGRAPHS.................................... 27 © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) 3 of 27 Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates that the ITRONIX CORPORATION Model: IX100 Rugged Handheld PC with Sierra Wireless AirCard 555/550 Dual-Band PCS/Cellular CDMA PCMCIA Modem Card FCC ID: KBCIX100AC555 complies with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the General Population environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [3]), and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. FCC Rule Part(s) 47 CFR §2.1093 IC Rule Part(s) RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC OE…

Text truncated - open the document above for the full version.

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) 20 of 27 Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation APPENDIX A - SAR MEASUREMENT DATA © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation Date Tested: 10/28/03 DUT: Itronix Model: IX100; Type: Handheld PC with AirCard 555/550 Dual-Band CDMA Modem; Serial: ZZGEG2337ZZ5869 Ambient Temp: 22.5°C; Fluid Temp: 21.3°C Barometric Pressure: 100.2 kPa; Humidity: 55% 7.4V Lithium-ion Battery Communication System: PCS CDMA RF Output Power: 23.0 dBm (Conducted) Frequency: 1880 MHz; Channel 600; Duty Cycle: 1:1 Medium: M1880 (ı = 1.57 mho/m, İ r = 52.4, ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(4.9, 4.9, 4.9); Calibrated: 26/02/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn353; Calibrated: 21/02/2003 - Phantom: Planar; Type: Barski Industries; Serial: 03-01 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 116 Numeric Keypad Unit - Right Side - Mid Channel - 0.5 cm Separation Distance/Area Scan (7x22x1): Measurement grid: dx=15mm, dy=15mm Numeric Keypad Unit - Right Side - Mid Channel - 0.5 cm Separation Distance/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.04 W/kg SAR(1 g) = 0.646 mW/g; SAR(10 g) = 0.388 mW/g Reference Value = 11.7 V/m © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation Date Tested: 10/28/03 DUT: Itronix Model: IX100; Type: Handheld PC with AirCard 555/550 Dual-Band CDMA Modem; Serial: CZGEG3106ZZ9295 Ambient Temp: 22.5°C; Fluid Temp: 21.3°C Barometric Pressure: 100.2 kPa; Humidity: 55% 7.4V Lithium-ion Battery Communication System: PCS CDMA RF Output Power: 23.0 dBm (Conducted) Frequency: 1880 MHz; Channel 600; Duty Cycle: 1:1 Medium: M1880 (ı = 1.57 mho/m, İ r = 52.4, ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(4.9, 4.9, 4.9); Calibrated: 26/02/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn353; Calibrated: 21/02/2003 - Phantom: Planar; Type: Barski Industries; Serial: 03-01 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 116 Alpha Numeric Keypad Unit - Right Side - Mid Channel - 0.5 cm Separation Distance/Area Scan (7x22x1): Measurement grid: dx=15mm, dy=15mm Alpha Numeric Keypad Unit - Right Side - Mid Channel - 0.5 cm Separation Distance/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.07 W/kg SAR(1 g) = 0.667 mW/g; SAR(10 g) = 0.399 mW/g Reference Value = 13.7 V/m © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation Date Tested: 10/28/03 DUT: Itronix Model: IX100; Type: Handheld PC with AirCard 555/550 Dual-Band CDMA Modem; Serial: ZZGEG2337ZZ5869 Ambient Temp: 22.5°C; Fluid Temp: 21.3°C Barometric Pressure: 100.2 kPa; Humidity: 55% 7.4V Lithium-ion Battery Communication System: PCS CDMA RF Output Power: 23.0 dBm (Conducted) Frequency: 1880 MHz; Channel 600; Duty Cycle: 1:1 Medium: M1880 (ı = 1.57 mho/m, İ r = 52.4, ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(4.9, 4.9, 4.9); Calibrated: 26/02/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn353; Calibrated: 21/02/2003 - Phantom: Planar; Type: Barski Industries; Serial: 03-01 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 116 Numeric Keypad Unit- Back Side - Mid Channel/Area Scan (9x22x1): Measurement grid: dx=15mm, dy=15mm Numeric Keypad Unit- Back Side - Mid Channel/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.608 W/kg SAR(1 g) = 0.375 mW/g; SAR(10 g) = 0.211 mW/g Reference Value = 7.26 V/m Numeric Keypad Unit- Back Side - Mid Channel/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.474 W/kg SAR(1 g) = 0.320 mW/g; SAR(10 g) = 0.205 mW/g Reference Value = 7.26 V/m 0.0 cm Separation Distance to Planar Phantom © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation Date Tested: 10/28/03 DUT: Itronix Model IX100; Type: Handheld PC with AirCard 555/550 Dual-Band CDMA Modem; Serial: CZGEG3106ZZ9295 Ambient Temp: 22.5°C; Fluid Temp: 21.3°C Barometric Pressure: 100.2 kPa; Humidity: 55% 7.4V Lithium-ion Battery Communication System: PCS CDMA RF Output Power: 23.0 dBm (Conducted) Frequency: 1880 MHz; Channel 600; Duty Cycle: 1:1 Medium: M1880 (ı = 1.57 mho/m, İ r = 52.4, ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(4.9, 4.9, 4.9); Calibrated: 26/02/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn353; Calibrated: 21/02/2003 - Phantom: Planar; Type: Barski Industries; Serial: 03-01 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 116 Alpha Numeric Keypad Unit - Back Side - Mid Channel/Area Scan (9x22x1): Measurement grid: dx=15mm, dy=15mm Alpha Numeric Keypad Unit - Back Side - Mid Channel/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.571 W/kg SAR(1 g) = 0.384 mW/g; SAR(10 g) = 0.244 mW/g Reference Value = 7.31 V/m Alpha Numeric Keypad Unit - Back Side - Mid Channel/Zoom Scan (7x7x7)/Cube 1: Measure…

Text truncated - open the document above for the full version.

© 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) 27 of 27 Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation APPENDIX H - SAR TEST SETUP PHOTOGRAPHS © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS 0.5 cm Separation Distance from Right Side of Handheld PC to Planar Phantom 0.5 cm © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS 0.0 cm Separation Distance from Back of Handheld PC to Planar Phantom © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS 0.0 cm Separation Distance from Right Side of Carry Case to Planar Phantom with Nylon Carry Case & Ear-Microphone Accessories Right Side of Handheld PC facing Planar Phantom Handheld PC Keypad Side Facing Front of Carry Case © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS 0.0 cm Separation Distance from Front Side of Carry Case to Planar Phantom with Nylon Carry Case & Ear-Microphone Accessories DUT Keypad Side Facing Front of Carry Case © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS 0.0 cm Separation Distance from Left Side of Carry Case to Planar Phantom with Nylon Carry Case & Ear-Microphone Accessories Right Side of Handheld PC facing Planar Phantom DUT Keypad Side Facing Back of Carry-Case © 2003 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100AC555 (Model: IX100) Rugged Handheld PC with AirCard 555/550 Dual-Band CDMA Modem Test Report S/N: 101403-439KBC Test Date(s): October 28-31, 2003 Test Type: FCC/IC SAR Evaluation BODY SAR TEST SETUP PHOTOGRAPHS 0.0 cm Separation Distance from Front Side of Carry Case to Planar Phantom with Nylon Carry Case & Ear-Microphone Accessories Back Side of Handheld PC Facing Front Side of Carry-Case

© 2003 Celltech Labs Inc. 1 of 17 Test Report S/N: 101403-438KBC Test Date(s): November 03-07, 2003 Test Type: FCC Part 22 & 24 EMC Measurements This wireless portable device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR §24(E), §22(H), §2; IC RSS-133 Issue 2, RSS-129 Issue 2; and ANSI TIA/EIA-603-A-2001. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE FCC PART 24(E) & 22(H) EMC MEASUREMENTS Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210-0179 FCC Rule Part(s): 47 CFR §24(E), §22(H), §2 IC Rule Part(s): RSS-133 Issue 2, RSS-129 Issue 2 Test Procedure(s): FCC 47 CFR §24(E), §22(H), §2; ANSI TIA/EIA-603-A-2001 FCC Device Classification: PCS Licensed Transmitter (PCB) IC Device Classification: 2GHz Personal Communication Services (RSS-133 Issue 2) 800MHz CDMA Cellular Transmitter (RSS-129 Issue 2) Device Type: Rugged Handheld PC (Alpha-numeric & Numeric Keypad types) with Sierra Wireless AirCard 555/550 Dual-Band PCS/Cellular CDMA Modem FCC ID: KBCIX100AC555 IC Certification No.: 1943A-IX100555 Model(s): IX100 Tx Frequency Range: 1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) Max. RF Output Power: 0.418 Watts EIRP (PCS CDMA) 0.263 Watts ERP (Cellular CDMA) Max. Conducted Power Tested: 23.0 dBm (PCS CDMA) 23.0 dBm (Cellular CDMA) Emission Designator(s): 1M25F9W Frequency Tolerance(s): 150 Hz (PCS CDMA) 300 Hz (Cellular CDMA) Battery Type: 7.4V Lithium-ion, 2.8Ah Antenna Type: ¼ Wave Helix (Length: 54 mm) Keypad Type(s): Alpha-numeric & Numeric ©…
