KBCIX100XUSIWLBTRUGGED HANDHELD PC WITH 802.11B & BLUETOOTH

Handheld Computer Help English Fran çais Deutsch Spanish Handheld Computer Help Controls Batteries Maintaining Your Computer Using Your Computer Safely CompactFlash Cards Peripherals ActiveSync Troubleshooting Index Legal Information Controls The handheld computer is equipped with a 52-key alphanumeric keypad including cursor keys and a few special function keys. Other functions are available via the touch screen. Backlight Function Keys Stylus Entering Data Resetting Your Computer Backlight Press the Blue Function key along with the large Yellow backlight key in the upper-right corner of the keypad to turn the backlight on or off. To adjust brightness press and hold the Orange Function key near the upper-left corner of the keypad; then push the lowercase o key to increase brightness or press the 7 key to decrease brightness. The backlight is on by default and turns off automatically after 1 minute of inactivity when on battery power. These settings may be adjusted in the computer's display settings. When the display backlight turns on, the keypad backlight also turns on. It turns off whenever the display backlight turns off. See Also Stylus Function Keys Entering Data Resettin g Your Computer Page 1 of 17Handheld Computer Help 05/05/2004file://C:\Documents%20and%20Settings\jonathan\Local%20Settings\Temp\Handheld%2... Function Keys The FN keys have many functions. The most commonly used functions are: z Orange FN + Power: When held for five seconds this performs a Soft Reset. z Orange FN + Blue FN + Power: When held for five seconds this performs a Hard Reset. CAUTION The Hard Reset is an emergency procedure only. Use the Soft Reset instead if possible. If you Hard Reset, you will lose the settings saved in the operating system as well as all data stored in RAM. You will have to recalibrate your touch screen and personal data when you restart. z Blue FN + Yellow Backlight: Toggles the backlight The FN keys may also have different functions depending on the program in use. Below is a list of key combination functions associated with the Orange and Blue function keys: Key Orange FN Blue FN A| B~BREAK D: E# F; G"< H`> I*INS J'/ K. L? N` O( P) PAUSE Q! R$PRINT SCREEN S\SCROLL LOCK T%= U& Venter Volume Control W@{ X} Y^[ Z] 1F1F11 Page 2 of 17Handheld Computer Help 05/05/2004file://C:\Documents%20and%20Settings\jonathan\Local%20Settings\Temp\Handheld%2... See your Getting Started Guide for a complete list of key functions See Also Stylus Entering Data Resetting Your Computer Using the Stylus The stylus is designed to be light-weight and comfortable to use, as well as being gentle on the touch screen. It is stored in a channel in the back of the terminal. To remove the stylus from the channel, press on its textured part and push it up and out. NOTE It is good practice to return the stylus to the holder when not in use. If you lose the stylus, you may use your fingertips instead, but they are not as precise. CAUTION Do not use a ballpoint pen or sharp pointed object to operate the touch screen, as this can damage the screen. See Also Backlight Function Keys Entering Data Resetting Your Computer 2F2F12 3F3F13 4F4F14 5F5F15 6F6F16 7F7F17 8F8F18 9F9F19 0F10F20 TabBKTAB SpcBkSp- right Yellow Right ScanBacklight left YellowLeft Scan Up ArrowPgUp Down ArrowPgDn Right ArrowEndStart Left ArrowHome AltenterEsc Page 3 of 17Handheld Computer Help 05/05/2004file://C:\Documents%20and%20Settings\jonathan\Local%20Settings\Temp\Handheld%2... Entering Data Use the keypad or input panel to enter alpha and numerical data. Use the cursor keys or your stylus to move the cursor around the screen. Use Function Keys for special characters and functions. When a field appears requiring text entry, the input panel (soft keyboard) will pop up. This can then be operated with the stylus. To change input panel settings, see Input Panel. See Also Function Keys Backlight Stylus Resetting Your Computer Resetting your Handheld Computer If your handheld computer locks up or fails to operate, you may need to reset it in one of two ways. z Soft Reset: Hold down both the Power and Orange FN keys for about five seconds. The screen will dim and the handheld computer will perform a Soft Reset. The Soft Reset does not affect the operating system and no data loss occurs. z Hard Reset: Hold down the Power , Orange FN , and Blue FN keys simultaneously for about ten seconds. This will perform a Hard Reset, resulting in data loss. CAUTION The Hard Reset is an emergency procedure only. Use the Soft Reset instead if possible. If you Hard Reset, you will lose the settings saved in the operating system as well as all data stored in RAM. You will have to recalibrate your touch screen and reenter your personal data when you restart. See Also Backlight Stylus Function Keys Entering Data Batteries Battery Information Checking the Batteries Battery Conservation Battery Charging Battery Replacement Battery Safety Battery Storage Page 4 of 17Handheld Computer Help 05/05/2004file://C:\Documents%20and%20Settings\jonathan\Local%20Settings\Temp\Handheld%2... Battery Information The computer's primary battery is a rechargeable Lithium-Ion (Li-Ion) pack. DO NOT use other batteries. They may damage your handheld computer. After inserting a new Li-Ion battery pack, charge it to 100% before use. This ensures that the battery pack's power gauge calculations will be correct. Frequent incomplete charges lead to progressively larger errors that only a full charge can fix. Charge on AC power at least 7 hours to ensure the internal backup battery is also fully charged; however it may take longer if the ambient temperature is extremely hot or cold. The internal backup battery retains data up to 48 hours if the main battery pack is fully discharged or removed. Its charge is automatically topped-off whenever the handheld computer is awake and on external or main battery power. To ensure data integrity, the main battery should always be kept charged and important data sh…

Text truncated - open the document above for the full version.

801 S. STEVENS STREET SPOKANE, WA 99204 509.624.6600 800.441.1309 FAX 509.626.4203 www.itronix.com May 31, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Itronix Corporation FCC ID: KBCIX100XUSIWLBT FCC Part 15.247 Certification Request for Confidentiality In accordance with 0.457 and 0.459 of CFR 47, Itronix Corporation hereby requests confidentiality of the Block Diagram and Schematic Diagram exhibits for the subject application. These documents contain detailed system and equipment description and related information about the product in which Itronix Corporation considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Itronix Corporation considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

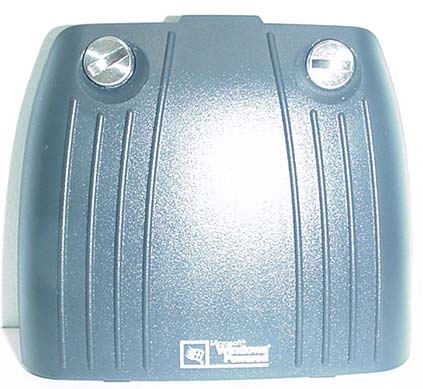

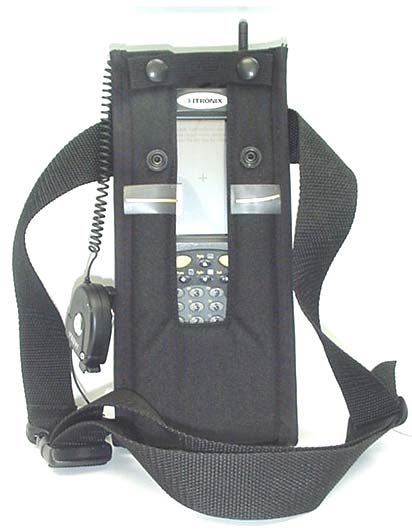

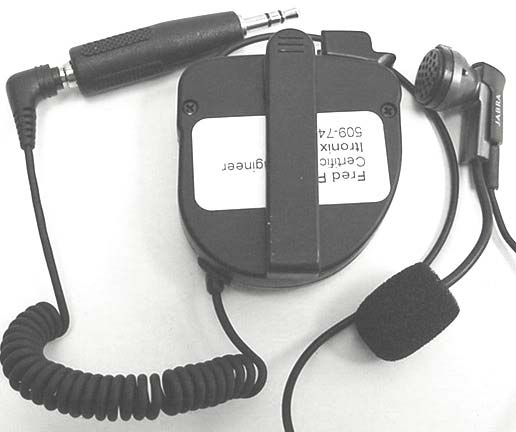

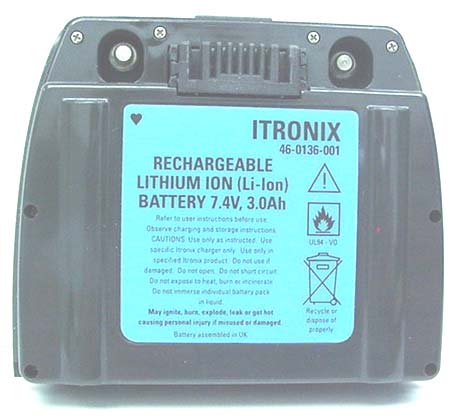

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Front of DUT 802.11b Antenna Location Bluetooth Antenna Location © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation Back of DUT EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation Bottom of DUT Left Side of DUT Right Side of DUT EXTERNAL DUT PHOTOGRAPHS Top of DUT © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Battery Compartment Li-ion Battery Li-ion Battery © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS DUT with Nylon Carry Case (P/N: 54-0644-001) & Ear-Microphone (Model: JABRA) © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation EXTERNAL DUT PHOTOGRAPHS Carry Case (P/N: 54-0644-001) Carry Case (P/N: 54-0644-001) Headset Model: JABRA Headset Model: JABRA

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth TRSN: 021104-470aKBC LABELING REQUIREMENTS PER §2.925 The label shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 15(C) FCC ID LABEL SEE NEXT PAGE(S) FOR PART 15(B) FCC DoC LABEL FCC ID LABEL & LOCATION

© 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS REPORT NO. : F430602 SPORTON International Inc. PAGE NUMBER : A1OFA6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 16, 2004 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT REPORT NO. : F430602 SPORTON International Inc. PAGE NUMBER : A2OFA6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 16, 2004 FAX : 886-2-2696-2255 © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS 802.11b Antenna Location Bluetooth Antenna Location © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation INTERNAL DUT PHOTOGRAPHS

Model: WM-BB-AG-01 Description of Operation EUT is a WLAN with 11 channels and Bluetooth with 79 channels. This device provided of transmitting speed 1,2,5.5,11 Mbps for WLAN and 1 Mbps for Bluetooth. The device adapts Direct Sequence Spread Spectrum (DSSS) for WLAN and Frequency Hopping Spread Spectrum modulation ( FHSS ) for Bluetooth. An embedded system can become WLAN and Bluetooth enabled by inserting the WLAN and Bluetooth RF module that interfaces to the embedded processor CompactFlash interface . The antenna is printed Antenna, With embedded system becoming WLAN and Bluetooth-enable by the modules, many wireless applications will become possible, such as: Communicate with each other wirelessly (between embedded systems, laptops, PCs, and others), including sharing or exchanges of data.

© 2004 Celltech Labs Inc. 1 of 22 Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc.. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information ITRONIX CORPORATION 801 South Stevens Street Spokane, WA 99210-0179 USA Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) FCC Device Classification: Digital Transmission System (DTS) IC Device Classification: Low Power License-Exempt Radiocommunication Device FCC IDENTIFIER: KBCIX100XUSIWLBT Model(s): IX100x Device Type: Rugged Handheld PC with 802.11b & Bluetooth Internal Transmitter(s): USI WM-BB-AG-01 802.11b / Bluetooth Combo Module Mode(s) of Operation: DSSS (Direct Sequence Spread Spectrum) - 802.11b FHSS (Frequency Hopping Spread Spectrum) - Bluetooth Tx Frequency Range(s): 2412 - 2462 MHz (802.11b) 2402 - 2480 MHz (Bluetooth) Max. RF Output Power Tested: 14.0 dBm - Peak Conducted (802.11b) Antenna Type(s) Tested: Internal - Front Center above LCD Display (802.11b) Battery Type(s) Tested: Lithium-ion 7.4 V, 3.0 Ah (P/N: 46-0136-001) Body-worn Accessories Tested: Nylon Carry Case (P/N: 54-0644-001) Ear-Microphone (Model: JABRA) Max. SAR Level Measured: 0.054 W/kg (1g average) © 2004 Celltech Labs Inc. 2 of 22 Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION......................................................................3 2.0DESCRIPTION OF DUT.............................................................. 3 3.0SAR MEASUREMENT SYSTEM.................................................. 4 4.0MEASUREMENT SUMMARY...................................................... 5 5.0DETAILS OF SAR EVALUATION................................................. 6 6.0EVALUATION PROCEDURES..................................................... 6 7.0SYSTEM PERFORMANCE CHECK.............................................. 7 8.0SIMULATED EQUIVALENT TISSUES.......................................... 8 9.0SAR SAFETY LIMITS................................................................ 8 10.0ROBOT SYSTEM SPECIFICATIONS........................................... 9 11.0PROBE SPECIFICATION........................................................... 10 12.0SAM PHANTOM V4.0C.............................................................. 10 13.0PLANAR PHANTOM................................................................. 10 14.0DEVICE HOLDER..................................................................... 10 15.0TEST EQUIPMENT LIST............................................................ 11 16.0MEASUREMENT UNCERTAINTIES............................................. 12-13 17.0REFERENCES.........................................................................14 APPENDIX A - SAR MEASUREMENT DATA............................................. 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 16 APPENDIX C - SYSTEM VALIDATION..................................................... 17 APPENDIX D - PROBE CALIBRATION.................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................. 19 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY............... 20 APPENDIX G - PLANAR PHANTOM CERTIFICATE OF CONFORMITY........ 21 APPENDIX H - SAR TEST SETUP PHOTOGRAPHS................................... 22 © 2004 Celltech Labs Inc. ITRONIX CORPORATION FCC ID: KBCIX100XUSIWLBT 3 of 22 IX100x Rugged Handheld PC with internal 802.11b & Bluetooth Test Report S/N: 021104-470BKBC Test Date(s): May 31, 2004 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates that the ITRONIX CORPORATION Model: IX100x Rugged Handheld PC FCC ID: KBCIX100XUSIWLBT with internal 802.11b & Bluetooth transmitter complies with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada Safety Code 6 (see reference [2]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. FCC Rule Part(s) 47 CFR §2.1093 IC Rule Part(s) IC RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC…

Text truncated - open the document above for the full version.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ITRONIX FCC ID: KBCIX100XUSIWLBT REPORT #: I\ITRONIX\423AUT4\423AUT4TestReport.doc COVER PAGE Test Report Product Name: WLAN AND BLUE TOOTH FCC ID: KBCIX100XUSIWLBT Applicant: ITRONIX P.O. BOX 179 SPOKANE WASHINGTON 99210 Date Receipt: MARCH 26, 2004 Date Tested: APRIL 15, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ITRONIX FCC ID: KBCIX100XUSIWLBT REPORT #: I\ITRONIX\423AUT4\423AUT4TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1.............LETTER OF EXPLANATION PAGE 2.............LIST OF TEST EQUIPMENT PAGE 3.............TEST PROCEDURES DSSS EMISSIONS PAGE 4.............POWERLINE CONDUCTED INTERFERENCE PAGE 5.............OCCUPIED BANDWIDTH AND POWER OUTPUT PAGE 6.............6 dB BANDWIDTH PLOT PAGE 7.............SPURIOUS EMISSIONS AT ANTENNA TERMINALS DATA & METHOD OF MEASURING RF CONDUCTED PAGE 8.............RADIATION INTERFERENCE TEST DATA PAGE 9.............METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 10-12.........RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BANDS PAGE 13............POWER SPECTRAL DENSITY PAGE 14............POWER SPECTRAL DENSITY PLOT FHSS EMISSIONS PAGE 15............COVER PAGE FOR FHSS PAGE 16............POWERLINE CONDUCTED INTERFERENCE PAGE 17............NUMBER OF HOPPING CHANNELS PAGE 18............DWELL TIME PAGE 19............OCCUPIED BANDWIDTH PAGE 20............POWER OUTPUT PAGE 21............SPURIOUS EMISSIONS AT ANTENNA TERMINALS & METHOD OF MEASURING COND. SPURIOUS EMISSIONS PAGE 22............FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 23............METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS EXHIBITS INCLUDED: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATICS USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ITRONIX FCC ID: KBCIX100XUSIWLBT REPORT #: I\ITRONIX\423AUT4\423AUT4TestReport.doc Page 1 of 23 APRIL 15, 2004 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: ITRONIX FCC ID: KBCIX100XUSIWLBT To Whom It May Concern: The attached application is for a hand held computing device that employs both wireless lan (802.11) and a blue tooth device. The unit employs internal antennas. One for blue tooth and a separate antenna for the wireless lan. The wireless lan antenna has a gain of –4 dBi and the blue tooth antenna has a gain of +2.4 dBi. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Mario R. de Aranzeta C.E.T. MRD/sh Encl. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ITRONIX FCC ID: KBCIX100XUSIWLBT REPORT #: I\ITRONIX\423AUT4\423AUT4TestReport.doc Page 2 of 23 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Double-Ridged Horn Antenna Electro- Metrics RGA-180 2319 CAL 2/17/03 2/17/05 LISN Electro- Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log-Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 Log-Periodic Antenna Electro- Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro- Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro- Metrics LPA-30 409 CAL 3/4/03 3/4/05 Peak Power Meter HP 8900C 2131A00545 CAL 7/2/03 7/2/05 Power Meter HP 432A 1141A07655 CAL 4/15/03 4/15/05 Silver Tower Preamplifier HP 8449B 3008A01075 CHAR 1/28/02 1/28/04 Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/14/02 10/14/04 Silver Tower RF Preselector HP 85685A 2620A00294 CAL 10/14/02 10/14/04 Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/14/02 10/14/04 Tan Tower Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 8/31/01 8/31/03 Tan Tower RF Preselector HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 Harmonic Mixer HP 11970K 3003A04991 N/A N/A HORN SYSTRON DONNOR DBE-520-20 N/A N/A N/A TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ITRONIX FCC ID: KBCIX100XUSIWLBT REPORT #: I\ITRONIX\423AUT4\423AUT4TestReport.doc Page 3 of 23 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STANDARD C63.4- 1992 using a 50uH LISN. Both lines were observed with the UUT transmitting. The bandwidth of the spectrum analyzer was 10kHz with an appropriate sweep speed. The ambient temperature of the UUT was 76°F with a humidity of 55%. BANDWIDTH 6.0dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW)=1.0MHz and the video bandwidth (VBW) =3.0MHz and the span set as shown on plot. POWER OUTPUT: The RF power output was measured at the antenna feed point using a peak power meter. ANTENNA CONDUCTED EMISSIONS: The RBW=100 kHz, VBW=300 kHz and the span set to 10.0MHz and the spectrum was scanned from 30MHz to the 10 th Harmonic of the fundamental. Above 1.0GHz the resolution bandwidth was 1.0MHz and the VBW = 3.0MHz and the span to 50MH…

Text truncated - open the document above for the full version.

LINE-CONDUCTED EMISSIONS TEST SETUP PHOTOGRAPH RADIATED EMISSIONS TEST SETUP PHOTOGRAPH
