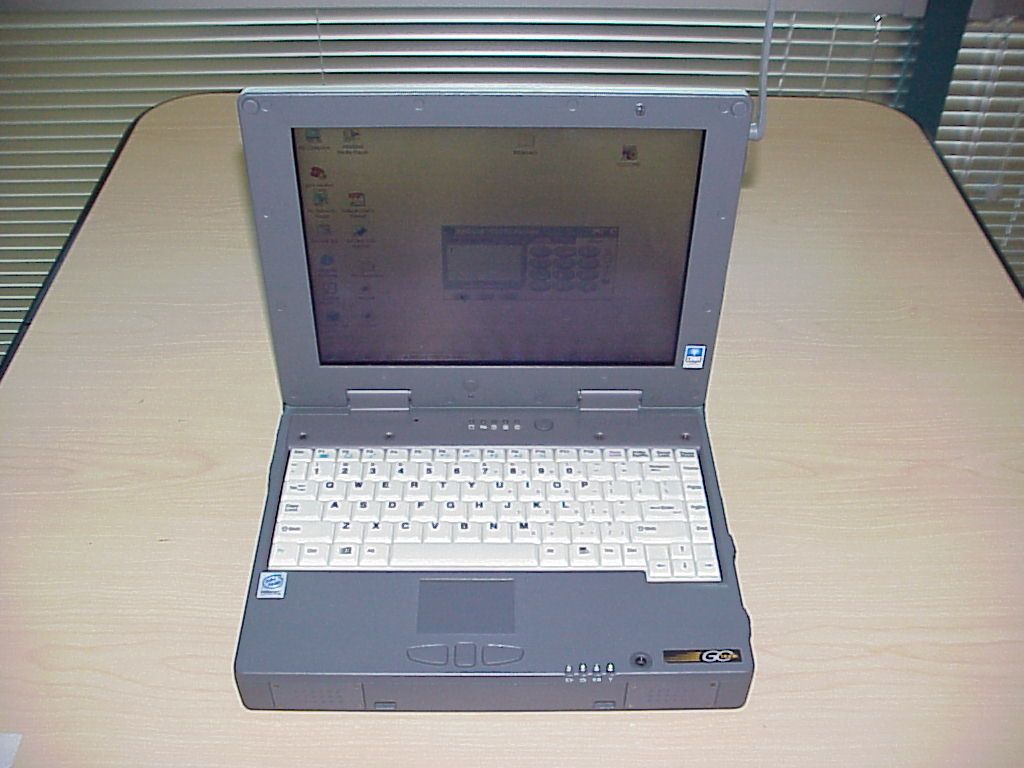

Page 1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com Statement The Itronix GoBook (IX250) is a ruggedized laptop with a built in AC750 GSM /GPRS PCMCIA card. The card is not accessible for the user and connected to an external antenna. This antenna guarantees due to the structure more than 20 cm distance to the user. The laptop comes with a special cradle for the use in vehicles. In this case the built in switch, switches automatically the antenna to an external car antenna. Lothar Schmidt Technical Manager

RX-IQ RF PLL PCS1900 LNA Vector Demodulator Control Interface RX TX PLL RF SAW Filter X2 Zero-IF Receiver Baseband DSP Controller RX= 1930~1990MHz RF= 1930~1990MHz LO= 965~995MHz LPF IF=0MHz TX-IQ PFDCP RF sampling path VCO1900 Power Amp APC Directional Coupler Power Detector Antenna Switch TX= 1850~1910MHz 1850~1910MHz 1/D1 1/D2 X2 Vector Modulator 975~1005MHz 1950~2010MHz 1850~1910MHz ~100MHz ~100MHz AirCard750 GPRS1900 Section Block Diagram

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 August 10, 2002 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Itronix corporation requests confidentiality for the following products: FCC ID Number Product Title/Model KBCIX250AC750 Go Book (IX250) For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Tune up procedure 3) BOM 4) Operational description No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Itronix corporation trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lothar Schmidt Technical Manager Cetecom Inc.

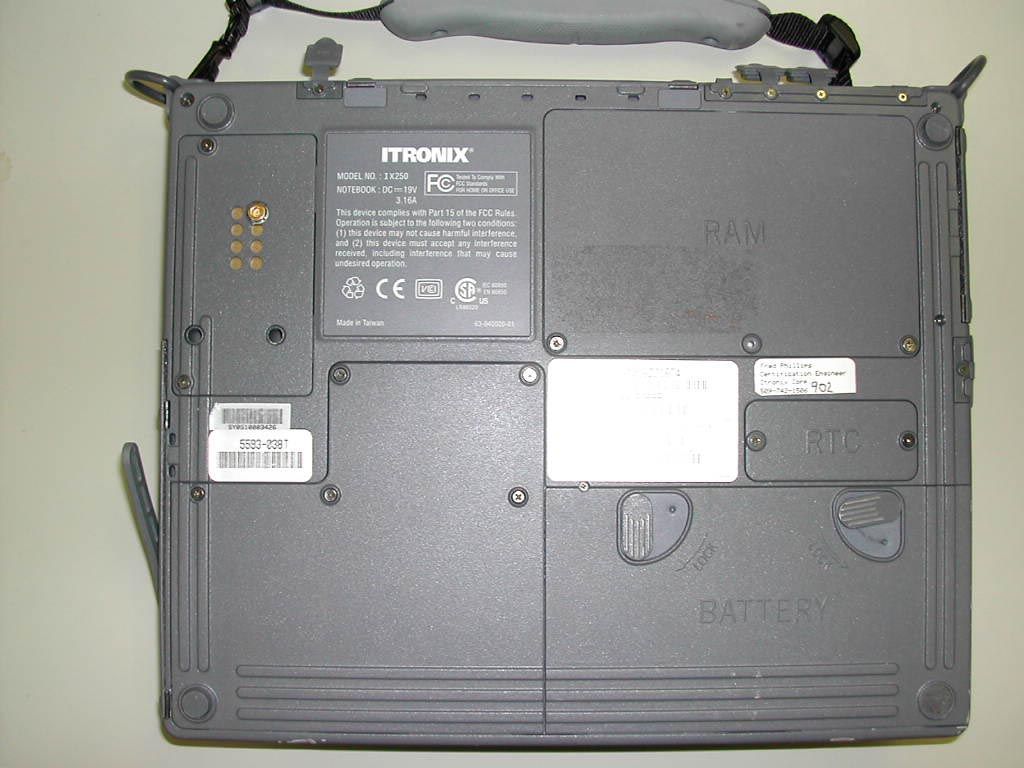

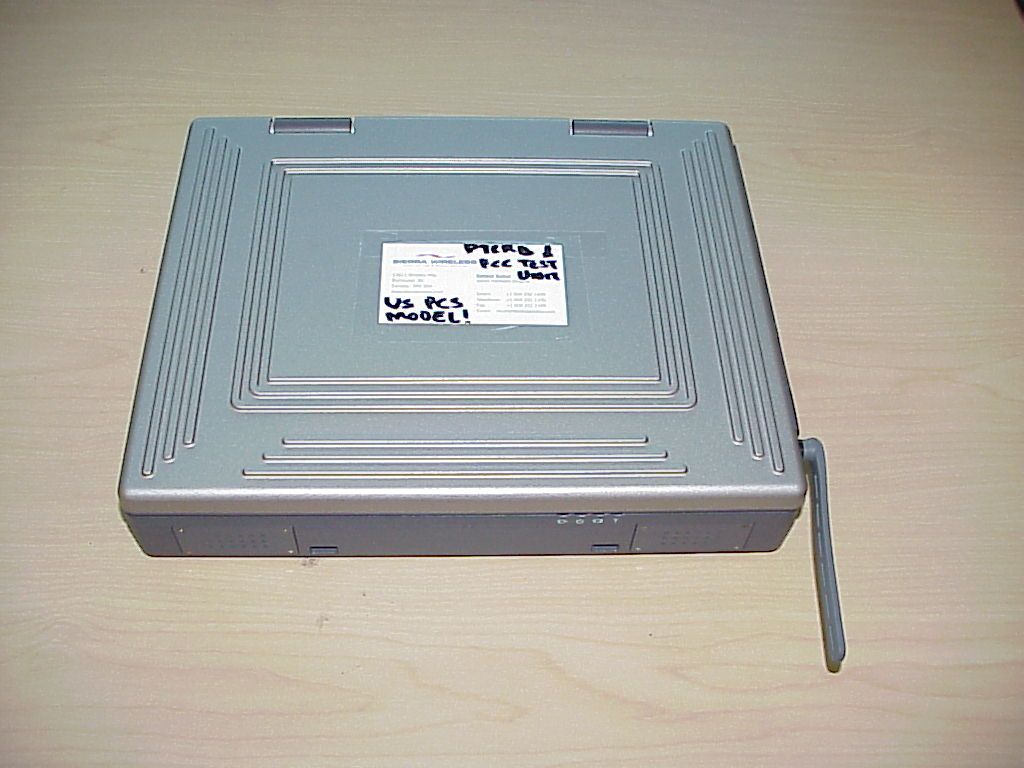

Label location

Distance antenna-to p 23 cm Distance antenna- la p ( bottom ) 25 cm

CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention: Reviewing Engineer The Itronix Corporation Laptop is a ruggedized Laptop with a built in GSM card Due to the construction and the position of the antenna a distance under normal operating conditions of more than 20 cm is guaranteed. Additionally the user manual This information includes the following: A minimum separation distance of 20 cm must be maintained between the antenna and the person for this device to satisfy the RF exposure requirements of the FCC. The maximum output power of the Burst 1820 mW (32.6 dBm). Regarding MPE limits, GPUC environment limits maximum exposure to 1 mW/cm 2. The power density is: S = E 2 /3770=-13 H 2 = limit < 1 mW/cm 2 Where: S = Power density (mW/cm 2) E = electrical field strength (V/m) This formula converted using the EIRP is P out *G/4π*r 2 mW/cm 2 1820/4π*100 = 1.449 mW/cm 2 Further, the device uses the GSM protocol, which is a TDD format ratio of 1/8 in GSM mode and 4/8 in GPRS mode. Thus the 1.449 mWatts/ cm 2 is further reduced by this ratio or it is equivalent to 0.7245 mW/cm 2 for GPRS mode in 10 cm distance. In GSM mode this reduces to 0.1811 mW/cm 2 Calculations are based on standard formula for calculating field strength at a distance and converting power density using free space impedance. If you should have any questions regarding this submission, please feel free to contact the undersigned. Yours truly, Lothar Schmidt Technical Manager EMC/Radio CETECOM Inc.

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecom.com Issued test report consists of 55 Pages Page 1 (55) Test report no.: 301FCC24/2002 FCC Part 24 / RSS 133 (GoBook) FCC LISTED, REG. NO.: 101450 & RECOGNIZED BY INDUSTRY CANADA IC – 3925 CETECOM Inc. Test report no.: 301FCC24/2002 Issue date: 2002-06-28 Page 2 (55) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Mark Sechrist 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: 301FCC24/2002 Issue date: 2002-06-28 Page 3 (55) 1.3 Details of applicant Name : Itronix Corporation Street : 804 South Stevens St. City : Spokane, WA 99204 Country : U.S.A. Contact : Mr. Richard Sargent Telephone : (509) 742-1253 Tele-fax : (509) 742-1672 e-mail : [email protected] 1.4 Application details Date of receipt of application : 6/23/02 Date of receipt test item : 01/08/01 and 6/23/02 Date of test : 11/08/01 – 11/09/01, 2/05/02, 6/24/02 1.5 Test item Manufacturer : Itronix Corporation Model No : IX250 (GoBook) Description : Ruggedized laptop computer with built in SierraWireless Aircard 750 Serial No. : ZZGE2073ZZ3030 Additional information Frequency : GSM 900/1800/1900 Type of modulation : GMSK Number of channels : 299 (in PCS 1900) Antenna : Whip, monopole Power supply : 5.0 volt DC Output power : 1.8 Watt Extreme vol. Limits : 4.5 VDC – 5.5 VDC Extreme temp. Tolerance : -10 to +50 celsius 1.6 Test standards FCC Part 24 / RSS133 r1 CETECOM Inc. Test report no.: 301FCC24/2002 Issue date: 2002-06-28 Page 4 (55) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 06/28/02 EMC & Radio Lothar Schmidt Date Section Name Signature CETECOM Inc. Test report no.: 301FCC24/2002 Issue date: 2002-06-28 Page 5 (55) 2.2 Test report TEST REPORT Test report no.: 301FCC24/2002 (GoBook) CETECOM Inc. Test report no.: 301FCC24/2002 Issue date: 2002-06-28 Page 6 (55) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT SUBCLAUSE § 24.232 7 OCCUPIED BANDWIDTH SUBCLAUSE § 2.989 12 FREQUENCY STABILITY SUBCLAUSE § 24.235 19 EMISSION LIMITS SUBCLAUSE § 24.238 21 RECEIVER RADIATED EMISSIONS SUBCLAUSE § 15.209 41 CONDUCTED SPURIOUS EMISSIONS SUBCLAUSE § 24.238 46 AC LINE CODUCTED EMISSIONS SUBCLAUSE § 15.107/207 53 TEST EQUIPMENT LISTING 55 BLOCK DIAGRAMS 56 CETECOM Inc. Test report no.: 301FCC24/2002 Issue date: 2002-06-28 Page 7 (55) POWER OUTPUT SUBCLAUSE § 24.232 Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Digital Radio Communication tester (CMD-55) to ensure max. power transmission and proper modulation. This paragraph contains both average, peak output powers and EIRP measurements for the EUT. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The EUT was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer FSEM 30 ( peak and average) This measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 +30
2 Power Measurements: Conducted: Frequency (MHz) Power Step Peak Output Power (dBm) Average Output Power (dBm) 1850.2 0 28.57 25.1 1880.0 0 28.14 24.8 1909.8 0 28.56 24.8 Measurement uncertainty

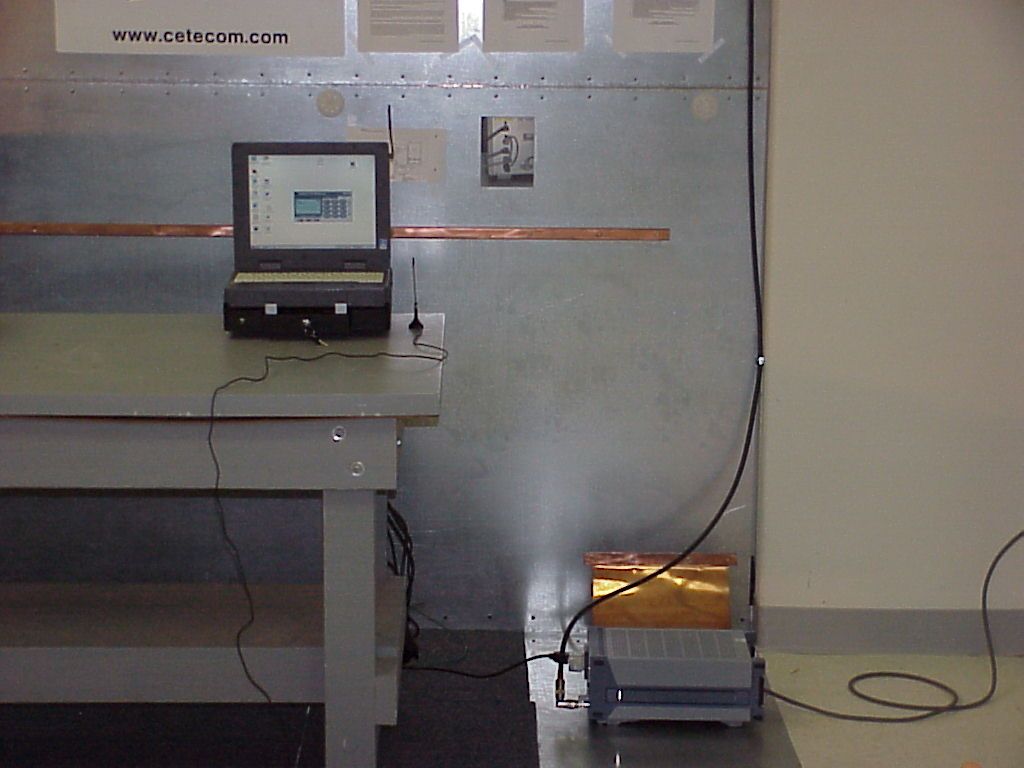

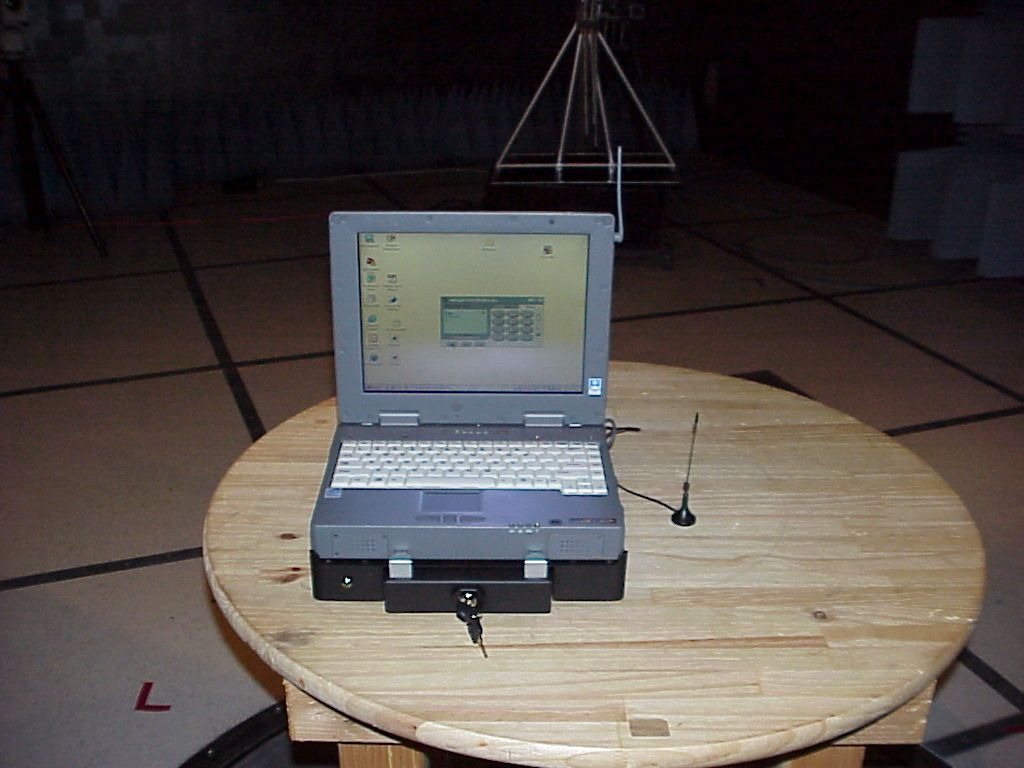

0.5 dB ANALYZER SETTINGS: RBW = 3MHz VBW = 3MHz CETECOM Inc. Test report no.: 301FCC24/2002 Issue date: 2002-06-28 Page 8 (55) EIRP Measurements Description: This is the test for the maximum radiated power from the EUT. Rule Part 24.232(b) specifies that "Mobile/portable stations are limited to 2 watts e.i.r.p. peak power" and 24.232(c) specifies that "Peak transmit power must be measured over any interval of continuous transmission using instrumentation calibrated in terms of an rms-equivalent voltage." Method of Measurement: 1. In an anechoic antenna test chamber, a half-wave dipole antenna for the frequency band of interest is placed at the reference centre of the chamber. An RF Signal source for the frequency band of interest is connected to the dipole with a cable that has been constructed to not interfere with the radiation pattern of the antenna. A known (measured) power (Pin) is applied to the input of the dipole, and the power received (Pr) at the chamber's probe antenna is recorded. 2. A "reference path loss" is established as Pin + 2.1 - Pr. 3. The EUT is substituted for the dipole at the reference centre of the chamber. The EUT is put into CW test mode and a scan is performed to obtain the radiation pattern. 4. From the radiation pattern, the co-ordinates where the maximum antenna gain occurs is identified. 5. The EUT is then put into pulse mode at its maximum power level (Power Step 0). 6. "Gated mode" power measurements are performed with the receiving an…
